Product Overview

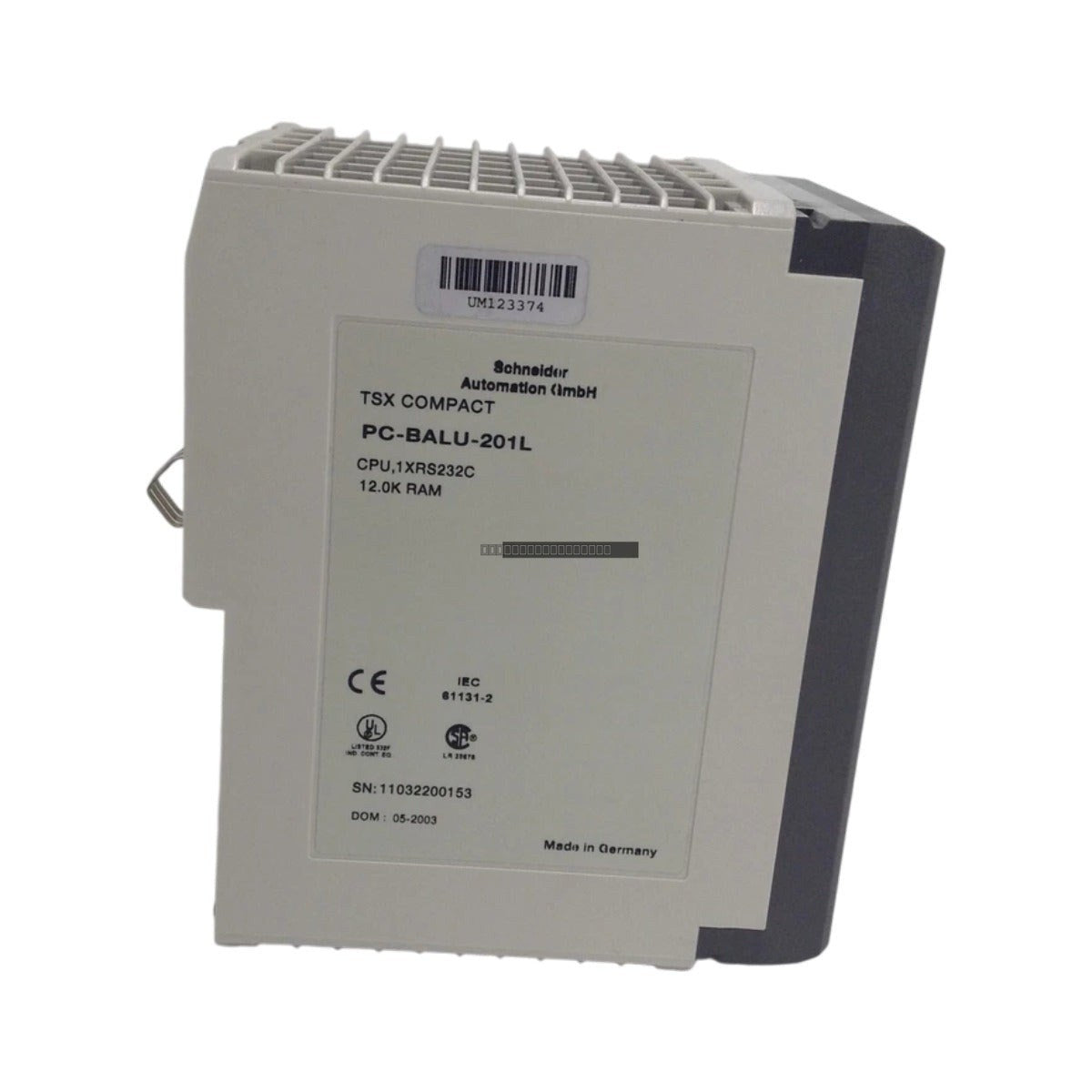

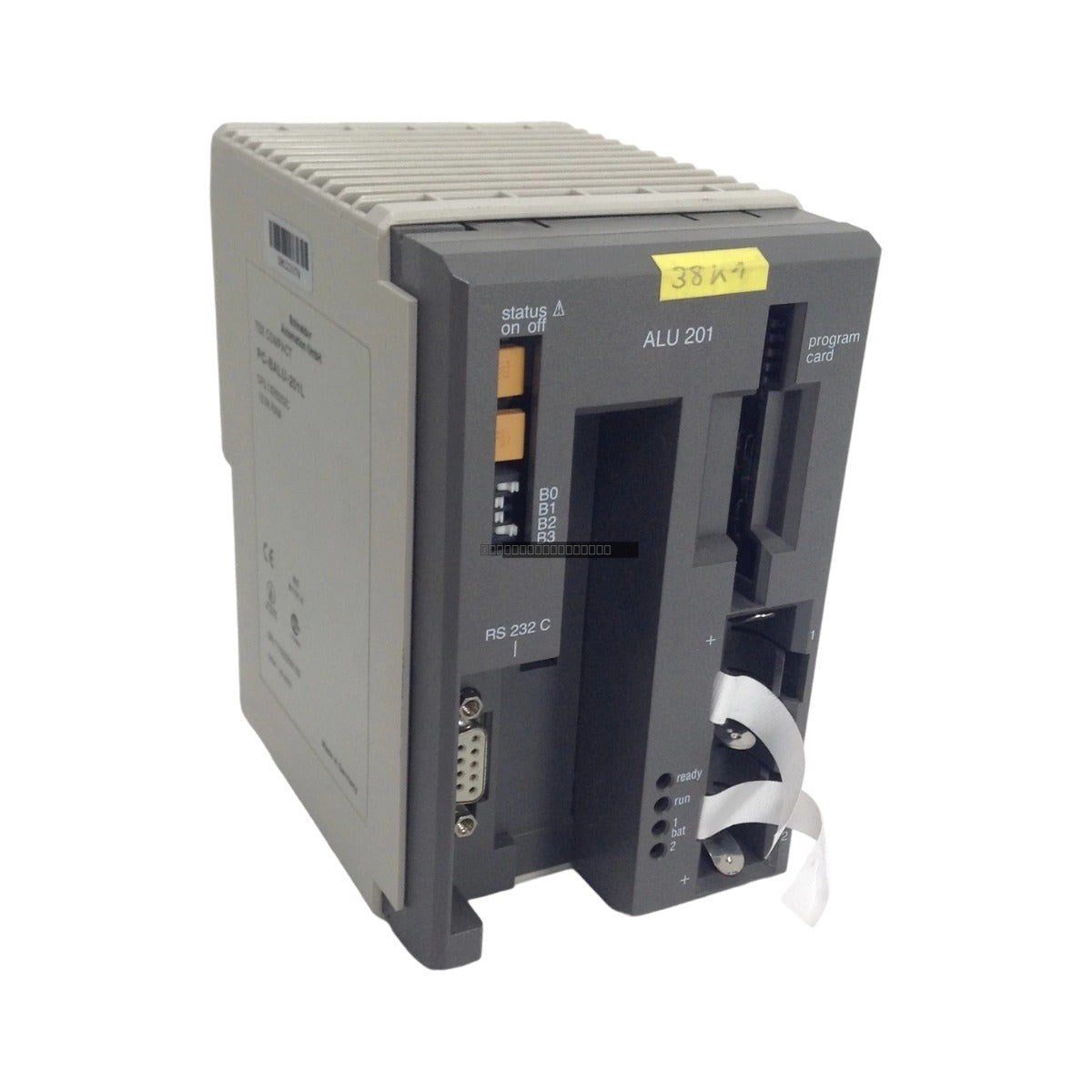

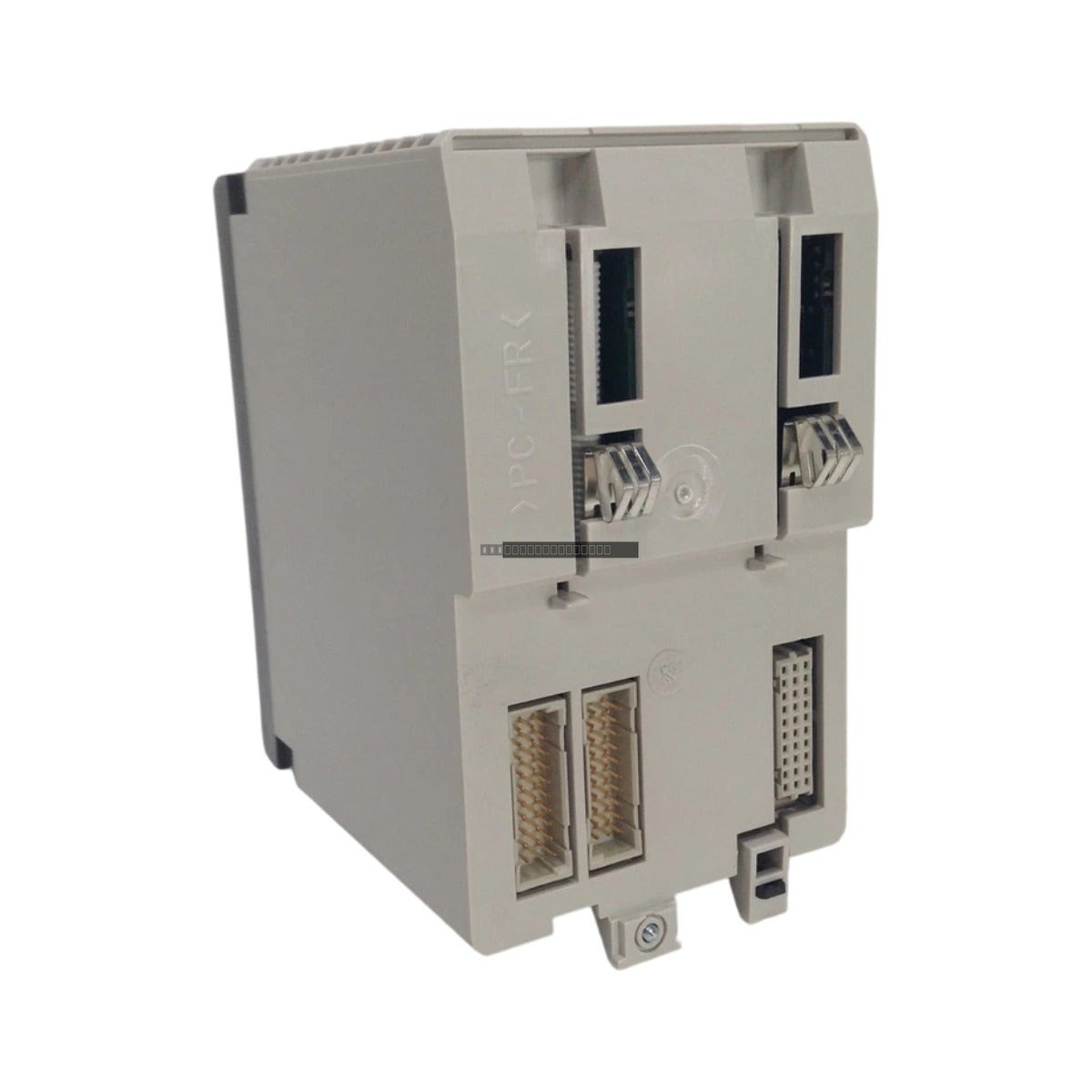

The Schneider Electric PCBALU201L is a robust communication interface board engineered for integration within the Modicon automation ecosystem. This specialized circuit assembly serves as a critical bridge for data exchange between field devices and supervisory control systems. Designed for reliability in demanding industrial environments, the module facilitates deterministic communication, ensuring that data packets are transmitted with high integrity across automation networks. By incorporating advanced signal conditioning, the board effectively mitigates the impact of electromagnetic interference, supporting continuous operation in sectors such as power generation, chemical processing, and large-scale manufacturing.
Key Features
- High-speed transceiver circuitry for stable data transmission.
- Galvanic isolation to protect internal logic from external voltage transients.
- Optimized for low-resistance connectivity within the controller chassis.
- Designed for sustained operation under varying thermal conditions.
- Integrated signal conditioning to reduce noise and communication errors.
Applications
This communication board is suitable for a wide range of industrial automation tasks, including:
- Supervisory control and data acquisition (SCADA) network interfacing.
- Fieldbus protocol management in complex automation cells.
- Data link maintenance in high-EMI environments such as switchgear rooms and motor control centers.
- Integration of localized field controllers into broader plant-wide networks.
Technical Specifications
| Model |
PCBALU201L |
| Brand |
Schneider Electric |
| Product Range |
Modicon System Accessories |
| Component Type |
Industrial Communication Board |
| Isolation Rating |
500 VDC |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Power Supply |
5 VDC, 0.45 A (via backplane) |
Installation Guidelines
- Ensure the host controller is powered down before installing or removing this module to prevent electrical damage.
- Handle the PCB by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
- Verify that the backplane connectors are clean and free of debris before seating the module.
- Ensure the module is fully seated and secured within the chassis to maintain consistent wave impedance.
- Maintain adequate ventilation in the enclosure to keep ambient temperatures within the specified 0 to 60 deg C operating range.
FAQ
Is the PCBALU201L compatible with all Modicon systems?
The PCBALU201L is designed for specific Modicon hardware architectures. Please verify your system's hardware compatibility list or existing module part numbers before installation.
What is the primary function of the isolation on this board?
The 500 VDC isolation barrier is designed to protect the internal processing logic of the controller from transient voltage surges and common-mode noise present on the external communication lines.
