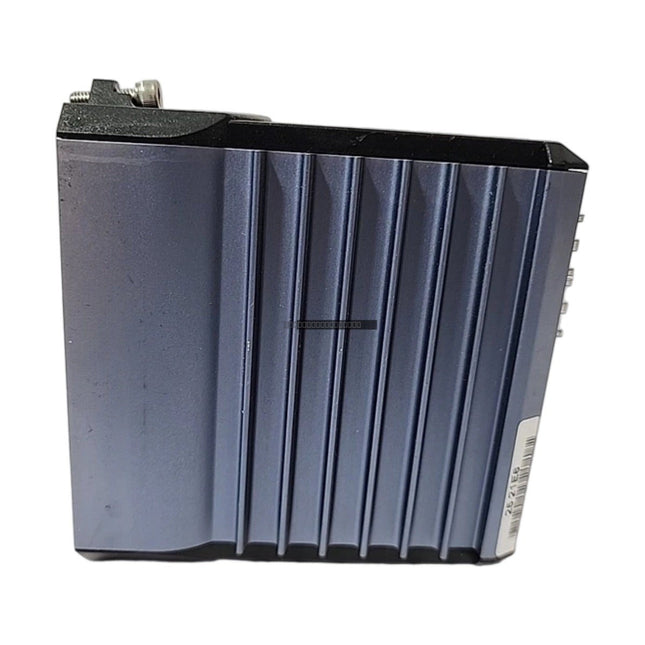

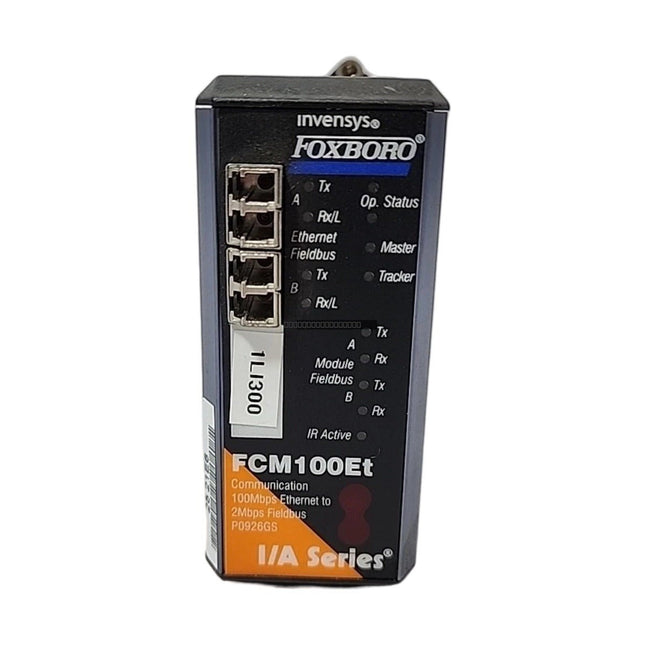

The Foxboro FCM100Et is a specialized communication module engineered for the I/A Series distributed control system. It serves as the primary Ethernet-to-Fieldbus gateway, facilitating high-speed data transmission between the 100 Mbps Ethernet control network and the local Field Bus Module (FBM) subsystem. This module is essential for maintaining deterministic, real-time communication in demanding process automation environments, including chemical, petrochemical, and power generation facilities.Features
Provides reliable 100 Mbps Ethernet connectivity to the I/A Series control network.
Supports redundant network configurations, ensuring high availability and seamless failover.
Integrated processor handles protocol conversion and data buffering to offload the main control system.
Supports both copper (100Base-TX) and fiber optic (100Base-FX) media interfaces.
Comprehensive onboard diagnostics with front-panel LED indicators for monitoring link status and hardware health.
Designed for high-speed synchronization and time distribution across the FBM cluster.
ApplicationsThe FCM100Et is deployed in mission-critical industrial control architectures where system uptime and deterministic data exchange are mandatory. It is commonly utilized in large-scale I/A Series installations to bridge control processors with distributed I/O, supporting robust communication backbones in complex process control loops.Technical Specifications
Model
FCM100Et (P0926GS / P0926GU)
Communication Speed
100 Mbps (Ethernet) / 2 Mbps (Fieldbus)
Interface Type
100Base-TX or 100Base-FX
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Power Consumption
3.5 Watts (Max)
Input Voltage
24 VDC
Humidity
5 to 95% (Non-condensing)
Installation Guidelines
Ensure the control system is powered down before installing or removing the module from the baseplate.
Observe standard ESD (Electrostatic Discharge) precautions when handling the electronic assembly.
For fiber optic configurations, ensure proper cleaning of connectors to prevent signal attenuation.
Verify that Ethernet cabling meets the required standards for 100 Mbps operation and is routed away from high-EMI noise sources.
Ensure the module is fully seated in the backplane connector to guarantee proper power distribution and communication bus contact.
FAQWhat is the primary function of the FCM100Et?The FCM100Et acts as a bridge between the Ethernet-based control network and the local fieldbus, allowing the control processor to communicate with FBM I/O modules.Does this module support redundancy?Yes, the FCM100Et is designed to support redundant network topologies, which allows for automatic failover in the event of a network link or cable failure.What is the maximum cable distance?The module supports up to 100 meters for copper (100Base-TX) connections and up to 2 kilometers for fiber optic (100Base-FX) connections.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

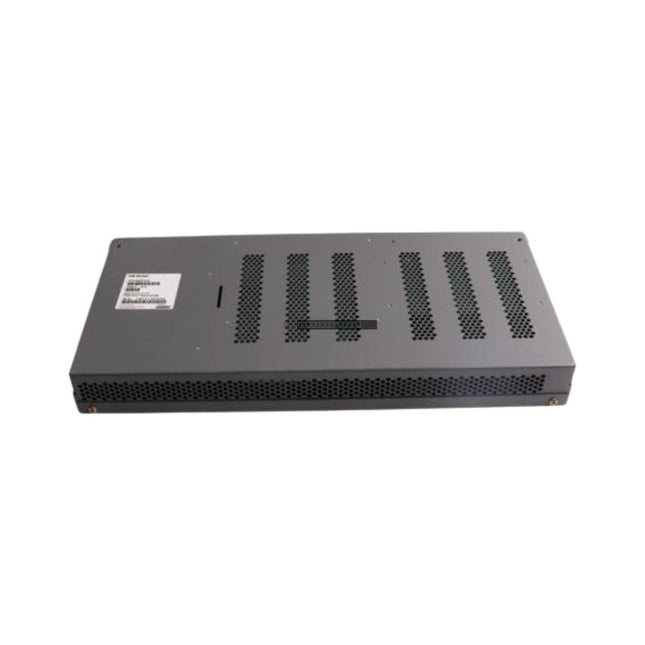

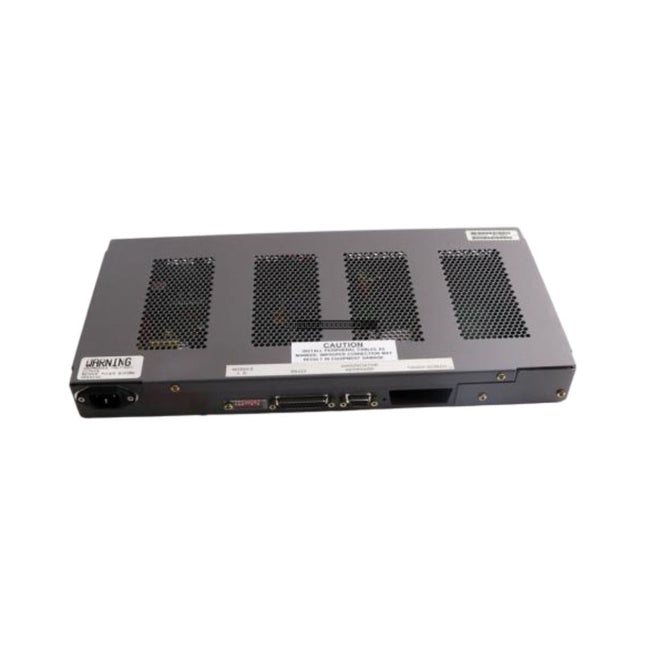

DescriptionThe Foxboro P0922AE, also recognized as FBM242, is a high-performance 16-channel discrete output module engineered for integration within the I/A Series distributed control system. This module is specifically designed to manage field-side digital loads, including solenoid valves, motor starters, and status indicators. By providing galvanic isolation, the P0922AE protects sensitive internal control logic from field-side electrical transients, ensuring robust operation in demanding industrial environments such as power generation, petrochemical processing, and mining facilities.Features
16-channel discrete output interface for flexible field device control.
Galvanic isolation rated at 600 V AC to prevent ground loops and signal interference.
Supports hot-swappable replacement, allowing maintenance without interrupting system power or adjacent module operation.
Integrated suppression circuitry for protection against inductive back-EMF spikes.
Onboard LED status indicators for real-time channel activity and diagnostic monitoring.
Designed for G3 harsh environment compliance per ISA S71.04.
Technical Specifications
Model
P0922AE (FBM242)
Module Type
16-Channel Discrete Output
Output Voltage
24 VDC (Nominal)
Total Module Current
2.25 Amps maximum
Isolation
600 V AC galvanic
Power Consumption
3.5 W maximum
Operating Temperature
-20 to +70 deg C
Storage Temperature
-40 to +85 deg C
Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the I/A Series baseplate is properly mounted and grounded before inserting the module.
Handle with standard ESD precautions to prevent damage to sensitive internal circuitry.
Verify that field wiring is securely connected to the terminal blocks before applying power.
The module is hot-swappable; however, ensure the module is fully seated and locked into the baseplate to maintain proper electrical contact.
Keep signal wiring separated from high-voltage power lines to minimize induced noise.
FAQIs the P0922AE compatible with existing I/A Series baseplates?Yes, the P0922AE is designed for seamless integration into standard Foxboro I/A Series baseplates.Does this module support redundant configurations?Yes, the P0922AE supports dual-redundant power and Fieldbus communication paths for high-availability applications.Can I replace this module while the system is running?Yes, the module is hot-swappable, allowing for maintenance or replacement without shutting down the control system or affecting adjacent modules.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Description
The Foxboro P0903CV is a specialized annunciator keyboard engineered for integration within Foxboro I/A Series industrial workstation environments. This unit serves as a dedicated hardware interface, providing operators with tactile control and clear visual feedback for alarm management and system navigation. Designed for demanding control room applications such as power generation, petrochemical processing, and refinery operations, the P0903CV enables rapid alarm acknowledgment and siren silencing through a robust, physical interface. By offloading critical alarm functions from software-only interfaces to this dedicated hardware, the device helps streamline operator response during process upsets, contributing to overall plant stability and safety.
Features
Tactile, high-reliability key structure optimized for 24/7 industrial service.
Integrated LED status indicators supporting multiple states (flashing, steady, or off) synchronized with I/A Series alarm management software.
Ruggedized construction suitable for continuous operation in high-pressure control room environments.
Standardized interface for seamless communication with the I/A Series workstation architecture.
Customizable keycap labeling to align with specific plant process hierarchies.
Applications
This annunciator keyboard is intended for use in central control rooms where rapid response to process alarms is critical. It is commonly deployed in Distributed Control Systems (DCS) to enhance Human Machine Interface (HMI) performance, allowing for immediate physical intervention in oil refineries, chemical production facilities, and utility power plants.
Technical Specifications
Brand
Foxboro (Invensys / Schneider Electric)
Model
P0903CV
Series
I/A Series
Module Type
Annunciator Keyboard
Operating Temperature
0 to 50 deg C
Storage Temperature
-40 to 70 deg C
Relative Humidity
10 to 90 percent (Non-condensing)
Weight
1.2 kg
Installation Guidelines
Ensure the workstation is powered down before connecting or disconnecting the keyboard interface cable to prevent potential electrical damage.
The unit is designed for 19-inch rack mounting; ensure proper clearance for ventilation and cable routing.
Avoid installing the keyboard in areas subject to excessive vibration or direct exposure to corrosive atmospheres.
Use shielded cabling where required to maintain signal integrity and minimize EMI interference from nearby high-voltage equipment.
Handle with standard ESD precautions to protect internal circuitry during installation or maintenance.
FAQ
Q: Is the P0903CV compatible with all I/A Series workstations?A: The P0903CV is designed specifically for the I/A Series architecture; however, please verify your specific workstation model and firmware revision to ensure full compatibility with your existing alarm manager software.
Q: Can the key labels be customized?A: Yes, the unit supports custom-labeled keycaps to match your specific plant process hierarchy and nomenclature.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Foxboro FBM242 (P0916TA) is a high-density discrete output module engineered for the I/A Series distributed control system. It provides 16 isolated digital output channels, enabling precise control over field devices such as motor starters, solenoid valves, and indicator lamps. Designed for rigorous industrial environments, this module features channel-to-ground isolation and redundant communication paths, ensuring reliable, deterministic operation in sectors including power generation, petrochemical processing, and manufacturing.Features
High-Density Output: Provides 16 independent sourcing outputs in a compact Eurocard footprint.
Redundant Communication: Supports dual-redundant fieldbus connections to maintain system integrity during cable faults.
Solid-State Reliability: Utilizes advanced solid-state switching to eliminate mechanical wear and extend service life.
Diagnostic Monitoring: Includes integrated LED status indicators for each channel to streamline field troubleshooting and loop verification.
Inductive Load Protection: Onboard suppression circuitry mitigates back-EMF spikes, protecting internal components from inductive kickback.
Hot-Swappable Design: Allows for maintenance and module replacement without requiring a system-wide power-down.
ApplicationsThe FBM242 is suitable for critical control applications where high-density digital output is required. It is commonly deployed in I/A Series racks to interface with field-side actuators, providing the necessary galvanic isolation to protect the control bus from electrical interference generated in harsh process areas.Technical Specifications
Model
FBM242 (P0916TA)
Module Type
16-Channel Discrete Output
Output Voltage
15 to 60 VDC
Max Total Current
2.25 Amps per module
Galvanic Isolation
600 V AC (field-to-bus)
Power Consumption
3 W maximum
Operating Temperature
-20 to +70 deg C
Humidity
5 to 95% (non-condensing)
Environmental Rating
G3 Harsh (ISA S71.04)
Installation Guidelines
Ensure the baseplate is properly grounded before inserting the module to prevent electrostatic discharge (ESD) damage.
The FBM242 is hot-swappable; ensure the module is fully seated in the baseplate slot to establish a secure connection with the backplane.
Verify that output wiring is routed away from high-voltage AC lines to minimize electromagnetic interference (EMI).
Maintain adequate ventilation within the cabinet to stay within the specified -20 to +70 deg C operating range.
Confirm that field power supplies are within the 15-60 VDC range before initiating output commands.
FAQWhat is the primary function of the FBM242?The FBM242 is a 16-channel discrete output module that interfaces I/A Series controllers with field devices, providing isolated, solid-state switching for digital control logic.Is this module compatible with existing I/A Series baseplates?Yes, the FBM242 is designed for standard I/A Series high-density baseplates and supports hot-swapping for maintenance without disrupting adjacent I/O operations.Does the module require external suppression for inductive loads?No, the FBM242 includes internal suppression circuitry to handle back-EMF from inductive loads such as relays and solenoids, protecting the switching transistors.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

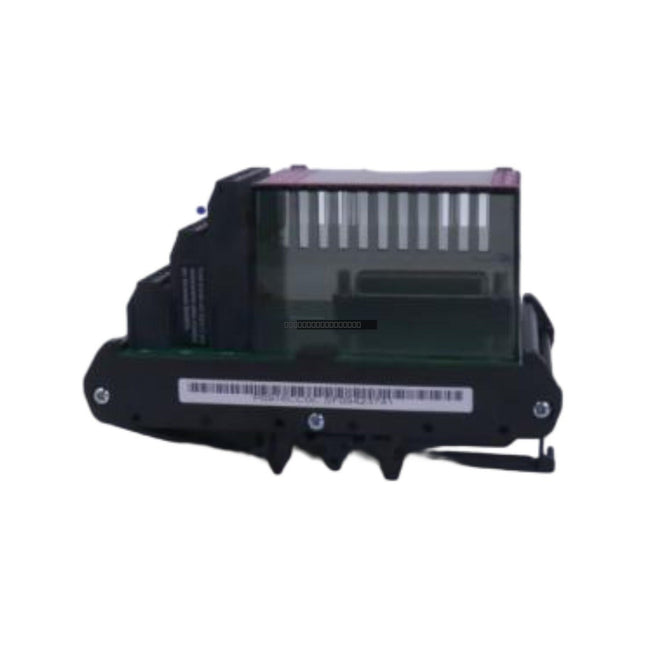

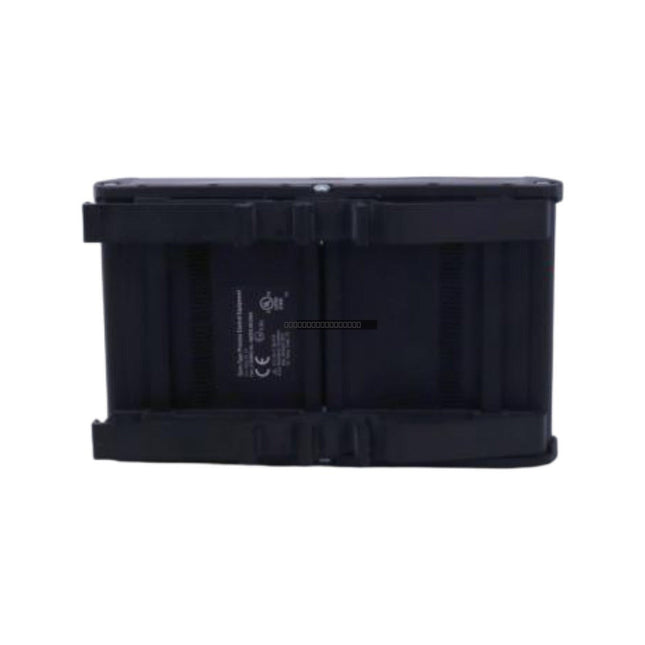

The Foxboro P0916CC is a specialized terminal board assembly designed for the I/A Series 200 I/O subsystem. This component functions as a critical interface bridge, connecting field-level instrumentation to the system's Fieldbus Modules (FBMs). By providing a structured and secure termination point, the P0916CC ensures reliable signal distribution and protects the integrity of the control system against field-side electrical faults.Features
Designed for integration within the Foxboro I/A Series 200 architecture.
High-density screw-terminal interface for secure and reliable field wiring.
Facilitates streamlined signal routing for both analog and discrete I/O configurations.
Integrated passive noise filtering to maintain signal clarity.
Includes dedicated test points for convenient loop diagnostics and maintenance verification.
Rugged construction capable of withstanding standard industrial thermal and vibration profiles.
ApplicationsThis termination assembly is widely deployed in mission-critical process control environments, including petrochemical refineries, power generation plants, and chemical processing facilities. It is essential for systems requiring high-availability signal paths and modular maintenance capabilities.Technical Specifications
Model
P0916CC
Series
I/A Series 200
Termination Method
Screw Terminal Blocks
Voltage Rating
30 VDC
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure all power is disconnected from the I/O subsystem before installing or removing the terminal board.
Mount the unit in a clean, dry location within the control cabinet, ensuring adequate clearance for cable management.
Use appropriate ESD protection when handling the module to prevent damage to integrated circuits.
Verify that field wiring is properly secured in the screw terminals to prevent intermittent connections caused by industrial vibration.
Route signal cables separately from high-voltage power lines to minimize electromagnetic interference (EMI).
Periodically inspect terminal connections for signs of oxidation or thermal stress as part of routine preventative maintenance.
FAQIs the P0916CC compatible with all Foxboro FBMs?The P0916CC is designed for specific I/A Series 200 applications. Please verify your FBM compatibility list and system documentation to ensure the specific pinout and signal requirements match your current module configuration.Can I replace this board while the system is running?While the modular design allows for easier maintenance, you must follow your site's specific safety procedures and the Foxboro I/A Series hardware manual regarding hot-swapping or power-down requirements for your specific I/O configuration.

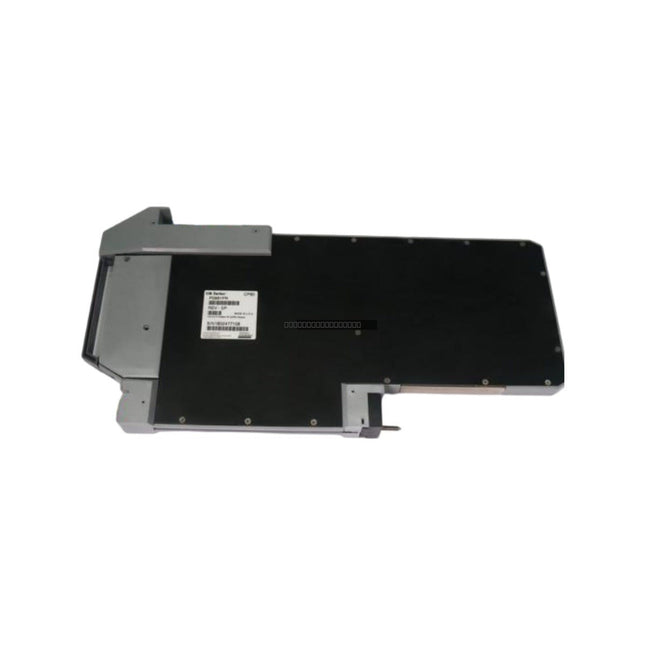

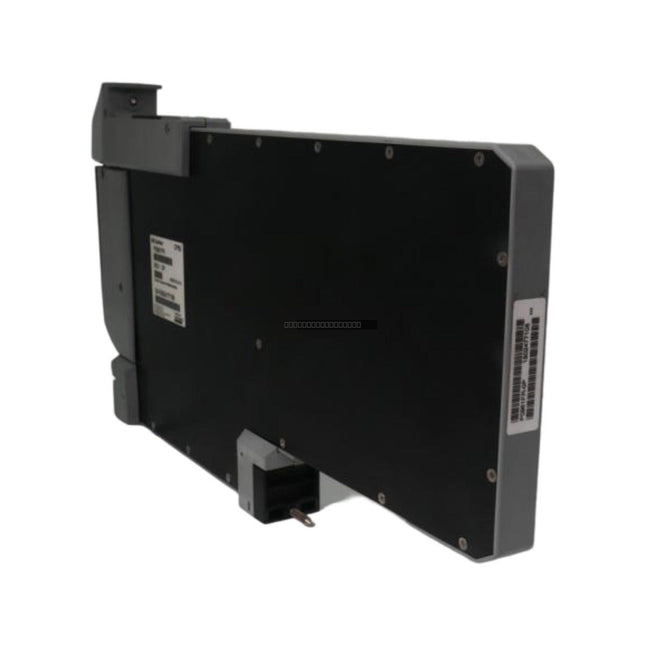

DescriptionThe Foxboro CP60, identified by part number P0961FR, serves as a high-performance control processor within the I/A Series distributed control system (DCS). This module is engineered to perform high-speed regulatory, logic, and algebraic control functions, ensuring process stability in mission-critical applications. It acts as the primary computational engine for station-level control, managing the flow of data between field I/O subsystems and the broader plant production network. Its robust design is tailored for demanding environments, including power generation, petrochemical processing, and oil and gas refining.Features
High-speed deterministic execution for complex control algorithms.
Supports dual-redundant configurations for seamless failover and high system availability.
Integrated diagnostic routines for real-time monitoring of memory, processor health, and communication ports.
High-speed connectivity options, including Ethernet and fiber optic interfaces for Mesh network integration.
Optimized for continuous operation in harsh industrial conditions.
ApplicationsThe CP60 is designed for large-scale industrial automation tasks where reliability and real-time responsiveness are paramount. It is commonly deployed in distributed control architectures to manage high-speed communication loops, large database operations, and critical safety-related control sequences.Technical Specifications
Model
CP60 (P0961FR)
Brand
Foxboro (Schneider Electric)
Module Type
Control Processor
Processor Frequency
200 MHz
Memory
128 MB SDRAM / 32 MB Flash
Communication
100 Mbps Ethernet / Fiber Optic Mesh
Power Consumption
15 W (typical)
Operating Temperature
0 to 60 deg C
Operating Humidity
5 to 95 percent RH (non-condensing)
Installation Guidelines
Ensure the control system is powered down before installing or removing the CP60 module from the rack.
Handle the module using proper ESD (Electrostatic Discharge) mitigation practices to prevent internal component damage.
Verify that the module is fully seated in the backplane to ensure reliable communication with the I/O bus.
Maintain adequate airflow within the cabinet to ensure the unit remains within the specified 0 to 60 deg C operating range.
Use shielded cabling for all network interfaces to minimize electromagnetic interference (EMI) in high-noise environments.
FAQDoes the CP60 support redundancy?Yes, the CP60 is designed to support dual-redundant configurations, allowing for a secondary unit to take over control automatically if a fault occurs in the primary processor.What is the primary communication interface for this module?The CP60 utilizes a 100 Mbps Ethernet connection and supports fiber optic interfaces for integration into the Foxboro Mesh network.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

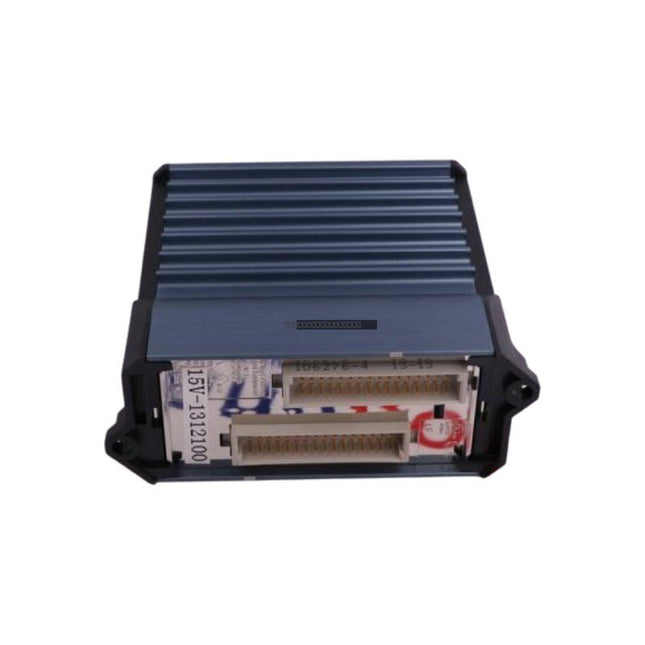

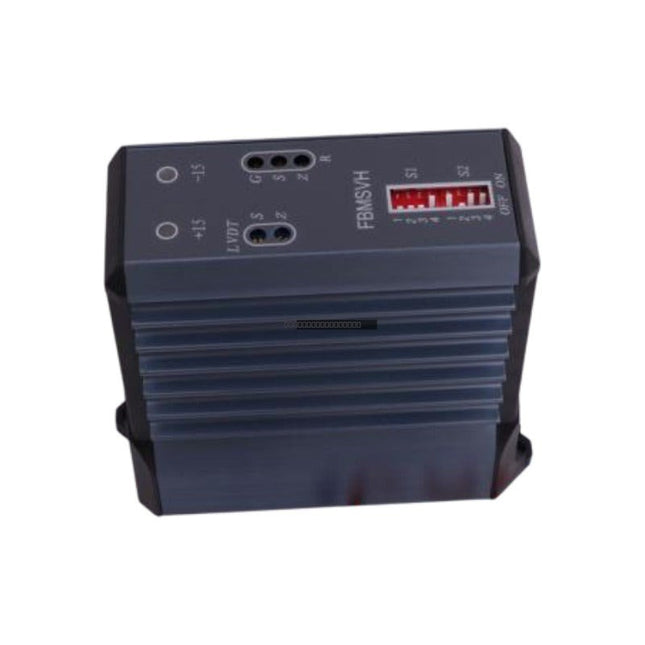

DescriptionThe Foxboro FBMSVH is a robust Control Processor Card engineered for the I/A Series distributed control system (DCS). This module serves as a primary computational engine, managing complex regulatory control loops, sequential logic, and real-time data processing for industrial automation environments. Built for high-availability applications, the FBMSVH is designed to maintain process stability in demanding sectors such as power generation, chemical processing, and large-scale manufacturing, ensuring deterministic execution and system reliability.Features
High-performance RISC-based processor architecture for rapid, low-latency control execution.
Integrated ECC memory to protect against data integrity issues in high-EMI industrial environments.
Support for redundant configurations, enabling bumpless failover between primary and tracker modules.
Continuous onboard diagnostic monitoring for proactive hardware and communication status reporting.
Seamless integration with Foxboro I/A Series control networks and Fieldbus modules.
ApplicationsThe FBMSVH is optimized for mission-critical control tasks where uptime and process precision are paramount. It is widely utilized in continuous process control, batch processing, and safety-related monitoring within distributed control architectures.Technical Specifications
Brand
Foxboro (Invensys / Schneider Electric)
Model
FBMSVH
Series
I/A Series
Processor
High-speed RISC
Power Consumption
12 W (Typical)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Humidity
5 to 95 percent (Non-condensing)
Weight
0.32 kg
Installation Guidelines
Ensure the control system is powered down before inserting or removing the FBMSVH module from the chassis.
Handle the card using proper ESD (Electrostatic Discharge) mitigation practices to protect sensitive onboard components.
Verify that the module is fully seated in the designated I/A Series rack slot to ensure reliable connection with the backplane.
Maintain adequate ventilation around the chassis to keep the ambient temperature within the specified 0 to 60 deg C operating range.
Route communication cables away from high-voltage power lines to minimize electromagnetic interference.
FAQIs the FBMSVH compatible with redundant configurations?Yes, the FBMSVH supports redundant pairing, allowing a primary and a tracker module to work in tandem for instantaneous, bumpless failover.What type of memory does this processor use?The module utilizes onboard Flash and ECC (Error Correcting Code) RAM to ensure high reliability and data integrity during operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

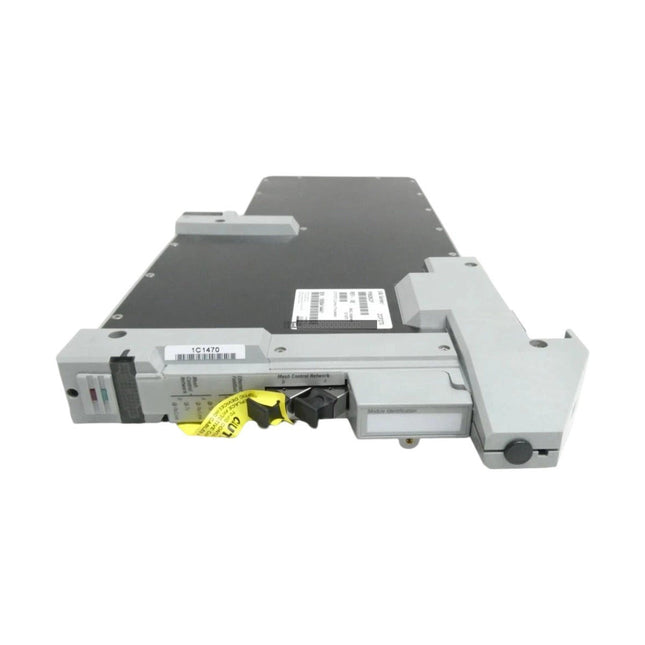

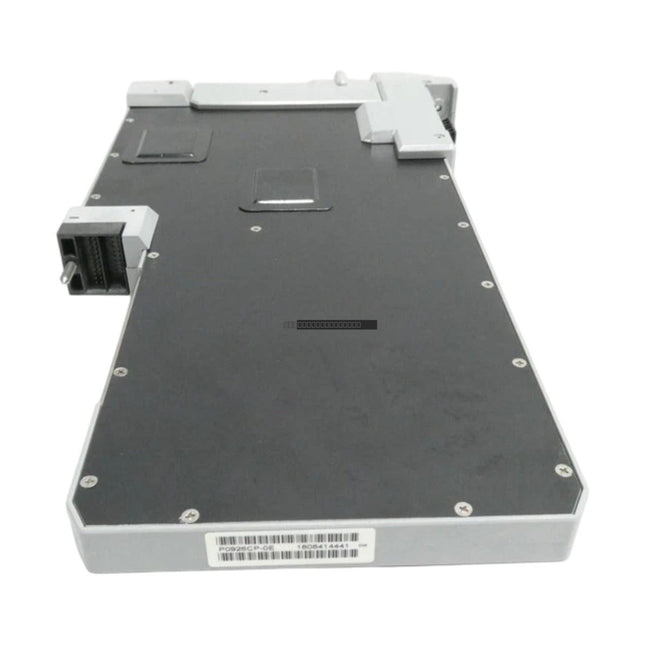

DescriptionThe Foxboro ZCP270 is a robust, high-performance control processor engineered for the I/A Series Distributed Control System (DCS). This module serves as a critical component in large-scale industrial control environments, including power generation, petrochemical processing, and mining operations. By utilizing dedicated hardware for communication and control, the ZCP270 delivers real-time deterministic performance, enabling it to manage high-density I/O and complex control algorithms while maintaining minimal latency.System Architecture and RedundancyDesigned for mission-critical reliability, the ZCP270 supports both standalone and fully redundant configurations. In redundant setups, the processors function in a primary/tracker arrangement, maintaining continuous database synchronization. This architecture enables seamless, bumpless failover, ensuring that control loops remain active and stable even if a hardware fault occurs. The processor operates without internal fans or moving parts, significantly improving the Mean Time Between Failures (MTBF) and reducing maintenance requirements.Features
High-speed RISC processor for complex control logic execution.
Support for up to 10,000 software blocks (application-dependent).
Integrated 100 Mbps Ethernet-based interface for The Mesh network.
Fanless design for enhanced reliability in industrial environments.
Real-time operating system for deterministic process control.
Supports redundancy for high-availability system architectures.
Technical Specifications
Brand
Foxboro (Invensys / Schneider Electric)
Model
ZCP270
Series
I/A Series
Module Type
Control Processor
Processor Type
High-speed RISC
Memory
128 MB SDRAM, 128 MB Flash
Network Interface
100 Mbps The Mesh (Ethernet)
Input Voltage
24 VDC (Nominal)
Power Consumption
8.5 W
Operating Temperature
0 to 60 deg C
Vibration Resistance
5 to 500 Hz
Installation Guidelines
Ensure the control cabinet is clean and dry; the ZCP270 is designed for standard industrial panel mounting.
Always power down the system before inserting or removing the processor module to prevent electrical damage.
Verify that the 24 VDC power supply is stable and within the specified nominal operating range.
Maintain proper ventilation within the cabinet to stay within the 0 to 60 deg C operating temperature range.
Use shielded cabling for network connections to minimize EMI/RFI interference in high-noise industrial environments.
Follow standard ESD (Electrostatic Discharge) procedures when handling the module to protect sensitive internal components.
FAQIs the ZCP270 compatible with redundant systems? Yes, the ZCP270 is specifically designed to support redundant configurations, allowing for a primary/tracker setup that ensures bumpless failover.What is the primary network interface for this processor? The ZCP270 connects to the Foxboro The Mesh network via a 100 Mbps Ethernet-based interface.Does this module require active cooling? No, the ZCP270 is designed without internal fans or moving parts, relying on passive cooling within the cabinet environment.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro FEM100 (P0973CA) is a specialized Fieldbus Expansion Module engineered to extend the communication range and capacity of the Foxboro I/A Series Distributed Control System (DCS). By acting as a signal repeater and buffer, this module enables the connection of additional Fieldbus Modules (FBMs) across extended baseplate configurations. It is essential for large-scale industrial environments, such as power plants and chemical processing facilities, where maintaining high I/O density and deterministic communication over distance is critical to operational efficiency.Features
Deterministic Communication: Supports standard 2 Mbps Fieldbus data rates, ensuring real-time signal integrity across expanded segments.
Redundancy Support: Designed for dual-path (Path A and Path B) redundant configurations to maintain network availability in the event of a single-path failure.
Signal Regeneration: Actively buffers and repeats signals to mitigate attenuation and loading issues common in extended serial communication loops.
Fault Isolation: Provides electrical isolation between baseplate segments to prevent local fault propagation, enhancing overall system stability.
Seamless Integration: Designed for direct installation into standard Foxboro I/A Series mounting structures with no complex software configuration required.
ApplicationsThis module is typically deployed in I/A Series DCS architectures requiring expansion beyond standard baseplate limitations. It is frequently utilized in high-availability, large-scale automation projects where reliability, redundancy, and scalability are primary design requirements.Technical Specifications
Model
FEM100 (P0973CA)
Brand
Foxboro (Schneider Electric)
Module Type
Fieldbus Expansion / Repeater
Communication Rate
2 Mbps
Redundancy
Dual-Redundant Fieldbus Paths
Power Consumption
2.8 Watts (Max)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to +70 deg C
Relative Humidity
5 to 95% (non-condensing)
Installation Guidelines
Power-Down: Always remove power from the baseplate before installing or removing the FEM100 module to prevent electrical damage or bus disruption.
ESD Handling: Use proper electrostatic discharge (ESD) protection, including grounded wrist straps, when handling the module to protect sensitive internal components.
Mounting: Ensure the module is fully seated into the designated baseplate slot and that all locking mechanisms are engaged to maintain a secure connection.
Cable Routing: Keep communication cables away from high-voltage lines and sources of electromagnetic interference (EMI) to ensure signal clarity.
Environment: Verify that the installation location meets the specified temperature and humidity ranges to ensure long-term reliability.
Compliance and CertificationsThe FEM100 (P0973CA) meets standard industrial requirements, including CE and CSA certifications, and holds FM Approval for use in Class 1, Division 2 hazardous locations.FAQDoes this module require software configuration? No, the FEM100 is designed for transparent operation and does not require complex software addressing to function as a repeater.Can the FEM100 be used in a non-redundant system? Yes, while it supports dual-redundant paths, it can be utilized in single-path configurations as required by your specific system architecture.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Description
The Foxboro P0926KH is a robust 8-position vertical baseplate assembly engineered specifically for the I/A Series 200 Series Field Bus Module (FBM) architecture. This baseplate serves as the critical mounting and interconnection backbone for distributed control systems, providing both mechanical support and essential electrical distribution to connected I/O modules. Its design is tailored for demanding industrial environments where reliability and high availability are mandatory, such as petrochemical refining, power generation, and large-scale manufacturing automation.
Features
High-Density Mounting: Supports up to eight 200 Series FBMs in a compact, vertical footprint.
Redundant Power Distribution: Integrated dual 24 VDC power bus inputs ensure system continuity during primary power supply maintenance or failure.
High-Speed Communication: Facilitates reliable data exchange via the 2 Mbps HDLC fieldbus protocol, ensuring deterministic performance across the I/O rack.
Maintenance-Oriented Design: Supports hot-swapping of modules, allowing for component replacement without interrupting the overall process control loop.
Thermal Management: Engineered for efficient vertical airflow to maintain optimal operating temperatures for sensitive electronic components.
Applications
The P0926KH is utilized in Foxboro I/A Series control cabinets for various I/O configurations. It is commonly deployed in systems requiring high-density signal processing, including analog input/output, digital I/O, and specialized communication modules. Its rugged construction makes it suitable for installation in harsh industrial cabinets subject to vibration and temperature fluctuations.
Technical Specifications
Model
P0926KH
Brand
Foxboro (Schneider Electric)
Module Capacity
8 Positions (200 Series FBMs)
Power Input
Dual 24 VDC Redundant Feeds
Bus Protocol
2 Mbps HDLC Fieldbus
Operating Temperature
-20 to 70 deg C
Storage Temperature
-40 to 85 deg C
Humidity
5 to 95% (Non-condensing)
Mounting
Vertical DIN Rail / Rack
Installation Guidelines
Ensure the mounting surface is clean, rigid, and capable of supporting the weight of the baseplate and fully loaded modules.
Verify that the cabinet environment adheres to the specified temperature range to prevent premature component degradation.
Always power down the system or follow site-specific hot-swap safety protocols before inserting or removing FBMs from the baseplate.
Ensure all redundant power connections are securely tightened and properly fused according to plant electrical standards.
Maintain proper clearance around the vertical assembly to ensure unobstructed airflow for convection cooling.
Use shielded cabling for fieldbus connections to minimize the risk of electromagnetic interference (EMI) in high-noise environments.
FAQ
Does this baseplate support all Foxboro I/O modules?The P0926KH is designed specifically for the 200 Series Field Bus Modules (FBMs). Please verify your specific module compatibility with the Foxboro I/A Series system documentation.
Is the power supply redundant?Yes, the baseplate is designed with dual 24 VDC inputs to support redundant power configurations, enhancing system reliability.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Foxboro FBM218 (P0922VW) is a specialized HART communication module engineered for the I/A Series Distributed Control System (DCS). This module features eight isolated analog output channels capable of supporting superimposed HART digital communication, making it a critical component for process automation environments that require precise valve control and advanced diagnostic capabilities. By supporting 1-for-1 functional redundancy, the FBM218 ensures high availability and reliable operation in demanding industrial sectors, including oil and gas, chemical manufacturing, and power generation.Features
Eight independently isolated analog output channels (4-20 mA DC).
Integrated HART protocol support for bi-directional communication with intelligent field instruments.
High-integrity galvanic isolation (600 VAC) protecting against ground loops and electrical interference.
Redundancy-ready architecture for seamless failover in mission-critical control loops.
High-speed 2 Mbps Fieldbus interface for synchronized command delivery and diagnostic data transfer.
13-bit resolution with an accuracy of +/- 0.05% of span.
ApplicationsThe FBM218 is designed for applications where continuous process uptime is essential. It is frequently employed in control systems managing critical actuators, positioners, and transmitters that utilize HART diagnostics to monitor health and performance. Its robust design is well-suited for harsh industrial environments requiring high reliability and protection against field-side electrical disturbances.Technical Specifications
Model
FBM218 (P0922VW)
Channels
8-Channel HART Output
Output Signal
4-20 mA DC + HART
Isolation
600 VAC (Channel-to-Earth / Channel-to-Channel)
Accuracy
+/- 0.05% of span
Resolution
13 bits
Power Consumption
7 Watts (Max)
Operating Temp
0 to 60 deg C
Storage Temp
-40 to +70 deg C
Humidity
5 to 95% (non-condensing)
Installation Guidelines
Ensure the DCS is powered down before inserting or removing the module from the baseplate.
The FBM218 must be installed in a compatible I/A Series baseplate; for redundant configurations, ensure modules are placed in the correct adjacent slots.
Use appropriate shielded cabling for field connections to maintain signal integrity and meet EMI protection standards.
Verify that the module is securely seated and locked into the baseplate to ensure reliable electrical contact.
Maintain proper ventilation in the control cabinet to ensure ambient temperatures remain within the 0 to 60 deg C operating range.
Compliance and CertificationsThe FBM218 is designed to meet rigorous industrial standards, including CE marking, CSA certification, and FM approval for Class 1 Division 2 hazardous locations.FAQDoes this module support redundant operation? Yes, the FBM218 is designed for 1-for-1 functional redundancy when installed in an appropriate redundant baseplate configuration.What is the primary function of the HART communication in this module? The HART capability allows the DCS to perform bi-directional digital communication with field devices, enabling remote configuration, monitoring, and advanced diagnostic reporting without interrupting the 4-20 mA control signal.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Foxboro FBM219 (P0916RH) is a high-density, combined discrete I/O module designed for integration within the I/A Series Distributed Control System (DCS). This module provides a compact solution for managing discrete signals by housing 24 input channels and 8 output channels within a single physical footprint. It is engineered for demanding industrial environments, including chemical processing, power generation, and mining, where it effectively manages field devices such as solenoids, motor starters, and various status sensors.Features
High-Density Design: Combines 24 discrete inputs and 8 discrete outputs to maximize cabinet utilization.
Galvanic Isolation: Equipped with 1500 VAC optical isolation between field wiring and internal system logic to mitigate electrical interference.
Redundant Communication: Interfaces with the Foxboro 2 Mbps redundant Fieldbus for high-availability data transmission.
Configurable Filtering: Includes software-selectable digital input filtering to effectively manage contact bounce.
Fail-Safe Logic: Outputs support predefined fail-safe states to ensure system integrity during communication loss.
Installation Guidelines
Ensure the system power is completely disconnected before inserting or removing the FBM219 module from the baseplate.
Maintain proper ESD (Electrostatic Discharge) protocols when handling the module to prevent damage to internal circuitry.
Verify that field wiring is correctly terminated according to the system documentation to ensure signal integrity.
Ensure adequate ventilation within the control cabinet to maintain operating temperatures within the 0 to 60 deg C range.
Route field signal cables away from high-voltage power lines to minimize potential EMI (Electromagnetic Interference).
Technical Specifications
Model
FBM219 (P0916RH)
Brand
Foxboro (Schneider Electric)
Input Channels
24 (Contact Sense/Voltage Monitor)
Output Channels
8 (Switch Type)
Isolation
1500 VAC (Field-to-Logic)
Communication
Redundant 2 Mbps Fieldbus
Power Consumption
5 W (Max)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to +70 deg C
Humidity
5 to 95% (non-condensing)
Compliance
CE, CSA, FM Class 1 Division 2
FAQQ: Is the FBM219 compatible with existing I/A Series baseplates?A: Yes, the FBM219 is designed for standard I/A Series baseplate mounting and utilizes the redundant 2 Mbps Fieldbus communication protocol.Q: What is the primary purpose of the fail-safe states?A: The fail-safe states are configured to ensure that output devices move to a safe, predetermined condition if the module loses communication with the control processor, preventing unpredictable process behavior.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro FBM237 (P0914XS) is a high-reliability 0 to 20 mA isolated output interface module engineered for the I/A Series Distributed Control System (DCS). This module provides eight channels of isolated analog output, converting digital commands from the control processor into precise current signals for field-mounted actuators, valves, and positioners. Extensively utilized in hazardous industrial environments including offshore oil platforms, chemical refineries, and mining operations, the FBM237 provides essential galvanic isolation to protect system integrity from field-side electrical interference.Features
Eight independent analog output channels.
Galvanic isolation between channels and from the Fieldbus logic to prevent ground loops.
Dedicated digital-to-analog converter (DAC) per channel for high-precision signal integrity.
Configurable fail-safe output states for communication loss scenarios.
High-speed redundant Fieldbus interface for seamless DCS integration.
Ruggedized design suitable for high-density cabinet mounting.
ApplicationsThe FBM237 is designed for critical process control applications where signal stability and electrical isolation are paramount. It is commonly used to drive proportional control valves, I/P transducers, and other 0-20 mA field devices in petrochemical, power generation, and water treatment facilities.Technical Specifications
Model
FBM237 (P0914XS)
Module Type
Isolated Analog Output (8-Channel)
Output Range
0 to 20 mA DC
Output Load
750 Ohms (Maximum)
Isolation Rating
600 VAC (channel-to-earth), 600 VAC (channel-to-channel)
Accuracy
+/- 0.05% of span
Resolution
13 bits
Power Consumption
6 Watts (Maximum)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to +70 deg C
Relative Humidity
5 to 95% (non-condensing)
Installation Guidelines
Ensure the control system is powered down before inserting or removing the FBM237 module from the baseplate.
Use shielded twisted-pair cabling for all analog output connections to minimize EMI/RFI interference.
Verify that the module is fully seated and the locking mechanism is engaged to ensure reliable backplane communication.
Maintain proper cabinet ventilation to ensure the operating temperature remains within the 0 to 60 deg C range.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
Compliance and CertificationsThe FBM237 is designed to meet rigorous industrial standards, including CE, CSA, FM, and ATEX Class 1 Division 2 certifications for operation in hazardous locations.FAQWhat is the primary function of the FBM237?The FBM237 acts as an interface between the Foxboro I/A Series DCS and field devices, converting digital control signals into 0-20 mA analog outputs for precise process control.Does this module require external power?The module is powered via the I/A Series baseplate connection; ensure the power supply capacity of your rack can accommodate the 6W maximum consumption of this module.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro FBM206 (P0916CQ) is a high-precision Pulse Input Module engineered for the Foxboro I/A Series and Foxboro Evo distributed control systems. This module provides eight independent pulse input channels designed to interface with critical field devices such as flowmeters, tachometers, and pulse generators. It is optimized for demanding industrial environments, including oil refineries, utility power plants, and chemical processing facilities, where accurate measurement of frequency, totalized counts, and pulse duration is essential for process monitoring and inventory control.Features
Eight independent pulse input channels with dedicated signal conditioning.
Support for diverse input types including dry contact, voltage pulse, and NAMUR sensors.
Configurable debounce filtering to mitigate electrical noise interference.
Local high-speed accumulation and frequency calculation for deterministic system performance.
Redundant 2 Mbps Module Fieldbus communication.
Hot-swappable design for maintenance without system downtime.
Integrated self-diagnostics for real-time channel health and power monitoring.
Applications
Flow measurement and totalization in hydrocarbon processing.
Tachometer signal monitoring for rotating machinery.
Pulse-based inventory tracking in chemical storage.
Utility-scale power plant process control.
Technical Specifications
Model
FBM206 (P0916CQ)
Input Channels
8
Input Frequency
0.1 Hz to 50 kHz
Counter Resolution
32-bit
Input Signal Range
0 to 24 VDC
Isolation
600 VAC (input-to-bus/ground)
Operating Temperature
-20 to +70 deg C
Power Consumption
3.5 W
Installation Guidelines
Ensure the system power is disconnected before installing or removing the FBM206 module from the baseplate.
The module is designed for hot-swapping; ensure the baseplate is properly configured for the I/A Series architecture.
Use shielded cabling for pulse inputs to minimize EMI/RFI interference in high-noise industrial environments.
Ensure proper grounding of the module chassis to the system common ground to maintain electrical isolation integrity.
Verify that input signal levels do not exceed the 24 VDC threshold to prevent damage to the input circuitry.
Compliance and CertificationsThe FBM206 module is designed for use in hazardous locations, meeting Class I Div 2 and ATEX Zone 2 requirements. It also carries the CE mark for compliance with relevant European directives.FAQIs the FBM206 compatible with all I/A Series baseplates?The FBM206 is designed for standard Foxboro I/A Series modular baseplates. Please verify your specific baseplate revision and system firmware compatibility before installation.Can this module handle NAMUR sensors?Yes, the FBM206 supports NAMUR sensor inputs, as well as dry contact and standard voltage pulses, with configurable thresholds for each channel.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro CP40B (P0961BC) is a high-performance, field-mounted control processor designed for the I/A Series distributed control system (DCS). This module is responsible for executing complex regulatory, logic, and sequential control strategies while facilitating high-speed data exchange between field I/O modules and the workstation environment. Engineered for demanding industrial environments such as chemical plants, offshore platforms, and steel mills, the CP40B provides the computational reliability required for mission-critical process modeling and control.Features
Deterministic Execution: Ensures fixed scan times for critical control loops, providing consistent timing for PID and safety-related logic.
Fault-Tolerant Redundancy: Supports 1:1 hardware redundancy in a primary/shadow pair configuration, enabling seamless failover within milliseconds.
Robust Communication: Features dual-redundant Nodebus/Fieldbus interfaces for reliable connectivity across the I/A Series network.
Data Integrity: Includes ECC (Error Correction Code) memory to detect and correct single-bit memory errors, enhancing system stability against EMI and environmental factors.
Online Configuration: Allows for control strategy modifications and I/O point additions while the processor is in 'Run' mode, minimizing operational downtime.
Advanced Diagnostics: Performs continuous background monitoring of CPU, memory, and communication health, providing proactive status reporting.
ApplicationsThe CP40B is suitable for large-scale process automation where high availability and deterministic performance are required, including oil and gas refining, power generation, chemical processing, and heavy manufacturing.Technical Specifications
Model
CP40B (P0961BC)
Processor Type
High-performance Control Processor
Memory
8 MB DRAM / 2 MB Flash
Redundancy
1:1 Hardware Redundancy
Communication
Dual Nodebus / Fieldbus
Operating Temperature
0 to +60 deg C
Storage Temperature
-40 to +70 deg C
Relative Humidity
5 to 95 percent (non-condensing)
Compliance
G3 Harsh Environment Rating (ISA S71.04)
Installation Guidelines
Handling: Use standard ESD (Electrostatic Discharge) protection practices when handling the module to prevent damage to internal circuitry.
Mounting: Ensure the module is securely seated in the designated I/A Series rack slot to maintain proper backplane connection.
Power: Always power down the rack or follow site-specific safety procedures before inserting or removing the processor module.
Environment: While rated for G3 harsh environments, ensure the installation area is free from excessive vibration and direct exposure to corrosive agents.
Wiring: Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
FAQIs the CP40B compatible with existing I/A Series systems?Yes, the CP40B is designed specifically for the Foxboro I/A Series DCS. Please verify your current system firmware and hardware revision levels to ensure compatibility with the P0961BC model.Does this module support hot-swapping?The CP40B is designed for high-availability applications. In a redundant pair, the shadow processor can be serviced or replaced while the primary processor maintains control of the process.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro FBM204 (P0914FB) is a high-performance combined analog input and output interface module designed for the I/A Series Distributed Control System (DCS). This module provides four 0 to 20 mA analog input channels and four 0 to 20 mA analog output channels within a single compact footprint. By integrating both input and output functions, the FBM204 optimizes cabinet space and reduces hardware complexity in demanding industrial environments such as chemical processing, water treatment, and pharmaceutical manufacturing. It features high-speed signal processing and galvanic isolation to maintain process variable accuracy and system stability.Features
4-channel analog input (0 to 20 mA) and 4-channel analog output (0 to 20 mA).
Galvanic isolation between channel groups, internal logic, and the Fieldbus to mitigate ground loops and common-mode noise.
Supports redundant Fieldbus communication paths for high availability.
Configurable fail-safe states for output channels (hold last value or predefined safe state).
Comprehensive self-diagnostics for ADC/DAC integrity and power supply monitoring.
ApplicationsThe FBM204 is ideal for precision PID control loops where reliable signal conversion is required. Typical applications include driving field actuators and valves, monitoring process transmitters, and managing complex control loops in distributed control architectures.Technical Specifications
Model
FBM204 (P0914FB)
Input Channels
4 (0 to 20 mA DC)
Output Channels
4 (0 to 20 mA DC)
Input Impedance
250 Ohms (nominal)
Output Load
750 Ohms (maximum)
Accuracy
+/- 0.03% of span
Resolution
15-bit (Input), 13-bit (Output)
Power Consumption
4 Watts (max)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to +70 deg C
Humidity
5 to 95% (non-condensing)
Installation Guidelines
Ensure the system is powered down before inserting or removing the module from the baseplate.
The module is designed for mounting on standard I/A Series baseplates; ensure proper seating to maintain electrical connection.
Use shielded twisted-pair cabling for all analog signal connections to minimize EMI/RFI interference.
Maintain proper grounding practices for the cabinet and signal shields to prevent ground loops.
Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the 0 to 60 deg C range.
Handle with ESD-safe precautions to prevent damage to internal sensitive electronic components.
FAQWhat is the primary function of the FBM204?The FBM204 is a combined I/O module that provides 4 analog inputs and 4 analog outputs, allowing for efficient integration of field devices into the Foxboro I/A Series DCS.Does this module support redundant communication?Yes, the FBM204 supports redundant communication paths via the 2 Mbps Fieldbus when installed on a compatible redundant baseplate.What happens if communication is lost?The module can be configured to either hold the last known output value or transition to a predefined safe state upon loss of communication.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro FBM231 is a high-performance Field Device System Integrator module engineered for the I/A Series distributed control system. It serves as a critical communication bridge, providing four independent serial ports to facilitate seamless data exchange between the primary DCS and third-party field devices. By supporting protocols such as Modbus and Allen-Bradley DF1, the FBM231 enables centralized monitoring and control of peripheral assets in demanding industrial environments, including oil refineries, chemical processing plants, and power generation facilities.Features
Four independent asynchronous serial ports supporting RS-232, RS-422, and RS-485 physical standards.
Dedicated on-board processor for protocol stack execution, reducing load on the main control processor.
Supports redundant pair configurations for high-availability and fault-tolerant operation.
Hot-swappable design allows for maintenance without interrupting the primary control loop.
Continuous internal self-diagnostics to monitor link integrity and hardware health.
Supports baud rates up to 38.4 kbps per port.
ApplicationsThe FBM231 is typically deployed in process automation environments where integration of non-native serial devices is required. It is commonly used for interfacing with PLCs, smart transmitters, analyzers, and variable frequency drives (VFDs) that communicate via serial protocols, ensuring unified data visibility across the I/A Series architecture.Technical Specifications
Model
FBM231
Manufacturer
Foxboro (Schneider Electric)
Module Type
Field Device System Integrator
Serial Ports
4
Supported Standards
RS-232, RS-422, RS-485
Max Baud Rate
38.4 kbps per port
Power Consumption
4 W (Max)
Operating Temperature
-20 to +70 deg C
Storage Temperature
-40 to +85 deg C
Relative Humidity
5 to 95% (Noncondensing)
Isolation
600 VAC (port-to-ground/bus)
Redundancy
Supported (Redundant Pair)
Installation Guidelines
Ensure the system is powered down before inserting or removing the module from the baseplate.
The module supports hot-swapping; however, verify that the baseplate and power supply are rated for the intended configuration.
Use shielded communication cables to minimize EMI/RFI interference, especially when operating in RS-485 or RS-422 modes.
Ensure proper grounding of the module chassis to the system ground bus to maintain signal integrity and safety isolation.
Maintain adequate ventilation in the cabinet to ensure the module operates within its specified temperature range.
FAQQ: Can the FBM231 be used in a redundant configuration?A: Yes, the FBM231 supports redundant pair configurations. If the primary module fails, the secondary module automatically assumes control of the serial ports to maintain uninterrupted communication.Q: What protocols are supported by the FBM231?A: The module supports standard asynchronous serial protocols including Modbus and Allen-Bradley DF1. It is designed to handle customized drivers for various third-party field devices.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro IPM2-P0904HA is a high-performance Industrial Power Module designed for the I/A Series distributed control system. It provides reliable, regulated DC power to system enclosures, fieldbus modules, and associated control hardware. Engineered for mission-critical applications such as oil refineries, petrochemical plants, and power generation facilities, this module ensures stable power delivery even under fluctuating input conditions, thereby maintaining process continuity and reducing unscheduled downtime.Features
Redundant Power Architecture: Supports load-sharing configurations with internal diode-ORing logic to prevent single-module failures from impacting the system bus.
Hot-Swappable Design: Allows for replacement of the unit without interrupting the process control loop, facilitating easier maintenance.
Integrated Diagnostics: Provides real-time status feedback to the system controller regarding output voltage and internal temperature.
Advanced Protection: Features built-in over-voltage and short-circuit protection to safeguard sensitive downstream I/O components.
Flexible Input: Compatible with a wide range of AC and DC input voltages.
ApplicationsThe IPM2-P0904HA is primarily utilized in Foxboro I/A Series control cabinets to power I/O racks, communication modules, and field instrumentation. It is suitable for any industrial environment requiring high-availability power distribution where system uptime is critical.Technical Specifications
Model
IPM2-P0904HA
Brand
Foxboro (Schneider Electric)
Module Type
Industrial Power Module 2 (IPM2)
Input Voltage
85-265 VAC or 120-370 VDC
Output Voltage
24 VDC
Output Current
18.8 A (nominal)
Power Consumption
530 W (at full load)
Operating Temp
0 to 60 deg C
Storage Temp
-40 to +85 deg C
Humidity
5 to 95% (Noncondensing)
Cooling
Natural convection or internal fan-assisted
Protection Rating
IP 20
Installation Guidelines
Mounting: Ensure the module is securely seated in the designated I/A Series power supply slot within the enclosure.
Cooling: Maintain adequate clearance around the module to facilitate airflow; ensure vents are not obstructed.
Grounding: Follow standard industrial grounding practices to ensure chassis ground is connected to the cabinet common.
Handling: Use ESD-safe handling procedures when installing or removing the module to prevent damage to internal electronics.
Power Status: While the module is hot-swappable, ensure proper verification of the redundant bus status before extraction in a live system.
FAQIs the IPM2-P0904HA compatible with all I/A Series enclosures?This module is designed specifically for the I/A Series power architecture. Please verify your specific enclosure model and power bus requirements against the module's technical specifications before installation.Does this module require external cooling?The module is designed for natural convection or internal fan-assisted cooling. Ensure that the cabinet environment is maintained within the specified operating temperature range of 0 to 60 deg C.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro P0917MF is a high-performance Discrete Input Module engineered for the I/A Series 200 system. This module provides 16 contact sense discrete input channels, facilitating reliable data acquisition in mission-critical industrial environments such as oil refineries, power generation, and chemical processing. The P0917MF is specifically designed to support system migration strategies, including Flex.Connect solutions that allow for integration with DeltaV architectures while maintaining existing field wiring investments.Features
Channel Density: 16 discrete input channels configured for contact sense operation.
Migration Versatility: Supports direct connection from Foxboro I/A Series 200 termination assemblies to modern I/O architectures without requiring signal conditioning.
System Integration: Compatible with DeltaV CHARM terminal blocks, specifically supporting Low-Side Sense (SE4301T02) types.
Reliability: Designed for redundant control environments to ensure continuous process monitoring and high operational availability.
ApplicationsThis module is intended for use in large-scale industrial control systems where high-density, reliable discrete signal monitoring is required. It is frequently utilized in legacy system upgrades and migrations to modernize control infrastructure while minimizing process downtime and installation complexity.Technical Specifications
Model
P0917MF
Module Type
Discrete Input Module
Input Channels
16
Input Type
Contact Sense / Low-Side Sense
Compatible Termination
FBM207c
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Power Consumption
2.5 Watts (typical)
Relative Humidity
5 to 95% (non-condensing)
Installation Guidelines
Handling: Ensure proper ESD (Electrostatic Discharge) precautions are taken when handling the module to prevent damage to internal circuitry.
Mounting: Ensure the module is securely seated in the designated I/A Series 200 rack slot. Verify that the backplane connection is fully engaged.
Power: Always disconnect power from the I/O rack before inserting or removing the module to prevent electrical arcing or damage to the backplane pins.
Wiring: Ensure all field wiring is properly terminated at the compatible termination assembly (e.g., FBM207c). Use shielded cabling where required to minimize EMI in high-noise industrial environments.
Environment: Maintain the module within the specified operating temperature and humidity ranges to ensure long-term reliability.
FAQWhat is the primary function of the P0917MF?The P0917MF is a 16-channel discrete input module used to convert physical contact states from field devices into digital signals for the Foxboro I/A Series control processor.Is this module compatible with DeltaV systems?Yes, the P0917MF supports Flex.Connect wiring solutions, allowing it to interface with DeltaV CHARM terminal blocks (specifically Low-Side Sense types) during system migration projects.Does this module support redundancy?Yes, the P0917MF is designed to operate within redundant control configurations to maintain system availability during component failure.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro FBM224 (P0926GG) is a high-performance Communication Interface Module (CIM) designed for the I/A Series distributed control system. It acts as a critical gateway between the Foxboro Fieldbus and external serial-based devices, including PLCs, motor control centers, and smart power meters. By centralizing third-party device management within the I/A Series environment, the FBM224 minimizes wiring complexity and provides comprehensive diagnostic visibility, which is essential for maintaining uptime in complex industrial architectures.Features
Modular Design: Standard Eurocard form factor for direct installation into I/A Series high-density baseplates.
Protocol Support: Native support for Modbus RTU and Modbus ASCII protocols.
Flexible Connectivity: Features four software-configurable ports supporting RS-232, RS-422, or RS-485 electrical standards.
Redundancy: Supports dual-redundant Fieldbus connections for enhanced system-level reliability.
Galvanic Isolation: 600 V AC isolation on all communication ports to protect internal logic from ground loops and electrical transients.
Hot-Swappable: Designed for replacement while the baseplate is powered, ensuring zero interruption to the Fieldbus or adjacent I/O.
ApplicationsThe FBM224 is widely deployed in mission-critical industrial environments, including oil refineries, chemical processing plants, and large-scale utility systems. It is primarily used to integrate multi-vendor automation equipment into a unified control strategy.Technical Specifications
Model
FBM224 (P0926GG)
Module Type
4-Port Communication Interface Module
Communication Ports
4 x RS-232 / RS-422 / RS-485 (Software Configurable)
Baud Rates
Up to 38.4 kbps
Isolation
600 V AC galvanic isolation
Power Consumption
4 W maximum
Operating Temperature
-20 to +70 deg C
Relative Humidity
5 to 95 percent (non-condensing)
Environmental Rating
G3 Harsh Environment (ISA S71.04)
Installation Guidelines
Mounting: Ensure the module is fully seated in the I/A Series baseplate to ensure proper backplane connection.
Handling: Use standard ESD precautions when handling the module to prevent damage to sensitive internal circuitry.
Wiring: Utilize shielded communication cables for all serial connections. Ensure proper grounding of cable shields to minimize EMI/RFI interference.
Configuration: Ports are software-configurable; verify port settings in the I/A Series configuration software before connecting field devices.
Power: While the module is hot-swappable, ensure that field-side power is disconnected from the terminal block before performing wiring maintenance on the ports.
FAQQ: Can the FBM224 be replaced while the system is running?A: Yes, the FBM224 is hot-swappable, allowing for replacement without interrupting the operation of the Fieldbus or adjacent I/O modules.Q: What protocols does this module support?A: The FBM224 supports Modbus RTU and Modbus ASCII protocols via its four serial ports.Q: Are the communication ports isolated?A: Yes, the module features 600 V AC galvanic isolation on all four communication ports to protect against electrical transients and ground loops.
Description
The Foxboro FBM230 (P0926GU) is a high-density Intelligent Device Configurator and Communication Interface Module engineered for the Foxboro I/A Series Distributed Control System (DCS). This module serves as a critical bridge between the control system and field instrumentation, facilitating bi-directional communication via the HART protocol. By enabling the simultaneous acquisition of standard 4-20 mA analog signals and digital HART data, the FBM230 provides comprehensive device diagnostics, configuration capabilities, and predictive maintenance data for industrial assets.
Features
Supports four isolated channels for robust HART communication.
Acts as a HART master for seamless device configuration and monitoring.
Redundant 2 Mbps HDLC fieldbus architecture ensures high availability and fault tolerance.
Dedicated digital signal processors handle FSK modulation without impacting analog control loops.
Hot-swappable design allows for module replacement without interrupting system processes.
Enables remote access to instrument health data to support proactive maintenance strategies.
Applications
The FBM230 is widely utilized in process industries requiring high-reliability instrumentation management, including:
Oil and gas refineries
Chemical and petrochemical processing plants
Water and wastewater treatment facilities
Power generation control systems
Technical Specifications
Brand
Foxboro (Invensys / Schneider Electric)
Model
FBM230 (P0926GU)
Series
I/A Series
Module Type
HART Communication Interface Module
Channels
4 Isolated Channels
Protocol
HART (Highway Addressable Remote Transducer)
Communication Speed
1200 baud (HART), 2 Mbps (Fieldbus)
Input Signal Range
4 to 20 mA DC
Power Consumption
5.5 W (Maximum)
Operating Temperature
-20 to +70 deg C
Storage Temperature
-40 to +85 deg C
Relative Humidity
5 to 95 percent (Non-condensing)
Installation Guidelines
Handling: Use standard ESD protection measures when handling the module to prevent damage to internal circuitry.
Mounting: Ensure the module is fully seated in the I/A Series baseplate to establish proper backplane connection.
Hot-Swapping: The module is designed for hot-swapping; however, ensure the area is free of hazardous gases if operating in classified zones before removal.
Wiring: Use shielded twisted-pair cabling for HART signals to minimize EMI interference. Ensure proper grounding of cable shields at the designated termination points.
Environment: Maintain the module within the specified temperature and humidity ranges to ensure long-term operational reliability.
Compliance and Certifications
This module is designed to meet rigorous industrial standards, including CE, UL, CSA Class I Div 2, and ATEX Zone 2 certifications for use in hazardous environments.
FAQ
Can the FBM230 be replaced while the system is running?Yes, the FBM230 is hot-swappable, allowing for replacement or maintenance without shutting down the control system.
Does this module support standard 4-20 mA signals?Yes, the module is designed to pass through standard 4-20 mA analog signals while simultaneously extracting digital HART data from the same loop.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro AD908AA is a high-reliability power supply assembly designed specifically for the Foxboro I/A Series (Intelligent Automation) distributed control system. This module serves as a critical power conversion unit, providing stable, regulated DC power to Field Bus Modules (FBMs) and associated communication infrastructure. Engineered for demanding industrial environments, the AD908AA ensures consistent system operation by mitigating the effects of electrical noise, transients, and fluctuating load conditions, thereby protecting sensitive control hardware from resets and failures.Features
Regulated Output: Provides stable 24 VDC output to ensure consistent performance of downstream I/O components.
Robust Protection: Integrated circuitry for over-voltage and over-current protection to shield system hardware.
Redundancy Support: Designed for use in redundant power configurations, allowing for seamless failover in critical control applications.
Status Monitoring: Front-panel indicators provide immediate visual verification of power health and operational status.
Industrial Design: Modular plug-in architecture optimized for thermal efficiency and resistance to EMI/RFI interference.
ApplicationsThe AD908AA is widely deployed in mission-critical process automation environments, including oil and gas refineries, petrochemical processing, power generation facilities, and municipal wastewater treatment plants where system uptime is paramount.Technical Specifications
Parameter
Specification
Model
AD908AA
Input Voltage
120/240 VAC or 125 VDC
Output Voltage
24 VDC (Regulated)
Output Current
2.0 A (Continuous)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5 to 95% (Non-condensing)
Cooling Method
Natural Convection
Mounting
Vertical or Horizontal Baseplate
Installation Guidelines
Power Safety: Always disconnect the primary power source before installing or removing the module from the baseplate.
ESD Handling: Use standard electrostatic discharge (ESD) precautions, including a grounded wrist strap, when handling the module to prevent damage to internal circuitry.
Ventilation: Ensure adequate clearance around the module to allow for natural convection cooling; do not obstruct air intake or exhaust paths.
Mounting: Ensure the module is fully seated and secured to the baseplate to maintain proper electrical contact and structural integrity.
Wiring: Use appropriate shielded cabling for input/output connections to minimize EMI/RFI interference in high-noise environments.
FAQWhat is the primary function of the AD908AA?The AD908AA acts as a power supply module for the Foxboro I/A Series, converting AC or DC input power into a regulated 24 VDC supply for FBMs and other system components.Can this module be used in redundant systems?Yes, the AD908AA is designed to support redundant power configurations, which helps maintain system availability if one power supply unit fails.Is this module compatible with all I/A Series systems?The AD908AA is specific to the I/A Series infrastructure. Please verify your system's power requirements and baseplate compatibility before installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
Description
The Foxboro FBM215 (P0922VU) is a high-performance HART Communication Interface Module engineered for the I/A Series Distributed Control System (DCS). This module provides eight isolated output channels, specifically designed to facilitate robust communication between the control system and field-mounted HART devices. Deployed extensively in critical process industries such as oil refining, chemical processing, and power generation, the FBM215 ensures high signal integrity and galvanic isolation. Its primary role involves executing precise control strategies and providing diagnostic data from intelligent field instruments, which significantly minimizes maintenance overhead and reduces unscheduled plant downtime by enabling proactive asset management.
Features
Eight galvanically isolated output channels for enhanced signal integrity.
Supports HART protocol superimposed on 4-20 mA analog output signals.
Galvanic isolation between channels and from internal logic to prevent ground loops.
Point-to-Point configuration support for simultaneous analog control and digital communication.
High-density design optimized for standard Foxboro enclosure mounting.
Integrated diagnostic capabilities for proactive field device management.
Applications
The FBM215 is utilized in mission-critical process control environments where HART-enabled instrumentation is required. Typical applications include:
Oil and gas refining process control.
Chemical and petrochemical manufacturing.
Power generation plant automation.
Water and wastewater treatment facilities.
Technical Specifications
Model
FBM215 (P0922VU)
Brand
Foxboro (Schneider Electric)
Module Type
Isolated Output Interface (HART)
Channels
8 Isolated Output Channels
Output Signal
4-20 mA DC with HART digital signal
Isolation
600 VAC (channel-to-earth), 600 VAC (channel-to-channel)
Power Consumption
5 Watts (Maximum)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to +70 deg C
Relative Humidity
5 to 95% (non-condensing)
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the baseplate.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Ensure the module is securely seated in the designated baseplate slot to maintain proper electrical contact and environmental sealing.
Maintain adequate clearance around the module to ensure proper thermal dissipation within the enclosure.
Use shielded cabling for all field connections to maintain signal integrity and meet electromagnetic compatibility (EMC) requirements.
Verify that the wiring polarity matches the terminal assignments to prevent damage to the output stages.
FAQ
Does the FBM215 support redundant configurations?
Yes, the FBM215 interfaces with the high-speed redundant Fieldbus via the module baseplate, ensuring high availability for mission-critical control loops.
Is this module suitable for hazardous locations?
The FBM215 is designed for use in industrial environments and carries certifications including CE, CSA, FM, and ATEX. Please verify the specific hazardous area classification for your installation site against the module's documentation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Foxboro FBM241c (P0914WM) is a high-performance Discrete Input/Output module engineered for the I/A Series distributed control system. This module provides 8 discrete input channels and 8 discrete output channels, designed to interface with critical field devices such as solenoid valves, motor starters, and limit switches. Built for demanding industrial environments, the FBM241c features robust optical isolation to protect sensitive system electronics from field-side electrical noise, surges, and transients, ensuring high operational availability in process automation.Features
8 discrete input channels and 8 discrete output channels.
Optical isolation for enhanced protection against field-side electrical interference.
Supports 24 VDC input and output signal levels.
Communicates via the 2 Mbps redundant Module Fieldbus for deterministic data exchange.
Integrated LED status indicators for each I/O point to facilitate rapid local diagnostics.
Compact, DIN-rail mountable enclosure designed for high-density cabinet configurations.
Fail-safe state management for digital outputs to maintain system integrity.
ApplicationsThe FBM241c is widely utilized in process industries, including oil and gas refineries, chemical processing plants, and power generation utilities. It is ideal for applications requiring reliable digital signal processing, such as safety interlocking, sequence control, and monitoring of field-mounted discrete instrumentation.Technical Specifications
Parameter
Specification
Model
FBM241c (P0914WM)
Module Type
Discrete I/O (8 In / 8 Out)
Input Signal
24 VDC
Output Signal
24 VDC at 250 mA per channel
Communication
2 Mbps Redundant Module Fieldbus
Isolation
600 VAC (Field-to-Bus/Ground)
Operating Temperature
-20 to +70 deg C
Storage Temperature
-40 to +85 deg C
Power Consumption
3 W (Maximum)
Certifications
Class I Div 2, ATEX Zone 2, CE
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module from the baseplate.
Mount the module on a standard DIN rail within a clean, dry, and vibration-dampened enclosure.
Maintain proper grounding practices to ensure the effectiveness of the module's electrical isolation.
Use shielded cabling for field I/O connections to minimize EMI/RFI interference.
Verify that the termination assembly matches the required input/output configuration (dry contact vs. voltage-sensing).
Handle with care to prevent electrostatic discharge (ESD) damage to internal components.
FAQWhat is the primary function of the FBM241c module?The FBM241c is a discrete I/O module used in the Foxboro I/A Series system to interface with 8 digital inputs and 8 digital outputs, providing signal conditioning and communication for field devices.Does this module support redundant communication?Yes, the FBM241c communicates with the control processor via the 2 Mbps redundant Module Fieldbus, which provides deterministic and reliable data updates.What is the maximum output current per channel?Each output channel is capable of driving external loads up to 250 mA at 24 VDC.
