Description

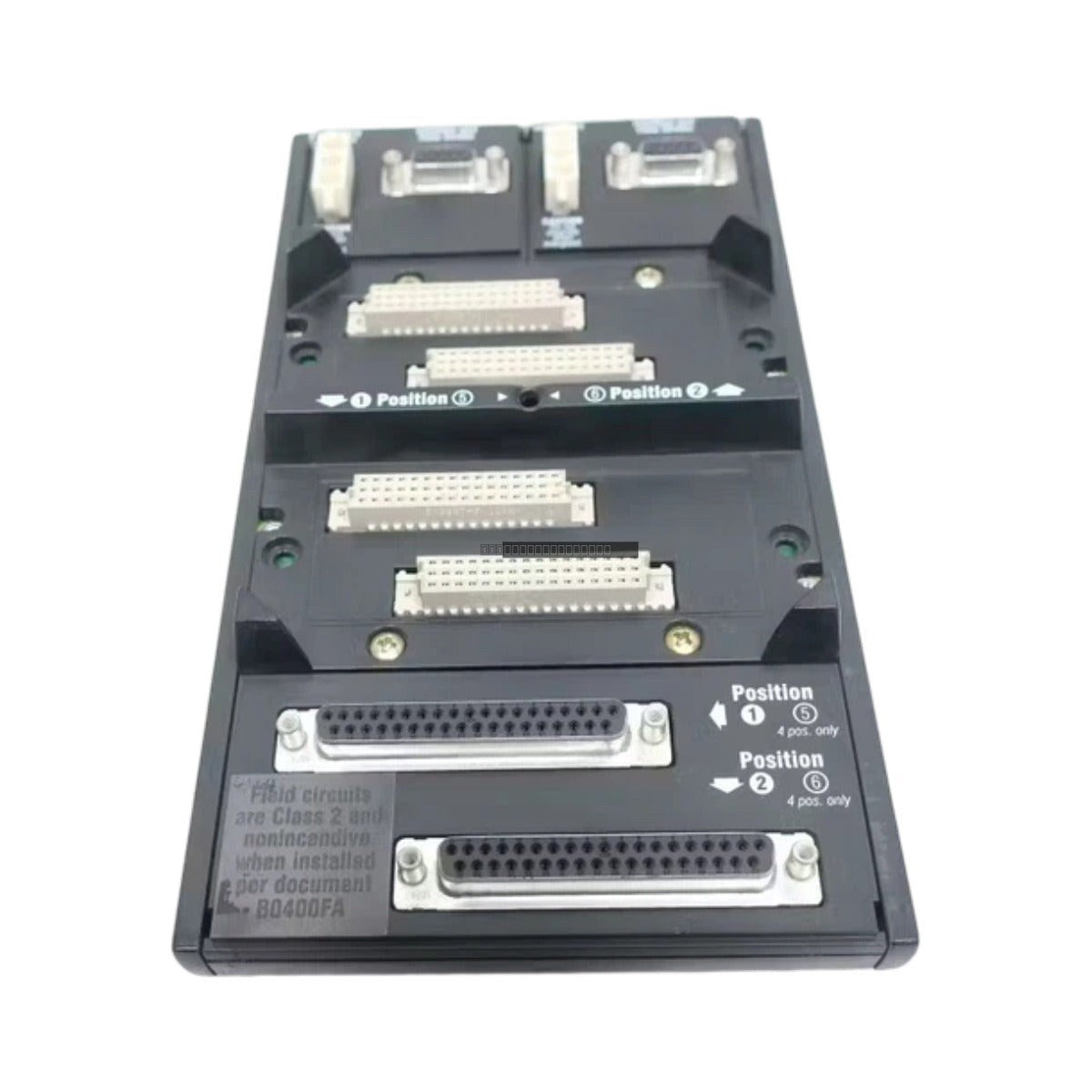

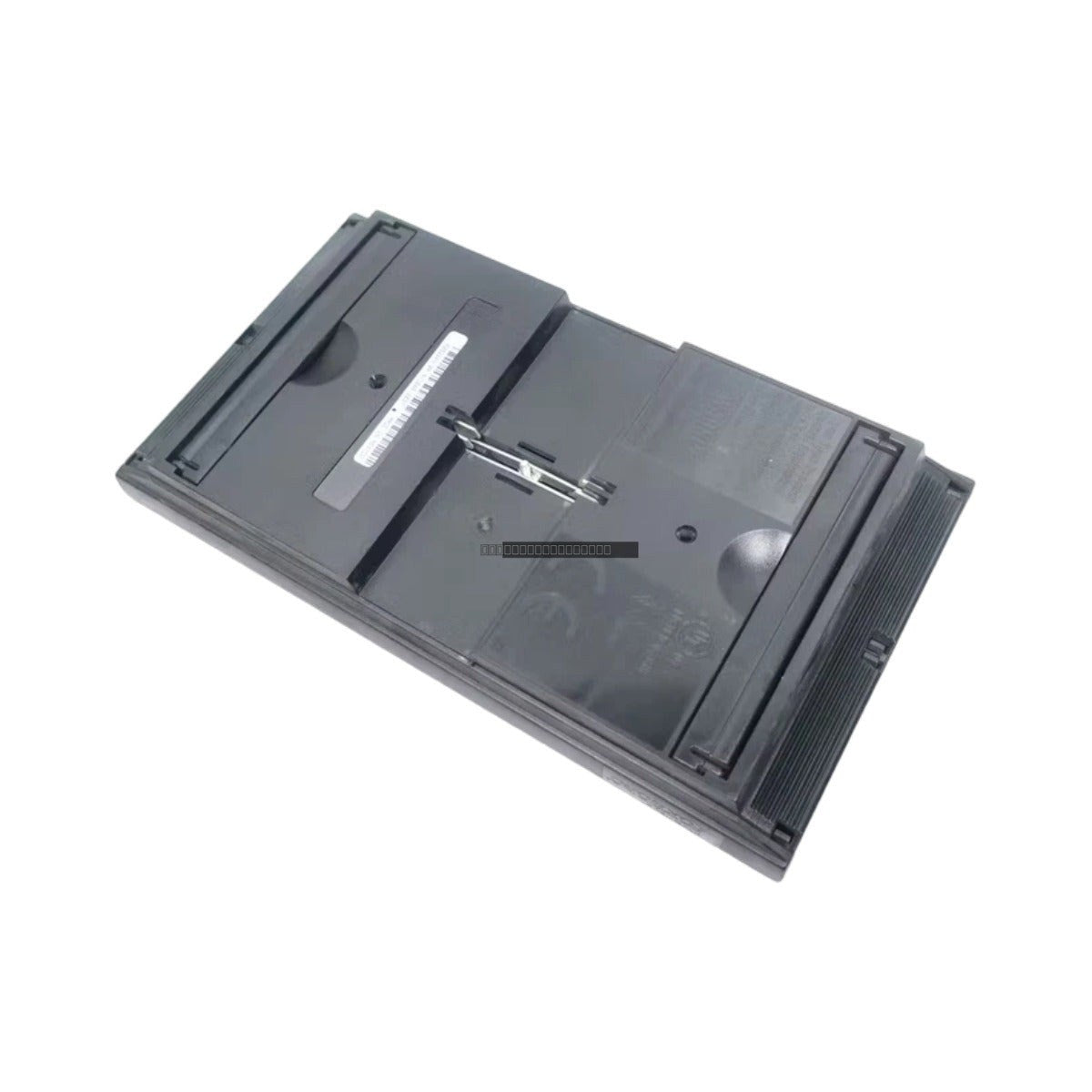

The Foxboro P0926KH is a robust 8-position vertical baseplate assembly engineered specifically for the I/A Series 200 Series Field Bus Module (FBM) architecture. This baseplate serves as the critical mounting and interconnection backbone for distributed control systems, providing both mechanical support and essential electrical distribution to connected I/O modules. Its design is tailored for demanding industrial environments where reliability and high availability are mandatory, such as petrochemical refining, power generation, and large-scale manufacturing automation.
Features
-
High-Density Mounting: Supports up to eight 200 Series FBMs in a compact, vertical footprint.
-
Redundant Power Distribution: Integrated dual 24 VDC power bus inputs ensure system continuity during primary power supply maintenance or failure.
-
High-Speed Communication: Facilitates reliable data exchange via the 2 Mbps HDLC fieldbus protocol, ensuring deterministic performance across the I/O rack.
-
Maintenance-Oriented Design: Supports hot-swapping of modules, allowing for component replacement without interrupting the overall process control loop.
-
Thermal Management: Engineered for efficient vertical airflow to maintain optimal operating temperatures for sensitive electronic components.
Applications
The P0926KH is utilized in Foxboro I/A Series control cabinets for various I/O configurations. It is commonly deployed in systems requiring high-density signal processing, including analog input/output, digital I/O, and specialized communication modules. Its rugged construction makes it suitable for installation in harsh industrial cabinets subject to vibration and temperature fluctuations.
Technical Specifications
| Model |
P0926KH |
| Brand |
Foxboro (Schneider Electric) |
| Module Capacity |
8 Positions (200 Series FBMs) |
| Power Input |
Dual 24 VDC Redundant Feeds |
| Bus Protocol |
2 Mbps HDLC Fieldbus |
| Operating Temperature |
-20 to 70 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Humidity |
5 to 95% (Non-condensing) |
| Mounting |
Vertical DIN Rail / Rack |
Installation Guidelines
- Ensure the mounting surface is clean, rigid, and capable of supporting the weight of the baseplate and fully loaded modules.
- Verify that the cabinet environment adheres to the specified temperature range to prevent premature component degradation.
- Always power down the system or follow site-specific hot-swap safety protocols before inserting or removing FBMs from the baseplate.
- Ensure all redundant power connections are securely tightened and properly fused according to plant electrical standards.
- Maintain proper clearance around the vertical assembly to ensure unobstructed airflow for convection cooling.
- Use shielded cabling for fieldbus connections to minimize the risk of electromagnetic interference (EMI) in high-noise environments.
FAQ
Does this baseplate support all Foxboro I/O modules?
The P0926KH is designed specifically for the 200 Series Field Bus Modules (FBMs). Please verify your specific module compatibility with the Foxboro I/A Series system documentation.
Is the power supply redundant?
Yes, the baseplate is designed with dual 24 VDC inputs to support redundant power configurations, enhancing system reliability.
