Description

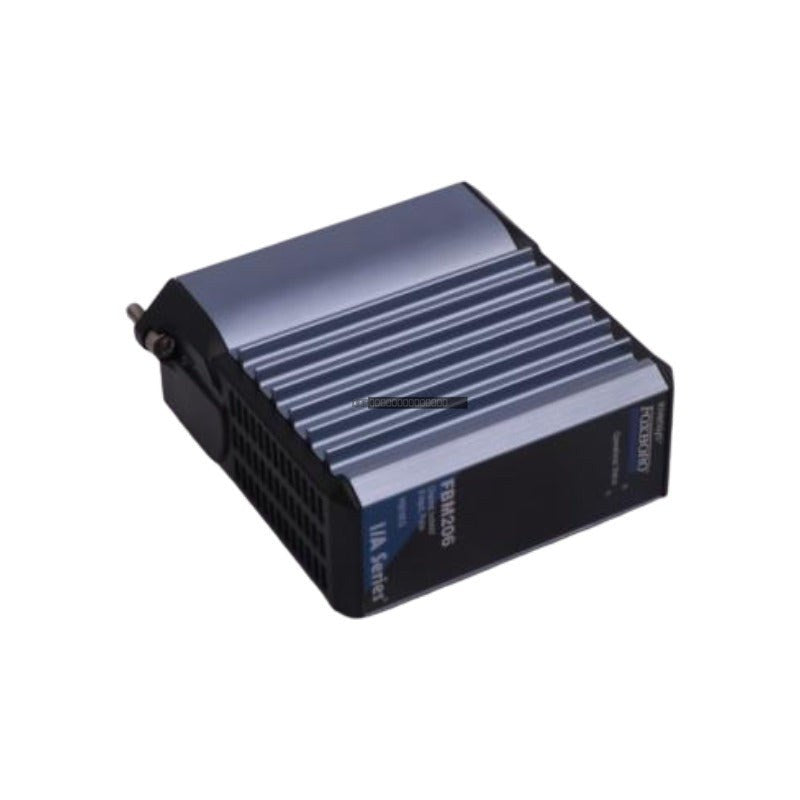

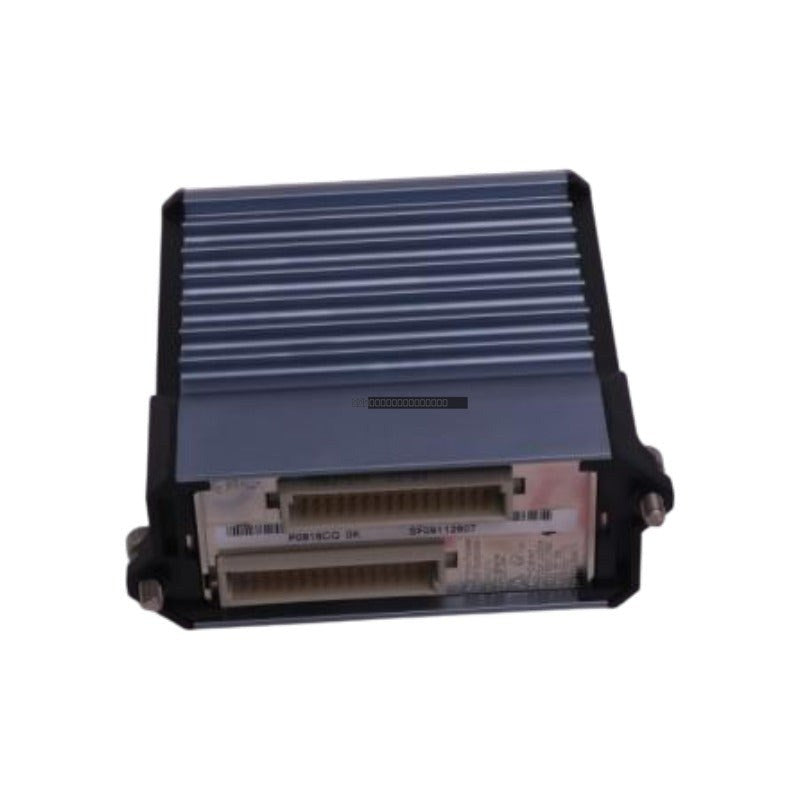

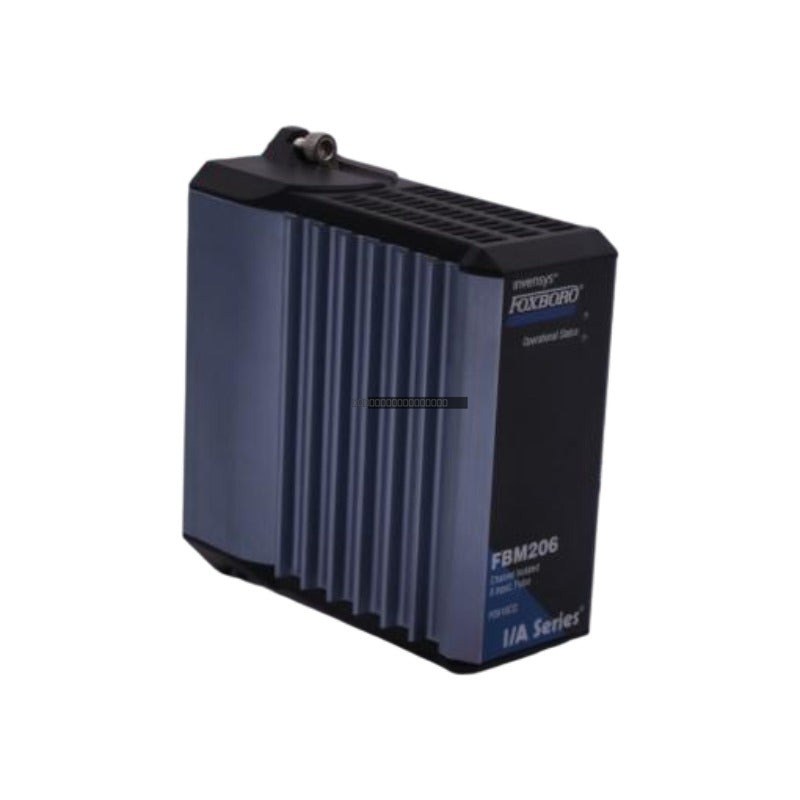

The Foxboro FBM206 (P0916CQ) is a high-precision Pulse Input Module engineered for the Foxboro I/A Series and Foxboro Evo distributed control systems. This module provides eight independent pulse input channels designed to interface with critical field devices such as flowmeters, tachometers, and pulse generators. It is optimized for demanding industrial environments, including oil refineries, utility power plants, and chemical processing facilities, where accurate measurement of frequency, totalized counts, and pulse duration is essential for process monitoring and inventory control.
Features
- Eight independent pulse input channels with dedicated signal conditioning.
- Support for diverse input types including dry contact, voltage pulse, and NAMUR sensors.
- Configurable debounce filtering to mitigate electrical noise interference.
- Local high-speed accumulation and frequency calculation for deterministic system performance.
- Redundant 2 Mbps Module Fieldbus communication.
- Hot-swappable design for maintenance without system downtime.
- Integrated self-diagnostics for real-time channel health and power monitoring.
Applications
- Flow measurement and totalization in hydrocarbon processing.
- Tachometer signal monitoring for rotating machinery.
- Pulse-based inventory tracking in chemical storage.
- Utility-scale power plant process control.
Technical Specifications
| Model |
FBM206 (P0916CQ) |
| Input Channels |
8 |
| Input Frequency |
0.1 Hz to 50 kHz |
| Counter Resolution |
32-bit |
| Input Signal Range |
0 to 24 VDC |
| Isolation |
600 VAC (input-to-bus/ground) |
| Operating Temperature |
-20 to +70 deg C |
| Power Consumption |
3.5 W |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the FBM206 module from the baseplate.
- The module is designed for hot-swapping; ensure the baseplate is properly configured for the I/A Series architecture.
- Use shielded cabling for pulse inputs to minimize EMI/RFI interference in high-noise industrial environments.
- Ensure proper grounding of the module chassis to the system common ground to maintain electrical isolation integrity.
- Verify that input signal levels do not exceed the 24 VDC threshold to prevent damage to the input circuitry.
Compliance and Certifications
The FBM206 module is designed for use in hazardous locations, meeting Class I Div 2 and ATEX Zone 2 requirements. It also carries the CE mark for compliance with relevant European directives.
FAQ
Is the FBM206 compatible with all I/A Series baseplates?
The FBM206 is designed for standard Foxboro I/A Series modular baseplates. Please verify your specific baseplate revision and system firmware compatibility before installation.
Can this module handle NAMUR sensors?
Yes, the FBM206 supports NAMUR sensor inputs, as well as dry contact and standard voltage pulses, with configurable thresholds for each channel.
