Description

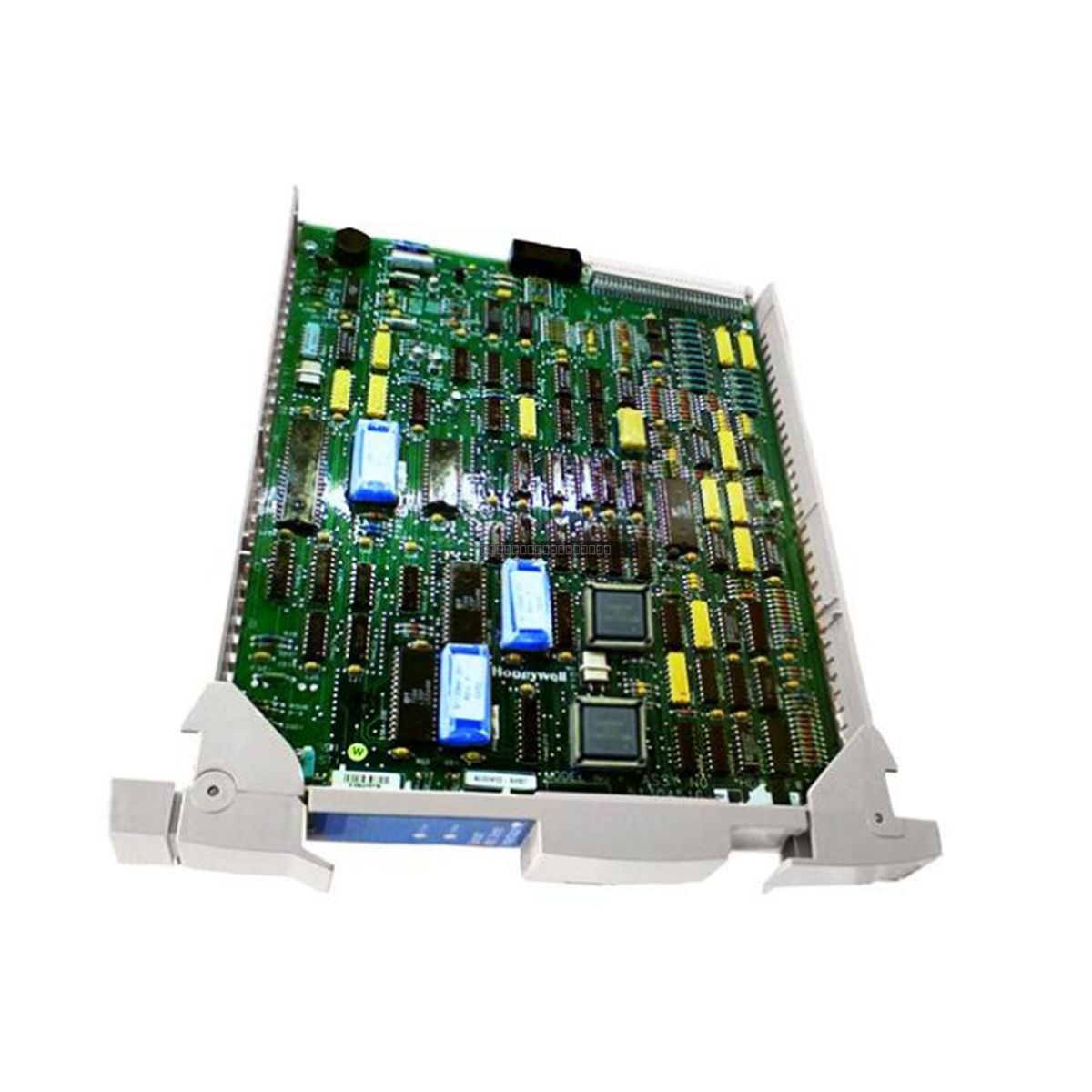

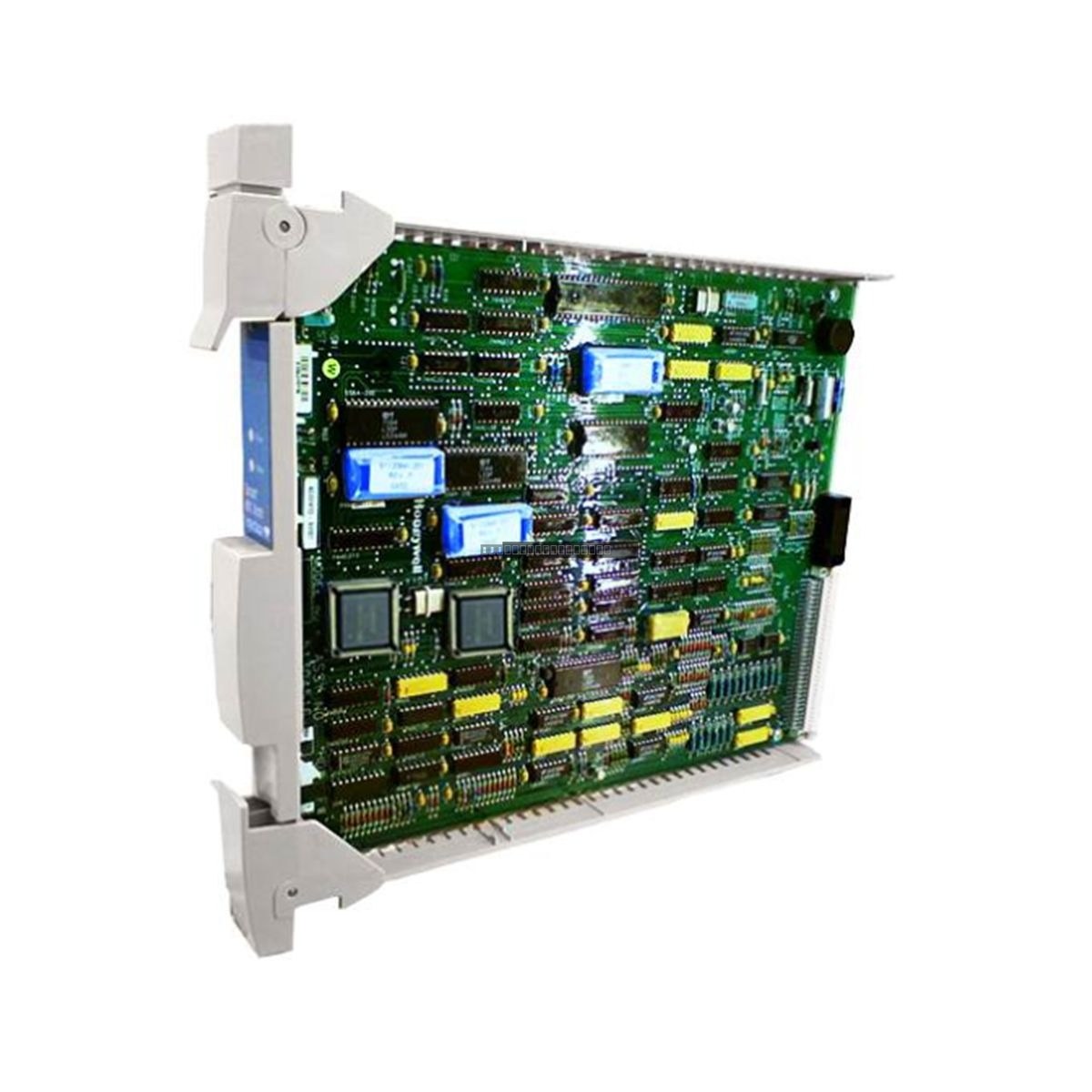

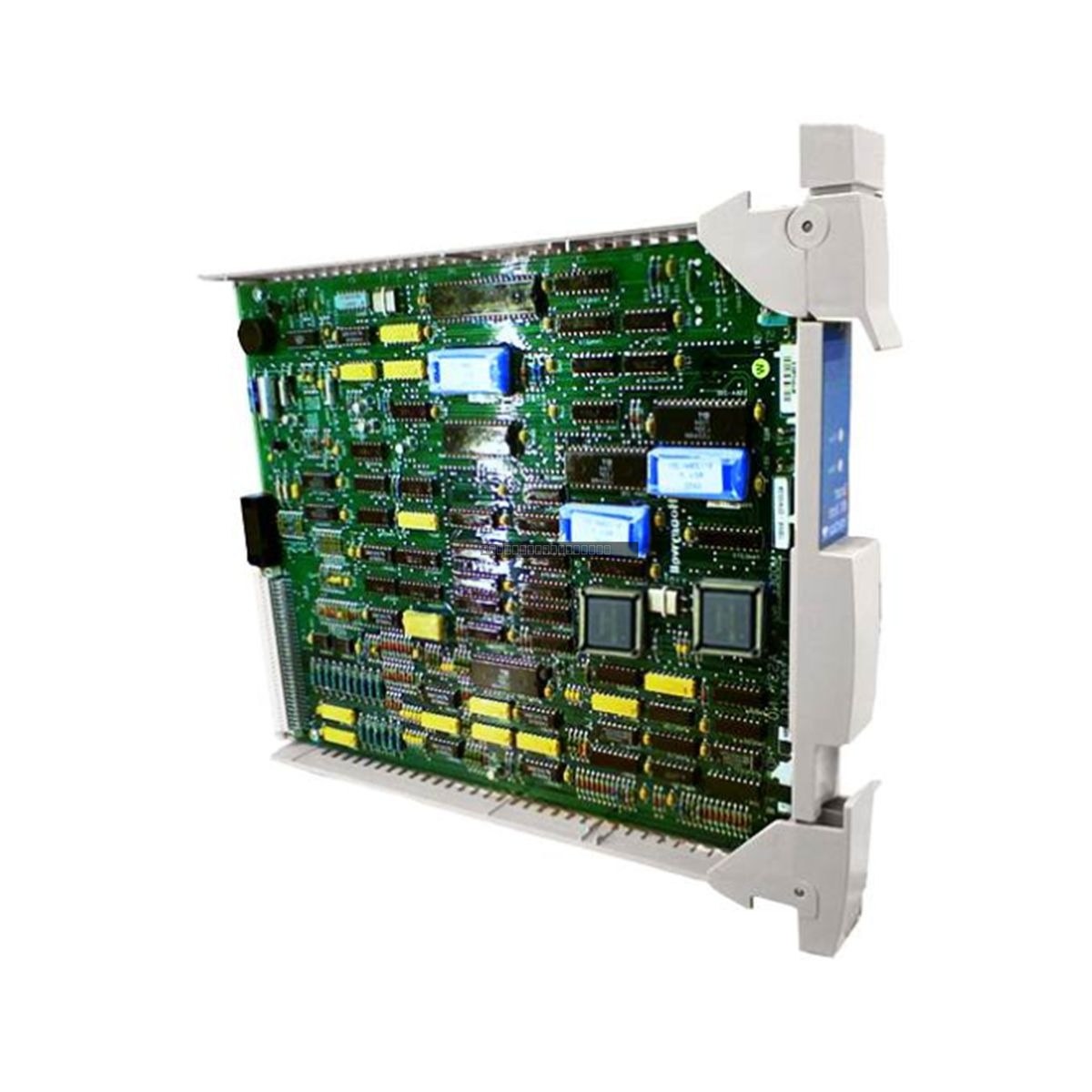

The Honeywell 51304516-250 (MC-PSTX03) is a Smart Transmitter Interface Multivariable (STIM) module designed for high-integrity communication within Honeywell distributed control systems. This module serves as a dedicated processor interface, enabling seamless integration with intelligent field transmitters. It is engineered to process up to 16 input channels, facilitating advanced process monitoring and control in critical industrial environments such as petrochemical facilities, refineries, and power generation plants. This specific version is CE compliant, featuring enhanced electromagnetic compatibility (EMC) to ensure reliable operation in electrically noisy environments.
Features
- Supports up to 16 smart transmitter input channels for multivariable process monitoring.
- CE compliant design with enhanced EMC protection.
- Includes filtered IOP connectors to suppress conducted noise.
- Equipped with dedicated IOP connector grounding panels for improved shielding.
- Features a rear backpanel shield structure for increased stability.
- Conformal coated hardware for protection against humidity and airborne contaminants.
- Optimized for deterministic communication and high-availability process control.
Applications
The MC-PSTX03 is utilized in advanced process control loops where high-fidelity data from intelligent transmitters is required. It is commonly deployed in systems requiring precise diagnostics and visibility of process variables across large-scale industrial architectures.
Technical Specifications
| Model |
MC-PSTX03 |
| Part Number |
51304516-250 |
| Module Type |
Smart Transmitter Interface Multivariable (STIM) |
| Input Capacity |
16 Channels |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Compliance |
CE Compliant (EMC Enhanced) |
| Protection |
Filtered IOP connectors, Grounding panels, Rear shield |
| Construction |
Conformal coated |
Installation Guidelines
- Ensure the control system is powered down before inserting or removing the module from the backplane.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
- Ensure the module is fully seated in the designated rack slot to maintain proper backplane communication.
- Verify that all IOP connectors are securely fastened and that the grounding panels are properly bonded to the system ground.
- Maintain adequate ventilation in the cabinet to ensure the module operates within its specified temperature range (0 to 60 deg C).
- Route signal cables away from high-voltage lines and high-EMI sources to maintain signal integrity.
FAQ
What is the primary function of the 51304516-250 module?
The MC-PSTX03 acts as a smart transmitter interface that collects and processes data from up to 16 multivariable field transmitters, providing the control system with reliable process variables and diagnostic information.
What distinguishes the 51304516-250 from non-CE versions?
The 51304516-250 is a CE-compliant version that includes specific EMC enhancements: filtered IOP connectors, dedicated grounding panels, and a rear backpanel shield to mitigate communication instability caused by electrical noise.
