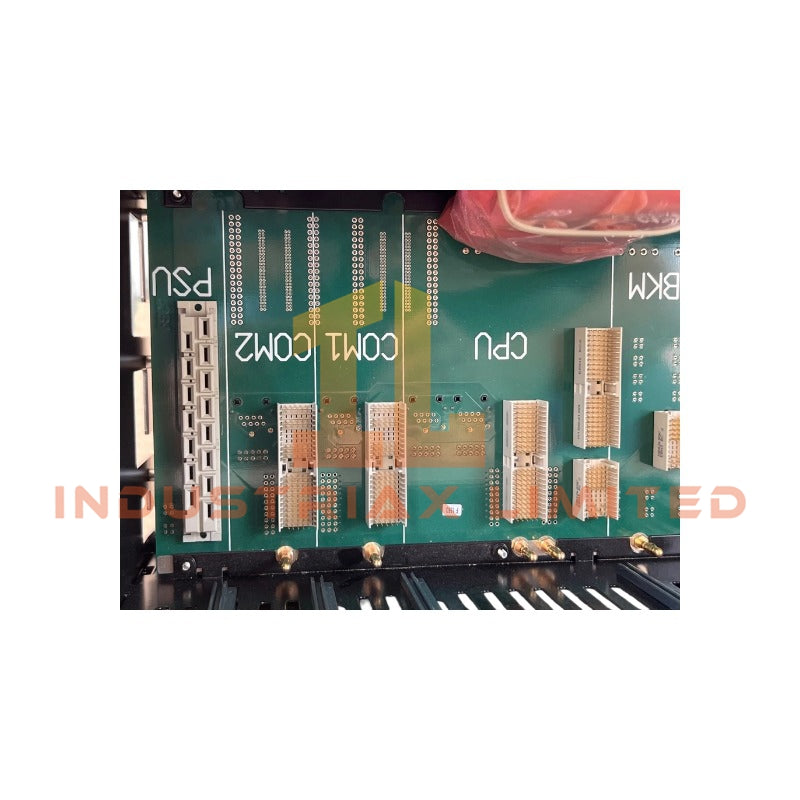

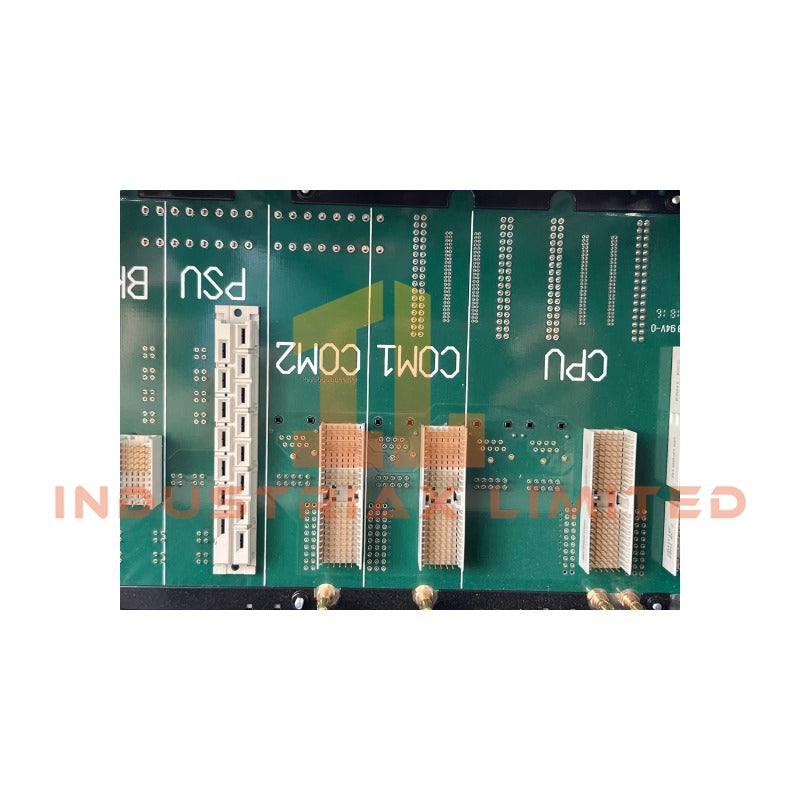

Honeywell FS-CPCHAS-0001 Control Processor Chassis

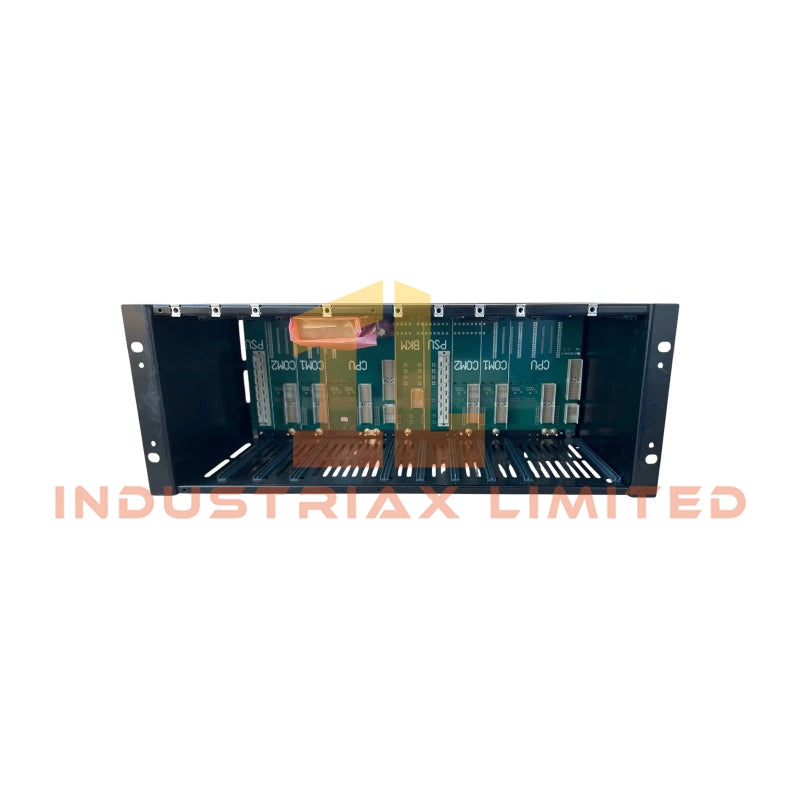

Configured for controller mounting and power distribution in Honeywell control processor platforms, the Honeywell FS-CPCHAS-0001 (FS-CPCHAS-0001 Control Processor Chassis) provides the physical chassis structure for redundant or non-redundant controller configurations.

Hardware Specifications

Parameter	Specification
Model	FS-CPCHAS-0001
Brand	Honeywell
Product Type	Control Processor Chassis
Origin	USA
Weight	5.84 kg
Dimensions	48.3 x 28 x 17.6 cm
Operating Temp	-40 deg C to +70 deg C
Storage Temp	-50 deg C to +85 deg C
Humidity	5-95% RH, condensing
Shock Resistance	30 g, 11 ms half-sine
Power Consumption	5V-1: 0.05 A; 5V-2: 0.05 A
Tariff Code	8537101190
Approvals	CE, UL, CSA, TUV, FM

Process Control Chassis Integration and DCS Hardware Characteristics

The Honeywell FS-CPCHAS-0001 provides the mechanical framework for installing control processor assemblies within Honeywell process control architectures. It supports both redundant and non-redundant controller arrangements and maintains physical alignment between controller modules, power connections, and associated hardware interfaces.

Furthermore, the chassis design supports Honeywell DCS hardware configurations where controller availability depends on correct module positioning, power distribution, and backplane connection integrity. The unit operates as a passive hardware structure and does not execute control algorithms or process signal conversion.

The FS-CPCHAS-0001 chassis supports installation environments where process controllers interface with field I/O modules using standard DCS communication structures. Therefore, proper module seating, grounding, and cabinet installation practices directly affect system operation.

Frequently Asked Questions

Q: Does the FS-CPCHAS-0001 execute controller processing functions?
A: No. The FS-CPCHAS-0001 is a physical chassis component. The installed controller modules perform processing, communication, and control execution functions.

Q: Can the FS-CPCHAS-0001 support redundant controller configurations?
A: Yes. The chassis is designed for redundant or non-redundant controller arrangements according to the configured Honeywell control system architecture.

Q: What installation factors affect chassis operation?
A: Correct module insertion, mechanical alignment, grounding connection, and cabinet environmental conditions affect the chassis installation quality.

Field Installation Guidelines

• Install the FS-CPCHAS-0001 inside a compatible control cabinet with sufficient mechanical support.
• Verify that controller modules are correctly positioned before applying power.
• Maintain proper grounding connections between the chassis assembly and cabinet grounding system.
• Route power and communication wiring separately from high-voltage switching circuits to reduce electrical interference.
• Inspect connectors and mounting points before commissioning the installed controller hardware.
• Follow Honeywell installation manuals for cabinet layout, module placement, and system-specific configuration requirements.
