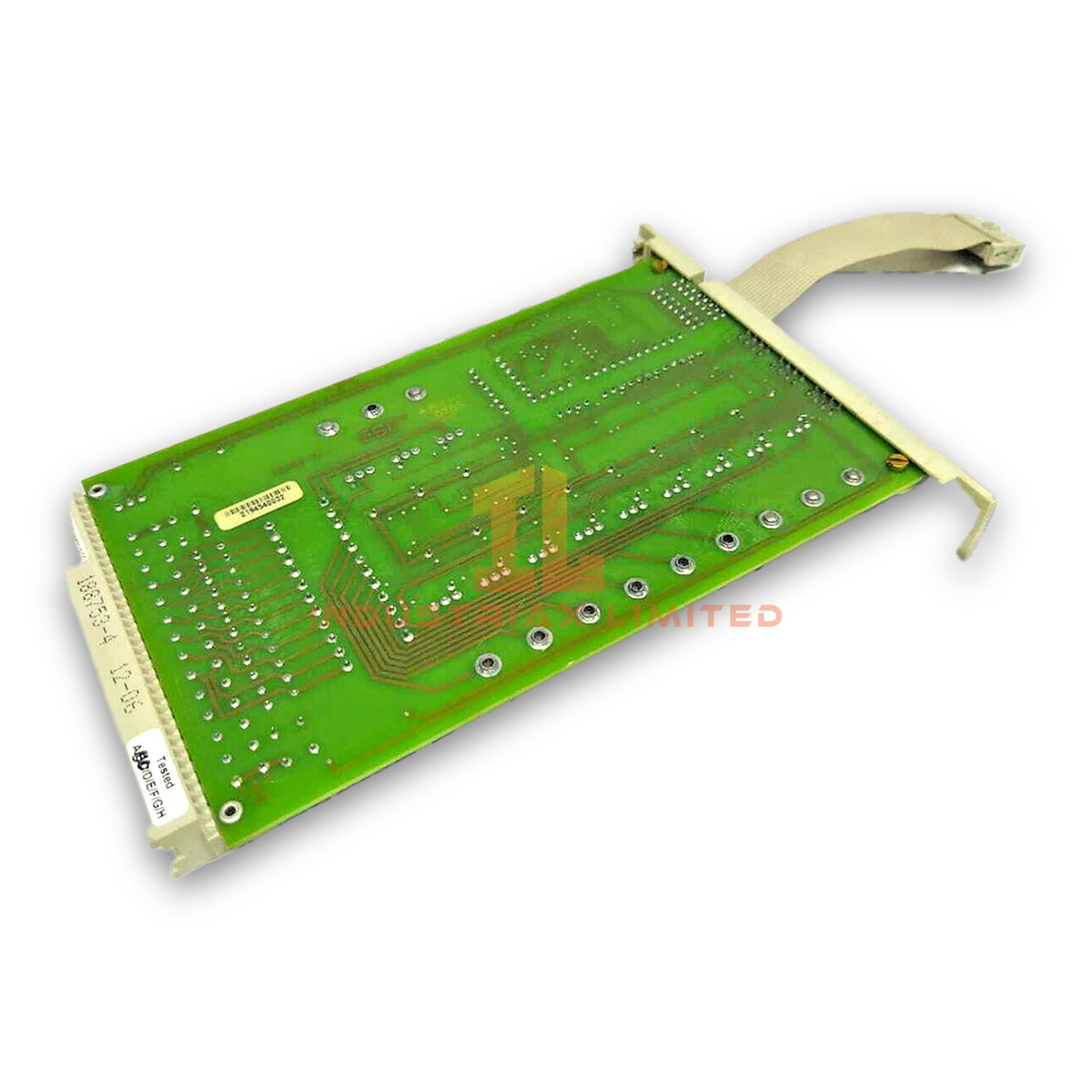

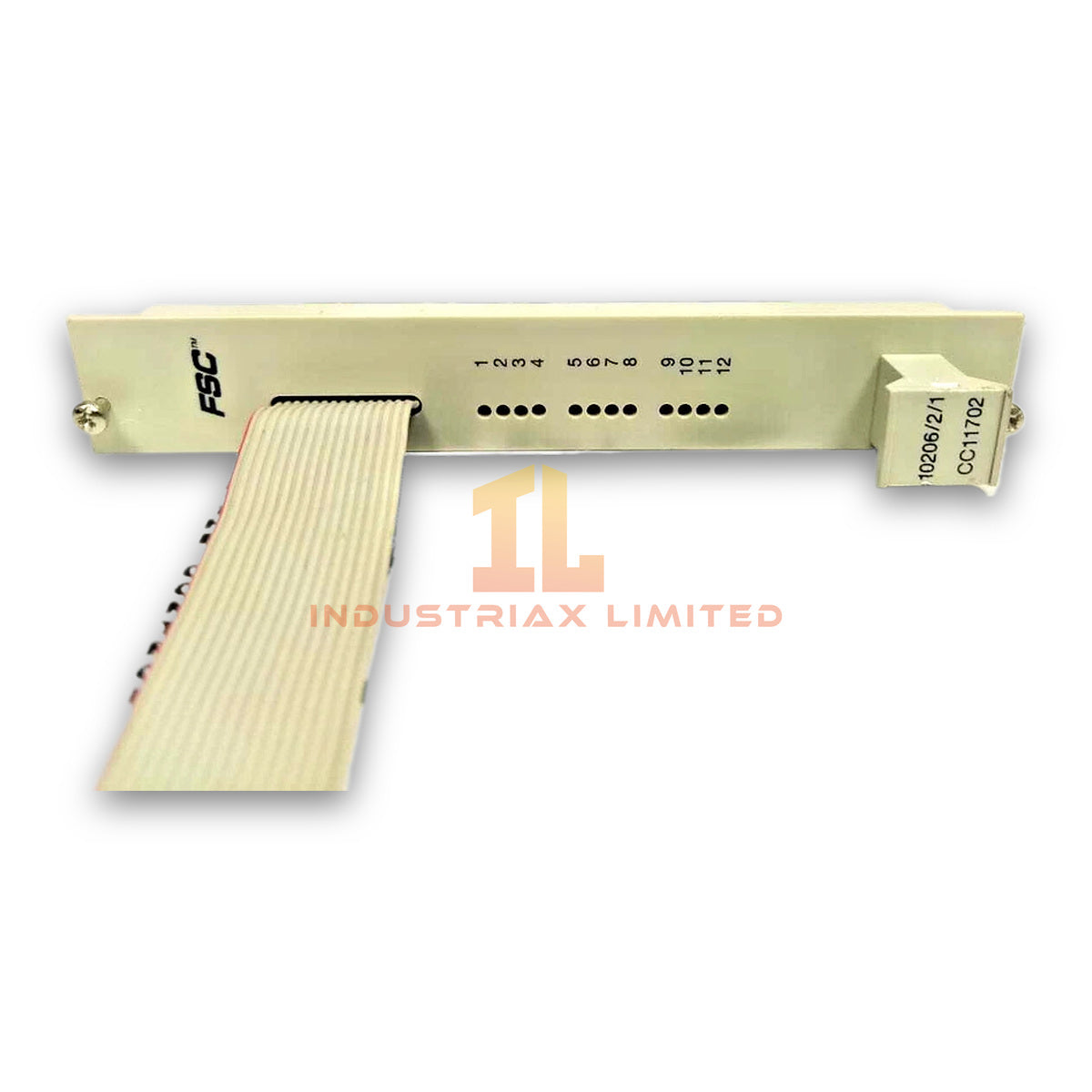

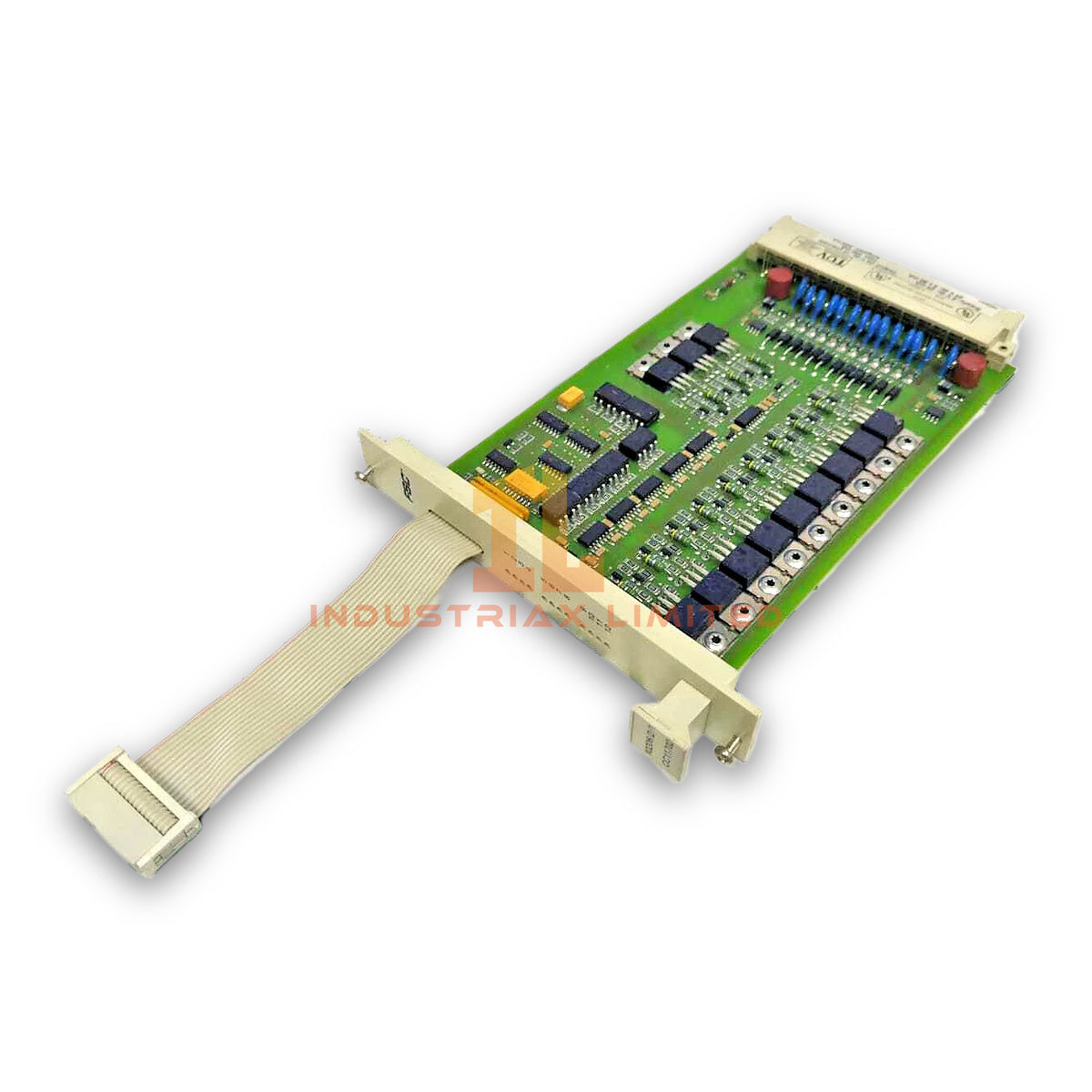

Honeywell 10206/2/1 Digital Output Module

The Honeywell 10206/2/1, also cataloged as the 10206/2/1 Digital Output Module, operates as a dedicated hardware component for 24 VDC discrete actuator control within Honeywell FSC Safety Control System platforms.

Hardware Specifications

Parameter	Specification
Model	10206/2/1
Brand	Honeywell
Origin	United States
Product Type	Digital Output Module
System Family	Honeywell FSC Safety Control System
Output Type	24 VDC solid-state source output
Number of Output Channels	12 channels
Output Configuration	Two groups of six channels
Maximum Channel Current	550 mA per channel
Maximum Load Power	13 W per output channel
Maximum Lamp Load	275 mA, 6.6 W
Output Protection	Short-circuit protected solid-state output
Inductive Load Protection	Integrated suppression diode
Maximum Load Capacitance	1 F
Voltage Drop	Less than 1.5 VDC at 500 mA
Off Current	Less than 0.1 mA
Watchdog Input Current	0.06 mA
Internal Supply Voltage	5 VDC
Internal Power Consumption	25 mA at 5 VDC
External Supply Voltage	24 VDC
External Supply Current	230 mA without output load
Rack Space Requirement	4 TE, 3 HE (4 HP, 3U)
Approvals	CE, TÜV, UL
Software Compatibility	Version 3.00
Module Coding	Holes A9, C13
Rack Coding	Large pins A9, C13

Channel Isolation and Process Output Control

The Honeywell 10206/2/1 provides twelve solid-state digital output channels for discrete field device operation. Each channel switches a 24 VDC supply source and supports resistive and inductive loads. Additionally, the module divides outputs into two six-channel groups, which allows separate external supply connections for field power distribution.

The output circuitry integrates short-circuit protection and suppression components. Therefore, the module reduces switching disturbances when controlling inductive devices such as solenoid valves and relay coils. The FSC watchdog function monitors system operation and forces output deactivation when the controller enters a shutdown condition.

Frequently Asked Questions

Q: Does the Honeywell 10206/2/1 provide fail-safe tested outputs?
A: No. The module provides standard solid-state digital outputs and does not implement tested fail-safe output functions.

Q: How does the module handle inductive field loads?
A: The module integrates suppression diodes to reduce voltage disturbances generated by inductive loads during switching operations.

Q: How are the output channels arranged for external power connection?
A: The twelve channels are divided into two groups of six outputs, allowing separate 24 VDC external supply connections.

Field Installation Guidelines

Install the Honeywell 10206/2/1 in the designated FSC rack position according to the hardware configuration requirements. Verify module coding positions before insertion to prevent incorrect rack installation.

Connect the external 24 VDC field supply lines according to the specified output group arrangement. Separate field wiring from high-voltage power cables to reduce electrical interference.

Use appropriate shield grounding practices for connected field devices when required by the installation design. Confirm actuator polarity, load current, and protection requirements before commissioning.

During maintenance activities, verify output status through FSC diagnostics before disconnecting field wiring. Follow the approved FSC system procedures for module replacement and functional testing.
