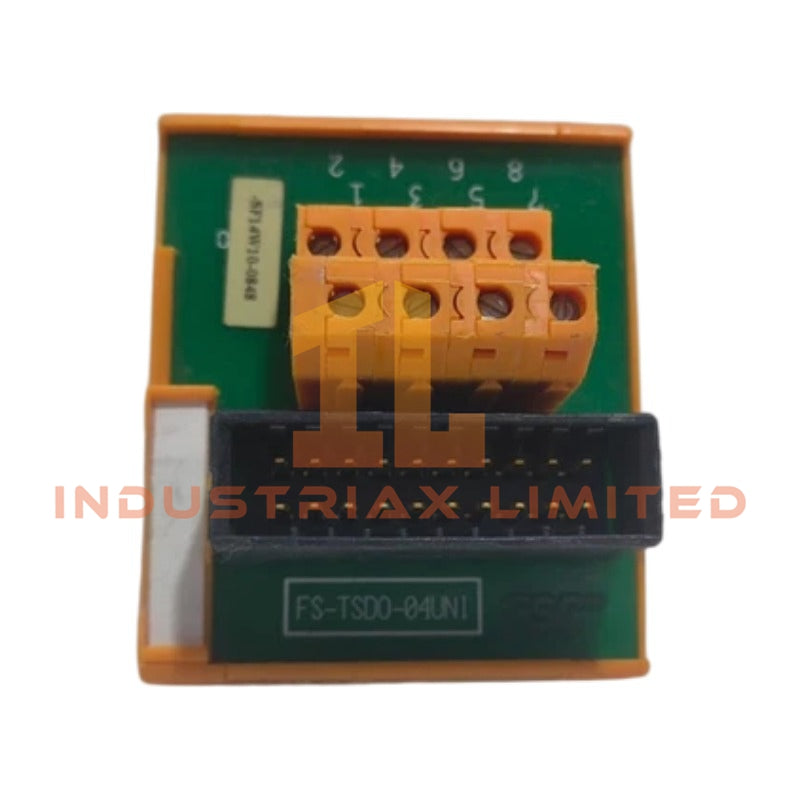

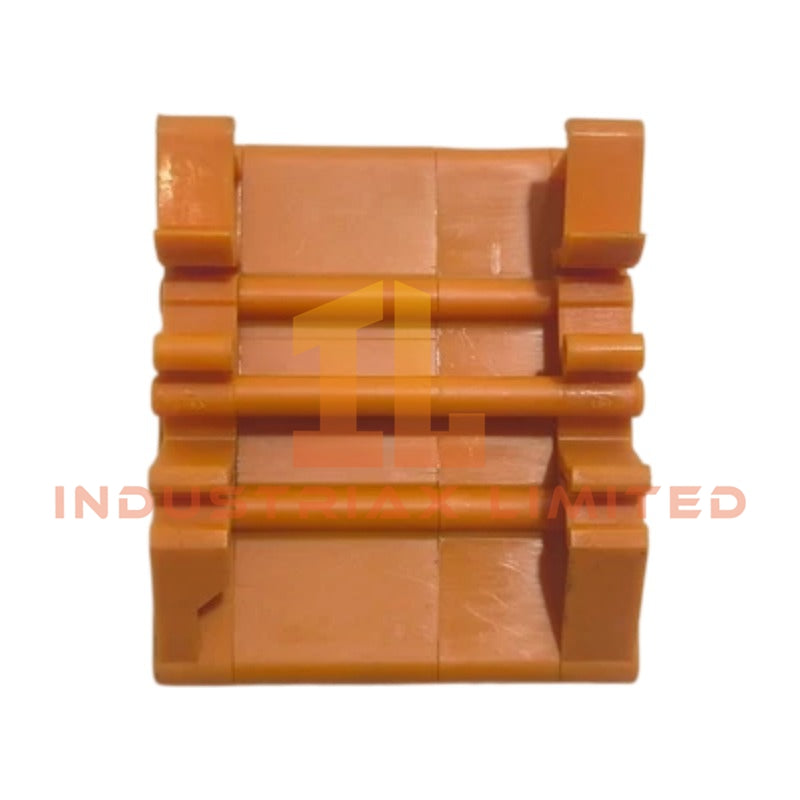

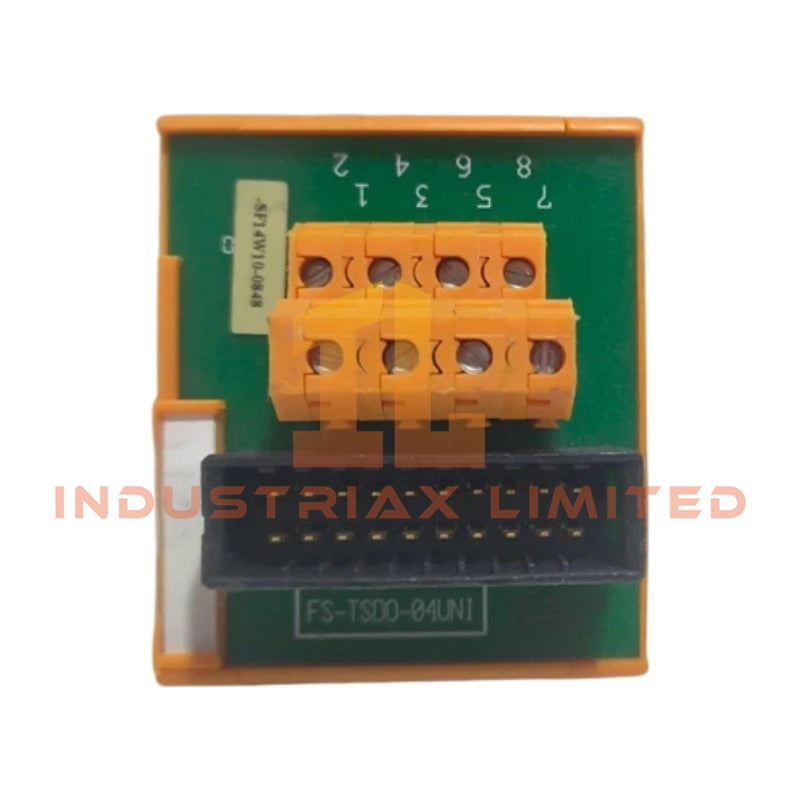

Honeywell FS-TSDO-04UNI Safe Digital Output Field Termination Assembly

Configured for safe digital output signal termination in Honeywell Safety Manager and FSC systems, the Honeywell FS-TSDO-04UNI (TSDO-04UNI Safe Digital Output Field Termination Assembly) provides direct physical connection between SDO output modules and external field wiring circuits.

Hardware Specifications

Parameter	Specification
Model	FS-TSDO-04UNI
Spare Model	TSDO-04UNI
Brand	Honeywell
Product Type	Safe Digital Output Field Termination Assembly
System Compatibility	Honeywell Safety Manager and FSC safety systems
Output Interface	SDO-04x / SDOL-04x module connection via SICC-0001/Lx cable
Number of Channels	4
Supported Field Voltage	24 VDC, 48 VDC, 110 VDC
Maximum Voltage	36 VDC - IEC 1010 (1990)
Maximum Continuous Current per Channel	4 A
Field Wiring Connection	Screw terminals
Maximum Wire Diameter	2.5 mm2 (AWG 14)
Wire Strip Length	7 mm (0.28 in)
Mounting Method	DIN EN rail snap-in mounting
Approvals	CE, UL, TUV, CSA
Origin	USA
Place of Shipment	Xiamen, China
Weight	0.05 kg
Dimensions	7 x 6 x 5.5 cm estimated shipping size
Power Consumption	Passive field termination assembly, no independent power supply

4-20 mA HART and Safety Signal Interface Characteristics

The Honeywell FS-TSDO-04UNI operates as a passive termination interface between Safety Manager output modules and field devices. Moreover, the assembly maintains physical separation between system interconnection wiring and external field terminals through dedicated screw terminal connections.

The unit supports redundant output configurations by connecting two SDO-04x or SDOL-04x modules through the SICC-0001/Lx system interconnection cable. Therefore, the FTA structure supports fault-tolerant output arrangements where redundant safety output channels require coordinated field termination.

In addition, the module provides a DIN rail mounting structure and supports field devices such as shutdown solenoids, contactors, relays, valves, and annunciation equipment. The design follows Honeywell safety system wiring practices for digital output distribution and field circuit termination.

Frequently Asked Questions

Q: Can the FS-TSDO-04UNI connect directly to external field devices without an SDO module?
A: No. The FS-TSDO-04UNI functions as a field termination assembly and requires connection to compatible Honeywell SDO-04x or SDOL-04x output modules through the SICC-0001/Lx system interconnection cable.

Q: Does the FS-TSDO-04UNI require an external power supply?
A: No. The assembly operates as a passive termination interface and receives output signals through the connected safety output module system.

Q: What type of field wiring connection does the module provide?
A: The unit uses screw terminals for field wiring connection and supports conductors up to 2.5 mm2 (AWG 14).

Field Installation Guidelines

Install the FS-TSDO-04UNI on a standard DIN EN rail inside the Honeywell Safety Manager cabinet enclosure. Ensure that the module remains mechanically secured before connecting field conductors.

Route field wiring separately from high-voltage power cables and sources of electromagnetic interference. Use proper cable shielding and grounding practices according to the cabinet installation design.

Verify terminal assignments before connecting external devices. Confirm that the connected field load characteristics match the supported output module specifications.

Maintain correct cable stripping length and tighten screw terminals according to standard industrial wiring procedures. Inspect all connections before system commissioning and safety function testing.
