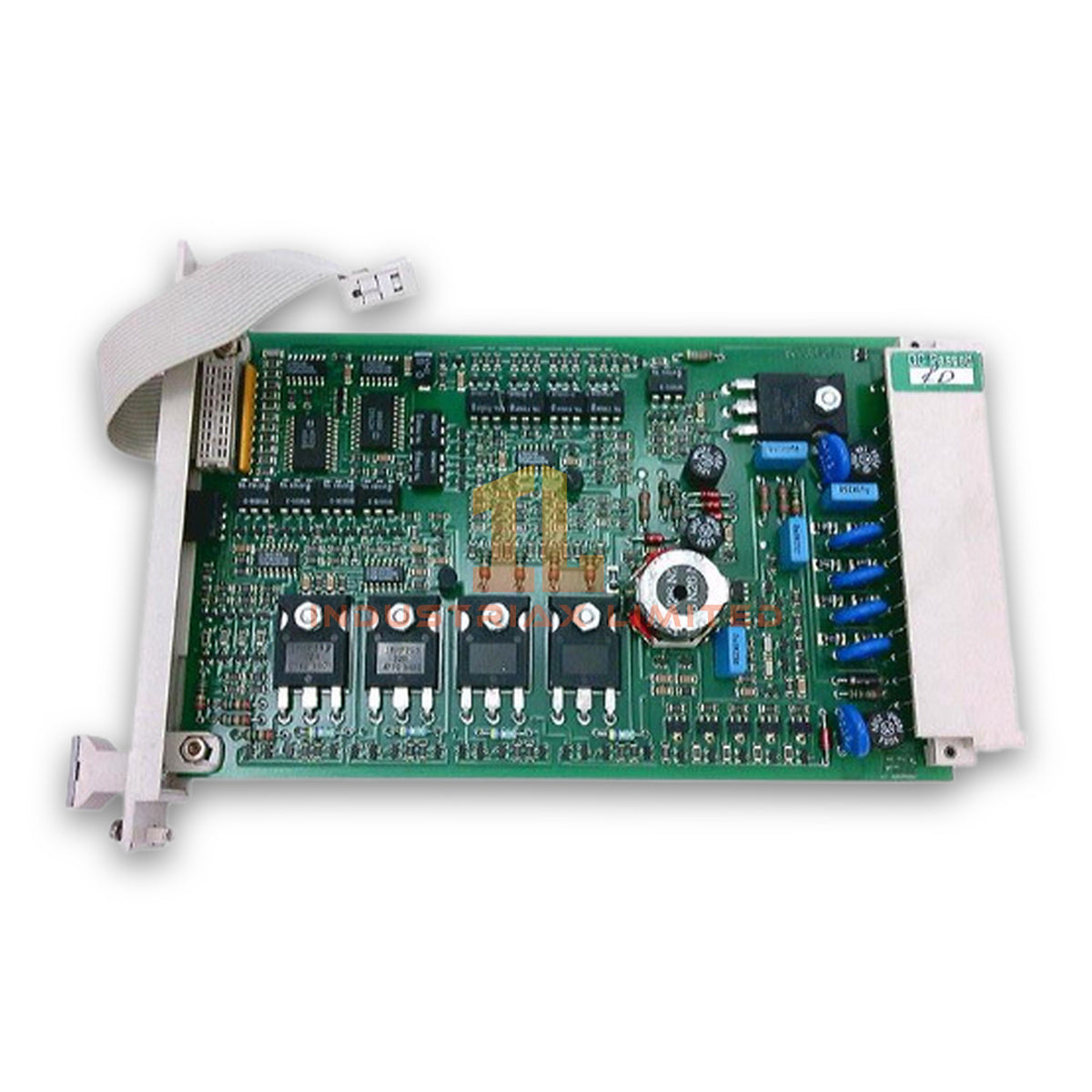

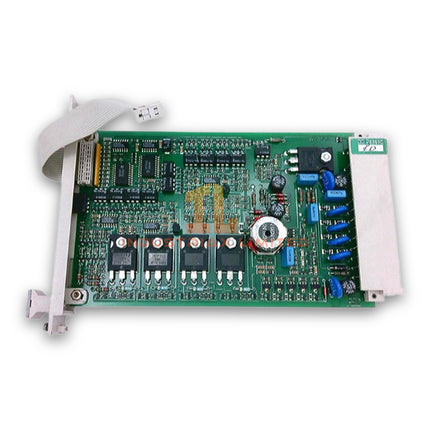

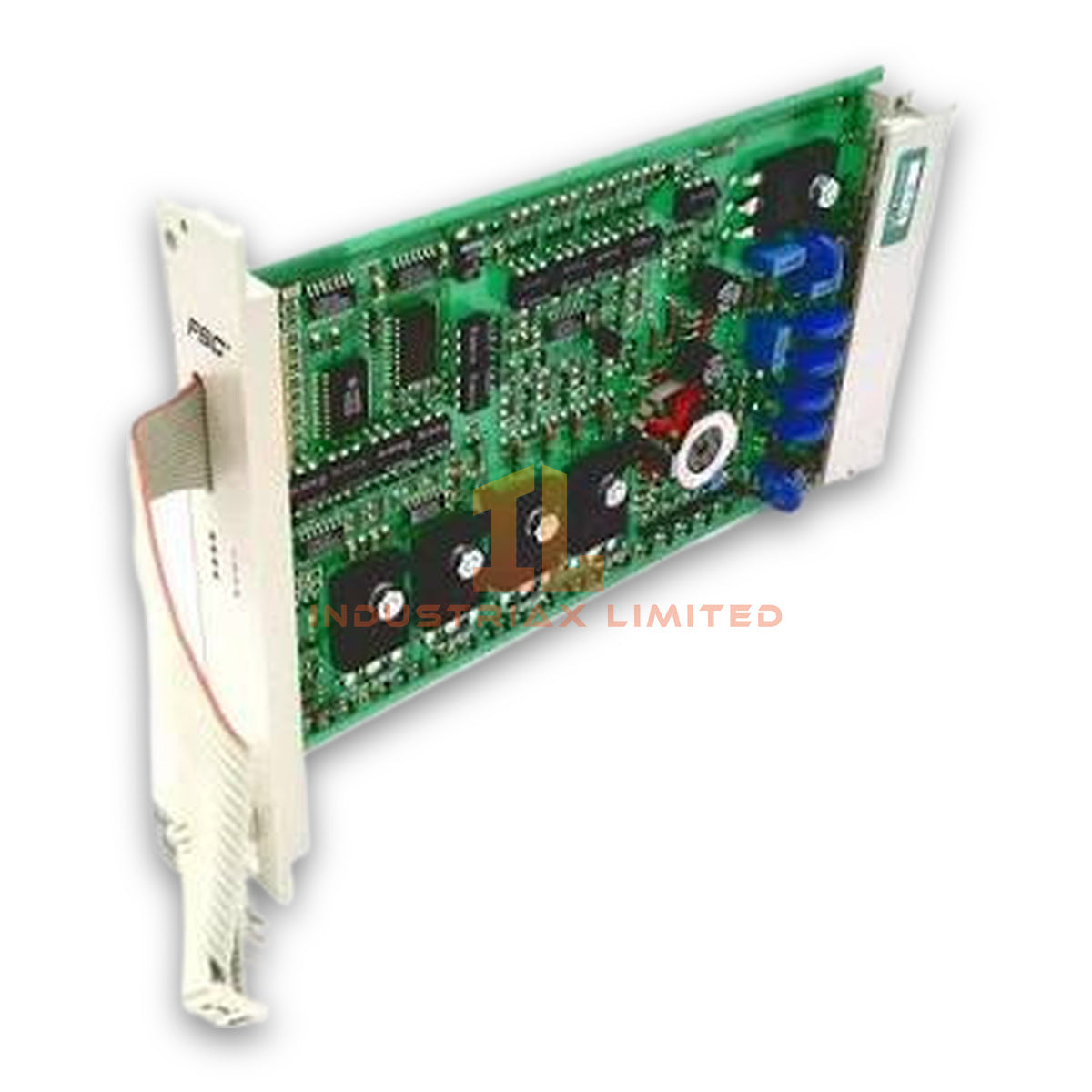

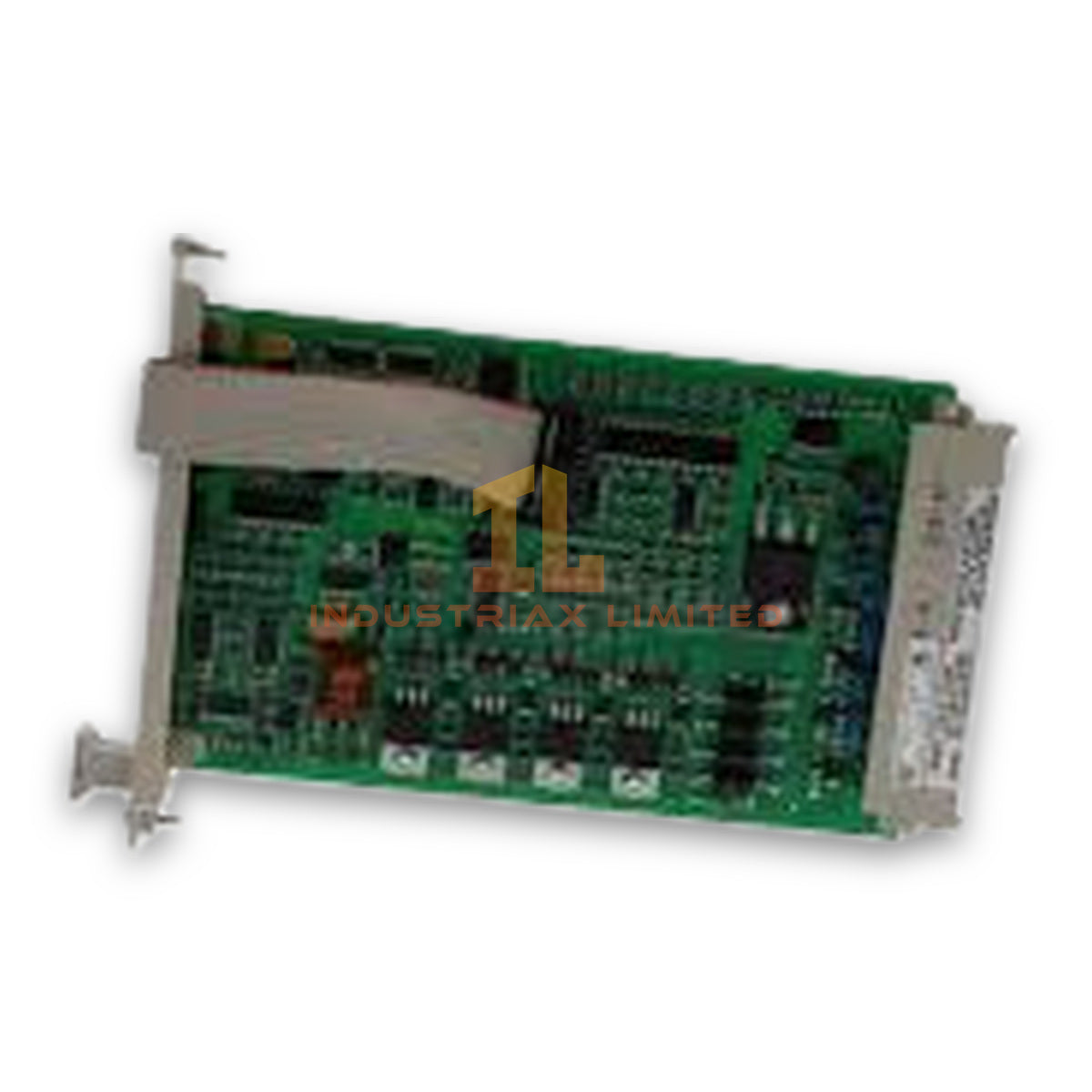

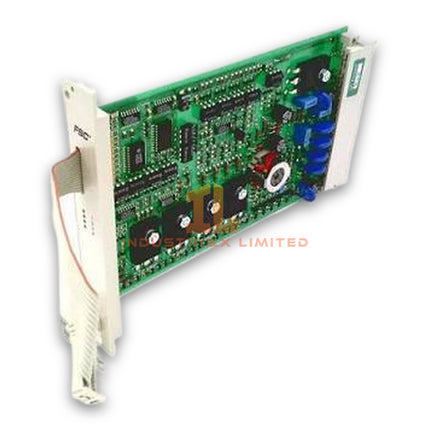

Honeywell 10213/2/3 Fail-Safe Digital Output Module

The Honeywell 10213/2/3, also cataloged as the 10213/2/3 Fail-Safe Digital Output Module, operates as a dedicated hardware component for fail-safe output switching within Honeywell FSC Safety Instrumented System platforms. The module executes field device control through solid-state digital output channels with defined safe-state behavior.

Hardware Specifications

Parameter	Specification
Model	10213/2/3
Spare Model	12200
Brand	Honeywell
Origin	USA
Module Type	Fail-Safe Digital Output Module
Application System	Honeywell Fail-Safe Controller (FSC) / Safety Instrumented System (SIS)
Output Channels	4 solid-state digital output channels
Output Type	Fail-safe solid-state switching
Field Output Voltage	48 VDC nominal
Maximum Channel Current	750 mA per channel
Maximum Channel Load	36 W per channel
Internal Power Consumption	Approx. 25 mA at 5 VDC; approx. 20 mA at 48 VDC no load
Weight	0.2 kg
Dimensions	2.5 cm x 12.7 cm x 20.3 cm
Operating Temp	-20 deg C to +60 deg C
Estimated Shipping Size	2.5 cm x 12.7 cm x 20.3 cm

Fail-Safe Output Execution and Isolation

The Honeywell 10213/2/3 module controls field actuators through isolated solid-state output circuits. It monitors output conditions and drives connected devices to the configured safe state when internal diagnostics detect abnormal operation.

In addition, the module applies galvanic isolation between controller electronics and field wiring interfaces. This isolation reduces electrical interference effects and supports fail-safe state execution in SIS architectures.

The output circuitry includes protection functions for inductive and resistive loads. Therefore, field devices such as solenoid valves, relays, alarms, and shutdown actuators can receive controlled switching signals from the FSC platform.

Frequently Asked Questions

Q: Does the Honeywell 10213/2/3 support hot-swap replacement?
A: The module design supports maintenance replacement procedures within FSC rack configurations when the system configuration permits. Operators must follow approved shutdown and replacement procedures.

Q: How does the module handle output faults?
A: The module uses diagnostic monitoring and fail-safe output logic to force outputs into predefined safety states when detected faults occur.

Q: What type of field devices can connect to this digital output module?
A: The module supports field devices requiring solid-state digital switching, including actuators, solenoids, relays, and alarm devices within supported electrical limits.

Field Installation Guidelines

• Install the module in the designated Honeywell FSC rack slot according to system configuration documentation.
• Verify rack power isolation before module insertion or removal.
• Use properly terminated field wiring and maintain separation between signal cables and high-energy power conductors.
• Connect cable shields according to plant grounding standards to reduce electrical noise coupling.
• Confirm output polarity, field voltage level, and load characteristics before energizing connected devices.
• Perform system diagnostics after installation to verify correct channel operation and fail-safe response behavior.
