Honeywell FS-TSDO-0824 Safe Digital Output Field Termination Assembly

Configured for fail-safe 24 VDC digital output termination in the Honeywell Safety Manager system, the Honeywell FS-TSDO-0824 (TSDO-0824 Safe Digital Output Field Termination Assembly) provides direct electrical connection between redundant output modules and external field wiring.

Hardware Specifications

Parameter	Specification
Model	FS-TSDO-0824
Spare Model	TSDO-0824
Brand	Honeywell
Product Type	Safe Digital Output Field Termination Assembly
System Compatibility	Honeywell Safety Manager / Fail Safe Control (FSC) platforms
Origin	USA
Weight	0.05 kg
Dimensions	60 x 70 x 58 mm (L x W x H)
Operating Temp	Not specified
Power Consumption	Passive field termination interface
Number of Channels	8 digital output channels
Output Voltage Rating	24 VDC system architecture
Maximum Voltage	36 VDC, IEC 1010 (1990), Overvoltage Category 3
Maximum Continuous Current per Channel	1.5 A
Maximum Wire Diameter	2.5 mm2 (AWG 14)
Wire Strip Length	7 mm (0.28 in)
Terminal Tightening Torque	0.5 Nm (0.37 ft-lb)
Mounting Method	Universal DIN EN rail snap-in mounting
Supported DIN Rails	TS32 / TS35 x 7.5
Used Rail Length	61 mm (2.40 in)
Terminal Type	Screw terminals
System Interconnection Cable	SIC-C-12 / SICC-0001/Lx
Approvals	CE, TUV, UL, CSA, FM
Tariff Code	8537101190

Honeywell Safety Manager Fail-Safe Output Interface Characteristics

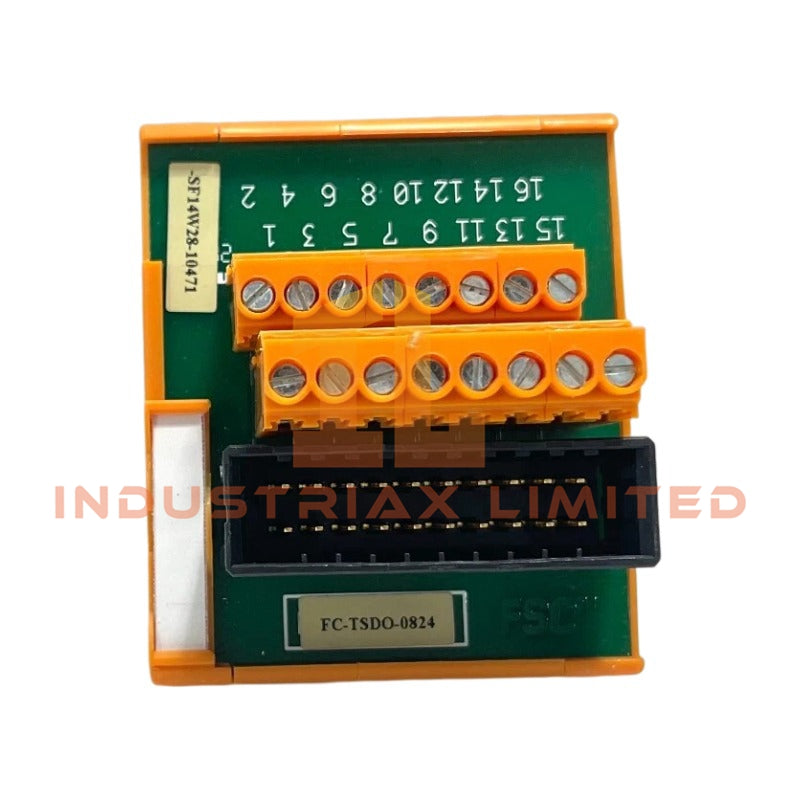

The FS-TSDO-0824 functions as the field termination point between the SIC-C-12 system interconnection cable and external field devices. It connects eight output channels from a redundant pair of safe digital output modules to field wiring through screw terminal connections.

Moreover, the assembly supports Honeywell SIS architectures where output signals require controlled fail-safe execution. The termination interface maintains physical separation between system-side communication wiring and external field circuits, reducing wiring complexity in safety control cabinets.

The FS-TSDO-0824 applies Honeywell process safety hardware design principles, including channel-to-channel isolation considerations for digital signal handling and structured connection between Safety Manager output modules and field devices.

Frequently Asked Questions

Q: How many digital output channels does the FS-TSDO-0824 provide?
A: The FS-TSDO-0824 provides 8 independent digital output termination channels for connection between safe output modules and field wiring.

Q: Which interconnection cable connects the FS-TSDO-0824 to Honeywell output modules?
A: The FS-TSDO-0824 connects through the SIC-C-12 or SICC-0001/Lx system interconnection cable to compatible safe digital output modules.

Q: What type of field wiring terminals are provided on the FS-TSDO-0824?
A: The module uses screw terminals supporting field conductors up to 2.5 mm2 (AWG 14) with a specified tightening torque of 0.5 Nm.

Field Installation Guidelines

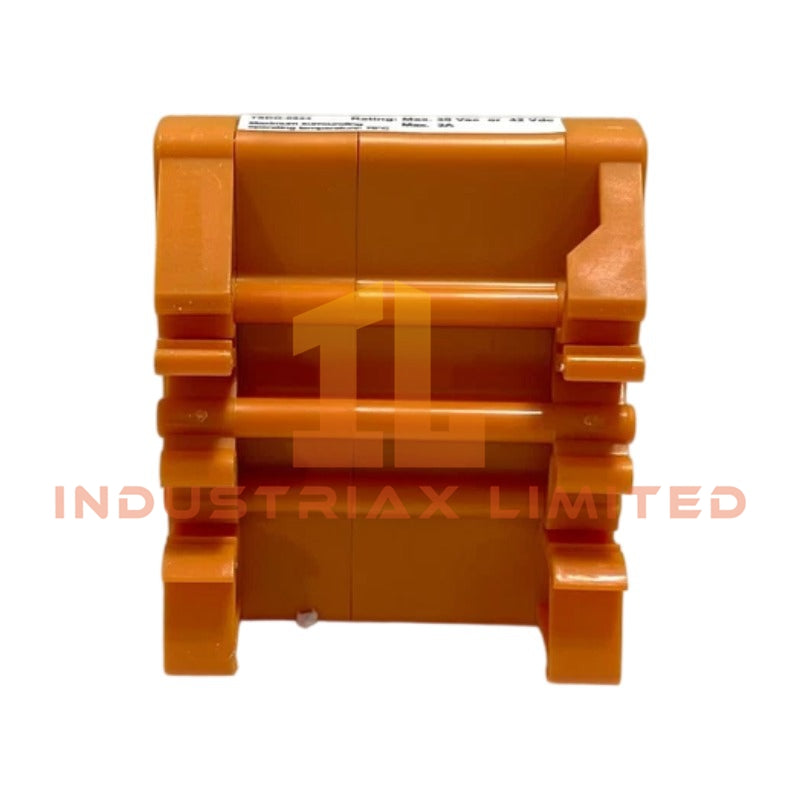

Install the FS-TSDO-0824 on compatible TS32 or TS35 x 7.5 DIN EN rails using the integrated snap-in mounting mechanism.

Connect the system-side cable interface to the designated Honeywell safe digital output module connection point. Verify cable routing to maintain separation between signal wiring and high-energy circuits.

Terminate field conductors according to the specified wire diameter range and tighten terminal screws using the recommended torque value. Confirm polarity, channel assignment, and field device connection before system commissioning.

Maintain appropriate cabinet grounding, shielding, and wiring segregation practices according to the installation requirements of the Honeywell Safety Manager platform.
