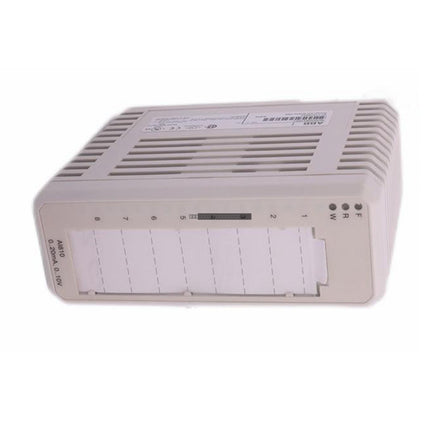

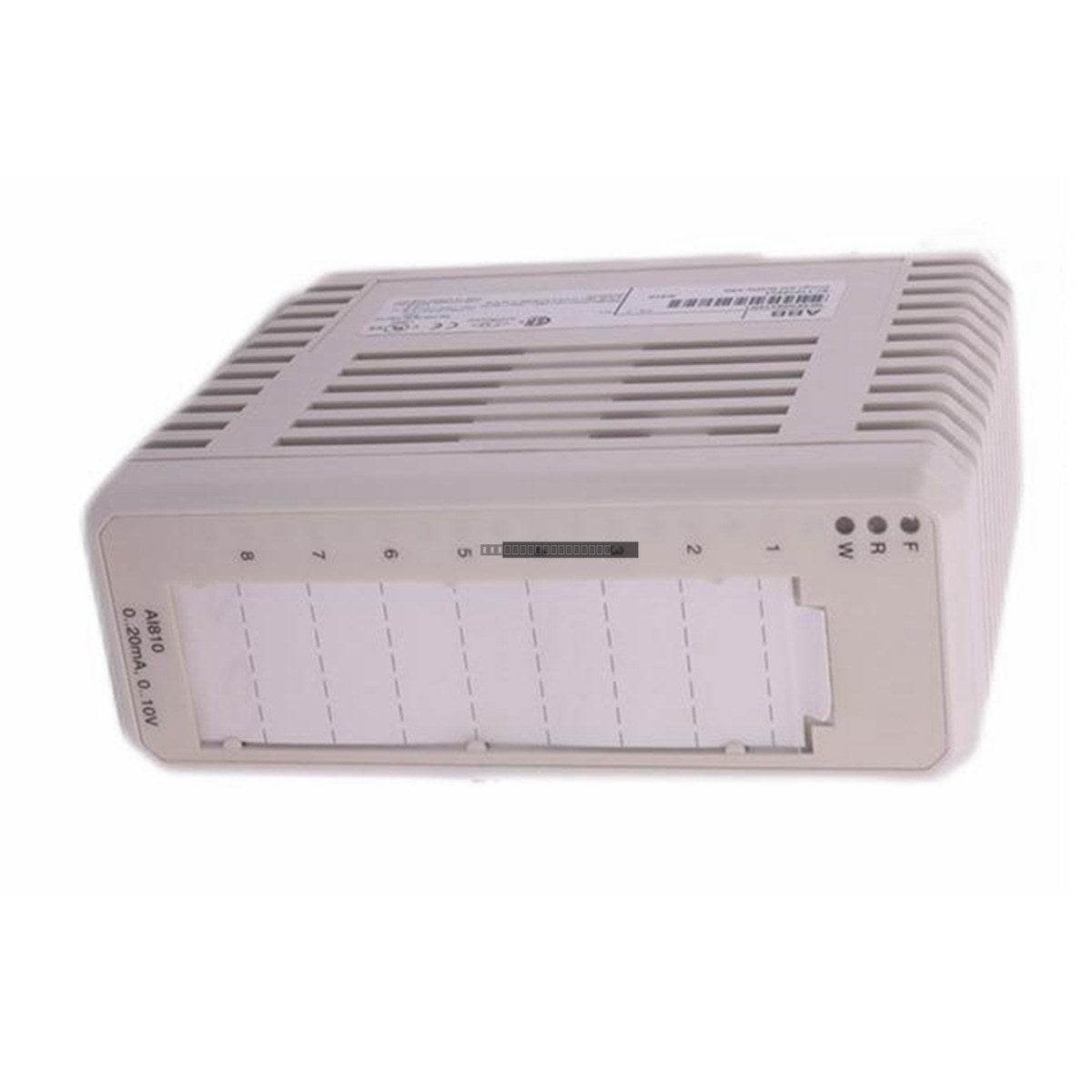

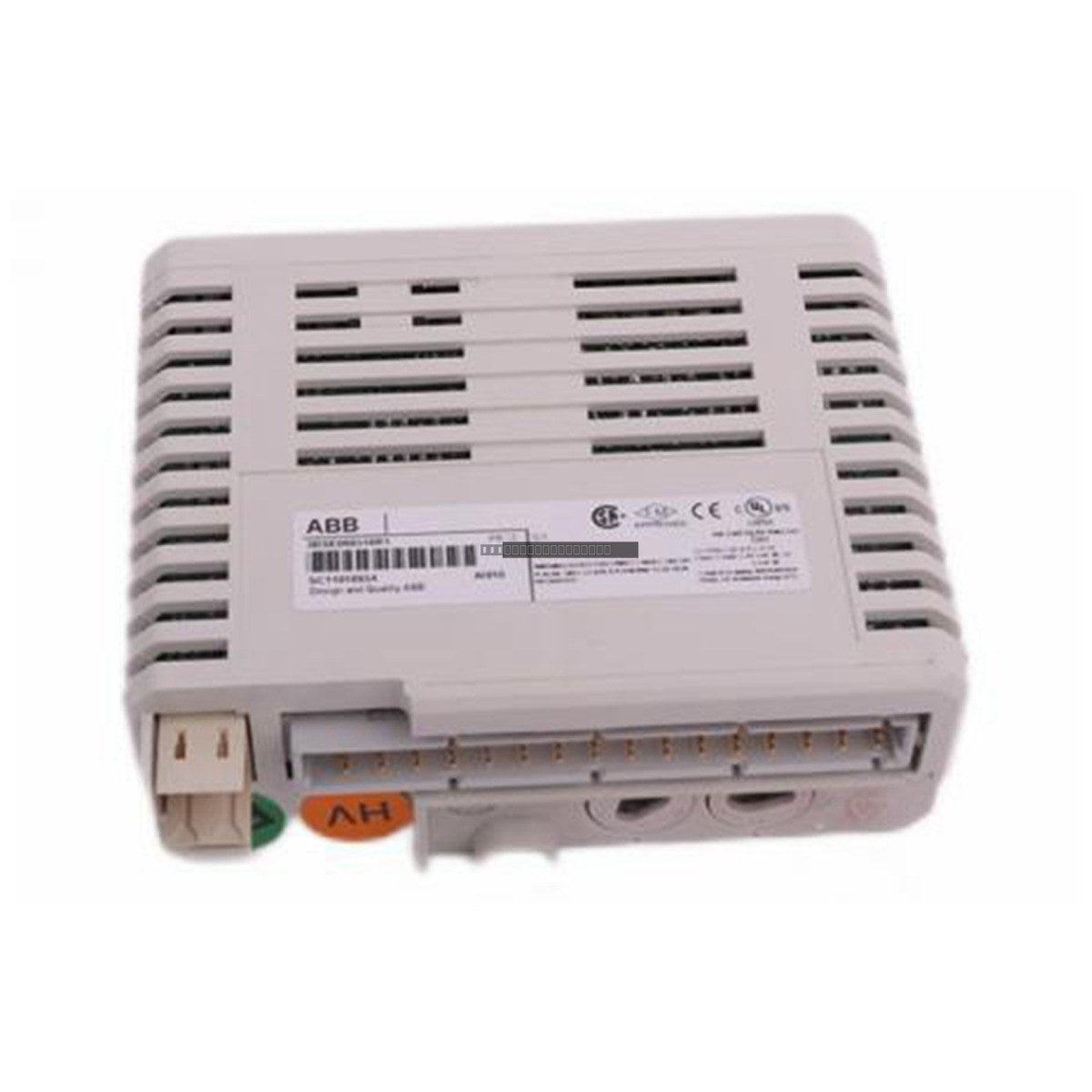

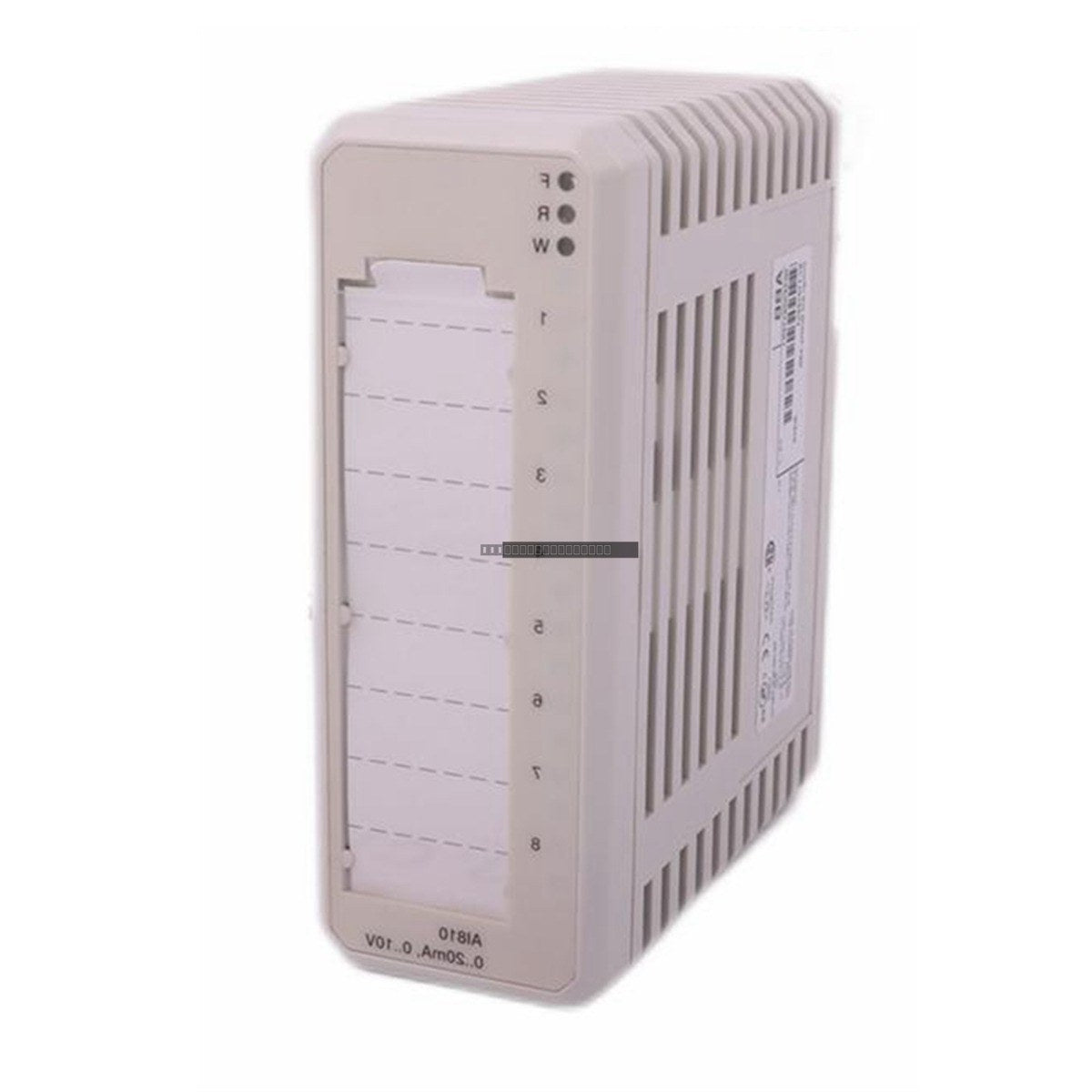

The ABB AI810 (3BSE008516R1) is a high-performance, 8-channel analog input module designed for the S800 I/O distributed control system. This module provides versatile signal processing, allowing each of its eight channels to be independently configured for current (0–20 mA, 4–20 mA) or voltage (0–10 V, 2–10 V) inputs. Engineered for demanding industrial environments, the AI810 includes 12-bit resolution and supports HART communication, ensuring transparent transmission of digital diagnostics alongside analog process values.
Features
- 8 single-ended, unipolar input channels.
- Independent channel configuration for voltage or current signals.
- Integrated HART communication support for intelligent field device integration.
- Enhanced protection with PTC current-limiting resistors on all inputs.
- Short-circuit protection against transmitter supply voltages up to 30 V DC.
- 12-bit analog-to-digital conversion accuracy.
- Electrical isolation of the 8-channel group from ground.
Applications
- Refinery and petrochemical process control for pressure, flow, and level monitoring.
- Turbine auxiliary system instrumentation, including lube oil and steam monitoring.
- Boiler combustion control and water level management.
- Renewable energy site management for hydraulic and pitch control systems.
Technical Specifications
| Model |
AI810 (3BSE008516R1) |
| Channels |
8 |
| Input Signals |
0-20 mA, 4-20 mA, 0-10 V, 2-10 V |
| Resolution |
12 bit |
| Input Resistance (Current) |
250 ohm (PTC included) |
| Input Resistance (Voltage) |
290k ohm |
| Max Input Voltage (Non-destructive) |
30 V DC |
| Power Dissipation |
1.5 W |
| Modulebus Current (+5V) |
70 mA |
| Modulebus Current (+24V) |
40 mA |
| Isolation |
500 V AC (Dielectric test) |
Installation Guidelines
- Ensure the system is powered down before inserting or removing the module from the Module Termination Unit (MTU).
- The AI810 is compatible with various MTUs, including TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, and TU850.
- Use shielded cabling for field signals to minimize EMI/RFI interference; ensure the shield is properly grounded at the cabinet entry.
- Maintain proper ventilation in the control cabinet to stay within operating temperature limits.
- Ensure all field wiring is secured and checked for correct polarity before applying power to the loop.
FAQ
Is the ABB AI810 compatible with older S800 systems?
Yes, the AI810 is a standard component of the ABB S800 I/O platform and is designed for seamless integration into existing S800 architectures using compatible MTUs.
Does the module support HART?
Yes, the AI810 supports HART communication, allowing digital data to pass through the module alongside the analog signal.
What protection is provided for the input channels?
The module features PTC resistors on each channel to limit current, protecting the circuitry against short circuits to the transmitter supply up to 30 V DC.
