Description

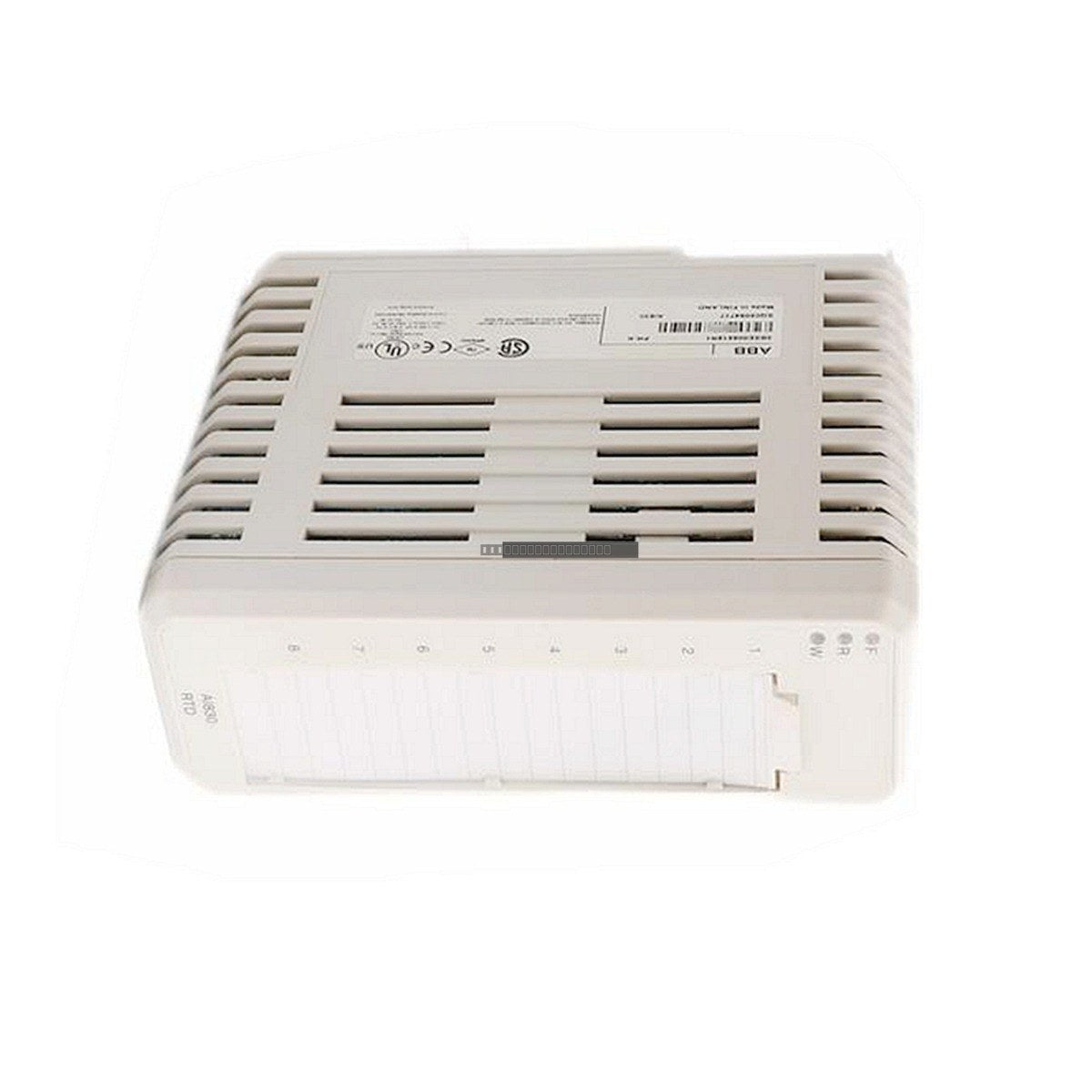

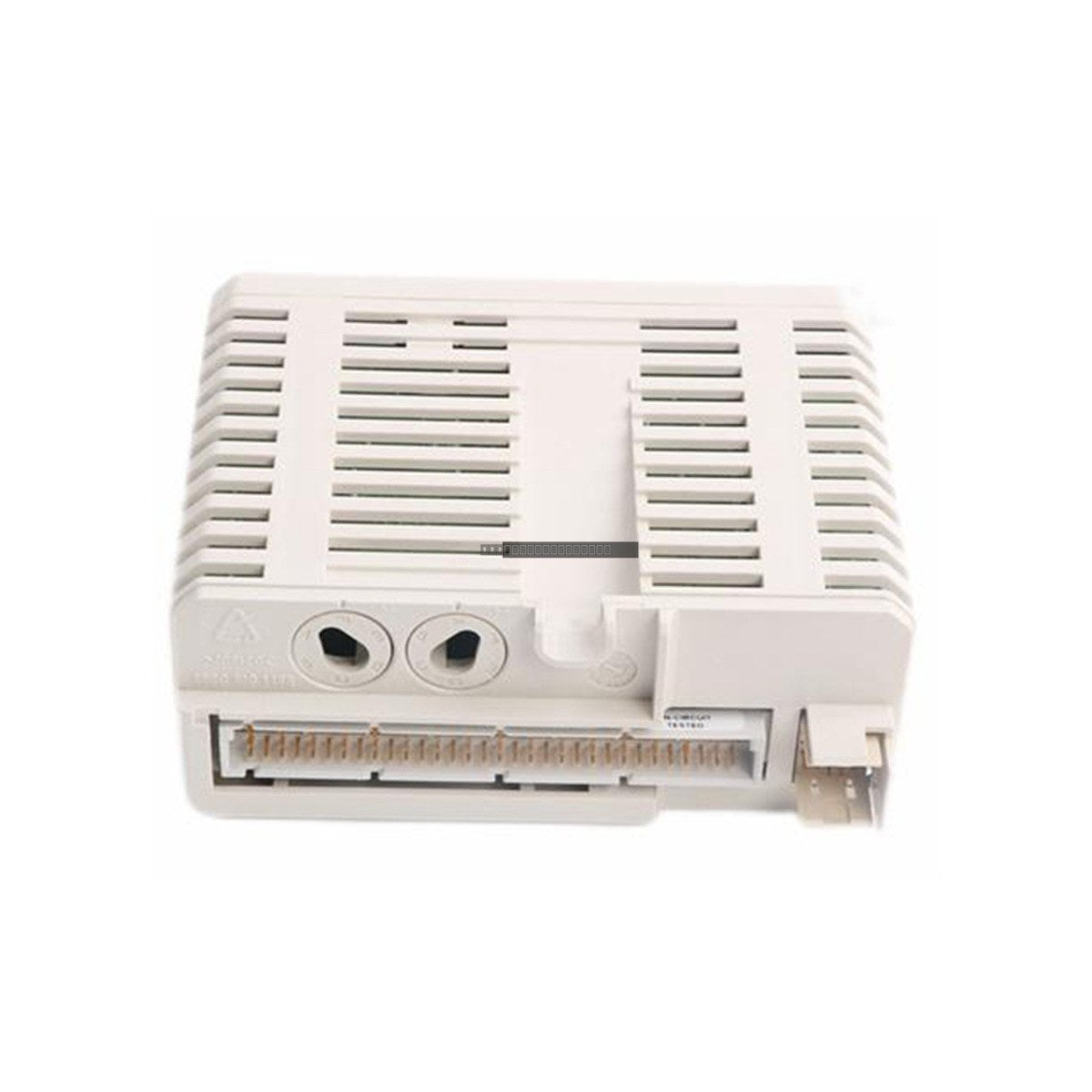

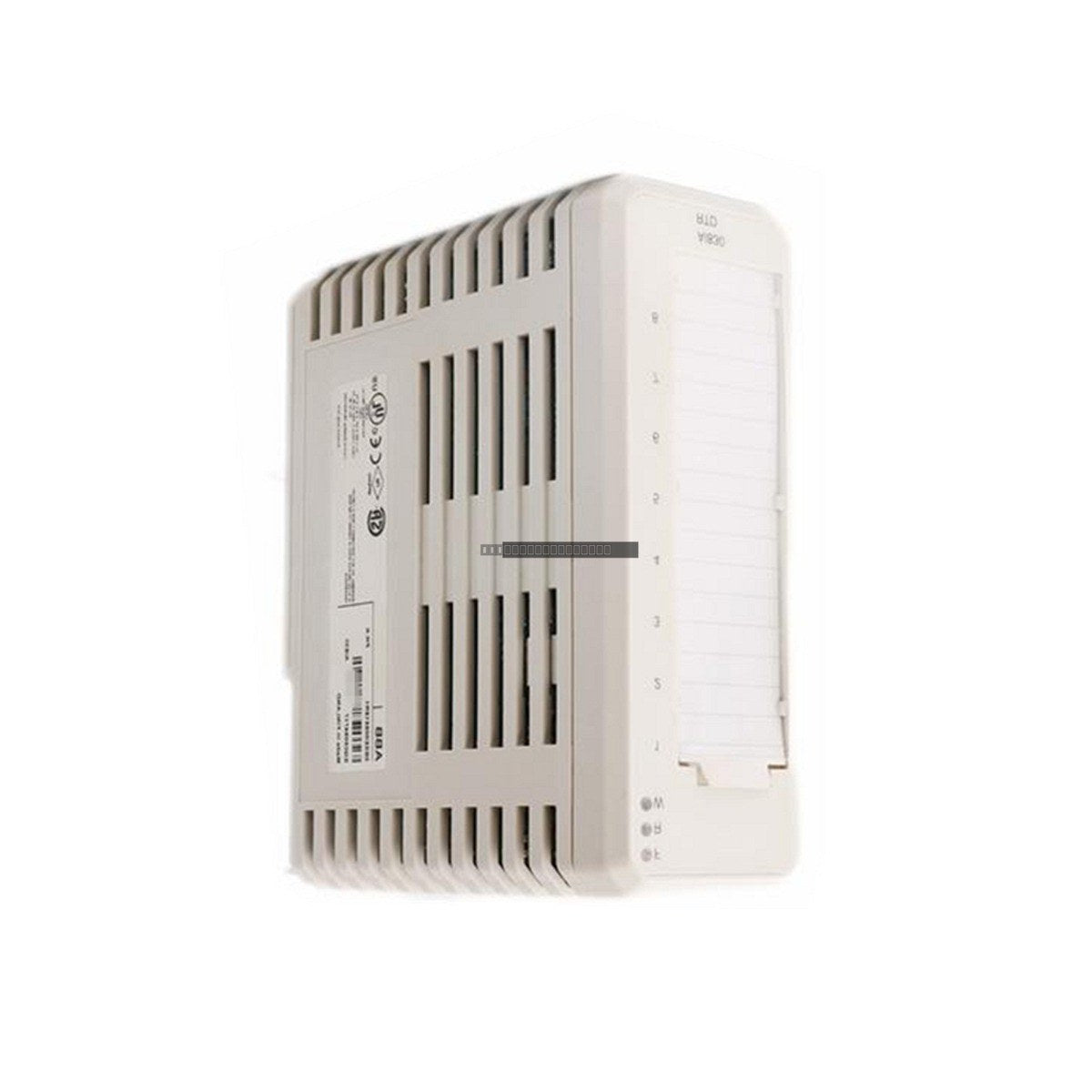

The ABB AI830 (3BSE008518R1) is an S800 I/O series analog input module designed for high-precision temperature and resistive signal measurement. This module provides eight channels specifically configured for 3-wire RTD inputs, supporting a variety of industry-standard sensors including Pt100, Cu10, Ni100, and Ni120, as well as resistive potentiometer inputs. As a component of the Advant S800 I/O system, it is engineered for distributed control environments where reliable signal processing is required.
Features
- Eight isolated analog input channels.
- Supports 3-wire RTD sensor types: Pt100, Cu10, Ni100, and Ni120.
- Integrated support for resistive potentiometer signal inputs.
- Efficient power dissipation of 1.6 W.
- High common-mode rejection ratio (CMRR) of >60 dB at 50/60 Hz to minimize signal noise.
- Compact design optimized for S800 I/O rack mounting.
Technical Specifications
| Model |
AI830 |
| Order Code |
3BSE008518R1 |
| Number of Channels |
8 |
| Signal Type |
3-wire RTD / Resistive Potentiometer |
| Update Cycle Time |
159 ms (150 + 9 ms) |
| CMRR (50/60 Hz) |
>60 dB |
| Rated Insulation Voltage |
50 V |
| Dielectric Test Voltage |
500 V AC |
| Power Dissipation |
1.6 W |
| Current Consumption (+5 V Modulebus) |
70 mA |
Installation Guidelines
- Ensure the module is installed in an appropriate S800 I/O base unit.
- Always power down the system before inserting or removing the I/O module to prevent electrical damage or bus errors.
- Maintain proper grounding practices for the I/O rack to ensure signal integrity and electromagnetic compatibility.
- Use shielded cables for RTD connections to reduce interference, particularly in high-EMI industrial environments.
- Verify that the terminal block is securely seated and that all wiring follows the specific 3-wire configuration requirements for the connected RTD sensors.
FAQ
Is the ABB AI830 3BSE008518R1 still in production?
No, this specific model has been discontinued by the manufacturer. We provide quality surplus and refurbished units to support legacy system maintenance.
What types of sensors does this module support?
The AI830 supports 3-wire RTD sensors including Pt100, Cu10, Ni100, and Ni120, as well as resistive potentiometer inputs.
What is the power consumption of this module?
The module consumes 70 mA from the +5 V Modulebus and has a total power dissipation of 1.6 W.
