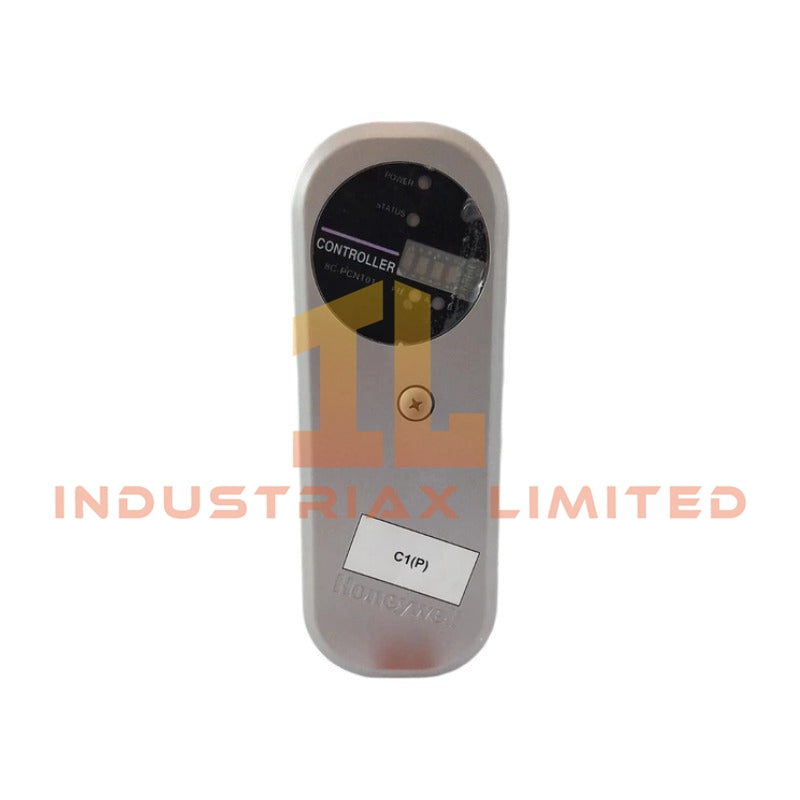

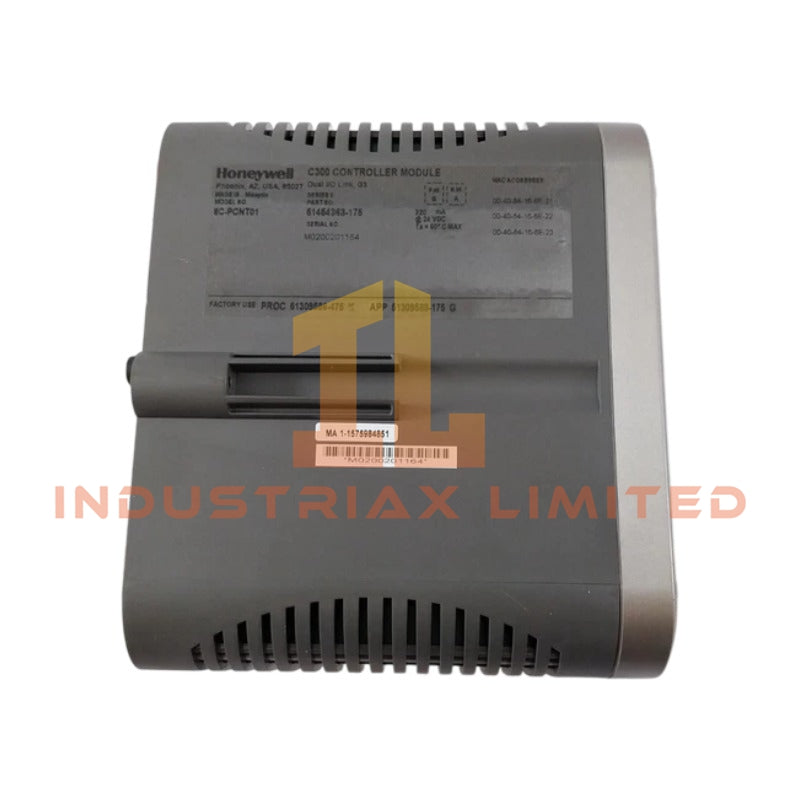

Honeywell 8C-PCNT01 C300 Controller Module

Configured for deterministic process control execution in the Honeywell Experion PKS Series 8 control network, the Honeywell 8C-PCNT01 (8C-PCNT01 C300 Controller Module) provides direct physical and electrical control processing functions for C300-based automation systems.

Hardware Specifications

Parameter	Specification
Model	8C-PCNT01
Brand	Honeywell
Product Type	C300 Controller Module
System Platform	Experion PKS Series 8
Part Number	51454363-175
Origin	USA
Weight	Approx. 480 g
Operating Temp	-40 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Power Supply	24 VDC nominal
Power Consumption	Approx. 320 mA at 24 VDC
Control Environment	Control Execution Environment (CEE)
Execution Cycle	Configurable execution blocks, down to 50 ms loop rates
Communication Interface	Dual I/O Link and Fault Tolerant Ethernet (FTE) via carrier
Redundancy Support	1:1 controller redundancy configuration
Environmental Protection	ANSI/ISA S71.04 G3 conformal coating

Process Control Communication and Signal Execution

The 8C-PCNT01 executes control strategies through the Honeywell Control Execution Environment (CEE). It processes configured control algorithms, manages Series 8 I/O communication, and transfers control data between field-connected I/O modules and higher-level Experion PKS functions.

For Honeywell process control applications, the controller architecture supports field instrument integration through standard DCS communication structures. The system design allows analog and digital process variables to be handled through connected I/O modules, including signals based on 4-20 mA HART loops and FOUNDATION Fieldbus or Profibus PA networks when supported by the installed I/O configuration.

The controller hardware supports channel-to-channel isolation requirements through the associated I/O architecture. Therefore, field signal separation and diagnostic handling depend on the installed termination assemblies and I/O module selection.

Frequently Asked Questions

Q: Does the 8C-PCNT01 support redundant controller operation?
A: Yes. The module supports 1:1 controller redundancy configurations. The redundant pair operates with synchronized control execution to maintain process operation during controller failover conditions.

Q: What power supply does the 8C-PCNT01 require?
A: The controller operates from a 24 VDC nominal supply and consumes approximately 320 mA at 24 VDC according to the provided technical data.

Q: Can the 8C-PCNT01 communicate directly with Series 8 I/O modules?
A: Yes. The controller communicates with Series 8 I/O modules through dual I/O Link interfaces installed within the Series 8 architecture.

Field Installation Guidelines

Install the 8C-PCNT01 on the designated Honeywell Series 8 carrier assembly according to the system hardware installation manual.

Verify that the 24 VDC power wiring uses correct polarity and proper industrial grounding practices before energizing the controller.

Maintain separation between control wiring, field signal wiring, and high-current power conductors to reduce electrical interference.

Connect communication interfaces using approved cable routing methods and ensure shield termination follows the plant grounding standard.

Before commissioning, verify controller redundancy status, firmware compatibility, I/O communication health, and diagnostic indicators through the Experion PKS engineering tools.
