Description

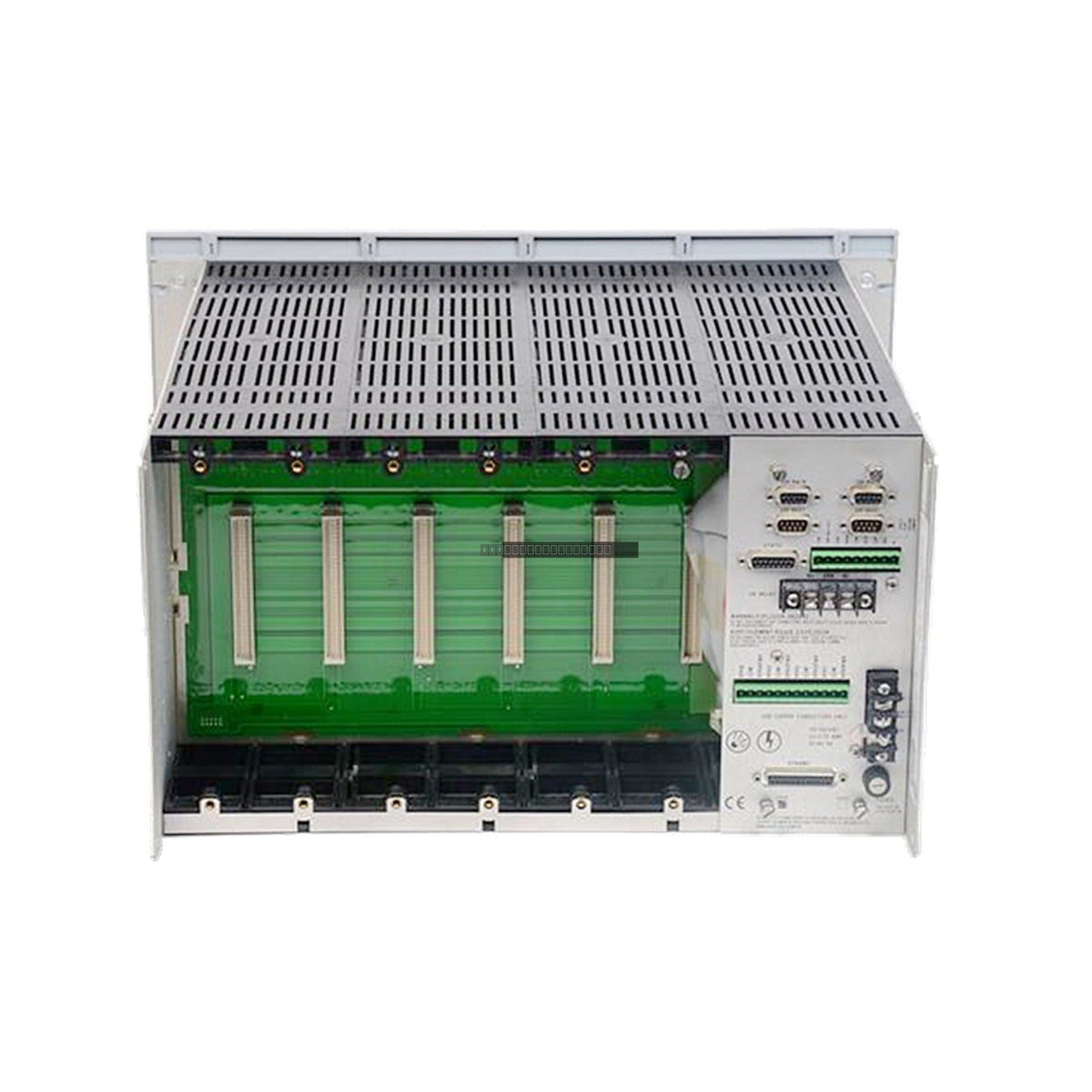

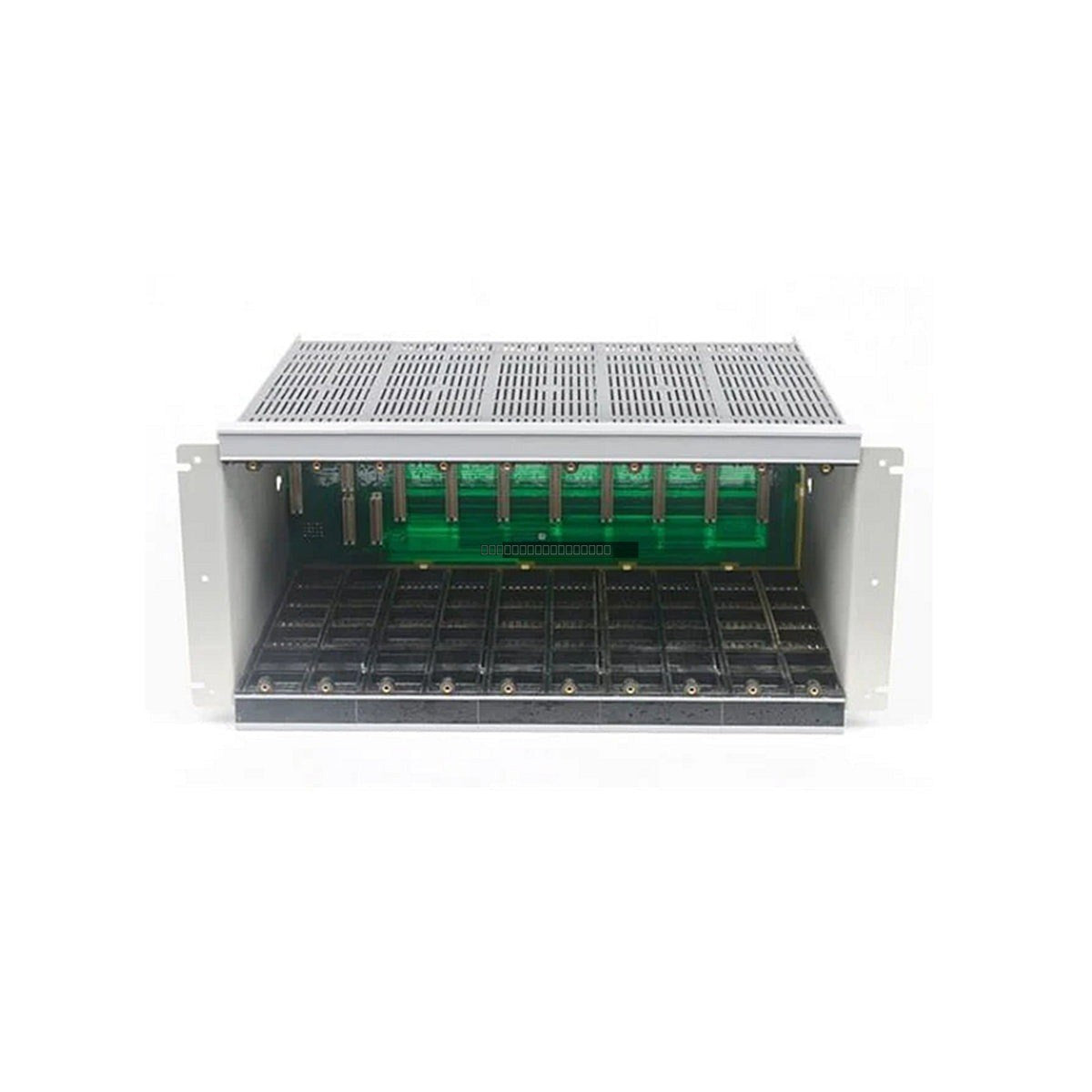

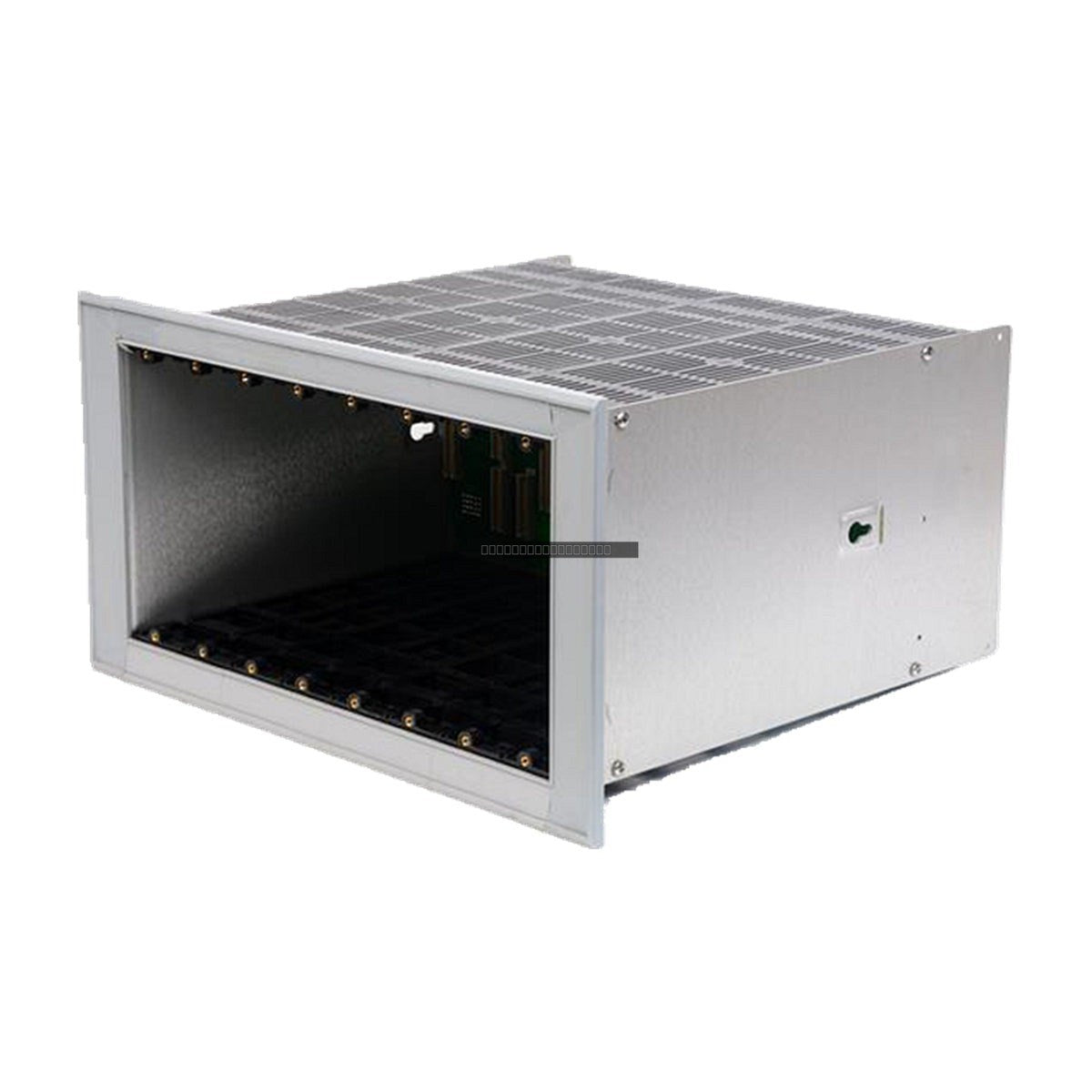

The Bently Nevada 3300/05-24-00-00 is a foundational 10-slot rack chassis engineered to house and support the 3300 series monitoring system. This chassis serves as the mechanical and electrical backbone of the machinery protection system, providing the necessary backplane connectivity and structural alignment for various monitoring modules, including vibration, thrust, eccentricity, and temperature monitors.
Features
- Designed for 3300 series module compatibility, ensuring seamless integration of monitoring and power supply components.
- 10-slot capacity allows for scalable system architecture in critical machinery protection.
- Robust construction provides high mechanical stability in industrial environments.
- Integrated backplane facilitates electrical continuity and communication between installed modules.
- Standard mounting interface for simplified installation into existing control panels or equipment racks.
Applications
This chassis is primarily deployed in industrial facilities for the continuous monitoring of rotating machinery. It is suitable for protecting assets such as turbines, compressors, pumps, and motors by facilitating the installation of specialized Bently Nevada 3300 monitoring modules.
Technical Specifications
| Model |
3300/05-24-00-00 |
| Brand |
Bently Nevada |
| System Series |
3300 |
| Rack Capacity |
10 Slots |
| Operating Temperature |
0 to 60 degC |
| Power Support |
Compatible with 3300/12 Power Supply Modules |
Installation Guidelines
- Ensure the rack is mounted in a clean, dry, and vibration-dampened environment to maintain system integrity.
- Verify that the chassis is securely fastened to the panel or rack structure to prevent mechanical stress on the backplane.
- Always power down the system before inserting or removing any monitoring modules to prevent electrical damage.
- Ensure proper grounding of the chassis to the system common to minimize EMI and noise interference.
- Maintain adequate clearance around the chassis to allow for proper airflow and heat dissipation.
FAQ
What does the 3300/05-24-00-00 model designation represent?
The 3300/05 is the base rack system, the 24 indicates the 10-slot chassis configuration, and the trailing 00-00 codes denote standard mounting hardware and standard agency approval configurations.
Is this chassis compatible with all 3300 series components?
Yes, this chassis is specifically designed to house standard 3300 series monitoring modules and 3300/12 power supply modules, ensuring full hardware compatibility within the Bently Nevada 3300 ecosystem.
