Description

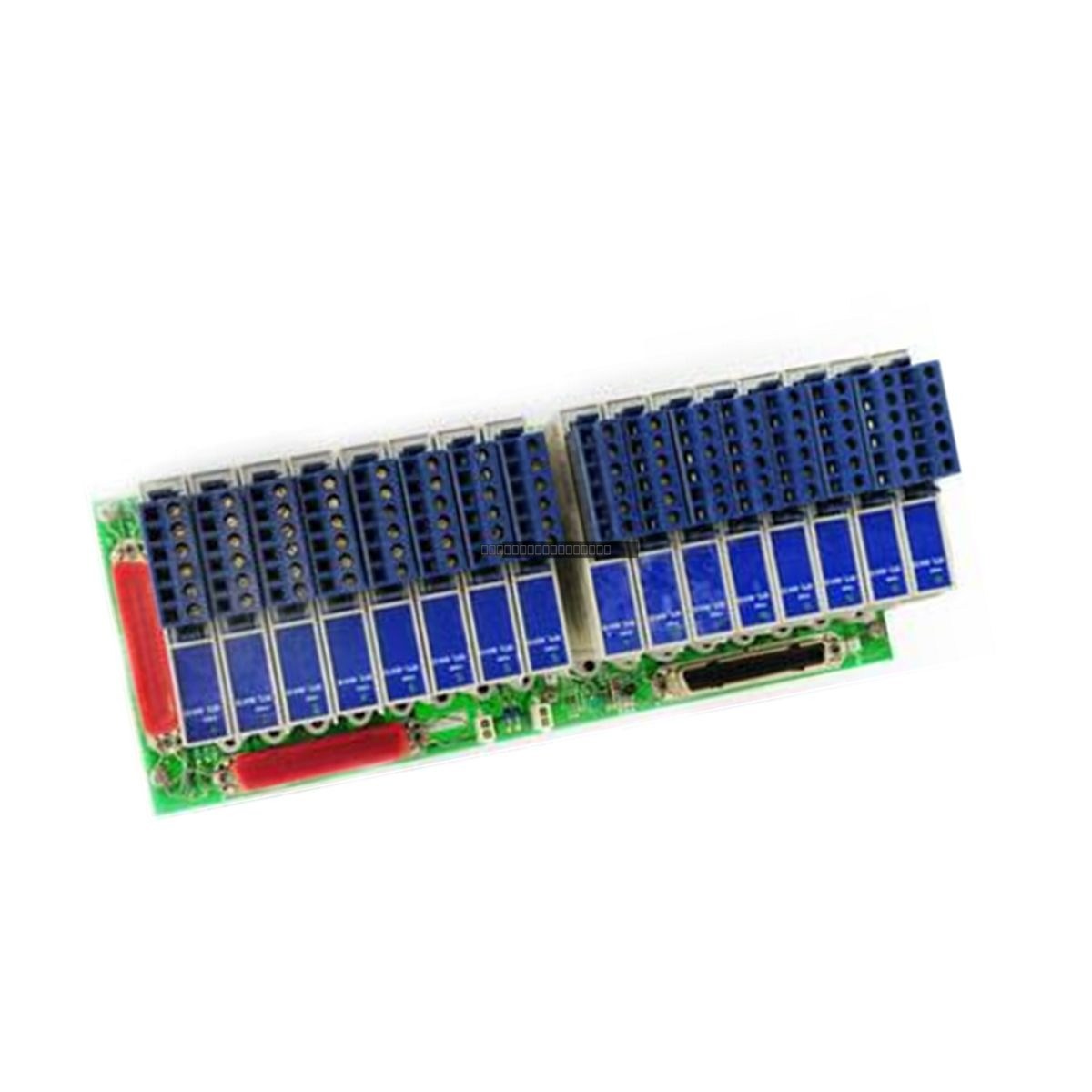

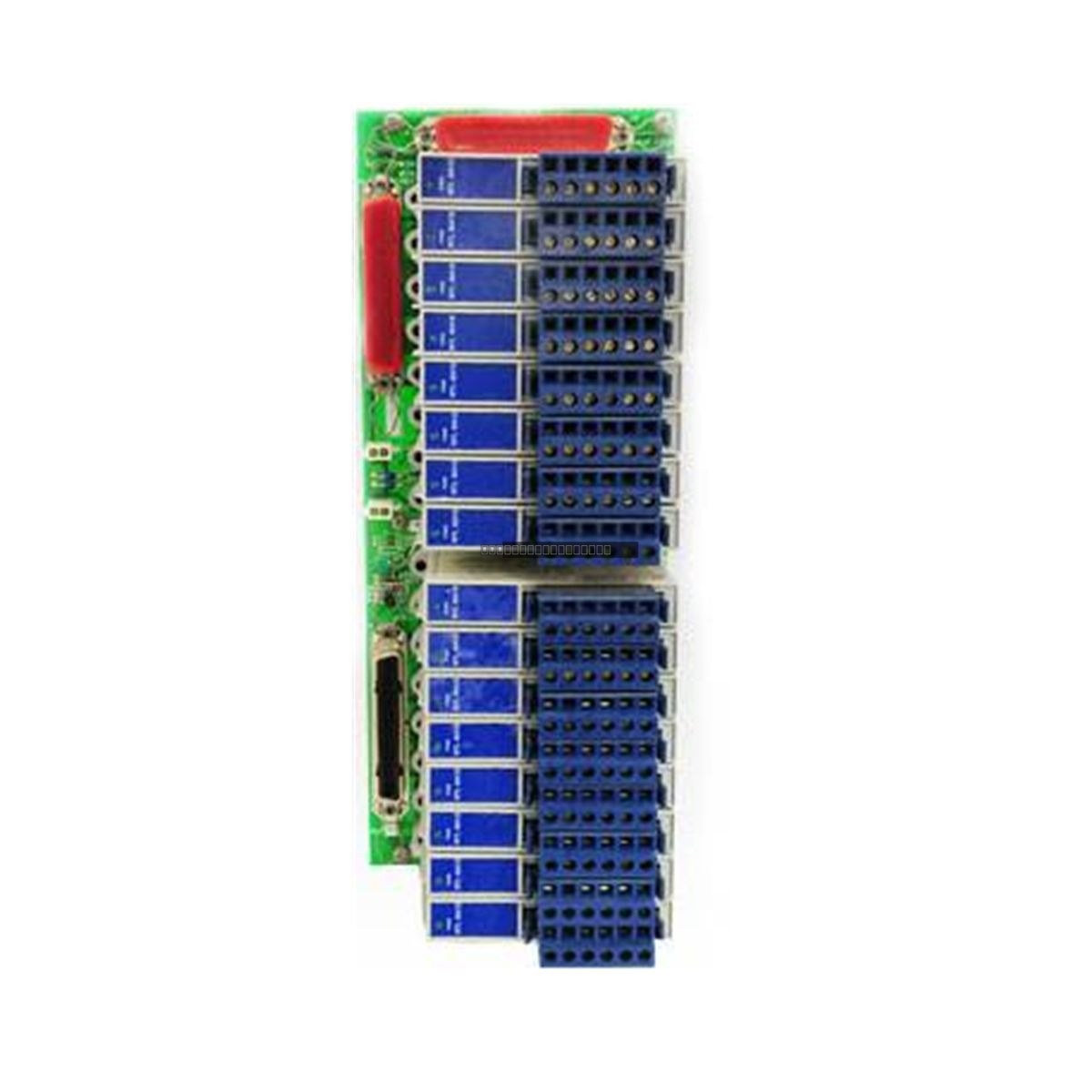

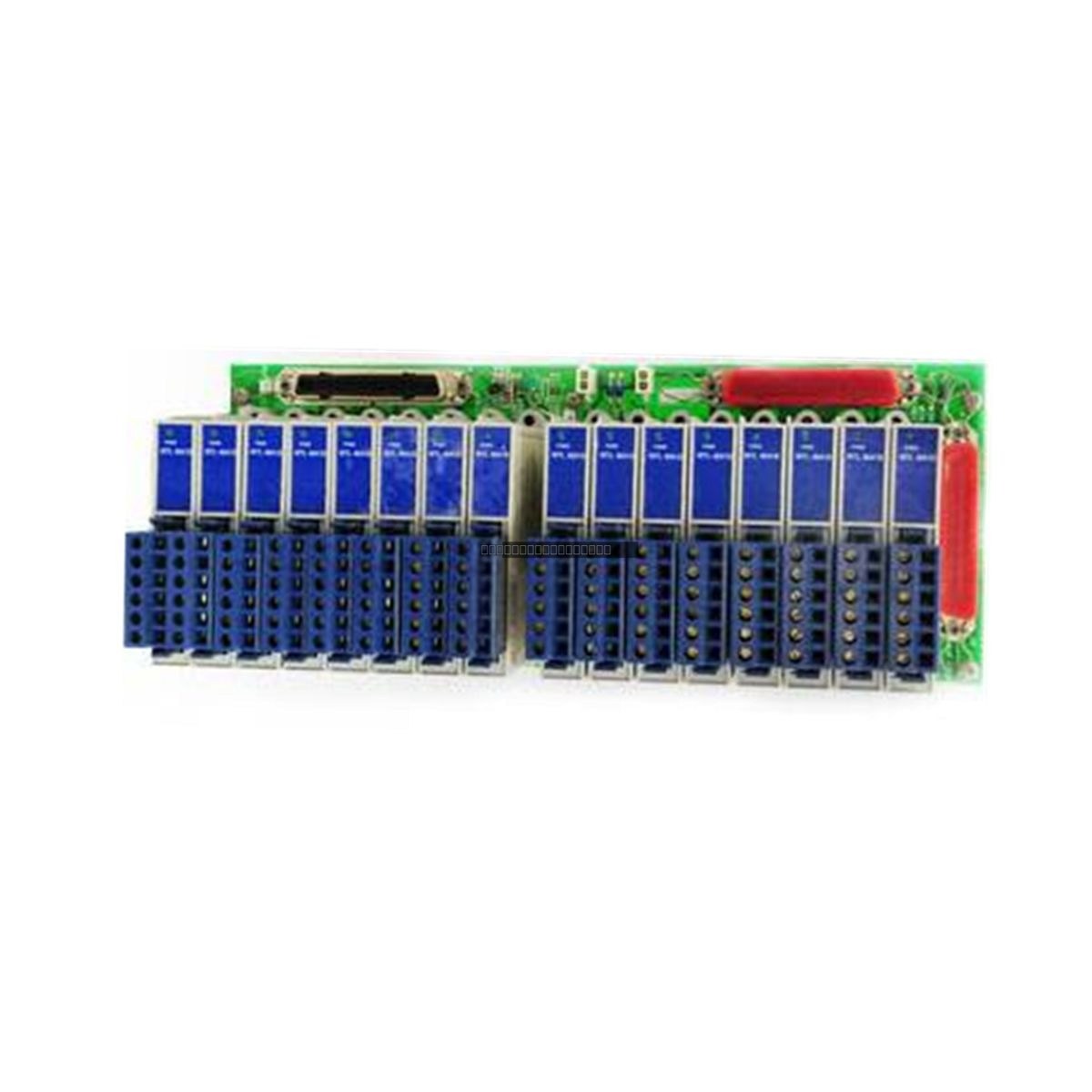

The Honeywell MC-GAIH14 is a high-level analog input STI (Signal Termination Interface) module engineered for integration within Honeywell distributed control systems. This module is specifically designed to facilitate the acquisition of process-critical analog signals from field instrumentation, such as 4-20 mA transmitters, ensuring precise data conversion and signal stability in demanding industrial environments.
Features
- High-level analog input signal processing for robust process monitoring.
- Integrated compression terminal design for secure and reliable field wiring connections.
- Optimized for performance in high-density control cabinet configurations.
- Enhanced noise immunity and signal conditioning circuitry for consistent accuracy.
- Designed for seamless compatibility with Honeywell Experion PKS and related control I/O architectures.
Applications
This module is widely utilized across process-intensive industries, including petrochemical refining, power generation, and large-scale manufacturing. It serves as a critical component in control loops where reliable, high-fidelity analog signal transmission is essential for maintaining operational safety and process efficiency.
Technical Specifications
| Model |
MC-GAIH14 |
| Input Signal Range |
4 to 20 mA, High Level Analog |
| Termination Type |
Compression Terminal |
| Power Consumption |
Approx. 5 W |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Relative Humidity |
5 % to 95 % Non-condensing |
| Isolation |
Industrial Signal Isolation |
Installation Guidelines
- Ensure the control system is powered down before inserting or removing the module from the rack.
- Verify that the cabinet environment is within the specified temperature range (0 to 60 deg C) to prevent thermal degradation.
- Use appropriate ESD protection measures when handling the module to avoid damage to internal circuitry.
- Ensure that compression terminals are tightened to provide firm contact, minimizing the risk of signal intermittency due to vibration.
- Route analog signal cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
- Confirm proper grounding of the control cabinet to facilitate effective noise shielding.
FAQ
What type of signals does the MC-GAIH14 accept?
The module is designed for high-level analog inputs, typically handling 4-20 mA process loops common in industrial instrumentation.
Is this module compatible with the Experion PKS system?
Yes, the MC-GAIH14 is part of the Honeywell I/O family designed for use within the Experion PKS and related distributed control system architectures.
What is the primary benefit of the compression terminal interface?
The compression terminal provides a secure, vibration-resistant connection, which is vital for maintaining consistent signal continuity in industrial cabinets.
