Description

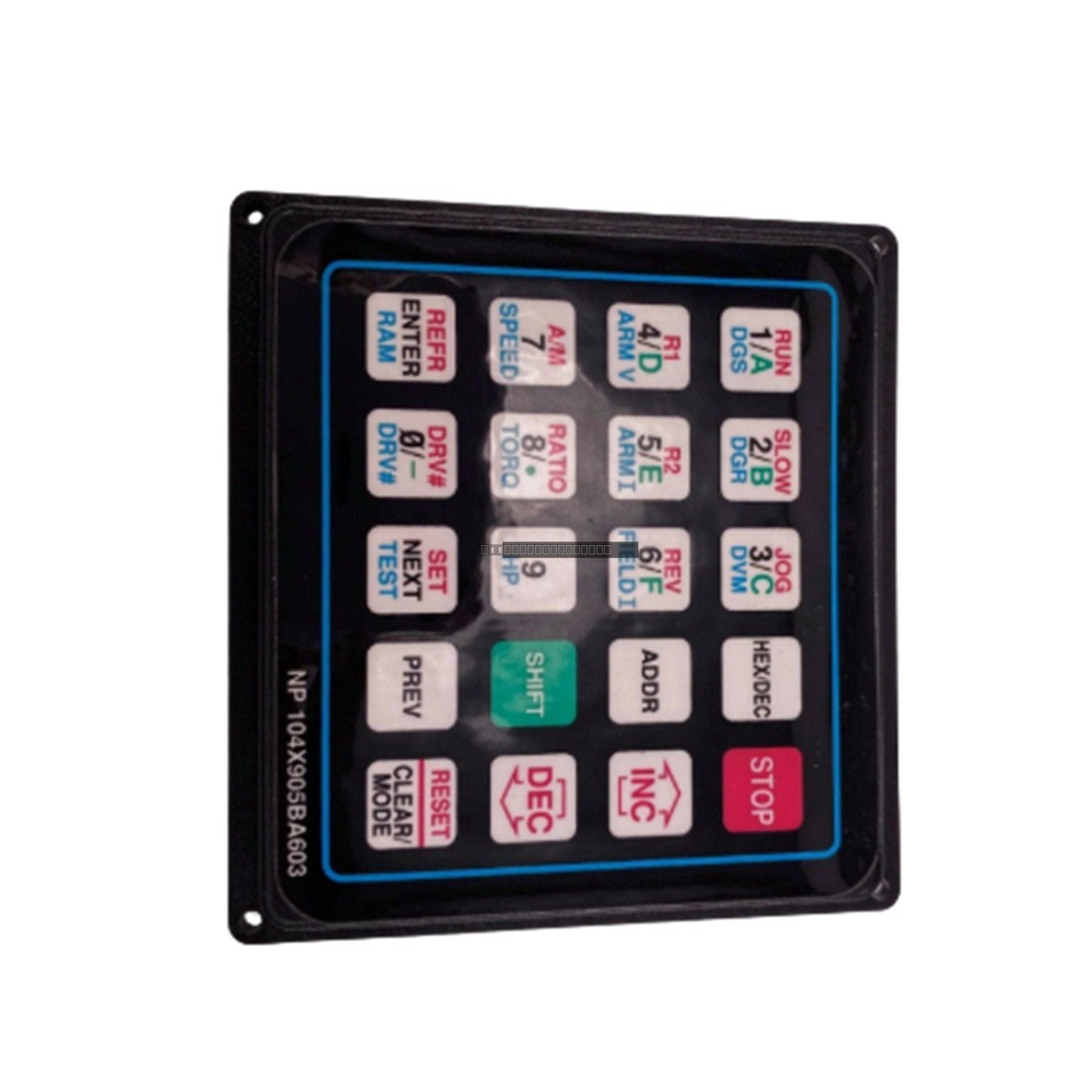

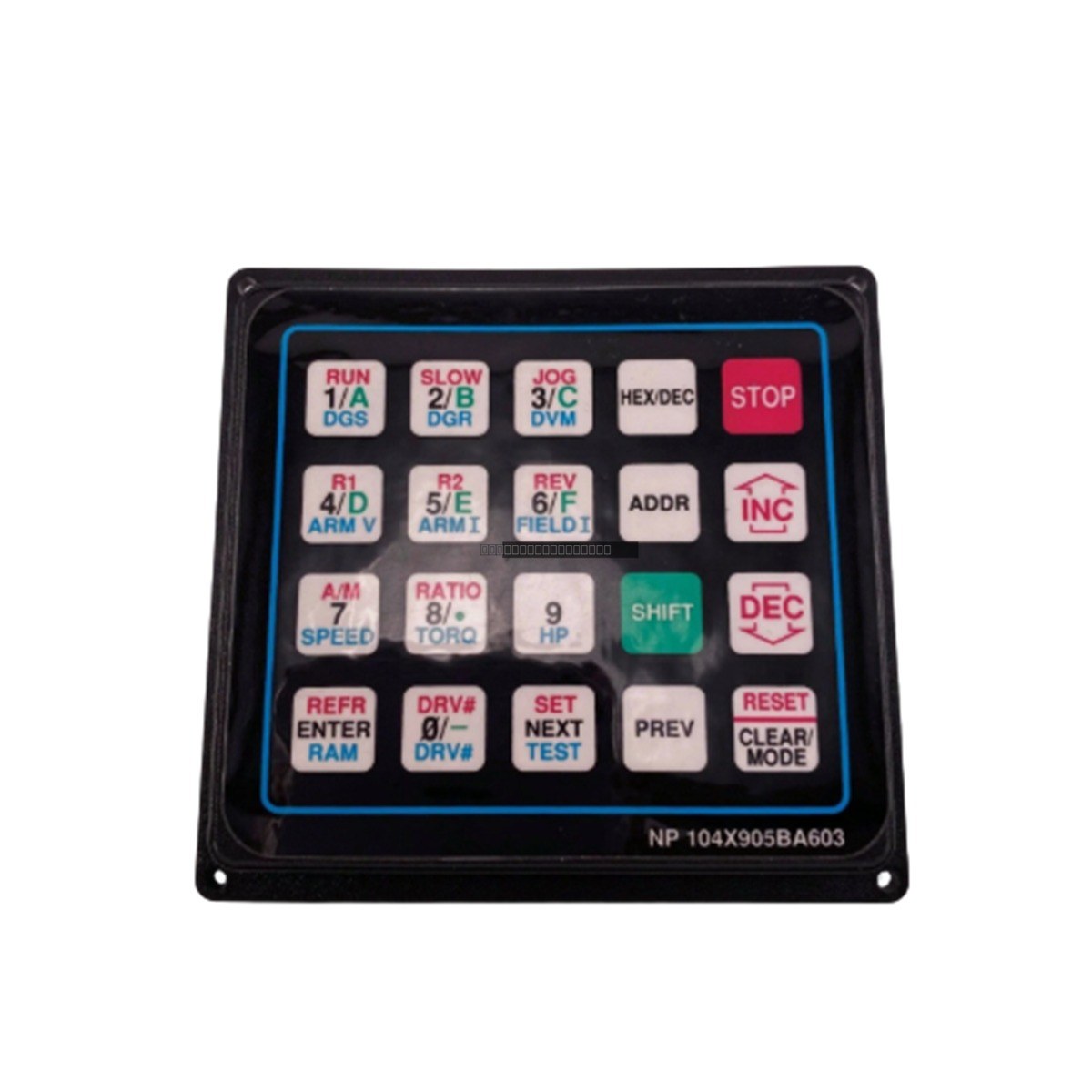

The GE Fanuc NP104X905BA603 serves as a critical Operator Interface (HMI) module within the Mark V Turbine Control System architecture. This unit acts as the central command node, facilitating essential operator control functions including turbine start/stop sequences, load management, and real-time performance monitoring. Engineered for high-reliability power generation environments, the module provides the necessary interface for personnel to interact with Mark V control panels, ensuring centralized alarm management and efficient diagnostic capabilities.
Features
-
Stage Link Connectivity: Utilizes the ARCNET LAN protocol for deterministic data communication between the HMI and the Mark V control hardware.
-
Extended Network Support: Designed to support fiber optic integration and repeaters, allowing for flexible placement of the HMI relative to the turbine control cabinets.
-
Advanced Data Rendering: Processes real-time data from the controller and displays it through the OptiSCREEN Editor environment for intuitive visualization.
-
Security Controls: Implements password-protected access levels to secure turbine logic, protection settings, and logging parameters against unauthorized modification.
-
Versatile Input Support: Compatible with various human-machine input devices, including trackballs, mice, keyboards, and touch-screen interfaces.
Technical Specifications
| Model |
NP104X905BA603 |
| Brand |
GE Fanuc |
| Series |
Mark V |
| Module Type |
Operator Interface Unit |
| Protocol |
ARCNET (Stage Link) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
Installation Guidelines
- Ensure the installation environment is free from excessive vibration and dust to maintain long-term reliability.
- Verify that all coaxial or fiber optic connections for the Stage Link are properly seated and shielded to prevent EMI-related communication errors.
- Maintain proper clearance around the module to ensure adequate thermal dissipation within the control cabinet.
- Always isolate power from the rack before inserting or removing the module to prevent electrical damage.
- Ensure the module is properly grounded in accordance with standard industrial control panel practices.
FAQ
Is the NP104X905BA603 compatible with other Mark V series components? Yes, this module is designed specifically for the GE Mark V Turbine Control System and acts as the standard operator interface for that series.
What protocol does this module use for communication? It utilizes the ARCNET protocol, commonly referred to as the Stage Link in Mark V systems, for reliable data exchange.
Can this unit be used in remote locations? Yes, the design supports the use of signal repeaters and fiber optic cabling, facilitating installations where the HMI and the turbine controls are in separate rooms or buildings.
