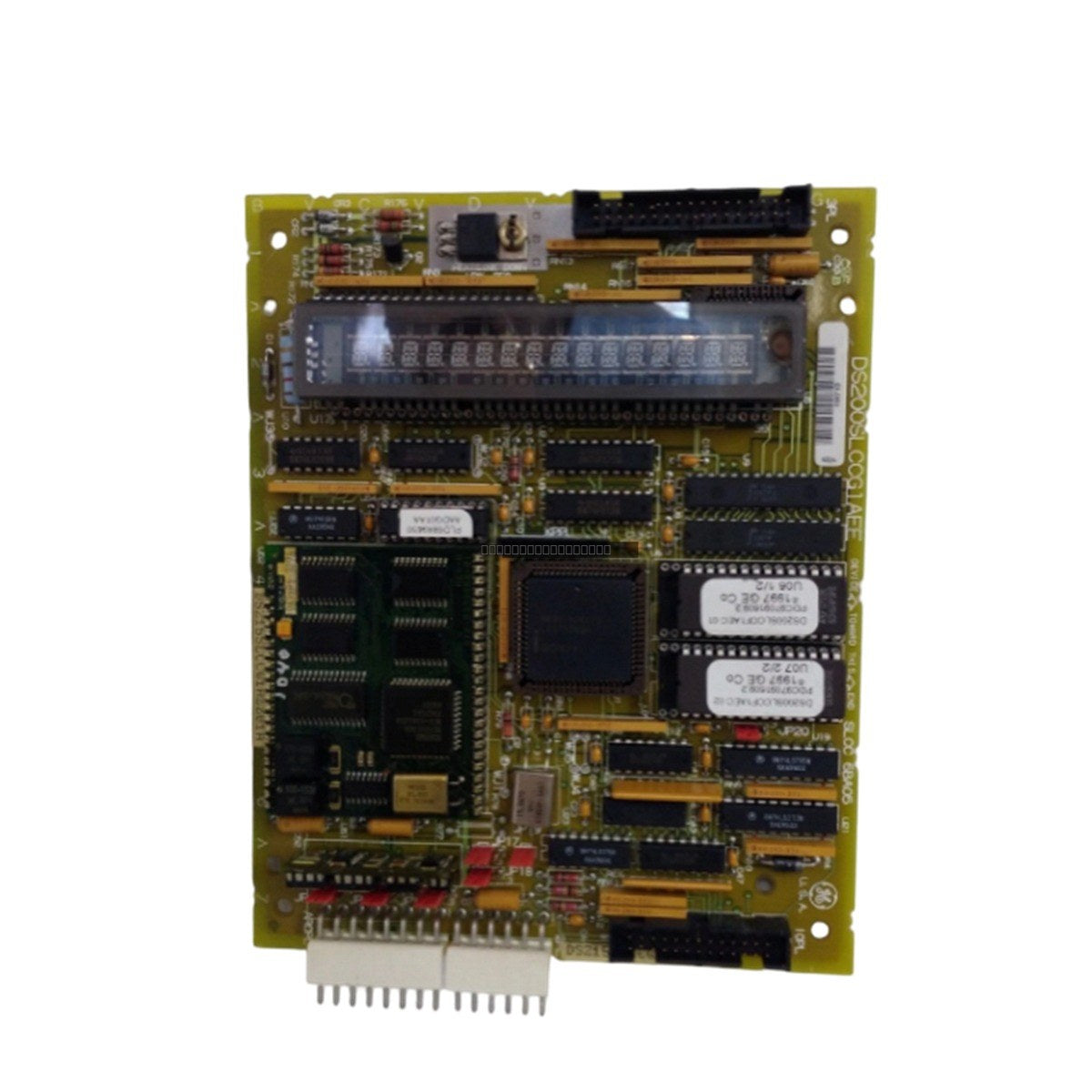

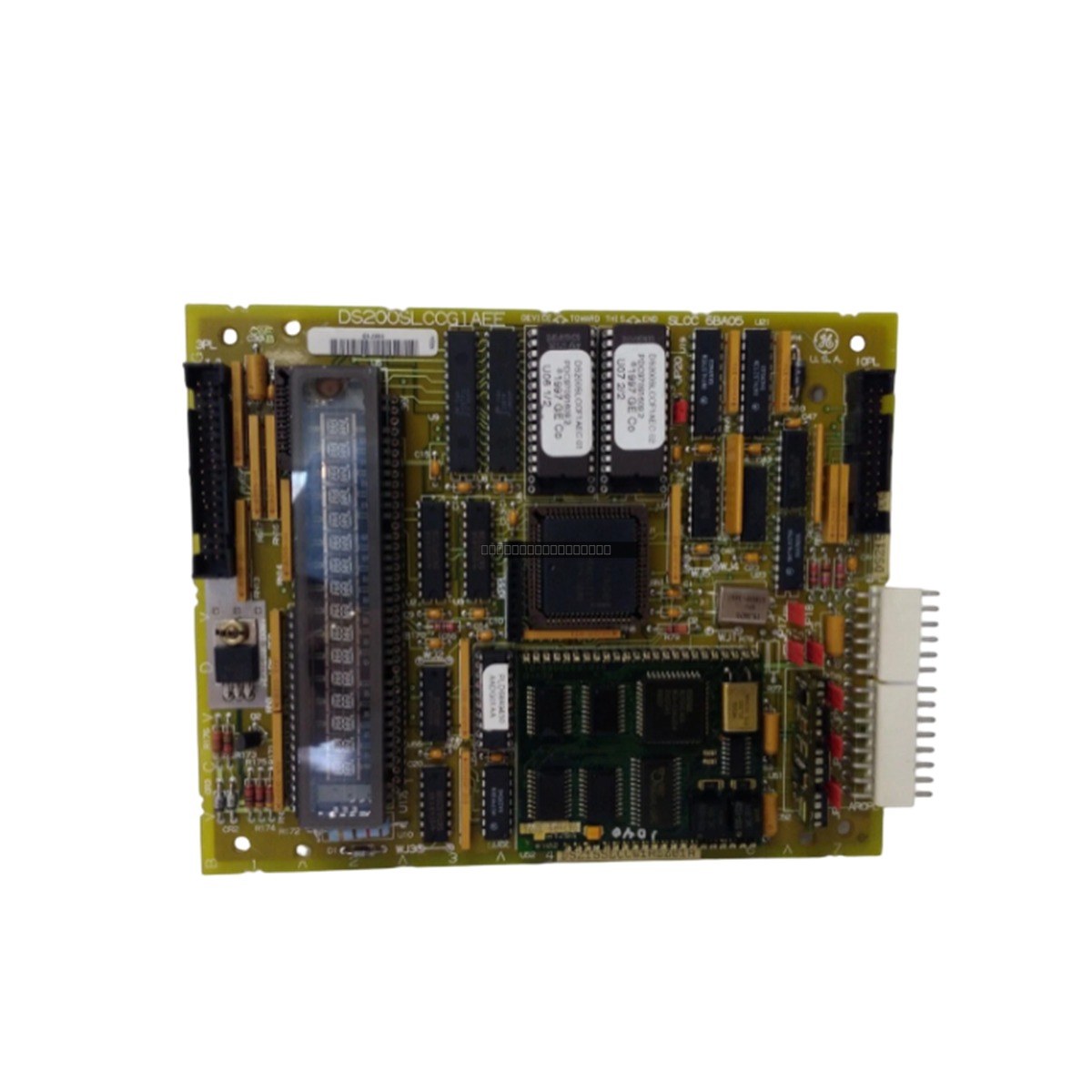

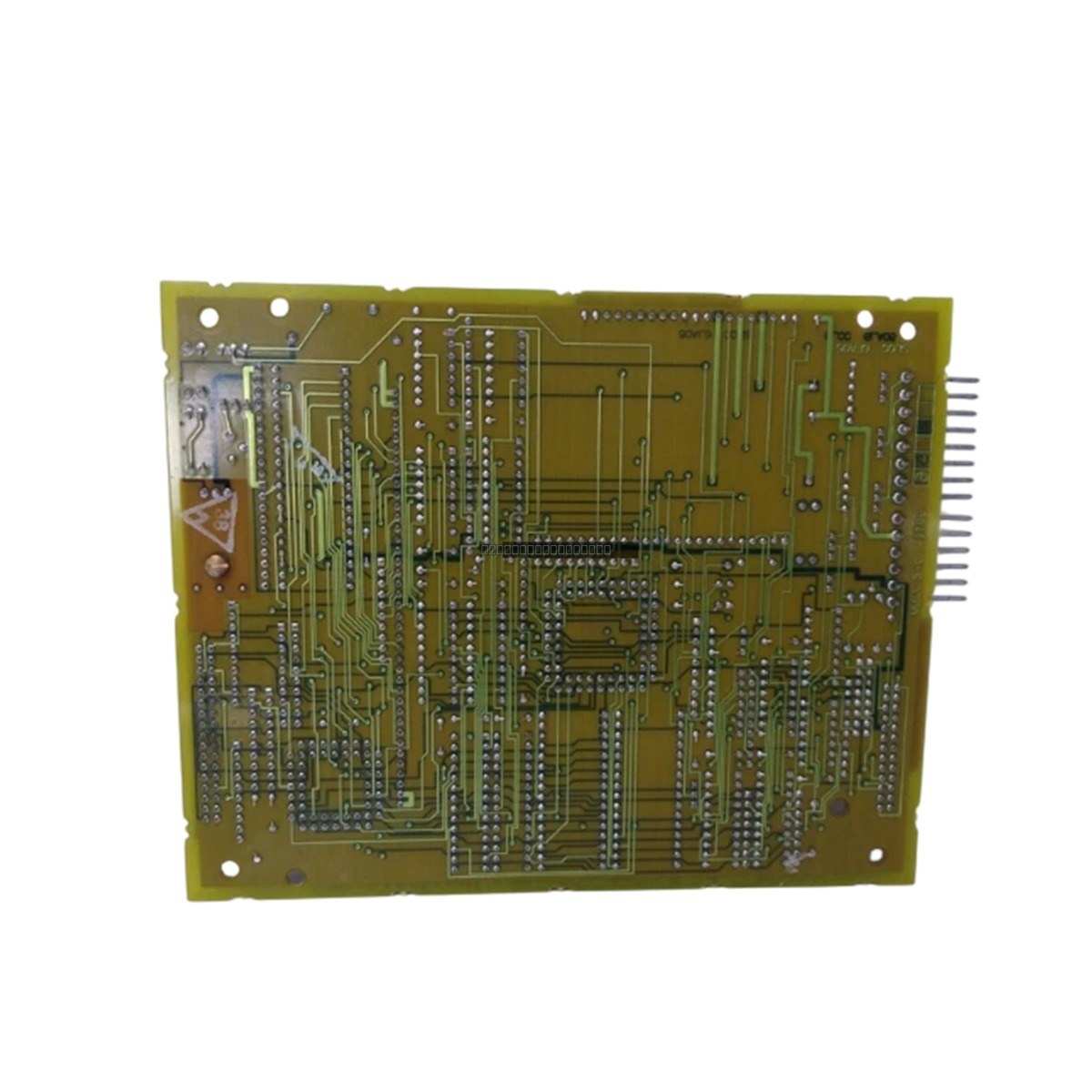

The DS215SLCCG1AZZ01B is a specialized Analog I/O board designed for the General Electric Mark V gas turbine control system. This module provides essential signal conditioning and conversion, facilitating the accurate processing of critical turbine parameters such as LVDT position feedback, thermocouple temperature monitoring, and 4-20 mA process signals. By ensuring high-fidelity signal integration within the control cores, the board supports the precise regulation of fuel flow and compressor management necessary for reliable turbine operation.
Features
- Designed for integration within the Mark V control architecture, specifically supporting I/O cores R1, R2, and R3.
- Facilitates complex signal processing including vibration monitoring, servo valve control, and relay driver output management.
- Equipped with configurable hardware jumpers (J1, J2, J5, J6) allowing for site-specific customization of milliamp output ranges.
- Interfaces with the STCA board via the 3PL connector and the TCQC board via the JE connector for robust data exchange.
- Utilizes surface-mount technology to maintain compact dimensions and high operational reliability in demanding power generation environments.
Applications
This board is primarily utilized in power generation facilities employing GE Mark V turbine control systems. It is instrumental in applications involving fuel system pressure regulation, compressor stall detection, and comprehensive turbine performance monitoring.
Technical Specifications
| Model |
DS215SLCCG1AZZ01B |
| Manufacturer |
General Electric (GE) |
| Series |
Mark V |
| Power Supply |
24 VDC |
| Operating Temperature |
40 to 70 deg C |
| Signal Types |
LVDT, Thermocouple, 4-20 mA, Vibration |
| Connector Interfaces |
3PL, JE, JF, JG |
| Mounting |
Core / DIN-rail |
Installation Guidelines
- Ensure the system is fully powered down before inserting or removing the board to prevent electrical damage.
- Handle the module using electrostatic discharge (ESD) protection protocols, as internal components are sensitive to static electricity.
- Verify that all hardware jumpers are configured according to your specific turbine control requirements before installation.
- Ensure that connectors 3PL, JE, JF, and JG are seated firmly to prevent intermittent signal loss.
- Maintain proper ventilation in the control cabinet to ensure the operating environment remains within the 40 to 70 deg C range.
FAQ
What is the primary function of the DS215SLCCG1AZZ01B?
This board serves as an analog input/output interface for the GE Mark V system, conditioning field signals for the control processor and managing outputs for critical turbine actuators.
Can I adjust the output range of this board?
Yes, the board features physical jumpers (J5/J6) that allow you to configure the output current range to accommodate either 20 mA or 200 mA requirements.
