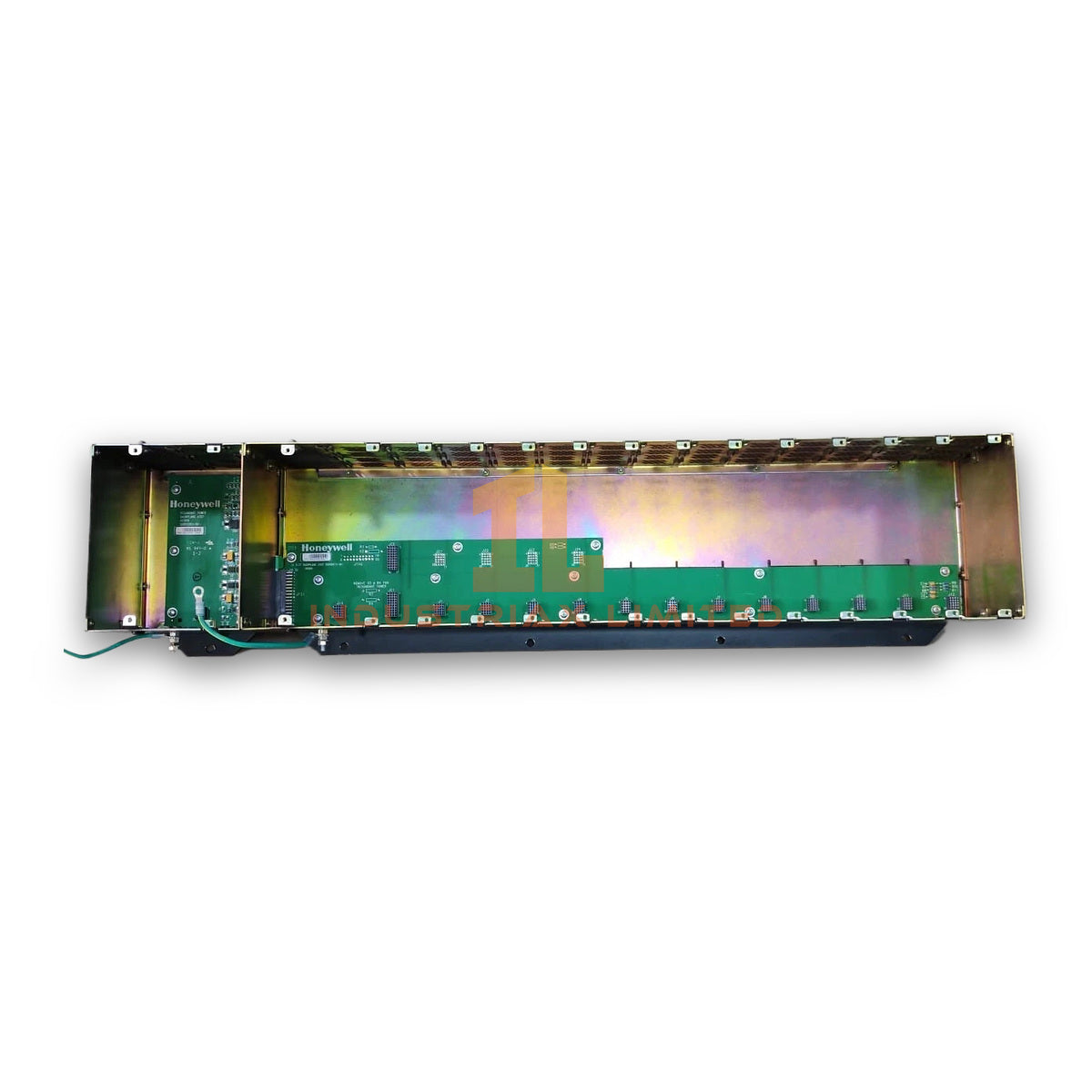

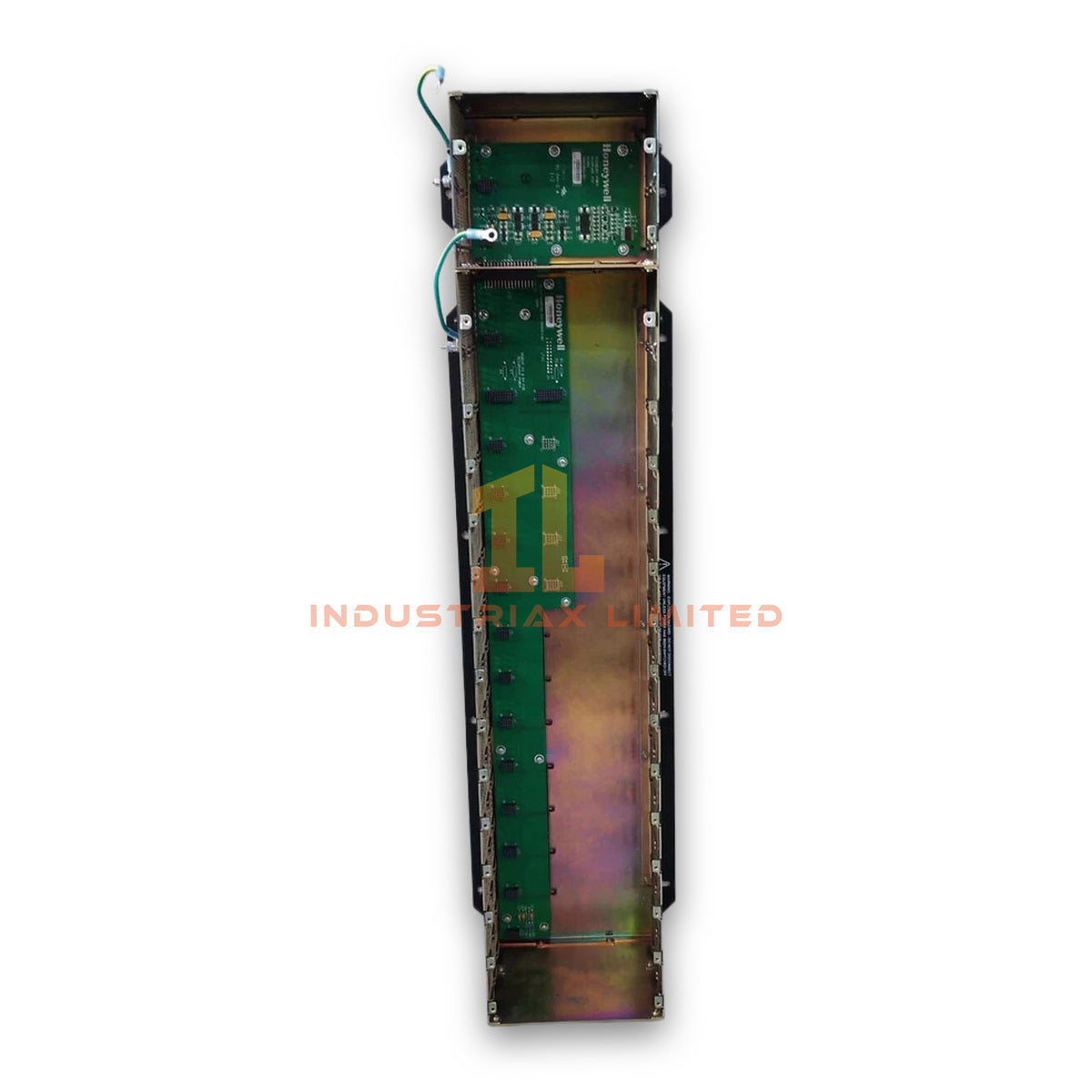

Honeywell 900R12R-0101 HC900 Redundant 12-Slot I/O Rack Assembly

Configured for redundant I/O module mounting and backplane power distribution in the Honeywell HC900 ControlEdge Hybrid Control System, the Honeywell 900R12R-0101 (900R12R-0101 Redundant I/O Rack Assembly) provides the physical chassis interface for controller, power, and I/O expansion modules.

Hardware Specifications

Parameter	Specification
Model	900R12R-0101 (P/N: 50002673-001)
Brand	Honeywell
Origin	USA
Operating Temp	0 deg C to +60 deg C
Power Consumption	Backplane power distribution supports 5 VDC @ 6 A and 24 VDC @ 2 A
Series / Platform	HC900 ControlEdge Hybrid Control System
Product Type	Redundant 12-Slot I/O Rack Assembly
Slot Capacity	12 universal I/O module slots
Backplane Configuration	Dual redundant power support and redundant I/O bus
Module Support	Hot-swappable I/O module installation
Mounting Type	Panel mount or DIN rail mount
Relative Humidity	5% to 95% RH, non-condensing
Storage Temperature	-40 deg C to +70 deg C
Certifications	Class I, Div 2, Groups A-D (T6), Zone 2 IIC T6, CE marked
Enclosure Color	Red industrial housing

Process Control I/O Rack Architecture

The 900R12R-0101 provides the mechanical and electrical platform for HC900 I/O expansion modules. It distributes backplane power and maintains communication paths between installed modules and the controller system. The rack supports redundant configurations where continuous module operation requires dual power paths and redundant I/O bus operation.

For Honeywell process control architectures, the rack design supports field signal integration with modules using industrial communication standards. Channel-to-channel isolation remains dependent on the installed I/O module type, while signal interface functions such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, or Profibus PA connectivity are provided by compatible modules rather than the rack assembly itself.

Frequently Asked Questions

Q: Does the Honeywell 900R12R-0101 support hot-swapping of I/O modules?
A: Yes. The rack supports hot-swappable I/O modules when installed modules and system configuration meet HC900 operational requirements.

Q: What backplane power ratings does the 900R12R-0101 support?
A: The rack supports redundant backplane power distribution with 5 VDC @ 6 A and 24 VDC @ 2 A supply capability.

Q: Can the rack operate as a standalone controller chassis?
A: No. The 900R12R-0101 functions as an I/O rack assembly and requires compatible HC900 controller hardware and I/O modules for operation.

Field Installation Guidelines

Install the 900R12R-0101 on a mechanically stable panel or approved DIN rail mounting structure. Verify that the rack position allows sufficient clearance for module insertion, wiring access, and maintenance activities.

Connect protective grounding according to industrial control panel standards. Maintain proper separation between power wiring, communication cables, and field signal wiring to reduce electrical interference.

Before installing I/O modules, confirm module compatibility with the HC900 ControlEdge system configuration. Check that redundant power connections, backplane interfaces, and module locking mechanisms are correctly engaged.

Avoid installing the rack in locations with excessive vibration, conductive dust, or moisture exposure beyond the specified environmental limits. Use approved industrial wiring practices for all field connections associated with installed I/O modules.
