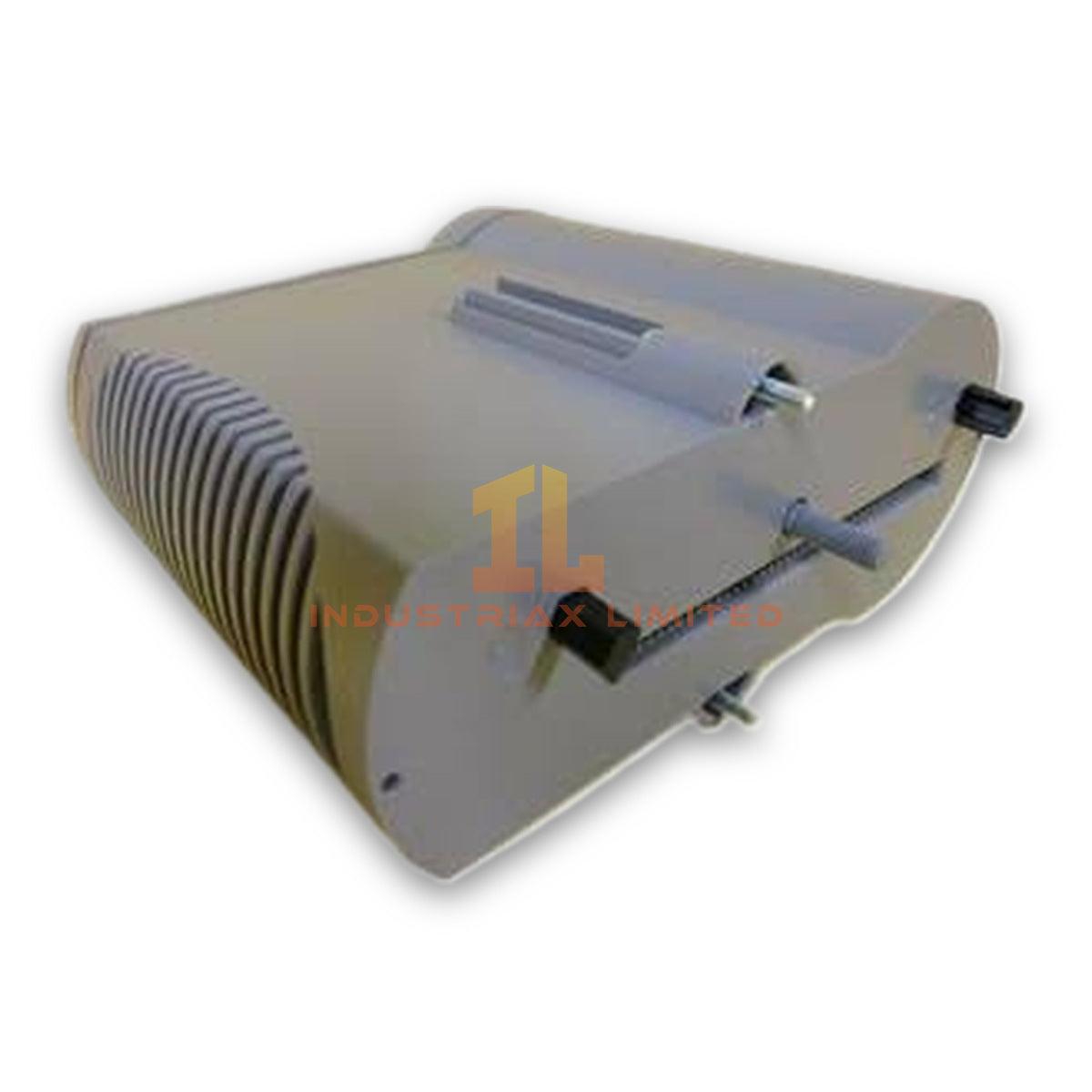

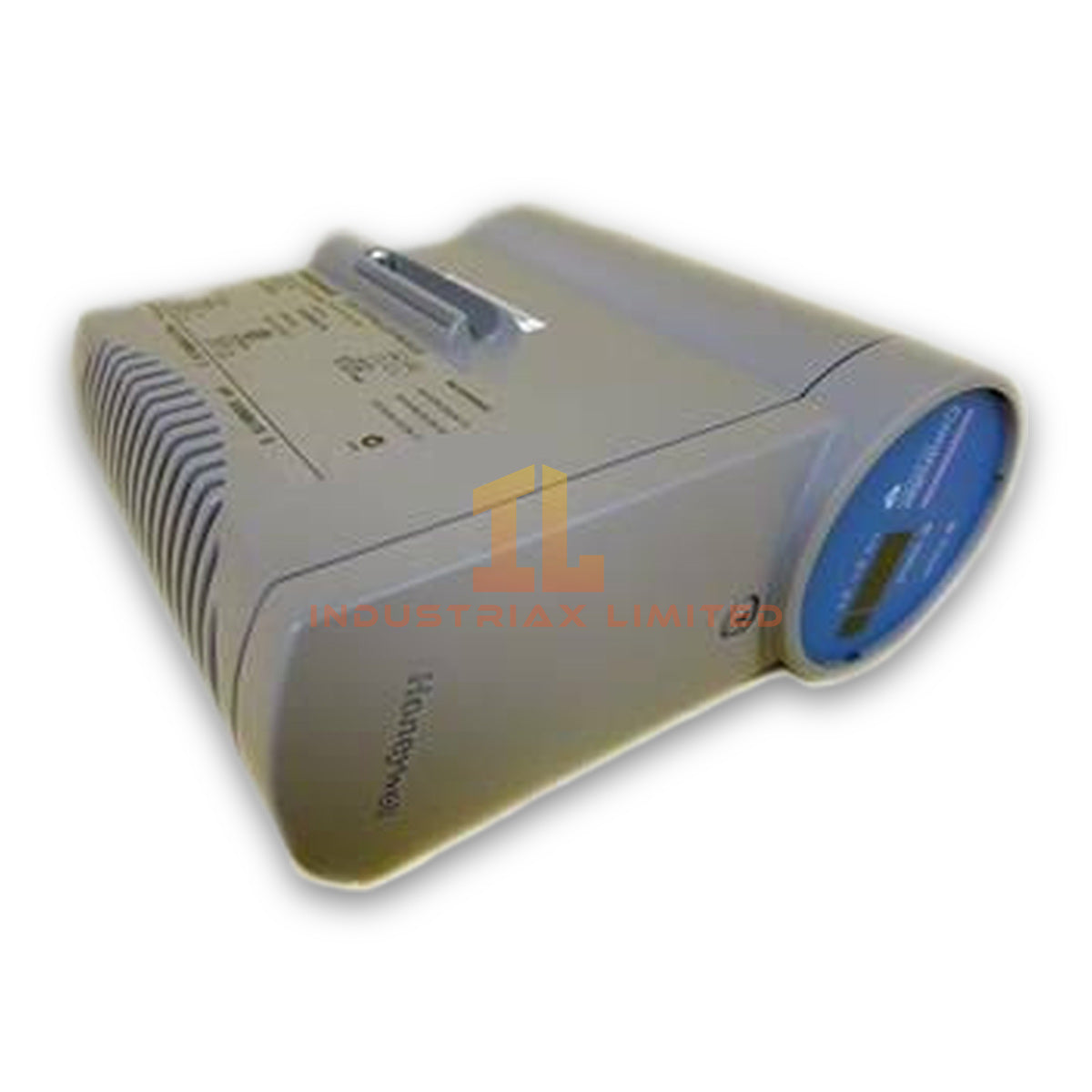

Honeywell MU-CULF01 Cooling Fan Assembly

The Honeywell MU-CULF01, also cataloged as the MU-CULF01 Cooling Fan Assembly, operates as a dedicated hardware component for forced-air thermal control within Honeywell TDC 3000, APM, and HPM cabinet platforms.

Hardware Specifications

Parameter	Specification
Model	MU-CULF01 / 51304487-100
Brand	Honeywell
Origin	USA
Operating Temp	0 deg C to +60 deg C
Power Consumption	24 VDC cabinet power supply input
Product Type	Cooling Fan Assembly
System Compatibility	Honeywell TDC 3000, Advanced Process Manager (APM), High-Performance Process Manager (HPM) cabinets
Mounting Position	Left-side rack enclosure mounting
Airflow Function	Forced internal cabinet ventilation
Storage Temperature	-40 deg C to +85 deg C
Relative Humidity	10% to 90% RH, non-condensing
Monitoring Function	Fan status and fault indication through cabinet monitoring interface
Replacement Method	Hot-swap capable cabinet service replacement

DCS Cabinet Thermal Management and Control Interface

The Honeywell MU-CULF01 provides controlled airflow circulation across process control cards installed in TDC 3000, APM, and HPM cabinet assemblies. Therefore, the module maintains cabinet air movement and reduces thermal accumulation around electronic assemblies.

Honeywell process control cabinets typically require continuous cooling operation to maintain card operating conditions. The MU-CULF01 connects to the cabinet power distribution structure and supports fan condition monitoring through the associated cabinet alarm interface.

In addition, the module supports DCS hardware maintenance procedures by allowing service personnel to replace the cooling assembly without removing the complete process control rack from operation. The fan assembly works as part of the cabinet thermal design rather than as an independent field I/O component.

For Honeywell DCS installations, cabinet-level hardware design normally separates field signal processing from environmental control functions. As a result, the MU-CULF01 provides mechanical airflow support while maintaining compatibility with the cabinet electrical monitoring architecture.

Frequently Asked Questions

Q: Is the Honeywell MU-CULF01 a field signal processing module?
A: No. The MU-CULF01 is a cabinet cooling fan assembly. It provides forced-air circulation and does not process analog or digital field signals.

Q: Can the MU-CULF01 support hot replacement procedures?
A: The module is designed for cabinet service replacement procedures. Maintenance personnel must verify cabinet power conditions and applicable system procedures before removal.

Q: Does the MU-CULF01 communicate through the DCS control network?
A: No. The assembly does not operate as a network communication module. It interfaces with cabinet power and monitoring circuits for fan operation status.

Field Installation Guidelines

• Install the MU-CULF01 only in the designated left-side mounting position of compatible Honeywell TDC 3000, APM, or HPM cabinet assemblies.
• Verify the cabinet slot arrangement and connector alignment before installation.
• Confirm that the power interface matches the cabinet distribution wiring before energizing the fan assembly.
• Maintain sufficient airflow clearance around cabinet ventilation paths to prevent restricted cooling performance.
• Route fan power and monitoring wiring separately from high-noise power conductors where applicable.
• Inspect connectors for contamination, oxidation, or mechanical damage before replacement.
• Follow Honeywell cabinet maintenance procedures when replacing the module during online system operation.
