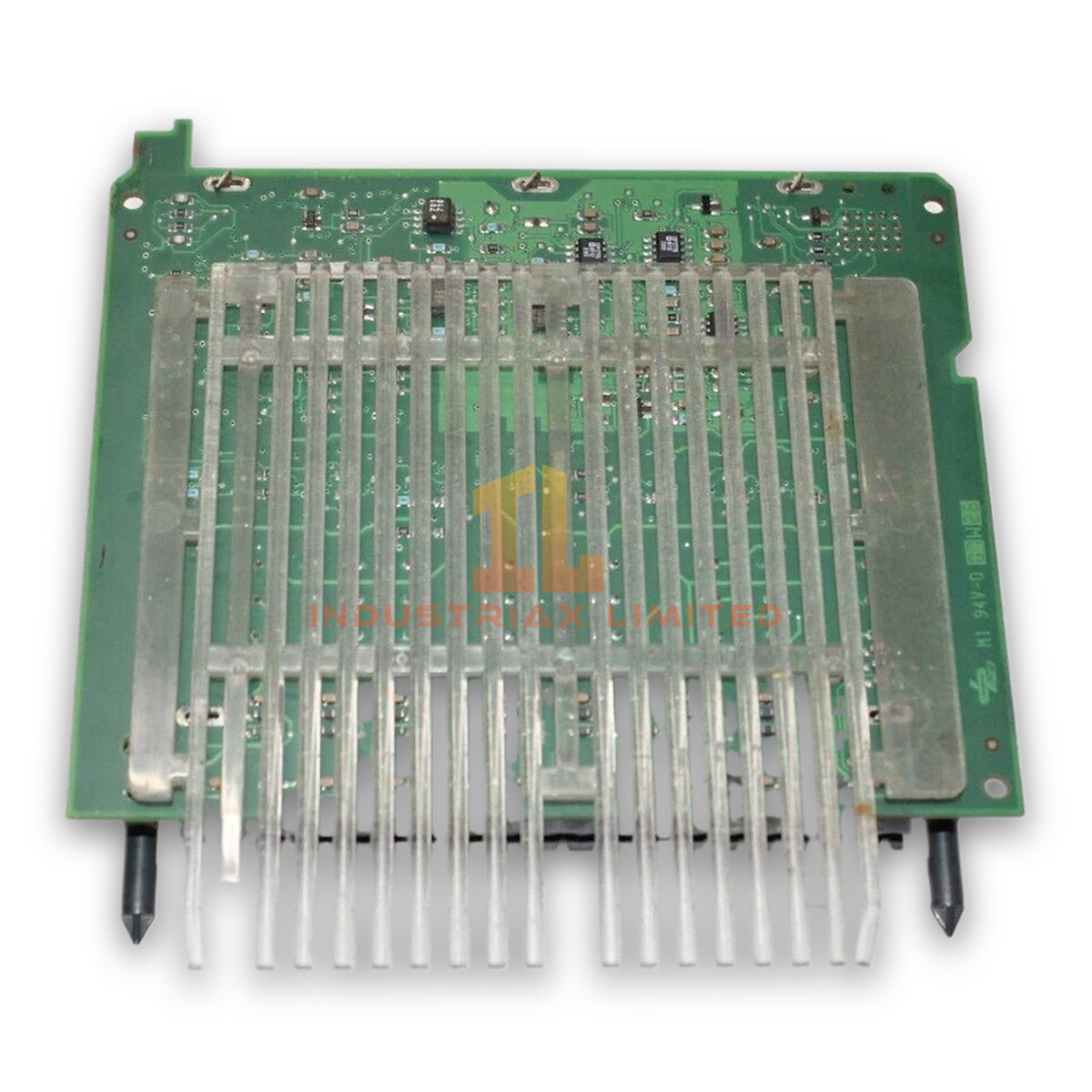

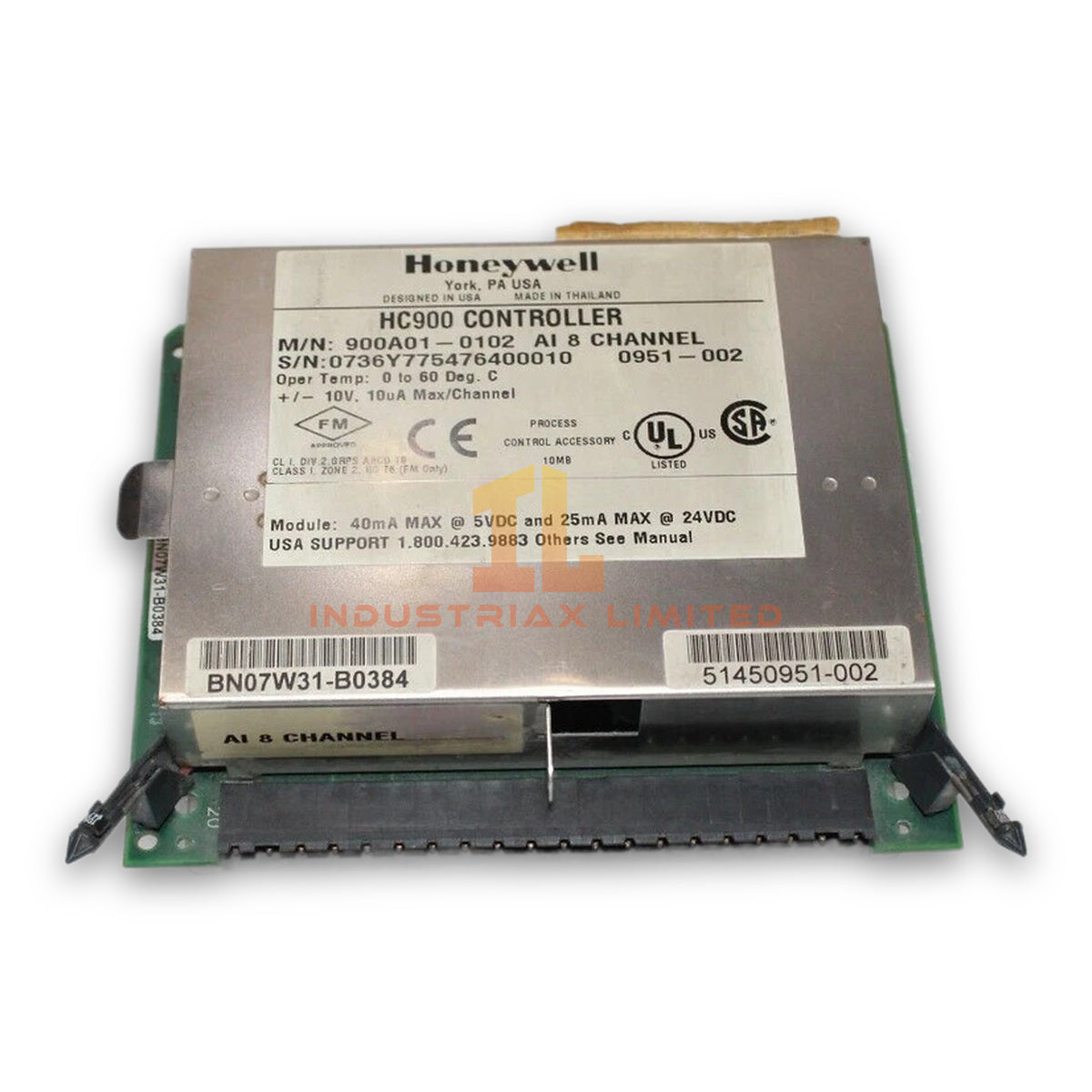

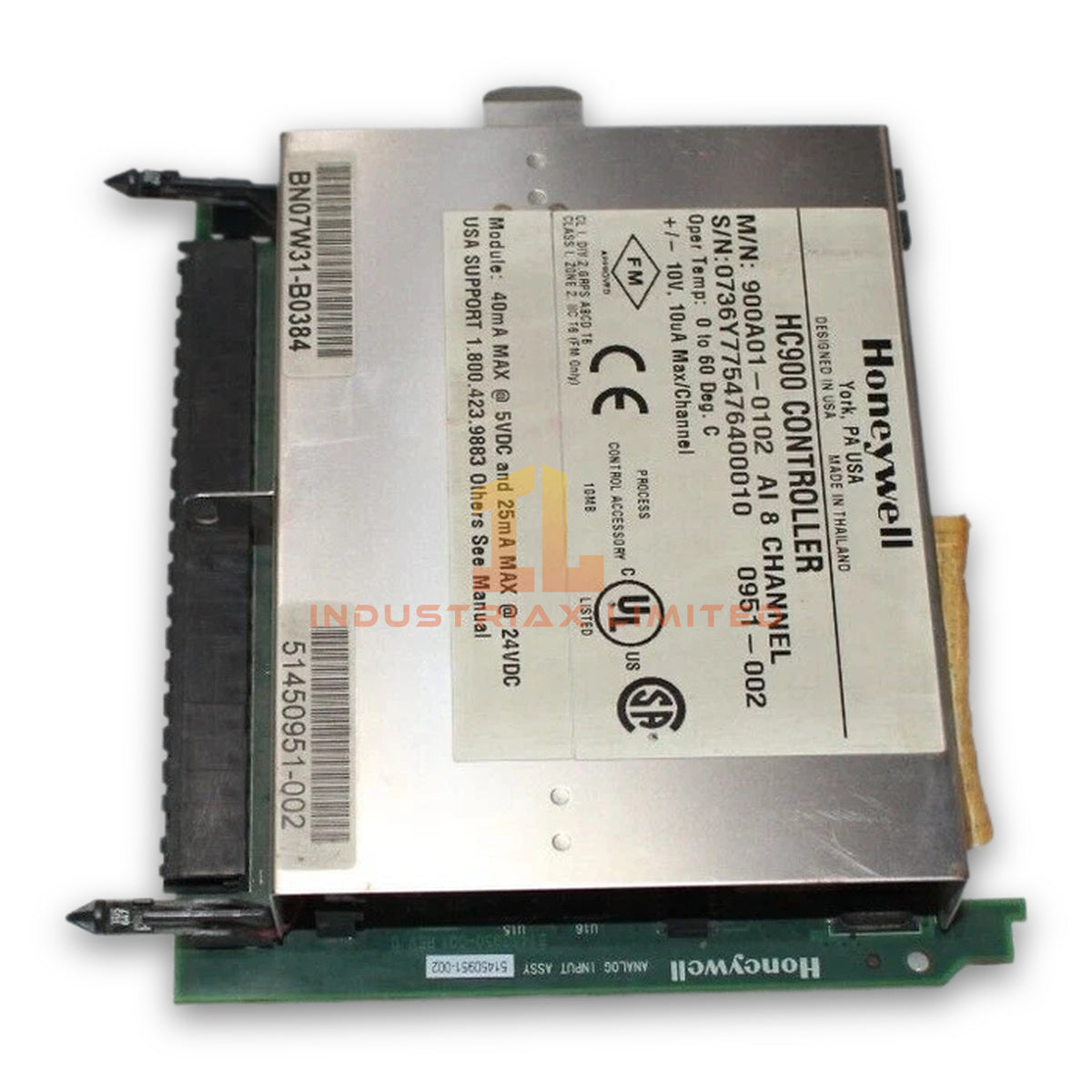

Honeywell 900A01-0102 Universal Analog Input Module

Configured for universal analog signal acquisition in the Honeywell HC900 / ControlEdge HC900 system, the Honeywell 900A01-0102 (900A01-0102 Universal Analog Input Module) provides direct physical and electrical processing of field temperature, voltage, current, and resistance signals.

Hardware Specifications

Parameter	Specification
Model	900A01-0102
Brand	Honeywell
Origin	USA
Module Type	Universal Analog Input Module
System Compatibility	Honeywell HC900 / ControlEdge HC900 Process Controller
Input Channels	8 universal analog input channels
Supported Signals	Thermocouple, RTD, voltage, millivolt, current, resistance, slidewire
Current Input Range	4-20 mA DC with signal conditioning support
Voltage Input Range	0-10 VDC, 0-5 VDC, 1-5 VDC, +/-10 VDC, millivolt ranges
RTD Support	Pt100, Pt200, Pt500, Pt1000, Ni120, Cu10 and related sensor types
Thermocouple Support	Types B, E, J, K, N, R, S, T and other supported thermocouple inputs
Isolation	Channel-to-channel isolation and backplane isolation
Conversion Method	Digital conversion synchronized with controller execution
Diagnostics	Channel status monitoring, sensor fault indication, configuration diagnostics
Operating Temp	0 deg C to 60 deg C
Storage Temp	-40 deg C to 70 deg C
Operating Humidity	10% to 90% RH, non-condensing
Dimensions	Approx. 137 mm H x 35.6 mm W x 152 mm D
Weight	Approx. 0.2 kg
Estimated Shipping Size	13.2 x 14.2 x 3.2 cm
Power Consumption	Supplied from HC900 controller rack backplane

Process Signal Conditioning and Isolation Characteristics

The Honeywell 900A01-0102 processes multiple field signal types through configurable input channels. Each channel supports independent engineering configuration for sensor selection, scaling, and alarm handling.

The module applies channel-to-channel isolation to reduce signal interference between field devices. In addition, the input design supports cold junction compensation (CJC) for thermocouple measurements and maintains measurement accuracy during temperature changes at the terminal connection point.

For process instrumentation loops, the module can interface with 4-20 mA HART signal sources through suitable external signal conditioning arrangements. It also supports integration with FOUNDATION Fieldbus and Profibus PA based field architectures when used with compatible Honeywell system interfaces.

Frequently Asked Questions

Q: Can the 900A01-0102 accept different input types on separate channels?
A: Yes. Each of the 8 channels can be configured independently for supported thermocouple, RTD, voltage, current, resistance, or millivolt input types.

Q: Does the 900A01-0102 provide electrical isolation between input channels?
A: Yes. The module provides channel-to-channel isolation and backplane isolation to limit interference between field signals and controller electronics.

Q: Does the module support hot-swap replacement?
A: The module replacement procedure depends on the HC900 rack configuration and system operating conditions. Field replacement should follow the applicable Honeywell hardware installation procedure.

Field Installation Guidelines

• Install the module in the designated Honeywell HC900 controller rack position.
• Verify rack power isolation before removing or inserting the module.
• Connect field wiring according to the configured input type and terminal assignment.
• Use shielded cables for low-level analog signals such as thermocouple and millivolt inputs.
• Connect cable shields according to the plant grounding standard to reduce electrical noise.
• Separate analog signal wiring from high-current power cables and switching circuits.
• Confirm channel configuration parameters before placing the controller into normal operation.
• Check diagnostic indicators after installation to verify module status and field signal integrity.
