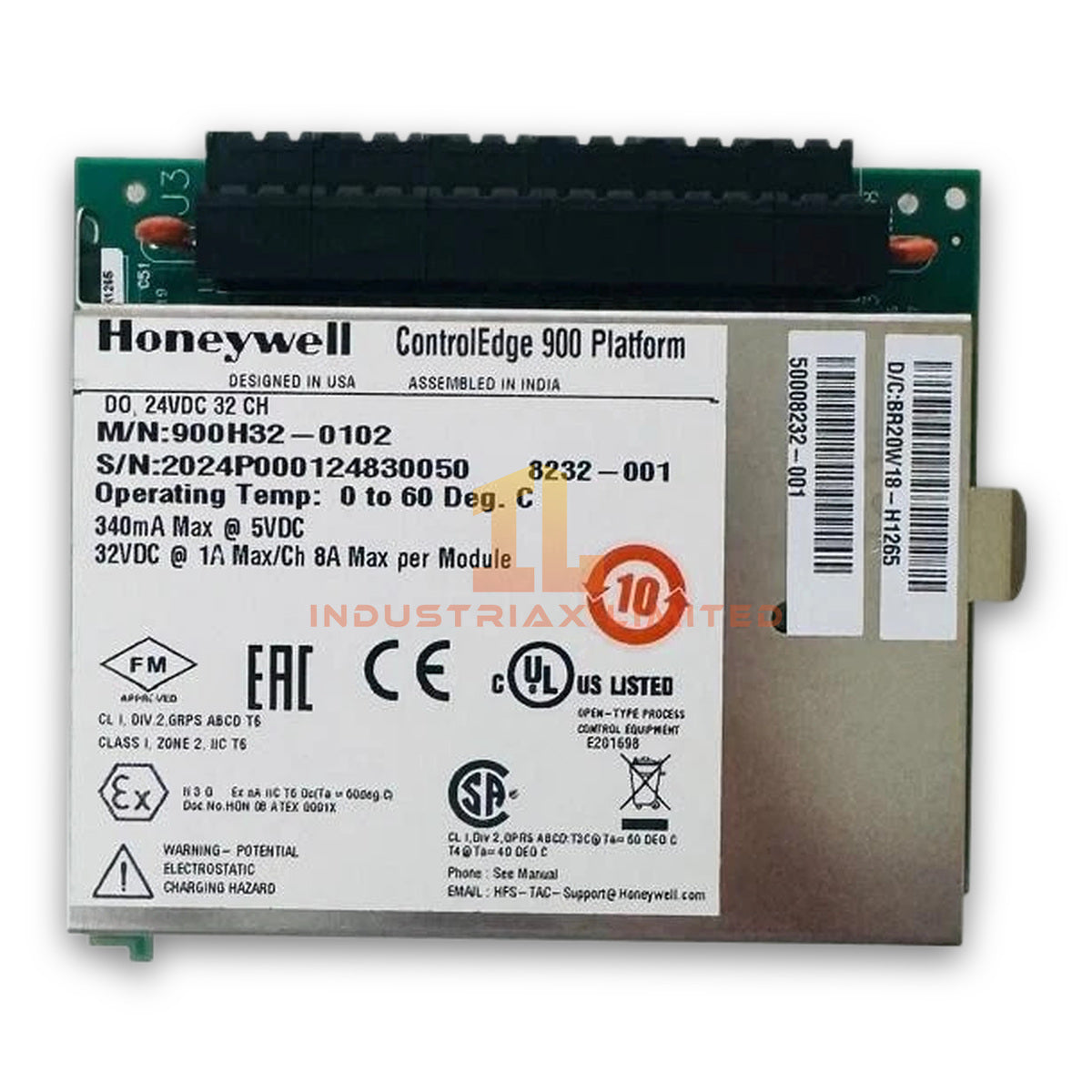

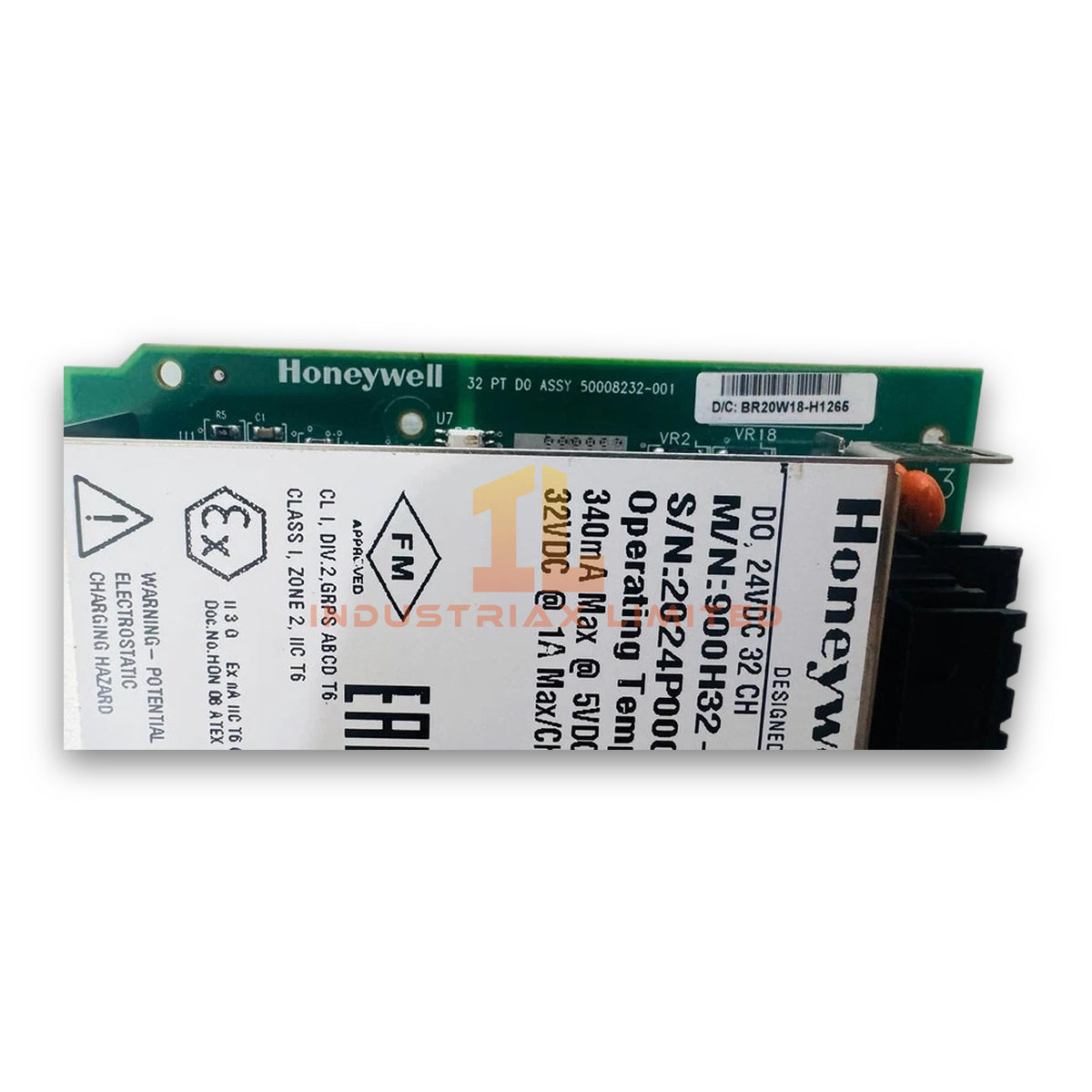

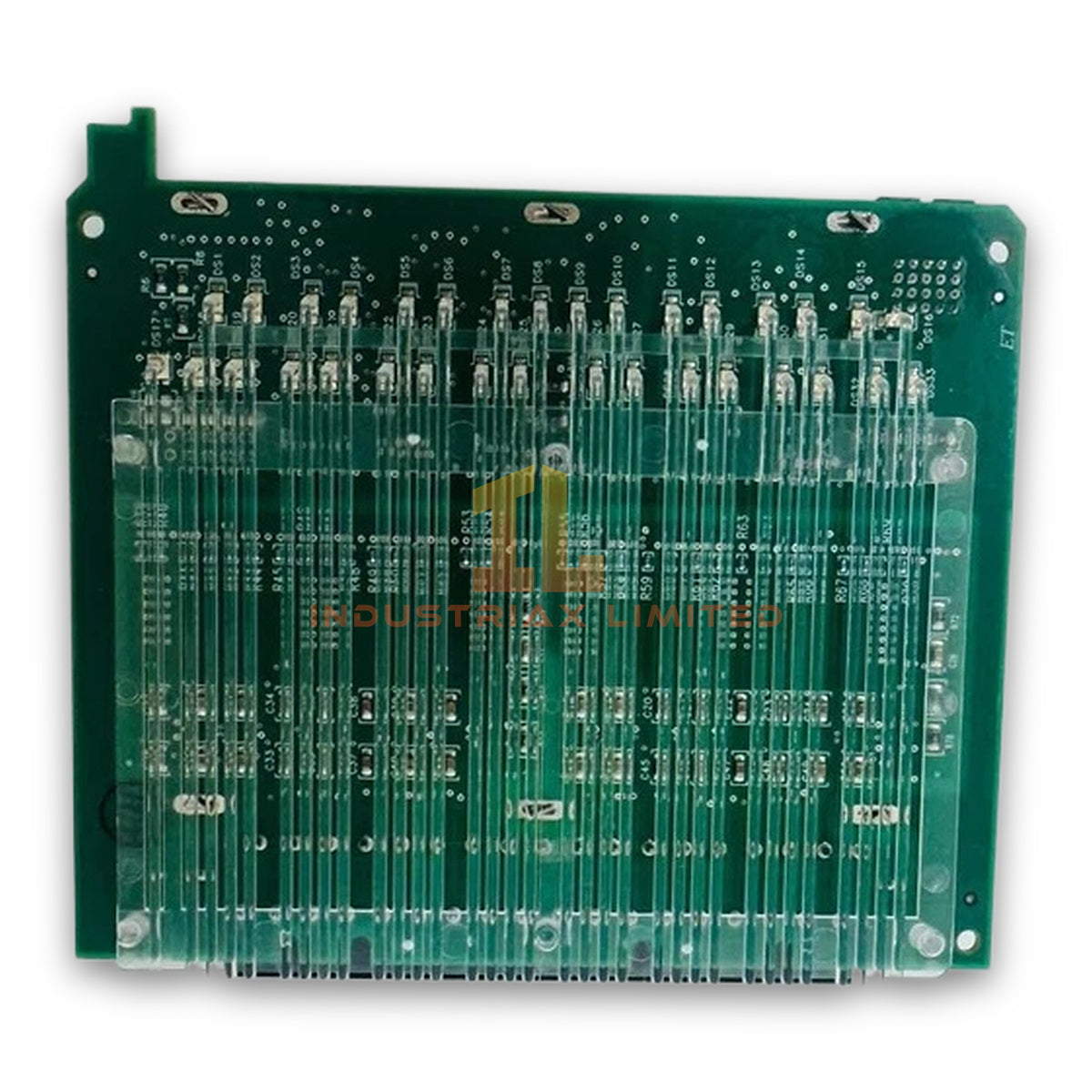

Honeywell 900H32-0102 High Density Digital Output Module

Configured for 24 VDC solid-state output execution in the Honeywell ControlEdge HC900 Controller system, the Honeywell 900H32-0102 (900H32-0102 High Density Digital Output Module) provides direct electrical switching for 32 discrete field output channels.

Hardware Specifications

Parameter	Specification
Model	900H32-0102
Brand	Honeywell
Origin	United States
Product Type	Digital Output Module
System Compatibility	Honeywell ControlEdge HC900 Controller
Number of Outputs	32 channels
Output Type	Solid-State Digital Output
Operating Voltage	24 VDC nominal, 32 VDC maximum
Current Rating	0.5 A maximum per output channel
Total Module Load Current	12 A maximum per module
Output Protection	Per-channel overcurrent and short circuit protection
Internal Bus Power Consumption	235 mA maximum @ 5 VDC
Weight	230 g
Dimensions	137 mm x 35.6 mm
Operating Temp	0 deg C to 60 deg C
Hazardous Location Certification	Class I, Div 2 / Zone 2, ATEX / IECEx Ex nA IIC T6 Gc
Hot Swap Support	Supported under non-hazardous installation conditions
Status Indication	Individual channel LED indicators and diagnostic status display

Process Control I/O Signal Management

The Honeywell 900H32-0102 uses a high-density solid-state switching architecture to control 32 discrete output points from the ControlEdge HC900 backplane. Therefore, the module supports compact cabinet layouts where multiple field actuators require direct 24 VDC switching.

The module design includes channel-level current limitation and diagnostic monitoring. In addition, the output circuitry provides channel-to-channel isolation characteristics suitable for distributed process control wiring configurations.

For Honeywell process control platforms, digital output modules typically integrate with DCS field interfaces using discrete signal conditioning methods rather than analog loop protocols such as 4-20 mA HART. The 900H32-0102 focuses on binary actuator control, including valve solenoids, relays, alarms, and contactor interfaces.

Frequently Asked Questions

Q: Does the Honeywell 900H32-0102 support hot-swapping?
A: The module supports removal and insertion under power in non-hazardous environments. Field procedures must follow ControlEdge HC900 installation requirements before module replacement.

Q: How many field devices can the 900H32-0102 control?
A: The module provides 32 independent solid-state digital output channels. Each channel supports up to 0.5 A output current within the specified module load limits.

Q: What installation factors should be considered for output wiring?
A: Field wiring should maintain separation between power conductors and low-level signal cables. Proper terminal tightening, grounding, and protective device selection should follow site electrical standards.

Field Installation Guidelines

• Install the module only in compatible Honeywell ControlEdge HC900 racks and verify backplane alignment before insertion.
• Confirm that the field supply voltage matches the 24 VDC output requirements before connecting external loads.
• Route output wiring separately from high-current motor cables and sources of electromagnetic interference.
• Connect cable shields according to plant grounding practices to reduce electrical noise coupling.
• Verify channel addressing and controller configuration before placing field outputs into service.
• Inspect terminal connections periodically to maintain stable electrical contact during long-term operation.
