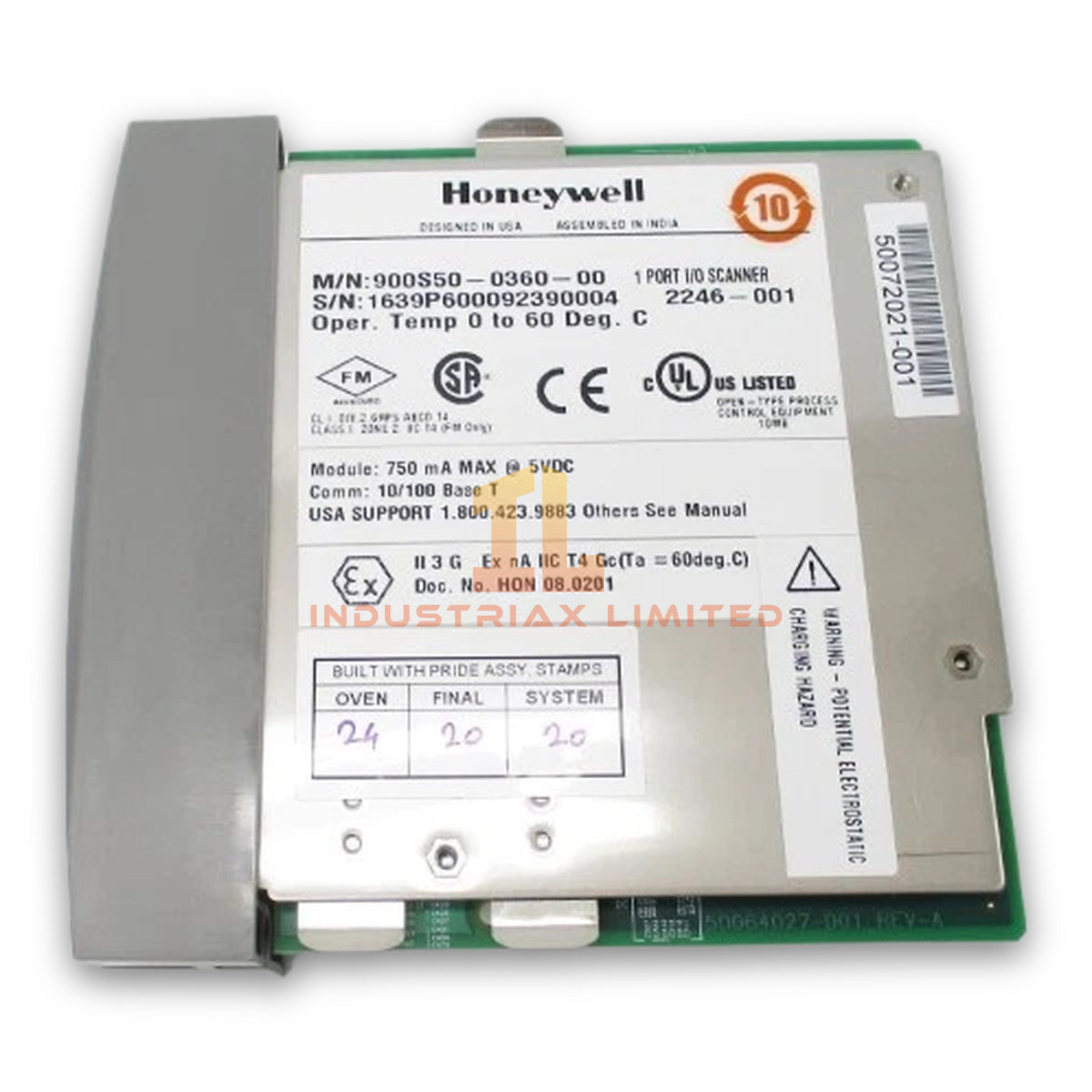

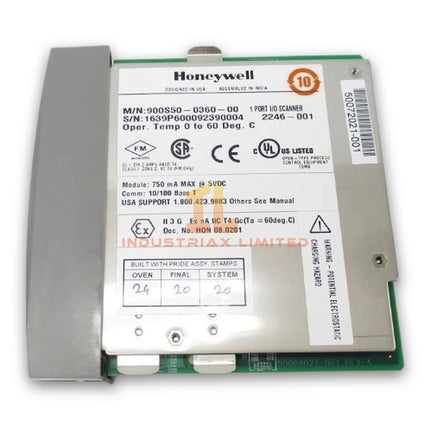

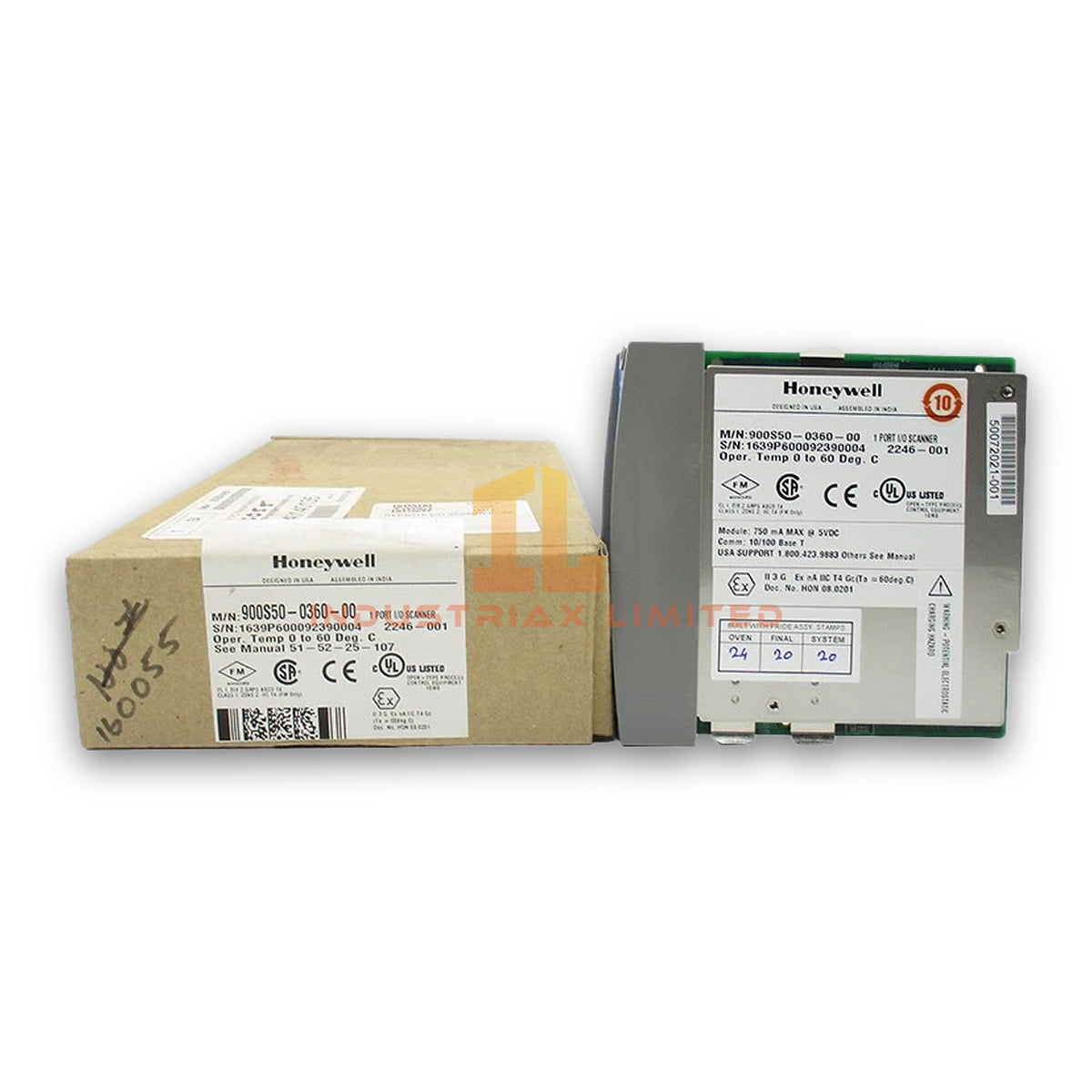

Honeywell 900S50-0360-00 Remote I/O Scanner Module

Configured for remote I/O data transfer in the Honeywell ControlEdge HC900 System, the Honeywell 900S50-0360-00 (900S50-0360-00 Remote I/O Scanner Module) provides direct physical communication execution between expansion racks and controller networks.

Hardware Specifications

Parameter	Specification
Model	900S50-0360-00
Brand	Honeywell
Origin	USA
Module Type	Remote I/O Scanner Module
System Compatibility	Honeywell ControlEdge HC900 Controller System

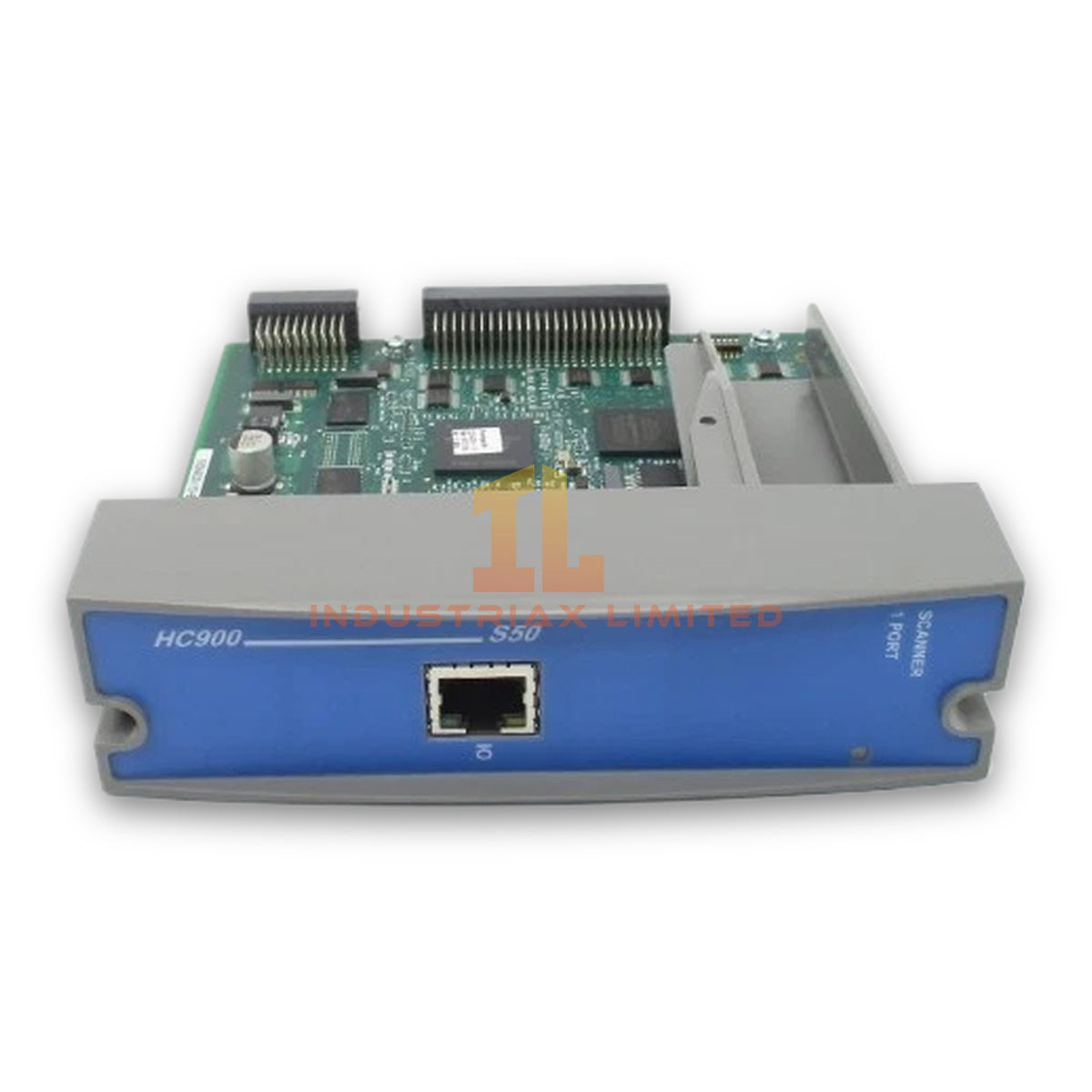

Communication Interface	1 x 10/100 Base-T Ethernet port with RJ45 connector
Network Function	Remote rack I/O data exchange with HC900 controller
Mounting Type	Slot-mounted into HC900 I/O rack
Hot-Swap Capability	Supports Removal and Insertion Under Power (RIUP)
Weight	Approx. 360 g
Dimensions	Approx. 137 mm x 38.1 mm
Operating Temp	0 deg C to 60 deg C
Storage Temp	-40 deg C to 85 deg C
Relative Humidity	10% to 90% RH, non-condensing
Power Consumption	750 mA max @ 5 VDC via rack backplane
Status Indicators	Front-panel LEDs for power, module status, and Ethernet activity

Process Control Communication and Isolation Features

The 900S50-0360-00 manages Ethernet-based communication between remote HC900 I/O racks and the controller processing unit. It collects input states from installed I/O modules and transfers output commands back through the rack backplane.

Honeywell ControlEdge HC900 architectures commonly integrate field instrumentation communication methods such as 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity through compatible I/O modules. Therefore, the scanner module maintains the data transport path between field-level signal modules and the controller application layer.

The module supports distributed I/O expansion by using standard Ethernet communication. In addition, the rack backplane provides local power distribution and internal module communication. The design supports channel isolation requirements when installed with compatible HC900 signal modules.

Frequently Asked Questions

Q: Does the 900S50-0360-00 operate as a standalone controller module?
A: No. The module functions as a remote I/O scanner and requires an HC900 controller system with compatible I/O racks.

Q: How does the module exchange data with the main controller?
A: The module transfers I/O data through its 10/100 Base-T Ethernet interface while communicating with local I/O modules through the rack backplane.

Q: Can the module be replaced while the rack remains powered?
A: The module supports Removal and Insertion Under Power (RIUP). Installation procedures should follow Honeywell HC900 maintenance instructions and site electrical safety requirements.

Field Installation Guidelines

• Install the module only in compatible Honeywell ControlEdge HC900 I/O racks.
• Verify rack power availability and backplane connections before insertion.
• Connect the Ethernet cable using industrial wiring practices and maintain separation from high-voltage power conductors.
• Apply proper cable shielding and grounding methods according to the plant electrical standard.
• Confirm Ethernet link and module status LEDs after installation.
• Check controller configuration software settings to ensure the remote I/O rack address and communication parameters match the system design.
