System 800xA S800 AC800M
-

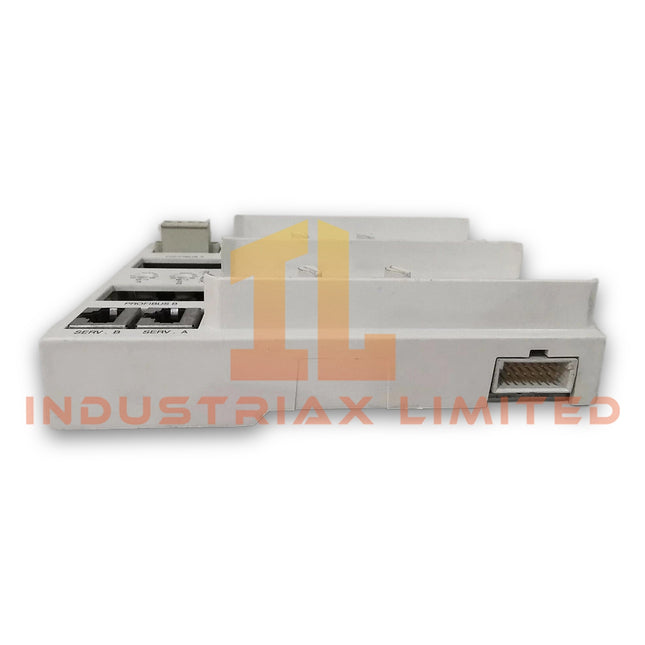

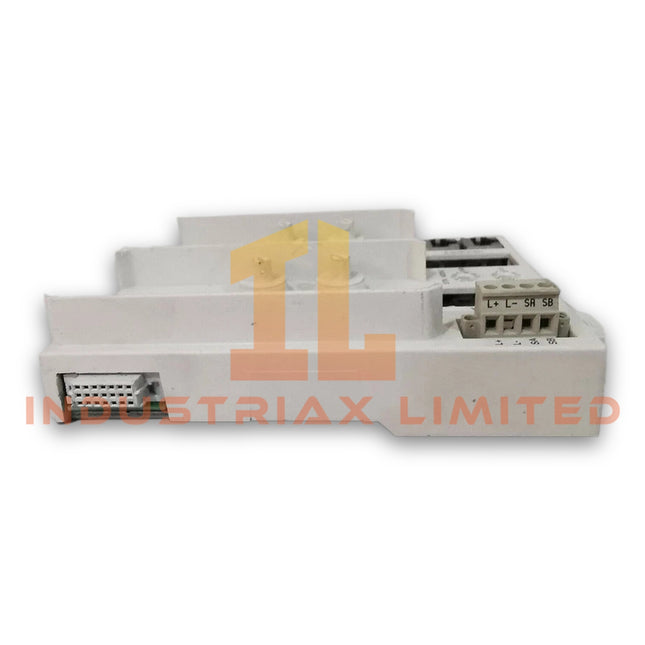

ABB TU847 3BSE022462R1 ABB S800 I/O Module Termination Unit
ABB TU847 3BSE022462R1 Module Termination Unit Configured for CI840 module termination and non-redundant I/O support in ABB System 800xA control networks, the ABB 3BSE022462R1 (TU847 Module Termination Unit) provides direct physical connection between CI840 communication interfaces and connected I/O modules. Hardware Specifications Parameter Specification Model TU847 3BSE022462R1 Brand ABB Origin Sweden Weight 0.5 kg Dimensions 47 mm depth x 186 mm height x 124 mm width Operating Temp Not specified by manufacturer Power Consumption Passive termination unit; power consumption not specified Product Type Module Termination Unit Compatible Module CI840 communication interface Mounting Type Vertical module mounting I/O Configuration Supports non-redundant I/O Redundancy Configuration 1+1 CI840 configuration support Included Components 1 pcs Power Supply Connector, 1 pcs TB807 Modulebus Terminator Protection Compliance RoHS according to EU Directive 2011/65/EU WEEE Category Small Equipment, no external dimension more than 50 cm Customs Tariff Number 85371098 ABB Industrial Control Bus Integration The TU847 3BSE022462R1 operates as a passive interface component within ABB System 800xA S800 I/O configurations. Therefore, it provides mechanical termination, power connection routing, and Modulebus termination functions for CI840 communication modules. The unit supports ABB backplane bus communication structures where module positioning, connector alignment, and termination integrity affect I/O communication stability. Additionally, the included TB807 Modulebus Terminator completes the Modulebus connection path for non-redundant I/O installations. The TU847 design follows ABB S800 I/O hardware architecture principles, allowing vertical installation of associated modules while maintaining the required electrical interface between the communication module and field I/O assemblies. Frequently Asked Questions Q: What ABB module is the TU847 3BSE022462R1 designed to support?A: The TU847 is designed for CI840 communication interface installations and supports 1+1 CI840 configurations with non-redundant I/O operation. Q: Does the TU847 include termination accessories?A: Yes. The unit includes one Power Supply Connector and one TB807 Modulebus Terminator as specified in the product documentation. Q: Is the TU847 a powered electronic I/O module?A: No. The TU847 is a Module Termination Unit that provides physical termination and connection functions rather than performing signal processing. Field Installation Guidelines Install the TU847 in the specified vertical mounting orientation within the ABB S800 I/O assembly. Verify that the CI840 interface module is correctly seated before applying system power. Confirm that the Power Supply Connector is properly installed and mechanically secured. Install the TB807 Modulebus Terminator according to the Modulebus termination requirements. Maintain separation between communication wiring and high-voltage power cables to reduce electrical interference. Connect grounding and shielding according to the control cabinet design and ABB installation requirements. Inspect connectors for contamination, mechanical damage, or improper engagement before commissioning.
$199.00 $99.00
-

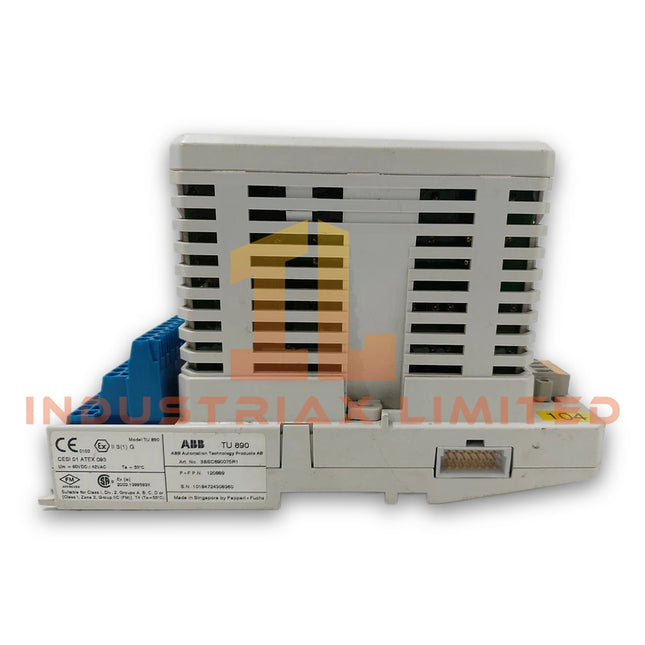

ABB TU890 3BSC690075R1 ABB S800 I/O Compact Terminal Block
ABB TU890 3BSC690075R1 Compact Terminal Block Configured for field signal termination and process power connection in ABB S800 I/O systems, the ABB TU890 3BSC690075R1 (TU890 Compact Terminal Block) provides direct physical electrical connection between I/O modules and external field wiring. Hardware Specifications Parameter Specification Model TU890 3BSC690075R1 Brand ABB Product Type Compact Terminal Block Origin Sweden Weight 0.22 kg Dimensions 21 x 6.5 x 8.8 cm Operating Temp 55 deg C Power Consumption Passive terminal connection, no external power consumption Type Compact Connection Terminal block Channels 8 Voltage 24 V Mounting Horizontal DIN rail mounting Process Connections 27 blue terminals Compatible I/O Modules AI890, AI893, AI895, AO890, AO895, DI890, DO890 Mounting Detail 55 deg mounting orientation ABB S800 I/O Terminal Interface and I/O Density Scaling The TU890 provides field wiring termination for ABB S800 I/O modules. It connects process signals, module power interfaces, and ModuleBus-related connections through a compact terminal structure. Furthermore, the terminal block supports I/O density scaling by allowing compact installation arrangements with compatible AI, AO, DI, and DO modules. The mechanical keying design prevents incorrect module insertion, while the DIN rail latching mechanism maintains fixed positioning during operation. The ABB S800 architecture uses structured backplane and ModuleBus communication paths. Therefore, correct terminal assignment and module compatibility verification are required before installation. Frequently Asked Questions Q: Which ABB I/O modules are compatible with the TU890 3BSC690075R1?A: The TU890 is specified for use with ABB AI890, AI893, AI895, AO890, AO895, DI890, and DO890 I/O modules. Q: Does the TU890 require an external power supply?A: No. The TU890 is a passive terminal block and does not require an independent power input. Q: What mounting method does the TU890 use?A: The TU890 uses horizontal DIN rail mounting with an integrated latching device for mechanical retention. Field Installation Guidelines Install the TU890 on a correctly positioned DIN rail according to the cabinet mechanical layout. Verify terminal assignments before connecting field wiring to avoid incorrect signal routing. Keep field signal cables separated from high-current power conductors to reduce electrical interference. Connect cable shields according to the control cabinet grounding design and applicable site standards. Confirm that the installed I/O module type matches the terminal block compatibility list before energizing the system.
$199.00 $99.00
-

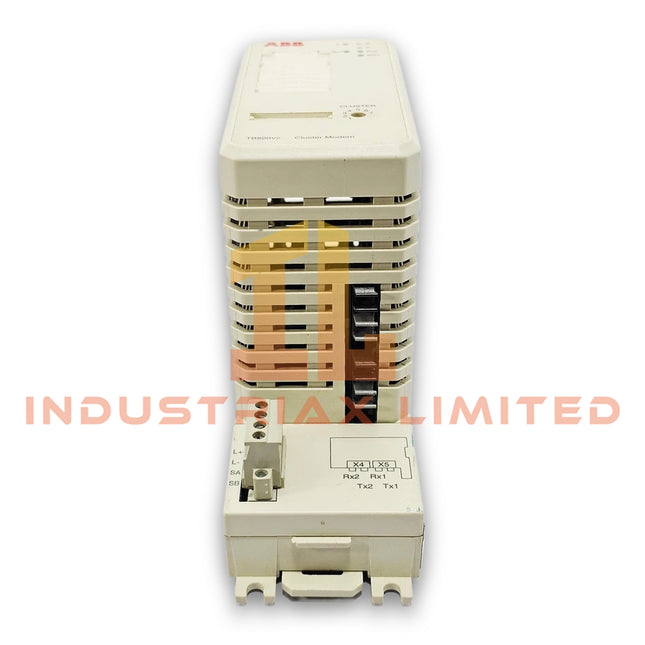

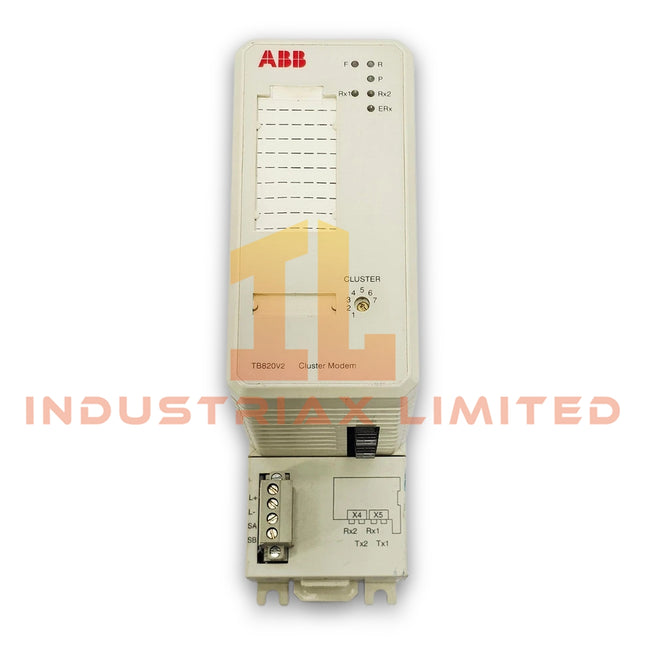

ABB ABB TB820V2 3BSE013208R1 Modulebus Optical Modem
ABB TB820V2 3BSE013208R1 Modulebus Optical Modem Configured for optical Modulebus communication extension in ABB S800 I/O systems, the ABB TB820V2 3BSE013208R1 (TB820V2 Modulebus Optical Modem) provides direct physical data transmission between Modulebus segments through optical interfaces. Hardware Specifications Parameter Specification Model TB820V2 3BSE013208R1 Brand ABB Product Type Modulebus Optical Modem Origin Sweden Weight 0.34 kg Dimensions 17 x 5.8 x 12 cm Communication Interface Modulebus optical interface Application Platform ABB S800 I/O system Function Optical Modulebus segment extension and adapter module Backplane Bus Communication and I/O Network Integration The TB820V2 operates as an optical communication interface within ABB industrial control architectures. Therefore, it transfers Modulebus communication signals through optical media to extend physical separation between connected I/O clusters. The unit supports ABB Modulebus network configurations where optical transmission is required. In addition, the optical interface reduces electrical coupling between separated hardware sections and supports distributed I/O installation layouts. The TB820V2 belongs to ABB industrial control hardware designed around backplane bus communication velocity management and I/O density scaling. It integrates with ABB S800 I/O components through the defined Modulebus architecture without providing independent control processing functions. Frequently Asked Questions Q: What is the primary function of the ABB TB820V2 3BSE013208R1?A: The TB820V2 functions as a Modulebus Optical Modem that converts and transfers Modulebus communication signals through optical media between compatible ABB system sections. Q: Does the TB820V2 operate as a standalone controller module?A: No. The TB820V2 is a communication interface component and does not execute user application logic or control algorithms. Q: What system platform uses the TB820V2 Modulebus Optical Modem?A: The TB820V2 is designed for ABB S800 I/O system configurations requiring optical Modulebus communication extension. Field Installation Guidelines Install the TB820V2 according to ABB S800 I/O system hardware configuration requirements. Verify optical cable compatibility before connecting the Modulebus optical interface. Route optical communication cables separately from high voltage power wiring to minimize installation interference. Ensure all mounting connections maintain proper mechanical fixation inside the control cabinet. Confirm system power isolation before removing or installing the module. Check connector alignment before applying system power after installation.
$199.00 $99.00
-
ABB ABB TB805 3BSE008534R1 Modulebus Extension Cable Adaptor
ABB TB805 3BSE008534R1 Modulebus Extension Cable Adaptor Configured for Modulebus extension cable connection in ABB System 800xA and S800 I/O networks, the ABB TB805 3BSE008534R1 (TB805 Modulebus extension cable adaptor) provides direct physical interface conversion through a D-sub 25 female connector for TK801 extension cables. Hardware Specifications Parameter Specification Model TB805 3BSE008534R1 Brand ABB Product Type Modulebus Extension Cable Adaptor Origin Not specified in provided data Weight 0.046 kg Dimensions 25 mm depth x 109 mm height x 22 mm width Operating Temp Not specified in provided data Power Consumption Passive component, no external power consumption Connector Type D-sub 25 female Compatible Cable TK801 Modulebus extension cable Product Function Modulebus outlet and extension cable interface adapter Product Category Module_Termination_Unit RoHS Status Following EU Directive 2011/65/EU WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm) Backplane Bus and Industrial Network Interface The ABB TB805 belongs to the ABB S800 I/O Modulebus accessory family and provides a physical connection point for extending Modulebus communication paths. Therefore, the adaptor maintains the required mechanical alignment between the controller-side interface and external TK801 extension cables. The TB805 uses a passive signal routing structure without internal processing firmware. Consequently, it does not modify communication data or require configuration parameters. The component supports ABB industrial control architectures where I/O density scaling and backplane bus communication velocity management are handled by the active controller and I/O modules. The D-sub 25 female interface provides a defined electrical connection point. Additionally, correct cable shielding and grounding practices help maintain signal integrity in industrial environments. Frequently Asked Questions Q: Does the TB805 require an external power supply?A: No. The TB805 is a passive Modulebus extension cable adaptor and does not require external power input. Q: What cable connects to the TB805 interface?A: The TB805 is designed for use with the ABB TK801 Modulebus extension cable through its D-sub 25 female connector interface. Q: Does the TB805 contain firmware or communication configuration settings?A: No. The TB805 is a hardware adaptor without firmware functions or user-configurable parameters. Field Installation Guidelines Install the TB805 according to ABB S800 I/O system installation procedures. Verify that the D-sub 25 connector is fully seated and mechanically secured before system operation. Route the TK801 extension cable separately from high-voltage power wiring and high-current switching conductors. Maintain proper cable bending radius and avoid excessive mechanical stress on the connector assembly. Connect cable shielding according to the system grounding design. Confirm that all Modulebus extension connections are correctly installed before applying power to the associated ABB control system.
$199.00 $99.00
-
ABB ABB TB806 3BSE008536R1 ModuleBus Extension Cable Adaptor
ABB TB806 3BSE008536R1 ModuleBus Extension Cable Adaptor Configured for ModuleBus signal extension connection in ABB S800 I/O systems, the ABB TB806 3BSE008536R1 (TB806 ModuleBus Extension Cable Adaptor) provides direct physical interface adaptation between ModuleBus segments through a D-SUB 25 male connector. Hardware Specifications Parameter Specification Model TB806 3BSE008536R1 Brand ABB Product Type ModuleBus Extension Cable Adaptor Origin Sweden Weight 0.1 kg Dimensions 12.7 x 5.1 x 5.1 cm Operating Temp 0 to +55 deg C Storage Temperature -25 to +70 deg C Humidity Range RH 5 to 95 % Power Consumption Passive interface component, no external power supply required Mechanics S800 Connector Type D-SUB 25 male Tariff Code 8537101190 Hazardous Location C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 Marine Certification ABS, BV, DNV, LR Pollution Degree Degree 2, IEC 60664-1 Corrosion Protection ISA-S71.04: G3 ABB S800 ModuleBus Interface Characteristics The TB806 operates as a passive ModuleBus interface adapter within ABB S800 I/O configurations. Therefore, it supports physical connection extension between compatible ModuleBus components while maintaining the electrical characteristics of the communication path. In addition, ABB S800 architecture depends on defined backplane and ModuleBus communication structures. The TB806 provides the required connector conversion function without adding firmware processing or active communication control. Furthermore, the adaptor supports industrial installation requirements with specified hazardous location approvals and environmental protection classifications. The unit maintains compatibility with ABB ModuleBus extension arrangements where D-SUB 25 male interfaces are required. Frequently Asked Questions Q: Does the ABB TB806 3BSE008536R1 require an external power supply?A: No. The TB806 is a passive ModuleBus extension cable adaptor and does not require an independent power input. Q: What connector interface does the TB806 provide?A: The TB806 provides a D-SUB 25 male connector interface for ModuleBus extension connection within ABB S800 configurations. Q: Can the TB806 be installed in hazardous areas?A: Yes. The listed certifications include C1 Div 2 cULus, C1 Zone 2 cULus, and ATEX Zone 2 approval classifications. Field Installation Guidelines Install the TB806 according to ABB S800 ModuleBus system documentation and approved wiring practices. Verify connector orientation before inserting the D-SUB interface to prevent mechanical damage. Maintain proper cable routing and separate ModuleBus wiring from high-voltage power conductors. Use appropriate shielding and grounding methods according to the installation environment. Confirm environmental conditions remain within the specified operating temperature and humidity limits. Inspect connectors for contamination, corrosion, or mechanical stress before system commissioning.
$199.00 $99.00
-

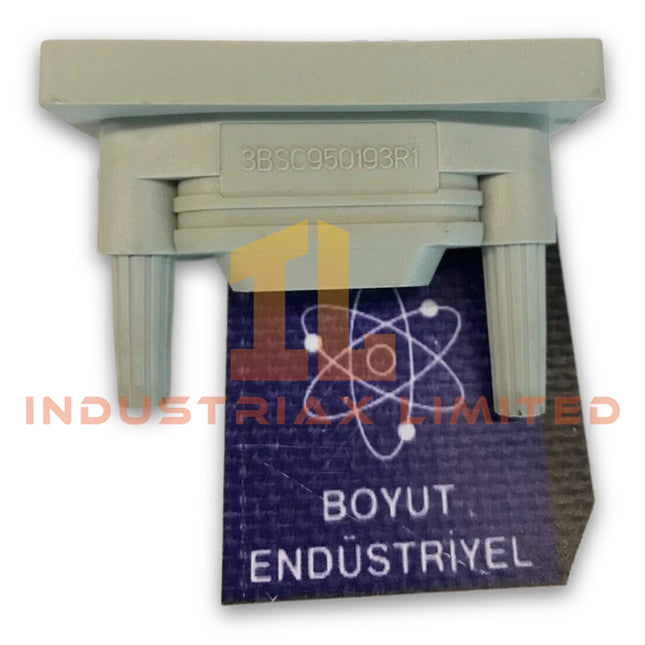

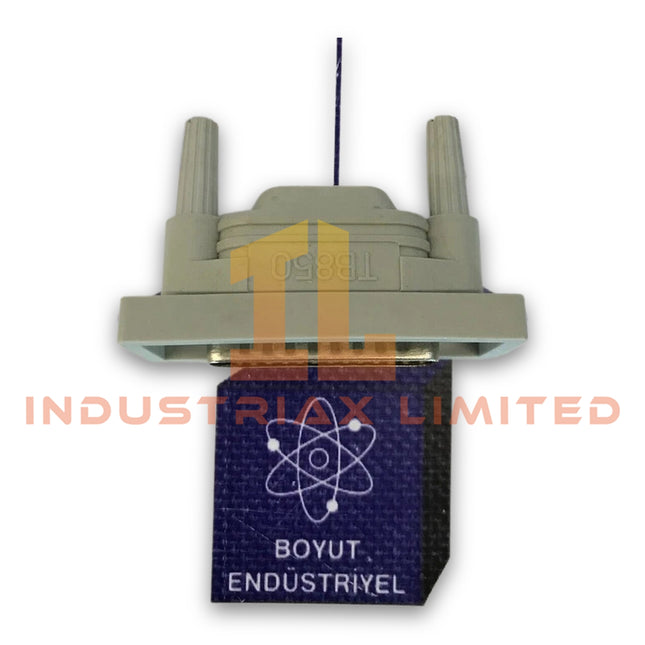

ABB TB850 3BSC950193R1 ABB S800 I/O CEX-Bus Terminator
ABB TB850 3BSC950193R1 CEX-Bus Terminator The ABB TB850 3BSC950193R1, also cataloged as the TB850 CEX-Bus Terminator, provides direct electrical termination for CEX-Bus communication networks in ABB industrial control platforms. It applies a 120 ohm termination resistance through a 25-pin DB25P male connector interface to maintain bus signal integrity. Hardware Specifications Parameter Specification Model TB850 3BSC950193R1 Brand ABB Product Type CEX-Bus Terminator Origin Sweden Weight 0.05 kg Dimensions 6.5 x 2.5 x 4.2 cm Operating Temp -25 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Power Consumption Passive termination device, no external power required Bus Interface CEX-Bus Termination Resistance 120 ohm Bus Voltage 5 VDC Connector Type 25-pin DB25P male connector Cable Interface 9-pin D-sub connector or terminal block compatible interface Humidity 5-95% RH, non-condensing Pollution Degree 2 Tariff Code 8537101190 ABB Industrial Control Bus Signal Termination The ABB TB850 supports CEX-Bus communication stability by providing the required end-of-line termination resistance. Therefore, the module reduces signal reflections on the communication line and maintains correct electrical characteristics across connected CEX-Bus segments. For ABB PLC and DCS configurations, CEX-Bus communication depends on correct termination placement. The TB850 installs at the designated bus endpoint and works as a passive electrical component without firmware configuration or parameter settings. Additionally, ABB control system installations require correct connector seating and cable routing to maintain communication performance. The termination resistor directly matches the bus impedance requirement of 120 ohm. Frequently Asked Questions Q: What is the primary function of the ABB TB850 3BSC950193R1?A: The TB850 functions as a CEX-Bus terminator by providing a 120 ohm termination resistance at the communication bus endpoint. Q: Does the TB850 require external power or firmware configuration?A: No. The TB850 is a passive termination component and does not require external power, firmware loading, or software configuration. Q: What installation consideration applies to the TB850 connection?A: The installer should place the terminator at the correct CEX-Bus endpoint and verify proper connector engagement and cable shielding practices. Field Installation Guidelines Install the TB850 only at the specified CEX-Bus termination position within the ABB control system configuration. Verify that the communication cable connection is fully seated before system startup. Maintain proper cable separation from high-voltage power wiring to reduce electromagnetic interference. Connect cable shields according to the ABB system grounding specification. Avoid mechanical stress on the DB25 connector during installation and maintenance operations. Confirm bus continuity and termination resistance before commissioning the communication network.
$199.00 $99.00
-

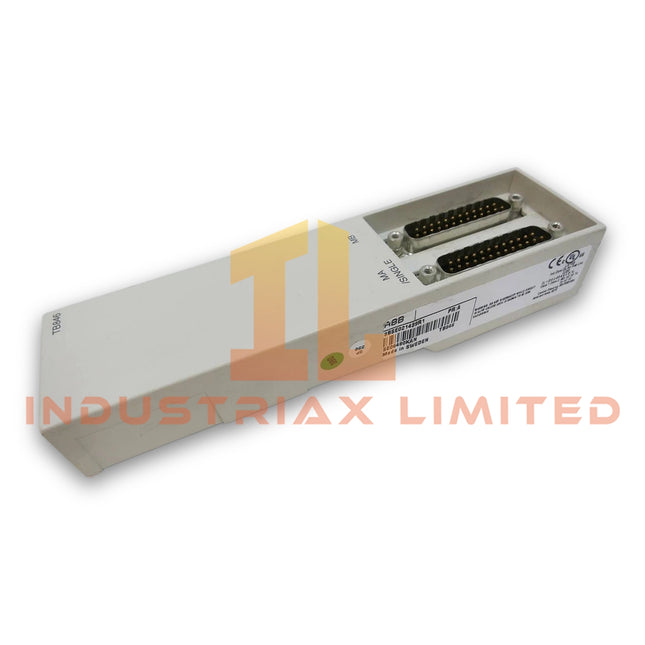

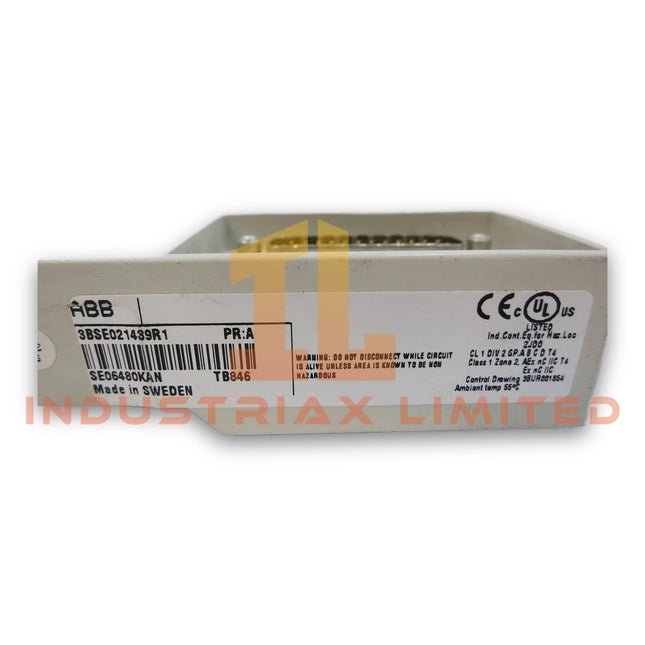

ABB TB846 3BSE021439R1 ABB Advant S800 I/O Dual Modulebus Inlet Module
ABB TB846 3BSE021439R1 Dual Modulebus Inlet Module Configured for redundant ModuleBus cable adaptation in ABB S800 I/O systems, the ABB TB846 3BSE021439R1 (TB846 Dual Modulebus Inlet Module) provides direct physical connection and signal routing between redundant ModuleBus communication paths. Hardware Specifications Parameter Specification Model TB846 3BSE021439R1 Brand ABB Product Type Dual Modulebus Inlet Module Article Number 3BSE021439R1 Spare Model TB846 System Platform ABB S800 I/O Function Redundant ModuleBus Cable Adaptor Data Rate 1 Mbit/s Origin Sweden Weight 0.04 kg Dimensions 1.6 x 5.4 x 5.6 cm Operating Temp -20 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Humidity 5 - 95 % RH, non-condensing Mechanics S800 ABB S800 ModuleBus Communication Interface The TB846 operates as a passive communication interface component within the ABB S800 I/O architecture. It manages redundant ModuleBus cable connections and supports communication transfer at a 1 Mbit/s data rate. Additionally, the module supports ABB backplane bus communication velocity management within S800 I/O configurations. The hardware design enables I/O density scaling by allowing redundant communication paths between connected S800 components. The TB846 uses the S800 mechanical design format and maintains electrical separation between ModuleBus connection paths. Therefore, installation practices must maintain proper cable routing and grounding according to ABB system documentation. Frequently Asked Questions Q: What is the primary function of the ABB TB846 module?A: The TB846 functions as a Dual Modulebus Inlet Module and provides redundant ModuleBus cable adaptation for ABB S800 I/O systems. Q: Does the TB846 contain active processing functions?A: No. The TB846 is a communication interface component and does not operate as a CPU or signal processing module. Q: What environmental conditions support TB846 installation?A: The module operates from -20 deg C to +70 deg C and supports 5 - 95 % RH non-condensing humidity conditions. Field Installation Guidelines Install the TB846 according to ABB S800 system installation procedures. Verify that ModuleBus cables are correctly seated and mechanically secured before system startup. Keep communication cables separated from high-voltage power wiring to reduce electromagnetic interference. Connect cable shielding according to the applicable ABB grounding recommendations. Before replacing or installing the module, confirm system power status and verify the permitted hot-swap conditions of the connected S800 configuration.
$199.00 $99.00
-

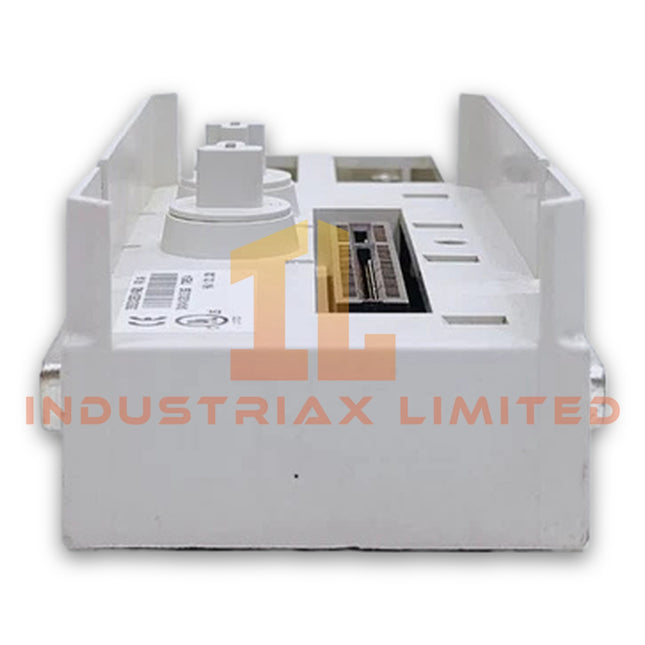

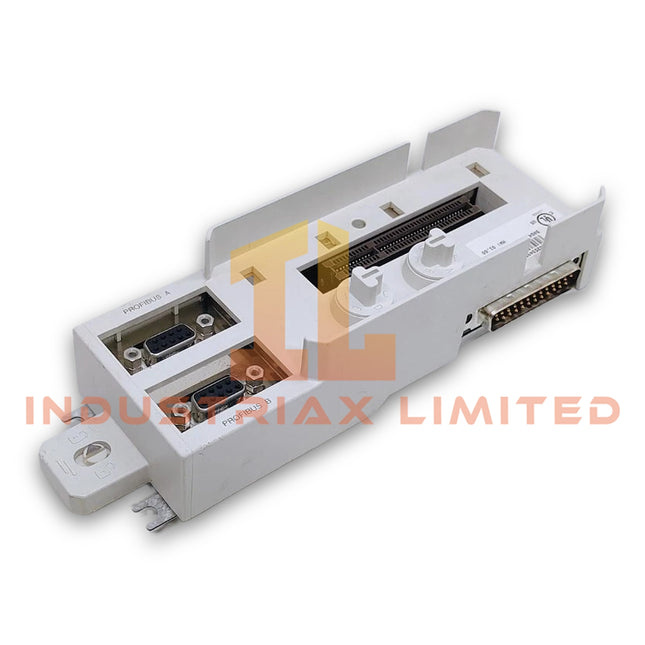

ABB TB852 3BSC950263R1 ABB Advant S800 I/O RCU Link Terminator
ABB TB852 RCU Link Terminator Configured for RCU link termination in ABB Advant Controller and System 800xA platforms, the ABB TB852 3BSC950263R1 (TB852 RCU Link Terminator) provides direct physical termination for redundant control unit communication links. Hardware Specifications Parameter Specification Model TB852 Brand ABB Product Type RCU Link Terminator Product ID 3BSC950263R1 Origin Global ABB supply chain Weight 0.02 kg Dimensions 23 mm width x 20 mm height x 57 mm depth Power Consumption Passive component, no external power consumption Communication Function RCU link signal termination Application Platform ABB Advant Controller / System 800xA environments HS Code 85369095 / 853690 Industrial Control Bus Termination Characteristics The TB852 is a passive termination component designed for ABB redundant control communication networks. It terminates the RCU link electrical path and reduces signal reflection at the communication endpoint. Furthermore, the component supports stable data transmission by maintaining the correct termination state of the RCU communication circuit. ABB industrial control architectures use this type of termination hardware to preserve communication quality between redundant processing units and associated control modules. For ABB PLC and DCS installations, proper backplane bus communication velocity management and I/O density scaling depend on correct physical network configuration. Therefore, TB852 installation must follow the controller hardware topology requirements defined for the specific ABB control system. Frequently Asked Questions Q: What is the primary function of ABB TB852 3BSC950263R1?A: The TB852 functions as an RCU Link Terminator. It provides endpoint termination for the ABB RCU communication link and maintains proper electrical signal conditions. Q: Does the TB852 require an external power supply?A: No. The TB852 is a passive termination component and does not require an external power connection. Q: Can the TB852 be installed in any ABB control network position?A: No. The TB852 must be installed at the designated termination point of the RCU link according to the ABB system hardware configuration. Field Installation Guidelines Install the TB852 only at the specified RCU link termination position within the ABB control architecture. Verify that the communication cable routing matches the ABB controller installation documentation. Maintain separation between communication wiring and high-voltage power cables to reduce electrical interference. Confirm connector seating and mechanical fixation before system startup. Follow ABB grounding and shielding practices for connected communication cables. Do not modify the passive termination circuitry or replace the component with non-approved termination devices.
$199.00 $99.00
-

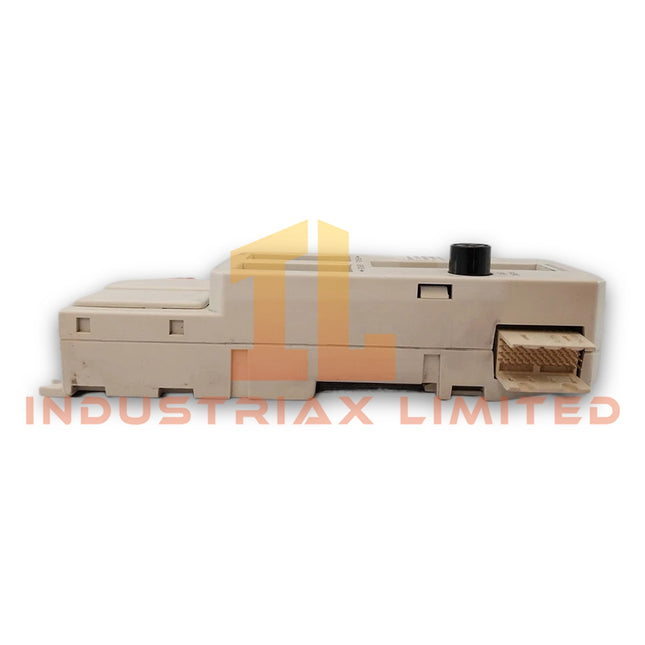

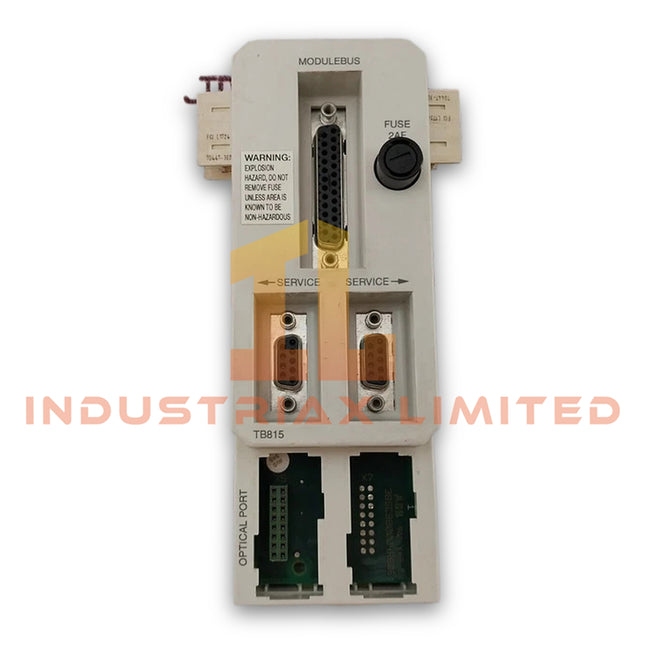

ABB TB815 3BSE013204R1 ABB Advant S800 I/O Interconnection Units
ABB TB815 3BSE013204R1 Interconnection Unit Configured for ModuleBus interconnection and termination functions in ABB Advant Master Process Control System platforms, the ABB TB815 3BSE013204R1 (TB815 Interconnection Unit) provides direct physical connection between ModuleBus segments with an integrated TB807 ModuleBus Terminator. Hardware Specifications Parameter Specification Model TB815 3BSE013204R1 Brand ABB Product Type I-O Module / Interconnection Unit Origin Sweden Weight 0.25 kg Dimensions 90 mm depth x 250 mm height x 50 mm width Power Consumption Passive interconnection component, no external power consumption specified Included Components 1 pc TB815 Interconnection Unit and 1 pc TB807 ModuleBus Terminator ModuleBus Function Physical interconnection and termination of ModuleBus communication lines Product Family ABB Advant Master Process Control System RoHS Status Exempted according to EU Directive 2011/65/EU Article 2(4)(c), (e), (f), and (j) ABB Industrial Control Bus Integration The TB815 operates as a passive ModuleBus interconnection component within ABB industrial control architectures. It connects ModuleBus sections and maintains the required termination arrangement through the included TB807 ModuleBus Terminator. Furthermore, ABB ModuleBus designs use controlled communication paths between I/O units and controller interfaces. Therefore, correct installation of the TB815 supports stable backplane bus communication velocity and proper I/O density scaling within compatible ABB S800 and Advant control configurations. The unit does not provide signal processing, firmware execution, or field signal conversion. Instead, it performs physical network arrangement functions between ModuleBus components. Frequently Asked Questions Q: What components are included with the ABB TB815 3BSE013204R1?A: The assembly includes one TB815 Interconnection Unit and one TB807 ModuleBus Terminator. Q: Does the TB815 require an external power supply?A: No. The TB815 is a passive interconnection component and does not require an external power connection. Q: What communication function does the TB815 provide in an ABB system?A: The TB815 provides physical ModuleBus interconnection and termination functions for compatible ABB control system configurations. Field Installation Guidelines Install the TB815 according to ABB system configuration drawings and ModuleBus installation instructions. Verify that the included TB807 ModuleBus Terminator is installed in the designated termination position. Keep ModuleBus wiring separated from high-voltage power cables to reduce electromagnetic interference. Maintain proper cable routing and grounding practices according to ABB industrial control cabinet standards. Inspect connector alignment before mounting the unit to prevent mechanical damage. Confirm ModuleBus communication integrity after installation through the system diagnostic functions.
$199.00 $99.00
-

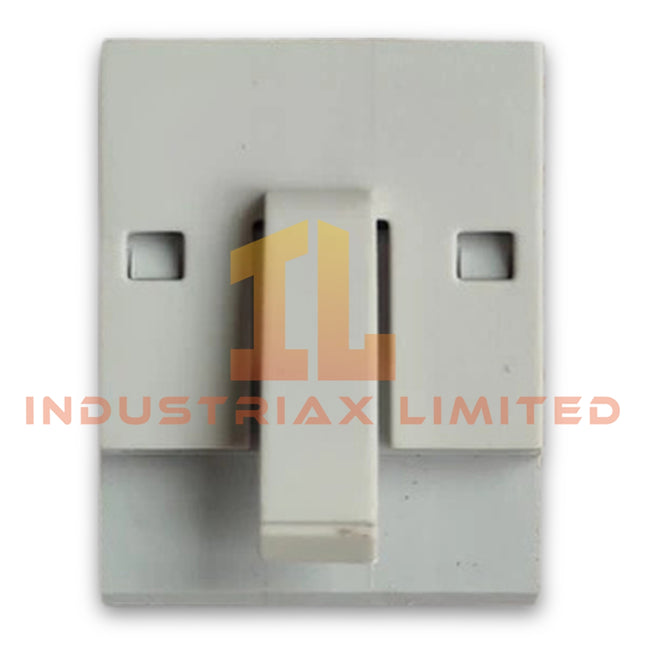

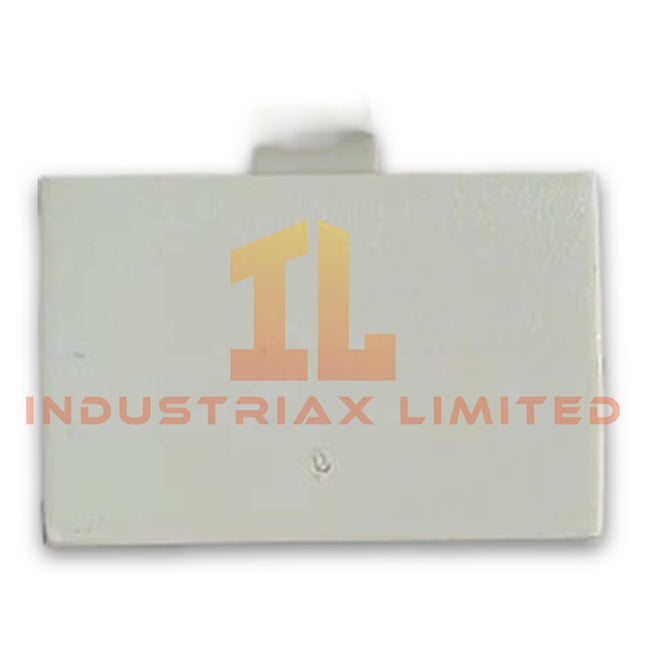

ABB TB807 3BSE00853R1 Modulebus ABB Advant S800 I/O Termination Units
ABB TB807 Modulebus Terminator The ABB 3BSE008538R1, also cataloged as the TB807 Modulebus Terminator, operates as a passive termination unit for completing Modulebus communication lines within ABB S800 I/O system configurations. Hardware Specifications Parameter Specification Model TB807 3BSE008538R1 Brand ABB Product Type Modulebus Termination Unit Origin Sweden Weight 10 g Dimensions Width: 17 mm; Depth: 13 mm; Height: 19 mm Operating Temp 0 to +55 deg C Storage Temperature -25 to +70 deg C Power Consumption Passive unit, no external power consumption Mechanical Platform S800 Protection Class IP20 according to IEC 60529 Pollution Degree Degree 2 according to IEC 60664-1 Electrical Safety IEC 61131-2, UL 61010-1, UL 61010-2-201 EMC Compliance EN 61000-6-4 and EN 61000-6-2 Corrosion Protection ISA-S71.04: G3 RoHS Compliance EU RoHS, UAE RoHS, CN RoHS WEEE Compliance Directive 2012/19/EU Hazardous Location Certification C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 Marine Certification ABS, BV, DNV, LR Modulebus Termination Function The ABB TB807 provides physical termination for the S800 Modulebus network. The unit completes the communication bus structure by applying the required termination impedance at the end of the Modulebus segment. Therefore, it prevents signal reflections and maintains correct bus electrical characteristics. The TB807 uses a passive design without active electronics or external power input. Additionally, its compact S800 mechanical format supports installation within ABB I/O assemblies where space requirements apply. Frequently Asked Questions Q: What is the primary function of the ABB TB807?A: The TB807 functions as a passive Modulebus termination unit. It terminates the end of an S800 Modulebus segment and maintains proper bus signal conditions. Q: Does the TB807 require a power supply connection?A: No. The TB807 is a passive component and does not require external power or firmware configuration. Q: Which ABB system platform uses the TB807?A: The TB807 belongs to the ABB S800 mechanical platform and is designed for Modulebus termination applications. Field Installation Guidelines Install the TB807 at the designated end position of the Modulebus communication segment according to ABB system configuration requirements. Verify that the termination unit is installed securely within the S800 hardware assembly. Maintain proper cable routing and avoid parallel installation with high-current power conductors to reduce electromagnetic interference. Follow ABB grounding and shielding practices for Modulebus cable installations. Confirm that environmental conditions remain within the specified operating temperature, humidity, and protection class limits. Inspect mechanical connections during commissioning to ensure correct physical placement and bus continuity.
$199.00 $99.00
-

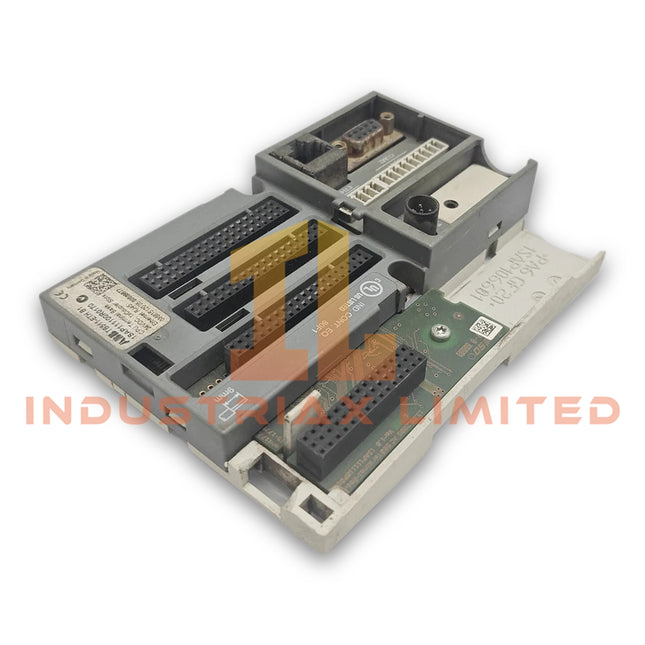

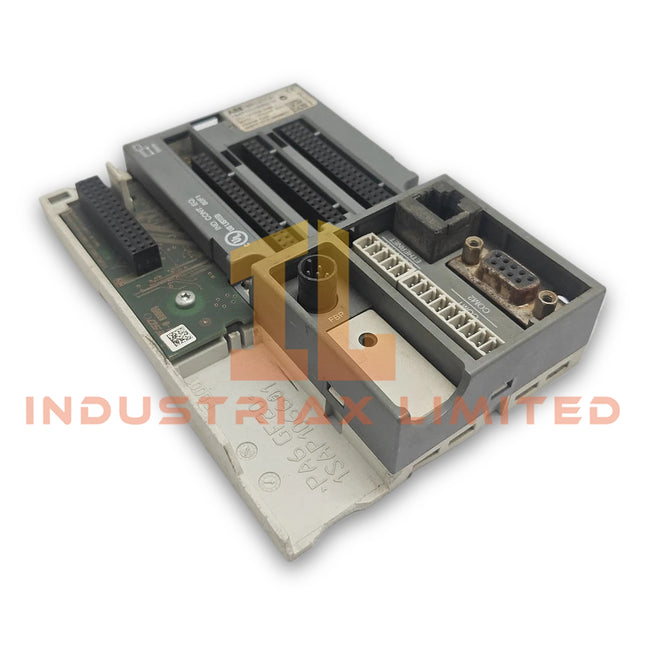

ABB ABB TB511-ETH AC500 V2 Terminal Base
ABB TB511-ETH AC500 V2 Terminal Base Configured for Ethernet and serial communication module integration in AC500 V2 PLC systems, the ABB TB511-ETH (TB511-ETH Terminal Base) provides physical connection support for communication interfaces including Ethernet, RS232, and RS485 within ABB AC500 V2 platforms. Hardware Specifications Parameter Specification Model TB511-ETH Brand ABB Origin Sweden Product Type Terminal Base System Platform ABB AC500 V2 Communication Interfaces Ethernet, 2 x serial interfaces RS232/RS485 Communication Connector Type D-SUB, RJ45, Terminals Communication Module Slot 1 slot Supply Voltage 24 V DC Input Voltage Type DC Degree of Protection IP20 Operating Temp 0 to +60 deg C Storage Temperature -40 to +70 deg C Weight 0.159 kg Dimensions 28 x 135 x 95.5 mm PLC Communication Interface Integration The ABB TB511-ETH provides an AC500 V2 terminal base structure with integrated communication interfaces. It supports one communication module slot and combines Ethernet networking with two serial channels based on RS232/RS485 electrical standards. Furthermore, the terminal base supports deterministic PLC communication expansion through ABB AC500 V2 architecture. The design follows industrial PLC backplane communication requirements and enables I/O density scaling within modular controller configurations. The TB511-ETH operates with 24 V DC supply input and maintains IP20 protection for cabinet-based installations. Its Ethernet interface and serial communication ports allow connection between AC500 V2 controllers and external automation devices. Frequently Asked Questions Q: What communication interfaces are available on the ABB TB511-ETH? A: The TB511-ETH provides one Ethernet interface and two serial interfaces supporting RS232 and RS485 communication through D-SUB, RJ45, and terminal connections. Q: Can the TB511-ETH operate outside the AC500 V2 platform? A: The TB511-ETH is designed specifically for ABB AC500 V2 systems and provides the mechanical and electrical interface required by this controller platform. Q: What environmental conditions are specified for TB511-ETH operation? A: The module supports operation from 0 to +60 deg C and storage from -40 to +70 deg C according to ABB technical specifications. Field Installation Guidelines Install the TB511-ETH on a compatible ABB AC500 V2 controller assembly according to the system hardware configuration. Verify the 24 V DC supply wiring polarity before applying power. Connect Ethernet cables separately from high-voltage power conductors to reduce electromagnetic interference. Route RS232/RS485 communication wiring with appropriate shielding and grounding practices. Confirm terminal connections and connector seating before system commissioning. Maintain cabinet airflow requirements within the specified operating temperature range. Follow ABB AC500 V2 installation documentation for communication module configuration and firmware compatibility.
$199.00 $99.00
-

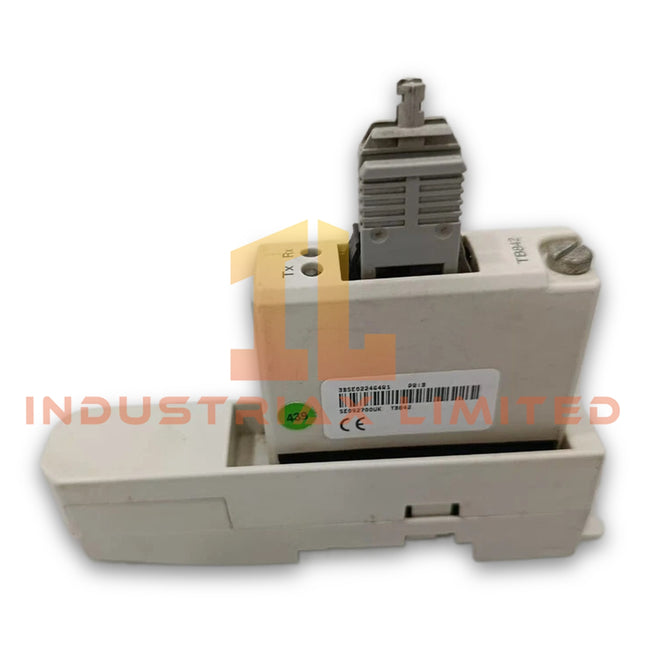

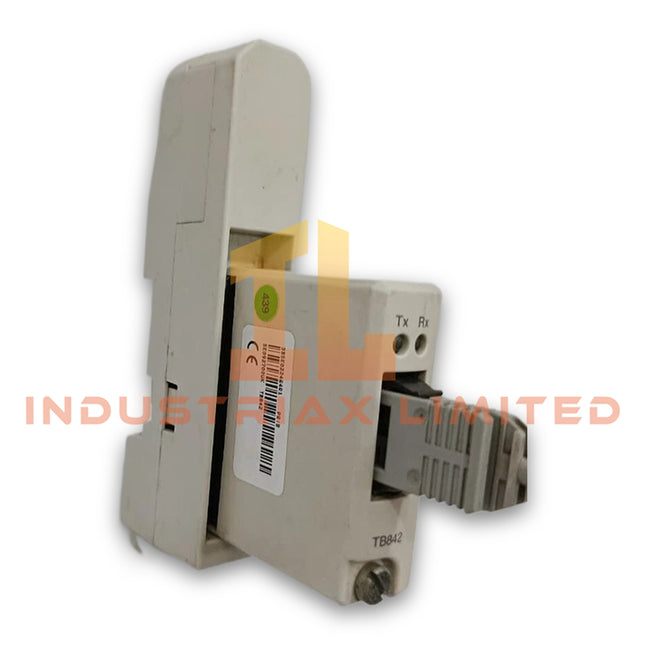

ABB TB842 3BSE022464R1 ModuleBus Optical Ports ABB S800 I/O
ABB TB842 ModuleBus Optical Port The ABB TB842 3BSE022464R1, also cataloged as the TB842 ModuleBus Optical Port, provides fiber optic communication between CI801 or CI840/CI840A FCI modules and TB820/TB820V2/TB840/TB840A ModuleBus modems within Optical ModuleBus networks. Hardware Specifications Parameter Specification Model TB842 3BSE022464R1 Brand ABB Product Type ModuleBus Optical Port Communication Protocol ModuleBus Origin Sweden Weight 90 g Dimensions Width 17.6 mm, Height 56.7 mm, Depth 42.3 mm Operating Temp 0 to +55 deg C Storage Temp -40 to +70 deg C Power Consumption 0.5 W power dissipation, 20 mA typical 24 VDC consumption ModuleBus Interface Fiber optic interface with one transmit and one receive connection Communication Speed Maximum 10 Mbit/s Optical Wavelength 650 nm Optical Connector Type Agilent, former Hewlett-Packard, Versatile Link Optical Fiber Support Plastic fiber and HCS (Hard Clad Silica) fiber Line Redundancy Supported Module Redundancy Supported Hot Swap Supported Mounting Position Vertical or horizontal Protection Class IP20 according to IEC 60529 Equipment Class Class I according to IEC 60536 Humidity Range 5 to 95 %, non-condensing CE Marking Yes Safety Standards EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 Hazardous Location Approval cULus Hazardous Location Class 1 Zone 2, ATEX Zone 2 Marine Certifications ABS, BV, DNV-GL, LR RoHS Compliance EU RoHS, UAE RoHS, CN RoHS WEEE Compliance DIRECTIVE/2012/19/EU ABB Optical ModuleBus Communication Interface The TB842 operates as an optical communication node within ABB ModuleBus architectures. It connects CI801 FCI modules through TB806 and interfaces with CI840/CI840A FCI modules through TU847 and TB806 for single I/O configurations. For redundant I/O configurations, it connects through TU846 and TB846. The module supports both simplex and duplex optical configurations. In simplex operation, optical ModuleBus nodes form a ring structure. In duplex operation, nodes connect in a linear arrangement. Therefore, the TB842 configuration depends on the required network topology and redundancy design. The optical transmitter and receiver support communication rates up to 10 Mbit/s. Additionally, each ModuleBus network must use identical transmitter and receiver types across all connected nodes to maintain communication compatibility. For ABB industrial control systems, the TB842 supports backplane bus communication velocity requirements and I/O density scaling by extending optical ModuleBus connectivity between distributed I/O components and communication interface modules. Frequently Asked Questions Q: What optical fiber types can the ABB TB842 support?A: The TB842 supports plastic optical fiber and HCS (Hard Clad Silica) optical fiber using Agilent, former Hewlett-Packard, Versatile Link connectors. The complete ModuleBus network must use the same transmitter and receiver type. Q: Can the TB842 operate in redundant ModuleBus configurations?A: Yes. The TB842 supports both line redundancy and module redundancy. It can operate in simplex optical ring configurations and duplex optical row configurations according to system architecture requirements. Q: What is the maximum communication speed of the TB842?A: The TB842 optical interface supports a maximum communication speed of 10 Mbit/s with a 650 nm optical wavelength. Field Installation Guidelines Install the TB842 on an ABB-compatible mounting assembly in either vertical or horizontal orientation according to cabinet design requirements. Verify that the selected optical fiber type matches all connected ModuleBus nodes before commissioning. The optical transmitter and receiver types must remain consistent throughout the network. Route fiber optic cables separately from high-voltage power wiring and strong electromagnetic interference sources. Maintain proper bending radius limits specified by the selected fiber manufacturer. Check all Versatile Link optical connectors for correct alignment and clean optical surfaces before connection. Contamination on optical interfaces can reduce signal quality. Confirm 24 VDC power wiring polarity before energizing the module. Use appropriate grounding practices for the cabinet and connected ABB control equipment.
$199.00 $99.00
-

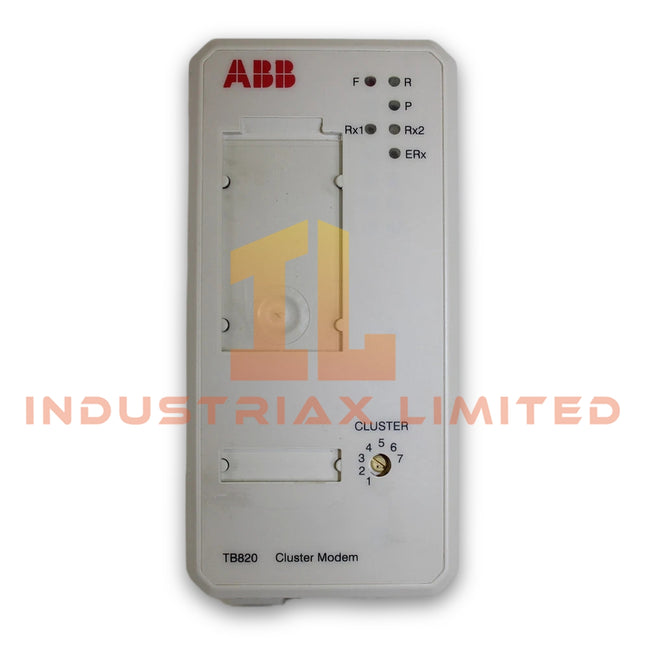

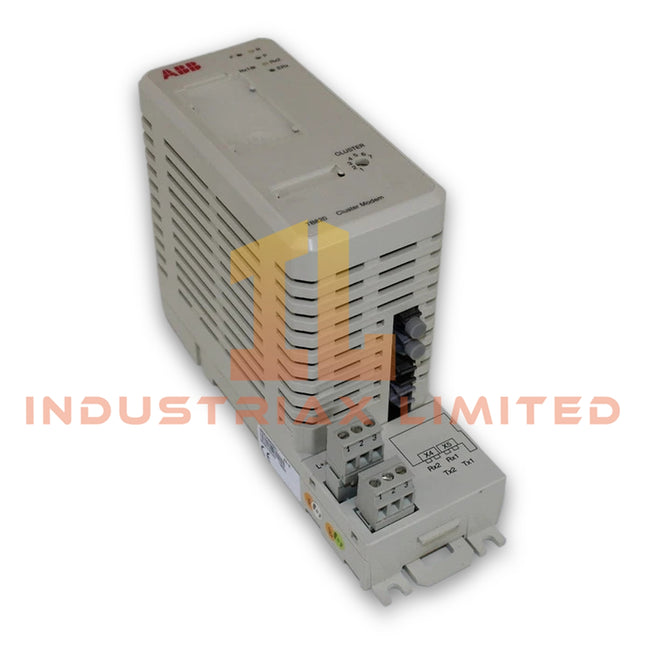

ABB ABB Advant S800 I/O ModuleBus Modem TB820 3BSE008555R1
ABB TB820 ModuleBus Modem The ABB 3BSE008555R1, also cataloged as the TB820 ModuleBus Modem, operates as a dedicated communication interface component for ModuleBus signal transmission and expansion within ABB Advant OCS and AC 400 system architectures. Hardware Specifications Parameter Specification Model TB820 Brand ABB Origin Sweden Power Consumption Supplied through system rack or ModuleBus interface Product Type ModuleBus Modem / Interface Unit Part Number 3BSE008555R1 Communication Function ModuleBus communication extension and interface System Compatibility ABB Advant OCS / AC 400 control systems Mounting Method DIN rail or rack mounting depending on system configuration Signal Interface Electrical or optical ModuleBus communication interface Backplane Bus Communication and I/O Expansion Characteristics The ABB TB820 uses the ABB ModuleBus architecture to transfer communication signals between controller assemblies and connected I/O units. Therefore, the unit provides a physical interface for extending ModuleBus communication paths within compatible ABB control platforms. The module supports structured communication between system nodes and maintains ModuleBus signal integrity through the defined ABB hardware interface. In addition, the TB820 can be integrated into configurations requiring distributed I/O placement and controller-to-I/O communication extension. The ABB industrial control platform design focuses on backplane bus communication velocity, deterministic data exchange, and I/O density scaling. However, TB820 specific firmware flash compatibility and communication parameters depend on the installed ABB system revision and hardware configuration. Frequently Asked Questions Q: What is the primary function of the ABB TB820 3BSE008555R1?A: The TB820 functions as a ModuleBus Modem that provides communication interfacing and expansion capability for ABB ModuleBus-based control systems. Q: Can the TB820 operate as a standalone communication device?A: No. The TB820 requires integration with compatible ABB control hardware and ModuleBus system components for operation. Q: Does the TB820 support optical ModuleBus communication?A: The TB820 is designed for ModuleBus communication extension. The exact optical or electrical interface capability depends on the connected ABB hardware configuration. Field Installation Guidelines Install the ABB TB820 according to the applicable ABB system installation manual and hardware configuration requirements. Verify that the mounting position matches the specified rack or DIN rail arrangement before wiring. Keep ModuleBus communication cables separated from high-voltage power conductors to reduce electrical interference. Connect cable shielding and grounding according to ABB control cabinet grounding practices. Check connector seating, module alignment, and system power conditions before commissioning. Confirm controller recognition and ModuleBus communication status through the ABB engineering tool after installation.
$199.00 $99.00
-

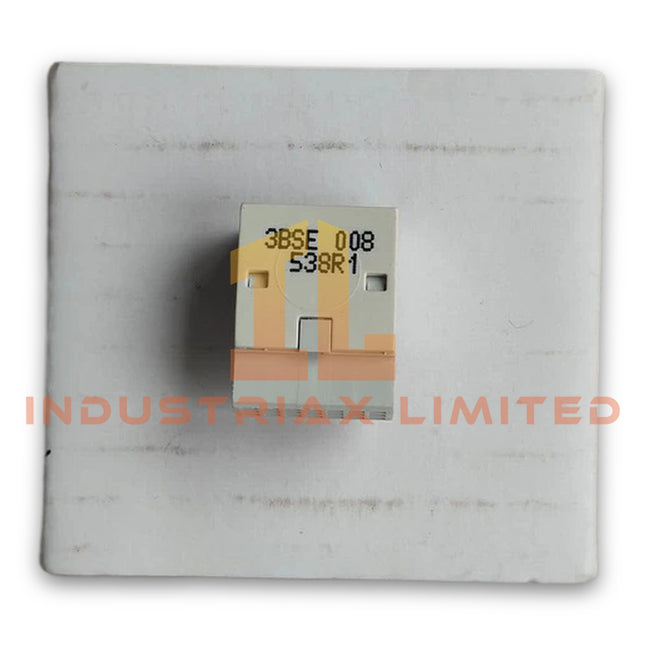

ABB Modulebus Terminator ABB S800 I/O TB807 3BSE008538R1
ABB TB807 Modulebus Terminator Configured for Modulebus line termination in ABB automation system networks, the ABB 3BSE008538R1 (TB807 Modulebus Terminator) provides direct physical termination for Modulebus communication segments. This hardware component maintains bus electrical conditions by completing the communication line structure. Hardware Specifications Parameter Specification Model 3BSE008538R1 ABB Type Designation TB807 Product Type Module Termination Unit Brand ABB Origin Bulgaria Function Modulebus Terminator Communication Interface Modulebus termination interface Weight 0.01 kg Dimensions 13 mm depth x 19 mm height x 17 mm width Operating Temp Not specified Power Consumption Passive termination component; no external power supply required Cable Length 0 m Modulebus Termination and Industrial Bus Control The ABB TB807 terminates Modulebus communication paths within ABB control architectures. Therefore, it provides the required electrical endpoint for bus segments and supports correct signal behavior across connected modules. The unit belongs to ABB Modulebus termination components and operates as a passive hardware element. Additionally, its compact mechanical design allows installation at designated Modulebus endpoint positions without additional wiring length. The TB807 supports ABB industrial control platforms through direct Modulebus interface compatibility. Furthermore, its termination function contributes to stable backplane bus communication velocity and proper I/O density scaling within ABB distributed control configurations. Frequently Asked Questions Q: What is the primary function of the ABB TB807 3BSE008538R1?A: The TB807 functions as a Modulebus terminator. It completes the physical communication line and provides the required termination point for Modulebus segments. Q: Does the TB807 require an external power connection?A: No. The TB807 is a passive termination component and does not require a separate power supply connection. Q: Where should the TB807 be installed in a Modulebus configuration?A: The TB807 should be installed at the designated endpoint of the Modulebus communication path according to ABB system installation documentation. Field Installation Guidelines Install the TB807 only at the specified Modulebus termination position within the ABB control system configuration. Verify that the module connector is fully seated before system commissioning. Keep Modulebus wiring separated from high-voltage power cables to reduce electrical interference. Follow ABB grounding and shielding practices for connected communication cables. Inspect connector conditions and mechanical mounting points during maintenance activities.
$199.00 $99.00
-
ABB TB825 3BSE036634R1 Optical Media Converter ABB Advant S800 I/O
ABB TB825 3BSE036634R1 Optical Media Converter Configured for optical signal conversion in the ABB Modulebus network, the ABB TB825 3BSE036634R1 (TB825 Optical Media Converter) provides direct physical data transmission conversion between electrical and optical communication interfaces. Hardware Specifications Parameter Specification Model TB825 3BSE036634R1 Brand ABB Product Type Optical Media Converter Origin Sweden Weight 0.2 kg Dimensions 10.2 x 5.1 x 15.2 cm Communication Protocol Modulebus Master or Slave Slave Line Redundancy No Power Supply 24 VDC Power Consumption 96 mA typical at 24 VDC Operating Temp 0 to +55 deg C (+32 to +131 deg F), approvals issued for +5 to +55 deg C Storage Temp -40 to +70 deg C (-40 to +158 deg F) Relative Humidity 5 to 95 %, non-condensing Hazardous Location Approval C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 Marine Certificates ABS, BV, DNV-GL, LR Modulebus Optical Communication Conversion The ABB TB825 3BSE036634R1 performs optical media conversion within ABB industrial control architectures using Modulebus communication. Therefore, the module transfers communication signals through optical interfaces to support extended network connections and electrical isolation between connected segments. Additionally, the TB825 operates as a slave device on the Modulebus network. The module supports a 24 VDC power input with a typical current consumption of 96 mA and does not provide line redundancy functionality. For ABB automation platforms, communication performance depends on the Modulebus configuration, connected controller capacity, and installed firmware compatibility. Furthermore, the optical conversion function helps separate communication segments where electrical signal transmission limitations exist. Frequently Asked Questions Q: What communication protocol does the ABB TB825 3BSE036634R1 support?A: The TB825 supports the ABB Modulebus communication protocol and operates as a slave device within the network structure. Q: Does the TB825 provide redundant communication lines?A: No. The TB825 specification indicates that line redundancy is not supported. Q: What power supply is required for the TB825 module?A: The TB825 requires a 24 VDC supply and consumes approximately 96 mA under typical operating conditions. Field Installation Guidelines Install the TB825 module according to the ABB system hardware configuration requirements. Verify that the 24 VDC power supply polarity matches the module connection specification before energizing the unit. Route optical communication cables separately from high-voltage power cables to reduce electromagnetic interference risks. Maintain proper optical connector cleanliness because contamination can affect signal transmission quality. Confirm hazardous location requirements before installation in classified areas. Ensure the ambient temperature and humidity remain within the specified operating limits.
$199.00 $99.00
-

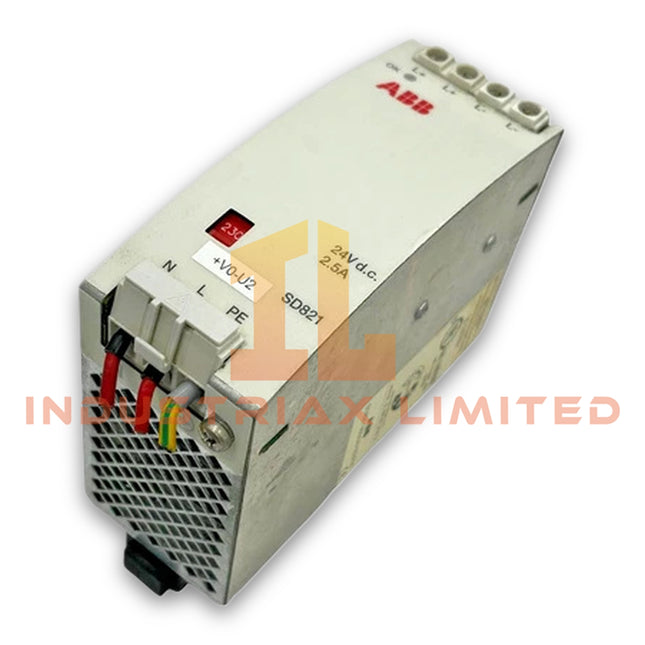

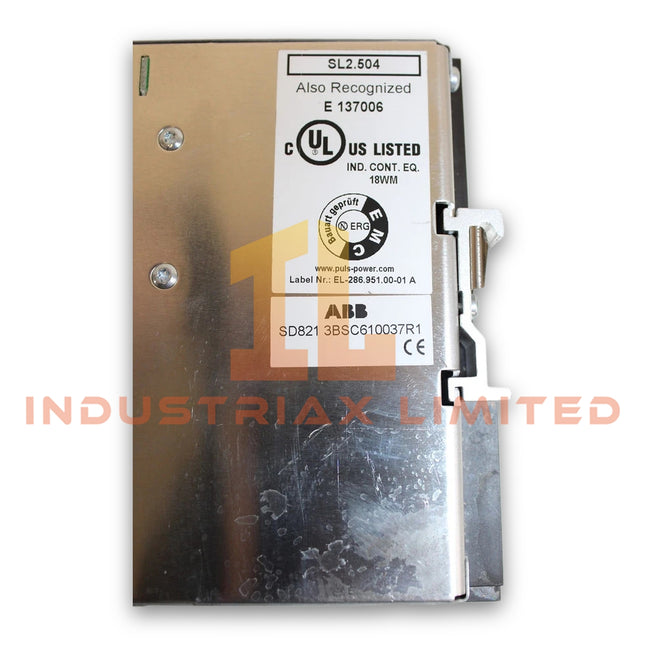

ABB Power Supply Device ABB Advant S800 I/O Power Supply Devices
ABB SD821 Power Supply Device The ABB SD821 3BSC610037R1, also cataloged as the SD821 Power Supply Device, operates as a dedicated hardware component for converting incoming AC power into regulated 24 VDC output within ABB industrial control system platforms. Hardware Specifications Parameter Specification Model SD821 Brand ABB Origin Sweden Weight 0.44 kg Dimensions 5 x 10.6 x 13 cm Operating Temp Not specified Power Consumption 2.5 A output rating Input Voltage 230 VAC Output Voltage 24 VDC Product Type Power Supply Device Spare Model 3BSC610037R1 Manufacturer Status Discontinued by manufacturer Industrial Control Power Conversion Characteristics The ABB SD821 power supply device provides AC to DC conversion for ABB automation hardware installations. It accepts a 230 VAC input source and delivers a 24 VDC output supply for connected control components. Furthermore, the SD821 supports ABB system power distribution requirements through regulated DC output. The module design aligns with industrial cabinet installation practices where stable DC voltage distribution supports PLC, DCS, and I/O hardware operation. For ABB control platforms, power supply integration requires consideration of backplane bus communication velocity, I/O density scaling, and firmware flash compatibility across connected hardware modules. Therefore, engineers should verify system-level power requirements before installation or replacement. Frequently Asked Questions Q: What is the primary electrical function of the ABB SD821?A: The ABB SD821 converts a 230 VAC input supply into a 24 VDC output supply for industrial automation equipment. Q: Can the SD821 be used as a direct replacement for another power supply module?A: Replacement selection requires verification of voltage rating, current capacity, mechanical dimensions, and ABB system compatibility. Q: Does the SD821 support redundant power supply configuration?A: The provided technical data does not specify redundancy capability. System documentation should be checked before implementing parallel or backup power arrangements. Field Installation Guidelines Install the ABB SD821 inside a suitable industrial control cabinet with appropriate ventilation and mechanical support. Connect the 230 VAC input wiring according to the applicable electrical installation standard. Verify polarity and grounding requirements on the 24 VDC output side before connecting field devices. Keep AC input wiring separated from low-voltage DC signal cables to reduce electrical interference. Use proper grounding methods for cabinet assemblies and maintain clean cable routing around control modules. Before energizing the system, confirm input voltage level, output voltage stability, and load requirements against the installed automation hardware specifications.
$199.00 $99.00
-

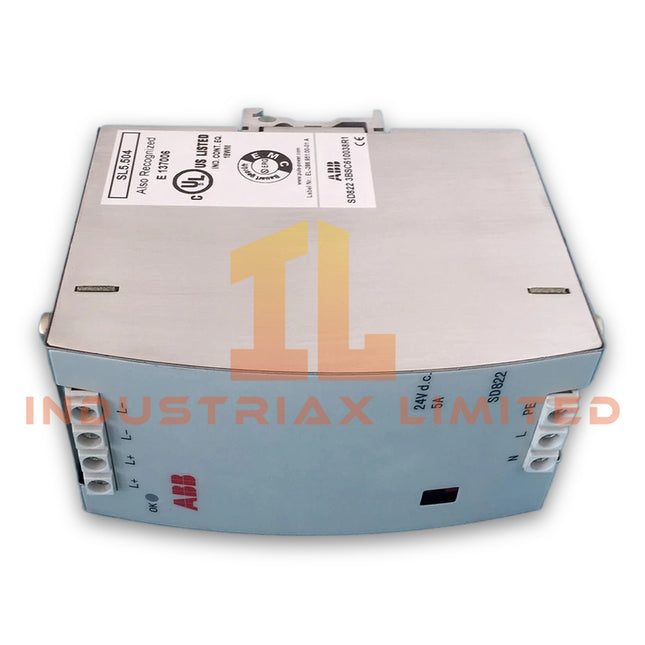

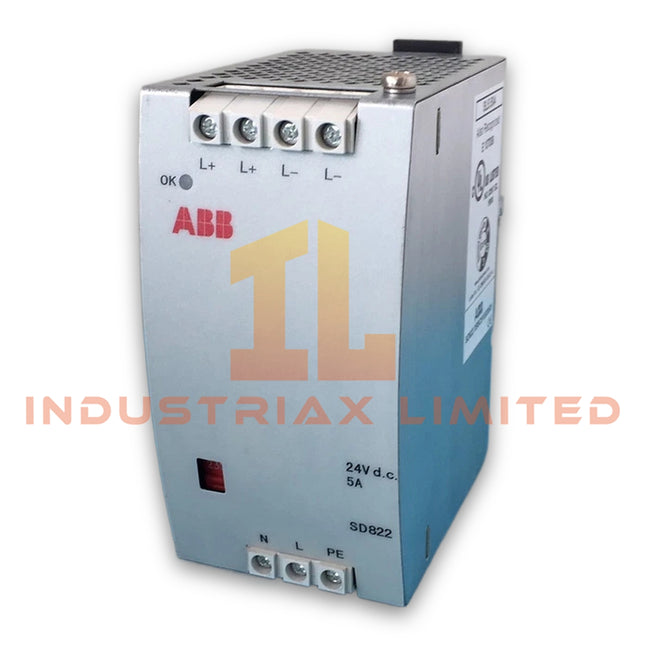

ABB ABB Advant S800 I/O SD822 3BSC610038R1 Power Supply Module
ABB SD822 3BSC610038R1 Power Supply Module The ABB SD822 3BSC610038R1, also cataloged as the SD822 Power Supply Module, operates as a dedicated hardware component for AC to 24 VDC power conversion within ABB industrial control system platforms. It provides a 230 VAC input interface and a 5 A rated 24 VDC output supply for connected control equipment. Hardware Specifications Parameter Specification Model SD822 3BSC610038R1 Brand ABB Product Type Power Supply Module Origin Sweden Weight 0.6 kg Dimensions 6.3 x 10.5 x 13.1 cm Input Voltage 230 VAC Output Voltage 24 VDC Output Current 5 A Power Supply 100 - 120 VAC Power Consumption 150 VA typical Operating Temp 0 - +50 deg C Storage Temp -40 - +70 deg C Humidity 5 - 95 % RH non-condensing Tariff Code 8537101190 Industrial Control Power Integration The ABB SD822 power supply module supports industrial control power distribution through regulated 24 VDC output conversion. Furthermore, the module design aligns with ABB PLC and DCS hardware environments where stable DC power is required for I/O assemblies, controllers, and auxiliary control circuits. ABB system power architectures typically use modular power distribution methods with controlled load allocation. Therefore, correct installation requires verification of input voltage range, output polarity, grounding arrangement, and connected load requirements before energizing the module. The module operates as a power conversion component rather than a communication device. It does not provide field signal processing, protocol conversion, or I/O channel management functions. Its primary function is supplying DC operating power to compatible automation hardware. Frequently Asked Questions Q: What is the primary function of the ABB SD822 3BSC610038R1 module?A: The SD822 3BSC610038R1 converts AC input power into a regulated 24 VDC output supply for ABB industrial automation equipment. Q: Does the SD822 module provide communication or field signal interfaces?A: No. The SD822 is a power supply module and does not include communication ports, analog input channels, or digital I/O functions. Q: What environmental conditions are specified for SD822 operation?A: The module supports an operating temperature range of 0 to +50 deg C and storage conditions from -40 to +70 deg C with 5 - 95 % RH non-condensing humidity. Field Installation Guidelines Install the SD822 module according to the applicable ABB system cabinet layout and mounting requirements. Verify AC input wiring before connection to prevent incorrect voltage application. Maintain correct polarity when connecting the 24 VDC output terminals to downstream equipment. Connect protective grounding according to industrial electrical installation standards. Separate power wiring from sensitive signal cables to reduce electrical interference. Check terminal tightening conditions before system startup. Confirm the connected load remains within the specified power supply capacity.
$199.00 $99.00
-

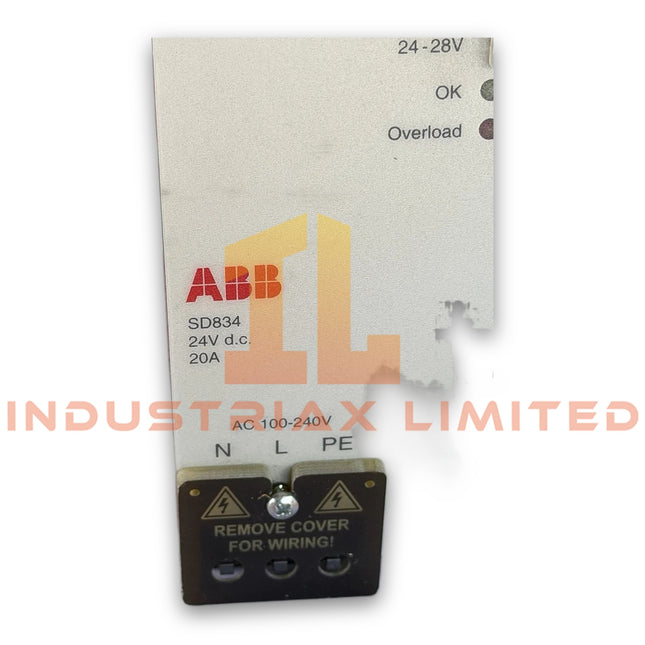

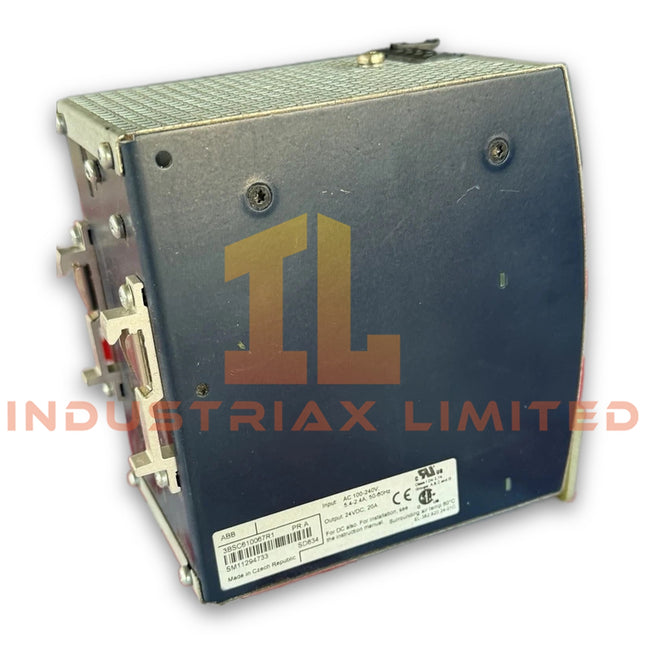

ABB SD834 3BSC610067R1 ABB AC 800M Power Supply Device
ABB SD834 3BSC610067R1 Power Supply Device Configured for 24 VDC power conversion and industrial DC supply distribution in ABB automation systems, the ABB SD834 3BSC610067R1 (SD834 Power Supply Device) provides direct electrical conversion from AC/DC input sources to a regulated 24 VDC output supply. Hardware Specifications Parameter Specification Model SD834 3BSC610067R1 Brand ABB Product Type Power Supply Device Origin Sweden Weight 1.3 kg Dimensions 15.5 x 23 x 36 cm (estimated shipping size) Operating Temp Not specified Power Consumption 547/568 VA rated input power Input Voltage 100-240 VAC or 110-150 VDC Output Voltage 24 VDC Rated Output Current 20 A Rated Output Power 480 W Efficiency 92.4/93.9 % Application SELV and PELV systems ABB Industrial Power Architecture and Control System Integration The ABB SD834 3BSC610067R1 operates as a switch-mode power supply component within ABB industrial control architectures. It converts mains AC or DC input power into a regulated 24 VDC output used for control equipment, I/O modules, and automation system components. Furthermore, the SD834 supports SELV and PELV applications by maintaining separated low-voltage output characteristics. The module design fits ABB power distribution structures where stable DC voltage delivery and load capacity management are required. The unit supports ABB system power configurations with high output density. Therefore, its 20 A rated output current allows connection to multiple automation devices while maintaining defined electrical load limits. Frequently Asked Questions Q: What input voltage ranges does the ABB SD834 3BSC610067R1 support?A: The SD834 accepts 100-240 VAC input or 110-150 VDC input sources according to the provided technical specifications. Q: What output parameters are provided by the SD834 power supply device?A: The module provides a 24 VDC output with a rated current of 20 A and rated output power of 480 W. Q: Can the SD834 be used for SELV and PELV applications?A: Yes. The SD834 is specified for SELV and PELV applications within compatible ABB industrial automation installations. Field Installation Guidelines Install the SD834 in an enclosure that provides suitable mechanical protection and environmental control. Verify that input voltage wiring matches the specified AC or DC supply range before energizing the module. Use appropriate cable sizing based on the 20 A output current requirement and connected load conditions. Separate power wiring from sensitive signal cables to reduce electrical interference. Connect protective grounding according to the applicable industrial electrical installation standards. Confirm output polarity before connecting downstream 24 VDC devices. Check ventilation clearance and mounting conditions according to the system cabinet design requirements.
$199.00 $99.00
-

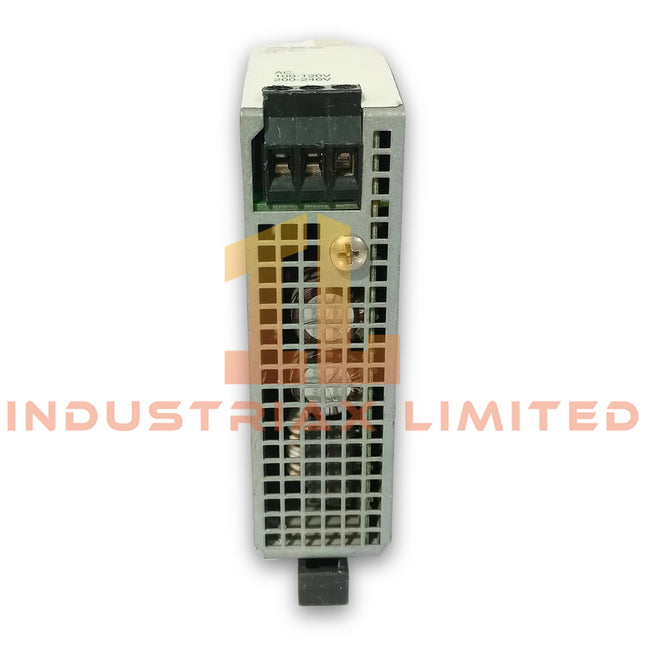

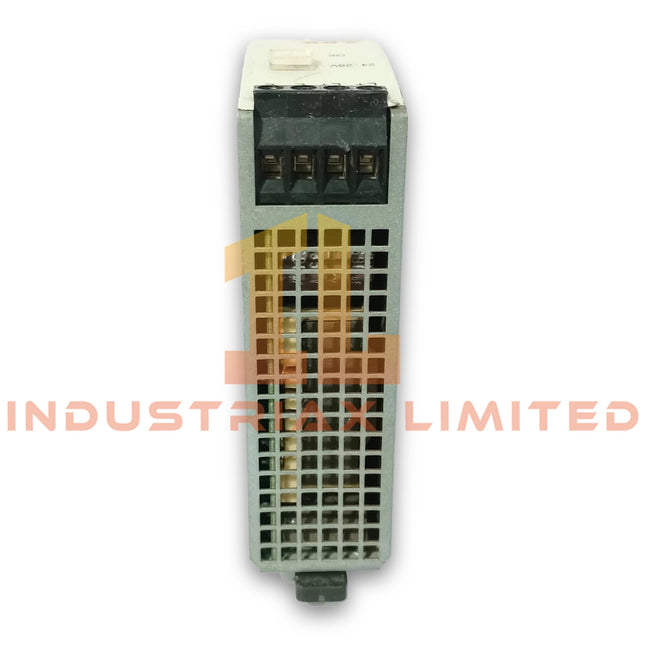

ABB ABB AC 800M SD832 3BSC610065R1 Power Supply Module
ABB SD832 3BSC610065R1 Power Supply Module Configured for 24 VDC power conversion in ABB System 800xA and AC 800M automation platforms, the ABB SD832 3BSC610065R1 (SD832 Power Supply Module) provides direct electrical power conditioning for control system devices. The module converts 100-120 VAC or 200-240 VAC input power into a regulated 24 VDC output with a rated current of 5 A. Hardware Specifications Parameter Specification Model SD832 3BSC610065R1 Brand ABB Product Type Power Supply Module Origin Sweden Weight 0.48 kg Dimensions 3.2 x 12 x 13 cm Power Consumption 120 W rated output power Input Voltage 100-120 VAC / 200-240 VAC, auto-select input Input Power 240 VA / 283 VA Output Voltage 24 VDC Rated Output Current 5 A Tariff Code 8537101190 Application Platform ABB System 800xA / AC 800M automation systems Backplane Power Integration and Industrial Control Compatibility The ABB SD832 power supply module supports ABB industrial controller architectures by providing regulated DC power for connected control components. Therefore, correct integration with the system power distribution structure maintains stable voltage delivery across automation assemblies. The module design follows ABB PLC and DCS power supply requirements, including controlled DC output behavior for I/O modules and communication components. Furthermore, ABB power architecture supports system configurations requiring coordinated power distribution and monitoring. The SD832 operates as part of ABB industrial control systems where power modules connect with controller racks, I/O assemblies, and auxiliary automation devices. It provides the electrical conversion function required between AC mains sources and 24 VDC control circuits. Frequently Asked Questions Q: What input voltage range does the ABB SD832 3BSC610065R1 support?A: The SD832 supports 100-120 VAC and 200-240 VAC nominal input voltage through an auto-select input design. Q: What is the rated DC output capability of the SD832 module?A: The module provides a 24 VDC output with a rated output current of 5 A and rated output power of 120 W. Q: Can the SD832 be installed in ABB automation systems with other power modules?A: The SD832 can be integrated according to ABB system power configuration requirements. Installation must follow rack layout, wiring, grounding, and load distribution specifications. Field Installation Guidelines Install the SD832 module according to ABB rack and cabinet installation procedures. Verify the AC input voltage range before connecting field power wiring. Connect protective grounding according to industrial electrical installation standards. Keep AC input wiring separated from low-level signal cables to reduce electrical interference. Use properly rated conductors for AC input and 24 VDC output connections. Check output polarity before connecting external control devices. Maintain adequate cabinet ventilation and avoid installation conditions outside the specified environmental limits.
$199.00 $99.00
-
ABB SD831 ABB Advant AC800M Power Supply Units
ABB SD831 3BSC610064R1 Power Supply Unit The ABB SD831 3BSC610064R1, also cataloged as the SD831 Power Supply Unit, operates as a dedicated hardware component for converting mains input voltage into regulated 24 VDC output power within ABB industrial control system power networks. Hardware Specifications Parameter Specification Model SD831 3BSC610064R1 Brand ABB Weight 430 g Dimensions 32 mm W x 102 mm D x 124 mm H Operating Temp Maximum 55 deg C Power Consumption Rated output power 72 W, heat dissipation 10/8 W Product Type Power Supply Unit Rated Output Voltage 24 VDC Rated Output Current 3 A Maximum Output Current 3.3 A Rated Input Power 134/143 VA Input Voltage Range 100-240 VAC +/-10 %, 110-300 VDC -20 % / +25 % Mains Frequency 50-60 Hz +/-6 % Efficiency 88/89.8 % Output Ripple < 50 mV peak to peak Output Voltage Regulation < 50 mV / < 100 mV at maximum current Secondary Voltage Holdup Time 29/120 ms during mains blackout Output Over Voltage Protection < 39 V Protection Rating IP20 according to IEC 60529 Applications SELV and PELV systems Electrical Safety Standards IEC 61131-2, UL 508, EN 50178 EMC Compliance EN 61000-6-4 and EN 61000-6-2 Mounting Spacing 15 mm W, 40 mm H ABB Industrial Power Network Characteristics The ABB SD831 power supply integrates switch-mode conversion technology for industrial control power distribution. The unit accepts both AC and DC mains sources and provides a regulated 24 VDC secondary output for automation hardware. The power supply supports non-redundant and redundant configurations. For redundant operation, ABB SS823 or SS832 diode voting units provide output selection and current path management between multiple power supply units. The SD831 includes soft-start functionality. Therefore, power activation limits primary inrush current effects and prevents unnecessary triggering of upstream fuses or earth-fault circuit breakers. The unit is designed for ABB automation environments requiring controlled DC power distribution, DIN-rail installation, and compatibility with SELV or PELV protection concepts. Frequently Asked Questions Q: Can the ABB SD831 operate in redundant power supply configurations?A: Yes. The SD831 supports redundant applications when combined with ABB SS823 or SS832 diode voting units. These units manage output power selection between parallel supply sources. Q: Does the SD831 require an external mains filter for operation?A: No. The SD831 power supply design does not require installation of a mains filter for standard operation. Q: What safety standards apply to the ABB SD831 power supply?A: The SD831 complies with IEC 61131-2, UL 508, and EN 50178 electrical safety requirements. The secondary output circuit is accepted for SELV and PELV applications. Field Installation Guidelines Install the ABB SD831 on a suitable DIN-rail mounting system with the specified mechanical spacing maintained around the enclosure. Ensure sufficient airflow around the unit to support thermal dissipation. Connect input wiring according to the approved AC or DC supply range. Verify protective grounding connections before energizing the device. For redundant configurations, install ABB SS823 or SS832 diode voting units according to the system architecture requirements. Keep power wiring separated from high-frequency switching cables and signal communication lines. Check output polarity and verify the 24 VDC distribution voltage before connecting downstream automation modules. Follow cabinet grounding and EMC practices defined for ABB industrial control installations.
$199.00 $99.00
-

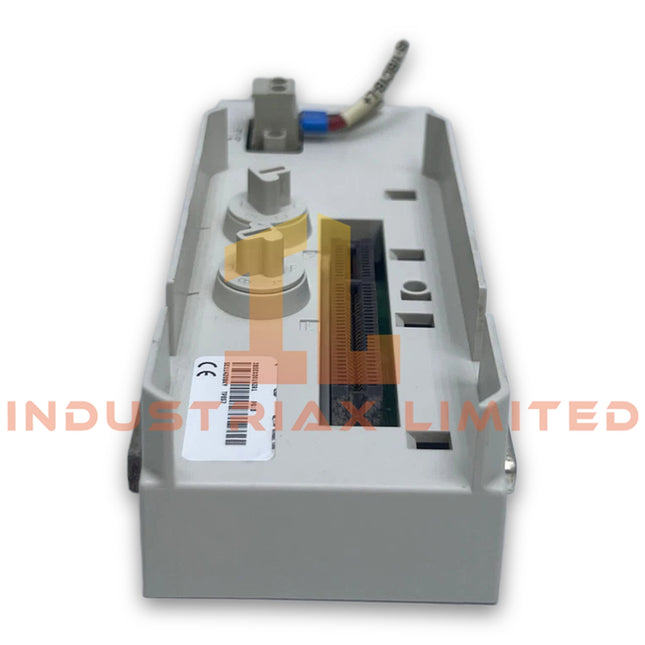

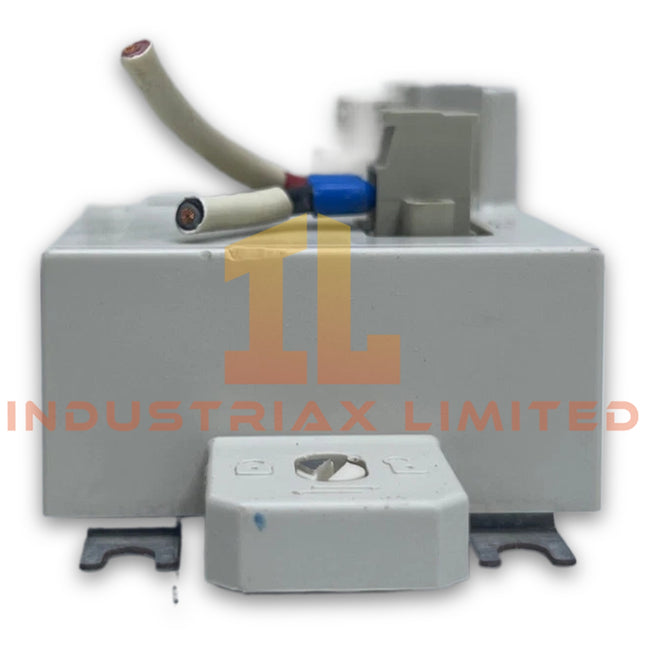

ABB TP857 3BSE030192R1 ABB AC 800M Module Termination Units
ABB TP857 Baseplate for BC810 The ABB 3BSE030192R1 TP857, also cataloged as the TP857 Module Termination Unit, provides the physical mounting interface for BC810 communication interface installation within ABB AC 800M controller hardware configurations. Hardware Specifications Parameter Specification Model TP857 3BSE030192R1 Brand ABB Product Type Module Termination Unit Application Baseplate for BC810 communication interface Origin United States / Sweden Weight 0.27 kg Dimensions Width: 60 mm Power Consumption Passive baseplate, no external power consumption Mounting Function Mechanical support and electrical connection interface for BC810 Compatible Device BC810 communication interface Part Type New Minimum Order Quantity 1 piece Backplane Bus Interface and I/O Density Scaling The ABB TP857 is a passive termination and mounting component designed for BC810 integration in ABB controller architectures. Therefore, it does not execute control logic or process field signals directly. Instead, the baseplate provides the mechanical positioning and electrical interface required for module installation. Furthermore, the TP857 supports ABB industrial control cabinet layouts by maintaining defined module alignment and connection stability. The component fits ABB AC 800M communication configurations where BC810 units require dedicated baseplate mounting. The TP857 design follows ABB PLC/DCS hardware integration principles, including structured backplane connection management, module positioning accuracy, and firmware-compatible hardware configurations within supported controller assemblies. Frequently Asked Questions Q: What is the primary function of the ABB TP857 3BSE030192R1?A: The TP857 functions as a baseplate for BC810 communication interface installation, providing mechanical mounting and electrical interface support. Q: Does the TP857 require an external power supply?A: No. The TP857 is a passive module termination unit and does not require independent power input. Q: Can the TP857 be used with other ABB communication modules?A: The TP857 is specified for BC810 installation. Compatibility with other modules depends on the ABB system configuration and hardware documentation. Field Installation Guidelines Install the TP857 on the designated ABB controller mounting arrangement according to system hardware documentation. Verify that the BC810 module is correctly seated before applying system power. Maintain proper cabinet grounding practices to reduce electrical interference. Route communication and power cables separately where possible to minimize signal coupling. Inspect mechanical fixing points and connector interfaces before commissioning. Confirm module alignment to prevent damage to the baseplate connection contacts.
$199.00 $99.00
-

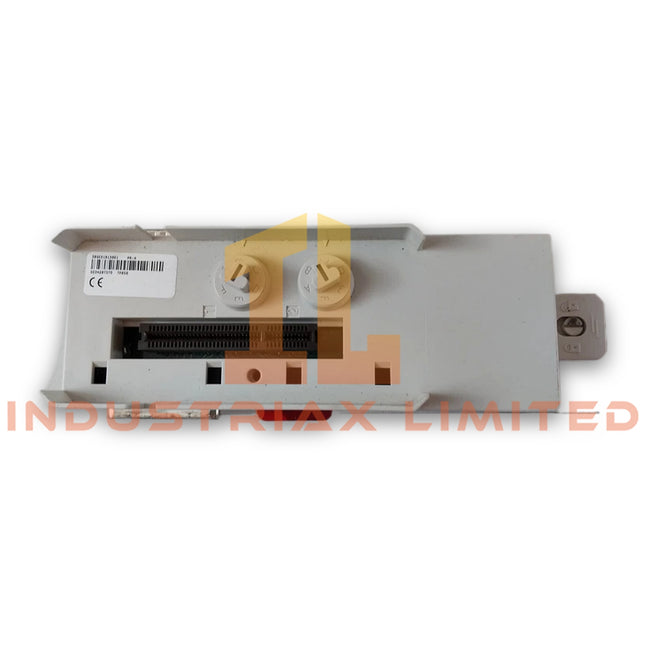

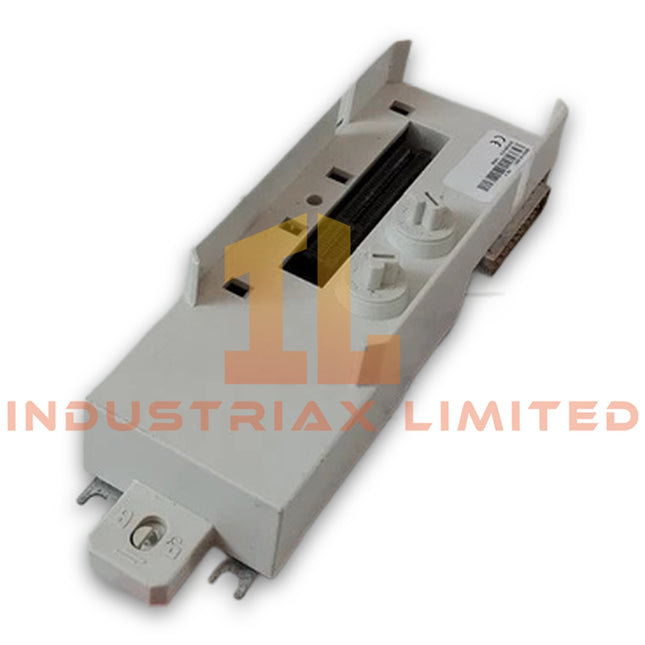

ABB TP858 ABB AC 800M Baseplate Unit
ABB TP858 Baseplate Unit The ABB TP858, also cataloged as the TP858 Baseplate Unit, provides the physical mounting and electrical interface structure for CI858 communication interface installation within ABB AC 800M controller systems. Hardware Specifications Parameter Specification Model TP858 Brand ABB Product Type Baseplate Unit System Compatibility ABB AC 800M controller platform with CI858 communication interface Origin Sweden Operating Temp Industrial control environment range, system dependent Power Consumption Supplied through associated controller communication interface assembly Mounting Type Controller rack / CEX-Bus mounting structure Communication Interface Supports CI858 module mechanical and electrical connection Installation Method Panel-mounted controller system installation Backplane Bus Communication and Industrial Control Integration The TP858 functions as the mechanical and electrical base assembly for ABB communication interface modules. Therefore, it provides the mounting position, connector alignment, and internal signal routing required for AC 800M system integration. The unit supports ABB controller architecture through defined module positioning and backplane connection methods. Additionally, firmware and communication behavior depend on the installed CI858 interface module rather than the TP858 hardware itself. The baseplate design maintains correct module placement for industrial control configurations. Furthermore, it supports structured installation practices for ABB CEX-Bus based communication assemblies. Frequently Asked Questions Q: Is the TP858 an independent communication module?A: No. The TP858 is a baseplate unit designed to mechanically and electrically support compatible ABB communication interface modules such as CI858. Q: Does the TP858 contain configurable firmware?A: No. The TP858 does not provide independent firmware functions. Configuration parameters are managed by the installed communication interface and AC 800M controller software. Q: Can the TP858 be installed without a compatible ABB interface module?A: The TP858 can be physically mounted, but its intended operation requires installation with the corresponding ABB communication hardware. Field Installation Guidelines Install the TP858 on the designated ABB controller mounting structure according to the AC 800M hardware installation manual. Verify that the mechanical locking features engage correctly before installing the communication interface module. Maintain proper grounding practices for the controller cabinet. Connect cable shields according to ABB system grounding requirements to reduce electrical interference. Route communication and power wiring separately where required. Avoid placing high-current switching cables adjacent to controller communication wiring. Inspect connectors and mounting contacts before commissioning. Ensure all modules are correctly seated before applying system power.
$199.00 $99.00
-

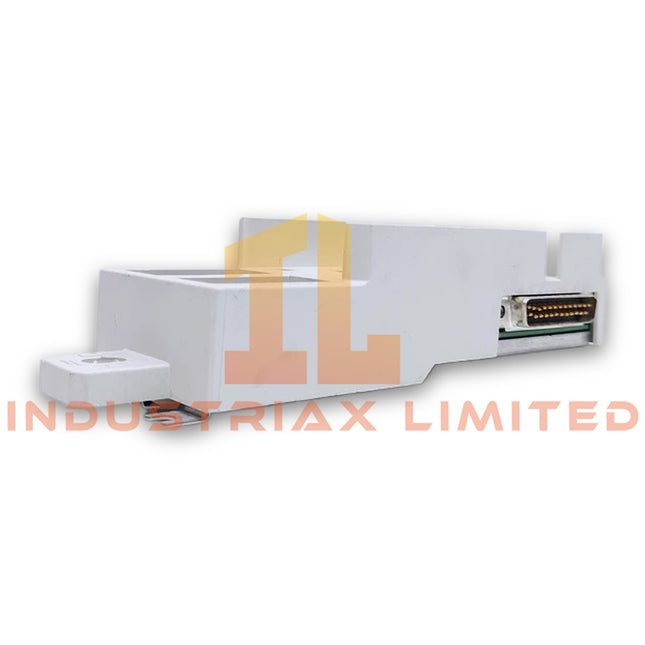

ABB ABB AC 800M TP854 3BSE025349R1 Module Termination Unit
ABB TP854 3BSE025349R1 Module Termination Unit Configured for DP-V1 communication interface baseplate installation in ABB AC 800M systems, the ABB TP854 3BSE025349R1 (TP854 Module Termination Unit) provides direct physical mounting and electrical connection support for CI854 communication interfaces. Hardware Specifications Parameter Specification Model TP854 3BSE025349R1 Brand ABB Product Type Module Termination Unit Function Baseplate for CI854, CI854A and CI854B PROFIBUS DP-V1 Interface Origin Sweden / Germany Weight 0.234 kg Dimensions 216 mm x 72 mm x 49.5 mm Estimated Shipping Size 18.7 x 6.7 x 4.8 cm Operating Temp Not specified by manufacturer Power Consumption Passive termination unit, no external power consumption Compatible Modules CI854K01, CI854AK01, CI854BK01 Mounting Type AC 800M controller system module termination mounting Product Status New Customs Tariff Number 85369095 ABB Industrial Backplane and Interface Integration The TP854 is a dedicated termination and mounting base unit designed for ABB CI854 communication interfaces. It provides the mechanical support structure and electrical interface connection between the CI854 module and the AC 800M control platform. Furthermore, the unit supports ABB industrial backplane bus integration, allowing the installed communication interface to exchange control data through the controller hardware architecture. The TP854 does not operate as an active communication processor and does not contain independent firmware functions. The module supports ABB PROFIBUS DP-V1 interface assemblies through compatible CI854 series communication modules. Therefore, system configuration depends on the installed CI854 communication unit and controller firmware compatibility. Frequently Asked Questions Q: What ABB communication modules can be installed with the TP854?A: The TP854 is specified for CI854, CI854A and CI854B communication interfaces, including CI854K01, CI854AK01 and CI854BK01 assemblies. Q: Does the TP854 require an external power supply?A: No. The TP854 is a passive Module Termination Unit and does not include active electronics or independent power input requirements. Q: Is firmware stored inside the TP854?A: No. The TP854 does not contain firmware. Communication functions are provided by the installed CI854 interface module. Field Installation Guidelines Install the TP854 according to ABB AC 800M hardware configuration requirements. Verify that the CI854 interface module is correctly seated before system power application. Maintain proper cabinet grounding and follow ABB control system wiring practices. Keep communication wiring separated from high-voltage power cables to reduce electrical interference. Inspect mechanical locking components before commissioning the installed communication interface. Confirm compatibility between the TP854 base unit and the selected CI854 module version before replacement
$199.00 $99.00
-
ABB CI801-EA 3BSE022366R2 PROFIBUS FCI S800 Interface ABB S800 I/O
ABB CI801-eA PROFIBUS FCI S800 Interface Configured for PROFIBUS DP-V1 communication in ABB S800 I/O systems, the ABB CI801-eA (CI801-eA Communication Interface) provides direct physical and electrical execution for fieldbus data exchange between the controller network and S800 I/O modules. Hardware Specifications Parameter Specification Model CI801-eA Brand ABB Product Type Communication Module Origin Sweden Weight 0.32 kg Power Consumption Supplied through S800 system interface, value not specified Communication Interface PROFIBUS DP-V1 System Platform ABB S800 I/O System Included Accessories 1 pce Power Supply Connector; 1 pce TB807 ModuleBus Terminator Product ID 3BSE022366R2 ABB Type Designation CI801-eA PROFIBUS DP-V1 and S800 Bus Communication Characteristics The CI801-eA operates as a PROFIBUS FCI (Fieldbus Communication Interface) module within the ABB S800 I/O architecture. It manages cyclic and acyclic communication between PROFIBUS DP-V1 networks and connected S800 I/O modules. Furthermore, the interface module supports ModuleBus communication for local I/O expansion. The included TB807 ModuleBus Terminator maintains the required bus termination condition for the S800 configuration. The ABB industrial control platform uses structured backplane communication methods, and the CI801-eA supports I/O density scaling through connection of multiple S800 I/O units. Therefore, correct ModuleBus addressing, connector installation, and firmware compatibility must be verified during system configuration. Frequently Asked Questions Q: What communication protocol does the CI801-eA support?A: The CI801-eA supports PROFIBUS DP-V1 communication as the fieldbus interface for ABB S800 I/O systems. Q: What accessories are supplied with the CI801-eA?A: The module package includes one power supply connector and one TB807 ModuleBus Terminator. Q: Can the CI801-eA be installed without ModuleBus termination?A: The ModuleBus network requires correct termination. The supplied TB807 terminator should be installed according to the S800 I/O system configuration requirements. Field Installation Guidelines Install the CI801-eA on the designated ABB S800 I/O mounting position according to system hardware documentation. Verify PROFIBUS cable routing and maintain separation from high-voltage power cables to reduce electromagnetic interference. Connect the protective shield according to the plant grounding standard and PROFIBUS installation practice. Confirm ModuleBus termination using the supplied TB807 component before system commissioning. Check connector seating and power supply wiring before applying system voltage. Verify controller configuration, PROFIBUS node addressing, and communication diagnostics after installation.
$199.00 $99.00
لقد شاهدت 48 من أصل 136 منتجًا
