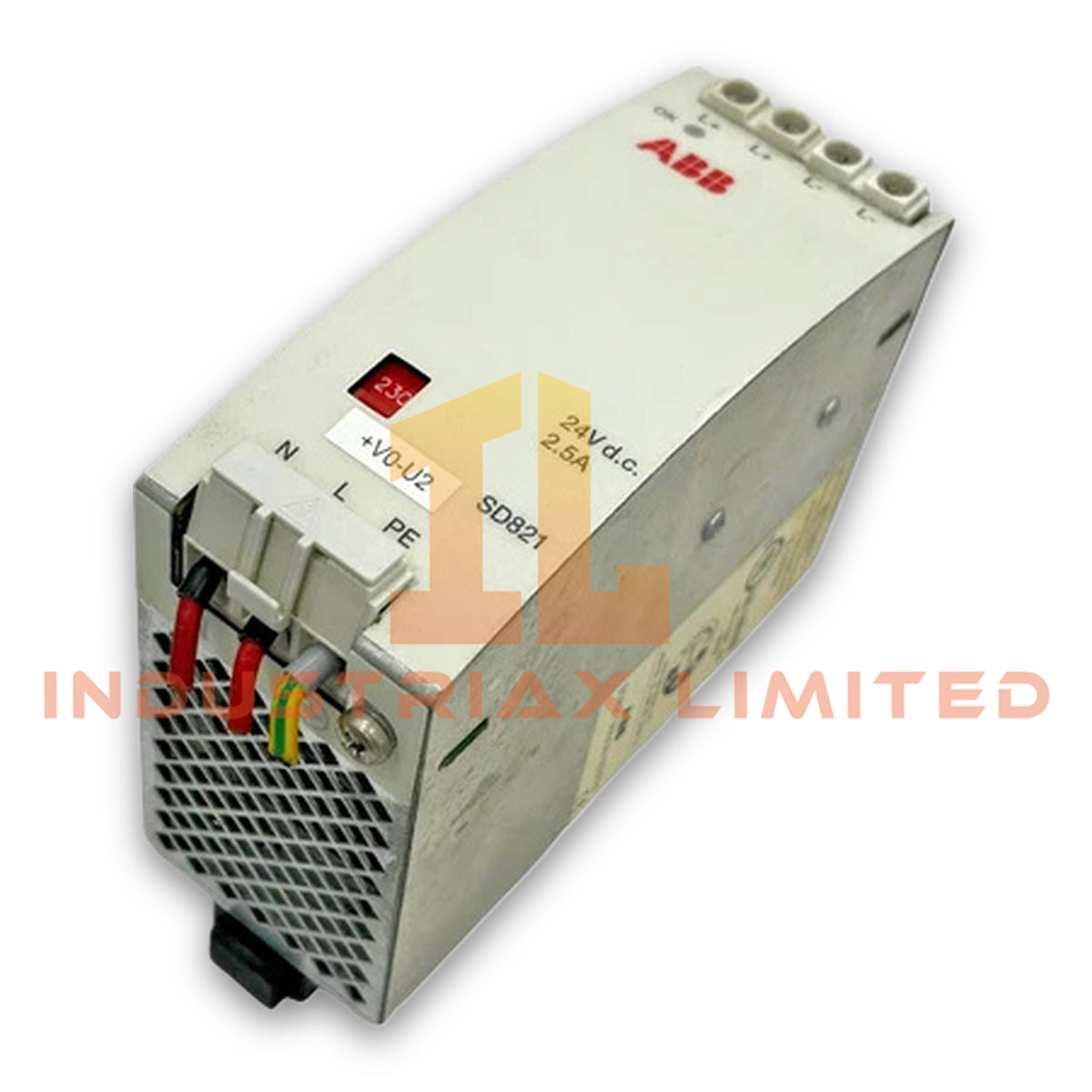

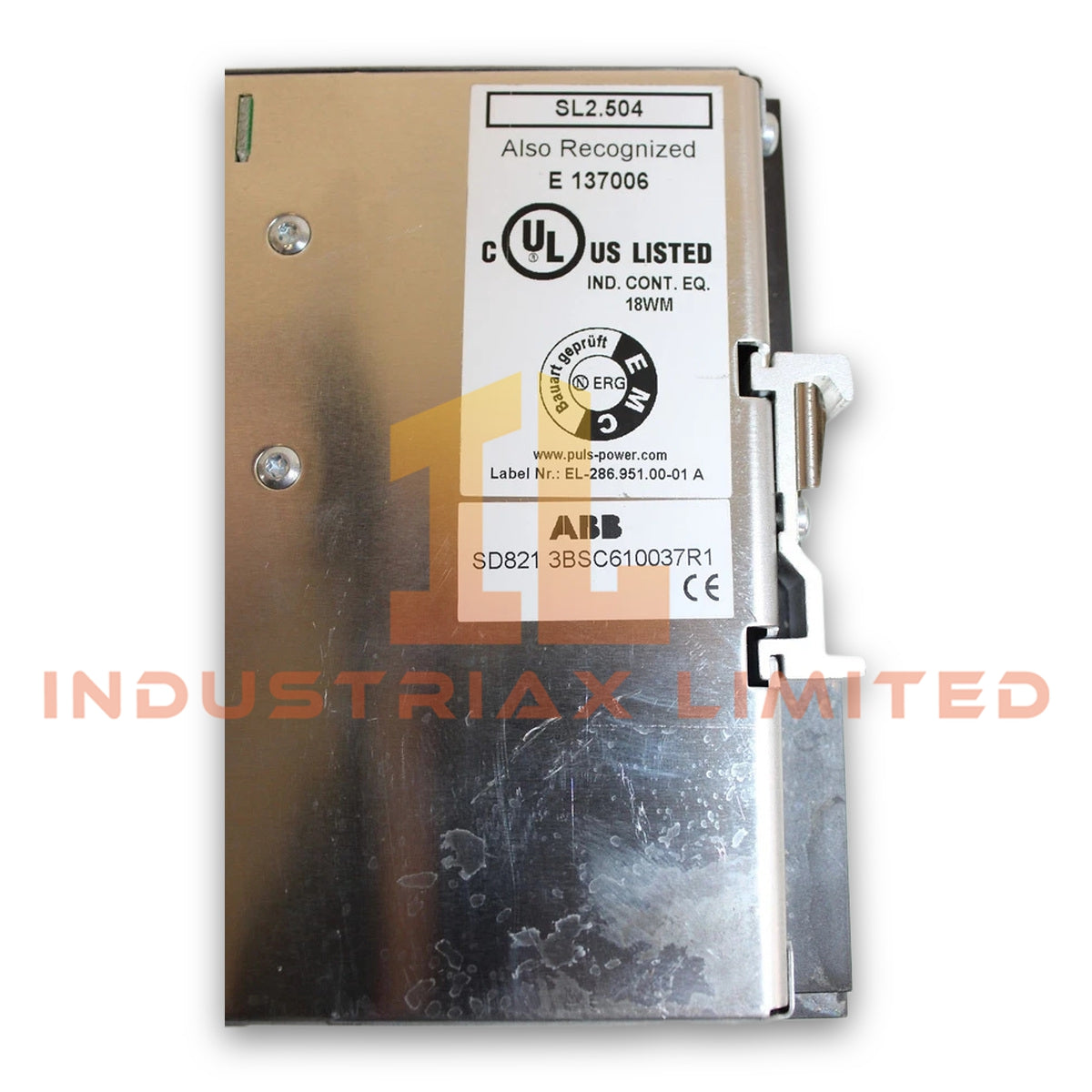

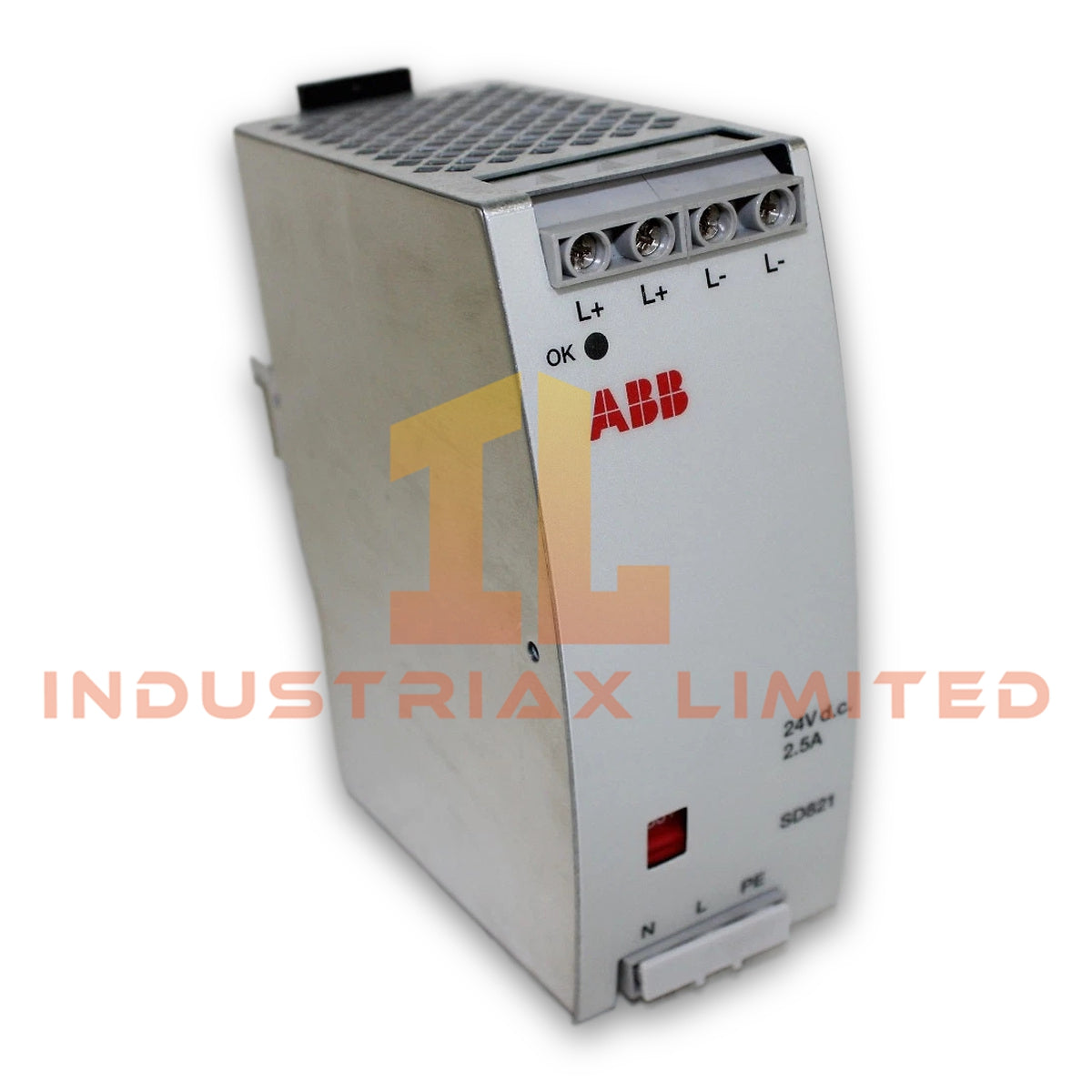

ABB SD821 Power Supply Device

The ABB SD821 3BSC610037R1, also cataloged as the SD821 Power Supply Device, operates as a dedicated hardware component for converting incoming AC power into regulated 24 VDC output within ABB industrial control system platforms.

Hardware Specifications

Parameter	Specification
Model	SD821
Brand	ABB
Origin	Sweden
Weight	0.44 kg
Dimensions	5 x 10.6 x 13 cm
Operating Temp	Not specified
Power Consumption	2.5 A output rating
Input Voltage	230 VAC
Output Voltage	24 VDC
Product Type	Power Supply Device
Spare Model	3BSC610037R1
Manufacturer Status	Discontinued by manufacturer

Industrial Control Power Conversion Characteristics

The ABB SD821 power supply device provides AC to DC conversion for ABB automation hardware installations. It accepts a 230 VAC input source and delivers a 24 VDC output supply for connected control components.

Furthermore, the SD821 supports ABB system power distribution requirements through regulated DC output. The module design aligns with industrial cabinet installation practices where stable DC voltage distribution supports PLC, DCS, and I/O hardware operation.

For ABB control platforms, power supply integration requires consideration of backplane bus communication velocity, I/O density scaling, and firmware flash compatibility across connected hardware modules. Therefore, engineers should verify system-level power requirements before installation or replacement.

Frequently Asked Questions

Q: What is the primary electrical function of the ABB SD821?
A: The ABB SD821 converts a 230 VAC input supply into a 24 VDC output supply for industrial automation equipment.

Q: Can the SD821 be used as a direct replacement for another power supply module?
A: Replacement selection requires verification of voltage rating, current capacity, mechanical dimensions, and ABB system compatibility.

Q: Does the SD821 support redundant power supply configuration?
A: The provided technical data does not specify redundancy capability. System documentation should be checked before implementing parallel or backup power arrangements.

Field Installation Guidelines

Install the ABB SD821 inside a suitable industrial control cabinet with appropriate ventilation and mechanical support.

Connect the 230 VAC input wiring according to the applicable electrical installation standard. Verify polarity and grounding requirements on the 24 VDC output side before connecting field devices.

Keep AC input wiring separated from low-voltage DC signal cables to reduce electrical interference. Use proper grounding methods for cabinet assemblies and maintain clean cable routing around control modules.

Before energizing the system, confirm input voltage level, output voltage stability, and load requirements against the installed automation hardware specifications.
