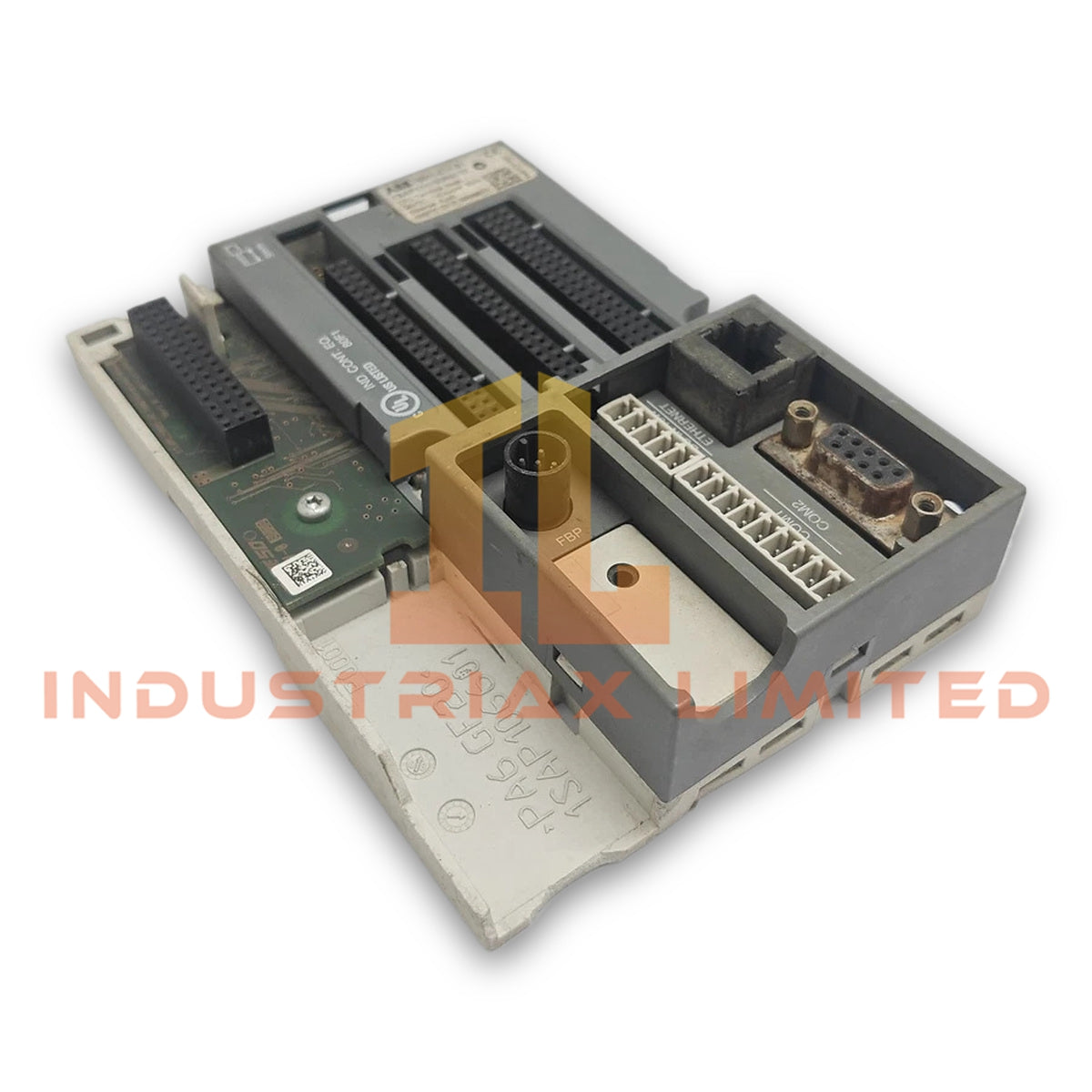

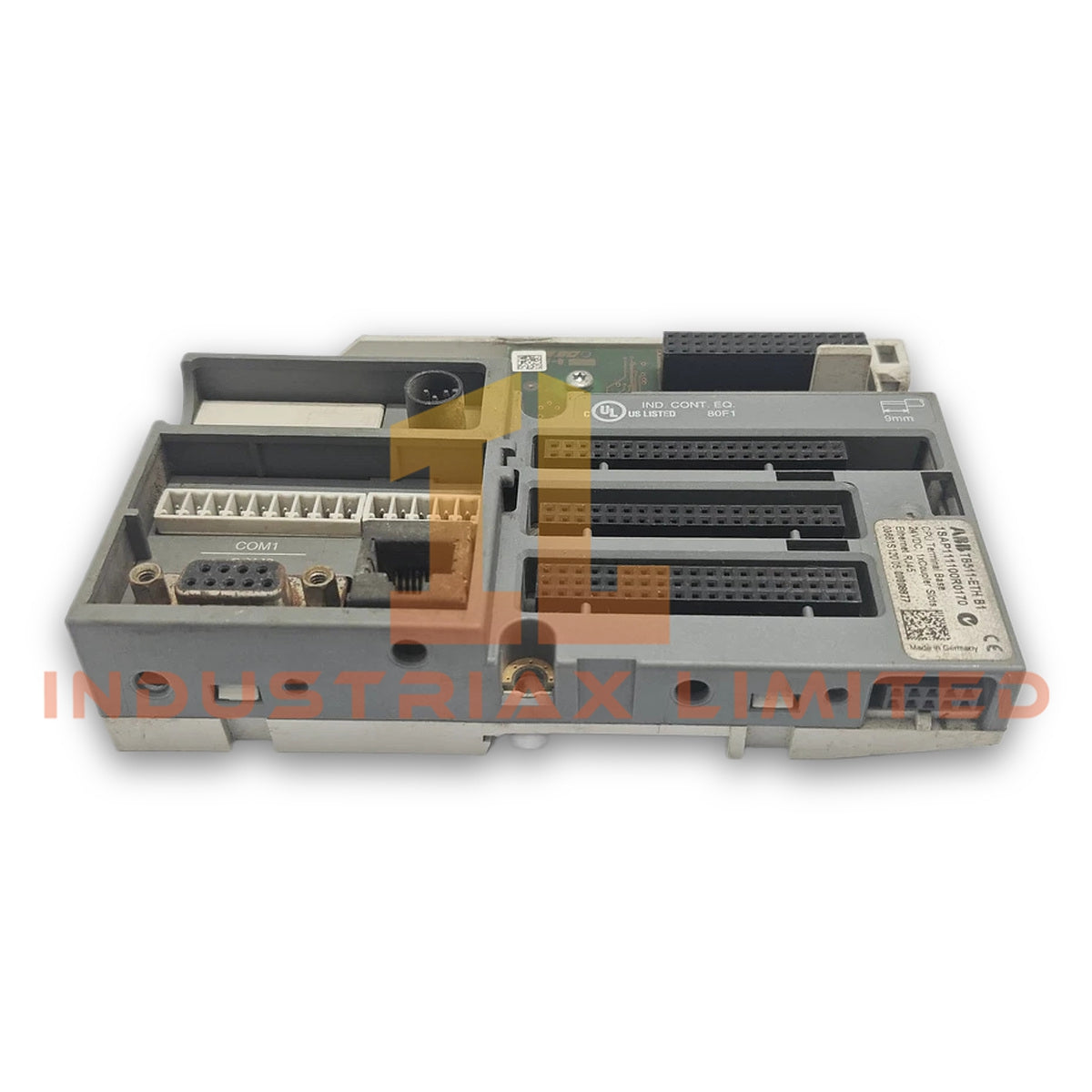

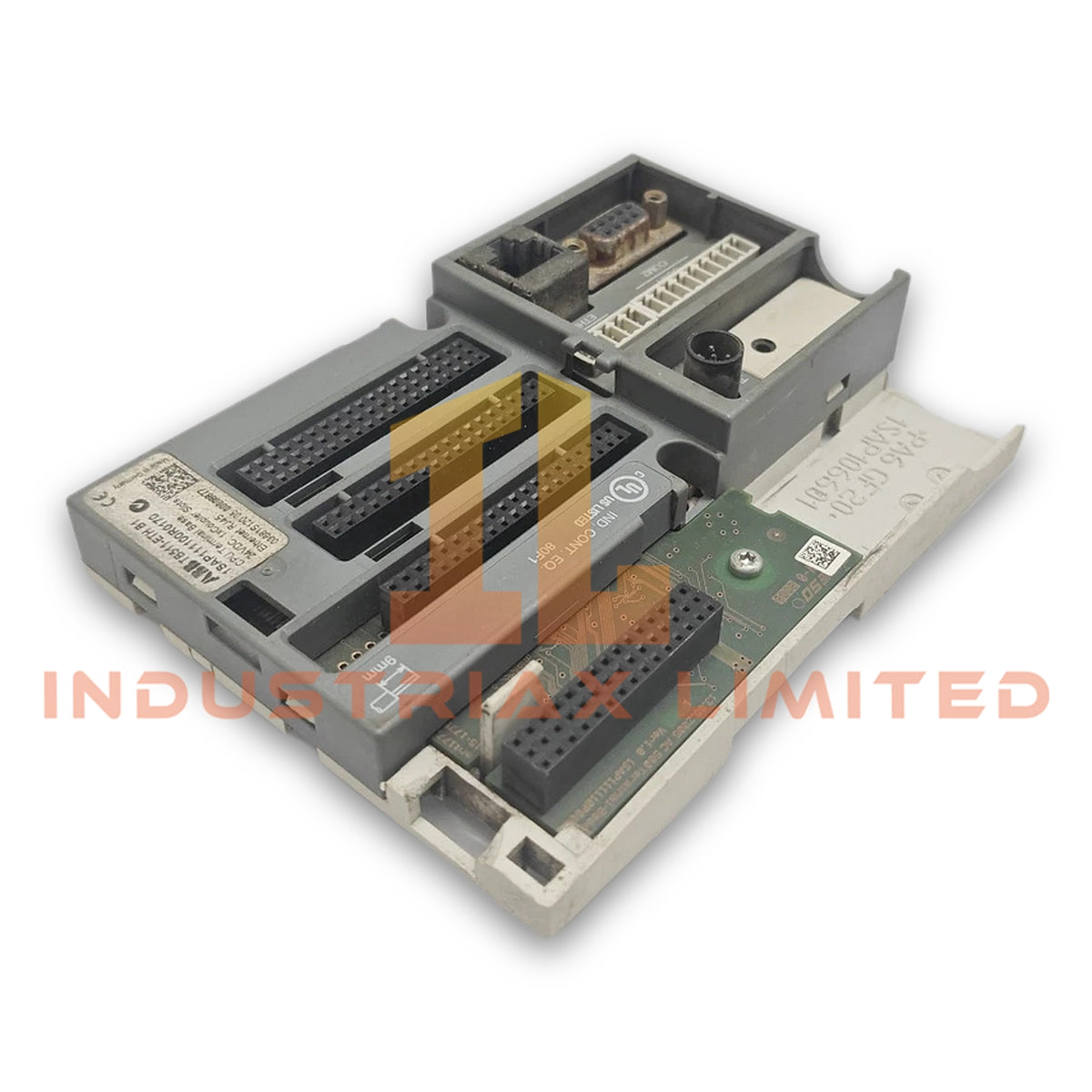

ABB TB511-ETH AC500 V2 Terminal Base

Configured for Ethernet and serial communication module integration in AC500 V2 PLC systems, the ABB TB511-ETH (TB511-ETH Terminal Base) provides physical connection support for communication interfaces including Ethernet, RS232, and RS485 within ABB AC500 V2 platforms.

Hardware Specifications

Parameter	Specification
Model	TB511-ETH
Brand	ABB
Origin	Sweden
Product Type	Terminal Base
System Platform	ABB AC500 V2
Communication Interfaces	Ethernet, 2 x serial interfaces RS232/RS485
Communication Connector Type	D-SUB, RJ45, Terminals
Communication Module Slot	1 slot
Supply Voltage	24 V DC
Input Voltage Type	DC
Degree of Protection	IP20
Operating Temp	0 to +60 deg C
Storage Temperature	-40 to +70 deg C
Weight	0.159 kg
Dimensions	28 x 135 x 95.5 mm

PLC Communication Interface Integration

The ABB TB511-ETH provides an AC500 V2 terminal base structure with integrated communication interfaces. It supports one communication module slot and combines Ethernet networking with two serial channels based on RS232/RS485 electrical standards.

Furthermore, the terminal base supports deterministic PLC communication expansion through ABB AC500 V2 architecture. The design follows industrial PLC backplane communication requirements and enables I/O density scaling within modular controller configurations.

The TB511-ETH operates with 24 V DC supply input and maintains IP20 protection for cabinet-based installations. Its Ethernet interface and serial communication ports allow connection between AC500 V2 controllers and external automation devices.

Frequently Asked Questions

Q: What communication interfaces are available on the ABB TB511-ETH?

A: The TB511-ETH provides one Ethernet interface and two serial interfaces supporting RS232 and RS485 communication through D-SUB, RJ45, and terminal connections.

Q: Can the TB511-ETH operate outside the AC500 V2 platform?

A: The TB511-ETH is designed specifically for ABB AC500 V2 systems and provides the mechanical and electrical interface required by this controller platform.

Q: What environmental conditions are specified for TB511-ETH operation?

A: The module supports operation from 0 to +60 deg C and storage from -40 to +70 deg C according to ABB technical specifications.

Field Installation Guidelines

• Install the TB511-ETH on a compatible ABB AC500 V2 controller assembly according to the system hardware configuration.
• Verify the 24 V DC supply wiring polarity before applying power.
• Connect Ethernet cables separately from high-voltage power conductors to reduce electromagnetic interference.
• Route RS232/RS485 communication wiring with appropriate shielding and grounding practices.
• Confirm terminal connections and connector seating before system commissioning.
• Maintain cabinet airflow requirements within the specified operating temperature range.
• Follow ABB AC500 V2 installation documentation for communication module configuration and firmware compatibility.
