ABB TP857 Baseplate for BC810

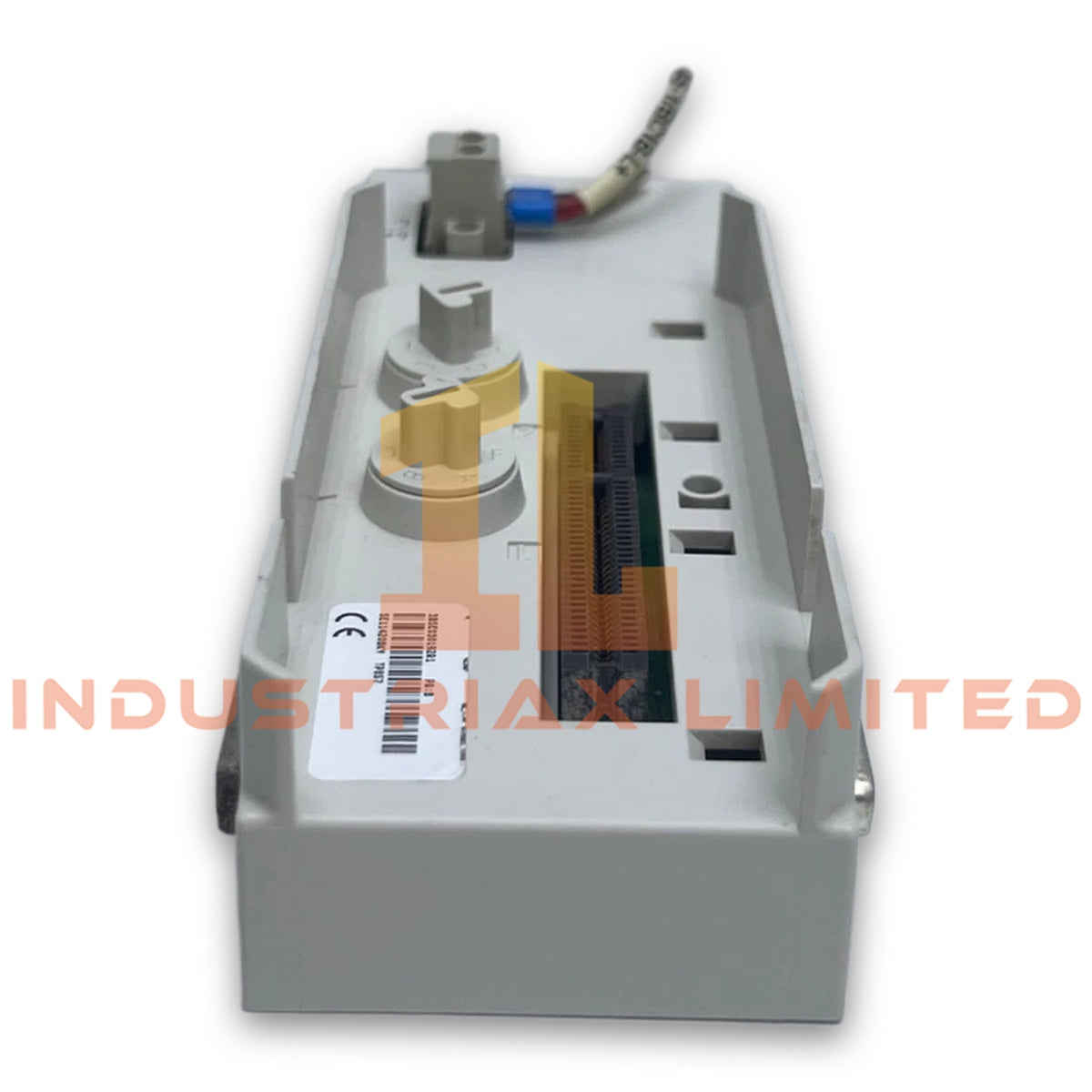

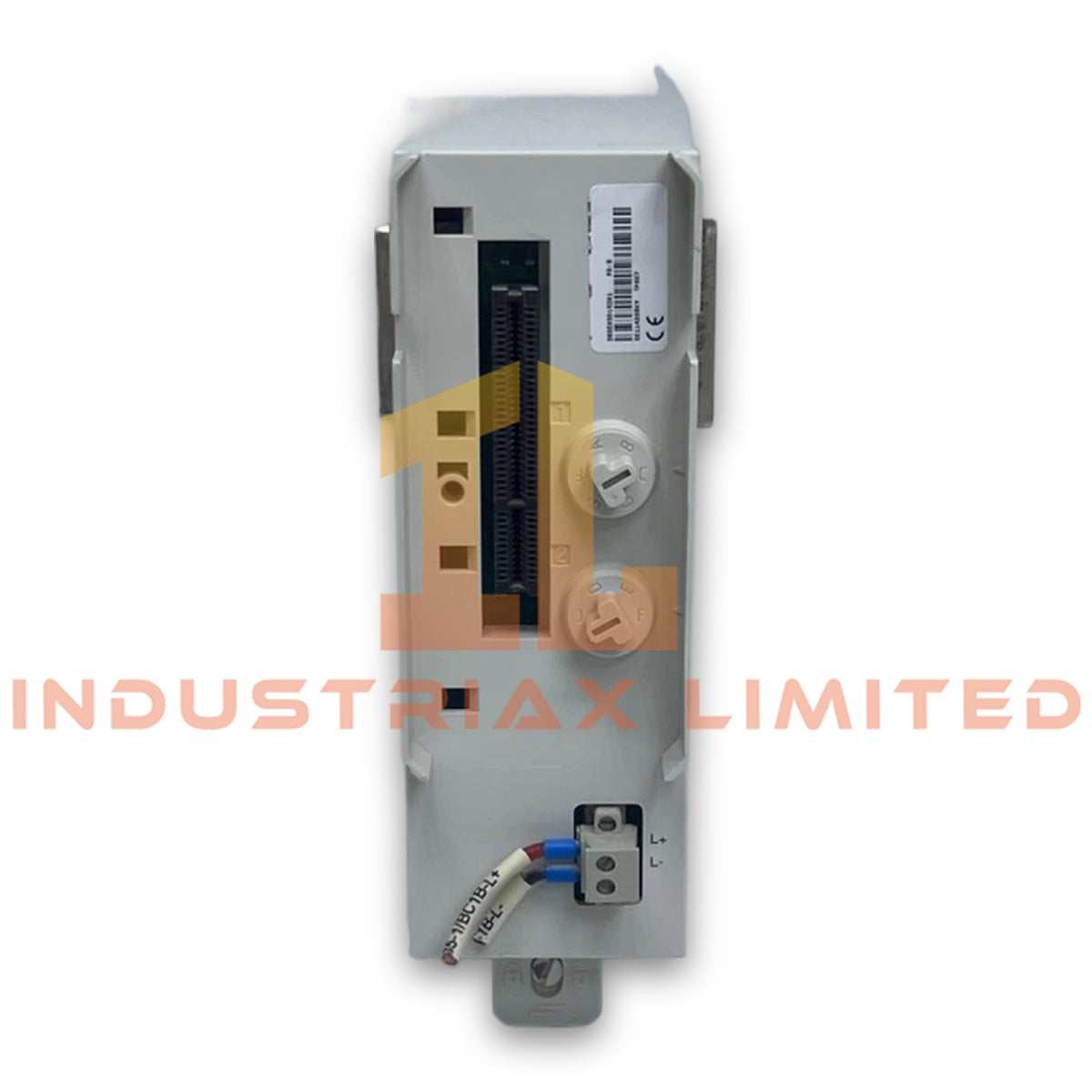

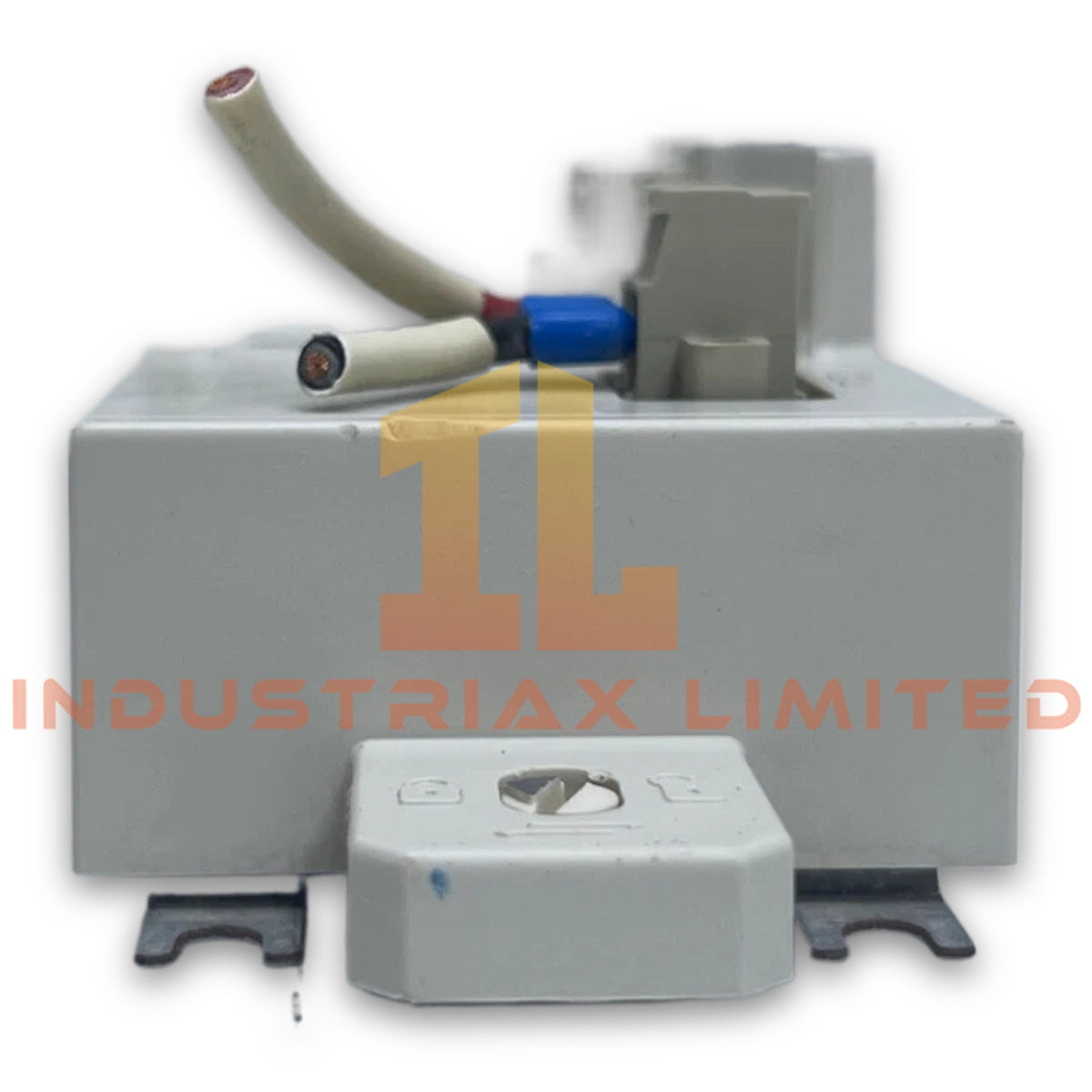

The ABB 3BSE030192R1 TP857, also cataloged as the TP857 Module Termination Unit, provides the physical mounting interface for BC810 communication interface installation within ABB AC 800M controller hardware configurations.

Hardware Specifications

Parameter	Specification
Model	TP857 3BSE030192R1
Brand	ABB
Product Type	Module Termination Unit
Application	Baseplate for BC810 communication interface
Origin	United States / Sweden
Weight	0.27 kg
Dimensions	Width: 60 mm
Power Consumption	Passive baseplate, no external power consumption
Mounting Function	Mechanical support and electrical connection interface for BC810
Compatible Device	BC810 communication interface
Part Type	New
Minimum Order Quantity	1 piece

Backplane Bus Interface and I/O Density Scaling

The ABB TP857 is a passive termination and mounting component designed for BC810 integration in ABB controller architectures. Therefore, it does not execute control logic or process field signals directly. Instead, the baseplate provides the mechanical positioning and electrical interface required for module installation.

Furthermore, the TP857 supports ABB industrial control cabinet layouts by maintaining defined module alignment and connection stability. The component fits ABB AC 800M communication configurations where BC810 units require dedicated baseplate mounting.

The TP857 design follows ABB PLC/DCS hardware integration principles, including structured backplane connection management, module positioning accuracy, and firmware-compatible hardware configurations within supported controller assemblies.

Frequently Asked Questions

Q: What is the primary function of the ABB TP857 3BSE030192R1?
A: The TP857 functions as a baseplate for BC810 communication interface installation, providing mechanical mounting and electrical interface support.

Q: Does the TP857 require an external power supply?
A: No. The TP857 is a passive module termination unit and does not require independent power input.

Q: Can the TP857 be used with other ABB communication modules?
A: The TP857 is specified for BC810 installation. Compatibility with other modules depends on the ABB system configuration and hardware documentation.

Field Installation Guidelines

• Install the TP857 on the designated ABB controller mounting arrangement according to system hardware documentation.
• Verify that the BC810 module is correctly seated before applying system power.
• Maintain proper cabinet grounding practices to reduce electrical interference.
• Route communication and power cables separately where possible to minimize signal coupling.
• Inspect mechanical fixing points and connector interfaces before commissioning.
• Confirm module alignment to prevent damage to the baseplate connection contacts.
