System 800xA S800 AC800M
-
ABB CI858 3BSE018136R1 ABB AC 800M DriveBus Interface
ABB CI858K01 DriveBus Interface The ABB 3BSE018135R1 CI858K01, also cataloged as the CI858K01 DriveBus Interface, operates as a dedicated communication hardware component for DriveBus data exchange within ABB AC 800M controller platforms. Hardware Specifications Parameter Specification Model CI858K01 Product ID 3BSE018135R1 Brand ABB Product Type Communication Module Origin Sweden Weight 0.7 kg Dimensions 127.5 mm depth x 186 mm height x 59 mm width Communication Interface DriveBus Interface Package Contents CI858 Communication Interface + TP858 Baseplate Mounting Type AC 800M controller expansion interface Compliance RoHS according to EU Directive 2011/65/EU WEEE Category Category 5 Small Equipment DriveBus Communication and Industrial Network Integration The CI858K01 provides DriveBus communication capability between ABB AC 800M controllers and connected drive systems. It performs communication processing through the controller expansion architecture and uses the TP858 baseplate for mechanical installation and electrical connection. Furthermore, the module supports ABB industrial drive communication structures where deterministic data exchange between controller logic and drive equipment is required. The interface manages communication traffic through the AC 800M backplane environment and maintains compatibility with ABB controller engineering configurations. The ABB CI858K01 belongs to the industrial control and drive communication category. Therefore, installation requires correct controller bus configuration, approved firmware compatibility, and proper network parameter assignment. Frequently Asked Questions Q: What is the primary function of the ABB CI858K01 module?A: The CI858K01 provides a DriveBus communication interface for ABB AC 800M controller systems. It transfers communication data between the controller platform and connected ABB drive equipment. Q: Does the CI858K01 include the mounting baseplate?A: Yes. The supplied package includes the CI858 communication interface module and the TP858 baseplate. Q: What installation considerations apply to this communication module?A: Installation requires correct placement on the AC 800M expansion architecture, proper electrical connection, and verification of controller configuration parameters. Field Installation Guidelines Install the CI858K01 module on the designated AC 800M controller expansion position according to ABB hardware configuration instructions. Verify that the TP858 baseplate is mechanically secured before connecting the communication interface module. Route communication cables separately from high-voltage power wiring to reduce electromagnetic interference. Use appropriate grounding methods for cabinet assemblies and cable shields according to industrial installation practices. Confirm firmware compatibility and controller configuration before placing the communication interface into operational service.
$199.00 $99.00
-

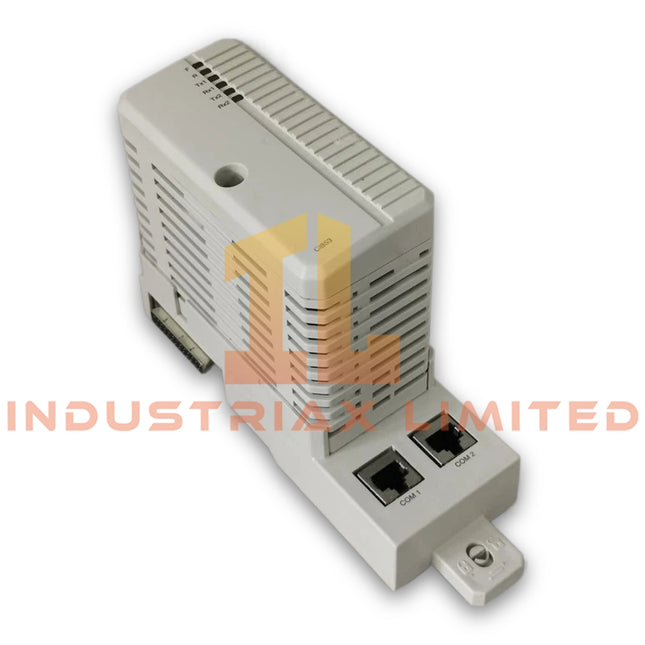

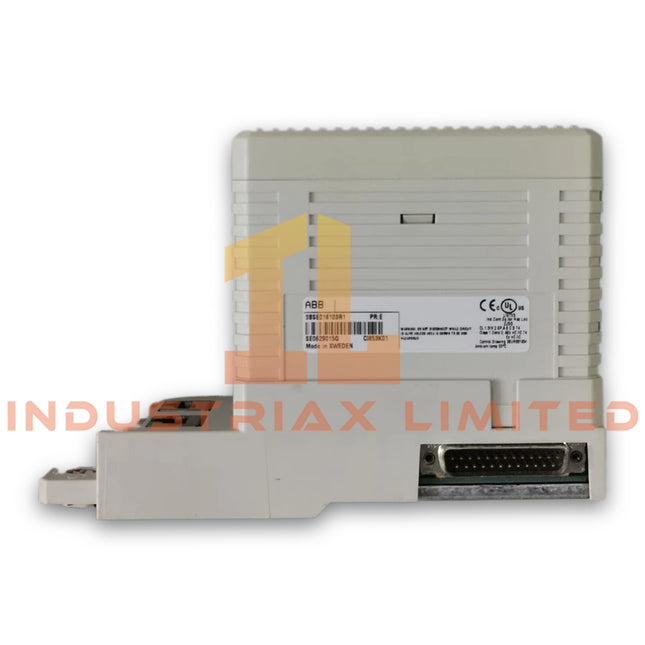

ABB ABB AC 800M CI869 3BSE049110R1 AF 100 Communication Interface Module
ABB CI869 3BSE049110R1 AF 100 Communication Interface Module The ABB CI869 3BSE049110R1, also cataloged as the CI869 AF 100 Communication Interface Module, operates as a dedicated hardware component for Advant Fieldbus 100 communication through twisted pair (TWP) connections within AC 800M controller platforms. Hardware Specifications Parameter Specification Model CI869 3BSE049110R1 Brand ABB Product Type AF 100 Communication Interface Module System Platform ABB AC 800M / AC 160 / Connectivity Server Communication Protocol ABB Advant Fieldbus 100 Communication Role Slave station Connector Twisted Pair (TWP) Transmission Speed 1.5 Mbit/s Line Redundancy Supported Module Redundancy Supported Hot Swap Supported High Integrity Controller Support Supported Maximum Units on CEX Bus 12 Power Supply +24 VDC through CEX-Bus Power Consumption Typical 160 mA at 24 VDC Operating Temp 0 to +55 deg C Storage Temp -40 to +70 deg C Protection Class IP20 according to EN60529 and IEC 529 Corrosion Protection G3 compliant to ISA 71.04 CE Marking Yes WEEE Compliance Directive 2012/19/EU Weight 700 g including base Dimensions 59 mm W x 185 mm H x 127.5 mm D ABB CEX-Bus and AF 100 Communication Architecture The CI869 provides the physical and logical interface between an AC 800M controller and the ABB Advant Fieldbus 100 network. The module integrates CEX-Bus communication logic, an AF 100 communication unit, and a DC/DC converter for internal voltage distribution. The module receives +24 VDC input through the CEX-Bus and supplies the required operating voltage for the communication electronics. Additionally, the integrated twisted pair modem enables direct connection to AF 100 field devices and controller stations. The CI869 supports redundant cable configurations and redundant communication interface arrangements. Therefore, an AC 800M controller equipped with CI869 operates as an AF 100 station that exchanges process data with other AF 100 nodes. Backplane Bus Communication and Redundancy Functions The CI869 uses ABB controller expansion architecture with CEX-Bus communication handling. The module supports communication interface redundancy and line redundancy configurations for continuous fieldbus operation. Furthermore, the module supports hot swap operation, allowing replacement procedures within supported AC 800M configurations without complete system shutdown. The communication design maintains AF 100 slave station behavior while transferring data between connected control nodes. The CI869 can also operate within AC 800M High Integrity systems where communication availability and controlled system behavior are required. Frequently Asked Questions Q: What communication protocol does the CI869 3BSE049110R1 support?A: The CI869 supports ABB Advant Fieldbus 100 communication through twisted pair (TWP) connections with a transmission speed of 1.5 Mbit/s. Q: Does the CI869 support redundant communication configurations?A: Yes. The module supports both line redundancy and module redundancy functions when installed in compatible AC 800M configurations. Q: How is the CI869 powered inside the AC 800M system?A: The CI869 receives +24 VDC supply through the CEX-Bus and uses an internal DC/DC converter to generate required operating voltages. Field Installation Guidelines Install the CI869 module on the designated AC 800M CEX-Bus position according to the controller hardware configuration. Verify that the twisted pair (TWP) fieldbus wiring follows ABB fieldbus installation requirements. Maintain proper cable routing separation from high-voltage power conductors and high-frequency interference sources. Connect the communication shield according to the site grounding standard to minimize electrical noise coupling. Confirm that redundant fieldbus cables and redundant communication interfaces are installed according to the configured system topology. Before commissioning, verify the +24 VDC supply connection, CEX-Bus communication status, and AF 100 network addressing parameters.
$199.00 $99.00
-

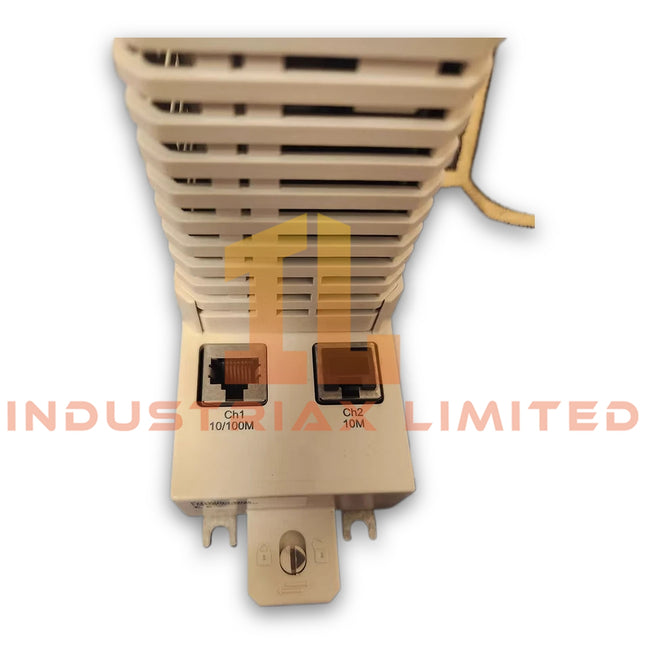

ABB ABB AC 800M CI868K01-eA Communication Interface Module
ABB CI868K01-eA Communication Interface Module Configured for industrial communication data exchange in ABB System 800xA and AC 800M controller networks, the ABB CI868K01-eA (CI868K01-eA Communication Interface Module) provides direct hardware execution for protocol communication and controller interface tasks. Hardware Specifications Parameter Specification Model CI868K01-eA Brand ABB Product Type Communication Interface Module System Compatibility ABB System 800xA / AC 800M controller platforms Communication Function Industrial network interface and controller communication handling Communication Protocols Firmware-dependent industrial communication protocols Mounting Type DIN rail mounting within ABB controller hardware configuration Power Supply 24 VDC system power supply via controller infrastructure Operating Temp 0 deg C to +55 deg C (standard industrial operating range) Power Consumption Not specified by available technical data Protection Class IP20 ABB Industrial Communication Interface Characteristics The CI868K01-eA operates as a dedicated communication interface component within ABB automation architectures. It manages data transmission between controller resources, communication networks, and connected field-level devices. The module uses ABB backplane bus communication technology to exchange configuration data and process information with the host controller. Therefore, system firmware compatibility and controller configuration determine supported network functions. In addition, the module supports industrial network integration where deterministic communication timing and controlled data transfer are required. The hardware design follows ABB controller platform standards for I/O density scaling and modular system expansion. Diagnostic indicators provide local status information for power condition, module operation, communication activity, and fault identification. These indicators assist maintenance personnel during commissioning and troubleshooting procedures. Frequently Asked Questions Q: Is the CI868K01-eA compatible with ABB AC 800M controllers?A: The CI868K01-eA is designed for ABB controller environments including AC 800M systems. Exact compatibility depends on controller firmware version, System 800xA release, and installed communication software. Q: Does the module support hot-swap replacement during controller operation?A: Hot-swap capability depends on the configured ABB system architecture. Field replacement procedures must follow the applicable ABB hardware installation manual. Q: How does the module handle communication diagnostics?A: The module provides LED-based diagnostic indications for power status, module condition, and communication activity. Detailed diagnostic functions depend on firmware and engineering configuration. Field Installation Guidelines Install the CI868K01-eA on the designated ABB DIN rail mounting position according to the controller hardware configuration. Verify that the module seating mechanism is fully engaged before applying system power. Ensure that the backplane connection remains clean and free from contamination. Route communication cables separately from high-voltage power wiring to reduce electrical interference. Use proper cable shielding and connect shield layers according to ABB grounding recommendations. Confirm firmware compatibility before commissioning. After installation, check module diagnostics, communication status, and controller recognition through the engineering tool.
$199.00 $99.00
-
ABB CI820 3BSE013200R1 ABB S800 I/O Redundant Communication
ABB 3BSE013200R1 CI820 S800 Redundant Communication Configured for redundant communication within the ABB S800 I/O system, the ABB 3BSE013200R1 (CI820 S800 Redundant Communication Interface) provides direct hardware execution for dual communication interface operation. The module integrates an AF100 modem, 0.5 FPROM, 0.5 MB SRAM, and 16 MHz processing capability for S800 system communication redundancy. Hardware Specifications Parameter Specification Model CI820 3BSE013200R1 Brand ABB Product Type S800 Redundant Communication Interface Origin Sweden Weight 0.512 kg Communication Interface AF100 Modem Memory 0.5 FPROM, 0.5 MB SRAM Processor Frequency 16 MHz System Compatibility ABB S800 I/O System Redundancy Configuration Two CI820 modules required for redundant operation Customs Tariff Number 85389091 Part Type New Spare Part ABB Industrial Control Communication Architecture The CI820 module operates as a communication interface component for ABB S800 I/O installations. It provides redundant communication capability by using two CI820 units in a configured pair. Therefore, the system can maintain communication availability through a dual interface arrangement. The module supports ABB industrial control architecture through AF100 communication technology. In addition, its onboard memory resources include 0.5 FPROM and 0.5 MB SRAM for firmware storage and operational data handling. The CI820 belongs to the ABB PLC/DCS hardware category, where backplane bus communication velocity, firmware flash compatibility, and I/O system integration parameters define module operation. The module is designed for S800 communication network configurations rather than direct field signal acquisition. Frequently Asked Questions Q: How is redundancy configured for the ABB CI820 3BSE013200R1?A: Redundant communication requires two CI820 modules to be ordered and installed as a redundant pair within the S800 I/O system configuration. Q: What communication hardware is integrated into the CI820 module?A: The CI820 includes one AF100 modem interface together with internal firmware memory and SRAM resources for communication processing. Q: Can the CI820 operate as a standalone redundant communication module?A: The specified configuration requires two CI820 units for redundancy functions. A single module does not provide the complete redundant communication arrangement. Field Installation Guidelines Install the CI820 module according to the ABB S800 I/O system hardware configuration requirements. Verify that the module position and communication connections match the approved system layout. Use appropriate industrial wiring practices for communication cables, including proper cable routing away from high-current power conductors. Connect cable shields according to the plant grounding design to reduce communication interference. Confirm that both CI820 modules are correctly configured before enabling redundant communication functions. Check firmware compatibility between the CI820 module and the associated ABB control system before commissioning.
$199.00 $99.00
-

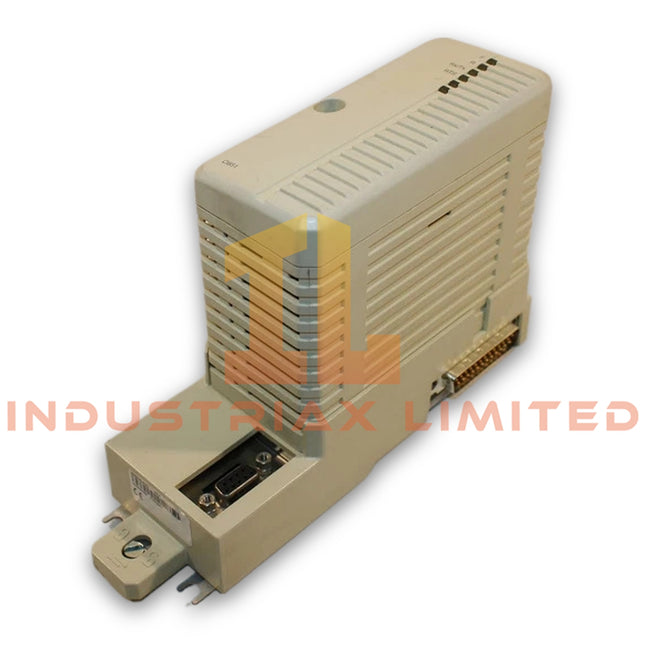

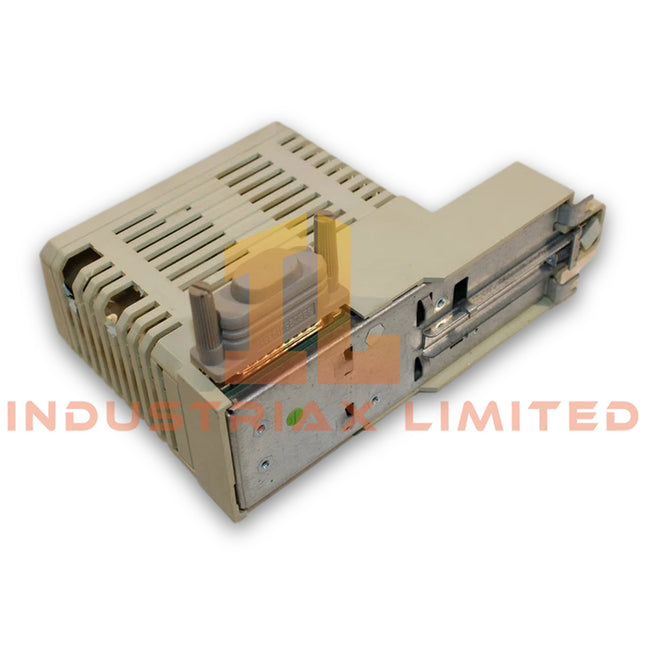

ABB ABB CI851K01 3BSE018101R1 Profibus-DP Interface Module
ABB CI851K01 3BSE018101R1 Profibus-DP Interface Module Configured for Profibus-DP communication in ABB automation networks, the ABB CI851K01 3BSE018101R1 (CI851K01 Profibus-DP Interface Kit) provides direct physical and electrical execution for connecting field devices through a Profibus-DP interface. Hardware Specifications Parameter Specification Model CI851K01 3BSE018101R1 Brand ABB Product Type Communication Module Protocol Type Profibus-DP Interface Function Profibus-DP Interface Kit Communication Speed 12000 kbit/s Number of Channels 1 Origin Sweden Weight 0.3 kg Dimensions 210 mm x 160 mm x 90 mm Battery Quantity 0 Customs Tariff Number 85389091 Minimum Order Quantity 1 piece Part Type New ABB Industrial Network Communication Characteristics The CI851K01 interface module provides Profibus-DP communication between ABB controller systems and connected field-level devices. The module supports a communication speed up to 12000 kbit/s and operates through a single Profibus-DP channel. Additionally, the module integrates into ABB control system architectures through the designated communication interface. Its firmware and hardware design support industrial network data exchange, while backplane bus communication velocity management maintains synchronized controller and I/O data transmission. The Profibus-DP interface uses standard industrial network practices, including shielded cable routing, proper grounding, and controlled signal termination to maintain communication integrity. Frequently Asked Questions Q: What communication protocol does the CI851K01 support?A: The CI851K01 supports the Profibus-DP protocol and provides one communication channel for industrial network connection. Q: Does the CI851K01 include battery components?A: No. The module specification lists the number of batteries as 0. Q: What installation considerations apply to the CI851K01 communication interface?A: Installation requires correct Profibus cable routing, shield grounding, and network termination according to the applicable Profibus installation guidelines. Field Installation Guidelines Install the CI851K01 module in the designated ABB system position according to the controller hardware configuration. Verify that the Profibus-DP cable shielding connects correctly to the protective grounding system. Maintain separation between communication cables and high-voltage power wiring to reduce electromagnetic interference. Confirm Profibus network termination settings before commissioning. Inspect connector seating and mechanical mounting conditions before applying system power. Verify communication status through the ABB engineering configuration tools after installation.
$199.00 $99.00
-
ABB AI801 3BSE020512R1 Analog Input Module ABB S800 I/O
ABB AI801 3BSE020512R1 Analog Input Module The ABB AI801 3BSE020512R1, also cataloged as the AI801 Analog Input Module, provides 8-channel current signal acquisition for ABB S800 I/O system platforms. It converts 0 to 20 mA field signals into 12-bit digital values for industrial control processing. Hardware Specifications Parameter Specification Model AI801 3BSE020512R1 Brand ABB Product Type Analog Input Module System Platform ABB S800 I/O Origin Sweden Weight 0.25 kg Dimensions 13.5 x 9.2 x 5 cm Operating Temp -25 deg C to +70 deg C Power Consumption Not specified Number of Input Channels 8 Input Signal Type 0 to 20 mA Nominal Input Current 0 to 20 mA Resolution 12-bit Input Impedance 250 ohm Input Voltage Drop Maximum 5 V Scanning Time 10 ms per channel Accuracy +/- 0.1% of full-scale range Product ID 3BSE020512R1 Customs Tariff Number 8537101190 ABB S800 I/O Integration and Industrial Communication The AI801 module operates as an ABB S800 I/O analog acquisition unit with direct integration into ABB industrial control architectures. It processes current loop signals through dedicated input channels and transfers converted values through the I/O backplane communication path. Additionally, ABB S800 I/O modules support structured I/O density scaling through modular backplane architectures. The AI801 design allows engineering teams to configure multiple analog input points while maintaining standardized cabinet layouts and service procedures. The module receives 0 to 20 mA signals from field transmitters and instruments. Furthermore, its 12-bit conversion resolution provides digital measurement data for controller-level monitoring and regulation functions. Frequently Asked Questions Q: How many analog input channels does the ABB AI801 3BSE020512R1 provide?A: The AI801 provides 8 analog input channels configured for 0 to 20 mA current signals. Q: What input impedance does the AI801 analog input channel use?A: Each input channel has an input impedance of 250 ohm for current signal measurement. Q: What installation conditions should be considered for this module?A: The module should be installed in an ABB S800 I/O environment with correct backplane connection, proper grounding, and suitable cabinet ventilation according to system installation requirements. Field Installation Guidelines Install the AI801 module on the designated ABB S800 I/O mounting unit and verify correct mechanical locking before operation. Connect field current loops using shielded industrial wiring where required by the installation environment. Terminate cable shields according to site grounding practices to reduce electrical interference. Separate analog signal wiring from high-voltage power cables and switching circuits. Verify input polarity and current loop continuity before applying system power. Confirm controller configuration parameters match the AI801 channel settings before commissioning.
$199.00 $99.00
-
ABB AI809 ABB S800 I/O Analog Input Module
ABB AI809 Analog Input Module The ABB AI809 (AI809 Analog Input Module) provides analog signal acquisition for ABB S800 I/O systems through ABB industrial control networks. The module converts field analog inputs into process data for controller execution and monitoring functions. Hardware Specifications Parameter Specification Model AI809 Brand ABB Product Type Analog Input Module Series ABB S800 I/O Origin Sweden Operating Temp Industrial operating range; refer to ABB system installation specifications Power Consumption ModuleBus supplied; value depends on system configuration Input Type Analog input signals; configuration depends on application setup Channel Configuration Multi-channel analog acquisition module Mounting Type DIN rail mounting through ABB Module Termination Unit (MTU) Communication Interface ABB ModuleBus communication Signal Conversion Analog-to-digital signal conversion Backplane Bus Communication and I/O Integration The ABB AI809 operates within the ABB S800 I/O architecture and communicates process values through the ModuleBus interface. Therefore, the module supports distributed signal acquisition where field devices connect through dedicated termination units. The module design follows ABB industrial I/O concepts, including firmware-based configuration, controller communication, and scalable I/O density expansion. In addition, the S800 platform allows integration with ABB control systems through standardized engineering tools. The AI809 supports analog measurement processing where signal accuracy depends on field wiring quality, grounding configuration, and selected input parameters. Furthermore, proper channel configuration ensures correct data scaling between field instruments and the control application. Frequently Asked Questions Q: What system platform does the ABB AI809 support?A: The AI809 is designed for ABB S800 I/O system integration and communicates process data through the ABB ModuleBus interface. Q: Does the AI809 require a separate termination unit for installation?A: Yes. The module is installed with an ABB Module Termination Unit (MTU), which provides field connection and mechanical mounting functions. Q: What factors affect analog signal accuracy on the AI809?A: Signal accuracy depends on field transmitter calibration, cable shielding, grounding practices, and correct module channel configuration. Field Installation Guidelines Install the AI809 on the specified ABB S800 I/O mounting arrangement and verify mechanical locking before system startup. Connect field analog wiring according to ABB terminal assignment documentation. Keep analog signal cables separated from high-voltage power cables to reduce electrical interference. Use appropriate cable shielding and connect shields according to the plant grounding design. Verify field transmitter polarity, signal range settings, and controller channel configuration before commissioning. Confirm ModuleBus communication status after installation and check diagnostic information through the ABB engineering environment.
$199.00 $99.00
-
ABB AI815 3BSE052604R1 S800 I/O Analog Input Unit - HART
ABB AI815 3BSE052604R1 Analog Input Unit - HART The ABB AI815 3BSE052604R1, also cataloged as the AI815 Analog Input Unit, provides 8-channel analog signal acquisition with HART pass-through communication for ABB S800 I/O system platforms. The module processes unipolar single-ended current and voltage inputs for industrial measurement loops. Hardware Specifications Parameter Specification Model AI815 3BSE052604R1 Brand ABB Product Type Analog Input Unit - HART Origin Sweden Weight 0.25 kg Dimensions 4.5 x 11 x 11.8 cm (estimated shipping size) Input Channels 8 channels Signal Type Unipolar single ended Input Signal Range 0-20 mA, 4-20 mA, 0-5 V, 1-5 V DC Resolution 12 bit Isolation 1 group of 8 channels isolated from ground Transmitter Supply Current limited supply per channel Communication Function HART pass-through communication Mounting Platform ABB S800 I/O system Backplane Bus Communication and I/O Density Scaling The ABB AI815 module operates within the S800 I/O architecture and exchanges process data through the I/O system backplane communication interface. Therefore, the module supports structured channel allocation for distributed control configurations. The unit provides 8 analog input channels with single-ended unipolar signal handling. Additionally, the HART pass-through function allows communication between compatible field transmitters and higher-level control systems without separate HART multiplexing hardware. The module design supports I/O density scaling by integrating multiple analog channels into compact S800 I/O stations. Furthermore, channel grouping and grounding isolation reduce interference between field wiring and control electronics. Frequently Asked Questions Q: What input signals can the ABB AI815 3BSE052604R1 process?A: The AI815 supports 0-20 mA, 4-20 mA, 0-5 V, and 1-5 V DC unipolar single-ended analog input signals. Q: Does the AI815 provide HART communication support?A: Yes. The module provides HART pass-through communication, allowing HART field device data transmission through the analog input channels. Q: How are the input channels isolated in the AI815 module?A: The module provides one group of 8 channels isolated from ground. Field wiring practices should maintain proper shielding and grounding requirements. Field Installation Guidelines Install the AI815 module according to ABB S800 I/O system mechanical and electrical installation requirements. Verify that field signal wiring matches the configured input type, including current or voltage measurement ranges. Use shielded cables for analog signal connections in environments with electrical noise sources. Connect cable shields according to the site grounding standard to reduce electromagnetic interference. Separate analog signal wiring from high-voltage power cables and switching circuits. Confirm terminal connections before applying field power to transmitters and input loops. Check HART communication routing after completing loop wiring and controller configuration.
$199.00 $99.00
-
ABB AI815-eA 3BSE052604R2ABB S800 I/O Analog Input HART Module
ABB AI815-eA Analog Input HART Module Configured for analog current and voltage signal acquisition in ABB S800 I/O systems, the ABB AI815-eA 3BSE052604R2 (AI815-eA Analog Input HART Module) provides direct physical signal conversion for 4-20 mA and voltage field inputs with integrated HART communication capability. Hardware Specifications Parameter Specification Model AI815-eA 3BSE052604R2 Brand ABB Product Type Analog Input HART Module System Platform ABB S800 I/O System Origin Sweden Weight Approximately 0.23 kg Dimensions Width 45 mm, Height 119 mm, Depth 102 mm, 111 mm including connector Number of Channels 8 channels Channel Configuration 1 group of 8 channels, single-ended with common return Input Signal Range 0(4) to 20 mA, 0(1) to 5 V Resolution 12 bits HART Communication Integrated HART protocol interface Transmitter Power Supply Current-limited transmitter power distribution Compatible MTU Units TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838 ABB S800 I/O Signal Processing and HART Communication The AI815-eA module processes analog field signals through 8 input channels configured for single-ended measurement with a common return path. Therefore, each channel receives standard industrial current or voltage signals and converts them into digital values for ABB S800 I/O controller processing. Additionally, the integrated HART interface supports digital communication over standard 4-20 mA current loops. The module can exchange field device information, configuration parameters, and diagnostic data without interrupting the primary analog measurement signal. For ABB industrial control architectures, the module supports I/O density scaling through S800 I/O station expansion and maintains communication through the system backplane bus. The hardware design allows integration with compatible MTU configurations for simplified field wiring and cabinet installation. Frequently Asked Questions Q: Does the AI815-eA support both current and voltage input signals?A: Yes. The module supports 0(4) to 20 mA current inputs and 0(1) to 5 V voltage inputs through its 8 analog input channels. Q: What HART function is integrated into the AI815-eA module?A: The module provides an integrated HART protocol interface that allows digital communication over 4-20 mA analog loops for field device data exchange. Q: Which ABB termination units are compatible with the AI815-eA?A: The module supports TU810, TU812, TU814, TU818, TU830, TU833, TU835, and TU838 termination units. Field Installation Guidelines Install the AI815-eA module within an ABB S800 I/O station using the specified compatible termination unit. Verify correct terminal assignment before connecting field current or voltage loops. Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference. Use shielded instrumentation cables for analog and HART communication loops where required by the installation design. Connect cable shields according to the site grounding standard to prevent signal disturbance. Confirm field transmitter power requirements before connecting devices to the current-limited transmitter supply output. Check module addressing and controller configuration parameters before placing the I/O channel into operation.
$199.00 $99.00
-
ABB AI820 3BSE008544R1 ABB S800 I/O Analog Input Module
ABB AI820 3BSE008544R1 Analog Input Module The ABB AI820 3BSE008544R1, also cataloged as the AI820 Analog Input Module, operates as a dedicated hardware component for analog signal acquisition within ABB S800 I/O systems. It provides four individually galvanically isolated input channels for current and voltage measurement with 14 bit plus sign resolution. Hardware Specifications Parameter Specification Model AI820 3BSE008544R1 Brand ABB Product Type Analog Input Module Origin Sweden Weight 0.18 kg Dimensions 4.5 x 10.5 x 12 cm Operating Temp Not specified Power Consumption 1.7 W Signal Specification -20 to +20 mA, 0(4) to 20 mA, -10 to +10 V, 0(2) to 10 V Number of Channels 4 channels Channel Isolation Individually galvanic isolated Resolution 14 bit plus sign Input Range Under/Over Range +/- 15% Input Filter Rise Time 40 ms (0 to 90%) Dielectric Test Voltage 500 V AC Current Consumption +5 V ModuleBus 80 mA Current Consumption +24 V External 70 mA Input Impedance 250 ohm for current input Current Input Capability 20 mA Voltage Input Capability 10 VDC ABB Industrial Control and I/O Integration Characteristics The ABB AI820 module interfaces with ABB S800 I/O architectures through ModuleBus communication. It processes bipolar and unipolar analog signals while maintaining galvanic isolation between input channels. Therefore, the module supports separated field signal measurement for industrial control applications requiring isolated analog acquisition. The AI820 follows ABB industrial I/O density scaling principles by providing four configurable analog channels in a compact module format. In addition, its 14 bit plus sign conversion architecture allows the controller system to process positive and negative measurement values for voltage and current inputs. The module supports backplane bus communication velocity within the ABB S800 I/O platform and maintains firmware flash compatibility according to the installed controller and system configuration. Consequently, engineering teams can integrate the module into existing ABB control environments with defined hardware revision management. Frequently Asked Questions Q: What analog signals can the ABB AI820 3BSE008544R1 measure?A: The module accepts current signals of -20 to +20 mA and 0(4) to 20 mA, as well as voltage signals of -10 to +10 V and 0(2) to 10 V. Q: Does the AI820 provide electrical isolation between input channels?A: Yes. The AI820 provides four individually galvanically isolated input channels to separate field signal circuits. Q: What power sources supply the AI820 module?A: The module receives power through the ABB ModuleBus system with +5 V ModuleBus current consumption of 80 mA and requires +24 V external supply current of 70 mA. Field Installation Guidelines Install the AI820 module in an ABB S800 I/O station with correct ModuleBus connection and approved terminal configuration. Verify field wiring polarity before connecting current and voltage input signals. Use shielded signal cables for low-level analog measurement circuits where electromagnetic interference may affect signal accuracy. Connect cable shields according to the plant grounding standard to reduce electrical noise coupling. Separate analog signal wiring from high-current power cables and switching circuits. Confirm the configured input range matches the connected field transmitter or measurement device before commissioning. Check module status indicators after installation to verify correct communication with the controller system.
$199.00 $99.00
-
ABB AI825 3BSE036456R1 ABB S800 I/O Analog Input Module
ABB AI825 3BSE036456R1 Analog Input Module The ABB AI825 3BSE036456R1, also cataloged as the AI825 Analog Input Module, operates as a dedicated hardware component for bipolar current and voltage signal acquisition within ABB S800 I/O systems. The module provides 4 individually galvanic isolated input channels with selectable current or voltage measurement functions. Hardware Specifications Parameter Specification Model AI825 3BSE036456R1 Brand ABB Product Type Analog Input Module Series S800 I/O Origin Sweden Weight 0.22 kg Dimensions 45 mm W x 102 mm D x 119 mm H Operating Temp 0 to +55 deg C Power Consumption Typ. 2.5 W, Max. 3.2 W Article Number 3BSE036456R1 Signal Specification -20 to +20 mA, 0(4) to 20 mA, -10 to +10 V, 0(2) to 10 V Number of Channels 4 HART Support No SOE Support No Redundancy No High Integrity No Intrinsic Safety No Resolution 14 bit plus sign Input Impedance 10 MOhm voltage input, 50 Ohm current input Isolation Individually isolated channel-to-channel and to circuit common Under/Over Range +/- 15% Maximum Error 0.1% Input Filter Rise Time 115 ms voltage input, 130 ms current input Update Cycle Time Less than 10 ms Maximum Field Cable Length 600 m CMRR 120 dB at 50 Hz and 60 Hz NMRR Greater than 40 dB at 50 Hz, greater than 55 dB at 60 Hz Rated Insulation Voltage 250 V Dielectric Test Voltage 1900 VDC channel-to-channel, 3250 VDC channel-to-ground/system ModuleBus Current Consumption +5 V Typ. 70 mA, Max. 100 mA ModuleBus Current Consumption +24 V Typ. 90 mA, Max. 110 mA External +24 V Consumption 0 Compatible MTU TU811, TU813, TU831 Keying Code DA Protection Class IP20 according to IEC 60529 Humidity Range 5 to 95 %, non-condensing Storage Temperature -40 to +70 deg C ABB S800 I/O Backplane and Isolation Characteristics The AI825 uses ABB S800 I/O architecture with ModuleBus power conversion from the 24 V supply. Each input channel maintains individual galvanic isolation, which separates field signals from adjacent channels and the internal circuit common. The module supports direct current measurement inputs with overvoltage protection. The current input circuit uses a PTC resistor for current limitation, while the voltage input stage withstands up to 6.3 V input levels. Therefore, the module can process mixed field signals without external signal conditioning. The S800 platform provides structured I/O density scaling through the ModuleBus interface. The AI825 supports deterministic communication between the I/O module and ABB controller platforms through the S800 I/O communication structure. Frequently Asked Questions Q: Does the AI825 support HART communication for smart field devices?A: No. The AI825 is a standard analog input module and does not provide HART protocol communication capability. Q: Can each AI825 input channel be configured independently?A: Yes. Each of the 4 channels can operate as either a voltage input or a current input with individual galvanic isolation. Q: What MTU units are compatible with the AI825 module?A: The AI825 supports TU811, TU813, and TU831 Module Termination Units with keying code DA. Field Installation Guidelines Install the AI825 module in an ABB S800 I/O station using the specified compatible MTU. Confirm the mechanical keying position before insertion to prevent incorrect module placement. Connect field wiring according to the selected current or voltage input configuration. Keep analog signal cables separated from high voltage and high current conductors to reduce electrical interference. Use proper cable shielding practices for analog signal lines. Connect shields according to the plant grounding standard and avoid creating unwanted ground loops. Verify ModuleBus connections and 24 V power supply quality before system commissioning. Check front LED indicators for Fault, Run, and Warning status after installation.
$199.00 $99.00
-
ABB AI830 3BSE008519R1 RTD Input Module ABB S800 I/O
ABB AI830 3BSE008518R1 RTD Input Module Configured for RTD temperature signal acquisition in ABB System 800xA and S800 I/O networks, the ABB AI830 3BSE008518R1 (AI830 RTD Input Module) provides direct physical measurement of resistive temperature elements through 8 analog input channels. Hardware Specifications Parameter Specification Model AI830 3BSE008518R1 Brand ABB Product Type RTD Input Module Origin Sweden Weight 0.24 kg Dimensions 4.5 x 10.5 x 12 cm Power Consumption 1.6 W Module Type Analog Input Signal Specification 3-wire RTD: Pt100, Cu10, Ni100, Ni120 and resistive potentiometer Number of Channels 8 Update Cycle Time 150 + 9 ms Rated Insulation Voltage 50 V Dielectric Test Voltage 500 V AC CMRR at 50 Hz / 60 Hz >60 dB Current Consumption +5 V Modulebus 70 mA Tariff Code 8537101190 ABB S800 I/O Backplane Integration and I/O Density Scaling The AI830 operates as an ABB S800 I/O analog input component with direct Modulebus communication. It supports configurable channel parameters, allowing each RTD input channel to operate independently according to the connected sensor type. The module performs signal linearization and temperature conversion into Centigrade or Fahrenheit values internally. In addition, the MainsFreq parameter configures the 50 Hz or 60 Hz notch filter cycle to reduce power frequency interference during measurement. The AI830 follows ABB industrial control architecture principles, including I/O density scaling through modular channel allocation and standardized backplane communication interfaces. Frequently Asked Questions Q: Which temperature sensors can the ABB AI830 3BSE008518R1 measure?A: The AI830 supports 3-wire RTD sensors including Pt100, Cu10, Ni100, Ni120, and resistive potentiometers. Q: Does each AI830 input channel have independent configuration capability?A: Yes. Each of the 8 RTD input channels can be configured individually for the connected resistive measurement element. Q: What installation requirement applies to RTD sensor wiring?A: All connected RTD elements must remain isolated from ground to maintain correct measurement performance. Field Installation Guidelines Install the AI830 module in the designated ABB S800 I/O rack position according to system configuration requirements. Connect RTD sensors using 3-wire wiring methods and maintain correct terminal assignments. Keep RTD signal cables separated from high voltage and high current conductors to reduce electrical interference. Ensure all RTD sensors remain isolated from ground unless the system design specifies another grounding method. Verify channel configuration parameters before commissioning temperature measurements. Check Modulebus communication status after installation to confirm correct module recognition.
$199.00 $99.00
-
ABB AI835 3BSE051306R1 ABB S800 I/O Analog Input Module
ABB AI835A Analog Input Module The ABB AI835A, also cataloged as the AI835A Analog Input Module, operates as a dedicated hardware component for thermocouple and millivolt signal measurement within ABB System 800xA S800 I/O platforms. The module provides 8 differential input channels with configurable TC and mV measurement ranges, including cold junction compensation functions. Hardware Specifications Parameter Specification Model AI835A Spare Model 3BSE051306R1 Brand ABB Product Type Analog Input Module Weight 0.25 kg Dimensions 4.1 x 11 x 12 cm (estimated shipping size) Operating Temp Not specified Power Consumption 1.6 W Input Channels 8 differential input channels Input Type Thermocouple and mV measurement mV Measurement Range -30 mV to +75 mV linear Supported Thermocouple Types B, C, D, E, J, K, L, N, R, S, T, U Resolution 15 bits Input Impedance > 1 MOhm Isolation Groupwise isolated from ground Maximum Error 0.1% Temperature Drift Typical 5 ppm/deg C, maximum 7 ppm/deg C Update Cycle Time 280 + 80 x active channels ms at 50 Hz; 250 + 70 x active channels ms at 60 Hz Maximum Field Cable Length 600 m CMRR 120 dB at 50 Hz and 60 Hz NMRR > 60 dB at 50 Hz and 60 Hz Rated Insulation Voltage 50 V Dielectric Test Voltage 500 V AC Current Consumption +5 V Modulebus 75 mA Current Consumption +24 V Modulebus 50 mA Current Consumption +24 V External 0 Backplane Bus Communication and I/O Architecture The AI835A integrates into ABB S800 I/O architecture through the Modulebus interface. The module exchanges measured analog values through the backplane communication path while maintaining channel-level signal conditioning. The module supports I/O density scaling by providing 8 differential measurement channels in a compact I/O configuration. In addition, the firmware flash compatibility within the ABB System 800xA environment allows configuration parameters and measurement functions to be managed through standard engineering tools. The AI835A supports channel-specific configuration for thermocouple and millivolt inputs. Therefore, each input channel can be assigned according to the connected field sensor requirements. Cold Junction Compensation and Signal Processing The AI835A provides cold junction compensation (CJC) capability through Channel 8 configuration. Channel 8 can operate as an ambient temperature measurement channel for Channels 1 to 7. The junction temperature can be measured directly at the MTU screw terminals or through a remote connection unit. Alternatively, the user can configure a fixed junction temperature parameter. For AI835A applications, the fixed value can also be provided from the application software. When CJC measurement is not required, Channel 8 operates as a standard thermocouple or mV input channel. Frequently Asked Questions Q: How many measurement channels does the AI835A provide?A: The AI835A provides 8 differential input channels configured for thermocouple and millivolt signal measurement. Q: Can the AI835A measure different thermocouple types?A: Yes. The module supports thermocouple types B, C, D, E, J, K, L, N, R, S, T, and U, together with a -30 mV to +75 mV linear input range. Q: How does the AI835A perform cold junction compensation?A: Channel 8 can be configured as a cold junction temperature channel. The module can measure junction temperature locally through MTU terminals, remotely through a connection unit, or use a configured fixed temperature value. Field Installation Guidelines Install the AI835A in the designated ABB S800 I/O module position and verify correct Modulebus connection before commissioning. Use shielded field wiring for thermocouple and mV signal connections. Connect cable shields according to the ABB system grounding specification to reduce electromagnetic interference. Keep low-level analog signal cables separated from high-voltage power wiring and switching circuits. Verify terminal assignments before applying field signals. Check sensor polarity, thermocouple type configuration, and cold junction compensation settings during commissioning. Confirm input values through the engineering workstation before placing the measurement loop into operation.
$199.00 $99.00
-
ABB ABB S800 I/O AI845 Analog Input Redundant Module
ABB AI845 Analog Input Redundant Module The ABB AI845 3BSE023675R1, also cataloged as the AI845 Analog Input Redundant Module, operates as a dedicated hardware component for analog current and voltage signal acquisition within ABB System 800xA control platforms. The module processes 8 single-ended channels and supports HART communication for field transmitter data exchange. Hardware Specifications Parameter Specification Model AI845 3BSE023675R1 Brand ABB Module Type Analog Input S/R HART Module System Platform ABB System 800xA / S800 I/O Origin Sweden Weight Approximately 0.23 kg Dimensions 45 x 102 x 119 mm Number of Channels 8 single-ended analog input channels Input Signal Range 0(4)-20 mA, 0(1)-5 V Resolution 12-bit Communication Protocol HART protocol support Transmitter Supply Current-limited transmitter power distribution Diagnostics Integrated module diagnostics Backplane Communication and I/O Configuration The AI845 module operates as an ABB S800 I/O analog input component with integration through the controller backplane communication system. The module supports I/O density scaling through multiple channel configurations while maintaining standardized analog signal processing. Furthermore, the HART communication interface allows digital field device information to transfer together with the analog measurement signal. The module can process transmitter variables and diagnostic data from compatible HART-enabled instruments. The module design supports ABB industrial control architectures using structured I/O configuration, firmware compatibility management, and system-level diagnostic monitoring. Frequently Asked Questions Q: Does the ABB AI845 support HART communication on analog input channels?A: Yes. The AI845 supports HART communication for compatible field transmitters, allowing digital device information to be transferred with the analog input signal. Q: How many analog input channels are available on the AI845 module?A: The AI845 provides 8 single-ended analog input channels for current and voltage measurement applications. Q: What input signals can the AI845 process?A: The module accepts 0(4)-20 mA current signals and 0(1)-5 V voltage signals with 12-bit resolution. Field Installation Guidelines Install the AI845 module according to ABB S800 I/O system installation procedures. Verify that the module is correctly seated in the I/O carrier and that the backplane connection is fully engaged before system startup. Use shielded signal cables for analog transmitter wiring where required by the installation environment. Connect cable shields according to the plant grounding standard to reduce electrical interference. Separate analog signal wiring from high-voltage power cables and switching circuits. Confirm transmitter polarity, loop wiring, and channel configuration before applying field power. Check module diagnostics after installation through the ABB control system engineering tools. Validate input values against the connected field transmitter output before placing the channel into operational service.
$199.00 $99.00
-
ABB ABB S800 I/O 3BSE028600R1 AI880 Analog Input Unit
ABB 3BSE028600R1 AI880 Analog Input Unit Configured for analog signal acquisition in ABB S800 I/O and control system platforms, the ABB 3BSE028600R1 (AI880 Analog Input Unit) provides direct physical/electrical execution for high integrity input measurement and signal processing tasks. Hardware Specifications Parameter Specification Model 3BSE028600R1 Brand ABB Product Type Analog Input Unit ABB Type Designation AI880 Origin Sweden Weight 0.01 kg Configuration High integrity, single or redundant operation Application Interface Analog input signal acquisition Product Category Spare Parts Replacement Product ID 3BSE039293R1 Customs Tariff Number 85389091 ABB S800 I/O Backplane Communication and I/O Density Scaling The AI880 module integrates with ABB S800 I/O architectures through the standard module communication interface. Therefore, it supports structured analog input processing within ABB distributed control configurations. The module design supports high integrity configurations with either single installation or redundant arrangements. Additionally, ABB system engineering can apply redundancy planning to increase availability for critical analog measurement loops. The S800 I/O platform uses standardized backplane communication methods to exchange channel data, diagnostic information, and module status information between field I/O modules and controller systems. Frequently Asked Questions Q: Can the AI880 3BSE028600R1 operate in a redundant configuration?A: Yes. The technical specification identifies the AI880 as supporting single or redundant configurations. The exact redundancy implementation depends on the ABB control system hardware configuration. Q: Is the AI880 3BSE028600R1 a complete controller module?A: No. The AI880 is an Analog Input Unit designed for analog signal acquisition within ABB I/O systems. It does not execute user control logic. Q: Can the module be replaced by another part number?A: The listed replacement product ID is 3BSE039293R1. System compatibility should be verified before replacement installation. Field Installation Guidelines Install the AI880 module only in compatible ABB S800 I/O hardware configurations. Verify the module position, addressing, and controller configuration before energizing the system. Connect analog field wiring according to ABB installation documentation and approved cabinet drawings. Separate analog signal cables from high voltage and high current conductors to reduce electrical interference. Use proper shield grounding practices according to the plant grounding standard. Confirm module diagnostics and communication status after installation through the ABB engineering environment. For redundant configurations, verify the redundancy arrangement and communication status before placing the system into operation.
$199.00 $99.00
-

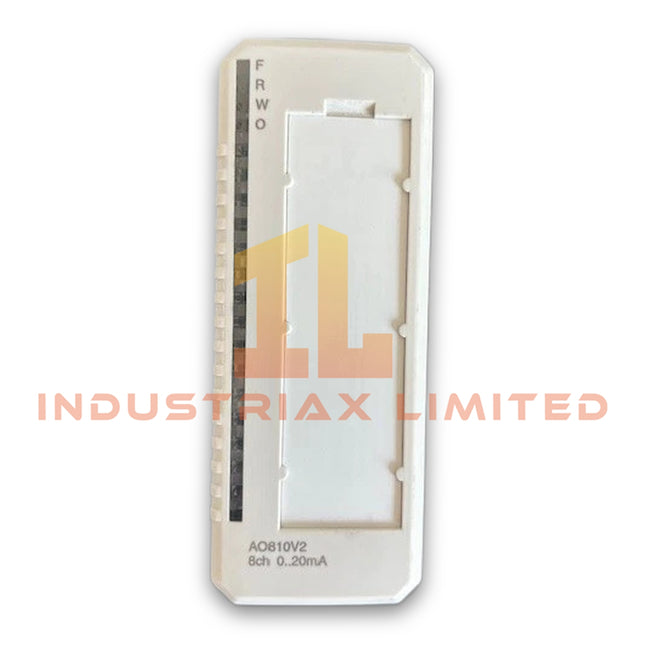

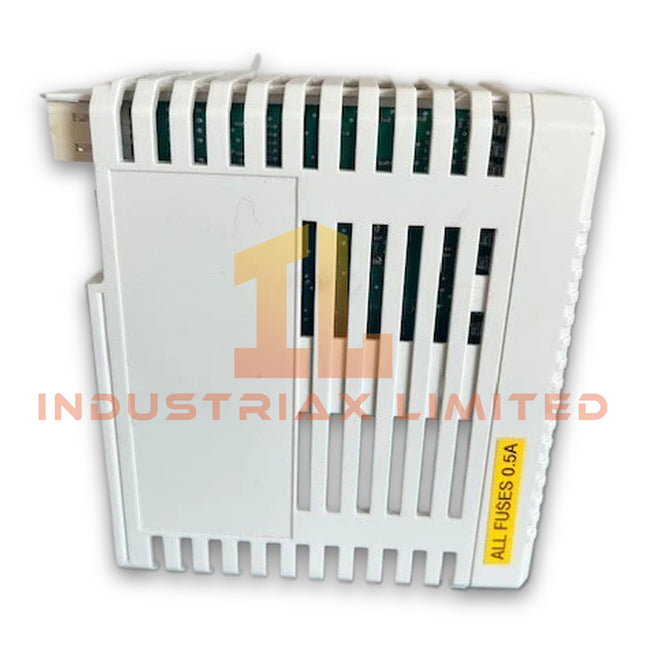

ABB AO810V2 3BSE038415R1 | ABB | Analog Output Module
ABB AO810V2 3BSE038415R1 Analog Output Module Configured for analog current signal execution in ABB S800 I/O systems, the ABB AO810V2 3BSE038415R1 (AO810V2 Analog Output Module) provides direct physical output control for 0-20 mA and 4-20 mA field devices within AC 800M and ABB 800xA platforms. Hardware Specifications Parameter Specification Model AO810V2 3BSE038415R1 Brand ABB Product Type Analog Output Module Series ABB S800 I/O Origin Sweden Weight 0.18 kg Dimensions 4.5 x 10.5 x 12 cm Operating Temp Not specified Power Consumption 2.3 W Output Channels 8 analog output channels Signal Specification 0-20 mA, 4-20 mA Resolution 14 bit Isolation Groupwise isolated from ground Under/Over Range - / +15% Rise Time 0.35 ms at PL = 500 ohm Update Cycle Time <= 2 ms Maximum Field Cable Length 600 m Rated Insulation Voltage 50 V Dielectric Test Voltage 500 V AC Current Consumption +5 V Modulebus Maximum 70 mA Current Consumption +24 V External 245 mA ABB Industrial I/O Architecture and Backplane Communication The AO810V2 operates as an S800 I/O analog output device connected through the ABB control system communication structure. The module receives output commands from the controller and converts digital values into continuous current signals through integrated digital-to-analog conversion circuits. Additionally, the module supports diagnostic feedback by reading back serial data from the D/A converters. Therefore, the system can verify output conversion status and identify channel-level faults during operation. The module supports I/O density scaling within ABB S800 configurations. It can be integrated with AC 800M controllers and ABB 800xA automation environments where deterministic module communication and structured I/O management are required. Frequently Asked Questions Q: How many analog output channels does the AO810V2 3BSE038415R1 provide?A: The AO810V2 provides 8 unipolar analog output channels with selectable 0-20 mA and 4-20 mA current signals. Q: Does the AO810V2 support channel diagnostics?A: Yes. The module performs cyclic self-diagnostics and monitors output circuitry, process power supply status, and active channel fault conditions. Q: What type of electrical isolation does the module provide?A: The AO810V2 provides groupwise isolation from ground with a rated insulation voltage of 50 V. Field Installation Guidelines Install the AO810V2 module according to ABB S800 I/O system installation requirements. Verify that the Modulebus connection is correctly seated before powering the system. Use suitable field wiring practices for analog current loops. Keep signal cables separated from high-voltage power conductors to reduce electrical interference. Connect cable shields according to the plant grounding standard. Confirm that field devices match the configured 0-20 mA or 4-20 mA output range before commissioning. Check module diagnostics after installation to verify power supply status, communication operation, and channel output conditions.
$199.00 $99.00
-

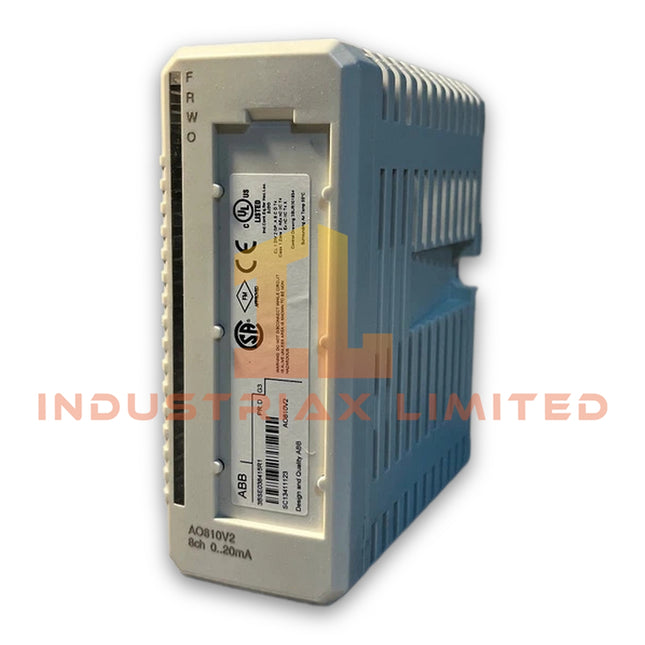

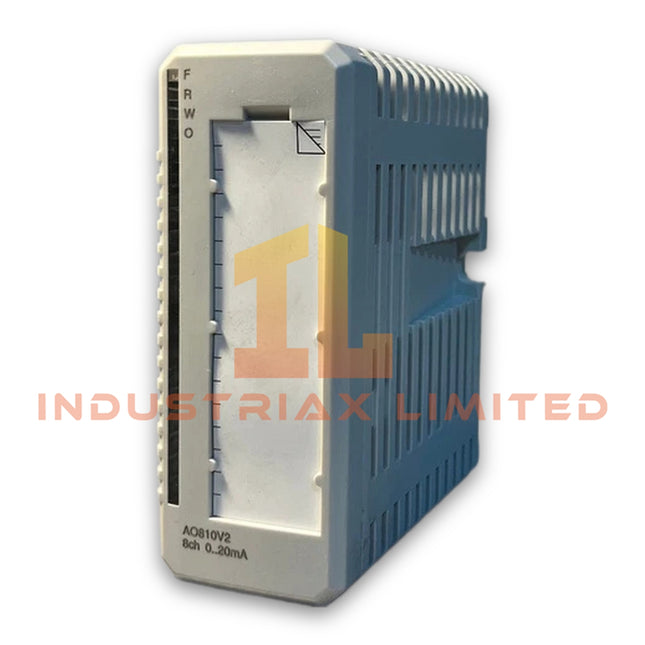

ABB AO810V2 3BSE038415R1 ABB S800 I/O Analog Output Module
ABB AO810V2 3BSE038415R1 Analog Output Module Configured for unipolar analog current output in the ABB S800 I/O platform, the ABB AO810V2 3BSE038415R1 (AO810V2 Analog Output Module) provides eight output channels for transmitting 0-20 mA or 4-20 mA control signals. It supports ABB AC 800M controllers and ABB 800xA automation systems while providing cyclic diagnostics for output circuitry and communication with the D/A converters. Hardware Specifications Parameter Specification Model AO810V2 3BSE038415R1 Base Model AO810V2 Spare Model 3BSE038415R1 Brand ABB Product Type Analog Output Module Series S800 I/O Origin Sweden Weight 0.18 kg Dimensions Estimated shipping size: 4.5 x 10.5 x 12 cm Operating Temp Not specified in the supplied data Power Consumption 2.3 W power dissipation Number of Channels 8 Output Type Unipolar analog current output Signal Specification 0-20 mA, 4-20 mA Resolution 14 bit Isolation Groupwise isolated from ground Under/Over Range - / +15% Rise Time 0.35 ms at PL = 500 ohm Update Cycle Time <= 2 ms Maximum Field Cable Length 600 meters Rated Insulation Voltage 50 V Dielectric Test Voltage 500 V AC Modulebus Current Consumption Max 70 mA at +5 V External Current Consumption 245 mA at +24 V Tariff Code 8537101190 Manufacturer ABB S800 I/O Signal Processing and Diagnostics The AO810V2 uses eight analog output channels to generate 0-20 mA or 4-20 mA signals. Each channel provides a unipolar current output for direct connection to compatible field devices. The module reads back serial data from the D/A converters and verifies the returned data. Therefore, communication faults between the module logic and D/A conversion circuitry can be detected during operation. In addition, the module performs cyclic self-diagnostics. It supervises the process power supply and reports insufficient supply voltage to the output circuitry as a channel error. Channel diagnostics also detect output-current faults on active channels. Specifically, the module reports an error when the measured output current falls below the configured output value while that output value exceeds 1 mA. The 14 bit resolution supports discrete analog signal conversion, while the specified update cycle remains at or below 2 ms. Furthermore, the 600 meter maximum field cable length provides the stated installation limit for field signal wiring. Frequently Asked Questions (FAQ) Q: How many analog output channels does the AO810V2 provide?A: The AO810V2 provides 8 unipolar analog output channels. Q: Which output current ranges does the module support?A: The module supports 0-20 mA and 4-20 mA output signals. Q: What electrical current does the module draw from its supplies?A: The module consumes a maximum of 70 mA from the +5 V Modulebus supply and 245 mA from the +24 V external supply. Field Installation Guidelines Install the AO810V2 according to the applicable ABB S800 I/O hardware installation requirements. Verify the module identity and terminal-unit configuration before connecting field wiring. Use field cables suitable for analog current transmission and keep signal wiring separated from high-voltage and high-current conductors. Maintain the specified maximum field cable length of 600 meters. Connect the 0-20 mA or 4-20 mA circuits according to the configured channel function and field-device requirements. Apply the specified grounding and shielding practice for the installation environment. Avoid unintended shield connections that can introduce ground-current paths. Verify the +5 V Modulebus and +24 V external supply connections before commissioning. After energization, check module and channel diagnostics. In particular, investigate channel errors associated with insufficient process supply or output-current deviation. Confirm the analog output value at the field device before placing the associated control loop into service.
$199.00 $99.00
-

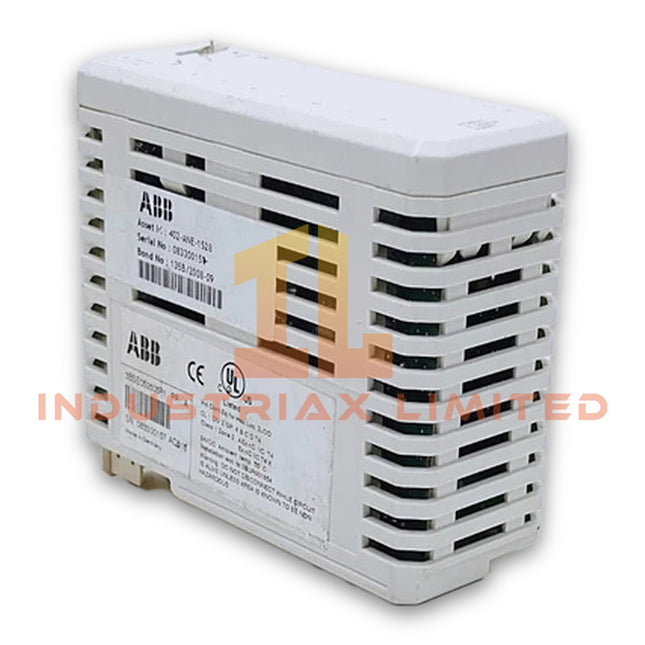

ABB AO815 3BSE052605R1 ABB S800 I/O Analog Output Module
ABB AO815 3BSE052605R1 Analog Output Module Configured for 4-20 mA analog signal generation with HART communication, the ABB AO815 3BSE052605R1 (AO815 Analog Output Module) provides eight output channels for direct process signal transmission. The module uses 12 bit resolution, groupwise ground isolation, and a 10 ms update cycle. Hardware Specifications Parameter Specification Model AO815 3BSE052605R1 Spare Model 3BSE052605R1 Brand ABB Product Type Analog Output Module Channels 8 Output Signal 4-20 mA Communication HART Resolution 12 bit Isolation Groupwise isolated from ground Under/Over Range -12.5% / +15% Output Load Max 750 ohm Temperature Drift Max 50 ppm/deg C Input Filter 23 ms (0-90%), max 4 mA / 12.5 ms Update Cycle Time 10 ms Rated Insulation Voltage 50 V Power Dissipation 3.5 W typ. Operating Temp 0 to +55 deg C; approvals: +5 to +55 deg C Storage Temp -40 to +70 deg C Weight 0.3 kg Dimensions 5.1 x 15.2 x 15.2 cm shipping size Origin Sweden ABB S800 I/O Signal and Backplane Characteristics The AO815 belongs to the ABB S800 I/O platform and provides eight 4-20 mA analog output channels with HART support. Each channel generates a controlled current signal for connected process devices. The 12 bit resolution defines the digital-to-analog conversion granularity. Meanwhile, the specified 10 ms update cycle determines the stated output refresh interval. The module provides groupwise isolation from ground and has a rated insulation voltage of 50 V. Therefore, installation should maintain the specified separation between field wiring and other circuit groups. The output stage supports loads up to 750 ohm. Furthermore, the under-range and over-range limits are specified as -12.5% and +15%, respectively. For temperature-dependent accuracy, the specified maximum drift is 50 ppm/deg C. The input filter provides a 23 ms response from 0% to 90%, with the stated 4 mA response value limited to 12.5 ms. Frequently Asked Questions Q: How many analog output channels does the AO815 provide?A: The AO815 provides eight analog output channels, each supporting the specified 4-20 mA signal range with HART communication. Q: What is the maximum permitted output load?A: The specified maximum output load is 750 ohm. Q: Does the AO815 provide electrical isolation?A: Yes. The module specifies groupwise isolation from ground and a rated insulation voltage of 50 V. Field Installation Guidelines Install the module in the designated ABB S800 I/O system position and verify mechanical engagement before energizing the assembly. Confirm that the field terminal arrangement matches the AO815 channel assignment before connecting the 4-20 mA circuits. Route analog signal wiring separately from high-voltage power conductors and high-current switching circuits. Use appropriate shielded instrumentation cable where the installation requires protection against electromagnetic interference. Terminate cable shields according to the site's approved grounding scheme and avoid unintended ground loops. Verify the connected load remains within the specified maximum 750 ohm output load. Check field polarity and loop continuity before commissioning each output channel. Confirm the operating temperature remains within 0 to +55 deg C, while approved installations must observe the stated +5 to +55 deg C approval range. Inspect the module and terminal connections for secure mechanical seating before applying system power. During commissioning, verify each 4-20 mA output against the configured engineering value and confirm HART communication where applicable.
$199.00 $99.00
-

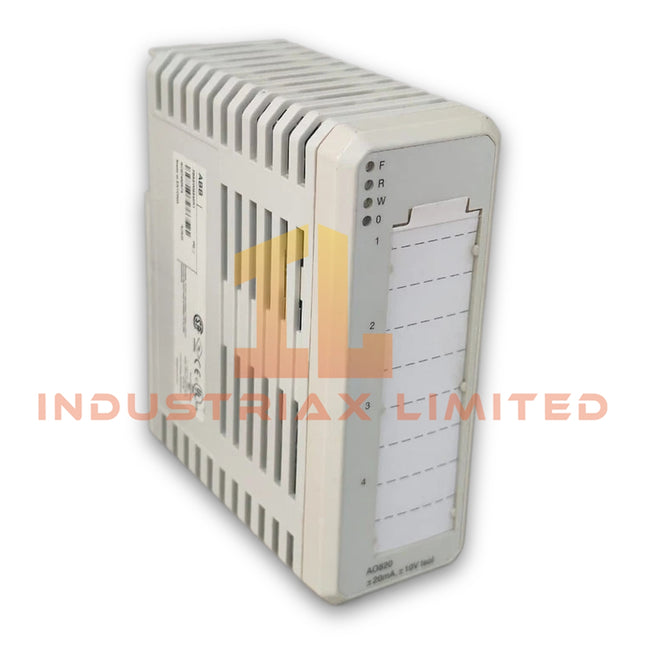

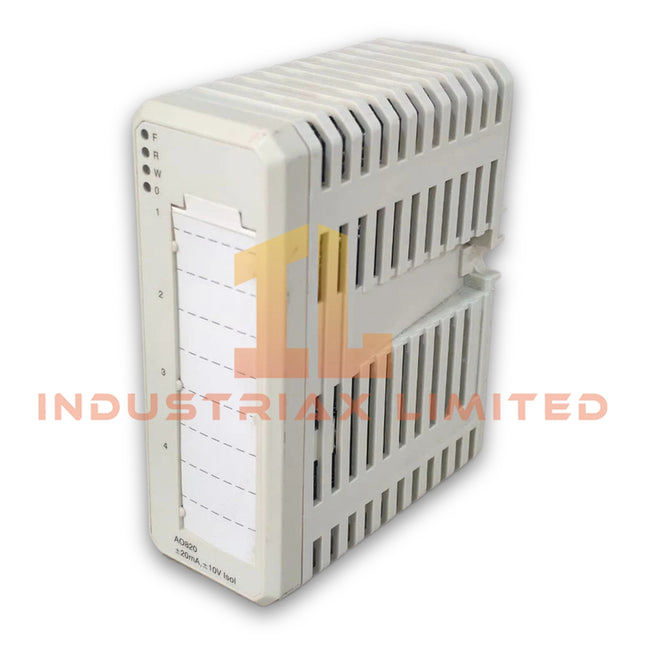

ABB AO820 3BSE008546R1 ABB S800 I/O Analog Output Module
ABB AO820 3BSE008546R1 Analog Output Module The ABB AO820 3BSE008546R1, also cataloged as the AO820 Analog Output Module, provides four configurable bipolar analog output channels for current or voltage signal generation in ABB S800 I/O systems. Each channel uses software configuration to select the required output mode, while separate terminal connections support current and voltage wiring. Hardware Specifications Parameter Specification Model AO820 3BSE008546R1 Spare Model 3BSE008546R1 Brand ABB Product Type Analog Output Module Origin Sweden Weight 0.24 kg Dimensions 4.5 x 11 x 12 cm estimated shipping size Number of Channels 4 bipolar analog output channels Output Type Configurable current or voltage output Resolution 12 bits including sign Under/Over Range +/-15% Output Load <= 550 ohm for current output; >= 5 kohm for voltage output Temperature Drift Max 90 ppm/deg C Rise Time < 0.7 ms Update Cycle Time <= 1.5 ms Rated Insulation Voltage 50 V Diagnostics Output readback, A/D converter communication supervision, open-circuit diagnostics, process voltage supervision ModuleBus Diagnostics Channel error signals available through ModuleBus ABB S800 I/O Signal Handling The AO820 uses four independent bipolar analog output channels. Each channel can operate in current or voltage mode through software configuration. Therefore, the physical wiring must match the selected signal mode because the module provides separate terminal sets for voltage and current outputs. The module also verifies output data through readback from the A/D converters. In addition, it continuously monitors open-circuit conditions. Process voltage supervision detects loss of the required process voltage and reports the resulting channel error through ModuleBus. For ABB S800 I/O installations, the module interfaces with the system backplane and ModuleBus architecture. Consequently, engineering configuration should match the installed I/O station, terminal unit, and configured channel signal type. Frequently Asked Questions Q: How many analog output channels does the AO820 provide?A: The AO820 provides 4 bipolar analog output channels. Each channel can be configured for either current or voltage output. Q: Can the same channel be wired for both current and voltage output simultaneously?A: No. The required output mode is selected through software, and the corresponding terminal set must be wired correctly for that mode. Q: How does the module detect output-related faults?A: The module reads back output data to verify A/D converter communication and continuously performs open-circuit diagnostics. Process voltage supervision also generates channel error information when the monitored voltage disappears. Field Installation Guidelines Confirm the AO820 module identity and terminal arrangement before installation. Verify the configured current or voltage mode for every channel before connecting field wiring. Use the designated terminal connections for the selected signal type; do not interchange current and voltage terminals. Route analog signal wiring separately from high-voltage power and high-current switching conductors to reduce electrical interference. Apply appropriate cable shielding and terminate the shield according to the site's established grounding practice. Verify field-loop polarity and load impedance before energizing the output channels. Confirm that current-output loads remain within the specified load capability and that voltage-output loads meet the stated minimum impedance. After installation, verify channel output values and review ModuleBus diagnostic status for communication, open-circuit, and process-voltage errors. Do not introduce undocumented operating-temperature or power-consumption limits during installation; use the applicable ABB system documentation for those values.
$199.00 $99.00
-

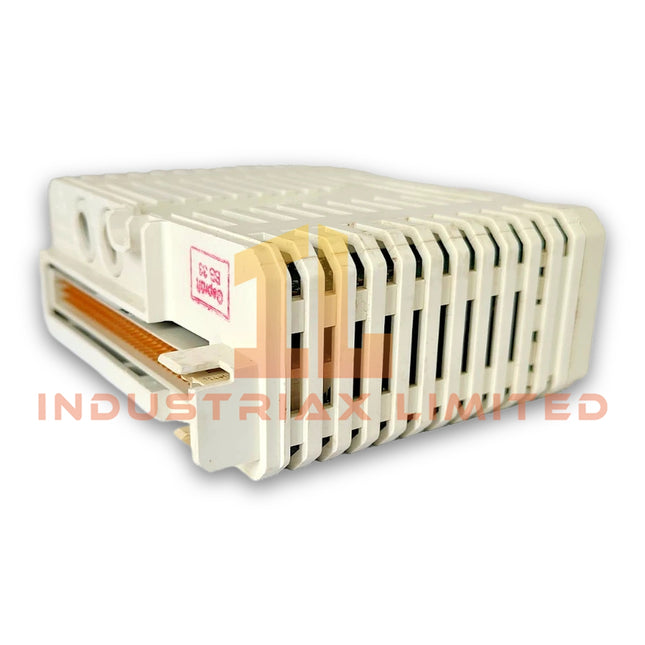

ABB ABB S800 I/O AO845 3BSE023676R1 Analog Output Module
ABB AO845 3BSE023676R1 Analog Output Module Configured for 4-20 mA analog signal generation, the ABB AO845 3BSE023676R1 (AO845 Analog Output Module) provides eight output channels for process control signal transmission. The module uses 12-bit resolution and groupwise isolation from ground. It supports redundant configuration and accepts field loads up to 750 ohm. The specified module insulation voltage is 50 V. Hardware Specifications Parameter Specification Model AO845 3BSE023676R1 Spare Model 3BSE023676R1 Brand ABB Product Type Analog Output Module Origin Sweden Weight 0.2 kg Dimensions 4.5 x 10.5 x 11.8 cm estimated shipping size Operating Temp Not specified in supplied data Power Consumption Typ. 3.5 W Signal Type Analog Output Output Signal 4-20 mA Number of Channels 8 Resolution 12 bit Isolation Groupwise isolated from ground Redundancy Supported Maximum Load 750 ohm Under Range -12.5% Over Range +15% Rated Insulation Voltage 50 V Dielectric Test Voltage 500 V AC Current Consumption, +5 V Modulebus Max. 125 mA Current Consumption, +24 V External 218 mA Tariff Code 8537101190 Manufacturer ABB Shipment Origin Xiamen, China ABB Industrial Control and I/O Characteristics The AO845 operates as an analog output interface within ABB distributed I/O architectures. Each of its eight channels generates a 4-20 mA signal with 12-bit resolution, allowing the control system to represent process values through standardized current transmission. Furthermore, the module provides groupwise isolation from ground and specifies 50 V rated insulation voltage. The 500 V AC dielectric test rating defines the stated insulation test capability. The module supports redundant operation, while the specified 750 ohm load capability permits connection to field devices that remain within the output circuit load limit. Therefore, installation should account for the complete loop resistance, including field wiring and connected equipment. Frequently Asked Questions Q: How many analog output channels does the AO845 provide?A: The AO845 provides 8 analog output channels, with each channel supporting a 4-20 mA signal. Q: What output resolution does the AO845 provide?A: The module provides 12-bit output resolution for its analog channels. Q: What are the specified power consumption and current requirements?A: Typical power dissipation is 3.5 W. Modulebus current consumption is a maximum of 125 mA at +5 V, while external +24 V current consumption is 218 mA. Field Installation Guidelines Verify the module identity and terminal assignment before connecting field wiring. Confirm that the connected field device and complete current loop remain within the specified 750 ohm load limit. Route analog signal wiring separately from high-voltage switching and high-current power conductors where practical. Follow the applicable ABB installation documentation for grounding, shielding, and cabinet bonding. Check polarity before energizing each 4-20 mA output circuit. Verify the control-system configuration against the physical channel assignment before commissioning. For redundant configurations, confirm the installed hardware arrangement and system configuration before applying process signals. Inspect wiring termination and insulation before performing loop checks. Do not exceed the specified 50 V rated insulation voltage or the stated electrical limits.
$199.00 $99.00
-

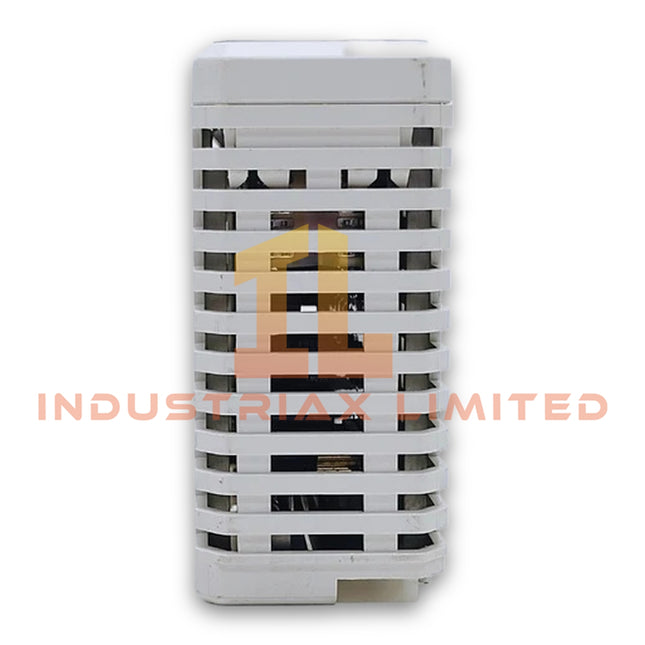

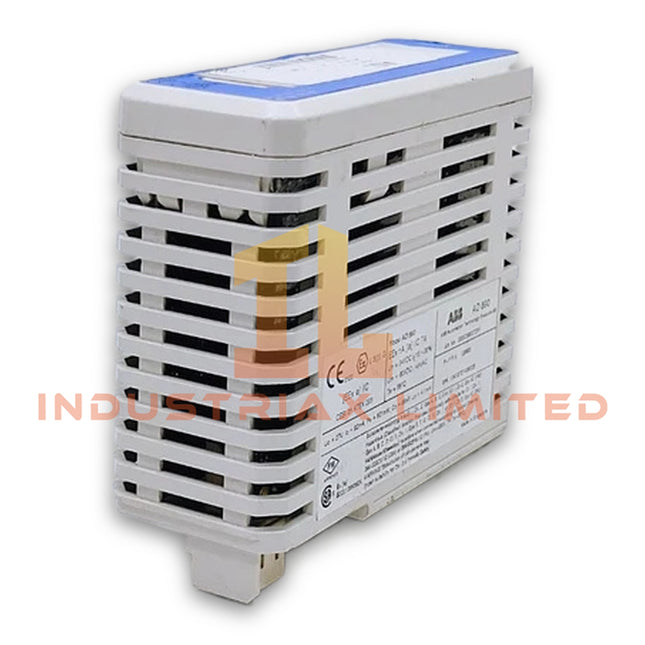

ABB AO890 3BSC690072R1 S800 Analog Output Module
ABB AO890 S800 Analog Output Module Configured for 8-channel analog current output in S800 I/O systems, the ABB AO890 3BSC690072R1 (AO890 Analog Output Module) provides intrinsically safe 0-20 mA and 4-20 mA signals for direct connection to hazardous-area process equipment. Each channel incorporates intrinsic safety protection and limits overload current to 22 mA. Hardware Specifications Parameter Specification Model AO890 Article Number 3BSC690072R1 Brand ABB Series S800 I/O Module Type Analog Output Origin Not specified in provided data Number of Channels 8 Signal Specification 0-20 mA, 4-20 mA Signal Type Unipolar single ended HART No SOE No Redundancy No High Integrity No Intrinsic Safety Yes Resolution 12 bit Isolation Groupwise isolated from ground Under/Over Range 0 / 22 mA Output Load Less than 725 ohms at 20 mA; less than 625 ohms up to 22 mA Output Error Typ. 0.05%, max. 0.1% at 650 ohms Temperature Drift Typ. 50 ppm/deg C, max. 100 ppm/deg C Rise Time 1 ms, 10% to 90% Current Limiting Short-circuit-proof, current-limited output Rated Insulation Voltage 50 V Dielectric Test Voltage 500 V AC Power Dissipation 3.1 W Current Consumption, +5 V Modulebus 80 mA Current Consumption, +24 V Modulebus Typ. 110 mA, max. less than 150 mA Current Consumption, +24 V External Typ. 220 mA, max. less than 300 mA Compatible MTU TU890, TU891 Keying Code AD Operating Temperature 0 to +55 deg C Storage Temperature -40 to +70 deg C Relative Humidity 5 to 95%, non-condensing Pollution Degree Degree 2, IEC 60664-1 Corrosion Protection ISA-S71.04: G3 Protection Class IP20 according to IEC 60529 Width 45 mm Depth 102 mm; 111 mm including connector Height 119 mm Weight 0.2 kg Power Consumption 3.1 W CE Mark Yes Electrical Safety EN 61010-1, EN 61010-2-201 EMC EN 61000-6-4, EN 61000-6-2 Marine Certifications ABS, BV, DNV, LR RoHS EU RoHS, UAE RoHS, CN RoHS WEEE Directive 2012/19/EU Intrinsic Safety and Process Interface The AO890 places intrinsic safety protection components on every output channel. Therefore, the module can interface directly with suitable Ex-certified process equipment without separate external intrinsic safety devices. Each channel supplies up to 20 mA of loop current to a field load. Typical loads include Ex-certified current-to-pressure converters and other current-operated process devices. During overload, the output limits current to 22 mA. The output circuit provides short-circuit protection and current limiting. Additionally, the module supervises the internal process supply and supports open-wire supervision when the configured threshold exceeds 1 mA. For Ex applications, the TU890 Compact MTU provides the corresponding termination interface. The TU891 Compact MTU supports non-Ex applications. Both MTUs allow two-wire process connections without additional terminal components. ABB specifies hazardous-location compatibility including ATEX/IECEx Zone 2 interfaces to Zone 0 and cFMus hazardous-location configurations. Installation must follow the applicable certification conditions and system documentation. Frequently Asked Questions (FAQ) Q: How many analog output channels does the AO890 provide?A: The AO890 provides 8 unipolar single-ended analog output channels supporting 0-20 mA and 4-20 mA signals. Q: Can the AO890 connect directly to hazardous-area process equipment?A: Yes. Each channel contains intrinsic safety protection components for connection to suitable Ex-certified process equipment. Q: Which MTUs are compatible with the AO890?A: The module supports the TU890 and TU891 Compact MTUs. TU890 is intended for Ex applications, while TU891 supports non-Ex applications. Field Installation Guidelines Mount the AO890 on the specified S800 I/O assembly and install the compatible TU890 or TU891 MTU according to the system configuration. Use TU890 when the application requires the specified Ex interface. Use TU891 for non-Ex process connections. Verify the selected MTU and module keying code before wiring. Route analog output wiring separately from high-voltage power conductors and high-energy switching circuits. Maintain appropriate segregation according to the applicable installation standards. For two-wire process devices, connect the field loop through the designated MTU terminals. Confirm polarity before energizing the output circuit. Where shielded signal cables are used, terminate and ground the shields according to the plant grounding design and applicable EMC requirements. Avoid creating unintended ground loops. Before commissioning, verify the configured 0-20 mA or 4-20 mA range, field-device load, wiring continuity, and process supply supervision. Confirm that the installation satisfies the applicable hazardous-area certification requirements.
$199.00 $99.00
-

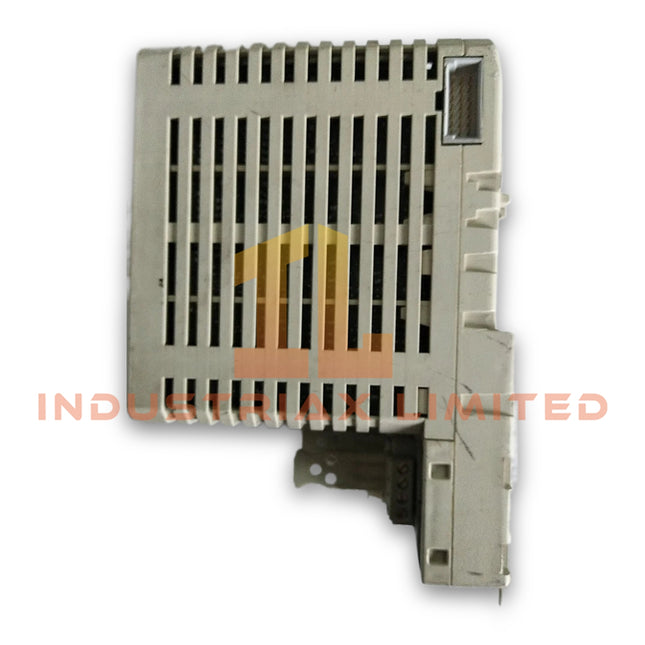

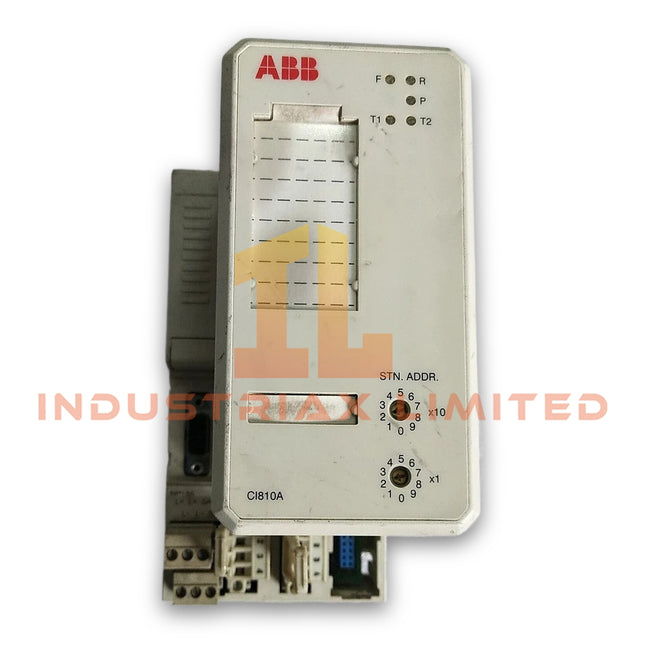

ABB CI810A 3BSE013262R1 AF100 Field Communication Interface
ABB CI810A AF100 Field Communication Interface Configured for AF100 field communication in ABB control systems, the ABB EXC3BSE013262R1 (CI810A Communication Module) provides the physical interface required for AF100 network data exchange. The exchange version is identified as CI810A Exchange and relates to product ID 3BSE013262R1. Suffix Breakdown & Model Matrix Parameter Specification Global Commercial Alias CI810A Product ID EXC3BSE013262R1 ABB Type Designation CI810A Exchange Related Product ID 3BSE013262R1 Product Type Communication Module Catalog Description CI810A AF100 Field Comm. Interface Part Type Exchange Product Name Communication Module AF100 Interface Field Communication Interface WEEE Category Product Not in WEEE Scope The supplied ABB data identifies EXC3BSE013262R1 as an exchange part and lists 3BSE013262R1 as the related product ID. No additional suffix decomposition is specified in the source data. Hardware Specifications Parameter Specification Model CI810A / EXC3BSE013262R1 Brand ABB Origin Sweden Weight 0.6 kg net; 0.6 kg gross Communication Function AF100 Field Communication Interface Product Classification Communication Module Frame Size Spare_Parts Minimum Order Quantity 1 piece Order Multiple 1 piece Customs Tariff Number 8517620000 Package Level 1 Units 1 piece Package Level 1 Gross Weight 0.6 kg AF100 Communication Interface Characteristics The CI810A provides an AF100 field communication interface for data exchange within compatible ABB control architectures. Therefore, installation must preserve the specified communication connections and the mechanical position required by the host system. The supplied documentation does not specify communication speed, connector pin assignment, electrical isolation, bus current, or operating temperature. Consequently, these parameters should be verified against the applicable ABB system documentation before commissioning. As an ABB industrial communication module, the hardware interfaces with the system through its designated mounting and communication arrangement. However, the supplied product data does not establish compatibility with Profinet, EtherNet/IP, or other network protocols, so those functions should not be assumed for this model. Frequently Asked Questions Q: What is the primary function of CI810A?A: CI810A provides an AF100 Field Communication Interface for compatible ABB control system communication. Q: Is EXC3BSE013262R1 the same identification as CI810A?A: EXC3BSE013262R1 is the Product ID, while CI810A is the Global Commercial Alias and ABB type designation uses CI810A Exchange. Q: What weight should be considered for handling the module?A: ABB lists both product net weight and package gross weight as 0.6 kg. Field Installation Guidelines Verify the complete part identification before installation: EXC3BSE013262R1, CI810A, and related product ID 3BSE013262R1. Confirm that the replacement module matches the host system configuration and approved ABB documentation. Install the module using the designated mechanical mounting arrangement and avoid excessive mechanical force on connectors. Route AF100 communication wiring separately from high-voltage and high-current conductors where practical. Maintain appropriate cable shielding and grounding according to the system installation specification. Inspect connectors and mating surfaces before energizing the system. Do not apply power until wiring, module position, and system configuration have been checked. Because this item is identified as an exchange part, follow the applicable ABB exchange procedure during replacement.
$199.00 $99.00
-

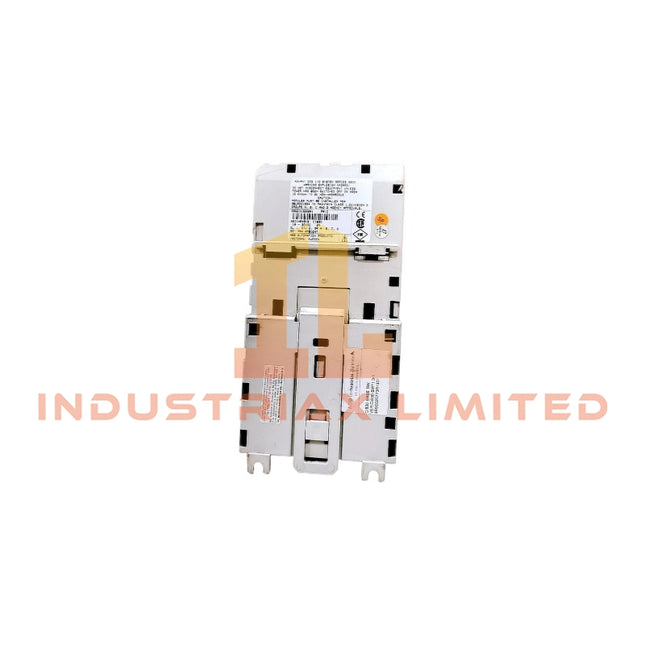

ABB ABB CI830 3BSE013252R1 PROFIBUS DP Communication Interface
ABB CI830 3BSE013252R1 PROFIBUS DP Communication Interface Configured for PROFIBUS DP-V1 communication in ABB S800 I/O systems, the ABB CI830 3BSE013252R1 (CI830 communication module) provides the physical and electrical interface between the control system and PROFIBUS DP network. It operates at communication speeds up to 12000 kbit/s and uses a 24 V DC supply. Hardware Specifications Parameter Specification Model CI830 3BSE013252R1 Spare Model 3BSE013252R1 Brand ABB Product Type PROFIBUS DP Communication Interface Module Origin Sweden Product Function PROFIBUS DP-V1 Communication Interface Protocol Type PROFIBUS-DP Communication Speed Up to 12000 kbit/s Supply Voltage 24 V DC +/-20 % Current Consumption <= 50 mA Power Consumption Approximately 1.2 W Isolation 500 V DC field-to-bus Operating Temp -20 deg C to +55 deg C Weight 0.45 kg Estimated Shipping Dimensions 16.8 x 8.3 x 12 cm Tariff Code 8537101190 ABB PROFIBUS DP Communication Characteristics The CI830 provides PROFIBUS DP-V1 communication for distributed I/O data exchange. The interface supports communication speeds up to 12000 kbit/s, allowing the module to exchange process data with PROFIBUS DP field devices. The module operates from a 24 V DC supply with a specified tolerance of +/-20 %. Its stated current consumption is no more than 50 mA, corresponding to approximately 1.2 W. Furthermore, the 500 V DC field-to-bus isolation separates the field-side electrical domain from the communication bus. This isolation should be maintained during system wiring and commissioning. For ABB control architectures, PROFIBUS DP communication complements the backplane and I/O communication structure by providing an external fieldbus interface. Therefore, installation should follow the applicable ABB hardware configuration and PROFIBUS network rules. Frequently Asked Questions (FAQ) Q: What PROFIBUS communication speed does the CI830 support?A: The supplied specification lists a maximum communication speed of 12000 kbit/s for the PROFIBUS-DP interface. Q: What supply voltage does the CI830 require?A: The module requires 24 V DC with a specified tolerance of +/-20 %. The stated current consumption is <= 50 mA. Q: What operating temperature range is specified for the CI830?A: The supplied specification states an operating range from -20 deg C to +55 deg C. Field Installation Guidelines Install the CI830 on the designated ABB mounting and base-unit arrangement specified for the system. Verify the 24 V DC supply polarity and voltage range before energizing the module. Route PROFIBUS communication wiring separately from high-current and high-noise power conductors where practical. Maintain the specified PROFIBUS cable shielding and termination arrangement throughout the network. Connect cable shields according to the applicable ABB installation instructions and site grounding design. Inspect connectors for correct seating before commissioning the communication interface. Confirm PROFIBUS node addressing and network configuration before starting process communication. Check the module status indicators after power-up and investigate communication faults before placing the network into service.
$199.00 $99.00
-

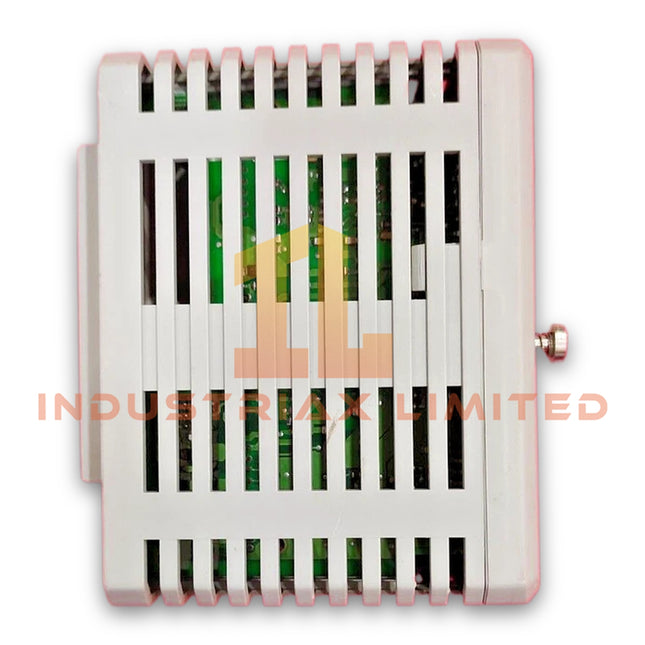

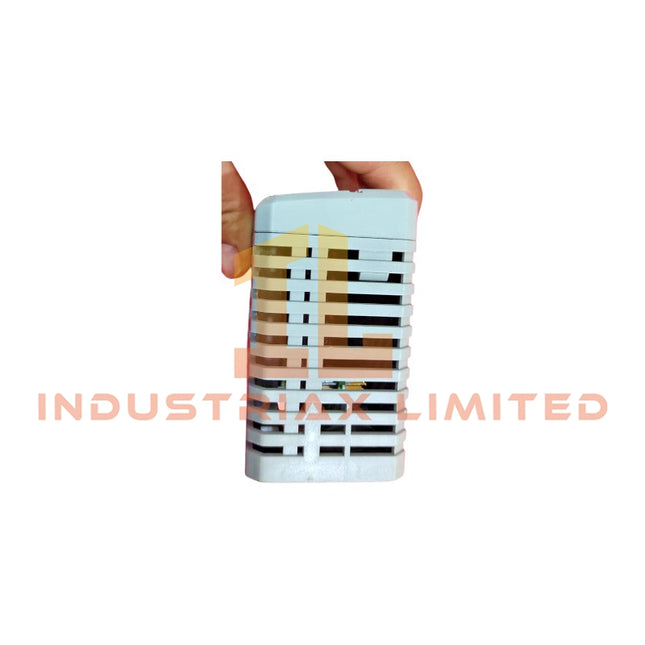

ABB ABB CI840 3BSE041882R1 S800 I/O Fieldbus Communication Interface
ABB CI840 3BSE041882R1 S800 I/O Fieldbus Communication Interface Configured for PROFIBUS DP-V1 communication and redundant I/O operation in the ABB S800 I/O system, the ABB CI840 3BSE041882R1 (CI840 Fieldbus Communication Interface) provides the communication path between S800 I/O modules and the parent controller. It performs signal processing, supervision data collection, OSP handling, Hot Configuration In Run, HART pass-through, and I/O module configuration. Hardware Specifications Parameter Specification Model CI840 3BSE041882R1 Brand ABB Product Type S800 I/O Fieldbus Communication Interface System ABB S800 I/O Article Number 3BSE041882R1 Communication Protocol PROFIBUS DP-V1 Master or Slave Slave Line Redundancy Yes Module Redundancy Yes Hot Swap Yes Used with HI Controller Yes Module Termination Unit - Redundant I/O TU846 Module Termination Unit - Non-Redundant I/O TU847 24 V Consumption, Typical 190 mA Operating Temperature 0 to +55 deg C; approvals issued for +5 to +55 deg C Storage Temperature -40 to +70 deg C Maximum Ambient Temperature 55 deg C; 40 deg C for vertical mounting Relative Humidity 5 to 95 %, non-condensing Protection Class IP20 according to EN 60529 and IEC 529 Pollution Degree Degree 2, IEC 60664-1 Corrosion Protection ISA-S71.04: G3 Width 54 mm Height 119 mm Depth 96 mm Weight 0.2 kg Origin Not specified in the provided technical data CE Marking Yes RoHS Compliance EU RoHS, UAE RoHS, CN RoHS WEEE Compliance Directive 2012/19/EU Electrical Safety EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 Hazardous Location Approvals C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 Marine Certificates ABS, BV, DNV-GL, LR PROFIBUS DP-V1 and Redundancy The CI840 operates as a PROFIBUS DP-V1 slave on the fieldbus connection to the controller. The module supports both line redundancy and module redundancy, allowing the S800 I/O configuration to use redundant communication paths and interface modules. For redundant I/O installations, ABB specifies the TU846 module termination unit. For non-redundant I/O installations, the TU847 termination unit applies. The CI840 also supports Hot Swap and Hot Configuration In Run functions, subject to the installed system configuration. The FCI manages I/O module configuration and signal-related processing. It also gathers supervision information and supports OSP handling. In addition, the interface provides HART pass-through for compatible I/O configurations. Frequently Asked Questions (FAQ) Q: Which communication protocol does the CI840 use? A: The CI840 communicates with the controller through the PROFIBUS DP-V1 fieldbus and operates as a slave device. Q: Which termination unit is specified for redundant I/O? A: ABB specifies the TU846 for redundant I/O. The TU847 is specified for non-redundant I/O. Q: Does the CI840 support module and line redundancy? A: Yes. The supplied specifications identify both line redundancy and module redundancy as supported functions. Field Installation Guidelines Install the CI840 on the specified S800 I/O termination unit and verify mechanical engagement before applying power. Use the TU846 when the application requires redundant I/O. Use the TU847 for non-redundant I/O configurations. Route PROFIBUS communication wiring separately from high-voltage power conductors and high-current switching circuits. Maintain appropriate separation to reduce electromagnetic interference. Terminate cable shields according to the approved system grounding design. Avoid creating unintended ground loops through multiple shield connection paths. Confirm the available 24 V supply can support the CI840 load and the complete connected I/O assembly. The typical CI840 consumption is 190 mA at 24 V. Before commissioning, verify PROFIBUS addressing, redundancy configuration, termination settings, and controller configuration against the approved system design. Observe the specified ambient temperature and humidity limits during installation. For vertical mounting, keep the ambient temperature within the stated 40 deg C maximum. Maintain the IP20 installation environment and protect the module from conductive contamination, excessive moisture, and mechanical damage.
$199.00 $99.00
لقد شاهدت 72 من أصل 136 منتجًا
