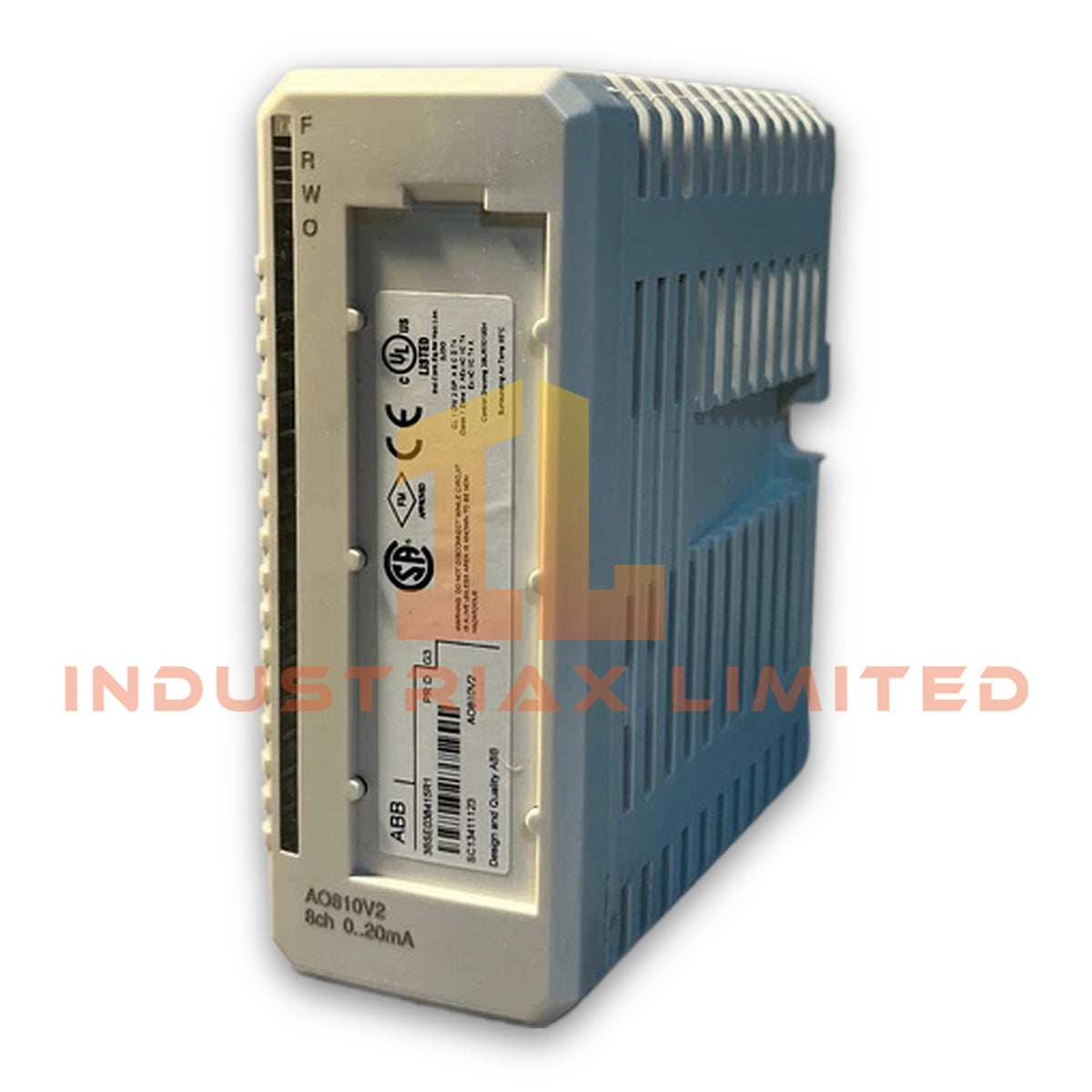

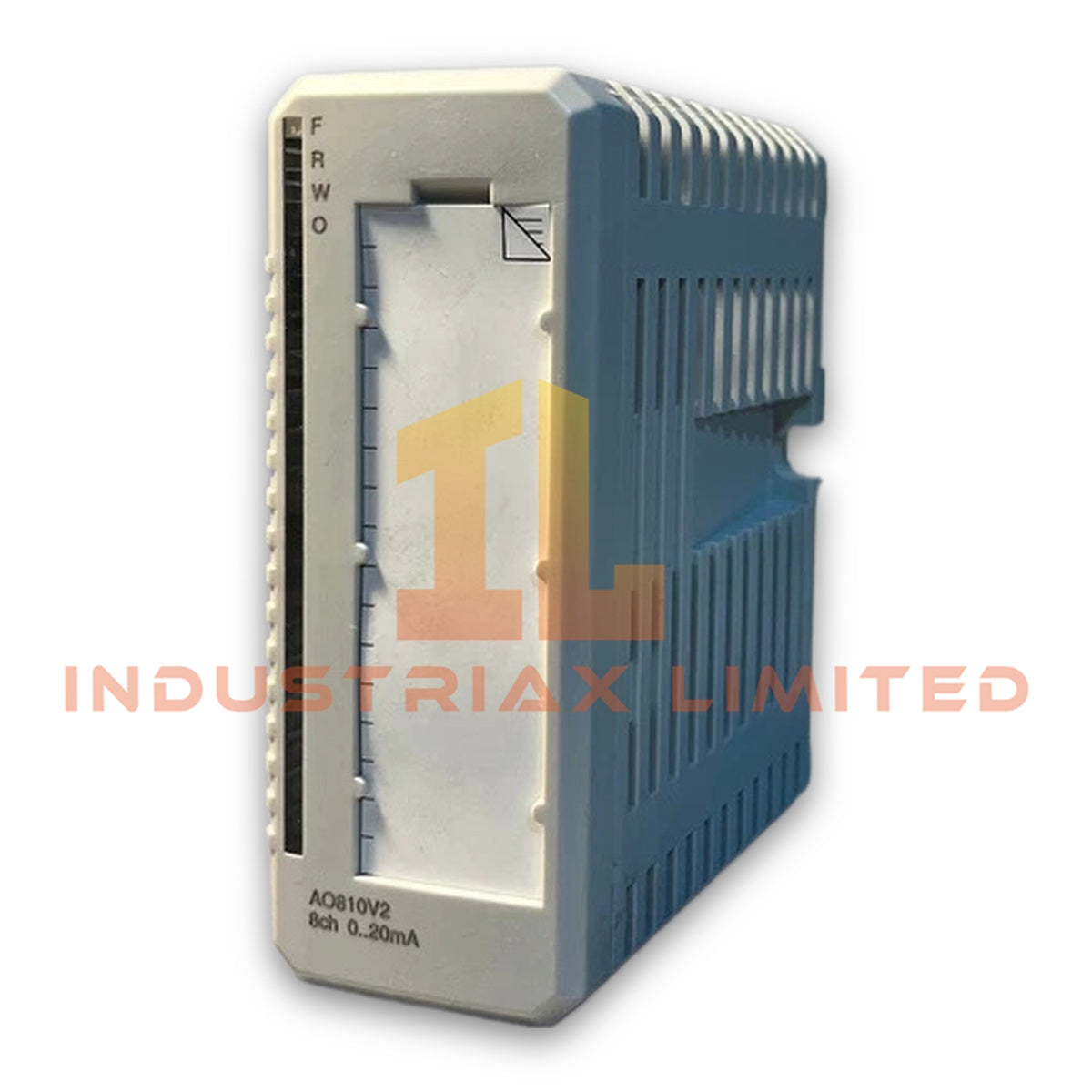

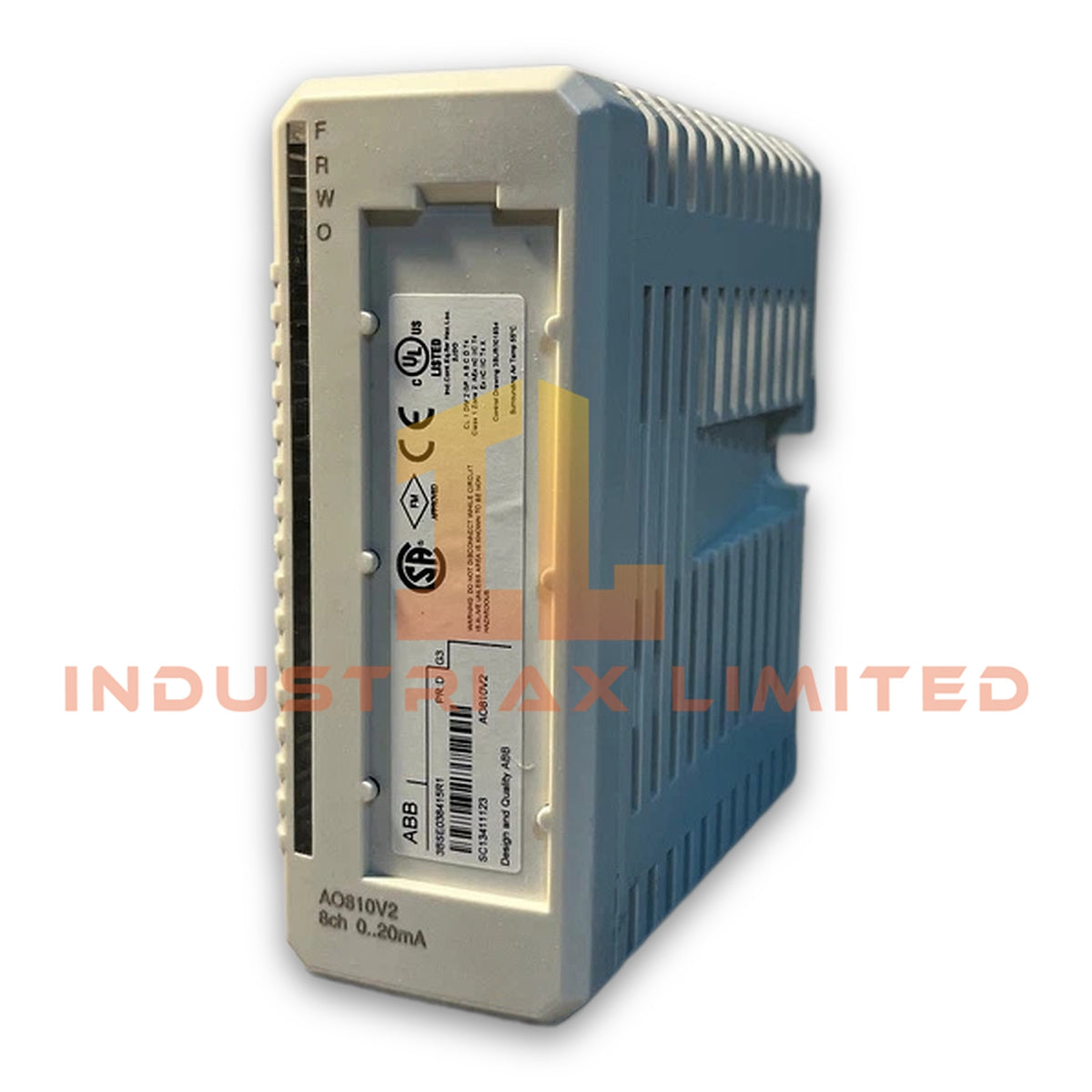

ABB AO810V2 3BSE038415R1 Analog Output Module

Configured for unipolar analog current output in the ABB S800 I/O platform, the ABB AO810V2 3BSE038415R1 (AO810V2 Analog Output Module) provides eight output channels for transmitting 0-20 mA or 4-20 mA control signals. It supports ABB AC 800M controllers and ABB 800xA automation systems while providing cyclic diagnostics for output circuitry and communication with the D/A converters.

Hardware Specifications

Parameter	Specification
Model	AO810V2 3BSE038415R1
Base Model	AO810V2
Spare Model	3BSE038415R1
Brand	ABB
Product Type	Analog Output Module
Series	S800 I/O
Origin	Sweden
Weight	0.18 kg
Dimensions	Estimated shipping size: 4.5 x 10.5 x 12 cm
Operating Temp	Not specified in the supplied data
Power Consumption	2.3 W power dissipation
Number of Channels	8
Output Type	Unipolar analog current output
Signal Specification	0-20 mA, 4-20 mA
Resolution	14 bit
Isolation	Groupwise isolated from ground
Under/Over Range	- / +15%
Rise Time	0.35 ms at PL = 500 ohm
Update Cycle Time	<= 2 ms
Maximum Field Cable Length	600 meters
Rated Insulation Voltage	50 V
Dielectric Test Voltage	500 V AC
Modulebus Current Consumption	Max 70 mA at +5 V
External Current Consumption	245 mA at +24 V
Tariff Code	8537101190
Manufacturer	ABB

S800 I/O Signal Processing and Diagnostics

The AO810V2 uses eight analog output channels to generate 0-20 mA or 4-20 mA signals. Each channel provides a unipolar current output for direct connection to compatible field devices.

The module reads back serial data from the D/A converters and verifies the returned data. Therefore, communication faults between the module logic and D/A conversion circuitry can be detected during operation.

In addition, the module performs cyclic self-diagnostics. It supervises the process power supply and reports insufficient supply voltage to the output circuitry as a channel error.

Channel diagnostics also detect output-current faults on active channels. Specifically, the module reports an error when the measured output current falls below the configured output value while that output value exceeds 1 mA.

The 14 bit resolution supports discrete analog signal conversion, while the specified update cycle remains at or below 2 ms. Furthermore, the 600 meter maximum field cable length provides the stated installation limit for field signal wiring.

Frequently Asked Questions (FAQ)

Q: How many analog output channels does the AO810V2 provide?
A: The AO810V2 provides 8 unipolar analog output channels.

Q: Which output current ranges does the module support?
A: The module supports 0-20 mA and 4-20 mA output signals.

Q: What electrical current does the module draw from its supplies?
A: The module consumes a maximum of 70 mA from the +5 V Modulebus supply and 245 mA from the +24 V external supply.

Field Installation Guidelines

1. Install the AO810V2 according to the applicable ABB S800 I/O hardware installation requirements.
2. Verify the module identity and terminal-unit configuration before connecting field wiring.
3. Use field cables suitable for analog current transmission and keep signal wiring separated from high-voltage and high-current conductors.
4. Maintain the specified maximum field cable length of 600 meters.
5. Connect the 0-20 mA or 4-20 mA circuits according to the configured channel function and field-device requirements.
6. Apply the specified grounding and shielding practice for the installation environment. Avoid unintended shield connections that can introduce ground-current paths.
7. Verify the +5 V Modulebus and +24 V external supply connections before commissioning.
8. After energization, check module and channel diagnostics. In particular, investigate channel errors associated with insufficient process supply or output-current deviation.
9. Confirm the analog output value at the field device before placing the associated control loop into service.
