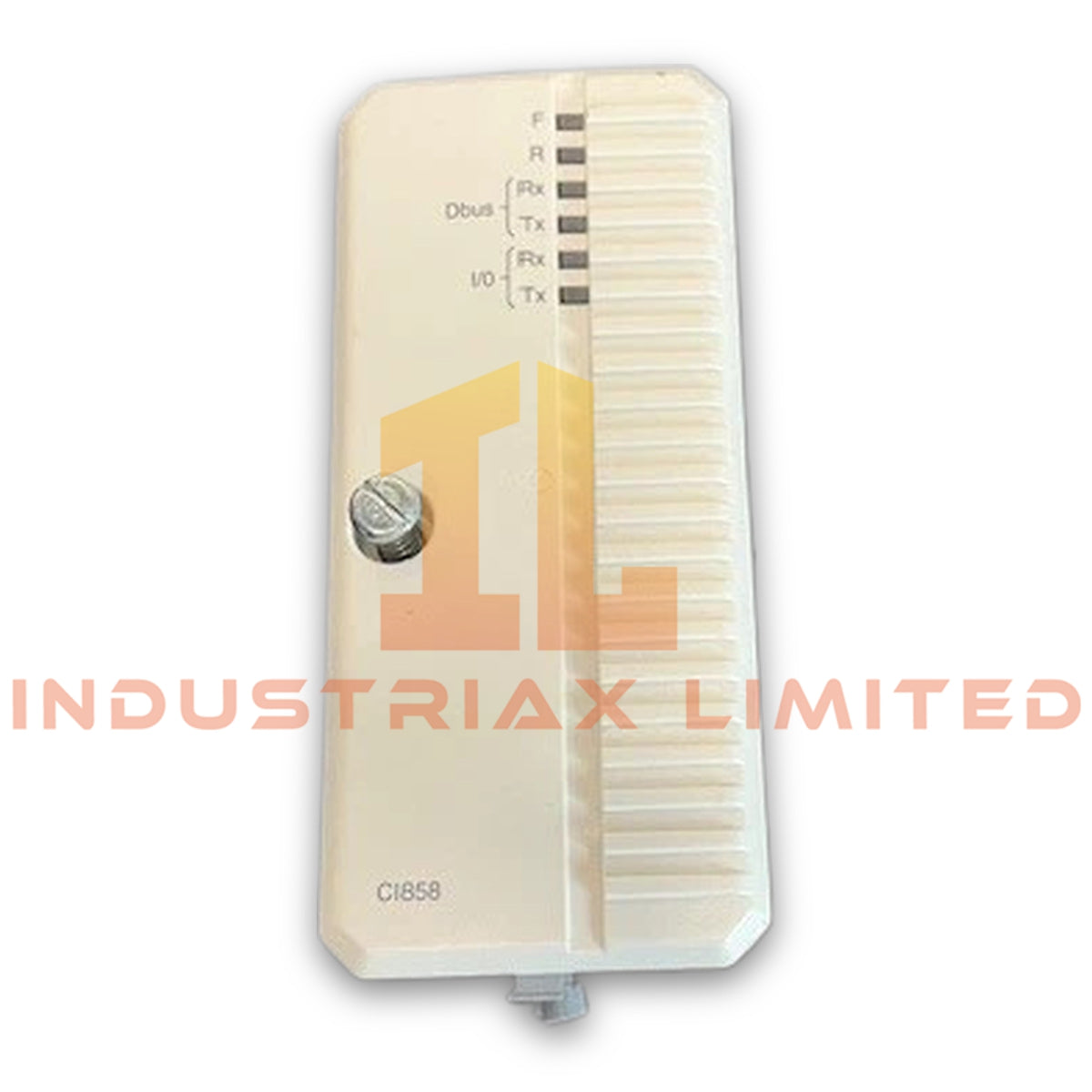

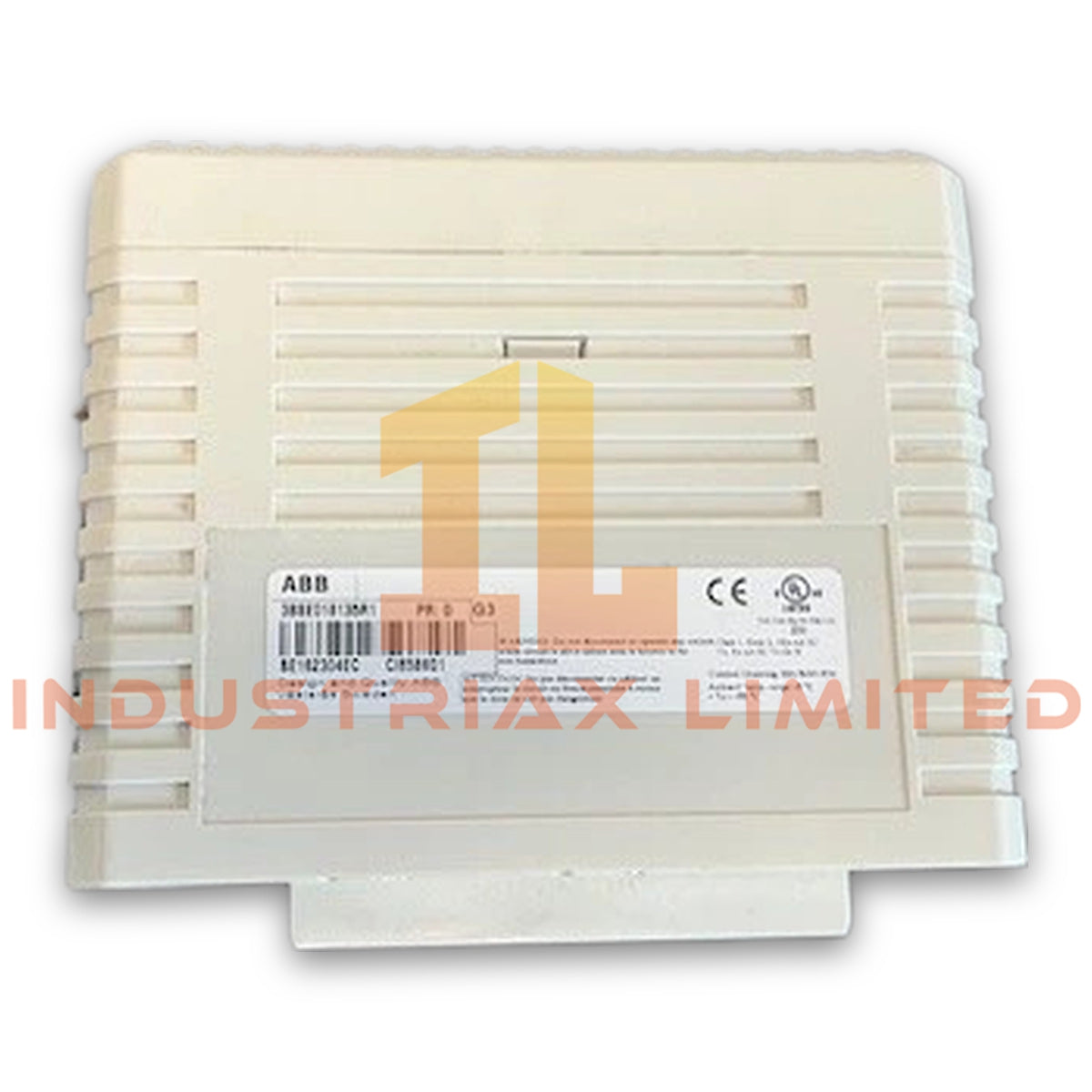

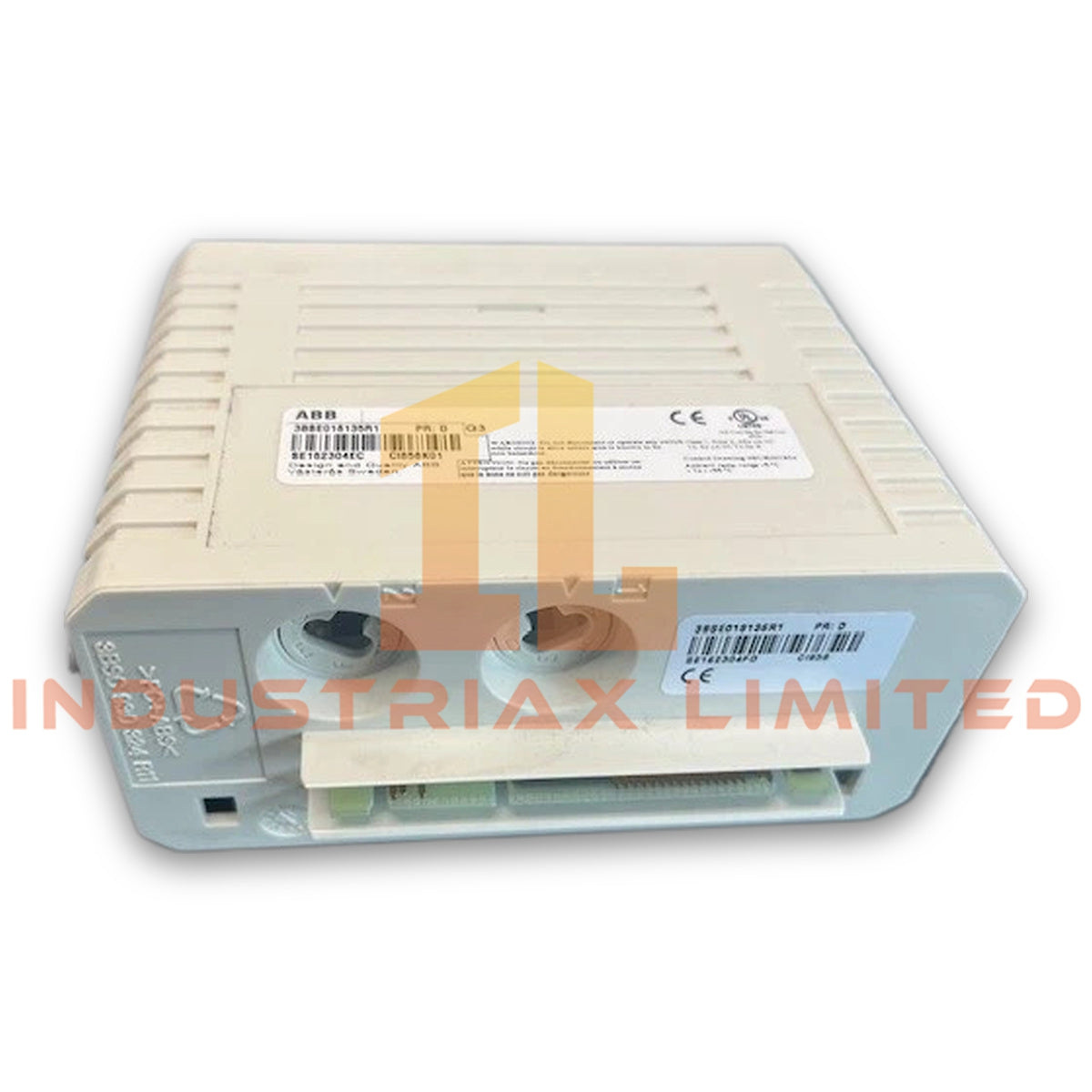

ABB CI858K01 DriveBus Interface

The ABB 3BSE018135R1 CI858K01, also cataloged as the CI858K01 DriveBus Interface, operates as a dedicated communication hardware component for DriveBus data exchange within ABB AC 800M controller platforms.

Hardware Specifications

Parameter	Specification
Model	CI858K01
Product ID	3BSE018135R1
Brand	ABB
Product Type	Communication Module
Origin	Sweden
Weight	0.7 kg
Dimensions	127.5 mm depth x 186 mm height x 59 mm width
Communication Interface	DriveBus Interface
Package Contents	CI858 Communication Interface + TP858 Baseplate
Mounting Type	AC 800M controller expansion interface
Compliance	RoHS according to EU Directive 2011/65/EU
WEEE Category	Category 5 Small Equipment

DriveBus Communication and Industrial Network Integration

The CI858K01 provides DriveBus communication capability between ABB AC 800M controllers and connected drive systems. It performs communication processing through the controller expansion architecture and uses the TP858 baseplate for mechanical installation and electrical connection.

Furthermore, the module supports ABB industrial drive communication structures where deterministic data exchange between controller logic and drive equipment is required. The interface manages communication traffic through the AC 800M backplane environment and maintains compatibility with ABB controller engineering configurations.

The ABB CI858K01 belongs to the industrial control and drive communication category. Therefore, installation requires correct controller bus configuration, approved firmware compatibility, and proper network parameter assignment.

Frequently Asked Questions

Q: What is the primary function of the ABB CI858K01 module?
A: The CI858K01 provides a DriveBus communication interface for ABB AC 800M controller systems. It transfers communication data between the controller platform and connected ABB drive equipment.

Q: Does the CI858K01 include the mounting baseplate?
A: Yes. The supplied package includes the CI858 communication interface module and the TP858 baseplate.

Q: What installation considerations apply to this communication module?
A: Installation requires correct placement on the AC 800M expansion architecture, proper electrical connection, and verification of controller configuration parameters.

Field Installation Guidelines

• Install the CI858K01 module on the designated AC 800M controller expansion position according to ABB hardware configuration instructions.
• Verify that the TP858 baseplate is mechanically secured before connecting the communication interface module.
• Route communication cables separately from high-voltage power wiring to reduce electromagnetic interference.
• Use appropriate grounding methods for cabinet assemblies and cable shields according to industrial installation practices.
• Confirm firmware compatibility and controller configuration before placing the communication interface into operational service.
