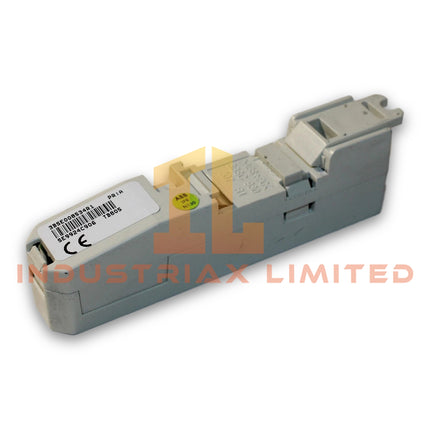

ABB TB805 3BSE008534R1 Modulebus Extension Cable Adaptor

Configured for Modulebus extension cable connection in ABB System 800xA and S800 I/O networks, the ABB TB805 3BSE008534R1 (TB805 Modulebus extension cable adaptor) provides direct physical interface conversion through a D-sub 25 female connector for TK801 extension cables.

Hardware Specifications

Parameter	Specification
Model	TB805 3BSE008534R1
Brand	ABB
Product Type	Modulebus Extension Cable Adaptor
Origin	Not specified in provided data
Weight	0.046 kg
Dimensions	25 mm depth x 109 mm height x 22 mm width
Operating Temp	Not specified in provided data
Power Consumption	Passive component, no external power consumption
Connector Type	D-sub 25 female
Compatible Cable	TK801 Modulebus extension cable
Product Function	Modulebus outlet and extension cable interface adapter
Product Category	Module_Termination_Unit
RoHS Status	Following EU Directive 2011/65/EU
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

Backplane Bus and Industrial Network Interface

The ABB TB805 belongs to the ABB S800 I/O Modulebus accessory family and provides a physical connection point for extending Modulebus communication paths. Therefore, the adaptor maintains the required mechanical alignment between the controller-side interface and external TK801 extension cables.

The TB805 uses a passive signal routing structure without internal processing firmware. Consequently, it does not modify communication data or require configuration parameters. The component supports ABB industrial control architectures where I/O density scaling and backplane bus communication velocity management are handled by the active controller and I/O modules.

The D-sub 25 female interface provides a defined electrical connection point. Additionally, correct cable shielding and grounding practices help maintain signal integrity in industrial environments.

Frequently Asked Questions

Q: Does the TB805 require an external power supply?
A: No. The TB805 is a passive Modulebus extension cable adaptor and does not require external power input.

Q: What cable connects to the TB805 interface?
A: The TB805 is designed for use with the ABB TK801 Modulebus extension cable through its D-sub 25 female connector interface.

Q: Does the TB805 contain firmware or communication configuration settings?
A: No. The TB805 is a hardware adaptor without firmware functions or user-configurable parameters.

Field Installation Guidelines

Install the TB805 according to ABB S800 I/O system installation procedures. Verify that the D-sub 25 connector is fully seated and mechanically secured before system operation.

Route the TK801 extension cable separately from high-voltage power wiring and high-current switching conductors. Maintain proper cable bending radius and avoid excessive mechanical stress on the connector assembly.

Connect cable shielding according to the system grounding design. Confirm that all Modulebus extension connections are correctly installed before applying power to the associated ABB control system.
