PLC systems and modules deliver flexible automation for industries worldwide. Our inventory includes controllers, input/output modules, and communication units from Allen-Bradley, Siemens, GE, and other leading brands.
PLC Systems & Modules
-

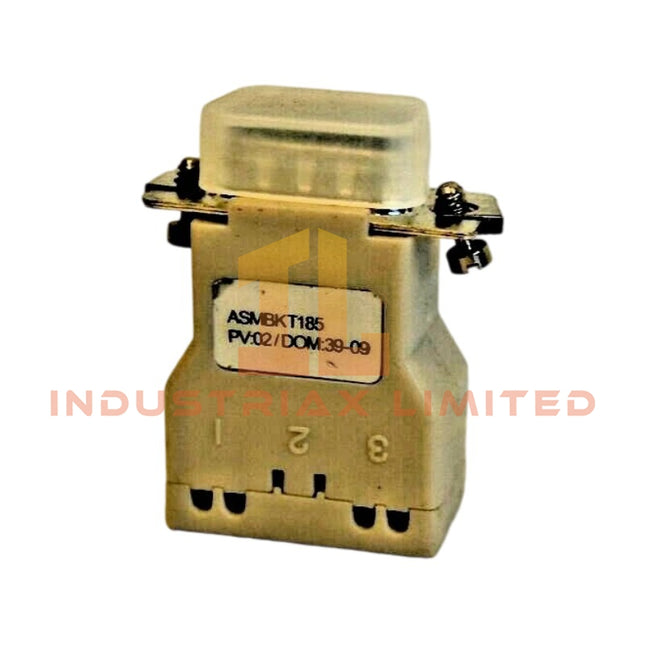

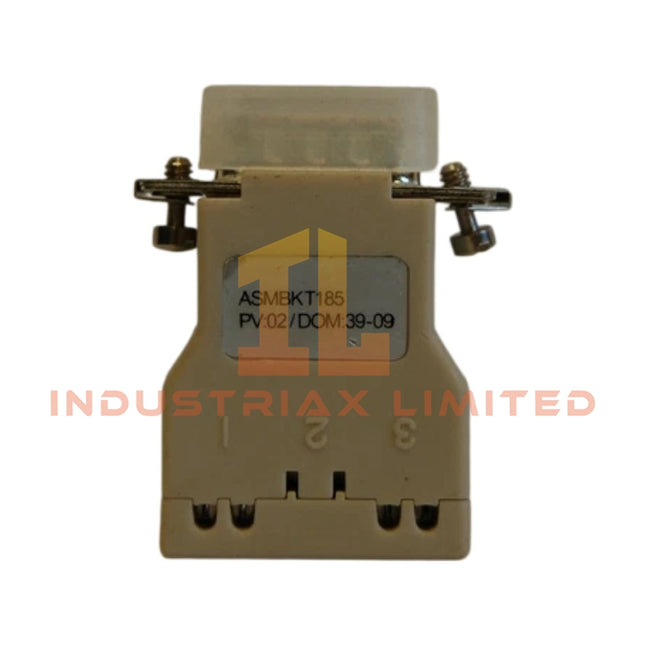

Schneider Electric Line Terminator Schneider Electric TSX Micro PLCs ASMBKT185
Schneider Electric ASMBKT185 Line Terminator Configured for signal line impedance termination in Modbus Plus communication topology within Modicon Momentum automation platform, the Schneider Electric ASMBKT185 (AS-MBKT-185 Line Terminator) provides direct physical termination of trunk and junction box segments in Modbus Plus network structures. Hardware Specifications Parameter Specification ModelBrand Schneider Electric ASMBKT185 Origin France Weight 0.03 kg Dimensions 3.74 in x 2.76 in x 0.67 in OperatingTemp Not specified PowerConsumption Passive device, no power supply required Core Function Modbus Plus line termination for junction box network ends Network Type Modbus Plus Modbus Plus industrial communication protocol Compatibility 990NAD23000 interface module Protection Degree IP20 Industrial Control Network Termination Behavior Within Schneider Electric PLC architectures, Modbus Plus network segments rely on controlled impedance matching to prevent signal reflections across multidrop trunk lines. The ASMBKT185 implements fixed passive termination at junction box endpoints, ensuring deterministic backplane-adjacent communication stability across distributed nodes. In systems such as Modicon Momentum automation platform, Modicon Premium automation platform, and Modicon Quantum automation platform, the termination element operates as a non-powered impedance matching node integrated into the Modbus Plus segment topology. The device does not participate in backplane bus arbitration but enforces electrical boundary conditions at segment extremities. From a deterministic network standpoint, Modbus Plus frames require consistent reflection suppression to maintain token-passing integrity. The ASMBKT185 provides fixed termination resistance characteristics intended to stabilize differential signal amplitude across junction box transitions. Frequently Asked Questions (FAQ) Q: Does ASMBKT185 require external power supply?A: No. The unit is a passive termination element with no electrical consumption or active circuitry. Q: Can ASMBKT185 be hot-swapped during Modbus Plus operation?A: Physical removal during active communication is not recommended, as termination loss may introduce signal reflection and token instability on the segment. Q: Is polarity or orientation critical for installation?A: The device functions as a resistive termination block; however, correct junction box terminal alignment is required to maintain proper network impedance matching. Field Installation Guidelines ASMBKT185 shall be installed at the physical end of Modbus Plus trunk segments or designated junction box termination points. Shield continuity must be maintained across all network segments, ensuring consistent reference grounding between nodes. Termination should only be applied at segment endpoints; dual termination within a single segment may degrade signal integrity. Cable routing must minimize loop formation and maintain standard twisted-pair shielding practices consistent with industrial fieldbus installation rules. Mechanical mounting inside IP20 junction enclosures must ensure stable contact seating to avoid intermittent termination resistance variations under vibration.
$200.00 $100.00
-

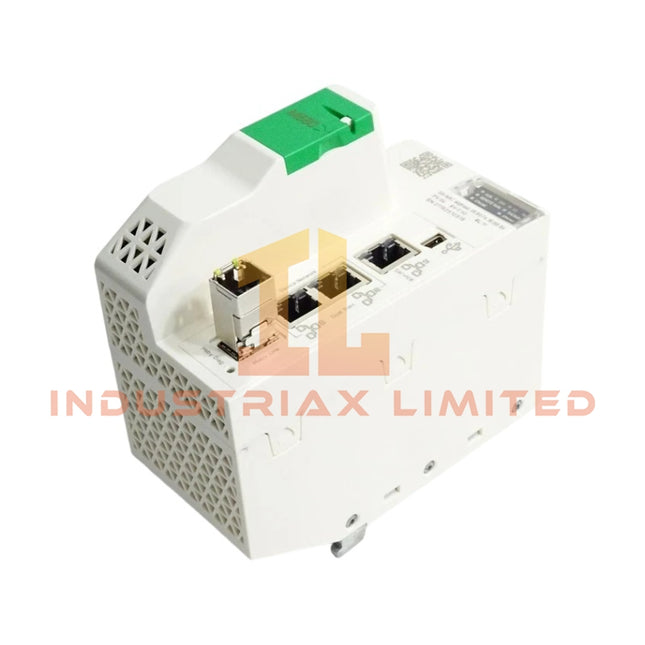

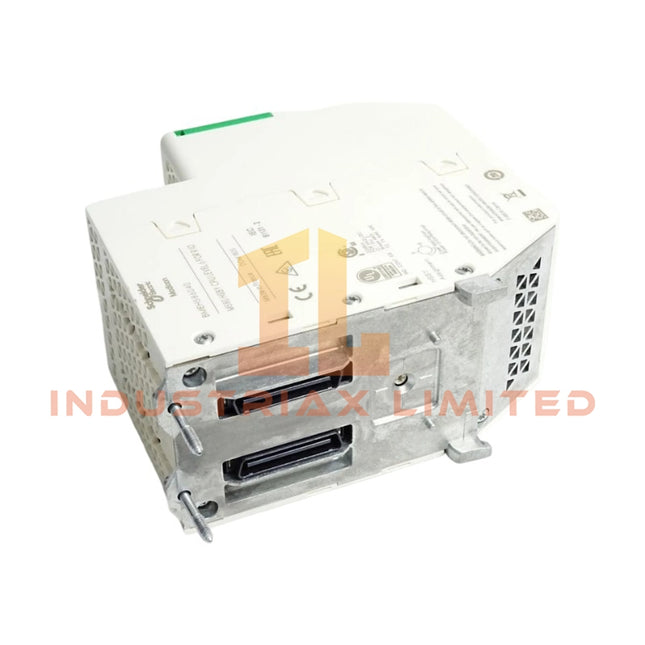

Schneider Electric Redundant Processor Module Schneider Electric BMEH586040
Schneider Electric BMEH586040 Redundant Processor Module The Schneider Electric BMEH586040 also cataloged as the BMEH586040 redundant processor module operates as a dedicated hardware component for high-availability control execution and synchronized redundancy management within the Modicon M580 automation system. It provides hardware-level support for dual processor synchronization through HSBY architecture and Ethernet-based system communication. Suffix Breakdown & Model Matrix No validated manufacturer-provided suffix decomposition is available for BMEH586040. The model is treated as a single ordering reference within the Modicon M580 redundant processor family. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMEH586040 Origin France Weight 900 g (package) Dimensions 9 cm x 17.5 cm x 25 cm (package) OperatingTemp 0 to 60 degC PowerConsumption 295 mA at 24 VDC Redundancy Architecture HSBY redundant processor synchronization Communication Interfaces 2 x Ethernet TCP/IP (device network), 1 x Ethernet service port, 1 x Ethernet HSBY port, USB mini-B System Capacity Up to 31 remote I/O stations, 64 distributed equipment nodes Memory 64 MB RAM program/data, 4 MB HSBY data, 4 GB expandable flash Schneider Electric PLC Redundancy & Ethernet Control Characteristics The BMEH586040 implements dual-processor HSBY synchronization through dedicated Ethernet interconnect, maintaining state alignment between primary and standby CPUs. The HSBY channel operates independently of standard device network traffic, isolating redundancy exchange frames from RIO scanner and DIO scanner communication paths. Ethernet TCP/IP segmentation supports separation between service-level access and deterministic control traffic. The backplane architecture maintains cyclic task execution consistency under redundant switchover conditions, ensuring memory image coherency across fast and master cyclic tasks. Frequently Asked Questions Q: Does the module support hot standby switchover without task interruption?A: The HSBY architecture maintains synchronized memory and process image replication. Switchover behavior depends on task cycle phase alignment and redundancy configuration state. Q: What is the function of the dedicated HSBY Ethernet port?A: It is used exclusively for redundancy synchronization traffic between primary and standby processors, isolated from standard TCP/IP device network communication. Q: Can remote I/O scanning continue during processor transition?A: RIO scanning is maintained through configured Ethernet I/O architecture, with continuity dependent on network topology and redundancy configuration state retention. Field Installation Guidelines The module shall be installed in a Modicon M580-compatible rack with correct backplane seating alignment. Ensure power is isolated at 24 VDC before insertion or removal. HSBY Ethernet cabling must be routed separately from high-noise power conductors to maintain signal integrity of redundancy synchronization traffic. Shield termination should be implemented at designated grounding points only, avoiding multiple earth loops across rack assemblies.
$200.00 $100.00
-

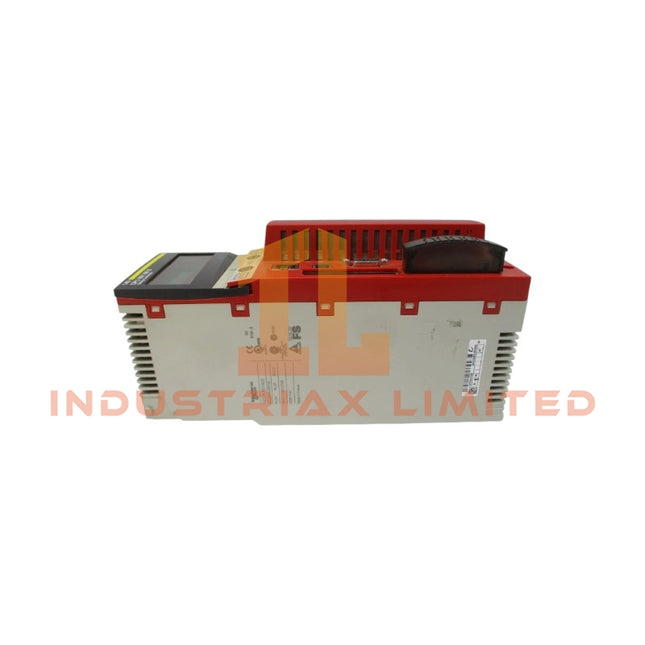

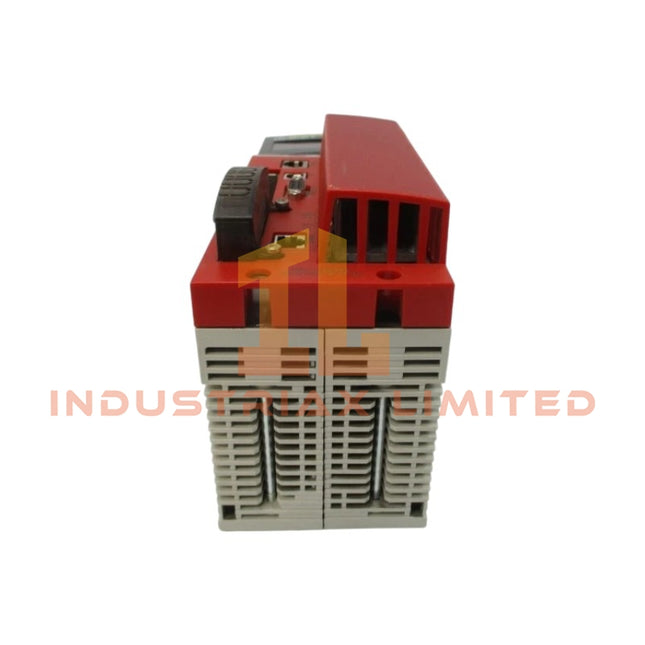

Schneider Electric 140CPU65160 Unity Processor Module | Schneider Electri Modicon Quantum
Schneider Electric 140CPU65160 Modicon Quantum Unity Processor Module Configured for real time deterministic control execution in Modicon Quantum automation networks, the Schneider Electric 140CPU65160 (140CPU65160 Unity Processor Module) provides direct physical/electrical execution for cyclic logic processing, distributed I/O handling, and industrial network communication across Modicon Quantum platforms. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU65160 Origin France Weight 0.91kg Dimensions Not specified OperatingTemp Not specified (industrial PLC standard class) PowerConsumption 2760 mA bus current requirement CPU Clock Frequency 266 MHz Internal Memory 1024 kB RAM Program Expansion Up to 7168 kB via PCMCIA File Storage Up to 8 MB via PCMCIA Local Rack Support Up to 2 racks Distributed I/O Capacity 8000 inputs / 8000 outputs per network Remote I/O Capacity 31744 inputs / 31744 outputs Slot Capacity Up to 26 slots (local I/O) Communication Interfaces Ethernet TCP/IP, Modbus, Modbus Plus, USB Network Connections Ethernet TCP/IP, Modbus Plus (SUB-D 9), Modbus RJ45 Execution Time 0.0525 to 0.075 us (Boolean), 0.045 to 0.06 us (word ops) PLC Backplane Bus Deterministic Execution Characteristics The Modicon Quantum backplane architecture of the 140CPU65160 implements high speed deterministic data exchange between CPU and local I/O modules using a synchronized rack-level bus cycle. The backplane communication velocity is aligned with cyclic master task scheduling, supporting fast task interrupt segmentation (0.2 ms) and master task overhead control (1 ms). Ethernet TCP/IP and Modbus Plus stacks operate concurrently, enabling mixed deterministic and non-deterministic traffic separation across control and supervisory layers. Firmware flash operations via PCMCIA memory modules maintain execution continuity while preserving program and file storage segmentation without halting core scan cycles. Suffix Breakdown & Model Matrix No validated suffix segmentation or internal model matrix breakdown is defined for 140CPU65160 within the provided technical dataset. The module is treated as a single fixed Unity processor configuration. Frequently Asked Questions Q: Can the 140CPU65160 support hot swap of CPU module during operationA: The CPU is not designed for live hot swap. Removal of the processor interrupts backplane communication and halts task execution cycles. Q: What is the impact of Ethernet and Modbus Plus simultaneous operation on cycle timeA: Both protocols operate on independent communication stacks. CPU scan time remains governed by cyclic and fast task scheduling, with network load influencing communication refresh rather than logic execution time. Q: How is firmware and application memory expandedA: Expansion is performed via PCMCIA card interface, supporting up to 7168 kB program memory and 8 MB file storage without modifying base CPU hardware. Field Installation Guidelines The module shall be installed into a Modicon Quantum rack ensuring proper alignment with backplane connectors and full seating of the CPU into designated slot positions. Shielded communication cabling is required for Modbus Plus SUB-D 9 and Ethernet RJ45 ports, with shield termination at chassis ground potential on one end only to avoid ground loop formation. USB service interface must be used exclusively for maintenance access under controlled conditions. Ensure rack power is isolated prior to insertion or removal to prevent backplane transient bus disturbance. Maintain separation between high noise motor drive wiring and communication lines to preserve signal integrity.
$200.00 $100.00
-

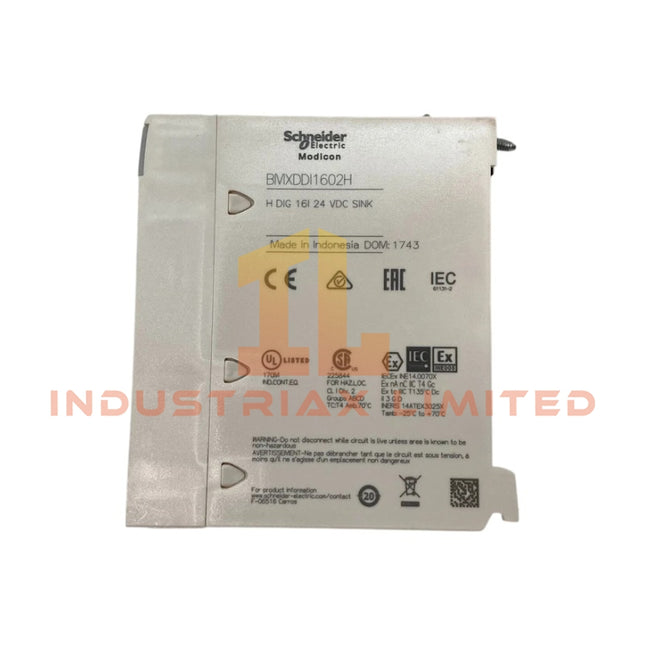

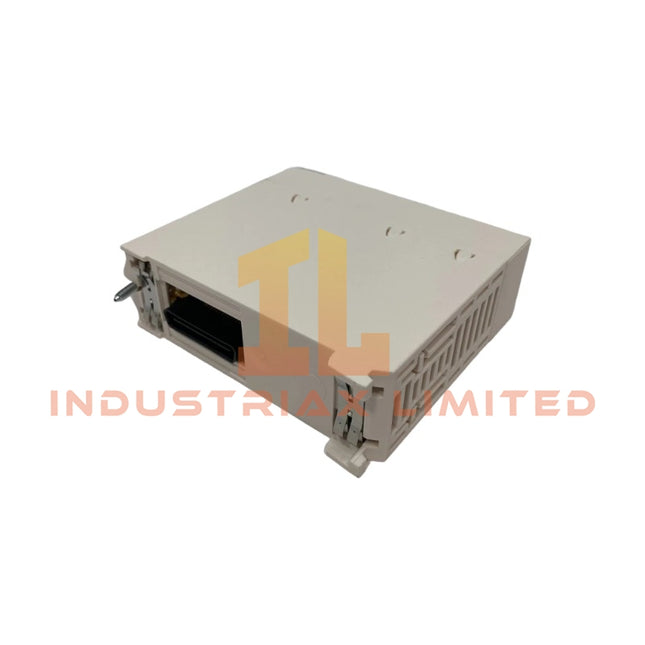

Schneider Electric Schneider Electric BMXDDI1602H Modicon X80 Discrete Input Module
Schneider Electric BMXDDI1602H Modicon X80 Discrete Input Module Configured for discrete signal acquisition in Modicon X80 backplane I/O systems, the Schneider Electric BMXDDI1602H (BMXDDI1602H Discrete Input Module) provides direct physical/electrical execution within Schneider Electric Modicon X80 architectures. The module implements 16-channel 24 V DC current sink (positive logic) input acquisition with isolated channel structure for field signal interfacing. Suffix Breakdown & Model Matrix No explicit manufacturer-defined suffix segmentation for BMXDDI1602H is provided in the supplied technical dataset. Model interpretation is limited to catalog identifier level only. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMXDDI1602H Origin France Weight 0.115 kg Dimensions Not specified OperatingTemp Not specified (sensor supply referenced up to 60 degC / 70 degC conditions) PowerConsumption 2.5 W Input Channels 16 discrete inputs Input Type Isolated current sink (logic positive) Input Voltage 24 V DC Input Current 3.5 mA Response Time 4 ms typical / 7 ms max Input Compatibility IEC 60947-5-2, IEC 61131-2 Type 3 proximity sensors Insulation Resistance > 10 MOhm at 500 V DC Backplane Consumption 76 mA at 3.3 V DC Backplane Deterministic I/O Handling and Firmware Integration Within Modicon X80 systems, the BMXDDI1602H integrates into the backplane communication layer through deterministic I/O refresh cycles synchronized with PLC scan execution. Channel state acquisition is executed through fixed-latency sampling windows (4 ms typical), enabling predictable input mapping to process image tables. Firmware compatibility is aligned with Schneider Electric X80 platform I/O modules, supporting consistent module identification and hot module detection at rack level without requiring reconfiguration of I/O addressing tables. Signal conditioning is internally optimized for 24 V DC current sink topology, ensuring stable logic interpretation under standard IEC 61131-2 Type 3 sensor electrical behavior. Frequently Asked Questions (FAQ) Q: Does the module support hot-swap insertion on an energized backplane?A: The module is designed for rack-based X80 installation. Hot insertion behavior depends on system backplane configuration and PLC rack power management rules. Q: What is the effect of backplane load on input scan timing?A: Input scan timing is determined by PLC task cycle and backplane update mechanism; the module itself maintains fixed internal response time independent of channel count utilization. Q: Can inputs be paralleled for signal redundancy?A: Paralleling of inputs is supported electrically, but signal interpretation remains dependent on external wiring topology and PLC logic configuration. Field Installation Guidelines The BMXDDI1602H shall be installed on a grounded X80 rack backplane following standard DIN rail mechanical alignment procedures. Ensure that field wiring for 24 V DC inputs is segregated from high-voltage conductors to reduce electromagnetic coupling. Shielded cable termination should be referenced to a single-point ground to prevent ground loop current through input common terminals. Maintain torque specifications for terminal blocks according to rack-level installation documentation. Do not exceed specified sensor supply voltage range during commissioning. Verify channel LED status indicators after power-up before enabling PLC scan execution.
$200.00 $100.00
-

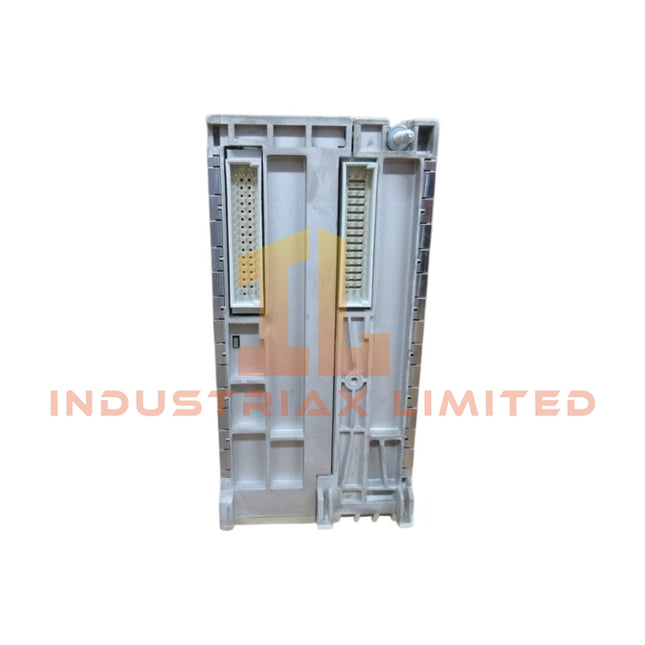

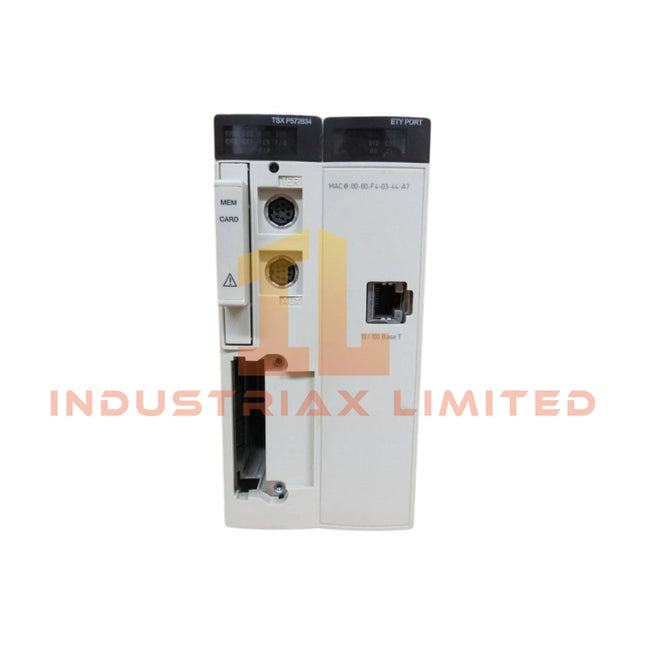

Schneider Electric Schneider Electric TSXP572634M Modicon Premium Unity Processor
Schneider Electric TSXP572634M PLC Processor Module Configured for deterministic PLC task execution in Modicon Premium Automation platform, the Schneider Electric TSXP572634M (TSXP572634M processor module) provides direct physical/electrical execution for rack-based I/O processing and Ethernet/RS485 communication handling. The module supports up to 8 racks (12-slot) or 16 racks (4/6/8-slot), integrates 5 V DC backplane supply at 1650 mA, and manages up to 1024 discrete I/O points with 80 analog I/O channels. Internal architecture supports fast, master, and event tasks under Unity Pro environment. Suffix Breakdown & Model Matrix No validated manufacturer-published suffix decomposition is provided in the supplied dataset for TSXP572634M. The identifier is treated as a single-order processor module designation within the Modicon Premium range. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXP572634M Origin France Weight 1.5KG Dimensions N/S OperatingTemp 0 to 60 degC (operation), -25 to 70 degC (storage) PowerConsumption 5 V DC, 1650 mA backplane supply Rack Capacity 8 racks (12-slot) / 16 racks (4/6/8-slot) Max I/O Capacity 1024 discrete I/O, 80 analog I/O Memory 160 kB base RAM, up to 768 kB with PCMCIA Communication Interfaces Ethernet 10BASE-T/100BASE-TX, RS485 serial Task Structure 1 fast task, 1 master task, 64 event tasks Instruction Execution 0.19 to 2.6 microseconds depending on operation type Backplane Bus and Deterministic Control Architecture (Schneider Electric PLC Systems) The TSXP572634M processor executes cyclic and event-driven logic over a shared Modicon Premium backplane, where I/O scanning and task scheduling are synchronized through deterministic scan cycles. Backplane communication supports high-density I/O mapping up to 1024 points with controlled latency across multi-rack configurations. Ethernet TCP/IP interface (10/100BASE-TX) is used for supervisory communication and Unity Pro engineering access, while RS485 serial link supports legacy device integration at 19.2 kbit/s. Firmware and application execution consistency depends on internal task scheduler prioritization between fast and master tasks, ensuring predictable scan timing under mixed Boolean and fixed-point arithmetic loads. Firmware flash compatibility and application download behavior are governed through PCMCIA-based memory expansion, enabling separation of program and data domains for deterministic runtime behavior. Frequently Asked Questions Q1: Does TSXP572634M support hot-swap of processor modules?A1: No. The processor is not designed for hot-swap operation. Power-down is required before rack insertion or removal to avoid backplane instability. Q2: How is backplane load distributed across multi-rack configurations?A2: Backplane load is distributed via the 5 V DC internal supply at 1650 mA. Each rack contributes to total current draw depending on installed I/O modules. Q3: Can firmware be updated without PCMCIA memory expansion?A3: Yes, but internal RAM is reduced in configuration. PCMCIA enables expanded program memory and improved application storage separation. Field Installation Guidelines Install the processor in a grounded Modicon Premium rack with verified backplane continuity. Maintain segregation between Ethernet/RS485 wiring and power conductors to reduce signal coupling on communication lines. Ensure 5 V DC backplane supply stability prior to slot insertion. All shielded cables shall be terminated at a single-point earth reference to maintain signal integrity across multi-rack configurations. Avoid installation in environments exceeding IP20 protection boundaries without enclosure. Maintain airflow clearance for thermal dissipation across stacked rack assemblies.
$200.00 $100.00
-

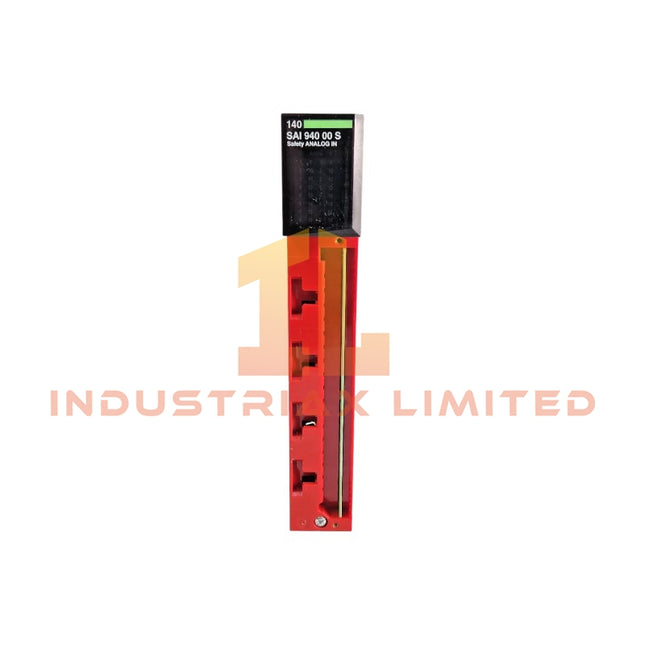

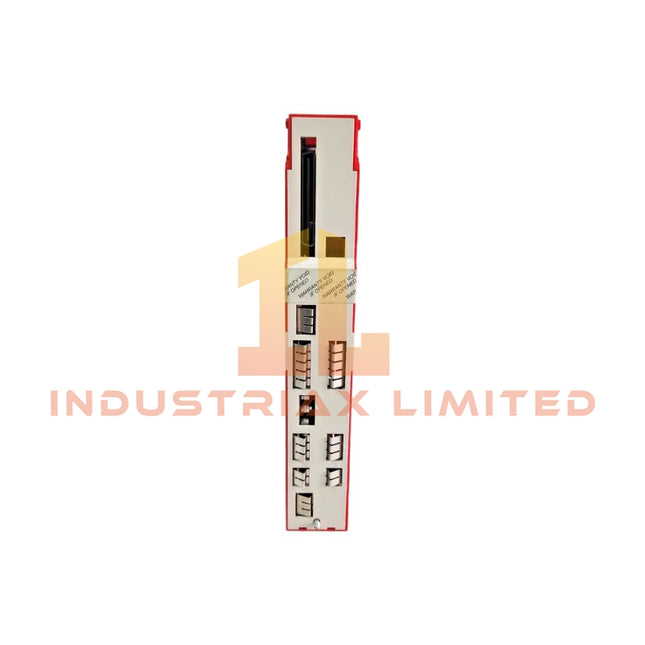

Schneider Electric Schneider Electric 140SAI94000S Analogue Safety Input Module
Schneider Electric 140SAI94000S Analogue Safety Input Module The Schneider Electric 140SAI94000S, also cataloged as the 140SAI94000S Analogue Safety Input Module, operates as a dedicated hardware component for analog signal acquisition within Modicon Quantum automation platform. Configured for safety-oriented analog current acquisition in Modicon Quantum systems, the Schneider Electric 140SAI94000S (140SAI94000S Analogue Safety Input Module) provides direct electrical conversion of field 0...25 mA signals into 16-bit process data via backplane communication. Suffix Breakdown & Model Matrix No validated manufacturer-specified suffix decomposition is available for 140SAI94000S. The identifier is treated as a single ordering and functional module code within the Modicon Quantum catalog structure. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140SAI94000S PowerConsumption 3.5 W Analog Input Channels 8 Input Signal Range 0...25 mA Resolution 16 bit Update Time 15 ms Input Impedance 287 Ohm Absolute Max Input 35 mA Isolation Channel to Bus 1500 VAC for 60 s Isolation Channel to Channel 500 VAC for 60 s Linearity Error +/- 2 uA max (0...60 degC) Accuracy +/- 0.35 % FS (max), +/- 0.3 % Filter Type Single pole low pass, 3 dB at 15 Hz Common Mode Rejection -70 dB @ 50 Hz, -65 dB @ 60 Hz Diagnostic Indication LED status per channel and system Backplane Signal Processing and Quantum Bus Behavior The 140SAI94000S integrates into the Modicon Quantum backplane architecture, where analog sampling results are transferred as 13 input words per module addressing structure. Channel acquisition is multiplexed with deterministic scan alignment to the rack bus cycle. Electrical isolation design separates field input circuitry from system backplane logic, supporting channel-level fault containment through galvanic isolation barriers. Frequently Asked Questions Q: Does the module support hot-swap replacement during system operation?A: Hot-swap capability depends on Quantum rack configuration. Electrically, channel isolation is maintained; however backplane synchronization reinitialization is required after insertion. Q: What is the effect of overrange input beyond 25 mA?A: Inputs above nominal range trigger overflow detection and diagnostic fault indication. Absolute maximum withstand is 35 mA without guaranteed measurement linearity. Q: How is channel fault isolation implemented?A: Each channel is independently isolated at 500 VAC, with full module-to-backplane isolation at 1500 VAC, limiting fault propagation across measurement paths. Field Installation Guidelines Install the module only into compatible Modicon Quantum rack backplane slots. Maintain separation between analog input wiring and high-voltage conductors to preserve CMRR performance. Shielded twisted pair cables are required for 0...25 mA loop integrity, with single-point shield grounding at the cabinet earth reference. Ensure torque compliance on terminal blocks according to rack hardware specification. Avoid routing input wiring parallel to switching power conductors or inverter output lines.
$200.00 $100.00
-

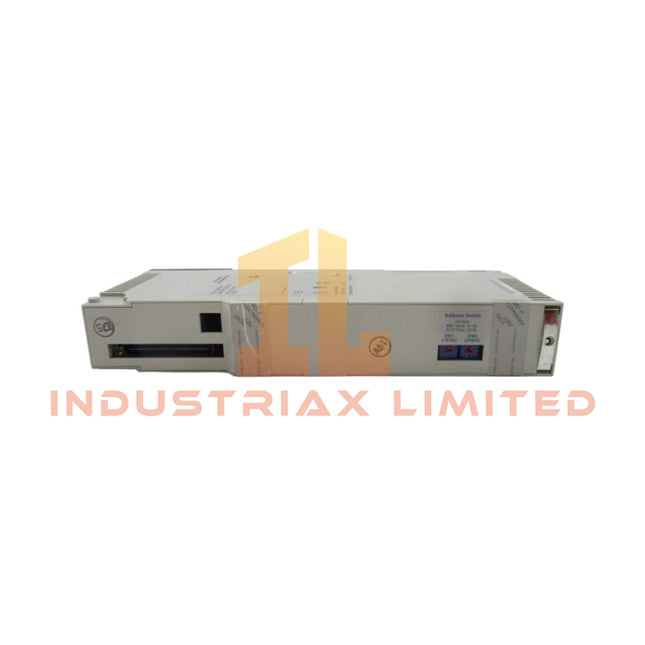

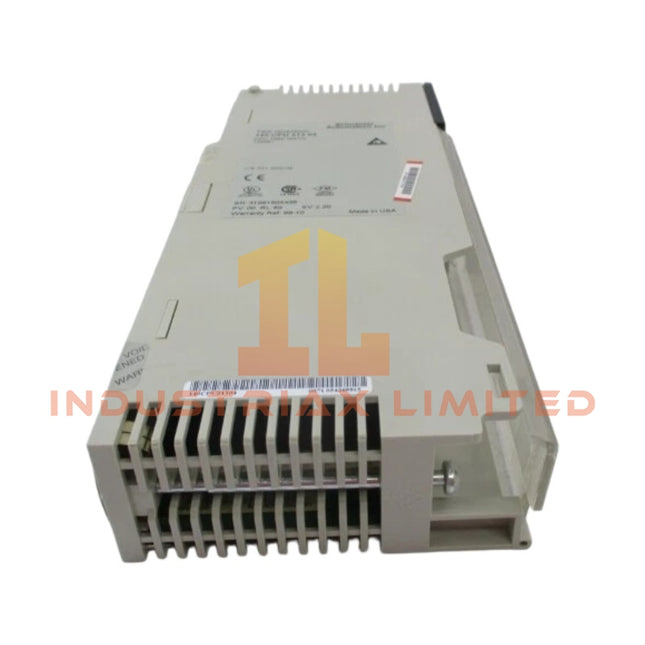

Schneider Electric 140CPU21304 Modicon Quantum CPU Controller Schneider Electric
Schneider Electric 140CPU21304 Modicon Quantum CPU Controller Configured for deterministic control execution in Modicon Quantum backplane systems, the Schneider Electric 140CPU21304 (140CPU21304 CPU Controller) provides direct processing and communication handling within rack-based PLC architectures. The unit integrates a 20 MHz math processor and 768 kB memory for program execution, data handling, and Modbus Plus network interfacing. Suffix Breakdown & Model Matrix The part number 140CPU21304 is a fixed-order identifier within the Modicon Quantum CPU family. No validated manufacturer-published suffix segmentation or functional encoding breakdown is defined for this model string. Functional behavior is determined by firmware configuration and installed system modules rather than suffix interpretation. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU21304 Origin France Weight 2.00 lbs (0.91 kg) Dimensions Not specified OperatingTemp 0 degC to 60 degC StorageTemp -40 degC to 85 degC Memory 768 kB Processor Type Math Processor Clock Frequency 20 MHz Power Consumption 250 mA max Input Voltage 24 VDC Bus Current 200 mA Communication Modbus Plus Backplane Bus Communication and Firmware Execution Behavior Within the Modicon Quantum architecture, CPU-to-backplane interaction is handled through deterministic rack-level bus scheduling, where Schneider Electric Modicon Quantum CPU modules coordinate I/O refresh cycles and memory mapping over a shared backplane communication structure. Firmware flash compatibility defines instruction set execution consistency across CPU revisions, while network determinism is maintained through synchronized scan cycles between Modbus Plus communication stacks and internal task scheduling. Backplane throughput is constrained by rack configuration and module density scaling, directly influencing I/O update latency and system-level cycle time. Frequently Asked Questions Q: Can the 140CPU21304 be hot-swapped during system operation?A: No. CPU replacement requires system power-down due to backplane bus state dependency and memory retention behavior. Q: Does the module support firmware updates via Modbus Plus network?A: Firmware transfer is not executed via Modbus Plus. Updates require dedicated programming interface access through supported Schneider Electric configuration tools. Q: How is backplane current consumption distributed across the rack?A: The CPU contributes up to 200 mA to the rack backplane load, shared across installed Quantum modules based on slot configuration. Field Installation Guidelines Install the CPU into the designated Modicon Quantum rack slot with verified backplane alignment. Ensure 24 VDC supply stability prior to insertion. Maintain proper grounding of the rack chassis to reduce electrical noise coupling across the backplane bus. All communication cabling for Modbus Plus must follow shielded twisted-pair routing with single-point shield termination. Avoid live insertion or removal of the CPU module during active process execution. Verify firmware compatibility with installed I/O and communication modules prior to commissioning.
$200.00 $100.00
-

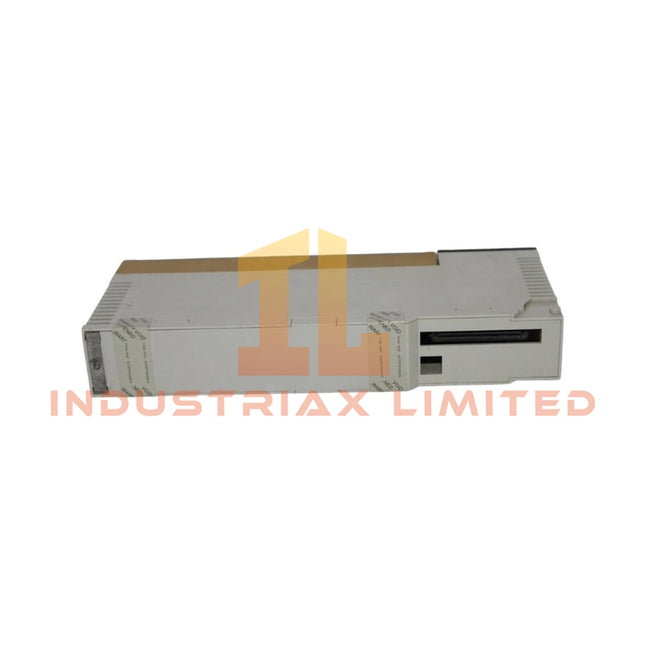

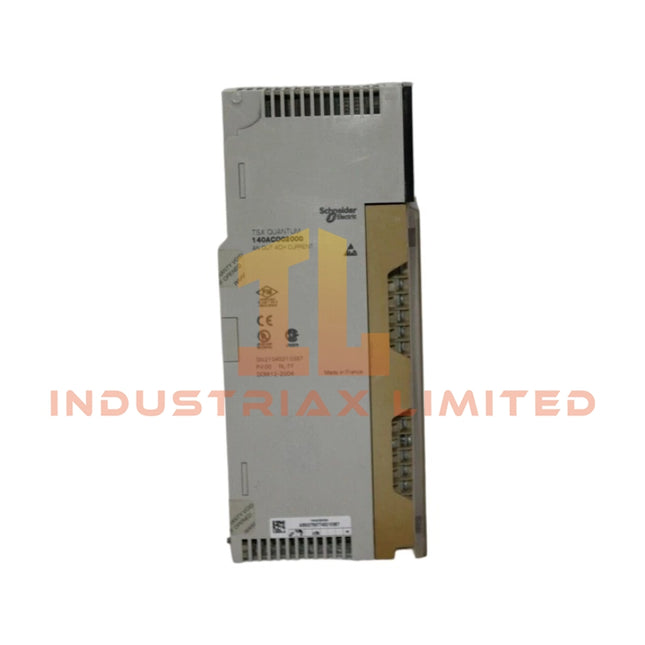

Schneider Electric Schneider Electric 140ACO02000 Analog Output Module
Schneider Electric 140ACO02000 Analog Output Module Configured for 4-20 mA analog current generation in Modicon Quantum backplane environments, the Schneider Electric 140ACO02000 (140ACO02000 Analog Output Module) provides direct electrical signal conversion across four isolated output channels for process interfacing and actuator drive. The module is integrated within the Modicon Quantum architecture and executes D/A conversion for current-loop control without embedded control logic or fieldbus protocol termination. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140ACO02000 Origin France Weight 0.91 kg (2.00 lbs) OperatingTemp 0 to 60 degC PowerConsumption Not specified Output Channels 4 Output Type 4-20 mA current loop Resolution 12-bit bipolar current conversion External Loop Voltage 12 to 30 VDC Mounting DIN rail or panel mount Indicators LED status indication Backplane Bus Communication and Firmware Interface Behavior Within the Modicon Quantum PLC rack architecture, the 140ACO02000 exchanges process data through the backplane communication bus, where output words are mapped cyclically from CPU memory to DAC registers. Deterministic update timing is governed by system scan rate and rack arbitration logic. Firmware compatibility is tied to Quantum series base controllers, with module recognition handled via rack ID enumeration. No field firmware upgrade mechanism is exposed at module level; updates are executed through system-level firmware management tools. Backplane density and channel refresh rate remain dependent on CPU task scheduling and I/O scan configuration. Suffix Breakdown & Model Matrix 140ACO02000 is a fixed catalog number without documented suffix segmentation or functional sub-code structure. No validated decoding of embedded function blocks or hardware option fields is defined in manufacturer documentation. Frequently Asked Questions Q: Does the module support hot-swap insertion under power?A: Hot-swap capability is dependent on Quantum rack configuration and backplane design. Electrical insertion under load must follow rack-level isolation procedures to prevent transient backplane disturbance. Q: What is the output update mechanism for the 4-20 mA channels?A: Output values are updated through cyclic backplane data exchange, where DAC registers are refreshed according to PLC scan cycle timing. Q: Is channel-to-channel electrical isolation implemented internally?A: Channel isolation behavior is defined at module hardware design level; field wiring must maintain loop isolation per system grounding scheme to avoid ground loop current interference. Field Installation Guidelines Install module only in de-energized Quantum rack slots unless system supports verified hot insertion procedure. Maintain separation between analog output wiring and high-frequency switching conductors to reduce inductive coupling. Use shielded twisted pair wiring for 4-20 mA loops, with shield termination at single-point ground reference. Ensure loop supply voltage remains within 12 to 30 VDC under full load conditions. Verify backplane connector seating alignment to avoid partial pin engagement during insertion.
$200.00 $100.00
-

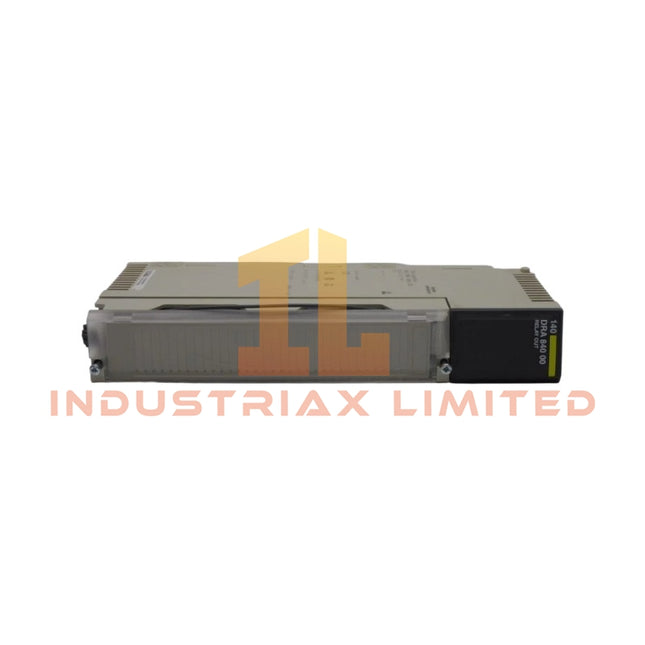

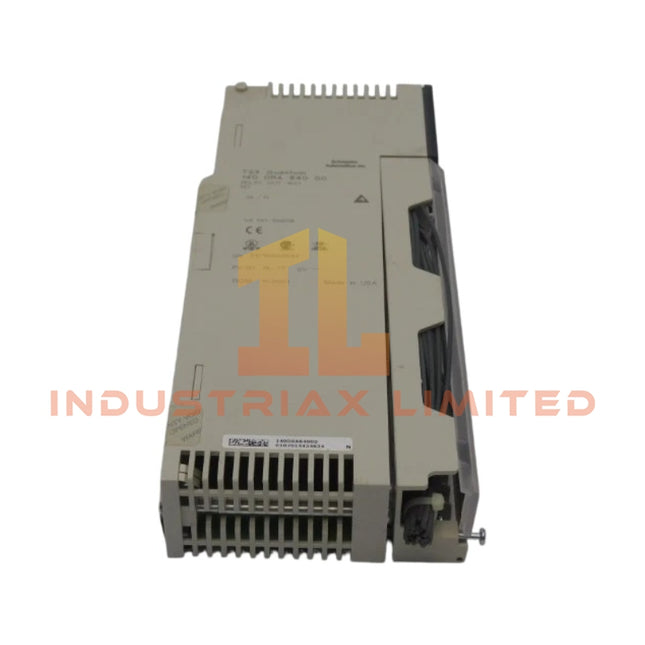

Schneider Electric Relay Discrete Output Module Schneider Electric 140DRA84000
Schneider Electric 140DRA84000 Relay Discrete Output Module TheSchneider Electric 140DRA84000also cataloged asthe140DRA84000Relay Discrete Output Module, operates as a dedicated hardware component for electrical load switching within Modicon Quantum backplane I/O execution architecture. It provides 16 independent relay outputs for direct actuation of AC/DC field loads via isolated Form A contacts. Suffix Breakdown & Model Matrix No structured suffix decomposition is defined in the provided technical data. The module is treated as a single-order hardware identifier: 140DRA84000. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140DRA84000 Origin France Weight 0.41 kg PowerConsumption 5.5 W + (0.5 x points ON) Output Type Relay, Form A (1 NO per channel) Output Channels 16 Rated Voltage 5 to 30 VDC, 20 to 250 VAC, 30 to 150 VDC Max Load Current 1 A per channel (AC/DC) Switching Capacity 500 VA resistive Schneider Electric Backplane I/O Deterministic Execution Layer Within the Modicon Quantum architecture, the 140DRA84000 interfaces through backplane bus communication where output command frames are mapped to a 16-bit output word. Schneider Electric PLC systems typically implement deterministic scan-based execution, ensuring synchronized output refresh aligned with CPU cycle timing. The relay stage provides galvanic isolation between logic domain and field power domain, supporting mixed AC/DC load environments without shared reference coupling. Backplane current consumption of 1100 mA must be accounted for during chassis power budget allocation. Frequently Asked Questions Q: Can the module outputs be hot-swapped under load?A: No. Relay output hardware is not designed for live field load insertion or removal. Backplane power should be removed before module extraction. Q: What is the isolation rating between channels?A: Channel-to-channel and bus isolation is specified at 1780 Vrms for 1 minute, providing separation between output groups and logic backplane. Q: Does each channel support inductive load switching directly?A: Inductive loads require external suppression. Internal protection is limited to varistor clamping at 275 V. Field Installation Guidelines The module shall be installed in a Modicon Quantum chassis slot with backplane connector fully seated to ensure signal integrity across the I/O bus. Field wiring must follow segregation rules between AC and DC circuits to prevent cross-coupling. Relay output wiring should maintain minimum creepage distances in accordance with system voltage class. Shielding is not required at the relay contact level but is recommended for adjacent analog or communication cabling. All terminal torque values must follow cabinet-level electrical standards defined by system integrator practices.
$200.00 $100.00
-

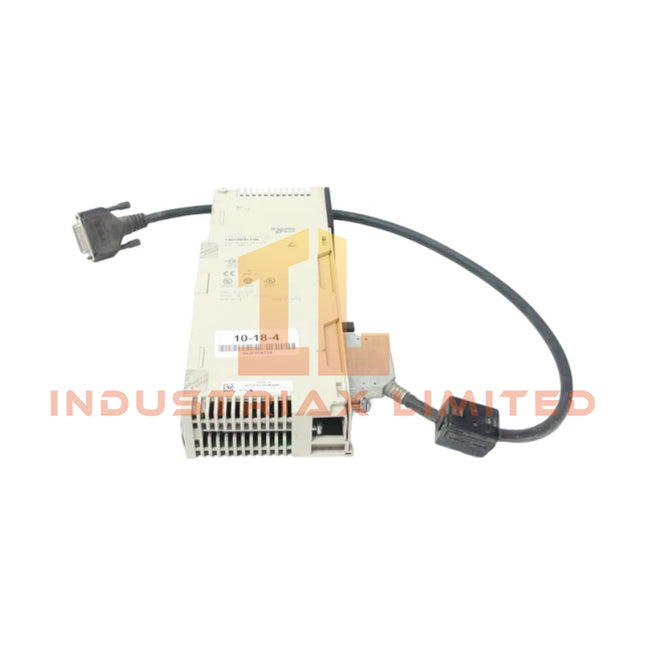

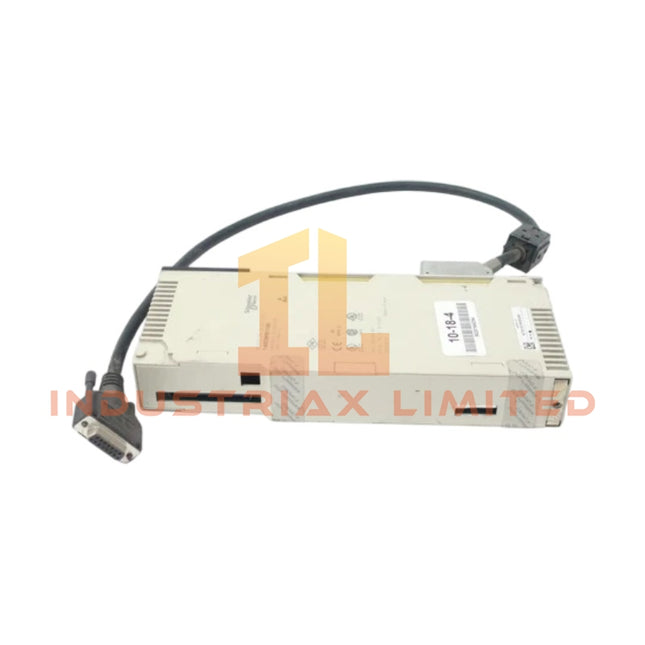

Schneider Electric RIO Head Processor Module Schneider Electric 140CRP81100
Schneider Electric 140CRP81100 RIO Head Processor Module Configured for deterministic remote I/O scan execution in Modicon Quantum coaxial RIO networks, the Schneider Electric 140CRP81100 (140CRP81100 RIO Head Processor Module) provides direct physical/electrical execution of backplane-to-remote rack communication across distributed Quantum I/O drops. Suffix Breakdown & Model Matrix The 140CRP81100 is defined as a single-orderable hardware module without documented suffix segmentation or functional variant encoding. No additional ordering suffix structure is specified in the provided technical dataset. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CRP81100 Origin France (Schneider Electric manufacturing group) Weight 0.31 kg Dimensions Single Quantum slot module (standard backplane form factor) OperatingTemp 0 degC to 60 degC PowerConsumption 3 W (typical), 600 mA @ 5 VDC Product Type RIO Head Processor Module Communication Interface Dual F-type coaxial ports Transmission Rate 1.544 Mbps Medium 75 ohm coaxial (RG-6 / RG-11) Max Remote Drops Up to 27 RIO drops Max Network Distance Up to 4500 m with repeaters Backplane Bus Determinism and Coaxial RIO Arbitration (Schneider Electric PLC Architecture) The 140CRP81100 operates as the RIO network master within the Modicon Quantum backplane, executing cyclic scan synchronization between CPU backplane transactions and remote rack I/O frames. Backplane bus communication velocity is governed by deterministic scheduling aligned to Quantum system scan cycles, ensuring consistent remote I/O refresh intervals. The module maintains coaxial frame arbitration over a 1.544 Mbps serial transport layer, where each remote drop is addressed in sequence. The architecture supports dual-cable redundancy, enabling failover continuity at the physical layer without altering backplane addressing logic. Firmware compatibility is tied to Quantum system-level flash images, with configuration parameters stored in rack-resident memory and synchronized at initialization. I/O density scaling is constrained by RIO addressing limits (up to 27 drops), requiring structured network segmentation in large distributed installations. Frequently Asked Questions Q1: Does the 140CRP81100 support hot-swap replacement?A1: Hot-swap behavior is dependent on Quantum backplane configuration. In typical implementations, removal of the RIO head module interrupts remote I/O communication until reinitialization completes. Q2: What is the electrical load impact on the backplane?A2: The module draws 600 mA at 5 VDC from the Quantum backplane power rail, contributing approximately 3 W power dissipation under steady state operation. Q3: Can coaxial redundancy operate with a single cable installed?A3: Yes. The module supports simplex operation using one F-type coaxial connection, but redundancy monitoring is disabled when dual-channel topology is not present. Field Installation Guidelines The module shall be installed in a single-slot position within a powered Modicon Quantum rack. Backplane power must be removed prior to insertion or extraction unless system design explicitly supports live insertion. Coaxial cabling shall be 75 ohm impedance matched (RG-6 or RG-11), with controlled bend radius maintained to avoid impedance discontinuities. Shield termination must be continuous across all RIO drops, with grounding implemented at defined network earth points only. For redundant topology, both F-type connectors must be engaged with equal-length cabling where possible to maintain timing symmetry across communication paths.
$200.00 $100.00
-

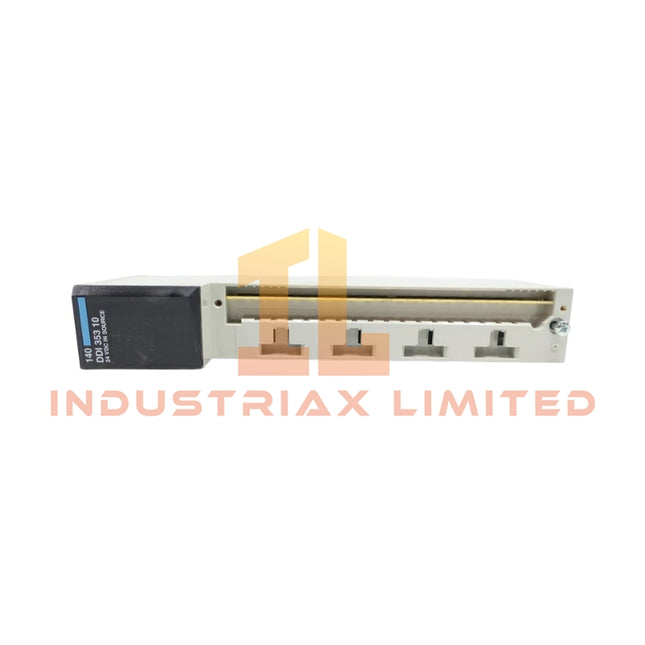

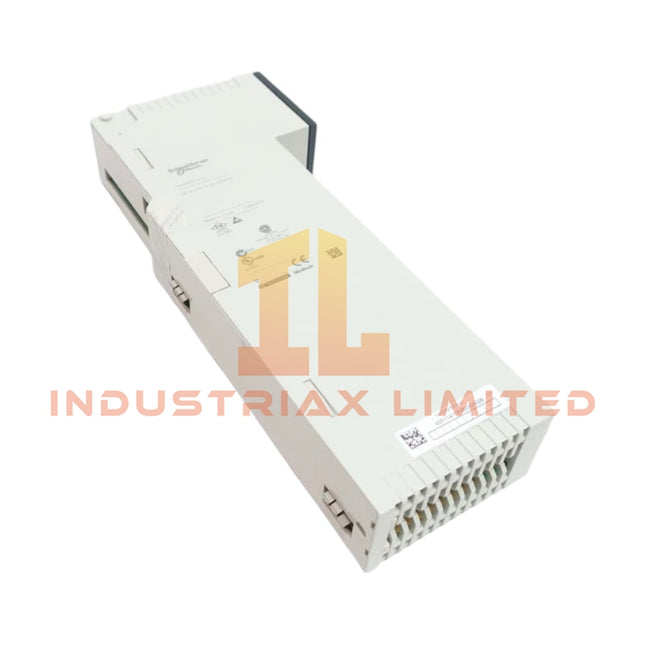

Schneider Electric Discrete Input Module Schneider Electric 140DDI35310
Schneider Electric 140DDI35310 Discrete Input Module TheSchneider Electric 140DDI35310，also cataloged asthe140DDI35310 Low Voltage DC Discrete Input Module, operates as a dedicated hardware component for 24 VDC field signal acquisition within Modicon Quantum backplane I/O architecture. The module provides 32-channel discrete input scanning with negative (source) logic detection, processing 24 V DC field signals via grouped channel architecture. Signal acquisition is performed through isolated input circuitry with defined voltage thresholds and fast response behavior suitable for high-density digital state monitoring on Quantum systems. Suffix Breakdown & Model Matrix 140 DDI 35310: 140: Modicon Quantum platform identifier DDI: DC Discrete Input 35310: Hardware design / channel configuration variant Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140DDI35310 Origin France Weight 0.3 kg PowerConsumption 1.5 W + (0.26 x number of points ON) Input Channels 32 discrete inputs Input Voltage 24 V DC nominal Input Range 19.2...30 V DC Logic Type Negative (source) Grouping 4 groups of channels Input Impedance 2400 Ohm Response Time <= 1 ms ON/OFF Schneider Electric Backplane I/O Deterministic Scan Behavior Within Modicon Quantum architecture, the 140DDI35310 interfaces through a deterministic backplane communication mechanism where input image tables are cyclically updated into PLC memory words. The module maps 32 discrete points into 2 input words, enabling structured data exchange with CPU modules over the rack bus. Backplane scan timing is synchronized with system bus cycles, ensuring consistent input state refresh independent of field wiring latency. The module supports high-density channel aggregation while maintaining fixed response time characteristics under full channel load conditions. Frequently Asked Questions Q: Does the 140DDI35310 support hot-swap insertion in a live Quantum rack?A: The module is mechanically compatible with Quantum rack hot insertion design, however field wiring state stability must be maintained during insertion to avoid transient input bit changes. Q: What is the maximum backplane load contribution of this module?A: The module draws approximately 330 mA from the rack backplane supply, depending on system configuration and bus state activity. Q: How is channel grouping structured internally?A: The 32 inputs are divided into 4 independent channel groups, each providing isolated signal referencing for structured input scanning and fault segmentation. Field Installation Guidelines The module shall be installed into a Modicon Quantum rack slot with power removed unless system hot-swap procedures are formally validated. Maintain proper grounding of the rack backplane to ensure stable reference potential for 24 V DC input logic levels. Field wiring should use shielded twisted pair conductors where long cable runs are present, with shields terminated at a single-point ground to avoid ground loop formation. Maintain separation between high-voltage conductors and low-level digital input wiring. Ensure that input voltage does not exceed 30 V DC continuous or 50 V transient pulse limits to prevent internal input stage stress. Channel grouping should be considered during wiring to simplify fault isolation and maintenance diagnostics.
$200.00 $100.00
-

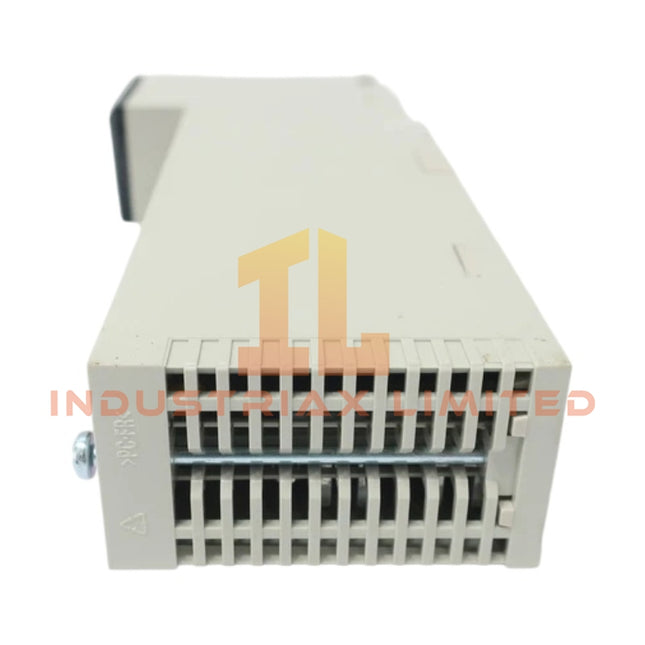

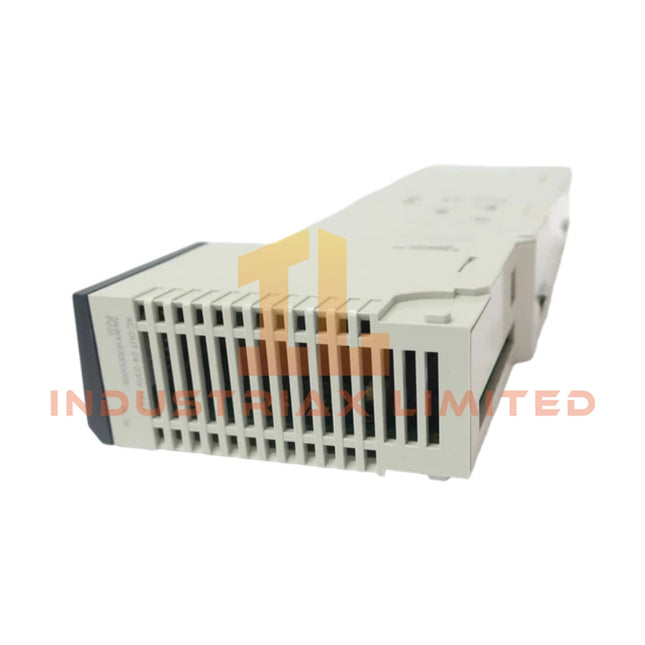

Schneider Electric 140DAO84000 Modicon Quantum AC Discrete Output Module Schneider Electric
Schneider Electric 140DAO84000 Modicon Quantum AC Discrete Output Module TheSchneider Electric 140DAO84000，also cataloged as the140DAO84000AC discrete output module, operates as a dedicated hardware component for direct AC load switching within Modicon Quantum backplane I/O execution framework. Suffix Breakdown & Model Matrix 140: Modicon Quantum platform I/O family identifier DAO: Discrete AC Output 84000: 16-channel output variant, 20..253 V AC range class Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140DAO84000 Origin France Weight 0.485 kg PowerConsumption 1.85 + (1.1 V x total module load current) Output Channels 16 isolated AC outputs Output Voltage Range 20..253 V AC Frequency Range 47..63 Hz Off-state Leakage 1 mA to 2.5 mA rms depending on voltage level Surge Current up to 30 A (1 cycle per point) Response Time <= 0.5 ms ON/OFF Schneider Electric Backplane Communication and Output Determinism Within the Modicon Quantum architecture, the 140DAO84000 interfaces through the rack backplane bus, where deterministic I/O refresh cycles synchronize output word mapping to CPU scan execution. The module consumes 350 mA backplane current and maps 16 output points into a single output word addressing structure. Channel isolation is implemented in 16 independent groups of 1 channel, reducing cross-load coupling on mixed AC switching profiles. Internal RC filtering is applied to suppress dv/dt transients up to 400 V/ms, maintaining controlled switching behavior under inductive load conditions. Frequently Asked Questions Q: Can the module outputs be hot-swapped under load conditions?A: Hot-swap capability depends on rack configuration. Output terminals must be de-energized before module insertion or removal to avoid backplane transient stress. Q: What is the impact of surge current on backplane loading?A: Surge current up to 30 A per point is isolated at output stage; backplane current draw remains fixed at 350 mA and is not affected by load-side inrush. Q: Is firmware required for operation of this module?A: No local firmware is stored in the module. Operation is controlled by Modicon Quantum CPU firmware and I/O configuration database. Field Installation Guidelines Ensure rack power is removed before insertion or removal of the module Verify output wiring insulation rating compatible with 253 V AC maximum Maintain separation between AC output wiring and low-voltage signal cabling Use appropriate fusing (5 A recommended per channel protection) Confirm proper backplane seating to avoid intermittent I/O word mapping faults Observe leakage current characteristics when interfacing with sensitive load inputs
$200.00 $100.00
-

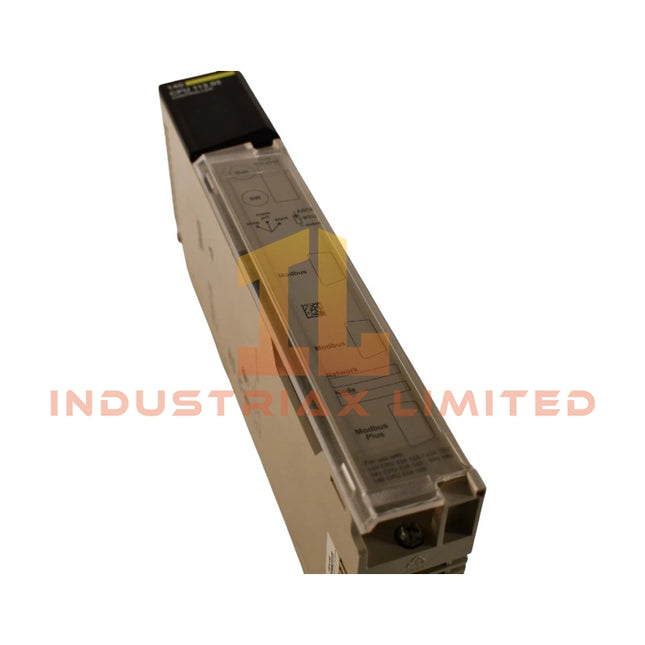

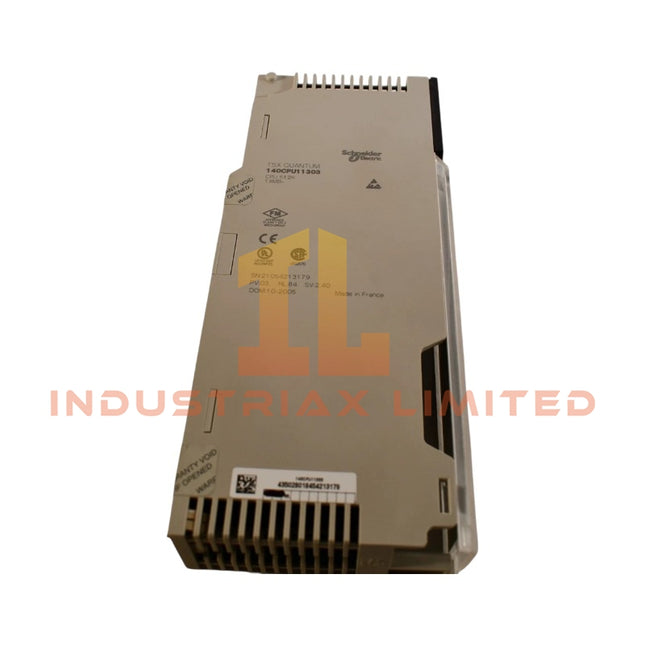

Schneider Electric Schneider Electric 140CPU11303 Processor Module
Schneider Electric 140CPU11303 Processor Module Configured for deterministic control execution in Modicon Quantum automation platform, the Schneider Electric 140CPU11303 (80186 Processor Module) provides direct electrical and communication processing across Quantum backplane and Modbus networks. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU11303 Origin France Weight 0.3 kg Dimensions Not specified in source data OperatingTemp 0 to 60 degC (derived from clock drift reference condition) PowerConsumption Bus current requirement 790 mA Processor Intel 80186, 20 MHz Internal Memory 368 kB RAM Communication Ports 1 Modbus Plus, 1 Modbus RS232 I/O Capacity 64 I / 64 O local max, 500 I / 500 O distributed Watchdog Timer 250 ms Battery Lithium, 1.2 Ah, 10 year life Industrial Control Backplane and Network Determinism The Schneider Electric Modicon Quantum CPU architecture implements backplane bus scheduling aligned with PLC scan cycle execution, enabling deterministic data exchange between processor, I/O racks, and communication modules. Profinet/EtherNet/IP style deterministic behavior is not native to this module; instead, Modbus Plus and Modbus serial layers define cyclic and polled communication timing. Backplane current draw of 790 mA imposes direct constraints on rack power budgeting and module density scaling. Distributed I/O addressing supports up to 500 I/O words per network segment with up to 63 drops, requiring structured segmentation of remote racks to maintain scan-time stability. Firmware and application execution is handled via Concept or ProWORX 32 environments, with LL984 execution timing ranging from 0.3 ms to 1.4 ms per instruction depending on logic complexity and scan load. Frequently Asked Questions Q: Can the module support hot-swap replacement during runtime?A: Hot-swap capability is dependent on rack configuration; CPU replacement typically requires controlled system halt due to backplane state retention limits. Q: What is the impact of backplane current consumption on module expansion?A: 790 mA CPU consumption reduces available rack power budget, limiting maximum number of high-load communication or I/O modules per chassis. Q: Is firmware compatible across Concept and ProWORX 32 environments?A: Both environments can configure LL984 logic; application conversion requires validation due to instruction timing and memory mapping differences. Field Installation Guidelines Ensure rack power supply capacity exceeds total backplane load including CPU and all installed modules. Maintain proper grounding of Quantum rack chassis to reduce communication noise on Modbus Plus differential pair wiring. RS232 and Modbus Plus cabling must be routed separately from high-voltage conductors to avoid induced signal distortion. Lithium battery backup should be installed with correct polarity and verified for voltage retention prior to commissioning. Backplane connectors must be fully seated to avoid intermittent I/O word corruption during scan cycles. System reset should be performed after module insertion to initialize memory mapping and watchdog timing.
$200.00 $100.00
-

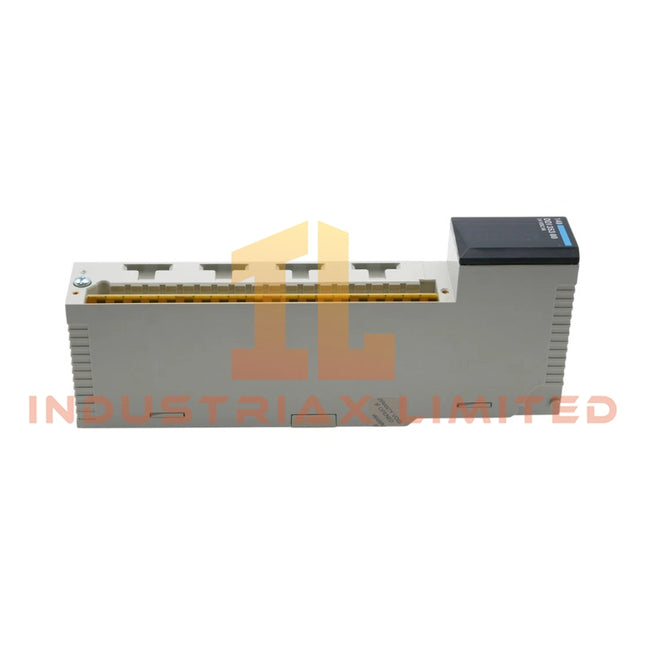

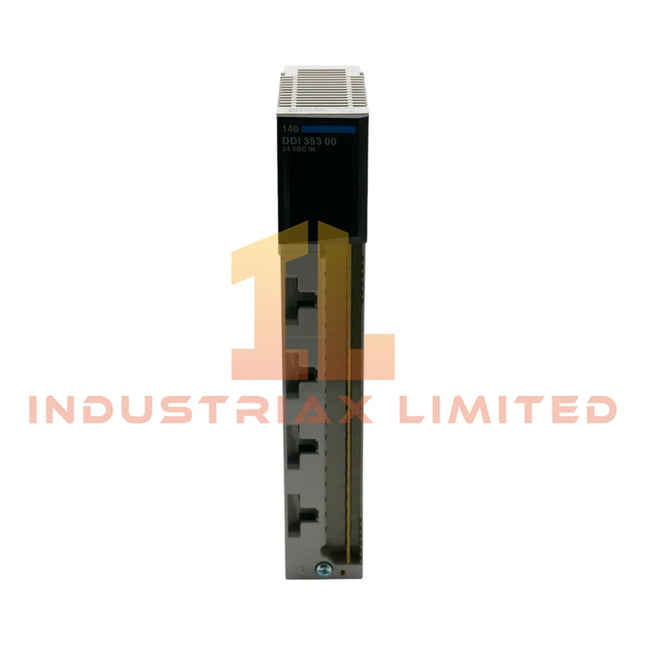

Schneider Electric Schneider Electric 140DDI35300 Modicon Quantum Discrete Input Module
Schneider Electric 140DDI35300 Modicon Quantum Discrete Input Module TheSchneider Electric140DDI35300，also cataloged asthe140DDI35300 discrete input module, operates as a dedicated hardware component for 24 V DC discrete signal acquisition withinModicon Quantum automation platform systems. This module executes 32-point digital input scanning through a backplane-coupled I/O structure with positive logic sensing. Configured for parallel field signal acquisition inModicon Quantum automation platform,theSchneider Electric 140DDI35300(140DDI35300Discrete Input Module) provides direct physical/electrical execution via 24 V DC sink-type input channels with grouped signal conditioning. Suffix Breakdown & Model Matrix 140 DDI 353 00: 140: Modicon Quantum platform family identifier DDI: DC Digital Input 353: 32-channel high-density input variant 00: Standard hardware revision index Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140DDI35300 Origin France (Schneider Electric manufacturing group) Weight 0.3 kg PowerConsumption 1.7 W + (0.36 x number of points on) Input Channels 32 discrete inputs Input Voltage 24 V DC Voltage Range 19.2 to 30 V DC Logic Type Positive (sink) Response Time <= 1 ms ON/OFF Isolation 1780 Vrms (bus to group, 1 minute) Backplane Current 330 mA Grouping 4-channel groups LED Indication Per-point + bus + fault status Backplane Bus Communication & Quantum I/O Determinism The Modicon Quantum backplane architecture implements cyclic I/O exchange through deterministic bus scanning with fixed slot-based addressing. The 140DDI35300 module maps 32 discrete channels into two input words with synchronized refresh aligned to rack backplane cycles. Firmware-level compatibility ensures stable integration across Quantum CPU scan intervals without external signal buffering. Channel scan timing is constrained by backplane arbitration and slot update sequencing rather than field-side signal propagation delays. Frequently Asked Questions Q1: Does the module support hot-swap insertion in a live Quantum rack?A1: Hot-swap capability depends on system configuration; electrical backplane isolation is maintained, but insertion under energized field inputs may cause transient state changes on input words. Q2: What limits the maximum backplane load of this module?A2: Backplane consumption is specified at 330 mA, and total rack current must remain within Quantum chassis power budget to avoid bus undervoltage conditions. Q3: What is the significance of the 1780 Vrms isolation rating?A3: It defines galvanic separation between input groups and backplane circuitry, ensuring signal domain separation under industrial transient conditions. Field Installation Guidelines Install module only in designated Modicon Quantum rack slots with correct backplane alignment. Ensure 24 V DC field wiring is isolated from backplane and control wiring harnesses. Maintain shield grounding at single-point earth reference to reduce induced noise on grouped channels. Avoid live insertion unless system architecture explicitly supports controlled hot-swapping. Verify channel grouping (4-channel blocks) during wiring to match PLC input mapping structure.
$200.00 $100.00
-
Schneider Electric 140AVO02000 Analog Output Module | Schneider Electric
Schneider Electric 140AVO02000 Analog Output Module The Schneider Electric 140AVO02000 (140AVO02000 Analog Output Module) operates as a dedicated hardware component for electrical signal conversion within Modicon Quantum backplane I/O architectures. Configured for analog signal generation in Modicon Quantum automation platforms, the Schneider Electric 140AVO02000 (140AVO02000 Analog Output Module) provides direct electrical execution of voltage and current outputs via backplane-controlled channel registers. Suffix Breakdown & Model Matrix No validated suffix segmentation is defined for 140AVO02000. The designation is treated as a single fixed order code within the Modicon Quantum I/O catalog structure. Hardware Specifications Parameter Specification Model 140AVO02000 Brand Schneider Electric Origin France Weight 0.3 kg PowerConsumption <= 4.5 W Analog Output Channels 4 Output Types 0-5 V, 0-10 V, +/-5 V, +/-10 V, -10 to 10 mA Resolution 12 bits Update Time 3 ms Setting Time 700 microseconds (to +/-0.1 percent final value) Isolation (Channel/Bus) 780 V AC for 1 minute Isolation (Channel/Channel) 500 V AC for 1 minute Max Cable Length <= 400 m Backplane Bus Execution and IO Density Behavior Schneider Electric Modicon Quantum I/O architecture implements deterministic backplane communication where the 140AVO02000 module receives output words mapped to 4 analog channels. Backplane refresh cycles govern conversion timing with 3 ms update intervals. IO density scaling is implemented via 16-bit word addressing, where 4 output words are allocated per module instance. Firmware-level consistency checks ensure output register synchronization across the Quantum rack bus during cyclic scan execution. Channel-to-channel electrical separation at 500 V AC reduces cross-coupling effects in mixed voltage/current output configurations, while bus isolation at 780 V AC supports stable backplane interfacing under industrial noise conditions. Frequently Asked Questions Q: Can the module outputs be configured simultaneously for voltage and current modes?A: Output mode selection is channel-dependent but constrained by wiring configuration; mixed mode operation must respect load impedance limits defined per output range. Q: What is the backplane update behavior under high IO load?A: Update timing remains synchronized to the 3 ms refresh cycle; increased rack IO density does not alter per-module conversion timing but affects scan aggregation latency. Q: Does the module support hot swapping?A: Hot swap behavior is dependent on Quantum rack configuration; removal during active backplane communication may generate channel fault LED state transitions. Field Installation Guidelines Shielded twisted pair cabling is required for analog outputs, with shield termination performed at a single ground reference point to avoid ground loop formation. Output wiring length should not exceed 400 m to maintain signal integrity under specified load conditions. Maintain separation between analog output wiring and high-energy switching conductors. Ensure backplane connector seating is fully engaged to avoid intermittent register synchronization faults during rack initialization. Terminal torque and grounding practices must follow Modicon Quantum rack installation standards to preserve channel isolation performance.
$200.00 $100.00
-
Schneider Electric Unity Hot Standby Processor Module Schneider Electric 140CPU67260
Schneider Electric 140CPU67260 Unity Hot Standby Processor Module Configured for hot standby CPU execution in Modicon Quantum automation platform, the Schneider Electric 140CPU67260 (140CPU67260 Unity processor module) provides direct physical/electrical execution. The module operates as a dual-redundant processor node with multimode Ethernet communication and deterministic backplane interaction, supporting synchronized control transfer within a Quantum rack system. Suffix Breakdown & Model Matrix 140: Modicon Quantum hardware family prefix CPU: Central processing unit designation 67260: Specific Unity Hot Standby processor variant identifierNo further validated segmentation is defined in manufacturer documentation. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU67260 Processor Frequency 266 MHz Memory 3072 kB Rack Capacity Up to 10 / 16 / 2 / 46 slot configurations Local Racks 2 Distributed I/O Stations Up to 63 stations over Modbus Plus Remote I/O Capacity Up to 31744 inputs / 31744 outputs Ethernet Remote I/O Drops 31 drops per network Modbus Plus Capacity 8000 inputs / 8000 outputs per network Redundancy Mode Hot Standby dual-processor synchronization Optional Modules Up to 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) Backplane Bus Communication and Deterministic Network Behavior The Schneider Electric Modicon Quantum backplane architecture supports high-speed inter-module data exchange between CPU and I/O modules using a deterministic scheduling mechanism. In Hot Standby mode, firmware synchronization ensures mirrored execution states between primary and secondary CPUs. Ethernet routing and Modbus Plus segmentation are handled through modular communication adapters, with firmware flash compatibility governing version alignment between redundant nodes. Backplane transaction timing is governed by slot-based arbitration, ensuring predictable scan cycle execution under mixed discrete and analog load conditions. Frequently Asked Questions Q: Does the 140CPU67260 support hot-swap of local I/O modules?A: Local I/O hot-swap is not applicable in Hot Standby CPU configuration; module insertion/removal requires system state control and rack power isolation. Q: How is redundancy synchronization maintained between primary and standby CPUs?A: Synchronization is maintained through continuous state replication over the backplane with deterministic cycle alignment, ensuring execution parity between both CPUs. Q: What is the impact of Ethernet remote I/O expansion on scan cycle timing?A: Scan cycle timing is influenced by network load and number of remote drops; deterministic behavior is preserved through scheduled communication slots and buffer arbitration. Field Installation Guidelines Ensure the Quantum rack is de-energized before CPU insertion. Maintain proper grounding of rack chassis to minimize backplane noise coupling. Verify slot alignment before seating the CPU module to avoid connector damage. Use shielded Ethernet cabling for multimode communication segments and maintain separation from high-voltage conductors. For redundant configurations, ensure firmware parity between primary and standby CPUs prior to synchronization startup.
$200.00 $100.00
-
Schneider Electric Modicon Quantum Discrete Input Module Schneider Electric 140DAI74000
Schneider Electric 140DAI74000 Modicon Quantum Discrete Input Module The Schneider Electric 140DAI74000 also cataloged as the 140DAI74000 discrete input module, operates as a dedicated hardware component for AC voltage signal acquisition within Modicon Quantum backplane I/O systems. It converts 230 V AC field discrete signals into 16-channel digital input words for PLC scan processing via the Quantum rack communication bus. Suffix Breakdown & Model Matrix 140 : Modicon Quantum platform series identifierDAI : Discrete AC Input74000 : 16-channel 230 V AC high-voltage input variant Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140DAI74000 Origin France Weight 0.35 kg Dimensions Not specified OperatingTemp 0 to 60 degC PowerConsumption <= 5.5 W Input Channels 16 discrete inputs Input Voltage 230 V AC Input Current <= 11.5 mA (57 to 63 Hz), <= 9.7 mA (47 to 53 Hz) Bus Current 180 mA Isolation 1780 Vrms channel to channel and bus Response Time 0.75 to 12.3 ms (line cycle dependent) Network Frequency 47 to 63 Hz PLC Backplane Communication Integrity (Schneider Electric Platform Behavior) The module integrates into the Modicon Quantum backplane architecture, where deterministic I/O refresh cycles are synchronized with rack-level bus arbitration. Input word mapping occupies a single 16-bit discrete register, enabling Unity Pro and ProWORX 32 runtime environments to execute cyclic scan updates without additional field-side signal conditioning. Channel-to-bus galvanic isolation at 1780 Vrms maintains separation between high-voltage AC field wiring and internal logic planes, reducing susceptibility to backplane noise coupling during high-density rack operation. Frequently Asked Questions Q: Can the module support hot-swap replacement under live backplane power conditions?A: The 140DAI74000 supports rack insertion in Quantum systems; however, input state stability depends on backplane synchronization and PLC scan state during replacement. Q: Does each input channel require individual isolation or is isolation shared?A: Channel-to-channel and channel-to-bus isolation is specified at 1780 Vrms, implemented across grouped internal isolation domains. Q: What is the impact of line frequency variation on input response time?A: Response time is line-cycle dependent, varying between 0.75 ms and 12.3 ms based on 47 to 63 Hz operating frequency. Field Installation Guidelines Maintain separation between 230 V AC field wiring and low-voltage control cabling to minimize capacitive coupling across adjacent rack terminals. Use shielded routing only where high electromagnetic density exists, ensuring shield termination at a single chassis ground point. Verify that input commons comply with system grounding architecture before energizing rack backplane. Tighten terminal connections to manufacturer torque specifications to avoid micro-arcing under AC switching conditions.
$200.00 $100.00
-
Schneider Electric 140CPU43412A Processor Module | Schneider Electric
Schneider Electric 140CPU43412A Processor Module The Schneider Electric 140CPU43412A also cataloged as the 140CPU43412A processor module operates as a dedicated hardware component for executing cyclic logic processing and distributed I/O control within Modicon Quantum automation platforms. Configured for deterministic PLC scan execution in Modicon Quantum architectures,the Schneider Electric 140CPU43412A (140CPU43412A Processor Module) provides direct physical/electrical execution through backplane-based CPU scheduling and Modbus Plus communication handling. SuffixBreakdown & Model Matrix No validated suffix decomposition is defined for 140CPU43412A within the provided dataset. The identifier is treated as a single fixed ordering code. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 140CPU43412A Origin France Weight 0.85 kg Dimensions Not specified OperatingTemp 0 to 60 degC PowerConsumption 1250 mA bus current requirement CPU Clock 66 MHz Memory 896 kB internal RAM Communication Interfaces 1 Modbus Plus, 2 Modbus RS232 Instruction Execution Time 0.1 to 0.5 ms (LL984) Watchdog Timer 250 ms Battery Lithium 1.2 Ah, 10-year life PLC Backplane Execution & Deterministic Bus Scheduling Backplane bus communication velocity and firmware execution model The 140CPU43412A implements Modicon Quantum backplane arbitration for cyclic task execution, where CPU scan timing is governed by fixed interrupt scheduling and deterministic memory access cycles. Backplane communication latency is constrained by internal bus timing and distributed I/O refresh windows. Firmware compatibility is aligned with Concept and ProWORX 32 programming environments, supporting legacy LL984 execution models without runtime translation layers. This ensures stable scan-cycle behavior during firmware flash or configuration download sequences, provided backplane synchronization is maintained. Frequently Asked Questions Q: Does the 140CPU43412A support hot-swap of CPU modules?A: CPU hot-swap is not supported. Removal of the processor interrupts backplane cycle execution and halts distributed I/O refresh. Q: What is the effect of watchdog timeout on system state?A: A 250 ms watchdog timeout forces CPU reset or halt state depending on configured fault handling logic within Modicon Quantum system settings. Q: Can Modbus Plus and RS232 operate simultaneously?A: Yes. Modbus Plus operates on a dedicated network port while RS232 channels function independently for serial communication tasks. Field Installation Guidelines The module shall be installed into a powered-off Modicon Quantum rack. Backplane connector alignment must be verified before insertion to prevent pin misalignment. Shielded communication cables for Modbus Plus should maintain continuous grounding at cabinet entry points to minimize common-mode noise coupling. RS232 wiring shall be limited in length according to standard serial communication constraints and routed away from high-voltage conductors. Battery replacement must be performed with system power maintained when supported by configuration to preserve memory retention.
$200.00 $100.00
-
Schneider Electric 170AAO92100 Analog Output Base | Schneider Electric
Schneider Electric 170AAO92100 Analog Output Base The Schneider Electric 170AAO92100 also cataloged as the 170AAO92100 Analogue Output Base analogue output base module operates as a dedicated hardware component for analog signal generation within Modicon Momentum automation platform systems. Configured for direct conversion of digital process values into analog electrical outputs in Modicon Momentum automation platform, the Schneider Electric 170AAO92100 (170AAO92100 Analogue Output Base) provides direct physical/electrical execution. Suffix Breakdown & Model Matrix The model 170AAO92100 is provided as a single defined ordering code. No structured suffix segmentation or functional variant matrix is specified in the source documentation. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 170AAO92100 Origin France Weight 0.215 kg Dimensions 125 mm x 141.5 mm x 47.5 mm OperatingTemp Not specified in source PowerConsumption <= 8.5 W Analog Output Channels 4 Output Range +/- 10 V, 4-20 mA Resolution 16-bit signed (full data format), 12-bit + sign (output conversion) Update Time 2 ms Isolation 500 V AC for 1 min (channel to ground) Load Characteristics >= 1 kOhm (voltage), <= 0.6 kOhm (current) Fail State Reset to zero / hold / reset to full scale Backplane Bus and Deterministic Signal Execution (PLC Integration Context) Within Schneider Electric Modicon Momentum architectures, analog output execution is synchronized through backplane bus communication cycles. The module updates output registers every 2 ms, requiring deterministic scheduling from the controller layer to maintain channel alignment during cyclic refresh operations. Signal scaling and output reconstruction rely on internal digital-to-analog conversion stages mapped to PLC memory words. Backplane timing jitter directly impacts analog settling behavior, particularly in multi-module rack configurations where simultaneous channel updates are executed across distributed I/O bases. Channel-to-ground isolation at 500 V AC ensures electrical separation between field wiring and internal logic domains, supporting stable analog output behavior under mixed-voltage cabinet layouts. Frequently Asked Questions Q: Can the module output voltage and current simultaneously on different channels?A: Yes. The four channels can be independently configured for +/- 10 V or 4-20 mA output modes depending on system configuration. Q: What happens if the backplane communication is interrupted?A: The module enters a predefined fail state (reset to zero, hold, or full scale) based on configured output behavior. Q: Is hot-swapping supported during operation?A: Hot-swapping behavior is dependent on the Modicon Momentum rack configuration; electrical removal should follow system power-down procedures to avoid transient backplane disturbances. Field Installation Guidelines The module shall be mounted on a Modicon Momentum base ensuring correct mechanical alignment of backplane connectors prior to field wiring termination. Analog output wiring must be routed using shielded twisted pairs with single-point shield grounding at the cabinet earth reference. Voltage and current loops must not share return paths across channels to avoid cross-channel interference. Maintain separation between analog signal wiring and power conductors to reduce inductive coupling effects. Terminal tightening must follow standard industrial torque practices to ensure stable contact resistance under vibration conditions. Backplane insertion must be fully seated to guarantee communication continuity across the I/O rack.
$200.00 $100.00
-
Schneider Electric BMEH582040 Modicon M580 Schneider Electric Redundant Processor Module
Schneider Electric BMEH582040 Redundant Processor Module Configured for redundant CPU execution and high-availability control in Modicon M580 automation architecture, the Schneider Electric BMEH582040 (BMEH582040 redundant processor module) provides direct physical and communication execution within Ethernet-based PLC backplane and remote I/O synchronization systems. Hardware Specifications Parameter Specification ModelBrand Schneider Electric BMEH582040 OperatingTemp 0 to 60 degC PowerConsumption 270 mA at 24 V DC Processor Architecture Redundant CPU module (HSBY) Communication Interfaces 1 x Ethernet TCP/IP service port, 2 x Ethernet TCP/IP device network, 1 x Ethernet HSBY port, USB mini-B Remote I/O Capacity Up to 8 remote I/O stations (2 racks per X80 remote drop) Distributed Device Capacity Up to 64 devices Memory 8 MB program RAM, 768 kB data RAM, 10 kB system RAM, 4 GB expandable flash Task Structure 1 fast periodic task, 1 cyclic/periodic master task Instruction Performance Up to 10 Kinst/ms (Boolean), 7.5 Kinst/ms mixed load Environmental Rating 0 to 60 degC operating, -40 to 85 degC storage Schneider Electric Redundant Control and Ethernet Backplane Synchronization The module operates within a dual-processor redundant execution scheme using high-speed HSBY synchronization over dedicated Ethernet interconnect. Within the Schneider Electric Modicon M580 platform, deterministic execution is maintained through segmented Ethernet TCP/IP channels separating service traffic from device-level I/O scanning. Backplane communication supports parallel redundancy alignment between primary and standby processors, ensuring continuous task state replication during switchover events. Firmware execution integrity is dependent on synchronized flash image alignment across both processor nodes, with Ethernet-based heartbeat monitoring governing failover arbitration logic. Frequently Asked Questions Q: Does the BMEH582040 support hot-swapping during runtime operation?A: The processor module is designed for redundant operation; however, hot-swap behavior is governed by rack configuration and system-level redundancy state. CPU replacement typically requires controlled redundancy transfer to standby before physical removal. Q: How is redundancy synchronization handled between primary and standby processors?A: Synchronization is performed via dedicated HSBY Ethernet channel, continuously mirroring system memory, task state, and I/O image tables between both processors. Q: What is the effect of Ethernet device network separation?A: Separation of service and device networks isolates configuration traffic from real-time I/O scanning, reducing deterministic jitter in control execution cycles. Field Installation Guidelines Ensure complete removal of 24 V DC supply before module insertion or removal. Verify correct alignment of HSBY redundant communication interface before seating the module into the rack. Maintain shielded Ethernet cabling with proper grounding at cabinet entry point to minimize EMI coupling. Separate service Ethernet and device network routing to avoid cross-traffic interference. Confirm firmware parity between redundant CPU pairs prior to system start-up.
$200.00 $100.00
-
Schneider Electric Schneider Electric TSXP47425 Processor Module
Schneider Electric TSXP47425 Processor Module Configured for processing and scan-cycle execution in Modicon Premium backplane architecture, the Schneider Electric TSXP47425 (TSXP47425 Processor Module) provides direct physical/electrical execution within Modicon Premium PLC rack systems. The module performs centralized logic processing, I/O task scheduling, and communication handling through the rack backplane bus structure. Suffix Breakdown & Model Matrix TSXP47425 is a fixed ordering reference within the Modicon Premium processor family. No field-encoded suffix structure or functional sub-identifier segmentation is defined. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXP47425 Weight 1.285 kg (packaged) Dimensions 10 cm x 23 cm x 23.5 cm (packaged) OperatingTemp Not specified PowerConsumption 5 VDC, approx. 350 mA to 500 mA (backplane supply) Memory Capacity 128 KB internal RAM Expanded Memory PCMCIA expansion supported Max Digital I/O Up to 1024 points Max Analog I/O Up to 80 channels Application Tasks Master / Fast / Event-driven task execution Communication Ports TER port, AUX serial interface Slot Width Single-slot module Backplane Bus Communication and Deterministic Execution The TSXP47425 processor operates on a deterministic backplane bus structure where scan cycle execution is synchronized with internal rack timing. I/O refresh operations are executed through cyclic memory mapping rather than external network arbitration. Backplane communication velocity is maintained through fixed scan scheduling, ensuring consistent task execution timing across distributed rack modules. Firmware-level task separation (master, fast, event) allows deterministic prioritization of process logic versus communication servicing without external jitter dependency. Frequently Asked Questions Q: Does the TSXP47425 support hot swapping during operation?A: Hot swap capability depends on rack configuration, but processor removal under energized conditions is not supported. Power isolation is required prior to replacement. Q: Can memory be expanded beyond internal RAM?A: Yes. Expansion is supported via PCMCIA memory cards for application code and data storage extension. Q: How is I/O synchronization handled across the rack?A: I/O synchronization is executed through backplane cyclic refresh linked to PLC scan cycles, not through external communication networks. Field Installation Guidelines Install the module only into a compatible Modicon Premium rack slot with power removed. Ensure edge connector alignment before full insertion to avoid pin deformation. Maintain separation between communication wiring and high-power conductors to reduce electromagnetic coupling on serial interfaces. Verify battery presence prior to commissioning to prevent application memory loss during power interruption. Ensure rack grounding impedance meets standard industrial control cabinet grounding practices to stabilize backplane reference potential.
$200.00 $100.00
-
Schneider Electric Schneider Electric TSXDST1682 | Output Module
Schneider Electric TSX DST 1632 Output Module The Schneider Electric TSXDST1632 also cataloged as the TSX DST 1632 Relay Output Module operates as a discrete output hardware component for digital actuation control within Modicon TSX PLC backplane architectures. It provides direct electrical switching via relay contacts across 16 output points arranged in modular grouped configuration. Suffix Breakdown & Model Matrix No structured suffix segmentation is defined for TSX DST 1632. The model is treated as a single fixed ordering code without field-expandable option encoding. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSXDST1632 OperatingTemp 0 to 60 degC (derating above 40 degC) PowerConsumption 12 V: 25 mA; 12 Vp: 38 mA per point at logic state 1 Output Type Relay output, 16 channels (4 groups of 4) Rated Load 24 VDC; resistive 0.2 W to 50 W; inductive 0.2 W to 25 W Response Time OFF->ON max 15 ms; ON->OFF max 20 ms Leakage Current Max 0.2 mA at state 0 Supply Voltage 10 V to 30 V (including ripple) Logic Level Positive logic Backplane Communication and I/O Density Scaling Within Modicon TSX rack systems, the TSX DST 1632 integrates via deterministic backplane signaling, where output refresh cycles are synchronized with PLC scan execution. I/O density scaling is handled through grouped 4-point relay banks, reducing address fragmentation in TSX configuration memory. Compatibility with TSX DET 16 12 input modules ensures consistent channel mapping across mixed discrete I/O racks. Signal propagation is constrained by internal relay actuation latency rather than network jitter, maintaining fixed scan-to-output determinism under firmware-controlled cycle timing. Frequently Asked Questions Q: Can the TSX DST 1632 outputs be hot-swapped during operation?A: No hot-swap capability is defined. Module insertion/removal must be performed under de-energized rack conditions to avoid backplane signal disturbance. Q: What is the effect of inductive loads on output switching behavior?A: Inductive loads up to specified limits require suppression (flyback diode or RC snubber) to maintain relay contact integrity and limit overvoltage stress. Q: Does the module support mixed AC/DC load switching?A: The relay contacts are electrically passive switching elements; load compatibility is determined by contact rating limits rather than internal polarity constraints. Field Installation Guidelines Ensure rack power is isolated before module insertion into TSX backplane slots. Verify correct alignment of edge connector pins to prevent bent terminal contacts. Maintain separation between output wiring and high-frequency or power conductors to minimize inductive coupling. Shielded cable grounding should be terminated at a single chassis reference point to avoid ground loop currents. Relay output wiring should respect current derating curves for elevated ambient temperatures above 40 degC.
$200.00 $100.00
-
Schneider Electric DC Discrete Input Module | TSXDET3242 Schneider Electric
Schneider Electric TSX Series 7 - 32 I 24 V DC Discrete Input Module Configured for 24 V DC digital signal acquisition in TSX Series automation architectures, the Schneider Electric TSX Series 7 - 32 I 24 V DC (TSX Series 7 32 I 24 V DC discrete input module) provides direct electrical interface for binary field device state monitoring within PLC backplane-based control systems. Suffix Breakdown & Model Matrix The designation “TSX Series 7 - 32 I 24 V DC” indicates a TSX Series platform module with 32-channel discrete input capacity and 24 V DC nominal input compatibility. No further structured suffix decomposition is defined in the provided data set; additional internal ordering code segmentation is not specified. Hardware Specifications Parameter Specification ModelBrand Schneider Electric TSX Series 7 - 32 I 24 V DC Weight 500 g (packing unit) Dimensions 5.0 cm x 19.0 cm x 19.5 cm Input Type Discrete digital input Input Voltage 24 V DC Channel Capacity 32 I (32 points) System Interface TSX backplane connection Backplane Bus Communication and I/O Density Scaling The TSX Series 7 discrete input architecture operates through PLC backplane bus coupling, where channel state acquisition is synchronized via deterministic scan cycles. In TSX-class systems, I/O density scaling is defined by rack slot allocation and addressing resolution across the internal communication bus. Backplane transfer timing is dependent on CPU scan rate and module addressing map consistency, with no external field protocol conversion required for direct digital input registration. Frequently Asked Questions Q: Can this module be hot-swapped under live 24 V DC field conditions?A: Hot-swap capability is dependent on TSX rack configuration and system power isolation design. In typical configurations, removal under load is not permitted unless rack supports controlled de-energized slot replacement. Q: Does the module impose measurable backplane load during simultaneous 32-channel activation?A: Backplane current draw is managed at rack level; channel activation does not directly increase backplane load per input state, but aggregate module consumption is fixed per design. Q: Is firmware update required for input state processing accuracy?A: Discrete input modules generally operate without field firmware updates; compatibility is determined by CPU and rack firmware baseline. Field Installation Guidelines Ensure 24 V DC input wiring conforms to standard industrial separation between field and logic circuits. Maintain shield continuity for input cable bundles where electromagnetic interference is present. Verify correct TSX rack slot insertion alignment prior to energization. Do not route input wiring parallel to high-frequency drive cables without physical separation. Confirm all field devices share common reference potential when using non-isolated input groups.
$200.00 $100.00
-
Schneider Electric 171CCC96020 M1/M1E Processor Adaptor Schneider Electric
Schneider Electric 171CCC96020 M1/M1E Processor Adaptor Configured for Ethernet-based I/O exchange and backplane data handling in Modicon Momentum automation platform, the Schneider Electric 171CCC96020 (M1/M1E processor adaptor) provides direct physical/electrical execution of processor-to-I/O bus communication. The module operates with an x86-based processing core at 50 MHz and supports Modbus TCP messaging over a single Ethernet interface. Backplane execution follows deterministic I/O scanning behavior within Momentum rack architecture, with firmware flash compatibility aligned to legacy ProWORX and Concept toolchains. Suffix Breakdown & Model Matrix The designation 171CCC96020 is a complete order code for the M1/M1E processor adaptor. No officially published sub-field segmentation or functional suffix decomposition is provided in the reference dataset. Therefore, no further structural breakdown is applied. Hardware Specifications Parameter Specification ModelBrand Schneider Electric 171CCC96020 Weight 0.042 kg PowerConsumption 5.0 VDC (supplied via Momentum I/O base) Processor x86-based CPU (Intel/AMD class), 50 MHz Ethernet Interface 1 port, Modbus TCP capable I/O Bus 1 Momentum I/O backplane bus Program Memory 18 kB LL984 Data Memory 24 kB RAM / Flash 544 kB RAM / 512 kB Flash I/O Capacity 8192 I / 8192 O (bits), 26048 I/O registers Schneider Electric PLC Backplane Communication Behavior The module integrates into the Momentum rack backplane where cyclic scan execution is synchronized through deterministic I/O scheduling. Ethernet communication supports Modbus TCP messaging and I/O scanning services. Firmware behavior is compatible with ProWORX NxT, ProWORX 32, Modsoft (>= V2.5), and Concept V2.6 environments. The processor adaptor maintains I/O density scaling across distributed Momentum drops while preserving consistent register mapping across 16-bit word architecture. Firmware flash operations follow standard Momentum loader sequencing with backplane arbitration control. Frequently Asked Questions Q: Can the module be hot-replaced during system operation?A: The adaptor is not specified as hot-swappable. Removal typically requires rack power isolation to prevent backplane bus corruption. Q: What is the limitation of Ethernet communication on this device?A: Only one Ethernet port is available, supporting Modbus TCP messaging and I/O scanning; no redundant Ethernet interface is present. Q: How is I/O data mapped internally?A: I/O is mapped through register-based addressing up to 26048 I/O words, synchronized via Momentum backplane scan cycles. Field Installation Guidelines Install the processor adaptor only in a compatible Momentum rack with verified 5.0 VDC backplane supply integrity. Ensure all I/O modules are fully seated before energizing the system to prevent bus initialization faults. Maintain proper shielding and grounding of Ethernet cabling to reduce signal interference on Modbus TCP communication. Backplane connectors must be inspected for alignment prior to insertion to avoid pin damage. Avoid live insertion unless system architecture explicitly supports controlled rack hot swap procedures.
$200.00 $100.00
