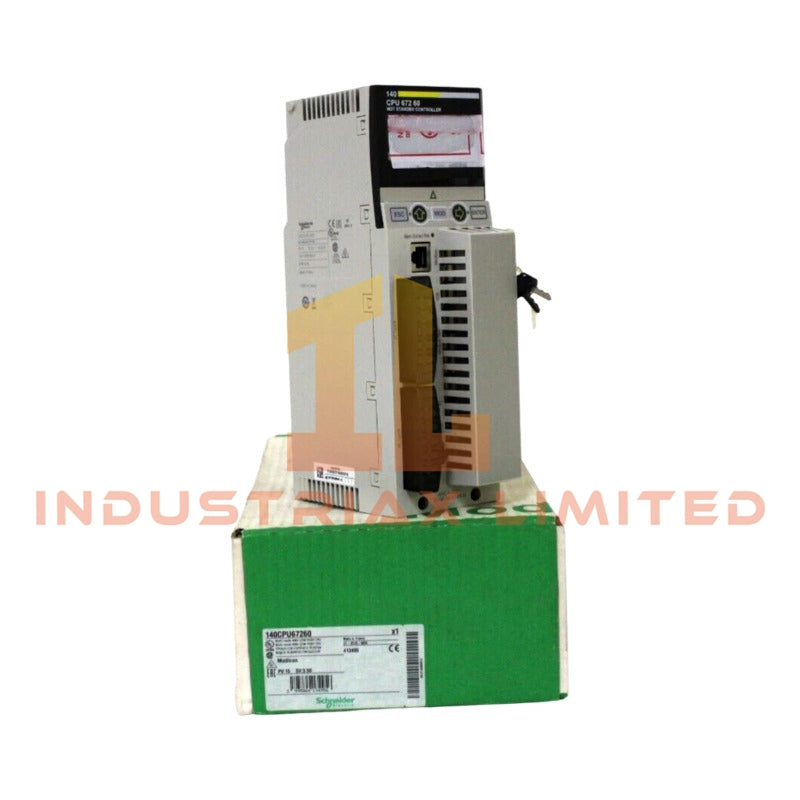

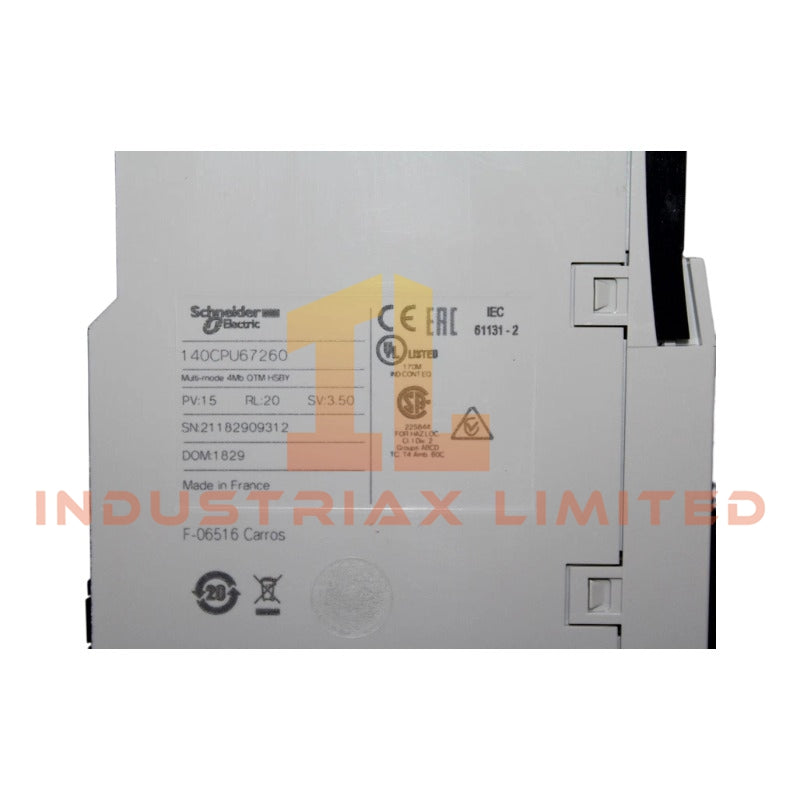

Schneider Electric 140CPU67260 Unity Hot Standby Processor Module
Configured for hot standby CPU execution in Modicon Quantum automation platform, the Schneider Electric 140CPU67260 (140CPU67260 Unity processor module) provides direct physical/electrical execution. The module operates as a dual-redundant processor node with multimode Ethernet communication and deterministic backplane interaction, supporting synchronized control transfer within a Quantum rack system.
Suffix Breakdown & Model Matrix
-
140: Modicon Quantum hardware family prefix
-
CPU: Central processing unit designation
-
67260: Specific Unity Hot Standby processor variant identifier
No further validated segmentation is defined in manufacturer documentation.
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Schneider Electric 140CPU67260 |
| Processor Frequency |
266 MHz |
| Memory |
3072 kB |
| Rack Capacity |
Up to 10 / 16 / 2 / 46 slot configurations |
| Local Racks |
2 |
| Distributed I/O Stations |
Up to 63 stations over Modbus Plus |
| Remote I/O Capacity |
Up to 31744 inputs / 31744 outputs |
| Ethernet Remote I/O Drops |
31 drops per network |
| Modbus Plus Capacity |
8000 inputs / 8000 outputs per network |
| Redundancy Mode |
Hot Standby dual-processor synchronization |
| Optional Modules |
Up to 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
Backplane Bus Communication and Deterministic Network Behavior
The Schneider Electric Modicon Quantum backplane architecture supports high-speed inter-module data exchange between CPU and I/O modules using a deterministic scheduling mechanism. In Hot Standby mode, firmware synchronization ensures mirrored execution states between primary and secondary CPUs. Ethernet routing and Modbus Plus segmentation are handled through modular communication adapters, with firmware flash compatibility governing version alignment between redundant nodes. Backplane transaction timing is governed by slot-based arbitration, ensuring predictable scan cycle execution under mixed discrete and analog load conditions.
Frequently Asked Questions
Q: Does the 140CPU67260 support hot-swap of local I/O modules?
A: Local I/O hot-swap is not applicable in Hot Standby CPU configuration; module insertion/removal requires system state control and rack power isolation.
Q: How is redundancy synchronization maintained between primary and standby CPUs?
A: Synchronization is maintained through continuous state replication over the backplane with deterministic cycle alignment, ensuring execution parity between both CPUs.
Q: What is the impact of Ethernet remote I/O expansion on scan cycle timing?
A: Scan cycle timing is influenced by network load and number of remote drops; deterministic behavior is preserved through scheduled communication slots and buffer arbitration.
Field Installation Guidelines
Ensure the Quantum rack is de-energized before CPU insertion. Maintain proper grounding of rack chassis to minimize backplane noise coupling. Verify slot alignment before seating the CPU module to avoid connector damage. Use shielded Ethernet cabling for multimode communication segments and maintain separation from high-voltage conductors. For redundant configurations, ensure firmware parity between primary and standby CPUs prior to synchronization startup.
