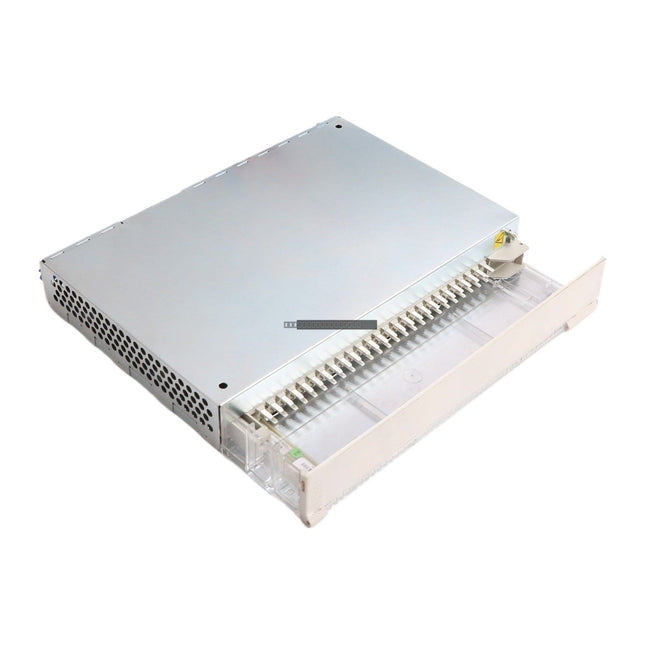

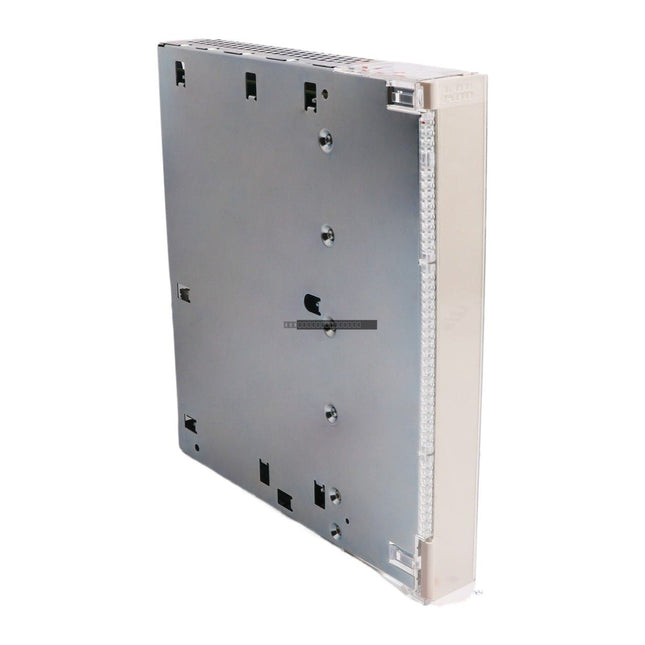

DescriptionThe ABB AI620 (Order Code: 3BHT300005R1) is a high-density analog input module designed for the Advant S6000 series control systems. This module provides 16 channels of analog signal processing, enabling the integration of various field instruments into the Advant Controller 110/160 environments. As a critical component in process automation, the AI620 facilitates precise monitoring and data acquisition for industrial control loops.Features
16-channel analog input capability for high-density signal monitoring.
Designed for seamless integration with Advant S6000 and Advant Controller 110/160 systems.
Robust industrial design suitable for demanding process control environments.
Reliable signal conversion for process variables.
ApplicationsThe AI620 is typically utilized in process automation applications where multiple analog inputs are required, such as temperature, pressure, or flow monitoring within the Advant S6000 architecture. It is commonly found in power generation, chemical processing, and water treatment facilities relying on ABB Advant control platforms.Technical Specifications
Model
AI620
Order Code
3BHT300005R1
Manufacturer
ABB
System Series
Advant S6000
Input Type
Analog
Channel Count
16
Tariff Code
85389091
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the designated Advant S6000 rack slot.
Use appropriate shielded cabling for analog signals to minimize electromagnetic interference (EMI) and noise.
Ensure proper grounding of the module chassis to the system common ground to maintain signal integrity.
Maintain adequate ventilation around the controller rack to prevent overheating during operation.
FAQIs the ABB AI620 still in production?No, the AI620 (3BHT300005R1) has been discontinued by the manufacturer. We supply tested, reliable spare parts to support the continued operation of legacy Advant control systems.What system is this module compatible with?The AI620 is specifically designed for the ABB Advant S6000 series and is compatible with Advant Controller 110 and 160 units.
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
8 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

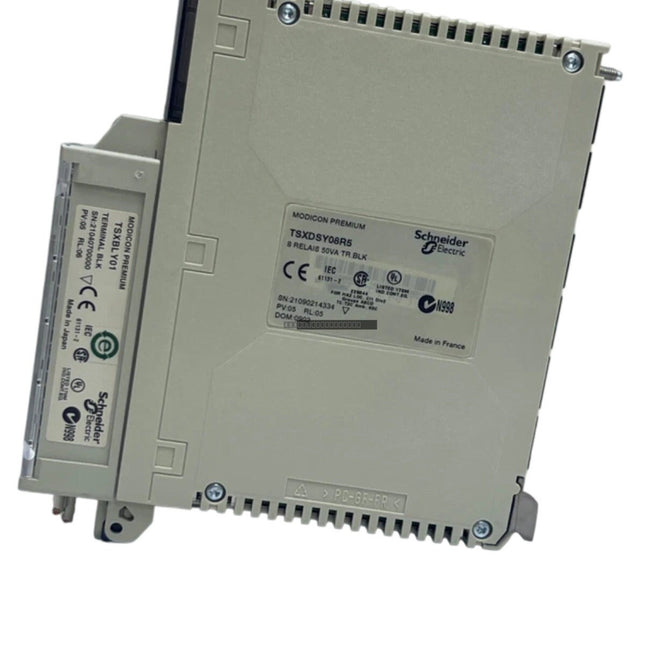

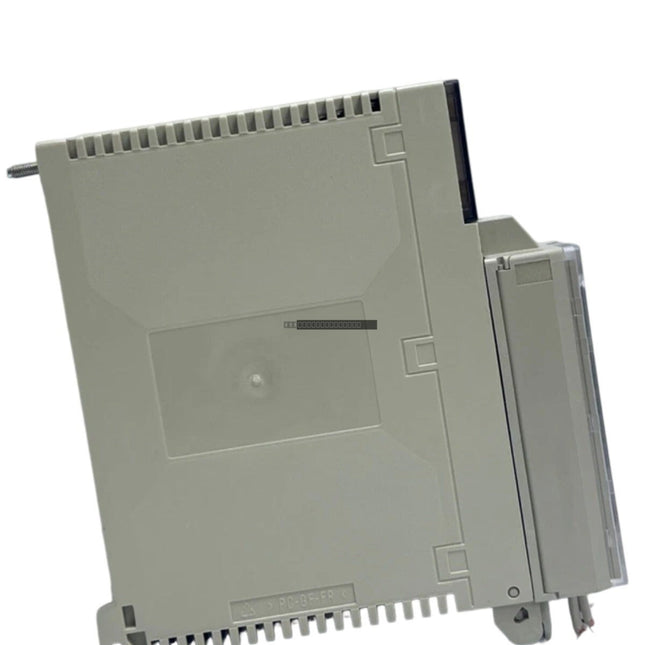

DescriptionThe Schneider TSXDSY08R5 is a high-performance discrete output module engineered for the Modicon automation platform. This module provides 8 independent output channels, offering significant flexibility for industrial control systems requiring both DC and AC switching capabilities. Designed for reliability in demanding environments, it serves as a robust interface between the controller and field-level actuators.Features
8 discrete output channels with normally open (N/O) relay contacts.
Versatile voltage compatibility supporting 12-24 VDC and 24-240 VAC control circuits.
High current capacity of 3 Amps per output channel.
Integrated screw terminal blocks for secure and reliable field wiring.
Compact, DIN-rail mountable form factor for efficient cabinet space utilization.
Technical Specifications
Model
TSXDSY08R5
Product Line
Modicon
Number of Outputs
8
Output Type
Discrete (N/O Relay)
Output Capacity
3 Amp
Voltage Range
12-24 VDC / 24-240 VAC
Mounting Type
DIN Rail
Operating Temperature
-25 to 70 degC
Protection Rating
IP20
Humidity
5 to 95% (Non-condensing)
Installation Guidelines
Ensure the PLC rack or control system is powered down before installing or removing the module to prevent electrical damage.
Mount the module on a standard DIN rail, ensuring it is securely seated and locked in place.
Use appropriate wire gauges for the screw terminal blocks; ensure connections are tightened to the specified torque to prevent intermittent contact.
Maintain proper clearance around the module to allow for adequate ventilation and heat dissipation.
Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
FAQWhat is the replacement for this module?The TSXDSY08R5 is commonly superseded by the BXMDRA0805 module.Can this module handle AC loads?Yes, this module supports a wide voltage range including 24-240 VAC, making it suitable for both AC and DC control applications.
8 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
9 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Ovation 1C31107G02 Digital Input Module is a high-reliability interface designed for signal acquisition within Ovation distributed control system (DCS) architectures. This module is engineered to convert discrete field inputs into logic-level signals, facilitating precise state monitoring of switches, sensors, and safety contacts. It serves as a critical component in power generation, water treatment, and heavy process manufacturing, ensuring accurate, real-time feedback to the central controller to maintain operational continuity and system visibility.Features
High-speed signal sampling for rapid state change detection.
Robust electrical isolation between field instrumentation and the system backplane.
Integrated self-diagnostic routines for verifying channel integrity and data consistency.
Designed for high-availability operation in industrial environments.
Shielding against electrical transients, surges, and common-mode interference.
ApplicationsThe 1C31107G02 is typically deployed in industrial automation environments requiring reliable discrete input monitoring, including:
Power generation plant control systems.
Water and wastewater treatment facilities.
Heavy process manufacturing and monitoring.
Emergency stop and safety contact monitoring circuits.
Technical Specifications
Model
1C31107G02
Brand
Ovation
Operating Temperature
0 to 60 degC
Origin
United States
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the rack.
Handle the module using ESD-safe practices to prevent damage to internal sensitive components.
Verify that the module is fully seated in the backplane slot to ensure reliable electrical contact.
Route field wiring away from high-voltage cables and sources of high-EMI to minimize signal noise.
Ensure proper grounding of the control cabinet to maintain the effectiveness of the module's electrical isolation.
Maintain adequate ventilation within the cabinet to stay within the specified operating temperature range.
FAQWhat is the primary function of the 1C31107G02?The 1C31107G02 is a digital input module used to interface discrete field signals (such as switches or sensors) with the Ovation DCS, allowing the controller to monitor the status of connected field devices.Does this module require specific environmental conditions?Yes, the module is designed for industrial environments and should be operated within a temperature range of 0 to 60 degC. Proper cabinet cooling and grounding are recommended for optimal performance.How does the module protect the control system?The module features internal electrical isolation that shields the primary controller from electrical transients, surges, and common-mode interference originating from the field side.
9 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
4 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

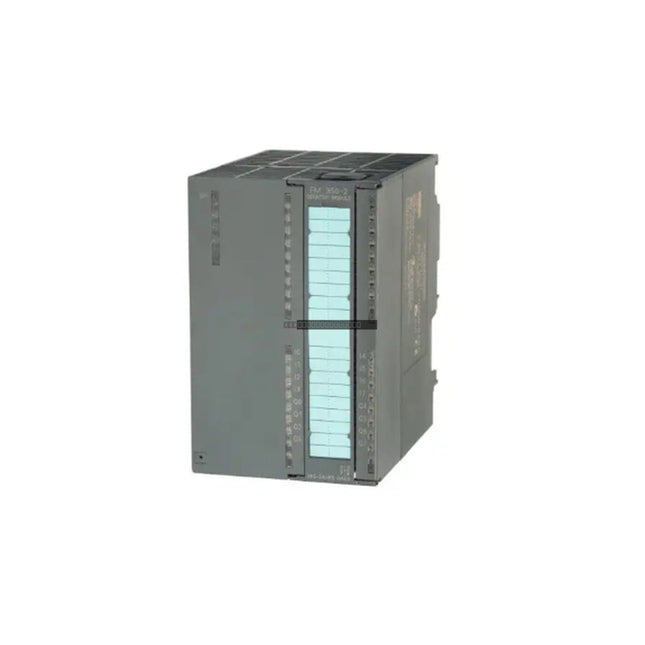

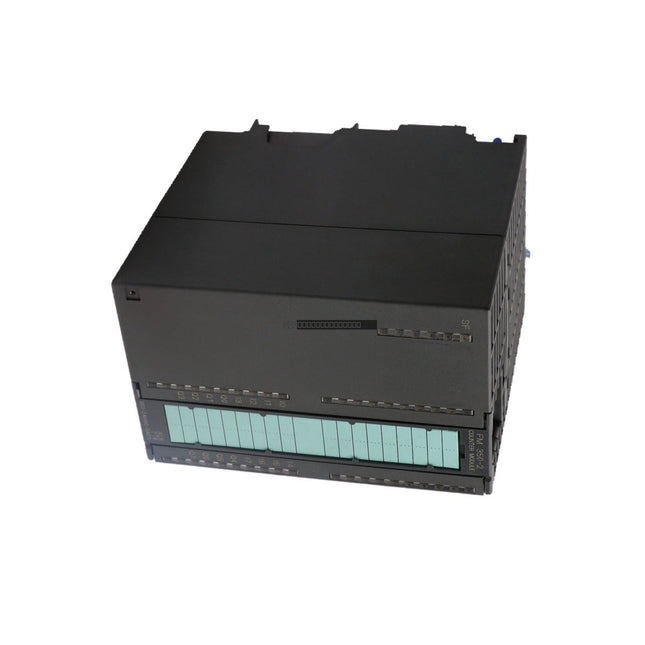

DescriptionThe Siemens 6ES7350-2AH00-0AE0 is an 8-channel high-speed counter module designed for the SIMATIC S7-300 PLC system. As a Function Module (FM 350-2), it provides advanced counting and measuring capabilities that offload time-critical tasks from the central CPU. This module is essential for applications requiring precise frequency measurement, speed monitoring, and high-speed position tracking. By supporting counting frequencies up to 20 kHz and offering localized reaction capabilities, it ensures high-performance motion control and operational safety, playing a key role in preventing process drift and minimizing system latency.Features
8 independent counting channels for high-speed signal processing.
Supports 24 VDC encoders and sensors directly.
Configurable counting modes: continuous, single, and periodic.
Integrated digital outputs triggered by predefined setpoints.
Deterministic response times by offloading tasks from the S7-300 CPU.
Ideal for high-speed gating, batching, and frequency measurement.
ApplicationsThis module is widely used in industrial automation environments including food and beverage packaging, industrial metal processing, and chemical dosing systems where high-speed pulse counting and precise position monitoring are required.Technical Specifications
Model
6ES7350-2AH00-0AE0
Brand
Siemens
Series
SIMATIC S7-300 / FM 350-2
Module Type
High Speed Counter Module
Number of Channels
8
Max Counting Frequency
20 kHz
Input/Encoder Voltage
24 VDC
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the S7-300 rack power is disconnected before installing or removing the module.
Mount the module onto the standard S7-300 DIN rail and secure it using the integrated locking mechanism.
Use shielded cables for encoder and sensor inputs to minimize electromagnetic interference (EMI).
Ensure proper grounding of the module chassis to the rack backplane to maintain signal integrity.
Verify that the 24 VDC power supply meets the module's voltage and current requirements before connection.
Handle with care to prevent electrostatic discharge (ESD) damage to the module electronics.
FAQIs this module compatible with all S7-300 CPUs?The FM 350-2 is designed for the SIMATIC S7-300 system. Please verify your specific CPU configuration and hardware catalog in STEP 7 to ensure compatibility with the module's firmware version.Can this module be used as a replacement for the 6ES7350-2AH01-0AE0?The 6ES7350-2AH00-0AE0 is an earlier version of the FM 350-2. While it remains critical for maintaining legacy systems, please consult your system documentation if you are considering a migration to the newer 6ES7350-2AH01-0AE0 version, as configuration changes may be required.
4 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Allen-Bradley 1756-CP3 is a dedicated serial programming cable designed for the ControlLogix and SLC 500 controller families. It serves as the physical communication link between a controller's front-facing RS-232 port and a computer or other Data Terminal Equipment (DTE). This cable is essential for local programming, firmware updates, and troubleshooting when network-based communication, such as Ethernet or ControlNet, is unavailable or not yet configured.Features
Right-Angle Connector: Features a right-angle 9-pin female D-shell connector at the controller end, allowing for chassis door closure during operation.
Null-Modem Configuration: Engineered for point-to-point serial communication, bridging transmit and receive pins between the PLC and PC.
Compatibility: Designed for use with Logix 5550, 5560, and 5570 controllers, as well as SLC 5/03, 5/04, and 5/05 modular processors.
Standard Interface: Compatible with standard PC COM ports or high-quality USB-to-Serial adapters.
Technical Specifications
Brand
Allen-Bradley
Product Line
ControlLogix / SLC 500
Cable Type
Serial RS-232 Programmer Cable
Length
10 feet (3 meters)
Connector A
9-pin D-shell (Right-Angle Female)
Connector B
9-pin D-shell (Straight Female)
Protocol
DF1 (RS-232)
Installation Guidelines
Ensure the controller is powered or in a safe state before connecting or disconnecting the cable to prevent potential communication errors.
The right-angle connector should be seated fully into the controller's front-facing port to ensure a secure connection.
Avoid routing the cable near high-voltage power lines or heavy electromagnetic interference (EMI) sources to maintain signal integrity during data transfer.
If using a USB-to-Serial converter, ensure the driver is correctly mapped to the COM port in your programming software (e.g., RSLinx).
FAQIs this cable compatible with USB ports?The 1756-CP3 features a 9-pin serial connector. To use it with a modern computer lacking a native COM port, you must use a high-quality USB-to-Serial converter. Ensure the converter supports the DF1 protocol.Can I keep this cable connected while the ControlLogix chassis door is closed?Yes. The 1756-CP3 is specifically designed with a right-angle connector at the controller end to provide the necessary clearance for the chassis door to close while the cable is attached.
10 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

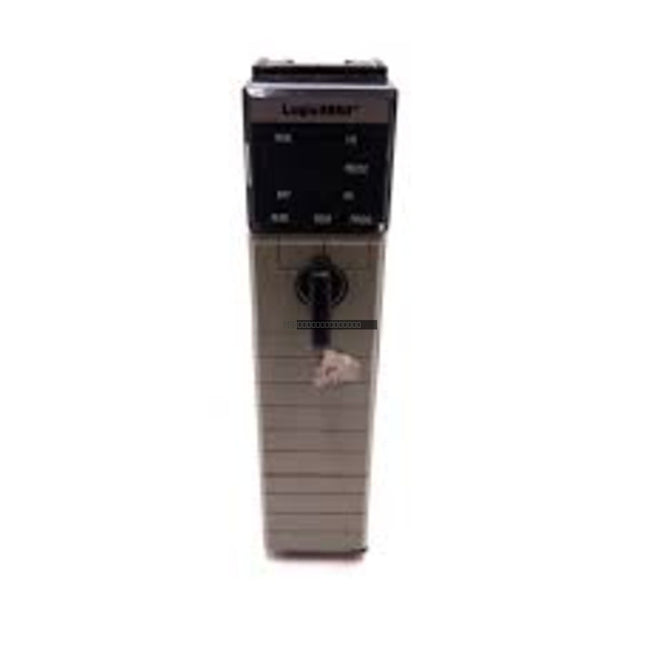

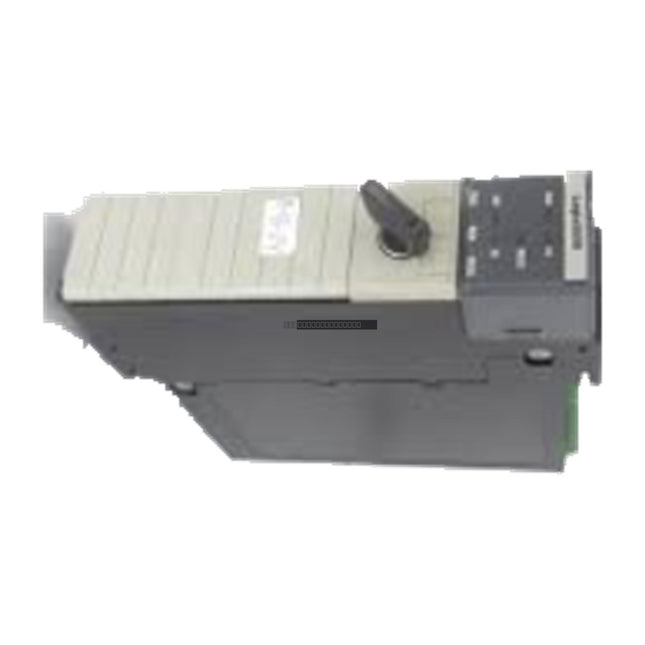

DescriptionThe Allen-Bradley 1756-L1 is a foundational processor module within the ControlLogix (Logix5550) automation family. As a chassis-based controller, it is designed to reside in any slot of a 1756 ControlLogix chassis, facilitating seamless communication with I/O modules and other controllers across the ControlBus backplane. This module provides a modular and flexible control solution for various industrial automation tasks.Features
Modular Design: Occupies a single slot in any standard 1756 ControlLogix chassis.
Memory Expansion: Features 64 KB of built-in user memory, with support for expansion via 1756-M1 (128 KB), 1756-M2 (512 KB), or 1756-M3 (2 MB) memory modules.
Data Retention: Supports 1756-BA1 or 1756-BA2 lithium battery modules to maintain volatile memory during power-down cycles.
Backplane Communication: High-speed data exchange via the ControlLogix backplane.
Technical Specifications
Brand
Allen-Bradley
Product Line
ControlLogix (Logix5550)
Module Type
Processor / Controller
User Memory
64 KB
Backplane Current (5V DC)
120 mA
Backplane Current (24V DC)
2 mA
Power Dissipation
4.1 Watts
Isolation Voltage
30V (Continuous)
Slot Width
1 Slot
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
ESD Protection: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal components.
Power Down: Ensure the chassis power is disconnected before inserting or removing the processor module from the backplane.
Slot Placement: The 1756-L1 can be installed in any slot of a 1756 chassis; ensure the module is fully seated and the top/bottom latches are secured.
Battery Installation: Install the compatible lithium battery module (1756-BA1 or 1756-BA2) prior to operation to ensure program retention.
Environment: Maintain adequate airflow within the cabinet to ensure the module operates within its specified temperature range of 0 to 60 degC.
FAQDoes this module include a memory card?No, the 1756-L1 comes with 64 KB of built-in memory. External memory expansion modules (1756-M1, 1756-M2, or 1756-M3) must be purchased separately if additional memory is required.Is this module compatible with modern ControlLogix chassis?Yes, the 1756-L1 is compatible with standard 1756 ControlLogix chassis, provided the system architecture supports the specific Logix5550 processor generation.
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link

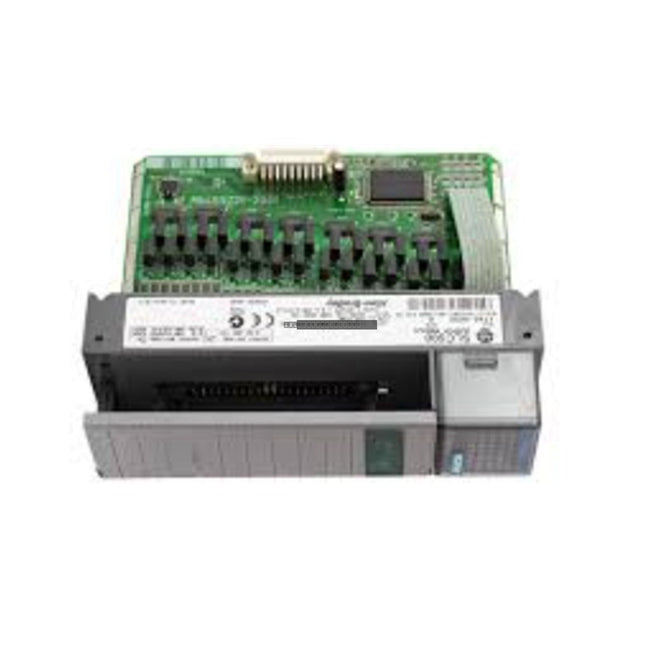

DescriptionThe Allen-Bradley 1746SC-INI4VI is an isolated analog input module designed for use with the SLC 500 controller platform. This module provides four high-resolution, isolated input channels capable of measuring both voltage and current signals, making it suitable for demanding industrial instrumentation and process control applications where signal isolation is required to prevent ground loops and noise interference.Features
Four isolated analog input channels
Supports multiple voltage ranges: 0-10 VDC, +/- 10 VDC, 0-5 VDC, and 1-5 VDC
Supports multiple current ranges: 0-20 mA and 4-20 mA
High-resolution 16-bit analog-to-digital conversion
Designed for seamless integration into the SLC 500 I/O chassis
ApplicationsThis module is typically utilized in process control environments requiring precise monitoring of sensors, transmitters, and transducers. It is commonly deployed in applications involving flow, pressure, temperature, and level monitoring where electrical isolation between channels or between the field devices and the backplane is necessary for system stability.Technical Specifications
Product Model
1746SC-INI4VI
Module Type
Isolated Current/Voltage Input
Number of Inputs
4
Resolution
16 Bits
Current Consumption
570 mA @ 5 VDC
Supported Voltage Ranges
0-10 VDC, +/- 10 VDC, 0-5 VDC, 1-5 VDC
Supported Current Ranges
0-20 mA, 4-20 mA
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Handle the module by the edges to avoid contact with sensitive electronic components; use proper ESD grounding practices.
Verify that the module is firmly seated in the chassis slot and secured with the provided mounting screws.
Use shielded twisted-pair cabling for all analog signal connections to minimize EMI/RFI noise.
Ensure proper grounding of cable shields at the source or module end as per standard industrial control wiring practices.
Check that the input signal ranges are correctly configured in the PLC software before applying field power.
FAQDoes this module require external power?The 1746SC-INI4VI draws its operational power from the SLC 500 backplane (570 mA at 5 VDC). Ensure your power supply capacity is sufficient to support the addition of this module.Is this module compatible with all SLC 500 chassis?This module is designed for the standard SLC 500 I/O chassis. Please verify your specific chassis power budget and slot availability before installation.
3 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB CI801-eA PROFIBUS FCI S800 Interface
Configured for PROFIBUS DP-V1 communication in ABB S800 I/O systems, the ABB CI801-eA (CI801-eA Communication Interface) provides direct physical and electrical execution for fieldbus data exchange between the controller network and S800 I/O modules.
Hardware Specifications
Parameter
Specification
Model
CI801-eA
Brand
ABB
Product Type
Communication Module
Origin
Sweden
Weight
0.32 kg
Power Consumption
Supplied through S800 system interface, value not specified
Communication Interface
PROFIBUS DP-V1
System Platform
ABB S800 I/O System
Included Accessories
1 pce Power Supply Connector; 1 pce TB807 ModuleBus Terminator
Product ID
3BSE022366R2
ABB Type Designation
CI801-eA
PROFIBUS DP-V1 and S800 Bus Communication Characteristics
The CI801-eA operates as a PROFIBUS FCI (Fieldbus Communication Interface) module within the ABB S800 I/O architecture. It manages cyclic and acyclic communication between PROFIBUS DP-V1 networks and connected S800 I/O modules.
Furthermore, the interface module supports ModuleBus communication for local I/O expansion. The included TB807 ModuleBus Terminator maintains the required bus termination condition for the S800 configuration.
The ABB industrial control platform uses structured backplane communication methods, and the CI801-eA supports I/O density scaling through connection of multiple S800 I/O units. Therefore, correct ModuleBus addressing, connector installation, and firmware compatibility must be verified during system configuration.
Frequently Asked Questions
Q: What communication protocol does the CI801-eA support?A: The CI801-eA supports PROFIBUS DP-V1 communication as the fieldbus interface for ABB S800 I/O systems.
Q: What accessories are supplied with the CI801-eA?A: The module package includes one power supply connector and one TB807 ModuleBus Terminator.
Q: Can the CI801-eA be installed without ModuleBus termination?A: The ModuleBus network requires correct termination. The supplied TB807 terminator should be installed according to the S800 I/O system configuration requirements.
Field Installation Guidelines
Install the CI801-eA on the designated ABB S800 I/O mounting position according to system hardware documentation.
Verify PROFIBUS cable routing and maintain separation from high-voltage power cables to reduce electromagnetic interference.
Connect the protective shield according to the plant grounding standard and PROFIBUS installation practice.
Confirm ModuleBus termination using the supplied TB807 component before system commissioning.
Check connector seating and power supply wiring before applying system voltage.
Verify controller configuration, PROFIBUS node addressing, and communication diagnostics after installation.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB 3BSE013200R1 CI820 S800 Redundant Communication
Configured for redundant communication within the ABB S800 I/O system, the ABB 3BSE013200R1 (CI820 S800 Redundant Communication Interface) provides direct hardware execution for dual communication interface operation. The module integrates an AF100 modem, 0.5 FPROM, 0.5 MB SRAM, and 16 MHz processing capability for S800 system communication redundancy.
Hardware Specifications
Parameter
Specification
Model
CI820 3BSE013200R1
Brand
ABB
Product Type
S800 Redundant Communication Interface
Origin
Sweden
Weight
0.512 kg
Communication Interface
AF100 Modem
Memory
0.5 FPROM, 0.5 MB SRAM
Processor Frequency
16 MHz
System Compatibility
ABB S800 I/O System
Redundancy Configuration
Two CI820 modules required for redundant operation
Customs Tariff Number
85389091
Part Type
New Spare Part
ABB Industrial Control Communication Architecture
The CI820 module operates as a communication interface component for ABB S800 I/O installations. It provides redundant communication capability by using two CI820 units in a configured pair. Therefore, the system can maintain communication availability through a dual interface arrangement.
The module supports ABB industrial control architecture through AF100 communication technology. In addition, its onboard memory resources include 0.5 FPROM and 0.5 MB SRAM for firmware storage and operational data handling.
The CI820 belongs to the ABB PLC/DCS hardware category, where backplane bus communication velocity, firmware flash compatibility, and I/O system integration parameters define module operation. The module is designed for S800 communication network configurations rather than direct field signal acquisition.
Frequently Asked Questions
Q: How is redundancy configured for the ABB CI820 3BSE013200R1?A: Redundant communication requires two CI820 modules to be ordered and installed as a redundant pair within the S800 I/O system configuration.
Q: What communication hardware is integrated into the CI820 module?A: The CI820 includes one AF100 modem interface together with internal firmware memory and SRAM resources for communication processing.
Q: Can the CI820 operate as a standalone redundant communication module?A: The specified configuration requires two CI820 units for redundancy functions. A single module does not provide the complete redundant communication arrangement.
Field Installation Guidelines
Install the CI820 module according to the ABB S800 I/O system hardware configuration requirements.
Verify that the module position and communication connections match the approved system layout.
Use appropriate industrial wiring practices for communication cables, including proper cable routing away from high-current power conductors.
Connect cable shields according to the plant grounding design to reduce communication interference.
Confirm that both CI820 modules are correctly configured before enabling redundant communication functions.
Check firmware compatibility between the CI820 module and the associated ABB control system before commissioning.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB AI801 3BSE020512R1 Analog Input Module
The ABB AI801 3BSE020512R1, also cataloged as the AI801 Analog Input Module, provides 8-channel current signal acquisition for ABB S800 I/O system platforms. It converts 0 to 20 mA field signals into 12-bit digital values for industrial control processing.
Hardware Specifications
Parameter
Specification
Model
AI801 3BSE020512R1
Brand
ABB
Product Type
Analog Input Module
System Platform
ABB S800 I/O
Origin
Sweden
Weight
0.25 kg
Dimensions
13.5 x 9.2 x 5 cm
Operating Temp
-25 deg C to +70 deg C
Power Consumption
Not specified
Number of Input Channels
8
Input Signal Type
0 to 20 mA
Nominal Input Current
0 to 20 mA
Resolution
12-bit
Input Impedance
250 ohm
Input Voltage Drop
Maximum 5 V
Scanning Time
10 ms per channel
Accuracy
+/- 0.1% of full-scale range
Product ID
3BSE020512R1
Customs Tariff Number
8537101190
ABB S800 I/O Integration and Industrial Communication
The AI801 module operates as an ABB S800 I/O analog acquisition unit with direct integration into ABB industrial control architectures. It processes current loop signals through dedicated input channels and transfers converted values through the I/O backplane communication path.
Additionally, ABB S800 I/O modules support structured I/O density scaling through modular backplane architectures. The AI801 design allows engineering teams to configure multiple analog input points while maintaining standardized cabinet layouts and service procedures.
The module receives 0 to 20 mA signals from field transmitters and instruments. Furthermore, its 12-bit conversion resolution provides digital measurement data for controller-level monitoring and regulation functions.
Frequently Asked Questions
Q: How many analog input channels does the ABB AI801 3BSE020512R1 provide?A: The AI801 provides 8 analog input channels configured for 0 to 20 mA current signals.
Q: What input impedance does the AI801 analog input channel use?A: Each input channel has an input impedance of 250 ohm for current signal measurement.
Q: What installation conditions should be considered for this module?A: The module should be installed in an ABB S800 I/O environment with correct backplane connection, proper grounding, and suitable cabinet ventilation according to system installation requirements.
Field Installation Guidelines
Install the AI801 module on the designated ABB S800 I/O mounting unit and verify correct mechanical locking before operation.
Connect field current loops using shielded industrial wiring where required by the installation environment.
Terminate cable shields according to site grounding practices to reduce electrical interference.
Separate analog signal wiring from high-voltage power cables and switching circuits.
Verify input polarity and current loop continuity before applying system power.
Confirm controller configuration parameters match the AI801 channel settings before commissioning.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB AI809 Analog Input Module
The ABB AI809 (AI809 Analog Input Module) provides analog signal acquisition for ABB S800 I/O systems through ABB industrial control networks. The module converts field analog inputs into process data for controller execution and monitoring functions.
Hardware Specifications
Parameter
Specification
Model
AI809
Brand
ABB
Product Type
Analog Input Module
Series
ABB S800 I/O
Origin
Sweden
Operating Temp
Industrial operating range; refer to ABB system installation specifications
Power Consumption
ModuleBus supplied; value depends on system configuration
Input Type
Analog input signals; configuration depends on application setup
Channel Configuration
Multi-channel analog acquisition module
Mounting Type
DIN rail mounting through ABB Module Termination Unit (MTU)
Communication Interface
ABB ModuleBus communication
Signal Conversion
Analog-to-digital signal conversion
Backplane Bus Communication and I/O Integration
The ABB AI809 operates within the ABB S800 I/O architecture and communicates process values through the ModuleBus interface. Therefore, the module supports distributed signal acquisition where field devices connect through dedicated termination units.
The module design follows ABB industrial I/O concepts, including firmware-based configuration, controller communication, and scalable I/O density expansion. In addition, the S800 platform allows integration with ABB control systems through standardized engineering tools.
The AI809 supports analog measurement processing where signal accuracy depends on field wiring quality, grounding configuration, and selected input parameters. Furthermore, proper channel configuration ensures correct data scaling between field instruments and the control application.
Frequently Asked Questions
Q: What system platform does the ABB AI809 support?A: The AI809 is designed for ABB S800 I/O system integration and communicates process data through the ABB ModuleBus interface.
Q: Does the AI809 require a separate termination unit for installation?A: Yes. The module is installed with an ABB Module Termination Unit (MTU), which provides field connection and mechanical mounting functions.
Q: What factors affect analog signal accuracy on the AI809?A: Signal accuracy depends on field transmitter calibration, cable shielding, grounding practices, and correct module channel configuration.
Field Installation Guidelines
Install the AI809 on the specified ABB S800 I/O mounting arrangement and verify mechanical locking before system startup.
Connect field analog wiring according to ABB terminal assignment documentation. Keep analog signal cables separated from high-voltage power cables to reduce electrical interference.
Use appropriate cable shielding and connect shields according to the plant grounding design. Verify field transmitter polarity, signal range settings, and controller channel configuration before commissioning.
Confirm ModuleBus communication status after installation and check diagnostic information through the ABB engineering environment.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB AI815 3BSE052604R1 Analog Input Unit - HART
The ABB AI815 3BSE052604R1, also cataloged as the AI815 Analog Input Unit, provides 8-channel analog signal acquisition with HART pass-through communication for ABB S800 I/O system platforms. The module processes unipolar single-ended current and voltage inputs for industrial measurement loops.
Hardware Specifications
Parameter
Specification
Model
AI815 3BSE052604R1
Brand
ABB
Product Type
Analog Input Unit - HART
Origin
Sweden
Weight
0.25 kg
Dimensions
4.5 x 11 x 11.8 cm (estimated shipping size)
Input Channels
8 channels
Signal Type
Unipolar single ended
Input Signal Range
0-20 mA, 4-20 mA, 0-5 V, 1-5 V DC
Resolution
12 bit
Isolation
1 group of 8 channels isolated from ground
Transmitter Supply
Current limited supply per channel
Communication Function
HART pass-through communication
Mounting Platform
ABB S800 I/O system
Backplane Bus Communication and I/O Density Scaling
The ABB AI815 module operates within the S800 I/O architecture and exchanges process data through the I/O system backplane communication interface. Therefore, the module supports structured channel allocation for distributed control configurations.
The unit provides 8 analog input channels with single-ended unipolar signal handling. Additionally, the HART pass-through function allows communication between compatible field transmitters and higher-level control systems without separate HART multiplexing hardware.
The module design supports I/O density scaling by integrating multiple analog channels into compact S800 I/O stations. Furthermore, channel grouping and grounding isolation reduce interference between field wiring and control electronics.
Frequently Asked Questions
Q: What input signals can the ABB AI815 3BSE052604R1 process?A: The AI815 supports 0-20 mA, 4-20 mA, 0-5 V, and 1-5 V DC unipolar single-ended analog input signals.
Q: Does the AI815 provide HART communication support?A: Yes. The module provides HART pass-through communication, allowing HART field device data transmission through the analog input channels.
Q: How are the input channels isolated in the AI815 module?A: The module provides one group of 8 channels isolated from ground. Field wiring practices should maintain proper shielding and grounding requirements.
Field Installation Guidelines
Install the AI815 module according to ABB S800 I/O system mechanical and electrical installation requirements.
Verify that field signal wiring matches the configured input type, including current or voltage measurement ranges.
Use shielded cables for analog signal connections in environments with electrical noise sources.
Connect cable shields according to the site grounding standard to reduce electromagnetic interference.
Separate analog signal wiring from high-voltage power cables and switching circuits.
Confirm terminal connections before applying field power to transmitters and input loops.
Check HART communication routing after completing loop wiring and controller configuration.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB AI815-eA Analog Input HART Module
Configured for analog current and voltage signal acquisition in ABB S800 I/O systems, the ABB AI815-eA 3BSE052604R2 (AI815-eA Analog Input HART Module) provides direct physical signal conversion for 4-20 mA and voltage field inputs with integrated HART communication capability.
Hardware Specifications
Parameter
Specification
Model
AI815-eA 3BSE052604R2
Brand
ABB
Product Type
Analog Input HART Module
System Platform
ABB S800 I/O System
Origin
Sweden
Weight
Approximately 0.23 kg
Dimensions
Width 45 mm, Height 119 mm, Depth 102 mm, 111 mm including connector
Number of Channels
8 channels
Channel Configuration
1 group of 8 channels, single-ended with common return
Input Signal Range
0(4) to 20 mA, 0(1) to 5 V
Resolution
12 bits
HART Communication
Integrated HART protocol interface
Transmitter Power Supply
Current-limited transmitter power distribution
Compatible MTU Units
TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838
ABB S800 I/O Signal Processing and HART Communication
The AI815-eA module processes analog field signals through 8 input channels configured for single-ended measurement with a common return path. Therefore, each channel receives standard industrial current or voltage signals and converts them into digital values for ABB S800 I/O controller processing.
Additionally, the integrated HART interface supports digital communication over standard 4-20 mA current loops. The module can exchange field device information, configuration parameters, and diagnostic data without interrupting the primary analog measurement signal.
For ABB industrial control architectures, the module supports I/O density scaling through S800 I/O station expansion and maintains communication through the system backplane bus. The hardware design allows integration with compatible MTU configurations for simplified field wiring and cabinet installation.
Frequently Asked Questions
Q: Does the AI815-eA support both current and voltage input signals?A: Yes. The module supports 0(4) to 20 mA current inputs and 0(1) to 5 V voltage inputs through its 8 analog input channels.
Q: What HART function is integrated into the AI815-eA module?A: The module provides an integrated HART protocol interface that allows digital communication over 4-20 mA analog loops for field device data exchange.
Q: Which ABB termination units are compatible with the AI815-eA?A: The module supports TU810, TU812, TU814, TU818, TU830, TU833, TU835, and TU838 termination units.
Field Installation Guidelines
Install the AI815-eA module within an ABB S800 I/O station using the specified compatible termination unit.
Verify correct terminal assignment before connecting field current or voltage loops.
Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference.
Use shielded instrumentation cables for analog and HART communication loops where required by the installation design.
Connect cable shields according to the site grounding standard to prevent signal disturbance.
Confirm field transmitter power requirements before connecting devices to the current-limited transmitter supply output.
Check module addressing and controller configuration parameters before placing the I/O channel into operation.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB AI820 3BSE008544R1 Analog Input Module
The ABB AI820 3BSE008544R1, also cataloged as the AI820 Analog Input Module, operates as a dedicated hardware component for analog signal acquisition within ABB S800 I/O systems. It provides four individually galvanically isolated input channels for current and voltage measurement with 14 bit plus sign resolution.
Hardware Specifications
Parameter
Specification
Model
AI820 3BSE008544R1
Brand
ABB
Product Type
Analog Input Module
Origin
Sweden
Weight
0.18 kg
Dimensions
4.5 x 10.5 x 12 cm
Operating Temp
Not specified
Power Consumption
1.7 W
Signal Specification
-20 to +20 mA, 0(4) to 20 mA, -10 to +10 V, 0(2) to 10 V
Number of Channels
4 channels
Channel Isolation
Individually galvanic isolated
Resolution
14 bit plus sign
Input Range Under/Over Range
+/- 15%
Input Filter Rise Time
40 ms (0 to 90%)
Dielectric Test Voltage
500 V AC
Current Consumption +5 V ModuleBus
80 mA
Current Consumption +24 V External
70 mA
Input Impedance
250 ohm for current input
Current Input Capability
20 mA
Voltage Input Capability
10 VDC
ABB Industrial Control and I/O Integration Characteristics
The ABB AI820 module interfaces with ABB S800 I/O architectures through ModuleBus communication. It processes bipolar and unipolar analog signals while maintaining galvanic isolation between input channels. Therefore, the module supports separated field signal measurement for industrial control applications requiring isolated analog acquisition.
The AI820 follows ABB industrial I/O density scaling principles by providing four configurable analog channels in a compact module format. In addition, its 14 bit plus sign conversion architecture allows the controller system to process positive and negative measurement values for voltage and current inputs.
The module supports backplane bus communication velocity within the ABB S800 I/O platform and maintains firmware flash compatibility according to the installed controller and system configuration. Consequently, engineering teams can integrate the module into existing ABB control environments with defined hardware revision management.
Frequently Asked Questions
Q: What analog signals can the ABB AI820 3BSE008544R1 measure?A: The module accepts current signals of -20 to +20 mA and 0(4) to 20 mA, as well as voltage signals of -10 to +10 V and 0(2) to 10 V.
Q: Does the AI820 provide electrical isolation between input channels?A: Yes. The AI820 provides four individually galvanically isolated input channels to separate field signal circuits.
Q: What power sources supply the AI820 module?A: The module receives power through the ABB ModuleBus system with +5 V ModuleBus current consumption of 80 mA and requires +24 V external supply current of 70 mA.
Field Installation Guidelines
Install the AI820 module in an ABB S800 I/O station with correct ModuleBus connection and approved terminal configuration.
Verify field wiring polarity before connecting current and voltage input signals.
Use shielded signal cables for low-level analog measurement circuits where electromagnetic interference may affect signal accuracy.
Connect cable shields according to the plant grounding standard to reduce electrical noise coupling.
Separate analog signal wiring from high-current power cables and switching circuits.
Confirm the configured input range matches the connected field transmitter or measurement device before commissioning.
Check module status indicators after installation to verify correct communication with the controller system.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB AI825 3BSE036456R1 Analog Input Module
The ABB AI825 3BSE036456R1, also cataloged as the AI825 Analog Input Module, operates as a dedicated hardware component for bipolar current and voltage signal acquisition within ABB S800 I/O systems. The module provides 4 individually galvanic isolated input channels with selectable current or voltage measurement functions.
Hardware Specifications
Parameter
Specification
Model
AI825 3BSE036456R1
Brand
ABB
Product Type
Analog Input Module
Series
S800 I/O
Origin
Sweden
Weight
0.22 kg
Dimensions
45 mm W x 102 mm D x 119 mm H
Operating Temp
0 to +55 deg C
Power Consumption
Typ. 2.5 W, Max. 3.2 W
Article Number
3BSE036456R1
Signal Specification
-20 to +20 mA, 0(4) to 20 mA, -10 to +10 V, 0(2) to 10 V
Number of Channels
4
HART Support
No
SOE Support
No
Redundancy
No
High Integrity
No
Intrinsic Safety
No
Resolution
14 bit plus sign
Input Impedance
10 MOhm voltage input, 50 Ohm current input
Isolation
Individually isolated channel-to-channel and to circuit common
Under/Over Range
+/- 15%
Maximum Error
0.1%
Input Filter Rise Time
115 ms voltage input, 130 ms current input
Update Cycle Time
Less than 10 ms
Maximum Field Cable Length
600 m
CMRR
120 dB at 50 Hz and 60 Hz
NMRR
Greater than 40 dB at 50 Hz, greater than 55 dB at 60 Hz
Rated Insulation Voltage
250 V
Dielectric Test Voltage
1900 VDC channel-to-channel, 3250 VDC channel-to-ground/system
ModuleBus Current Consumption +5 V
Typ. 70 mA, Max. 100 mA
ModuleBus Current Consumption +24 V
Typ. 90 mA, Max. 110 mA
External +24 V Consumption
0
Compatible MTU
TU811, TU813, TU831
Keying Code
DA
Protection Class
IP20 according to IEC 60529
Humidity Range
5 to 95 %, non-condensing
Storage Temperature
-40 to +70 deg C
ABB S800 I/O Backplane and Isolation Characteristics
The AI825 uses ABB S800 I/O architecture with ModuleBus power conversion from the 24 V supply. Each input channel maintains individual galvanic isolation, which separates field signals from adjacent channels and the internal circuit common.
The module supports direct current measurement inputs with overvoltage protection. The current input circuit uses a PTC resistor for current limitation, while the voltage input stage withstands up to 6.3 V input levels. Therefore, the module can process mixed field signals without external signal conditioning.
The S800 platform provides structured I/O density scaling through the ModuleBus interface. The AI825 supports deterministic communication between the I/O module and ABB controller platforms through the S800 I/O communication structure.
Frequently Asked Questions
Q: Does the AI825 support HART communication for smart field devices?A: No. The AI825 is a standard analog input module and does not provide HART protocol communication capability.
Q: Can each AI825 input channel be configured independently?A: Yes. Each of the 4 channels can operate as either a voltage input or a current input with individual galvanic isolation.
Q: What MTU units are compatible with the AI825 module?A: The AI825 supports TU811, TU813, and TU831 Module Termination Units with keying code DA.
Field Installation Guidelines
Install the AI825 module in an ABB S800 I/O station using the specified compatible MTU. Confirm the mechanical keying position before insertion to prevent incorrect module placement.
Connect field wiring according to the selected current or voltage input configuration. Keep analog signal cables separated from high voltage and high current conductors to reduce electrical interference.
Use proper cable shielding practices for analog signal lines. Connect shields according to the plant grounding standard and avoid creating unwanted ground loops.
Verify ModuleBus connections and 24 V power supply quality before system commissioning. Check front LED indicators for Fault, Run, and Warning status after installation.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB AI830 3BSE008518R1 RTD Input Module
Configured for RTD temperature signal acquisition in ABB System 800xA and S800 I/O networks, the ABB AI830 3BSE008518R1 (AI830 RTD Input Module) provides direct physical measurement of resistive temperature elements through 8 analog input channels.
Hardware Specifications
Parameter
Specification
Model
AI830 3BSE008518R1
Brand
ABB
Product Type
RTD Input Module
Origin
Sweden
Weight
0.24 kg
Dimensions
4.5 x 10.5 x 12 cm
Power Consumption
1.6 W
Module Type
Analog Input
Signal Specification
3-wire RTD: Pt100, Cu10, Ni100, Ni120 and resistive potentiometer
Number of Channels
8
Update Cycle Time
150 + 9 ms
Rated Insulation Voltage
50 V
Dielectric Test Voltage
500 V AC
CMRR at 50 Hz / 60 Hz
>60 dB
Current Consumption +5 V Modulebus
70 mA
Tariff Code
8537101190
ABB S800 I/O Backplane Integration and I/O Density Scaling
The AI830 operates as an ABB S800 I/O analog input component with direct Modulebus communication. It supports configurable channel parameters, allowing each RTD input channel to operate independently according to the connected sensor type.
The module performs signal linearization and temperature conversion into Centigrade or Fahrenheit values internally. In addition, the MainsFreq parameter configures the 50 Hz or 60 Hz notch filter cycle to reduce power frequency interference during measurement.
The AI830 follows ABB industrial control architecture principles, including I/O density scaling through modular channel allocation and standardized backplane communication interfaces.
Frequently Asked Questions
Q: Which temperature sensors can the ABB AI830 3BSE008518R1 measure?A: The AI830 supports 3-wire RTD sensors including Pt100, Cu10, Ni100, Ni120, and resistive potentiometers.
Q: Does each AI830 input channel have independent configuration capability?A: Yes. Each of the 8 RTD input channels can be configured individually for the connected resistive measurement element.
Q: What installation requirement applies to RTD sensor wiring?A: All connected RTD elements must remain isolated from ground to maintain correct measurement performance.
Field Installation Guidelines
Install the AI830 module in the designated ABB S800 I/O rack position according to system configuration requirements.
Connect RTD sensors using 3-wire wiring methods and maintain correct terminal assignments.
Keep RTD signal cables separated from high voltage and high current conductors to reduce electrical interference.
Ensure all RTD sensors remain isolated from ground unless the system design specifies another grounding method.
Verify channel configuration parameters before commissioning temperature measurements.
Check Modulebus communication status after installation to confirm correct module recognition.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB AI835A Analog Input Module
The ABB AI835A, also cataloged as the AI835A Analog Input Module, operates as a dedicated hardware component for thermocouple and millivolt signal measurement within ABB System 800xA S800 I/O platforms. The module provides 8 differential input channels with configurable TC and mV measurement ranges, including cold junction compensation functions.
Hardware Specifications
Parameter
Specification
Model
AI835A
Spare Model
3BSE051306R1
Brand
ABB
Product Type
Analog Input Module
Weight
0.25 kg
Dimensions
4.1 x 11 x 12 cm (estimated shipping size)
Operating Temp
Not specified
Power Consumption
1.6 W
Input Channels
8 differential input channels
Input Type
Thermocouple and mV measurement
mV Measurement Range
-30 mV to +75 mV linear
Supported Thermocouple Types
B, C, D, E, J, K, L, N, R, S, T, U
Resolution
15 bits
Input Impedance
> 1 MOhm
Isolation
Groupwise isolated from ground
Maximum Error
0.1%
Temperature Drift
Typical 5 ppm/deg C, maximum 7 ppm/deg C
Update Cycle Time
280 + 80 x active channels ms at 50 Hz; 250 + 70 x active channels ms at 60 Hz
Maximum Field Cable Length
600 m
CMRR
120 dB at 50 Hz and 60 Hz
NMRR
> 60 dB at 50 Hz and 60 Hz
Rated Insulation Voltage
50 V
Dielectric Test Voltage
500 V AC
Current Consumption +5 V Modulebus
75 mA
Current Consumption +24 V Modulebus
50 mA
Current Consumption +24 V External
0
Backplane Bus Communication and I/O Architecture
The AI835A integrates into ABB S800 I/O architecture through the Modulebus interface. The module exchanges measured analog values through the backplane communication path while maintaining channel-level signal conditioning.
The module supports I/O density scaling by providing 8 differential measurement channels in a compact I/O configuration. In addition, the firmware flash compatibility within the ABB System 800xA environment allows configuration parameters and measurement functions to be managed through standard engineering tools.
The AI835A supports channel-specific configuration for thermocouple and millivolt inputs. Therefore, each input channel can be assigned according to the connected field sensor requirements.
Cold Junction Compensation and Signal Processing
The AI835A provides cold junction compensation (CJC) capability through Channel 8 configuration. Channel 8 can operate as an ambient temperature measurement channel for Channels 1 to 7.
The junction temperature can be measured directly at the MTU screw terminals or through a remote connection unit. Alternatively, the user can configure a fixed junction temperature parameter. For AI835A applications, the fixed value can also be provided from the application software.
When CJC measurement is not required, Channel 8 operates as a standard thermocouple or mV input channel.
Frequently Asked Questions
Q: How many measurement channels does the AI835A provide?A: The AI835A provides 8 differential input channels configured for thermocouple and millivolt signal measurement.
Q: Can the AI835A measure different thermocouple types?A: Yes. The module supports thermocouple types B, C, D, E, J, K, L, N, R, S, T, and U, together with a -30 mV to +75 mV linear input range.
Q: How does the AI835A perform cold junction compensation?A: Channel 8 can be configured as a cold junction temperature channel. The module can measure junction temperature locally through MTU terminals, remotely through a connection unit, or use a configured fixed temperature value.
Field Installation Guidelines
Install the AI835A in the designated ABB S800 I/O module position and verify correct Modulebus connection before commissioning.
Use shielded field wiring for thermocouple and mV signal connections. Connect cable shields according to the ABB system grounding specification to reduce electromagnetic interference.
Keep low-level analog signal cables separated from high-voltage power wiring and switching circuits. Verify terminal assignments before applying field signals.
Check sensor polarity, thermocouple type configuration, and cold junction compensation settings during commissioning. Confirm input values through the engineering workstation before placing the measurement loop into operation.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB AI845 Analog Input Redundant Module
The ABB AI845 3BSE023675R1, also cataloged as the AI845 Analog Input Redundant Module, operates as a dedicated hardware component for analog current and voltage signal acquisition within ABB System 800xA control platforms. The module processes 8 single-ended channels and supports HART communication for field transmitter data exchange.
Hardware Specifications
Parameter
Specification
Model
AI845 3BSE023675R1
Brand
ABB
Module Type
Analog Input S/R HART Module
System Platform
ABB System 800xA / S800 I/O
Origin
Sweden
Weight
Approximately 0.23 kg
Dimensions
45 x 102 x 119 mm
Number of Channels
8 single-ended analog input channels
Input Signal Range
0(4)-20 mA, 0(1)-5 V
Resolution
12-bit
Communication Protocol
HART protocol support
Transmitter Supply
Current-limited transmitter power distribution
Diagnostics
Integrated module diagnostics
Backplane Communication and I/O Configuration
The AI845 module operates as an ABB S800 I/O analog input component with integration through the controller backplane communication system. The module supports I/O density scaling through multiple channel configurations while maintaining standardized analog signal processing.
Furthermore, the HART communication interface allows digital field device information to transfer together with the analog measurement signal. The module can process transmitter variables and diagnostic data from compatible HART-enabled instruments.
The module design supports ABB industrial control architectures using structured I/O configuration, firmware compatibility management, and system-level diagnostic monitoring.
Frequently Asked Questions
Q: Does the ABB AI845 support HART communication on analog input channels?A: Yes. The AI845 supports HART communication for compatible field transmitters, allowing digital device information to be transferred with the analog input signal.
Q: How many analog input channels are available on the AI845 module?A: The AI845 provides 8 single-ended analog input channels for current and voltage measurement applications.
Q: What input signals can the AI845 process?A: The module accepts 0(4)-20 mA current signals and 0(1)-5 V voltage signals with 12-bit resolution.
Field Installation Guidelines
Install the AI845 module according to ABB S800 I/O system installation procedures. Verify that the module is correctly seated in the I/O carrier and that the backplane connection is fully engaged before system startup.
Use shielded signal cables for analog transmitter wiring where required by the installation environment. Connect cable shields according to the plant grounding standard to reduce electrical interference.
Separate analog signal wiring from high-voltage power cables and switching circuits. Confirm transmitter polarity, loop wiring, and channel configuration before applying field power.
Check module diagnostics after installation through the ABB control system engineering tools. Validate input values against the connected field transmitter output before placing the channel into operational service.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB 3BSE028600R1 AI880 Analog Input Unit
Configured for analog signal acquisition in ABB S800 I/O and control system platforms, the ABB 3BSE028600R1 (AI880 Analog Input Unit) provides direct physical/electrical execution for high integrity input measurement and signal processing tasks.
Hardware Specifications
Parameter
Specification
Model
3BSE028600R1
Brand
ABB
Product Type
Analog Input Unit
ABB Type Designation
AI880
Origin
Sweden
Weight
0.01 kg
Configuration
High integrity, single or redundant operation
Application Interface
Analog input signal acquisition
Product Category
Spare Parts
Replacement Product ID
3BSE039293R1
Customs Tariff Number
85389091
ABB S800 I/O Backplane Communication and I/O Density Scaling
The AI880 module integrates with ABB S800 I/O architectures through the standard module communication interface. Therefore, it supports structured analog input processing within ABB distributed control configurations.
The module design supports high integrity configurations with either single installation or redundant arrangements. Additionally, ABB system engineering can apply redundancy planning to increase availability for critical analog measurement loops.
The S800 I/O platform uses standardized backplane communication methods to exchange channel data, diagnostic information, and module status information between field I/O modules and controller systems.
Frequently Asked Questions
Q: Can the AI880 3BSE028600R1 operate in a redundant configuration?A: Yes. The technical specification identifies the AI880 as supporting single or redundant configurations. The exact redundancy implementation depends on the ABB control system hardware configuration.
Q: Is the AI880 3BSE028600R1 a complete controller module?A: No. The AI880 is an Analog Input Unit designed for analog signal acquisition within ABB I/O systems. It does not execute user control logic.
Q: Can the module be replaced by another part number?A: The listed replacement product ID is 3BSE039293R1. System compatibility should be verified before replacement installation.
Field Installation Guidelines
Install the AI880 module only in compatible ABB S800 I/O hardware configurations.
Verify the module position, addressing, and controller configuration before energizing the system.
Connect analog field wiring according to ABB installation documentation and approved cabinet drawings.
Separate analog signal cables from high voltage and high current conductors to reduce electrical interference.
Use proper shield grounding practices according to the plant grounding standard.
Confirm module diagnostics and communication status after installation through the ABB engineering environment.
For redundant configurations, verify the redundancy arrangement and communication status before placing the system into operation.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
ABB AI895 3BSC690086R1 Analog Input Module
The ABB AI895 3BSC690086R1, also cataloged as the AI895 Analog Input Module, provides 4-20 mA signal acquisition with intrinsic safety interface capability for ABB industrial control system I/O platforms. The module processes eight unipolar analog input channels with HART communication support.
Hardware Specifications
Parameter
Specification
Model
AI895 3BSC690086R1
Brand
ABB
Product Type
Analog Input Module
Origin
USA
Weight
0.24 kg
Dimensions
4.5 x 10.5 x 12 cm
Operating Temp
0 deg C to +55 deg C
Storage Temp
-40 deg C to +70 deg C
Power Consumption
Not specified
Input Signal
4-20 mA
Number of Channels
8
Signal Type
Unipolar single ended
Resolution
12 bit
Isolation
Groupwise isolated from ground
HART Interface
Supported
Intrinsic Safety Interface
Integrated
Under Range / Over Range
1.5 mA / 22 mA
Accuracy Error
Typical 0.05%, Maximum 0.1%
Temperature Drift
Typical 100 ppm/deg C
Input Filter Rise Time
20 ms (0-90%)
ABB Industrial I/O Architecture and Signal Processing
The AI895 3BSC690086R1 operates as an ABB S800 I/O series analog input component and handles field current signals through eight isolated input channels. Furthermore, the module supports HART-enabled instruments by maintaining analog measurement accuracy while transferring additional device information through the communication layer.
The module uses groupwise isolation from ground to reduce interference during field signal measurement. Additionally, the 12 bit conversion resolution enables accurate processing of industrial transmitter signals within the configured input range.
ABB control systems apply I/O density scaling methods through modular S800 architecture. Therefore, the AI895 supports structured channel expansion and standardized integration with ABB controller networks using compatible I/O communication interfaces.
Frequently Asked Questions
Q: Does the AI895 3BSC690086R1 support HART field instruments?A: Yes. The module provides 4-20 mA analog input processing with HART interface support for compatible field devices.
Q: How many analog input channels are available on the AI895 module?A: The AI895 provides eight unipolar single ended analog input channels.
Q: What isolation method does the AI895 use for input signals?A: The module provides groupwise isolation from ground for the analog input circuits.
Field Installation Guidelines
Install the AI895 module in the designated ABB S800 I/O rack position according to the system hardware configuration.
Verify the backplane connection before powering the I/O station.
Use shielded instrumentation cables for 4-20 mA field wiring where required by the installation environment.
Connect cable shields according to the plant grounding standard to reduce electromagnetic interference.
Separate analog signal wiring from high voltage and high current power cables.
Confirm transmitter loop polarity before applying field power.
Check HART communication wiring compatibility when connecting smart transmitters.
Verify operating temperature conditions before commissioning the module.
15 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Triconex 3614E is a high-reliability Supervised Digital Output (SDO) module designed for use within the Tricon Triple Modular Redundancy (TMR) safety system. This module is essential for driving critical final control elements in demanding industrial environments, such as oil and gas refineries, chemical processing plants, and power generation facilities. The 3614E continuously monitors the integrity of field wiring and the health of the connected load, detecting open or short circuits even when the output is in the off state. By providing comprehensive diagnostic coverage and hardware fault tolerance, the 3614E helps prevent spurious trips and ensures the safety loop remains operational, minimizing process downtime.Features
TMR (Triple Modular Redundancy) architecture for high fault tolerance and reliability.
16 supervised output channels for comprehensive field device monitoring.
Continuous health monitoring of field wiring, including detection of open and short circuits.
Low-level current pulse injection for non-intrusive circuit continuity verification.
Integrated over-current and thermal overload protection.
Real-time diagnostic reporting to Main Processors (MPs) for immediate fault identification.
ApplicationsThe 3614E is designed for safety-critical applications where high availability and diagnostic feedback are required, including:
Emergency Shutdown Systems (ESD).
Fire and Gas (F&G) detection systems.
Burner Management Systems (BMS).
Critical process control loops requiring SIL-rated output supervision.
Technical Specifications
Model
3614E
Brand
Triconex
Output Channels
16 points, supervised
Rated Voltage
24 VDC
Current Rating
2.0 A per point (maximum)
Leakage Current
4.0 mA (maximum)
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the Tricon system is powered down before inserting or removing the 3614E module from the chassis.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Verify that field wiring is correctly terminated to the corresponding terminal blocks to ensure accurate supervision and diagnostic feedback.
Ensure adequate ventilation within the cabinet to maintain the operating temperature between 0 and 60 deg C.
Route field signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
FAQWhat does the "Supervised" designation mean for the 3614E?The supervised designation indicates that the module performs active diagnostics on the field circuit. It can detect faults such as open circuits or short circuits in the wiring to the final control element, even when the output is commanded to be off, ensuring the system is always aware of the health of the safety loop.Is the 3614E compatible with all Tricon systems?The 3614E is designed for the Tricon TMR safety system. Please refer to your specific Tricon system documentation or hardware revision compatibility matrix to ensure the module version matches your existing processor and chassis configuration.
6 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
8 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Honeywell 51202329-606 is a specialized I/O link cable designed for reliable signal transmission within industrial automation systems. This 3-core cable is engineered to facilitate connectivity between field devices and control modules, ensuring stable communication and power delivery in demanding environments.Features
3-core configuration for standard I/O signal routing.
Equipped with M12 connectors for secure, vibration-resistant industrial interfacing.
Designed for low-voltage control applications up to 30V DC.
Robust construction suitable for operating temperatures ranging from -25 degC to +70 degC.
Technical Specifications
Product Model
51202329-606
Cable Type
I/O Link Cable
Core Count
3-core
Connector Type
M12
Voltage Rating
≤30V DC
Current Rating
≤2A
Operating Temperature
-25 degC to +70 degC
Tariff Code
8537101190
Installation Guidelines
Ensure the M12 connectors are fully seated and tightened to the specified torque to maintain IP ratings and connection integrity.
Route cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal noise.
Avoid sharp bends or excessive tension on the cable during installation to prevent internal conductor damage.
Verify that the total loop resistance is within the acceptable range for your specific I/O module at 24V DC before final commissioning.
Always power down the associated I/O modules before connecting or disconnecting the link cable to avoid electrical arcing or potential damage to pins.
FAQWhat is the primary use of the 51202329-606 cable?This cable is primarily used as an I/O link for connecting field sensors or actuators to Honeywell control system I/O modules, providing a secure and standardized physical connection.Can this cable be used in high-temperature environments?The cable is rated for an operating temperature range of -25 degC to +70 degC. It should not be used in environments exceeding these limits, such as near high-heat process equipment or steam lines, without additional protective shielding.
8 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe General Electric IC660BBD024 is an intelligent, high-density 32-point discrete sourcing I/O block from the Genius I/O product family. This versatile module is designed to interface controllers with field devices such as relays, contactors, and proximity switches. Each of the 32 circuits is software-configurable to function as an input, an output, or an output with feedback, providing significant flexibility for complex control applications.Features
32 configurable I/O circuits for mixed input/output operations
Sourcing I/O block design
Resettable self-protecting circuits for output channels
Advanced diagnostic capabilities including switch fault detection
Software-configurable filtering and operation parameters
LED indicators for block status, CPU communication, and individual circuit voltage presence
Applications
Turbine Control: High-density discrete I/O for legacy turbine control systems
Power Generation: Supports Genius Modular Redundancy for critical plant systems
Oil & Gas: Remote I/O block architecture to minimize long-distance field wiring
Industrial Automation: Interface for CNC machines, robotics, and assembly lines
Marine Technology: Onboard control and monitoring for shipboard electronics
Technical Specifications
Model
IC660BBD024
Channels
32 (Configurable)
Input Voltage
12/24 VDC
Output Current (per circuit)
0.5 A (steady state)
Total Block Current
16 A
Input Processing Time
1.4 ms (plus selectable filter)
Isolation
850 V
Input Impedance
3.3 kOhms
Output Turn-on Delay
0.5 ms (max)
Installation Guidelines
Wiring: Terminal connections should utilize #12 AWG wire or two #14 AWG wires.
Power Disconnect: Wire the block to ensure block power and input power are disconnected simultaneously to prevent unexpected power-up during maintenance.
Grounding: Ensure mounting screws are connected to a reliable, low-impedance grounding system to protect equipment and personnel.
Handling: Standard ESD precautions should be observed when handling the module. Always power down the system before inserting or removing the block from the bus.
FAQsDoes the IC660BBD024 operate as an input or output device?The IC660BBD024 is a 32-point module that can be configured on a per-channel basis as an input, an output, or an output with feedback.What is the current rating per point when configured as an output?The module is capable of delivering 0.5 Amperes per point when configured as an output, with a total block capacity of 16 Amperes.What is the primary function of this module?The GE IC660BBD024 is a 32-circuit DC source I/O block used to interface controllers with binary field devices such as sensors, relays, and contactors.
1 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
DescriptionThe Allen-Bradley 1746-RL70 is a maintenance and identification accessory designed specifically for high-density digital modules within the SLC 500 platform. This Octal Label Kit provides clear, professional-grade terminal identification for 32-point modules, ensuring that wiring remains organized and traceable during system operation and maintenance.Features
Octal Addressing Support: Specifically designed to label terminals in octal format (0-7, 10-17, 20-27, 30-37), aligning with the SLC 500 processor addressing scheme.
High-Density Compatibility: Optimized for 32-point I/O modules where terminal space is limited and clear identification is critical for safety.
Maintenance Efficiency: Facilitates rapid identification of I/O points, reducing downtime during troubleshooting or module replacement.
Durable Construction: Engineered to withstand the industrial environment of an SLC 500 rack assembly.
ApplicationsThe 1746-RL70 is intended for use with 32-point digital I/O modules in the Allen-Bradley SLC 500 series. It is commonly utilized in control cabinets where high-density wiring requires clear, error-free labeling to prevent miswiring during field service.Technical Specifications
Brand
Allen-Bradley
Part Number
1746-RL70
Product Type
Octal Label Kit
Compatibility
1746-OB32, 1746-IV32, 1746-OV32, 1746-IB32
Lifecycle Status
Discontinued (Jan 31, 2017)
Installation Guidelines
Surface Preparation: Ensure the module terminal block surface is clean, dry, and free of oil or dust before applying the adhesive labels.
Alignment: Carefully align the label with the corresponding terminal rows to ensure the octal addressing (0-7, 10-17, etc.) matches the physical terminal layout.
Application: Apply firm, even pressure across the label surface to ensure long-term adhesion.
Verification: Verify that the labels are legible and correctly oriented before finalizing field wiring.
FAQIs the 1746-RL70 compatible with all SLC 500 modules?No, this kit is specifically designed for 32-point "octal" digital modules, such as the 1746-OB32, 1746-IV32, 1746-OV32, and 1746-IB32. It is not intended for standard 8 or 16-point modules.Can these labels be reused?These are typically single-use adhesive labels. Once removed or repositioned, the adhesive strength may degrade, and it is recommended to use a fresh label for permanent installations.
7 in stock
Delivery within 48 hours, pay afterwards
Mid weeks Monday to friday we offer next day delivery if the product is on stock and exceptions on holidays.
Weekends We offer no deliveries in the weekends.
International Depending on where you’re located, we offer next day delivery. Check your status on this link
