Description

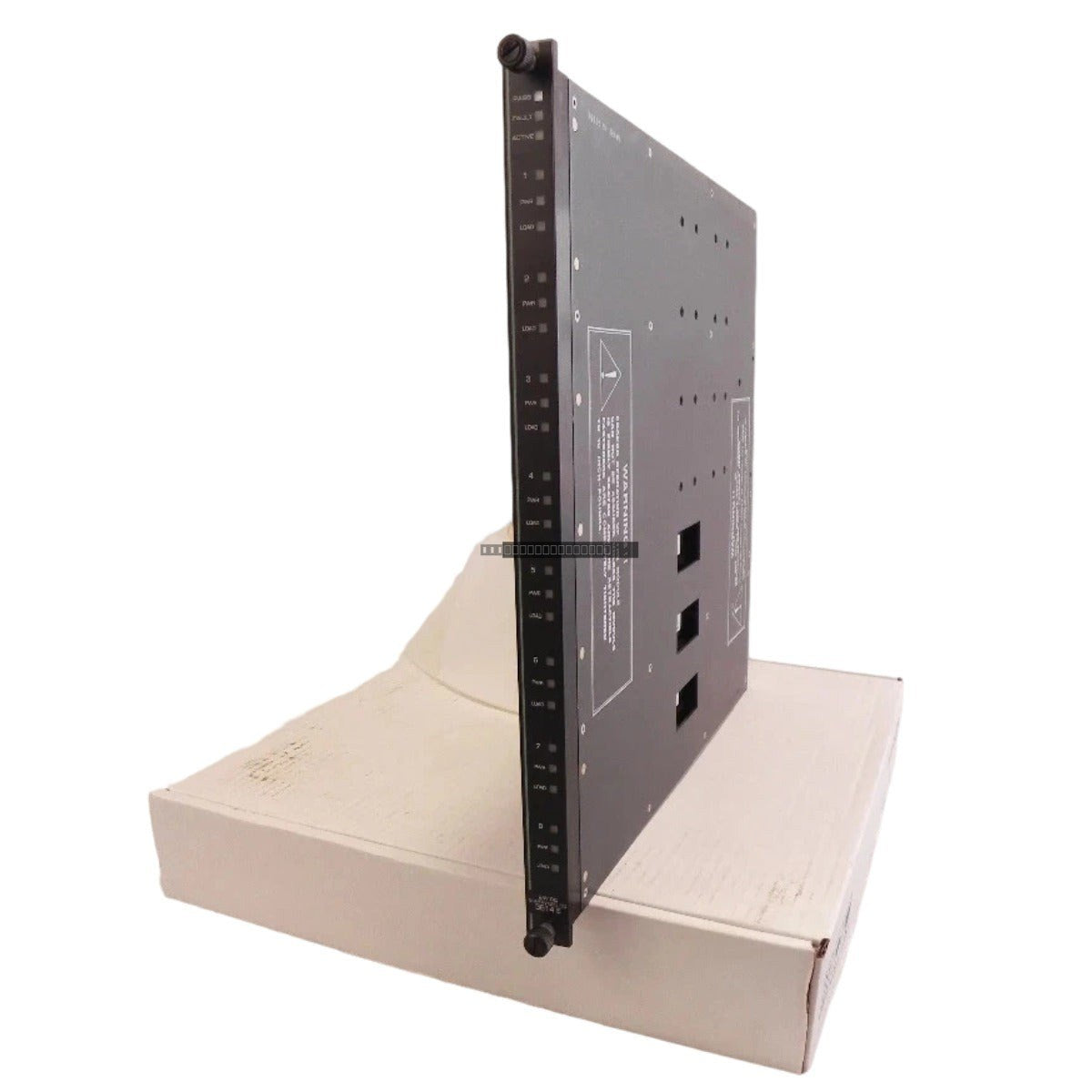

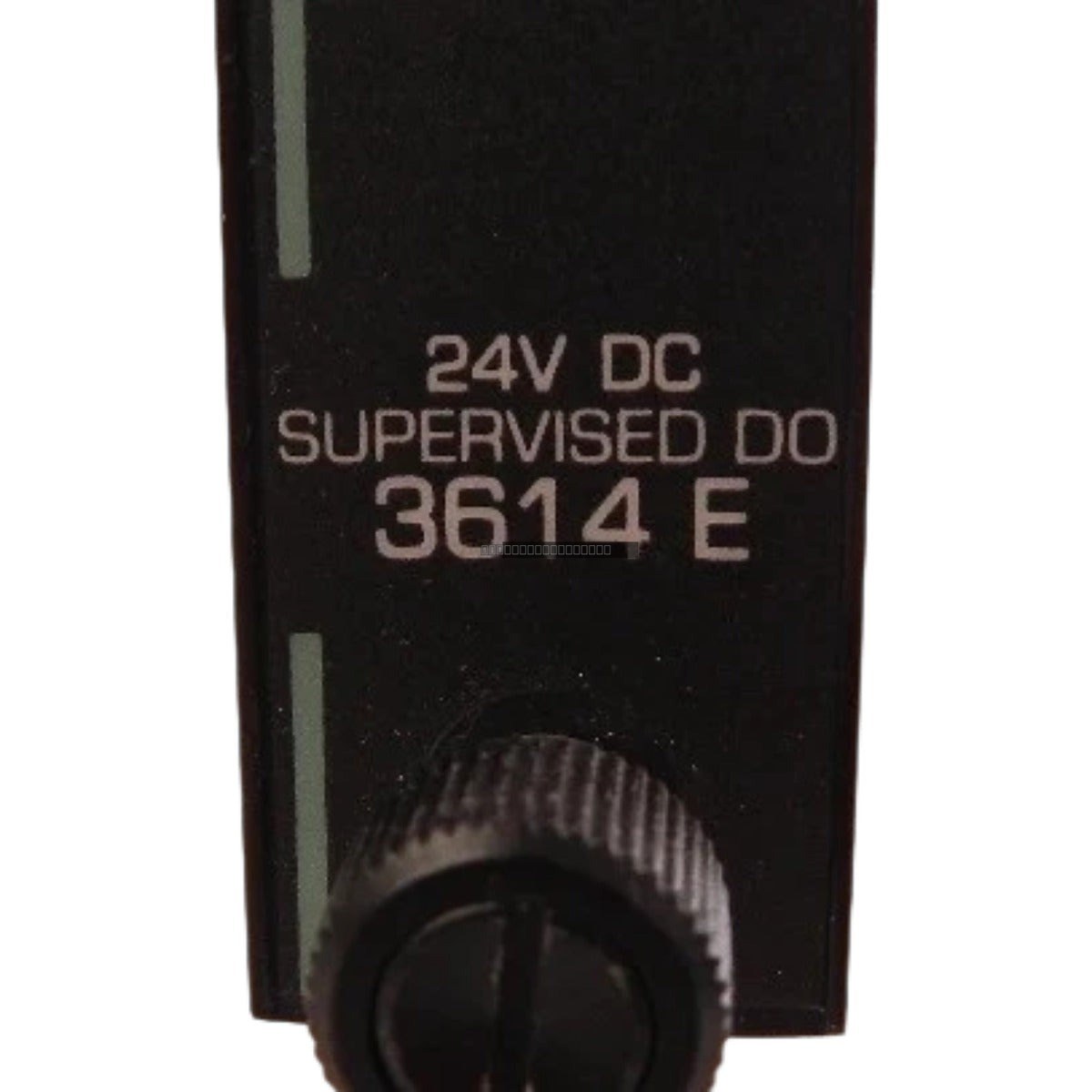

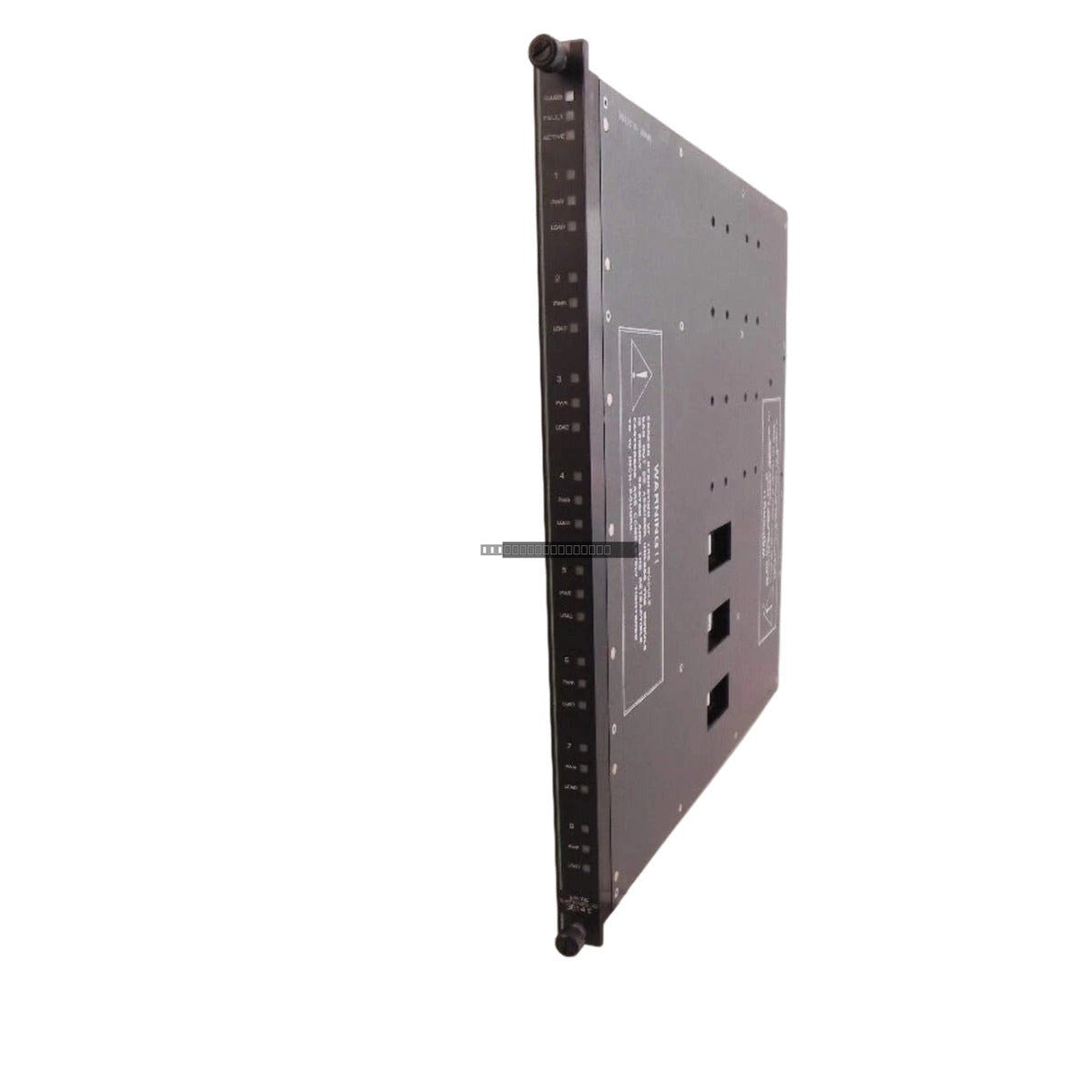

The Triconex 3614E is a high-reliability Supervised Digital Output (SDO) module designed for use within the Tricon Triple Modular Redundancy (TMR) safety system. This module is essential for driving critical final control elements in demanding industrial environments, such as oil and gas refineries, chemical processing plants, and power generation facilities. The 3614E continuously monitors the integrity of field wiring and the health of the connected load, detecting open or short circuits even when the output is in the off state. By providing comprehensive diagnostic coverage and hardware fault tolerance, the 3614E helps prevent spurious trips and ensures the safety loop remains operational, minimizing process downtime.
Features
- TMR (Triple Modular Redundancy) architecture for high fault tolerance and reliability.
- 16 supervised output channels for comprehensive field device monitoring.
- Continuous health monitoring of field wiring, including detection of open and short circuits.
- Low-level current pulse injection for non-intrusive circuit continuity verification.
- Integrated over-current and thermal overload protection.
- Real-time diagnostic reporting to Main Processors (MPs) for immediate fault identification.
Applications
The 3614E is designed for safety-critical applications where high availability and diagnostic feedback are required, including:
- Emergency Shutdown Systems (ESD).
- Fire and Gas (F&G) detection systems.
- Burner Management Systems (BMS).
- Critical process control loops requiring SIL-rated output supervision.
Technical Specifications
| Model |
3614E |
| Brand |
Triconex |
| Output Channels |
16 points, supervised |
| Rated Voltage |
24 VDC |
| Current Rating |
2.0 A per point (maximum) |
| Leakage Current |
4.0 mA (maximum) |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the Tricon system is powered down before inserting or removing the 3614E module from the chassis.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
- Verify that field wiring is correctly terminated to the corresponding terminal blocks to ensure accurate supervision and diagnostic feedback.
- Ensure adequate ventilation within the cabinet to maintain the operating temperature between 0 and 60 deg C.
- Route field signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
FAQ
What does the "Supervised" designation mean for the 3614E?
The supervised designation indicates that the module performs active diagnostics on the field circuit. It can detect faults such as open circuits or short circuits in the wiring to the final control element, even when the output is commanded to be off, ensuring the system is always aware of the health of the safety loop.
Is the 3614E compatible with all Tricon systems?
The 3614E is designed for the Tricon TMR safety system. Please refer to your specific Tricon system documentation or hardware revision compatibility matrix to ensure the module version matches your existing processor and chassis configuration.
