Description

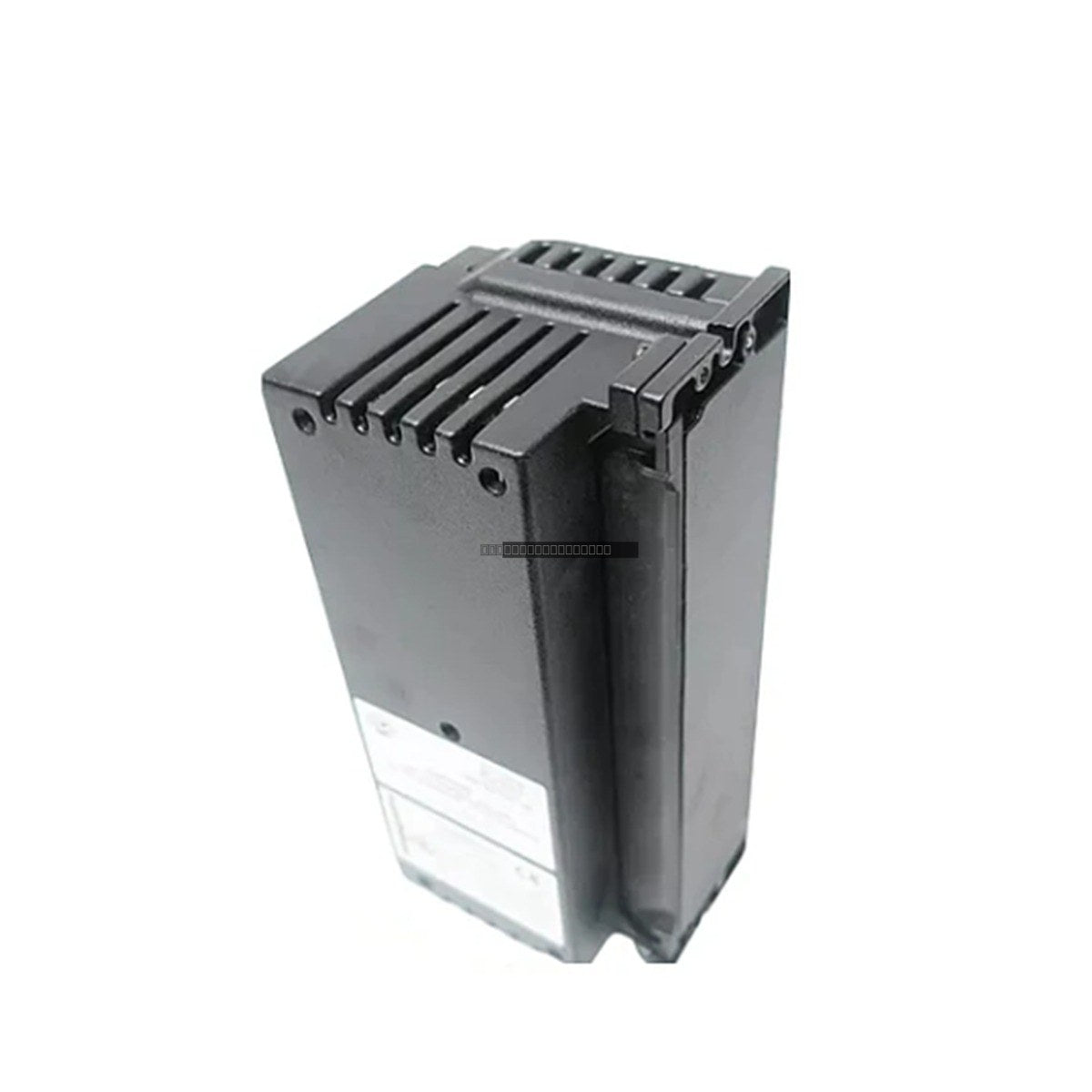

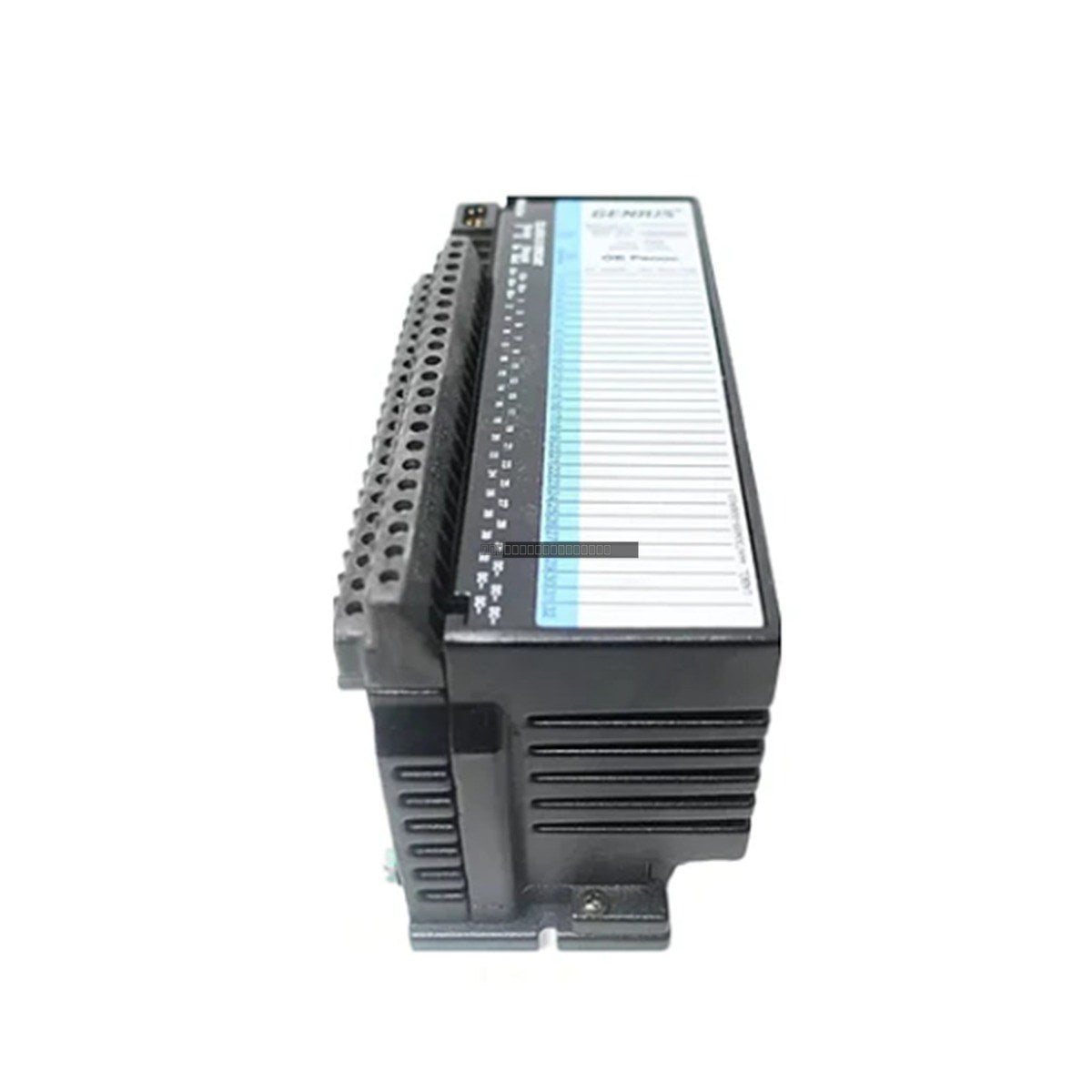

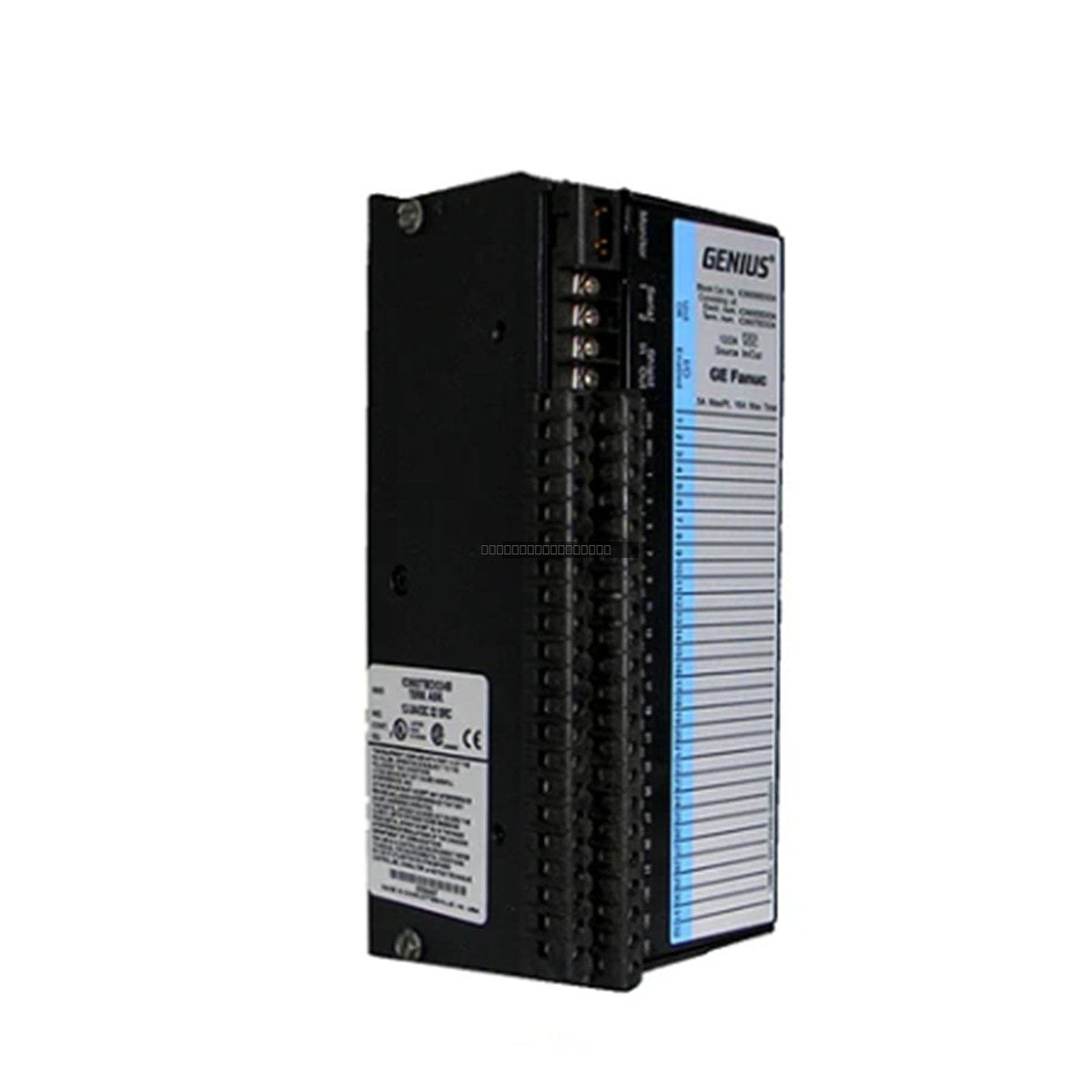

The General Electric IC660BBD024 is an intelligent, high-density 32-point discrete sourcing I/O block from the Genius I/O product family. This versatile module is designed to interface controllers with field devices such as relays, contactors, and proximity switches. Each of the 32 circuits is software-configurable to function as an input, an output, or an output with feedback, providing significant flexibility for complex control applications.
Features
- 32 configurable I/O circuits for mixed input/output operations
- Sourcing I/O block design
- Resettable self-protecting circuits for output channels
- Advanced diagnostic capabilities including switch fault detection
- Software-configurable filtering and operation parameters
- LED indicators for block status, CPU communication, and individual circuit voltage presence
Applications
- Turbine Control: High-density discrete I/O for legacy turbine control systems
- Power Generation: Supports Genius Modular Redundancy for critical plant systems
- Oil & Gas: Remote I/O block architecture to minimize long-distance field wiring
- Industrial Automation: Interface for CNC machines, robotics, and assembly lines
- Marine Technology: Onboard control and monitoring for shipboard electronics
Technical Specifications
| Model |
IC660BBD024 |
| Channels |
32 (Configurable) |
| Input Voltage |
12/24 VDC |
| Output Current (per circuit) |
0.5 A (steady state) |
| Total Block Current |
16 A |
| Input Processing Time |
1.4 ms (plus selectable filter) |
| Isolation |
850 V |
| Input Impedance |
3.3 kOhms |
| Output Turn-on Delay |
0.5 ms (max) |
Installation Guidelines
-
Wiring: Terminal connections should utilize #12 AWG wire or two #14 AWG wires.
-
Power Disconnect: Wire the block to ensure block power and input power are disconnected simultaneously to prevent unexpected power-up during maintenance.
-
Grounding: Ensure mounting screws are connected to a reliable, low-impedance grounding system to protect equipment and personnel.
-
Handling: Standard ESD precautions should be observed when handling the module. Always power down the system before inserting or removing the block from the bus.
FAQs
Does the IC660BBD024 operate as an input or output device?
The IC660BBD024 is a 32-point module that can be configured on a per-channel basis as an input, an output, or an output with feedback.
What is the current rating per point when configured as an output?
The module is capable of delivering 0.5 Amperes per point when configured as an output, with a total block capacity of 16 Amperes.
What is the primary function of this module?
The GE IC660BBD024 is a 32-circuit DC source I/O block used to interface controllers with binary field devices such as sensors, relays, and contactors.
