PLC systems and modules deliver flexible automation for industries worldwide. Our inventory includes controllers, input/output modules, and communication units from Allen-Bradley, Siemens, GE, and other leading brands.
PLC Systems & Modules
-

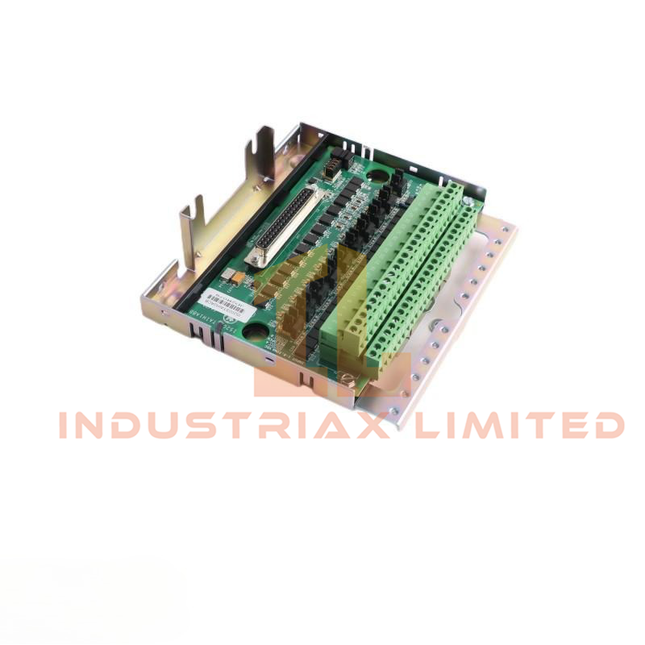

GE GE IS200STAIH2ABA Simplex Analog Input Terminal Board
Product Overview The IS200STAIH2ABA Simplex Analog Input Terminal Board from GE is a compact, high-density module designed for Mark VIe control systems. It supports 10 analog inputs and 2 analog outputs, with jumper-selectable output current ranges and robust noise suppression circuitry. Technical Specifications Specification Details Manufacturer GE (General Electric) Model Number IS200STAIH2ABA Product Series Mark VIe Category Simplex Analog Input Terminal Board Input Voltage 24 Vdc Output Current 4–20 mA (jumper to 0–200 mA) Dimensions 16 × 11 × 5 cm Weight 0.2 kg Channels 10 AI, 2 AO Terminal Type Euro-block, 48 terminals Wire Gauge Support Up to #18 AWG Mounting Options DIN-rail or cabinet mount Warranty 12 months from delivery date Input & Output Compatibility The IS200STAIH2ABA accommodates various transmitter types including two-wire, three-wire, four-wire, and externally powered configurations. It supports voltage inputs of ±5 V and ±10 Vdc. One analog output channel can be jumper-configured to deliver up to 200 mA. Installation & Shielding This board mounts with a plastic insulator on a sheet metal carrier, suitable for DIN-rail or direct cabinet installation. It features shield terminals adjacent to the I/O blocks, ensuring protection against high-frequency noise and surge interference. Diagnostic & Identification Features An onboard ID chip identifies the board to the I/O pack for system diagnostics. The terminal block options include fixed or pluggable styles, offering flexibility for wiring and maintenance. Application & Compatibility The IS200STAIH2ABA is ideal for simplex analog input applications in GE Mark VIe turbine control systems. It supports high-density signal integration and stable current output for industrial automation environments.
$200.00 $100.00
-

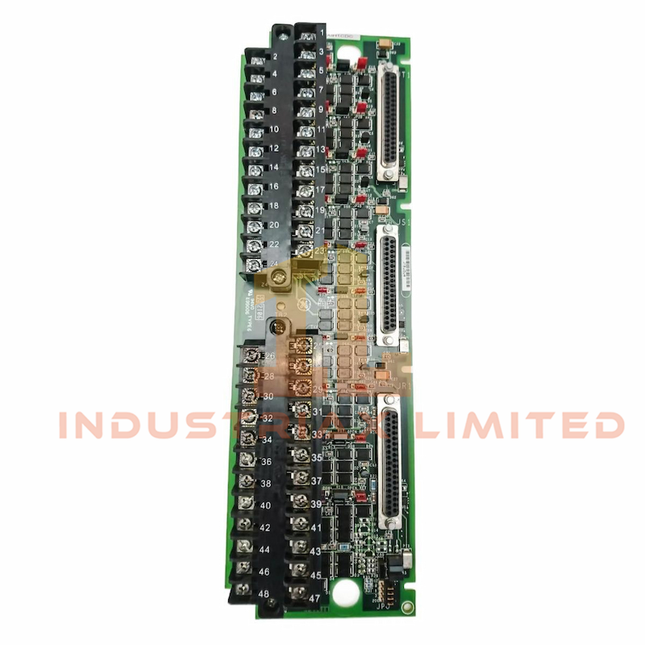

GE GE IS200TBAIH1CDC Analog Input/Output Terminal Board
Product Overview The IS200TBAIH1CDC Analog Input/Output Terminal Board from GE is designed for flexible analog signal handling in Mark VIe turbine control systems. It supports 10 analog inputs and 2 analog outputs, with noise suppression circuitry to ensure signal integrity across industrial environments. Technical Specifications Specification Details Manufacturer GE (General Electric) Model Number IS200TBAIH1CDC Product Series Mark VIe Category Analog Input/Output Terminal Board Input Voltage 24 Vdc Output Current 0–200 mA Dimensions 34 × 11 × 5 cm Weight 0.3 kg Channels 10 AI, 2 AO Connector Type 3 × DC-37 pin Terminal Blocks 2 blocks, 24 terminals each Wire Gauge Support Up to #12 AWG Warranty 12 months from delivery date Signal Configuration & Redundancy The IS200TBAIH1CDC supports simplex and Triple Modular Redundant (TMR) configurations. In TMR mode, input signals fan out to three connectors for R, S, and T controls. Output currents are combined and measured via an onboard shunt, then regulated to match the commanded setpoint. Input & Output Compatibility This board accommodates multiple analog input types including two-wire, three-wire, four-wire, and externally powered transmitters. It supports voltage inputs of ±5 V and ±10 Vdc. Outputs are configurable for 0–20 mA or 0–200 mA, ensuring compatibility with a wide range of field devices. Installation & Shielding Inputs and outputs connect directly to two I/O terminal blocks secured with screws. Each block includes adjacent shield terminals to minimize interference and maintain signal clarity. The layout supports stable and efficient wiring for high-performance applications. Application & Compatibility The IS200TBAIH1CDC is ideal for turbine control systems requiring precise analog signal processing and redundancy. It integrates seamlessly with GE Mark VIe architecture and supports both legacy and modern transmitter configurations.
$200.00 $100.00
-

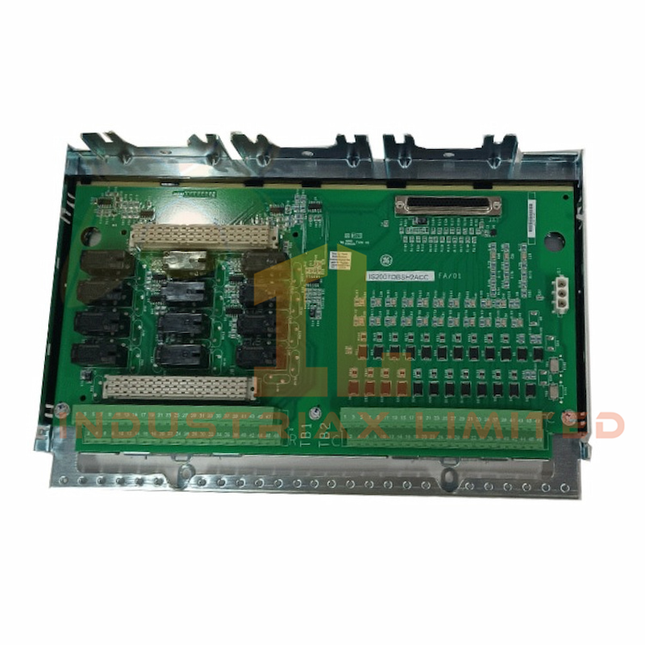

GE GE IS200TDBSH2ACC Simplex I/O Terminal Board
Product Overview The IS200TDBSH2ACC from GE is a simplex discrete input/output terminal board designed for Mark* VIe control systems. It supports DIN-rail or flat mounting and integrates seamlessly with PDIO I/O packs via a D-type connector and Ethernet communication. This board handles 24 group-isolated contact inputs with a nominal 24 Vdc wetting voltage. It includes 12 form-C relay outputs and supports three optional relay expansion boards for advanced power distribution and fuse monitoring. Technical Specifications Specification Details Manufacturer GE Part Number IS200TDBSH2ACC Series Mark* VIe Contact Inputs 24 group-isolated Relay Outputs 12 form-C Wetting Voltage Nominal 24 Vdc (16–32 Vdc floating) Current 2.5 mA Dimensions 34 cm × 18 cm × 5 cm Weight 0.5 kg Mounting DIN-rail or flat Interface D-type connector, Ethernet PDIO Optional Expansion Boards IS200WROB: Converts relay section to match IS200TRLYH1B, adds fused and sensed power distribution. IS200WROF: Adds individual fuses to each relay common, includes voltage feedback. IS200WROG: Distributes power via single fuse per relay, with voltage feedback. Board Variants Model Wetting Voltage Range TB Type TDBSH2A 16–32 Vdc Pluggable TDBSH4A 32–64 Vdc Pluggable TDBSH6A 100–145 Vdc Pluggable Applications & Compatibility The IS200TDBSH2ACC is ideal for industrial automation systems requiring reliable discrete I/O. It integrates with Mark VIe controllers and supports PDIO packs for Ethernet-based control. Compatible with GE’s relay option boards for enhanced functionality. Use this board in turbine control, power generation, or any application demanding robust signal isolation and relay output control.
$200.00 $100.00
-

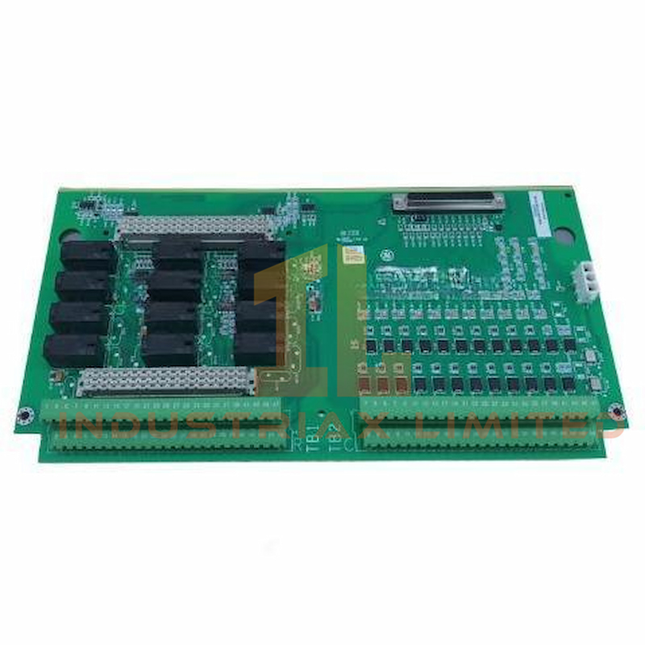

GE GE IS200TDBSH2AAA Simplex Discrete I/O Terminal Board
Product Overview The IS200TDBSH2AAA from GE is a simplex discrete input/output terminal board designed for Mark VIe control systems. It supports DIN-rail or cabinet mounting and includes 24 group-isolated contact inputs with built-in surge and high-frequency noise suppression. This board provides 12 form-C relay outputs and accepts optional relay expansion cards for enhanced power distribution and sensing. It connects to a single PDIO I/O pack via a D-type connector, enabling Ethernet communication with one or two controllers. Technical Specifications Specification Details Manufacturer GE Part Number IS200TDBSH2AAA Ordering Code IS200TDBSH2A Series Mark VIe Voltage 24 Vdc Current 2.5 mA Dimensions 34 cm × 18 cm × 5 cm Weight 0.5 kg Contact Inputs 24 group-isolated Relay Outputs 12 form-C Mounting DIN-rail or cabinet Terminal Blocks Two sets of 48 terminals Wire Gauge Supports #18 AWG Input Connector JE1 3-pin Mate-n-lok® Relay Expansion JW1 and JW2 connectors Installation & Configuration Mount the IS200TDBSH2AAA with a plastic insulator on a sheet metal carrier for DIN-rail installation. Alternatively, bolt it into a cabinet using a metal assembly. Wire connections directly to TB1 and TB2 terminal blocks, with TB1 for relays and TB2 for contact inputs. Relay terminal points include NC, NO, COM, SOL, VSENSE, and RETURN. If using an option board, plug it into JW1 and JW2. External power connects through the option board’s dedicated connector. Applications & Compatibility The IS200TDBSH2AAA is ideal for turbine control, industrial automation, and generator protection systems. It integrates with Mark VIe controllers and supports PDIO I/O packs for Ethernet-based control. Use this board in environments requiring reliable discrete I/O, surge protection, and flexible relay output configurations. It supports one or two network connections from PDIO to controllers.
$200.00 $100.00
-

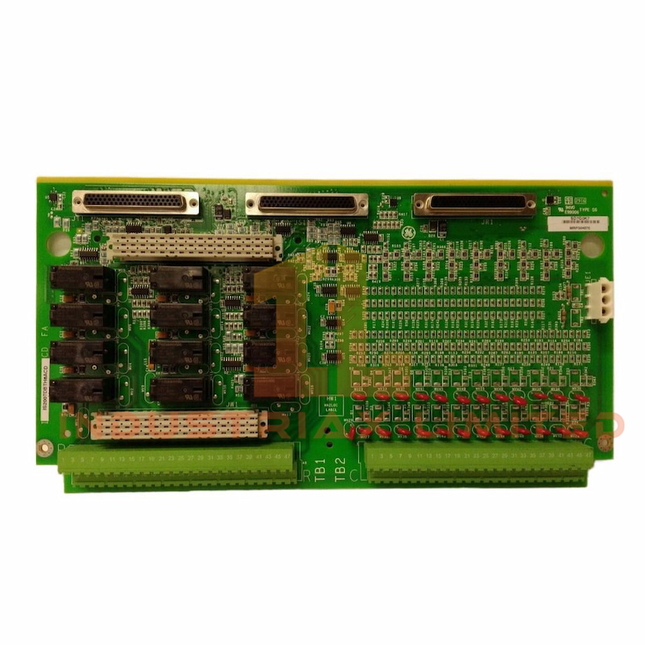

GE GE IS200TDBTH6ACD Discrete I/O Terminal Board
Product Overview The IS200TDBTH6ACD from GE is a triple modular redundancy (TMR) discrete input/output terminal board designed for Mark VIe control systems. It supports DIN-rail or flat mounting and includes 24 group-isolated contact inputs with noise suppression against surge and high-frequency interference. This board provides 12 form-C relay outputs and accepts an optional relay expansion card. It connects to three PDIO I/O packs via D-type connectors, enabling Ethernet communication with simplex or TMR controllers. Technical Specifications Specification Details Manufacturer GE Part Number IS200TDBTH6ACD Ordering Code IS200TDBTH6A Series Mark VIe Voltage 125 Vdc Current 2.5 mA Dimensions 34 cm × 18 cm × 3 cm Weight 0.4 kg Contact Inputs 24 group-isolated Relay Outputs 12 form-C Mounting DIN-rail or cabinet Terminal Blocks Two sets of 48 terminals Wire Gauge Supports #18 AWG Input Connector JE1 3-pin Mate-n-lok® Relay Expansion JW1 and JW2 connectors Installation & Configuration Mount the IS200TDBTH6ACD with a plastic insulator on a sheet metal carrier for DIN-rail installation. Alternatively, bolt it into a cabinet using a metal assembly. Wire connections directly to TB1 and TB2 terminal blocks, with TB1 for relays and TB2 for contact inputs. Use JE1 to supply wetting voltage and plug relay option boards into JW1 and JW2. Terminate shielded wires on a separate bracket to maintain signal integrity. Board Versions Model Wetting Voltage Range TB Type TDBTH2A 16–32 Vdc Pluggable TDBTH4A 32–64 Vdc Pluggable TDBTH6A 100–145 Vdc Pluggable Applications & Compatibility The IS200TDBTH6ACD is ideal for turbine control, industrial automation, and generator protection systems. It integrates with Mark VIe controllers and supports PDIO I/O packs for Ethernet-based control. Use this board in environments requiring high-reliability discrete I/O, surge protection, and flexible relay output configurations. It is not compatible with single PDIO setups.
$200.00 $100.00
-

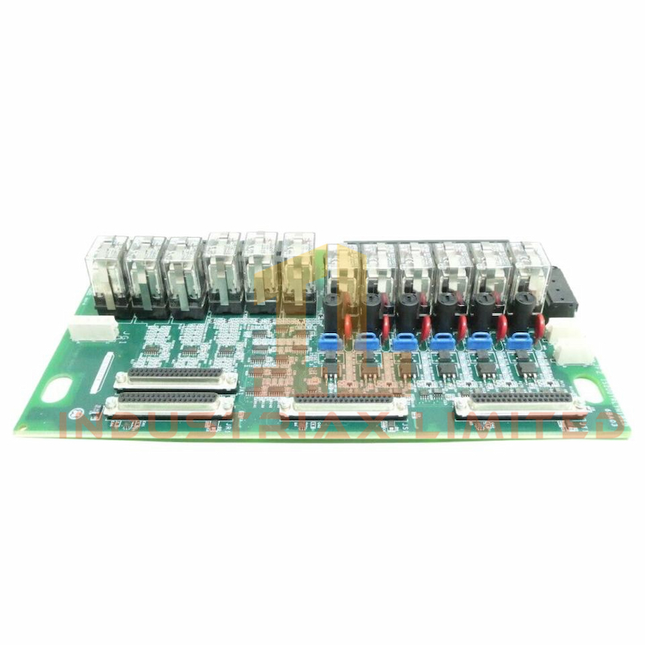

GE GE IS200TRLYH1BED Relay Output Terminal Board
Product Overview The IS200TRLYH1BED from GE is a high-performance relay output terminal board designed for Mark VI and Mark VIe control platforms. It includes 12 plug-in magnetic relays, with flexible jumper configurations for dry contact or solenoid control. Relays 1–6 support Form-C outputs or solenoid activation using 125 Vdc, 115/230 Vac, or optional 24 Vdc power. Relays 7–11 offer isolated Form-C contacts, while relay 12 handles specialized loads such as ignition transformers. This board integrates with PDOA I/O packs in Mark VIe systems and connects to VCCC, VCRC, or VGEN boards in Mark VI setups. It supports both simplex and triple modular redundancy (TMR) configurations. Technical Specifications Specification Details Manufacturer GE Part Number IS200TRLYH1BED Ordering Code IS200TRLYH1B Series Mark VI / Mark VIe Voltage 125 Vdc Current 0.6 A Dimensions 34 cm × 18 cm × 6 cm Weight 0.5 kg Relay Outputs 12 plug-in magnetic relays Output Types Dry contact, solenoid, isolated Form-C Connectors JA1 (simplex), JR1/JS1/JT1 (TMR) I/O Interface DC-37 pin connectors Installation & Configuration Connect relay outputs to two terminal blocks, each with 24 terminals supporting up to #12 AWG wires. Use connector JF1 for solenoid power to outputs 1–6, and JG1 for relay 12. Daisy chain power via JF2, or wire directly to TB3. Jumpers JP1–JP6 allow field solenoid activation and include individual fuses and suppression. Remove fuses for isolated contact applications to eliminate leakage from the power bus. Applications & Compatibility The IS200TRLYH1BED is ideal for turbine control, industrial automation, and generator protection systems. It integrates with Mark VI and Mark VIe architectures and supports both simplex and TMR configurations. Use this board in environments requiring flexible relay output control, coil sensing, and safe power distribution across multiple relay channels.
$200.00 $100.00
-

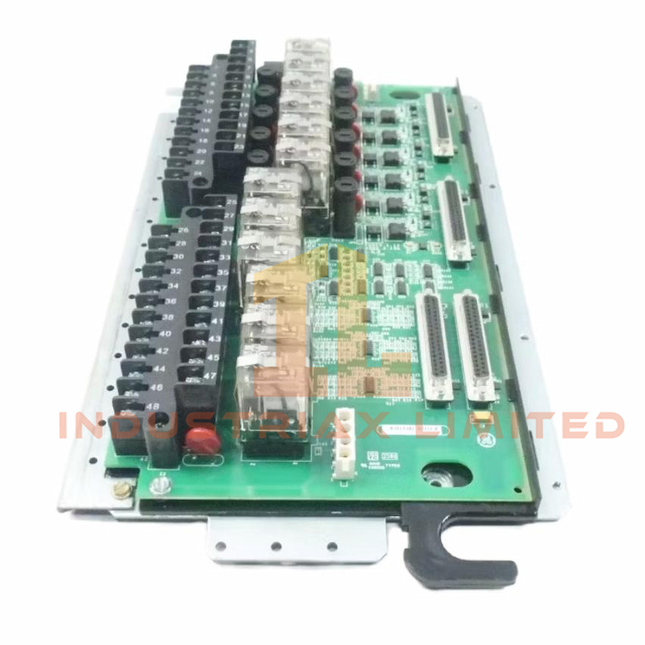

GE GE IS200TRLYH1BGF Relay Output Terminal Board
Product Overview The IS200TRLYH1BGF from GE is a relay output terminal board designed for Mark VI and Mark VIe control systems. It includes 12 plug-in magnetic relays, with coil sensing and jumper-selectable configurations for flexible field applications. Relays 1–6 support dry Form-C contacts or solenoid control using 125 Vdc, 115/230 Vac, or optional 24 Vdc sources. Relays 7–11 provide isolated Form-C contacts, while relay 12 supports special loads such as ignition transformers. Technical Specifications Specification Details Manufacturer GE Part Number IS200TRLYH1BGF Ordering Code IS200TRLYH1B Series Mark VI / Mark VIe Voltage 125 Vdc Current 0.6 A Dimensions 34 cm × 18 cm × 6 cm Weight 0.5 kg Relay Outputs 12 magnetic plug-in relays Output Types Dry contact, solenoid, isolated Form-C Power Connectors JF1, JF2, TB3, JG1 Wire Terminals Two blocks, 24 terminals each Wire Gauge Accepts up to #12 AWG Installation & Configuration Connect relay outputs to two terminal blocks secured with screws. Use JF1 for solenoid power to outputs 1–6, and JG1 for relay 12. Daisy chain power via JF2 or wire directly to TB3. Reinstall jumpers JP1–JP6 if solenoid power is needed. Remove fuses for isolated contact use to eliminate suppression leakage. A shield terminal strip grounded to chassis ensures safe wiring practices. Each relay circuit includes onboard suppression and jumper-selectable fuses for enhanced safety. Applications & Compatibility The IS200TRLYH1BGF integrates seamlessly into turbine control, industrial automation, and generator protection systems. It supports Mark VI and Mark VIe platforms and is compatible with a wide range of field solenoids and contact configurations. Use this board in environments requiring flexible relay output control, coil sensing, and safe power distribution.
$200.00 $100.00
-

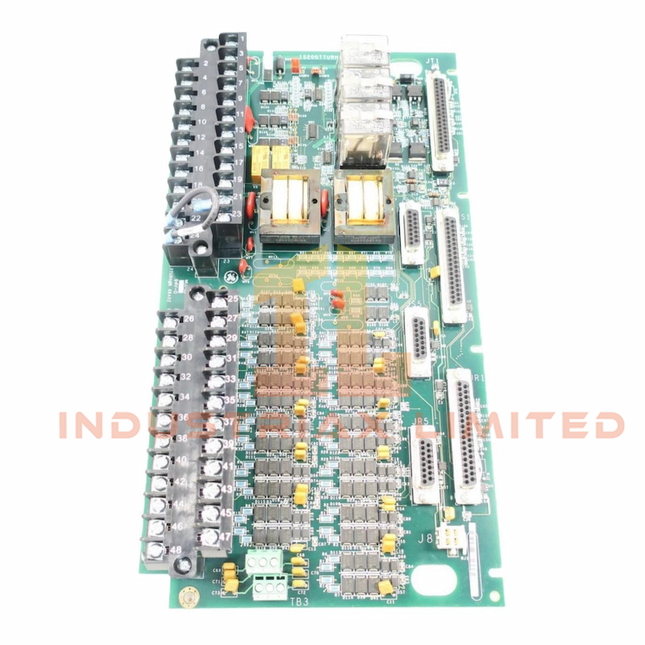

GE GE IS200TTURH1BCC Turbine Protection Input Terminal Board
Product Overview The IS200TTURH1BCC from GE is a primary turbine protection input terminal board designed for Mark VI and Mark VIe control systems. It interfaces with the VTUR processor and supports both simplex and triple modular redundancy (TMR) configurations. This board measures turbine speed using twelve passive pulse rate inputs connected to toothed wheels. It also receives generator and bus voltage signals from potential transformers and provides a 125 Vdc output to the main breaker coil for automatic synchronizing. Technical Specifications Specification Details Manufacturer GE Part Number IS200TTURH1BCC Ordering Code IS200TTURH1B Series Mark VI / Mark VIe Voltage Output 125 Vdc Current 5 A Dimensions 34 cm × 18 cm × 5 cm Weight 0.5 kg Speed Inputs 12 passive pulse rate devices Relay Outputs K25, K25P, K25A Connectors JR5, JR1 (Simplex); JR5, JS5, JT5, JS1, JT1 (TMR) Functional Features Measures turbine speed via toothed wheel sensors Accepts shaft voltage and current sensor inputs Provides 125 Vdc to close breaker 52G through three relay outputs Interfaces with VTUR using JR5 and JR1 connectors Supports TMR systems with expanded connector fan-out Applications & Compatibility The IS200TTURH1BCC is engineered for turbine control systems requiring precise speed measurement and breaker synchronization. It integrates with VTUR processors in Mark VI systems and supports TMR configurations for high-reliability environments. For Mark VIe systems, the updated model TTURH1C replaces this board. Use this component in power generation, industrial automation, and synchronous generator protection setups.
$200.00 $100.00
-

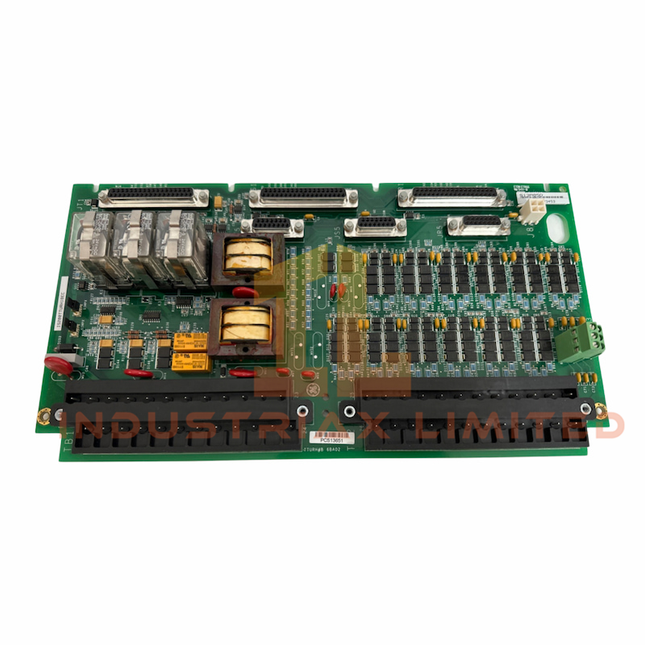

GE GE IS200TTURH1BEC Turbine Protection Input Terminal Board
Product Overview The IS200TTURH1BEC from GE is a primary turbine protection input terminal board designed for Mark VI and Mark VIe control systems. It interfaces with the VTUR processor and supports both simplex and triple modular redundancy (TMR) configurations. This board measures turbine speed using twelve passive pulse rate inputs connected to toothed wheels. It also receives generator and bus voltage signals from potential transformers and provides a 125 Vdc output to the main breaker coil for automatic synchronizing. Technical Specifications Specification Details Manufacturer GE Part Number IS200TTURH1BEC Ordering Code IS200TTURH1B Series Mark VI / Mark VIe Voltage Output 125 Vdc Current 5 A Dimensions 34 cm × 18 cm × 5 cm Weight 0.5 kg Speed Inputs 12 passive pulse rate devices Relay Outputs K25, K25P, K25A Connectors JR5, JR1 (Simplex); JR5, JS5, JT5, JS1, JT1 (TMR) Terminal Blocks TB1 and TB2, 24 terminals each Wire Gauge Accepts up to #12 AWG TTL Input Option TB3 (requires external power) Installation & Configuration Connect magnetic pickups, shaft sensors, and transformer signals to TB1 and TB2 terminal blocks. Use jumpers JP1 and JP2 to select simplex or TMR relay driver mode. For TTL active speed pickups, connect to TB3 with external power. Shielded wires should terminate on the chassis-grounded strip beside each terminal block. Use JR5 and JR1 connectors for simplex systems, and all six connectors for TMR configurations. Applications & Compatibility The IS200TTURH1BEC is ideal for turbine control, generator synchronization, and industrial automation. It integrates with VTUR processors and supports both Mark VI and Mark VIe platforms. Use this board in high-reliability environments requiring precise speed measurement, voltage sensing, and coordinated breaker control.
$200.00 $100.00
-

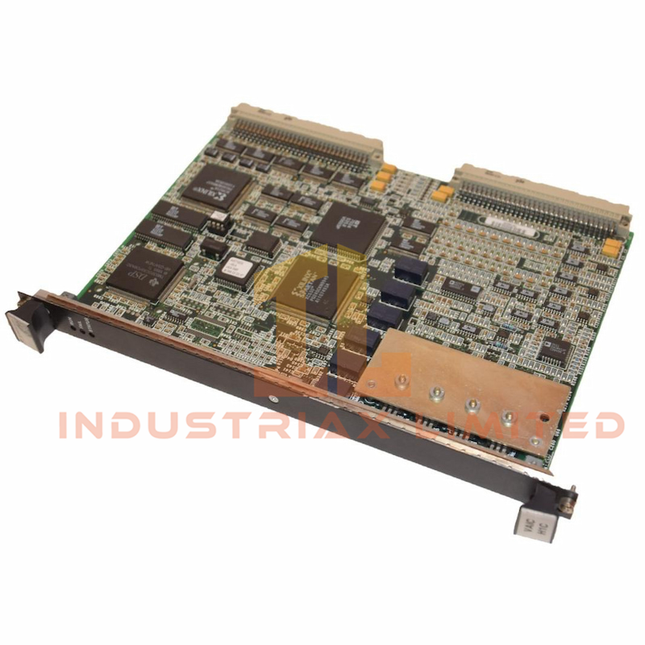

GE GE IS200VAICH1C Analog Input/Output Board
Product Overview The IS200VAICH1C from GE is a high-performance analog input/output board designed for Mark VI control systems. It processes 20 analog inputs and drives 4 analog outputs through two terminal boards, each supporting 10 inputs and 2 outputs. This board converts analog signals to digital values and transmits them via the VME backplane to the VCMI board and controller. For output, it transforms digital signals into analog currents and delivers them to the customer circuit. The IS200VAICH1C supports both simplex and triple modular redundancy (TMR) configurations. In TMR mode, input signals fan out to three VME racks (R, S, T), and output signals are generated using a proprietary circuit that ensures continuity even during hardware failure. Technical Specifications Specification Details Manufacturer GE Part Number IS200VAICH1C Series Mark VI Voltage 24 Vdc Current 4–20 mA Dimensions 28 cm × 20 cm × 3 cm Weight 0.8 kg Analog Inputs 20 total (10 per terminal board) Analog Outputs 4 total (2 per terminal board) Load Resistance Up to 500 Ω over 1000 ft of #18 wire Terminal Board Compatibility TBAIH1B, all DTAI revisions Installation & Configuration Connect each terminal board to the VME rack using dedicated cables. Ensure proper mounting and shielding for signal integrity. Use TBAIH1B or earlier terminal boards for full compatibility. The board supports long-distance wiring with reliable current output over extended cable runs. In simplex mode, one IS200VAICH1C handles all input and output signals. In TMR setups, three boards work in parallel, with automatic fault isolation to maintain output accuracy. Applications & Compatibility The IS200VAICH1C is ideal for industrial automation, turbine control, and process monitoring systems. It integrates seamlessly with Mark VI architecture and supports both simplex and TMR redundancy. Use this board in environments requiring precise analog signal processing, robust fault tolerance, and long-distance current transmission.
$200.00 $100.00
-

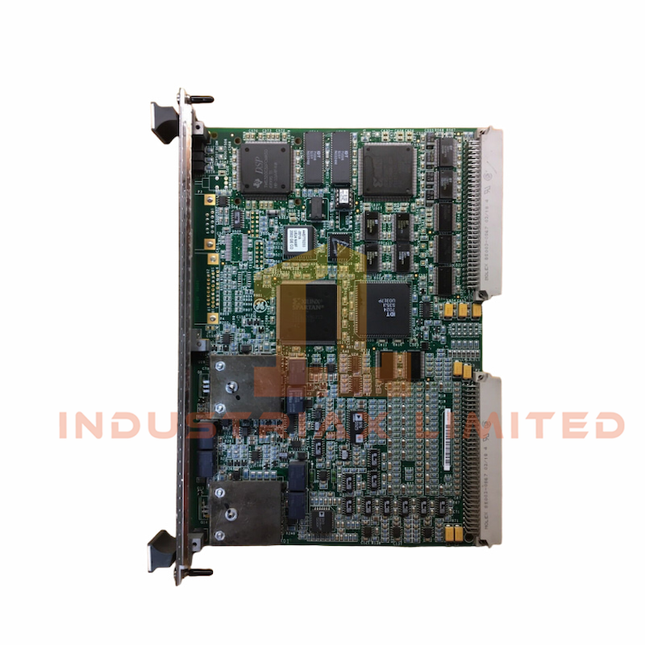

GE GE IS200VAICH1D Analog Input/Output Board
Product Overview The IS200VAICH1D from GE is a high-performance analog input/output board designed for Mark VI control systems. It processes 20 analog inputs and drives 4 analog outputs through two terminal boards, each supporting 10 inputs and 2 outputs. This board converts analog signals to digital values and transmits them via the VME backplane to the VCMI board and controller. For output, it transforms digital signals into analog currents and delivers them to the customer circuit with high precision. The IS200VAICH1D supports both simplex and triple modular redundancy (TMR) configurations. In TMR mode, input signals fan out to three VME racks (R, S, T), and output signals are generated using a proprietary circuit that ensures continuity even during hardware failure. Technical Specifications Specification Details Manufacturer GE Part Number IS200VAICH1D Series Mark VI Voltage 24 Vdc Current 4–20 mA Dimensions 28 cm × 20 cm × 3 cm Weight 0.8 kg Analog Inputs 20 total (10 per terminal board) Analog Outputs 4 total (2 per terminal board) Output Drive Voltage Up to 18 V at screw terminals Load Resistance Up to 800 Ω over 1000 ft of #18 wire Input Types Voltage, 4–20 mA, ±1 mA (jumper selectable) Output Types 4–20 mA or 0–200 mA (configurable) Noise Protection Surge and high-frequency suppression Terminal Board Compatibility TBAIH1C or later, all STAI revisions Installation & Configuration Connect each terminal board to the VME rack using shielded cables. Use jumpers on the terminal board to select input type. Ensure proper mounting and shielding for signal integrity. The board supports long-distance wiring with reliable current output over extended cable runs. In simplex mode, one IS200VAICH1D handles all input and output signals. In TMR setups, three boards work in parallel, with automatic fault isolation to maintain output accuracy. Applications & Compatibility The IS200VAICH1D is ideal for industrial automation, turbine control, and process monitoring systems. It integrates seamlessly with Mark VI architecture and supports both simplex and TMR redundancy. Use this board in environments requiring precise analog signal processing, robust fault tolerance, and long-distance current transmission. It pairs with TBAIH1C or newer terminal boards and all STAI revisions.
$200.00 $100.00
-

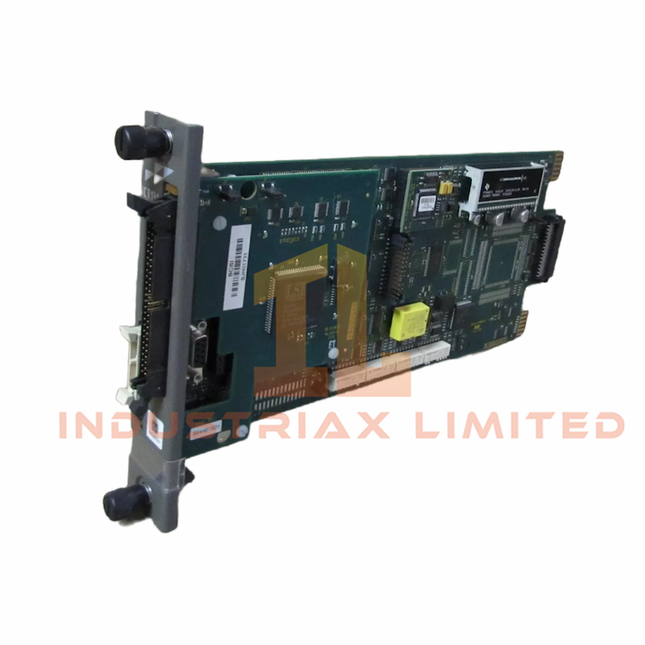

ABB ABB INICT13A Infi-Net to Computer Transfer Module
Product Overview The ABB INICT13A (Bailey INFI 90) Infi-Net to Computer Transfer Module is a high-capacity interface designed to manage asynchronous communication between host computers and INFI-NET control systems. It supports up to 30,000 point definitions, enabling robust data acquisition, process monitoring, and system control. Key Features Stores up to 30,000 point definitions for flexible control Supports RS-232-C and SCSI communication via IMMPI01 Operates asynchronously with INFI-NET loop for efficient data buffering Direct I/O bus communication with NIS module Interprets host commands for security, time, and configuration control Maintains point tables and exception reports Jumper-configurable DTE/DCE modes via termination modules Technical Specifications Specification Detail Manufacturer ABB Part Number INICT13A Catalog Bailey INFI 90 Description Infi-Net to Computer Transfer Module Voltage 5 V Current 2 A Dimensions (W×H×D) 27 cm × 36 cm × 7.3 cm Weight 0.6 kg Communication Ports RS-232-C / SCSI via IMMPI01 Memory Capacity Up to 30,000 point definitions Interface Modes DTE / DCE (jumper selectable) Application & Compatibility The INICT13A module is optimized for Bailey INFI 90 control systems requiring high-volume data exchange and asynchronous operation. It is ideal for power plants, chemical facilities, and other industrial environments where real-time monitoring and control are essential. Compatible with IMMPI01, NTMP01, NIMP01, NIMP02, and NIS modules.
$200.00 $100.00
-
Allen-Bradley Allen Bradley 1756-IF16 ControlLogix 16 Point Analog Input Module
Product Overview The Allen-Bradley 1756-IF16 Analog Input Module is a high-performance I/O solution within the ControlLogix® architecture, designed to handle complex analog signal acquisition across industrial automation systems. It supports 16 single-ended, 8 differential, or 4 high-speed differential inputs, offering flexible configuration for voltage and current-based sensors. Technical Specifications Attribute Detail Manufacturer Allen-Bradley Part Number 1756-IF16/A Product Series ControlLogix Input Channels 16 single-ended / 8 differential / 4 high-speed differential Input Range ±10V, 0–10V, 0–5V, 0–20 mA Resolution Up to 320 μV/count or 0.32 μA/count Current Draw @ 5.1V 150 mA Current Draw @ 24V 65 mA Power Consumption 2.33 W Power Dissipation Voltage: 2.33 W / Current: 4.00 W Thermal Dissipation Voltage: 7.93 BTU/hr / Current: 13.65 BTU/hr Input Impedance Voltage: ≥10 MΩ / Current: 249 Ω Overvoltage Protection Voltage: 30V DC / Current: 8V DC Normal Mode Noise Rejection >80 dB @ 50/60 Hz Common Mode Noise Rejection >100 dB @ 50/60 Hz Applications & Compatibility The 1756-IF16 module is ideal for process control, data acquisition, and precision monitoring in industries ranging from manufacturing to energy. It integrates seamlessly with ControlLogix chassis and controllers, supporting scalable architectures and distributed control systems.
$200.00 $100.00
-
ABB ABB HC800 Control Processor Module
Product Overview The ABB HC800 is a high-performance Control Processor Module designed for the SD Series HPC800 controller within the Symphony Plus system. Engineered for demanding industrial environments, it supports up to 30,000 function blocks, enabling precise control across discrete, continuous, batch, and advanced applications. Key Features Memory: 64 MB DRAM, 4 MB ROM, 2 MB NVRAM Function Block Capacity: Supports up to 30,000 blocks Protocol Support: Executes Modbus TCP interface Redundancy: Available at control, I/O, and communication levels I/O Compatibility: Connects to DIN-style and Rack I/O modules Device Integration: Supports smart transmitters, IEDs, actuators, and third-party PLCs Control Strategy Development: Uses ABB’s standard function code algorithms Network Architecture: 100 Mbps Fast Ethernet (PN800), redundant and secure Legacy Compatibility: Reuses Harmony and INFI 90 control applications Technical Specifications Specification Detail Manufacturer ABB Part Number HC800 Catalog Symphony Plus Description Control Processor Module Voltage 24 V DC Current 200 mA Dimensions (W×H×D) 78.74 mm × 243.84 mm × 210.82 mm Weight 0.88 kg Memory 64 MB DRAM, 4 MB ROM, 2 MB NVRAM Function Blocks Up to 30,000 Communication Modbus TCP over PN800 Ethernet Application & Compatibility The HC800 is ideal for large-scale industrial automation systems requiring high-speed, high-reliability control. It integrates effortlessly with ABB’s Symphony Plus ecosystem and supports legacy control strategies from Harmony and INFI 90 systems, making it a future-ready yet backward-compatible solution.
$200.00 $100.00
-

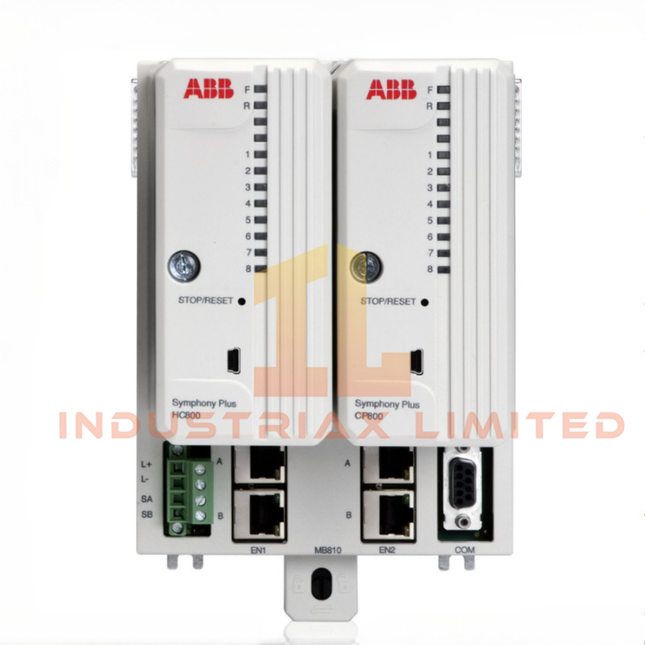

ABB ABB CP800 Communication Processor Module
Product Overview The ABB CP800 Communication Processor Module is a high-performance interface designed for Symphony® Plus SD Series controllers. It facilitates seamless communication between the HC800 controller and the PN800 Ethernet-based plant network, enabling real-time data exchange and system coordination. Technical Specifications Attribute Detail Manufacturer ABB Part Number CP800 Product Catalog Symphony® Plus Function Communication Processor Module Processor 256 MHz, 32-bit Freescale Coldfire Memory 64 MB DRAM, 4 MB ROM Input Voltage 24 VDC Current Consumption 200 mA Dimensions (mm) 243.84 × 73.66 × 170.18 Weight 0.99 kg Key Features Ethernet-Based Communication: Connects HC800 controller to PN800 plant network Advanced Control Support: Executes over 30,000 function blocks with flexible configuration Fast Loop Execution: Controls 5,000+ I/O points in under 250 ms Multi-I/O Compatibility: Supports SD Series, Harmony Rack, and S800 subsystems Online Configuration: Enables runtime updates with downloadable firmware Segmented Task Execution: Up to 8 tasks with cycle times down to 1 ms Redundant Communication Bus: Peer-to-peer updates in less than 100 ms
$200.00 $100.00
-

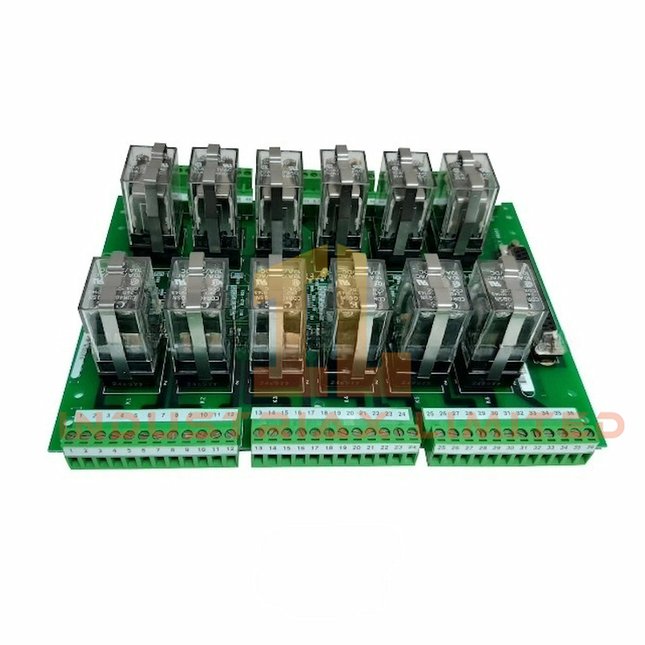

GE GE IS200DRLYH1B Simplex Relay Output Board
Product Overview The IS200DRLYH1B from GE is a compact simplex relay output board designed for Mark VI control systems. It includes 12 form-C dry contact relays and connects to VCCC, VCRC, or VTUR processor boards using a single 37-pin cable. This board supports wall mounting and is ideal for hazardous locations classified under UL Class I, Division 2. Two IS200DRLYH1B boards can be used together to provide up to 24 contact outputs. Technical Specifications Specification Details Manufacturer GE Part Number IS200DRLYH1B Ordering Code IS200DRLYH1B Series Mark VI Voltage 28 Vdc Current 2 A Temperature Range 0 to 75°C (32 to 167°F) Dimensions 22 cm × 21 cm × 6 cm Weight 1.8 kg Relay Outputs 12 form-C dry contact relays Mounting Type Wall-mounted (not DIN-rail) Connector Type 37-pin cable (EuroBlock terminal) Ground Connection TB2 screws for SCOM (chassis ground) Installation & Configuration Mount the IS200DRLYH1B using four screws through the metal support plate. Connect relay output wires to odd-numbered screws on the EuroBlock terminal blocks. Use TB2 for chassis ground and keep the connection short for optimal performance. The board uses the same connector type as the larger TRLY terminal board, ensuring compatibility and ease of integration. Applications & Compatibility The IS200DRLYH1B is ideal for turbine control, industrial automation, and hazardous environments requiring UL Class I, Division 2 compliance. It integrates with Mark VI systems and supports simplex configurations only. Use this board in systems needing compact relay output solutions with reliable dry contact performance and straightforward wall-mounted installation.
$200.00 $100.00
-

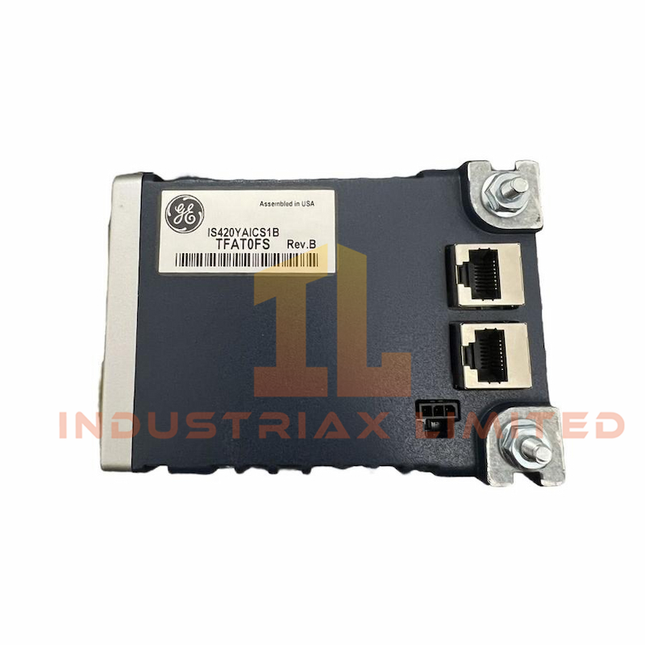

GE GE IS420YAICS1B Analog I/O Module
Product Overview The IS420YAICS1B from GE is a high-performance analog I/O module designed for Mark VIeS control systems. It serves as the electrical interface between one or two Ethernet networks and an analog I/O terminal board. This module combines a processor board and an acquisition board tailored for analog input functions. It supports up to 10 analog inputs, with flexible configuration options for voltage and current signals. The first eight inputs accept ±5 V, ±10 V, or 4–20 mA current loops, while the last two support ±1 mA or 4–20 mA. Additionally, the module provides two 0–20 mA current loop outputs. Technical Specifications Specification Details Manufacturer GE Part Number IS420YAICS1B Ordering Code IS420YAICS1B Series Mark VIeS Voltage Input Range ±10 V Current Range 20 mA Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Analog Inputs 10 total (8 configurable, 2 fixed) Analog Outputs 2 current loop outputs (0–20 mA) Ethernet Ports Dual RJ-45 connectors Power Connector 3-pin input Output Connector DC-37 pin to terminal board Diagnostics LED indicators Installation & Configuration Mount the IS420YAICS1B securely and connect it to the terminal board using the DC-37 pin connector. Use the dual RJ-45 ports to interface with one or two Ethernet networks. Configure input types via the terminal board and ensure proper resistor placement for current loop sensing. Power the module through the 3-pin connector and monitor system status using onboard LED indicators. This compact design simplifies integration into control cabinets with limited space. Applications & Compatibility The IS420YAICS1B is ideal for industrial automation, turbine control, and process monitoring. It integrates seamlessly with Mark VIeS systems and supports flexible analog signal acquisition and output. Use this module in environments requiring precise analog input handling, dual-network communication, and compact form factor. It supports both simplex and redundant configurations.
$200.00 $100.00
-

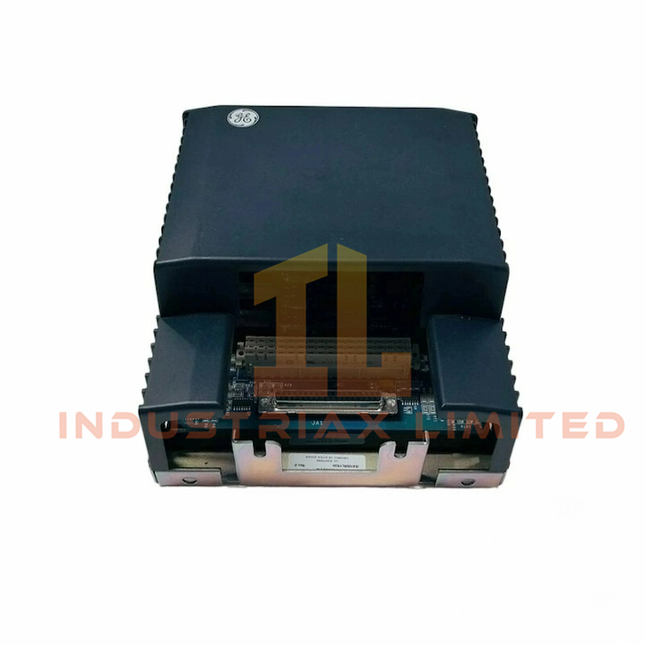

GE GE IS410SRLYS2A Simplex Relay Output Terminal Board
Product Overview The IS410SRLYS2A Simplex Relay Output Terminal Board from GE’s Mark VIeS series delivers reliable relay control for industrial automation systems. It supports 12 form-C relay circuits and connects through 48 customer terminals. The board accepts a YDOA I/O pack and maintains a low profile for double stacking in compact installations. This S-type terminal board includes Euro-style pluggable terminal blocks and two connectors for optional daughterboards. Each relay provides isolated contact feedback to the I/O pack, enhancing system diagnostics and control precision. Technical Specifications Specification Details Manufacturer GE Series Mark VIeS Model IS410SRLYS2A Description Simplex Relay Output Terminal Board Voltage Input 24 Vdc Current Rating 2.25 A Dimensions 15.9 cm x 17.8 cm x 8.6 cm Weight 2 kg Relay Circuits 12 form-C Terminal Count 48 customer terminals Terminal Type Euro-style box-type I/O Pack Compatibility YDOA Optional Boards IS400WROBH1A, IS400WROFH1A, IS400WROGH1A Features & Benefits The IS410SRLYS2A supports 12 independent relays with form-C contact configuration. Its compact 15.9×17.8×8.6 cm size allows efficient use of panel space. The 2 kg weight ensures stable mounting and easy handling during installation. Euro-style terminal blocks simplify wiring and improve connection reliability. Two onboard connectors enable flexible expansion with optional daughterboards. No components exceed the I/O pack height, allowing vertical stacking of boards. Each relay includes isolated feedback contacts for enhanced control diagnostics. Application & Compatibility The IS410SRLYS2A board integrates seamlessly into GE Mark VIeS control systems. It suits applications requiring reliable relay outputs, including power generation, process control, and safety systems. Compatible with the YDOA I/O pack, it supports optional boards like IS400WROBH1A, IS400WROFH1A, and IS400WROGH1A to expand functionality. These daughterboards offer fused power distribution, voltage feedback, and enhanced relay protection. The board’s design supports high-density installations and simplifies maintenance in demanding environments.
$200.00 $100.00
-

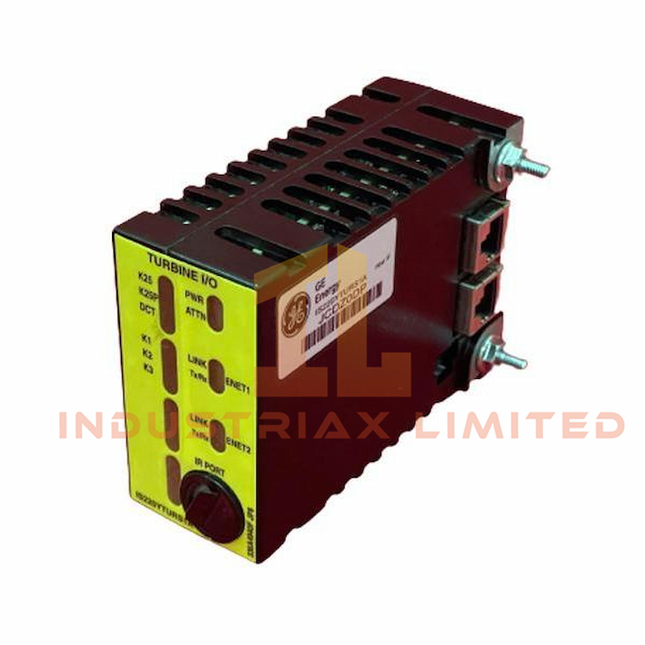

GE GE IS220YTURS1A Turbine Specific Primary Trip I/O Pack
Product Overview The IS220YTURS1A Turbine Specific Primary Trip I/O Pack from GE’s Mark VIeS series delivers precise turbine protection and control. It interfaces directly with the TTUR terminal board and supports critical trip functions, voltage sensing, and speed measurement. This compact module handles high-speed pulse inputs and outputs trip signals for overspeed protection. Designed for both simplex and TMR systems, the IS220YTURS1A uses PR3 and JR4 connectors in simplex mode, and expands to PS3, PT3, JS4, and JT4 in TMR configurations. Technical Specifications Specification Details Manufacturer GE Series Mark VIeS Model IS220YTURS1A Description Turbine Specific Primary Trip I/O Pack Voltage Output 125 Vdc Pulse Rate Devices 12 Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Connector Types PR3, JR4 (Simplex); PR3–JT4 (TMR) Compatible Terminal Board TTUR Features & Benefits The IS220YTURS1A supports 12 pulse rate inputs for turbine speed sensing. Its compact 8.3×4.2×12.2 cm size fits easily into dense control environments. Weighing just 340 g, the module offers lightweight installation and handling. It delivers 125 Vdc output to the main breaker coil for generator synchronization. Inputs from shaft voltage and current sensors enhance protection accuracy. Three overspeed trip outputs ensure fast response to critical turbine conditions. Additional I/O signals from the trip board expand control capabilities. Application & Compatibility The IS220YTURS1A module is ideal for turbine control systems requiring precise speed and voltage monitoring. It integrates with GE’s TTUR terminal board and supports both simplex and TMR configurations. Use this I/O pack in power generation, industrial turbines, and safety-critical environments. Its compatibility with multiple connectors and trip boards allows flexible deployment across various Mark VIeS architectures. The module supports induced shaft voltage and current sensing, making it suitable for advanced diagnostic applications.
$200.00 $100.00
-

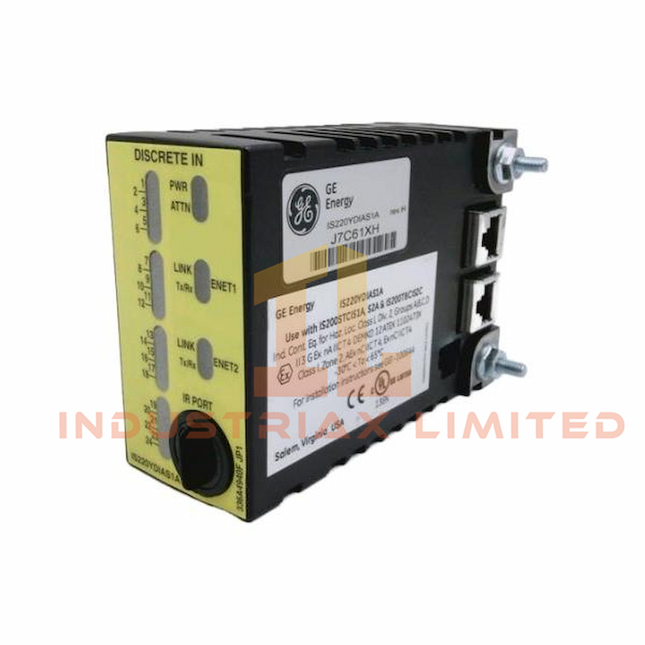

GE GE IS220YDIAS1A Discrete Input Module
Product Overview The IS220YDIAS1A Discrete Input Module from GE’s Mark VIeS series provides a reliable interface between Ethernet networks and discrete input terminal boards. It combines a common processor board with a dedicated acquisition board to manage up to 24 contact inputs and feedback signals. The module supports three voltage levels and includes LED indicators for visual diagnostics. System input connects via dual RJ-45 Ethernet ports and a three-pin power connector. Discrete signals enter through a DC-37 pin connector, ensuring secure and direct communication with the terminal board. Technical Specifications Specification Details Manufacturer GE Series Mark VIeS Model IS220YDIAS1A Description Discrete Input Module Voltage Input 28 Vdc Current Rating 110 mA Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Contact Inputs Up to 24 Ethernet Ports 2 × RJ-45 Power Connector 3-pin Signal Connector DC-37 pin Diagnostic Indicators LED status lights Features & Benefits The IS220YDIAS1A supports 24 discrete inputs for flexible signal acquisition. Its compact 8.3×4.2×12.2 cm size fits easily into tight control enclosures. Weighing only 340 g, the module simplifies installation and handling. Dual Ethernet ports ensure robust network connectivity and redundancy. LED indicators provide clear visual feedback for power and signal status. The DC-37 connector enables direct integration with terminal boards. The module supports multiple voltage levels for versatile input handling. Application & Compatibility The IS220YDIAS1A module suits industrial control systems requiring discrete signal acquisition and Ethernet-based communication. It integrates seamlessly with GE Mark VIeS terminal boards and supports real-time diagnostics through LED indicators. Use this module in power generation, process automation, and safety-critical environments. Its compatibility with multiple voltage levels and contact inputs makes it ideal for diverse control architectures.
$200.00 $100.00
-

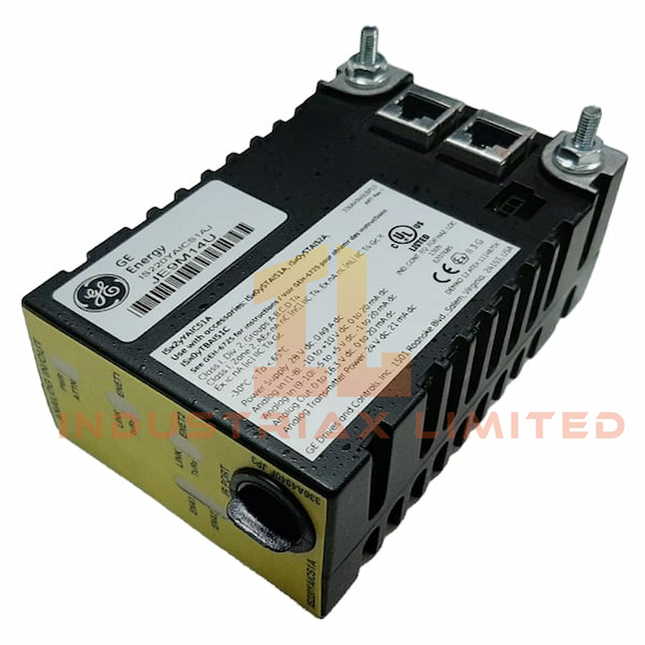

GE GE IS220YAICS1A Mark VIeS Safety Analog I/O Pack
Product Overview The IS220YAICS1A Safety Analog I/O Pack from GE’s Mark VIeS series delivers precise analog signal acquisition and output for industrial control systems. It connects to one or two Ethernet networks and interfaces directly with analog I/O terminal boards. The module includes a processor board and a dedicated acquisition board for analog input functions. This I/O pack supports up to 10 analog inputs. The first eight channels accept ±5 V, ±10 V, or 4–20 mA signals. The last two channels handle ±1 mA or 4–20 mA inputs. Additionally, the pack provides two 0–20 mA current loop outputs for actuator or control signal transmission. Technical Specifications Specification Details Manufacturer GE Series Mark VIeS Model IS220YAICS1A Description Safety Analog I/O Pack Voltage Input 24 Vdc Current Consumption 20 mA Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Analog Inputs 10 total (8 configurable, 2 fixed) Input Signal Range ±5 V, ±10 V, ±1 mA, 4–20 mA Analog Outputs 2 × 0–20 mA current loop Ethernet Ports Dual RJ-45 Power Connector 3-pin Signal Connector DC-37 pin Diagnostic Indicators LED status lights Features & Benefits The IS220YAICS1A supports flexible analog input configurations for varied sensor types. Its compact 8.3×4.2×12.2 cm size fits easily into dense control panels. Weighing just 340 g, the module offers lightweight installation and easy handling. Dual Ethernet ports ensure reliable communication with controllers. The DC-37 connector provides secure signal transmission to terminal boards. LED indicators offer clear visual diagnostics for power and signal status. Two analog outputs enable direct control of field devices or actuators. Application & Compatibility The IS220YAICS1A module suits industrial environments requiring high-precision analog signal processing. It integrates seamlessly with GE Mark VIeS terminal boards and supports real-time data exchange over Ethernet. Use this I/O pack in power generation, chemical processing, and safety-critical automation systems. Its support for multiple input ranges and current loop outputs makes it ideal for interfacing with sensors, transmitters, and control elements. The module’s design ensures compatibility with standard Mark VIeS architecture and ControlST tools.
$200.00 $100.00
-

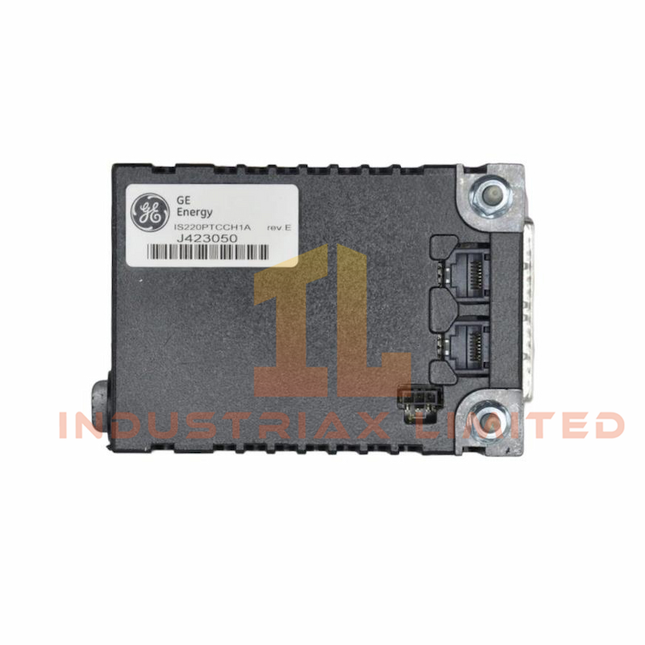

GE GE IS220PTCCH1A Thermocouple Input Module
Product Overview The IS220PTCCH1A Thermocouple Input Module from GE’s Mark VIe series delivers precise temperature signal acquisition for industrial control systems. It connects to one or two Ethernet networks and interfaces directly with thermocouple input terminal boards. The module includes a common processor board and a dedicated acquisition board tailored for thermocouple input functions. This I/O pack supports up to 12 thermocouple inputs per unit. In simplex configurations using TBTCH1C or TBTCH1B, users can achieve up to 24 inputs with two packs. In TMR setups, three packs connect to three cold junctions, supporting 12 thermocouples total. Technical Specifications Specification Details Manufacturer GE Series Mark VIe Model IS220PTCCH1A Description Thermocouple Input Module Voltage Input 28 Vdc Current Consumption 45 mA Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Thermocouple Types E, J, K, S, T mV Input Range –8 mV to +45 mV Ethernet Ports Dual RJ-45 Power Connector 3-pin Signal Connector DC-37 pin Diagnostic Indicators LED status lights Features & Benefits The IS220PTCCH1A supports five standard thermocouple types and mV signal inputs. Its compact 8.3×4.2×12.2 cm size fits easily into tight control enclosures. Weighing only 340 g, the module simplifies installation and handling. Dual Ethernet ports ensure robust communication with controllers. LED indicators provide clear visual feedback for diagnostics and signal status. The DC-37 connector enables secure and direct integration with terminal boards. Cold junction support ensures accurate temperature readings in TMR configurations. Application & Compatibility The IS220PTCCH1A module suits industrial environments requiring high-precision temperature monitoring. It integrates seamlessly with GE Mark VIe terminal boards such as TBTCH1B and TBTCH1C, supporting both simplex and TMR configurations. Use this module in power generation, chemical processing, and safety-critical automation systems. Its compatibility with multiple thermocouple types and mV inputs makes it ideal for diverse temperature sensing applications.
$200.00 $100.00
-

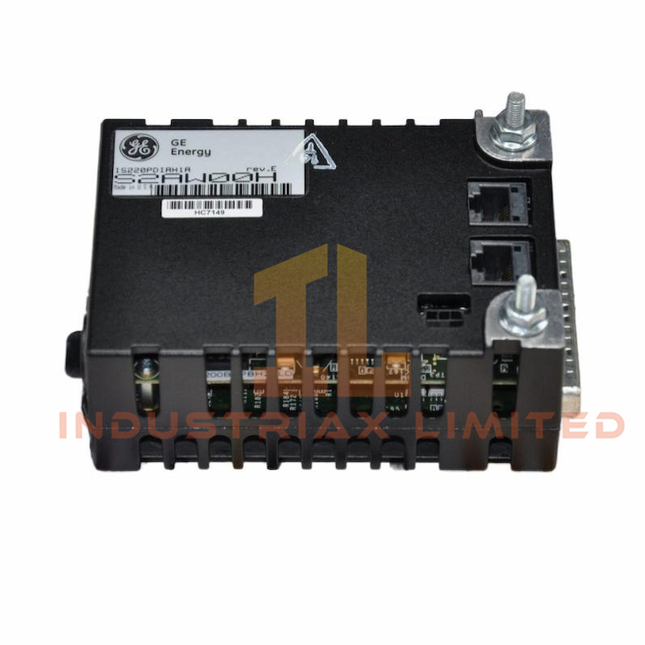

GE GE IS220PDIAH1A Discrete Input Module
Product Overview The IS220PDIAH1A Discrete Input Module from GE’s Mark VIe series provides a robust interface between Ethernet networks and discrete input terminal boards. It includes a processor board shared across all Mark VIe I/O packs and a dedicated acquisition board for discrete input functions. This module supports up to 24 contact inputs and handles three voltage levels when paired with compatible terminal boards. System input connects via dual RJ-45 Ethernet ports and a three-pin power connector. Discrete signals enter through a DC-37 pin connector, ensuring direct communication with the terminal board. LED indicators offer visual diagnostics for power and signal status. Technical Specifications Specification Details Manufacturer GE Series Mark VIe Model IS220PDIAH1A Description Discrete Input Module Voltage Input 28 V Number of Channels 24 Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Ethernet Ports Dual RJ-45 Power Connector 3-pin Signal Connector DC-37 pin Diagnostic Indicators LED status lights Features & Benefits The IS220PDIAH1A supports 24 discrete inputs for flexible signal acquisition. Its compact 8.3×4.2×12.2 cm size fits easily into control cabinets. Weighing just 340 g, the module simplifies installation and handling. Dual Ethernet ports ensure reliable network communication. LED indicators provide real-time visual feedback for diagnostics. The DC-37 connector enables secure integration with terminal boards. Voltage sensing is supported with TICI boards for isolated input configurations. Application & Compatibility The IS220PDIAH1A module is compatible with multiple GE terminal boards including TBCIH1, TBCIH2, TBCIH3, TICI, and STCIH1A. It supports simplex, dual, and TMR control modes, making it suitable for scalable industrial applications. Use this module in power generation, process automation, and safety-critical systems requiring discrete input monitoring. It does not support DIN-rail mounted DTCI boards, ensuring clear deployment boundaries.
$200.00 $100.00
-

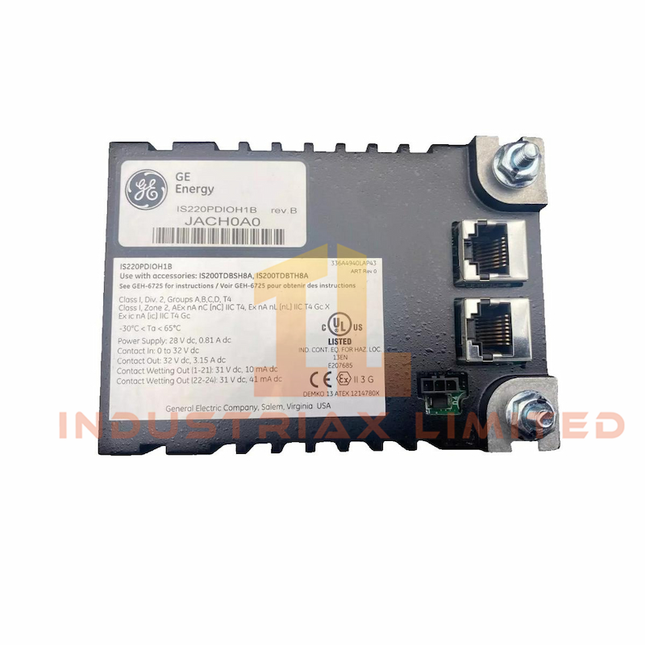

GE GE IS220PDIOH1B Discrete Input/Output Module
Product Overview The IS220PDIOH1B Discrete Input/Output Module from GE’s Mark VIe series combines the functions of both PDIA and PDOA packs into a single, compact unit. It supports up to 24 contact inputs and controls 12 relay outputs, making it ideal for high-density signal processing in industrial control systems. This module connects to the system via dual RJ-45 Ethernet ports and a 3-pin power input. Discrete signals are transmitted through a DC-62 connector, which interfaces directly with the associated terminal board. LED indicators provide visual diagnostics for power, activity, and signal status. Technical Specifications Specification Details Manufacturer GE Series Mark VIe Model IS220PDIOH1B Description Discrete Input/Output Module Voltage Input 28 Vdc Frame Rate 1000 Hz Dimensions 8.3 cm × 4.2 cm × 12.2 cm Weight 340 g Contact Inputs Up to 24 Relay Outputs Up to 12 Ethernet Ports Dual RJ-45 Power Connector 3-pin Signal Connector DC-62 pin Diagnostic Indicators LED status lights Features & Benefits The IS220PDIOH1B supports both input and output functions in one integrated module. Its 8.3×4.2×12.2 cm size allows easy installation in compact control panels. Weighing only 340 g, the module is lightweight and easy to handle. The 1000 Hz frame rate ensures fast and reliable signal processing. Dual Ethernet ports provide robust communication with controllers. LED indicators offer clear visual feedback for diagnostics and system health. The DC-62 connector ensures secure and direct integration with terminal boards. Application & Compatibility The IS220PDIOH1B module is compatible with GE terminal boards such as TDBS for simplex applications and TDBT with WROB for TMR configurations. It suits industrial environments requiring both discrete input monitoring and relay output control. Use this module in power generation, turbine control, and automation systems where space efficiency and signal density are critical. Its combined functionality reduces hardware complexity and simplifies system architecture.
$200.00 $100.00
You have seen 216 out of 297 products
