Description
Overview

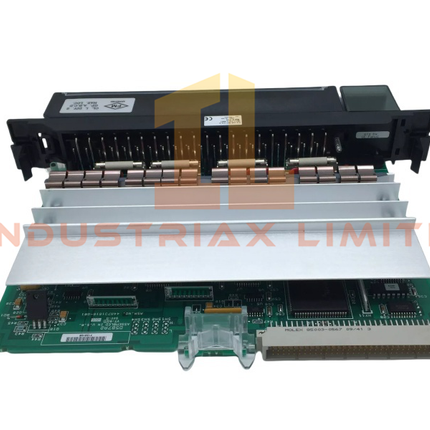

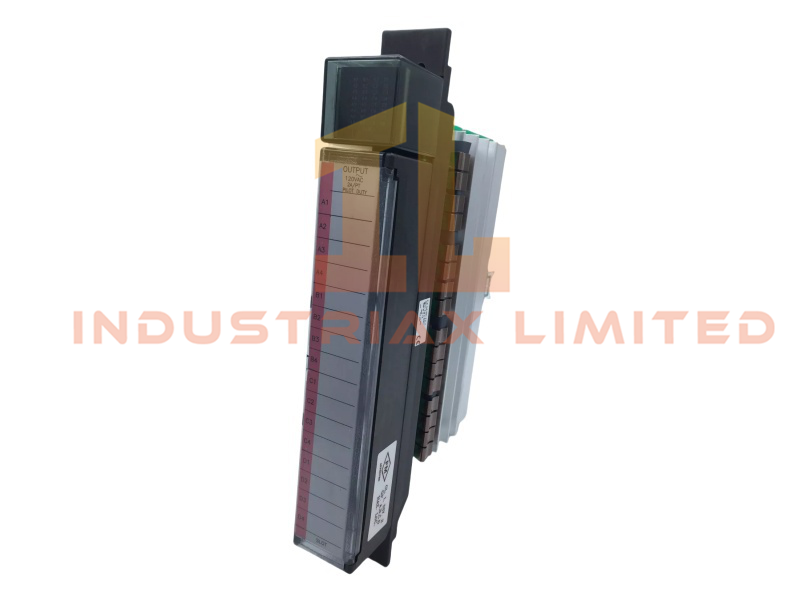

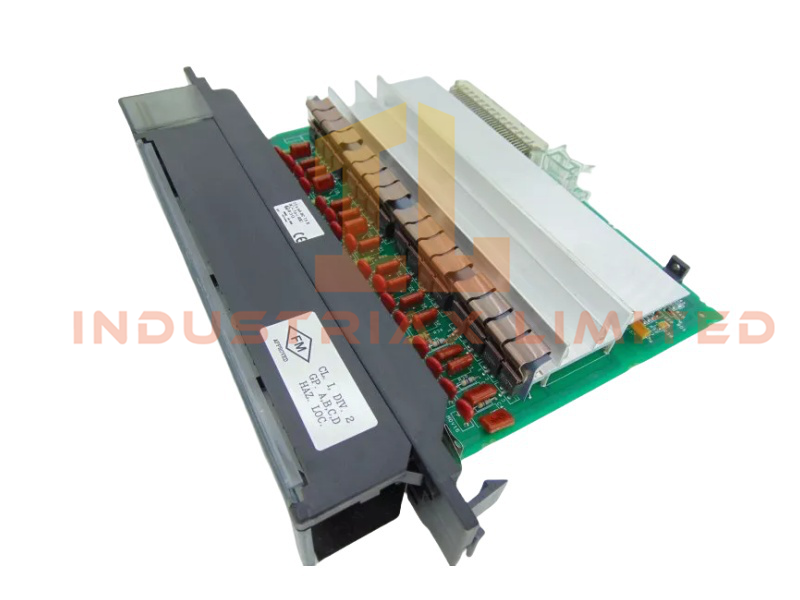

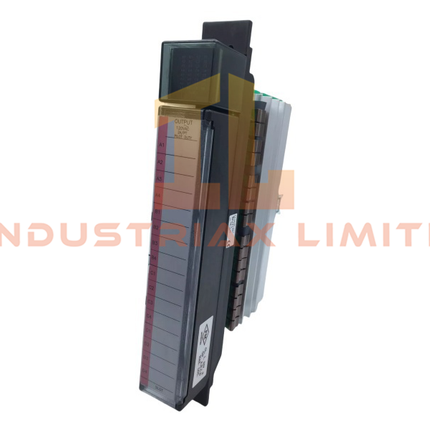

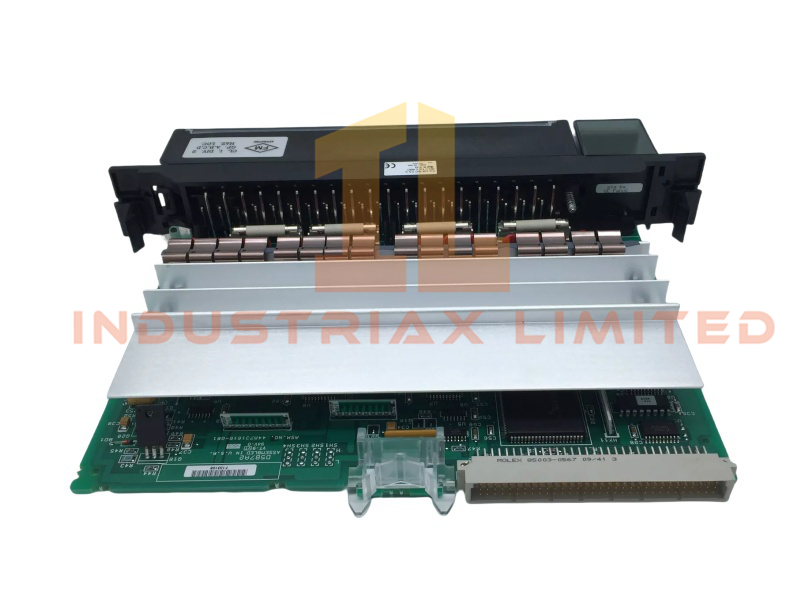

The IC697MDL340 Discrete Output Module from GE Fanuc delivers high-power switching for industrial automation systems. Designed for the Series 90-70 platform, it features 16 output points divided into four isolated groups, each supporting up to 4 Amps total and 2 Amps per point.
This module operates at 120 Volts AC and handles high inrush loads such as solenoids, motor starters, and incandescent devices. The IC697MDL340 includes LED indicators for output and fuse status, mechanical keying for secure installation, and simplified I/O reference configuration without jumpers or DIP switches.
Technical Specifications
| Specification |
Details |
| Model Number |
IC697MDL340 |
| Manufacturer |
GE |
| Module Type |
Discrete Output Module |
| Product Range |
Series 90-70 |
| System Compatibility |
PLC |
| Communication Service |
Ethernet Router |
| Output Points |
16 (4 groups of 4) |
| Voltage Rating |
120 VAC |
| Max Load per Point |
2 Amps |
| Max Load per Group |
4 Amps |
| Fuse Rating |
10 Amps per group |
| Indicators |
Output status, fuse status LEDs |
| Dimensions (H×W×D) |
4 × 21.8 × 29.3 cm |
| Weight |
0.62 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Product Origin |
USA |
| Condition |
Brand New |
| Availability |
In Stock |
| Discontinued Status |
Active |
Key Features
-
Supports high inrush current loads with robust fuse protection.
-
LED indicators simplify diagnostics and system monitoring.
-
Mechanical keying prevents incorrect module replacement.
-
No jumpers or DIP switches required for I/O configuration.
-
Compatible with Size 4 contactors and various industrial devices.
