Honeywell TK-PPD011 51309241-175 Battery Extension Module | Honeywell
Honeywell TK-PPD011 51309241-175 Battery Extension Module The Honeywell TK-PPD011 51309241-175, also cataloged as the 51309241-175 Battery Extension Module, operates as a dedicated hardware component for extending backup power capacity within Honeywell Experion PKS controller power architectures. Hardware Specifications Parameter Specification Model TK-PPD011 51309241-175 Brand Honeywell Product Type Battery Extension Module Origin USA Weight 0.36 kg Dimensions 3.5 x 14 x 14.5 cm Operating Temp Industrial operating range Power Consumption Low current draw, 0.036 A at 24 VDC Nominal Voltage 24 VDC Battery Capacity 7.0 Ah / 175 Wh Backup Duration Up to 4-8 hours Max Output Current 5 A continuous Tariff Code 8537101190 Compatible Systems Honeywell Experion PKS, C200 Series, compatible controller assemblies Additional Voltage Support 5 VDC operation, 0.112 A current draw Process Control Backup Power Integration The Honeywell TK-PPD011 51309241-175 integrates into Honeywell controller backup power structures to maintain controller memory retention and support controlled system recovery after power interruptions. Moreover, the module provides auxiliary battery capacity for automation assemblies that require extended backup operation. The module uses a 24 VDC nominal supply interface and supports internal controller power requirements through a compact battery extension design. In addition, the TK-PPD011 supports Honeywell control architectures including C200, C300, ControlEdge PLC, and compatible safety control platforms. For process control applications, the module operates as a dedicated backup power component rather than a signal acquisition device. Therefore, installation requires correct integration with the existing controller power distribution and battery management configuration. Frequently Asked Questions Q: What is the primary electrical function of the Honeywell TK-PPD011 51309241-175?A: The module extends battery backup capacity for Honeywell controller assemblies and supports memory retention functions during primary power loss. Q: Does the TK-PPD011 provide industrial communication functions?A: No. The TK-PPD011 is a battery extension component and does not operate as a communication interface or I/O signal module. Q: What voltage interfaces are supported by the module?A: The module supports 24 VDC nominal operation and also supports 5 VDC system compatibility according to controller architecture requirements. Field Installation Guidelines Install the TK-PPD011 within the designated Honeywell controller power and battery backup assembly location. Verify polarity and voltage compatibility before connecting the module to the power distribution circuit. Keep battery power wiring separated from high-voltage AC cables and high-current switching conductors. Maintain proper cabinet grounding practices according to the control system installation requirements. Inspect terminal connections and cable routing to prevent mechanical stress on power interfaces. Confirm controller backup operation after installation through the applicable Honeywell system
$200.00 $100.00
-
Honeywell TK-FTEB01 51309512-175 Ethernet Modules | Honeywell
Honeywell TK-FTEB01 51309512-175 Fault Tolerant Ethernet Bridge Module The Honeywell TK-FTEB01 51309512-175, also cataloged as the TK-FTEB01 Fault Tolerant Ethernet Bridge Module, operates as a dedicated hardware component for redundant Ethernet communication within Honeywell Experion PKS FTE network platforms. Hardware Specifications Parameter Specification Model TK-FTEB01 51309512-175 Brand Honeywell Product Type Fault Tolerant Ethernet Bridge Module Spare Model 51309512-175 System Compatibility Honeywell Experion PKS / Experion LS Series-A chassis Communication Interface Fault Tolerant Ethernet (FTE) Ethernet Standard IEEE 802.3 Ethernet Communication Speed 100 Mbps full duplex Network Ports Dual RJ45 Ethernet ports Input Voltage 24 VDC Operating Voltage Range 18-30 VDC Max Output Current 5 A continuous Battery Capacity 7.0 Ah / 175 Wh typical Backup Duration Up to 4-8 hours Power Consumption Low power consumption design Chassis Installation Series-A chassis, occupies two chassis slots Country of Origin USA Weight 0.28 kg Dimensions 3.5 x 14 x 14.5 cm Tariff Code 8537101190 Shipment Location Xiamen, China DCS Network Communication and Process Interface Characteristics The TK-FTEB01 provides Ethernet communication between Experion PKS control components, including Experion servers, C200 controllers, and Fieldbus Interface Module (FIM) chassis. Moreover, the module uses dual RJ45 network connections to maintain redundant communication paths between the chassis backplane and external FTE network devices. The module supports Honeywell Fault Tolerant Ethernet architecture, where redundant physical Ethernet paths operate as a coordinated logical network connection. Therefore, the module simplifies network topology management while maintaining continuous data exchange between control-level and supervisory-level devices. In addition, the TK-FTEB01 supports industrial Ethernet communication at 100 Mbps full duplex speed through IEEE 802.3 compliant interfaces. The module receives 24 VDC power input and integrates with Series-A chassis hardware through dedicated backplane connections. Channel Isolation and Industrial Network Integration For Honeywell process control architectures, the TK-FTEB01 functions as an Ethernet communication interface rather than an analog measurement device. Therefore, it does not provide 4-20 mA HART signal processing, FOUNDATION Fieldbus, or Profibus PA field instrument connectivity. Instead, the module handles digital network data transmission between Experion PKS nodes. Furthermore, the dual-path Ethernet design supports network redundancy by separating communication routes through independent FTE links. Frequently Asked Questions Q: How many chassis slots does the Honeywell TK-FTEB01 occupy?A: The TK-FTEB01 occupies two slots in a Honeywell Series-A chassis installation. Q: Does the TK-FTEB01 provide dual Ethernet communication interfaces?A: Yes. The module includes dual RJ45 Ethernet ports for redundant FTE network connections. Q: What type of communication does the TK-FTEB01 support?A: The module supports 100 Mbps IEEE 802.3 Ethernet communication for Honeywell Experion PKS network architectures. Field Installation Guidelines Install the TK-FTEB01 in the designated Series-A chassis slot positions according to the Honeywell Experion PKS hardware configuration manual. Verify that the chassis backplane connectors are clean and correctly aligned before installation. Use shielded Ethernet cabling suitable for industrial environments and maintain proper separation between communication cables and high-voltage power wiring. Connect the dual RJ45 Ethernet ports according to the planned FTE network topology. Confirm that redundant network paths use independent physical routes where required. Before applying power, verify the 24 VDC supply polarity and grounding arrangement. After installation, check Ethernet link indicators and system diagnostics through the Experion engineering interface.
$200.00 $100.00
-
Honeywell TK-PRR021 51309288-275 Redundancy Module | Honeywell
Honeywell TK-PRR021 51309288-275 Redundancy Module Configured for redundant power and signal path coordination in Honeywell control system network architectures, the Honeywell TK-PRR021 51309288-275 (TK-PRR021 Redundancy Module) provides direct physical/electrical execution for redundancy management and module synchronization functions. Hardware Specifications Parameter Specification Model TK-PRR021 51309288-275 Brand Honeywell Product Type Redundancy Module Origin USA Weight 0.46 kg Dimensions 6.9 x 14.1 x 14.5 cm Operating Temp -20 deg C to +70 deg C Storage Temperature -40 deg C to +85 deg C Relative Humidity 5-95% non-condensing Power Supply 24 VDC +/-10% Power Consumption 5 W typical, 8 W maximum Synchronization Speed 100 Mbps full duplex Isolation Voltage 1500 V AC Current Range 0.75-1 A / 7-90 mA Voltage Range 3.3-24 VDC Tariff Code 8537101190 Manufacturer Honeywell Shipment Location Xiamen, China Process Control Redundancy and Signal Isolation Characteristics The TK-PRR021 51309288-275 supports redundant module operation by maintaining synchronized communication paths and power distribution conditions. Moreover, the module uses full duplex 100 Mbps communication to exchange redundancy status data between connected control components. For Honeywell process control hardware environments, the module architecture aligns with DCS electrical design requirements, including channel-to-channel isolation concepts and controlled signal separation. Therefore, the 1500 V AC isolation rating helps reduce electrical interference between connected circuits. In addition, the module supports 24 VDC power input operation with defined consumption limits. The 5 W typical and 8 W maximum power values allow system engineers to calculate cabinet power loading and thermal conditions during panel design. Frequently Asked Questions Q: What power input does the Honeywell TK-PRR021 51309288-275 require?A: The module requires a 24 VDC power supply with an allowable range of +/-10%. Q: Does the TK-PRR021 support high-speed synchronization communication?A: Yes. The module provides 100 Mbps full duplex synchronization communication for redundancy coordination. Q: What isolation capability is specified for this redundancy module?A: The module specifies 1500 V AC isolation between applicable electrical sections. Field Installation Guidelines Install the TK-PRR021 51309288-275 in a compatible Honeywell control cabinet position according to the system hardware configuration requirements. Verify the 24 VDC supply polarity and voltage range before connecting field wiring. Keep power wiring separated from high-current switching circuits to reduce electrical interference. Use appropriate grounding methods for cabinet installation and maintain clean signal reference paths. Confirm communication cable routing before system commissioning to prevent unnecessary electromagnetic coupling. Check module status indicators and redundancy communication conditions after installation.
$200.00 $100.00
-
Honeywell TK-PRS021 51404305-275 Control Processor Module | Honeywell
Honeywell TK-PRS021 51404305-275 Control Processor Module Configured for control processing execution in the Honeywell Experion PKS C200 system, the Honeywell TK-PRS021 51404305-275 (TK-PRS021 Control Processor Module) provides direct physical and electrical execution for controller operations. The module operates with 24 VDC power input and includes conformal coating for environmental protection. Hardware Specifications Parameter Specification Model TK-PRS021 51404305-275 Brand Honeywell Product Type Control Processor Module System Platform Experion PKS C200 Spare Model 51404305-275 Origin USA Weight 0.4 kg Dimensions 7 x 14 x 14.5 cm Operating Temp Not specified Power Consumption 24 VDC supply input Coating Type Conformal coating Tariff Code 8537101190 Process Control Communication and Signal Execution The Honeywell TK-PRS021 51404305-275 functions as a processor module within the Experion PKS C200 control architecture. Therefore, it manages controller-level execution tasks, including application processing, control logic handling, and communication between system components. Moreover, the module uses a 24 VDC electrical supply configuration and integrates conformal coating to protect internal electronic assemblies against industrial environmental factors. The physical design supports installation inside compatible Honeywell control hardware assemblies. In addition, Honeywell process control modules within this platform commonly interface with distributed control system networks where field signals, controller calculations, and operator-level information exchange occur through defined system communication paths. Frequently Asked Questions Q: What is the primary function of the Honeywell TK-PRS021 51404305-275 module?A: The TK-PRS021 is a control processor module designed to execute controller processing tasks within the Experion PKS C200 system. Q: What power supply does the TK-PRS021 51404305-275 require?A: The module requires a 24 VDC power supply input according to the provided technical specification. Q: Does the TK-PRS021 include environmental protection features?A: Yes. The module includes conformal coating on electronic components to provide additional protection for the circuit assembly. Field Installation Guidelines Install the Honeywell TK-PRS021 51404305-275 module only in compatible Experion PKS C200 hardware assemblies. Verify rack compatibility, module seating position, and connector alignment before installation. Maintain proper grounding practices for the control cabinet and ensure that signal wiring follows industrial separation requirements. Keep communication cables separated from high-voltage power conductors to reduce electrical interference. Before energizing the system, confirm the 24 VDC supply polarity and inspect all backplane connections. Follow Honeywell installation documentation for module replacement procedures, configuration loading, and controller synchronization checks.
$200.00 $100.00
-
Honeywell Honeywell TC-TCBH Thermocouple Input Module
Honeywell TC-TCBH Thermocouple Input Module The Honeywell TC-TCBH, also cataloged as the TC-TCBH Thermocouple Input Module, operates as a dedicated hardware component for thermocouple signal acquisition and temperature data conversion within Honeywell Experion PKS and PlantCruise control system platforms. Hardware Specifications Parameter Specification Model TC-TCBH Brand Honeywell Product Type Thermocouple Input Modules Origin USA Weight 0.6kg Dimensions Standard Honeywell I/O module form factor; exact dimensions depend on chassis configuration Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Power Consumption Max 250 mA @ 5 VDC from backplane Input Channels Multiple thermocouple input channels; channel density depends on rack configuration Input Types Thermocouple Types J, K, T, E, R, S, B, N; linear millivolt input Millivolt Input Range -20 mV to +100 mV A/D Resolution 16-bit or higher Sampling Rate 50 Hz / 60 Hz configurable Measurement Accuracy Typically +/- 0.1% of full scale, input type dependent Cold Junction Compensation Integrated CJC function Isolation Voltage 1500 VAC or 2500 VDC field-to-logic isolation Input Impedance >10 Mohm Humidity Range 5% to 95% RH, non-condensing Diagnostics Open circuit detection and input status monitoring Cold Junction Compensation and DCS Temperature Signal Processing The TC-TCBH module processes thermocouple millivolt signals through signal conditioning, linearization, and analog-to-digital conversion functions. The integrated cold junction compensation (CJC) circuit corrects terminal temperature variations to maintain measurement accuracy. For Honeywell DCS integration, the module supports isolated field signal acquisition with channel-to-channel protection. The input architecture reduces grounding interference and supports stable temperature monitoring loops connected to Experion PKS or PlantCruise I/O networks. The module architecture is compatible with process instrumentation requirements including thermocouple scaling, sensor fault detection, and continuous temperature value transmission to controller execution tasks. Frequently Asked Questions Q: Does the TC-TCBH support multiple thermocouple types in the same module?A: Yes. The module supports standard thermocouple types including J, K, T, E, R, S, B, and N. Channel configuration depends on the installed control system setup. Q: How does the module detect thermocouple wiring faults?A: The TC-TCBH provides open circuit detection functions to identify disconnected or broken thermocouple wiring and reports input status conditions to the control system. Q: Is the TC-TCBH isolated from field thermocouple wiring?A: Yes. The module provides field-side to logic-side galvanic isolation to reduce ground loop effects and protect controller electronics. Field Installation Guidelines Install the TC-TCBH module according to the Honeywell chassis installation procedure and verify backplane compatibility before insertion. Use shielded thermocouple extension cables where required by the process environment. Connect cable shields according to site grounding practices to minimize electromagnetic interference. Maintain separation between thermocouple signal wiring and high-voltage power conductors. Avoid routing low-level millivolt signals near motor cables, inverter outputs, or switching power circuits. Verify thermocouple polarity, sensor type configuration, and terminal wiring before commissioning. Confirm cold junction compensation operation and input diagnostics through the engineering workstation.
$200.00 $100.00
-
Honeywell Honeywell TC-TCNH ControlNet Interface Module
Honeywell TC-TCNH ControlNet Interface Module The Honeywell TC-TCNH, also cataloged as the TC-TCNH ControlNet Interface Module, operates as a dedicated hardware component for deterministic ControlNet communication between Experion PKS controller chassis and distributed I/O network devices. Hardware Specifications Parameter Specification Model TC-TCNH Brand Honeywell Origin USA Module Type ControlNet Interface Module / Network Bridge Compatible System Honeywell Experion PKS C200/C300 Controller Chassis Communication Protocol ControlNet Network Data Rate 5 Mbps Network Topology Trunk line / Drop line with redundant media support Connector Type BNC connectors, Channel A and Channel B Current Consumption Approx. 850 mA at 5.1 VDC Power Consumption Max. 4.4 W Dimensions Single chassis slot module format Weight Not specified Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95%, non-condensing HART and Process Network Communication Characteristics The Honeywell TC-TCNH performs ControlNet network interface functions within the Experion PKS control architecture. The module transfers controller data and I/O communication packets through deterministic scheduling mechanisms defined by the ControlNet protocol. The module supports redundant ControlNet media through dual communication channels. Channel separation allows network availability configurations where two physical communication paths are installed between connected nodes. For Honeywell process control environments, network modules within the Experion PKS platform maintain communication consistency with field-level devices and controller resources. Process signal interfaces such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, or Profibus PA connectivity are handled through dedicated field interface modules rather than the TC-TCNH itself. Channel-to-channel isolation and controlled network communication timing depend on the complete chassis configuration and connected I/O architecture. Frequently Asked Questions Q: Does the TC-TCNH support redundant ControlNet communication paths?A: Yes. The module provides dual ControlNet channels for redundant media configurations. Network redundancy depends on the installed cable infrastructure and connected ControlNet devices. Q: Can the TC-TCNH be installed in any Experion PKS chassis slot?A: The module uses a standard single-slot chassis position. Slot compatibility depends on the specific Experion PKS controller chassis configuration. Q: What power load does the TC-TCNH place on the chassis backplane?A: The module requires approximately 850 mA at 5.1 VDC with a maximum power dissipation of 4.4 W. Field Installation Guidelines Install the TC-TCNH module in the designated Experion PKS controller chassis slot according to the system hardware configuration manual. Verify chassis power removal before module insertion or removal unless the installed system configuration specifically supports hot-swap operation. Use approved ControlNet coaxial cabling with correct BNC termination practices. Maintain proper cable routing separation between communication wiring and high-voltage power conductors. Connect redundant ControlNet channels according to the network redundancy design requirements. Verify grounding and shield termination practices to minimize communication interference. Confirm module status indicators and network diagnostics after installation.
$200.00 $100.00
-
Honeywell TC-HAI081 | High-Level Analog Input Module | Honeywell
Honeywell TC-HAI081 High-Level Analog Input Module The Honeywell TC-HAI081 (9060029-04), also cataloged as the TC-HAI081 High-Level Analog Input Module, operates as a dedicated hardware component for converting field analog signals into digital process values within Honeywell Series C I/O systems. Hardware Specifications Parameter Specification Model TC-HAI081 Brand Honeywell Part Number 9060029-04 Origin United States Module Type High-Level Analog Input Module with HART System Platform Honeywell Experion PKS / PlantCruise Series C I/O Number of Channels 8 analog input channels Input Signal Range 4-20 mA / 1-5 VDC Analog Conversion 16-bit ADC HART Support HART pass-through communication Channel Isolation Channel-to-system galvanic isolation Module Power Input 24 VDC nominal Power Consumption Approx. 3.5 W Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 5% to 95% RH, non-condensing Mounting Type Series C I/O rack installation Hot Swap Capability Supported for removal and insertion under power (RIUP) 4-20 mA HART Loop and Isolation Characteristics The TC-HAI081 processes standard 4-20 mA analog transmitter signals and supports HART loop communication for smart field device access. The module separates analog measurement processing from digital HART data transmission, allowing configuration and diagnostic information to pass through the I/O architecture. The input circuit provides channel-to-system isolation to reduce signal interference between field wiring and controller electronics. The 16-bit analog-to-digital converter converts measured process variables into digital values for execution by the Honeywell controller environment. Frequently Asked Questions Q: Does the TC-HAI081 support direct HART communication with field transmitters?A: Yes. The module provides HART pass-through capability, allowing digital communication with compatible smart transmitters while maintaining the 4-20 mA measurement loop. Q: Can the TC-HAI081 be replaced while the I/O rack remains powered?A: Yes. The module supports removal and insertion under power (RIUP) when installed in a compatible Series C I/O system configuration. Q: What type of field signals can be connected to the TC-HAI081?A: The module accepts standard high-level analog inputs including 4-20 mA current signals and 1-5 VDC voltage signals from field instrumentation. Field Installation Guidelines Install the module in the designated Honeywell Series C I/O rack position according to the system hardware configuration. Separate analog field wiring from high-voltage power cables to minimize electrical noise coupling. Use shielded instrumentation cable for analog signal connections where required by the installation design. Connect cable shields according to the plant grounding specification and avoid multiple grounding points on signal shields. Verify transmitter loop polarity and signal range before applying field power. Confirm controller configuration matches the installed module type and channel assignments before process operation.
$200.00 $100.00
-
Honeywell TC-RPCXX01 | AC Input Power Supply Module | Honeywell
Honeywell TC-RPCXX01 AC Input Power Supply Module Configured for regulated DC power conversion in Honeywell control chassis platforms, the Honeywell TC-RPCXX01 (TC-RPCXX1 AC Input Power Supply Module) provides direct electrical power conversion for controller, I/O, and backplane assemblies within PlantScape and Experion PKS systems. Hardware Specifications Parameter Specification Model TC-RPCXX01 / TC-RPCXX1 Brand Honeywell Product Type AC Input Power Supply Module Part Number 45346 System Platform Honeywell PlantScape / Experion PKS Input Voltage 120 / 240 VAC Input Frequency 50 / 60 Hz Output Voltage Rails 5.1 VDC, 24 VDC, 3.3 VDC, 1.2 VDC Maximum Output Power 75 W 5.1 VDC Output Current 13.0 A Max 24 VDC Output Current 2.8 A Max 3.3 VDC Output Current 4.0 A Max 1.2 VDC Output Current 1.5 A Max Power Consumption 75 W Max output load Operating Temp 60 deg C Max ambient temperature Weight 1.490 kg Dimensions Not specified in available technical data Origin Mexico Process Control Power Architecture and Electrical Isolation The TC-RPCXX01 provides multiple regulated DC output rails for Honeywell control system hardware. The module converts AC input power into separated DC supplies used by processor assemblies, I/O modules, and chassis backplane circuits. For Honeywell DCS environments, power modules operate alongside process I/O architectures that support field instrument interfaces such as 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity. The TC-RPCXX01 itself functions as a power conversion unit and does not provide direct field signal conditioning. The module design includes electrical protection functions for overcurrent and overvoltage conditions. Channel-to-channel isolation requirements within the connected control hardware depend on the specific I/O and controller architecture installed in the chassis. Frequently Asked Questions Q: What AC input range does the TC-RPCXX01 support?A: The module accepts 120 VAC or 240 VAC input power with a 50 / 60 Hz operating frequency range. Q: Which DC voltage outputs are generated by this power supply module?A: The TC-RPCXX01 provides 5.1 VDC, 24 VDC, 3.3 VDC, and 1.2 VDC regulated output rails for Honeywell system assemblies. Q: Can the module be installed without considering chassis power loading?A: No. Installation requires verification of total chassis current demand, backplane power requirements, and compatibility with the selected Honeywell hardware configuration. Field Installation Guidelines Verify AC input wiring configuration before installation and confirm compatibility with the selected supply voltage range. Install the module in the designated Honeywell chassis slot according to system hardware documentation. Maintain separation between AC power wiring and low-level signal wiring to reduce electrical interference. Connect protective earth grounding according to the control cabinet grounding design. Check DC output distribution and chassis loading before energizing connected controller and I/O modules. Inspect terminal connections and cable routing to prevent mechanical stress on power conductors.
$200.00 $100.00
-
Honeywell TC-MUX021 51404391-375 | Serial Interface Modules | Honeywell
Honeywell TC-MUX021 Serial Interface Module Configured for dual-channel serial data exchange in Honeywell Experion PKS and TDC 3000 platforms, the Honeywell TC-MUX021 (51404391-375) (TC-MUX021 Serial Interface Module) provides direct physical and electrical execution for bidirectional communication between control processors and external serial devices. Hardware Specifications Parameter Specification Model TC-MUX021 Brand Honeywell Part Number 51404391-375 Product Type Serial Interface Modules Origin USA Weight Approx. 0.3 kg to 0.5 kg Dimensions Approx. 110 mm x 90 mm x 60 mm Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Power Consumption Maximum 10 W Operating Voltage 24 VDC Channel Configuration 2 independent serial channels Module Form Factor Double-width I/O chassis module Backplane Current 1.3 A at 5.1 VDC; 1.0 A at 3.3 VDC; 5.6 mA at 1.2 VDC; 4 mA at 24 VDC Communication Interface EIA-232 / RS-232C/D and EIA-485 / RS-485 through compatible FTAs Supported Protocols Modbus RTU, Allen-Bradley DF1, and custom serial protocols Humidity Range 5% to 95% non-condensing Protection Rating IP20 Hazardous Location Rating Class I, Division 2, Groups A, B, C, D, Temp Code T4A DCS Serial Communication and Signal Interface Characteristics The TC-MUX021 performs serial signal processing between Honeywell control processors and external subsystems through Field Termination Assemblies. The module provides two independent serial communication channels with bidirectional data transfer capability. The module supports serial protocol conversion and transparent communication functions for external devices requiring RS-232 or RS-485 physical connections. Moreover, the serial processing workload is separated from the primary controller execution layer, allowing dedicated communication handling within the I/O subsystem. For Honeywell process control installations, communication paths may include Modbus RTU devices, analyzer systems, variable frequency drives, flow measurement equipment, and other serial-based instruments. Channel-to-channel electrical separation is maintained through the module hardware design to support distributed process signal integration. Frequently Asked Questions Q: How many serial communication channels are available on the TC-MUX021? A: The TC-MUX021 provides two independent serial communication channels for bidirectional data exchange through compatible Field Termination Assemblies. Q: What type of physical serial interfaces are supported by this module? A: The module supports EIA-232 and EIA-485 physical interfaces through applicable FTAs for connection with external serial devices. Q: What power requirements must be considered during chassis installation? A: The module requires chassis power evaluation based on its backplane current consumption values, including 1.3 A at 5.1 VDC and 1.0 A at 3.3 VDC. Field Installation Guidelines Install the TC-MUX021 in the designated Honeywell I/O chassis slot according to the system hardware configuration documentation. Verify that the chassis power supply capacity supports the module backplane load before installation. Use approved Field Termination Assemblies for external serial wiring connections. Maintain proper cable routing separation between serial communication wiring and high-voltage power conductors to reduce electrical interference. Apply shielded communication cables where required, and connect cable shields according to the site grounding standard. Confirm RS-232 or RS-485 wiring polarity before commissioning. Check communication parameters, including baud rate, parity, and protocol configuration, before enabling data exchange with external devices.
$200.00 $100.00
-
Honeywell TC-SMPD01 SIM FTA Power Adapter Module | Honeywell
Honeywell TC-SMPD01 SIM FTA Power Adapter Module Configured for SIM power distribution and serial interface support in Honeywell Experion PKS and TDC3000 platforms, the Honeywell TC-SMPD01 (TC-SMPD01 SIM FTA Power Adapter Module) provides direct physical power execution for System Interface Modules and Field Termination Assemblies. Hardware Specifications Parameter Specification Model TC-SMPD01 Brand Honeywell Origin USA Product Type SIM / FTA Power Adapter Modules System Compatibility Honeywell Experion PKS C200/C300, TDC3000 Functional Role 24 VDC regulated power distribution for SIM and FTA assemblies Input Voltage 24 VDC nominal Output Type Regulated DC power supply output Supported Interface Honeywell SIM serial interface and FTA power connection Compatible Modules Honeywell Serial Interface Modules and Modbus-related FTAs Ports Dual serial interface support through FTA power adapter configuration Weight Approx. 0.35 kg to 1.0 kg including assembly packaging Dimensions Approx. 110 mm x 90 mm x 60 mm Power Consumption Dependent on connected SIM and FTA load requirements Environmental Protection Available conformal coated variant TK-SMPD01 for harsh environments DCS Signal Interface and Power Distribution Characteristics The TC-SMPD01 provides regulated 24 VDC power delivery for Honeywell SIM assemblies and associated Field Termination Assemblies. The module maintains electrical separation between the controller-side serial interface structure and field termination equipment. For Honeywell process control architectures, the module supports integration with serial communication-based field interfaces. It is designed for connection with DCS I/O infrastructure where stable loop power distribution and controlled signal transmission are required. The module architecture is compatible with Honeywell instrumentation environments using communication interfaces such as Modbus-based field connections. Channel-to-channel isolation practices and controlled wiring layouts are applied to reduce interference between field signal paths and power distribution circuits. Frequently Asked Questions Q: What is the primary electrical function of the Honeywell TC-SMPD01?A: The TC-SMPD01 provides regulated 24 VDC power distribution for Honeywell SIM modules and connected FTA assemblies. Q: Can the TC-SMPD01 directly replace a controller communication module?A: No. The TC-SMPD01 functions as a SIM FTA power adapter and does not operate as a standalone controller communication processor. Q: Is conformal coating available for this module family?A: Yes. The TK-SMPD01 variant is identified as a conformally coated version intended for environments requiring additional board-level protection. Field Installation Guidelines Install the TC-SMPD01 according to Honeywell system cabinet wiring documentation and approved chassis layout requirements. Verify 24 VDC supply polarity before connecting power terminals to prevent electrical damage. Separate DC power wiring from high-voltage AC circuits and high-noise equipment cabling. Use shielded communication cables where required by the installed SIM and FTA configuration. Connect cable shields according to the cabinet grounding design to minimize electromagnetic interference. Confirm connector seating and mechanical locking before system energization. Verify SIM and FTA power loads remain within the supported power distribution capacity of the installation.
$200.00 $100.00
-
Honeywell Honeywell TC-IAHI61 High-Level Analog Input Module
Honeywell TC-IAHI61 High-Level Analog Input Module Configured for high-level analog signal acquisition in Honeywell Experion PKS and TDC 3000 DCS platforms, the Honeywell TC-IAHI61 (TC-IAH161 High-Level Analog Input Module) provides direct physical and electrical conversion of field voltage and current signals into digital process data. Hardware Specifications Parameter Specification Model TC-IAHI61 Brand Honeywell Origin USA Module Type High-Level Analog Input (HLAI) Module Compatible Systems Honeywell Experion PKS, TDC 3000 DCS Weight Approx. 1.5 kg Power Consumption 4.1 W maximum Number of Channels 16 independent analog input channels Input Signal (Voltage) +/-10.25 V, 0 to 10.25 V, 0 to 5.125 V Input Signal (Current) 4-20 mA, 0 to 20.5 mA via internal 250 ohm resistor A/D Conversion Resolution 16-bit Module Update Rate 250 ms Sampling Capability Up to 1 kHz transient capture rate Voltage Input Impedance Greater than 1.0 Mohm Current Input Impedance 249 ohm nominal Channel Bandwidth 20 Hz (-3 dB) RFI Immunity Less than 2% error of range at 10 V/m, 27 to 1000 MHz Isolation Voltage 2550 VDC for 1 second (User to System) Compatible Terminal Block TC-TBCH 36-position terminal block Process Signal Isolation and DCS Interface The Honeywell TC-IAHI61 integrates high-level analog measurement circuits for direct connection to field transmitters. The module supports mixed voltage and current input configurations across 16 channels, allowing individual channels to process different transmitter output types. For Honeywell DCS installations, the module provides channel-to-channel isolation to reduce electrical interaction between field circuits. The input architecture supports 4-20 mA HART loop protocol compatibility at the signal level when external HART communication requirements are applied through the associated field wiring design. The module performs analog-to-digital conversion with 16-bit resolution and transfers processed measurement values to the controller environment through the Experion PKS I/O subsystem. Open circuit detection functions monitor field loop continuity and identify transmitter wiring faults. Frequently Asked Questions Q: Does the TC-IAHI61 support mixed analog input types on the same module?A: Yes. The module supports independent channel configuration for voltage and current input signals, including 4-20 mA and multiple voltage ranges. Q: What isolation function is provided by the TC-IAHI61?A: The module provides user-to-system electrical isolation tested at 2550 VDC for 1 second and includes channel-level signal protection functions. Q: Which terminal block is compatible with the TC-IAHI61 module?A: The module interfaces with the Honeywell TC-TBCH 36-position terminal block for field wiring termination. Field Installation Guidelines Install the module in the designated Honeywell Experion PKS or TDC 3000 I/O chassis location according to system configuration requirements. Verify terminal block installation and confirm field wiring polarity before applying power. Use shielded instrumentation cables for analog signal connections where electromagnetic interference is present. Connect cable shields according to the site grounding standard to minimize induced noise on low-level analog circuits. Separate analog signal wiring from high-voltage power cables and switching circuits. Confirm transmitter output range settings match the configured voltage or current input parameters before commissioning.
$200.00 $100.00
-
Honeywell TC-CCN014 | ControlNet Interface Modules | Honeywell
Honeywell TC-CCN014 ControlNet Redundant Network Interface Module The Honeywell TC-CCN014, also cataloged as the TC-CCN014 ControlNet Redundant Network Interface Module, operates as a dedicated hardware component for redundant ControlNet communication management within Honeywell Experion PKS and C200 controller platforms. Hardware Specifications Parameter Specification Model TC-CCN014 Brand Honeywell Origin USA Product Type Redundant ControlNet Interface Modules System Compatibility Honeywell Experion PKS / C200 Controller Systems Network Protocol ControlNet Interface Ports Dual redundant ControlNet network ports Input Voltage 24 VDC +/- 10% Power Consumption Approx. < 5 W Node Addressing Up to 99 nodes per network segment Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 0% to 95% non-condensing Dimensions Approx. 160 mm x 100 mm x 25 mm Weight Approx. 0.3 kg to 0.5 kg Protection Rating IP20 ControlNet Redundant Communication Architecture The TC-CCN014 manages redundant ControlNet communication paths between Honeywell controller hardware and connected network devices. The dual-port configuration provides separated communication channels for network redundancy and fault isolation. The module processes ControlNet data traffic through the Experion PKS and C200 controller architecture. Moreover, built-in diagnostic indicators provide status information for network activity, communication faults, and module operating conditions. The communication interface is designed for industrial DCS installations where deterministic network timing and controlled data exchange are required. Therefore, installation configuration must follow Honeywell controller rack and ControlNet network design requirements. Frequently Asked Questions Q: Does the TC-CCN014 support redundant network operation? A: Yes. The module provides dual ControlNet network interfaces for redundant communication path configuration and automatic network fault handling within supported Honeywell systems. Q: What type of diagnostic information is available from the module? A: The module provides LED-based status indication for communication activity, network conditions, and hardware operating states. Q: Can the TC-CCN014 operate outside Honeywell Experion PKS and C200 architectures? A: The module is designed for Honeywell control architectures. Compatibility should be verified against the specific controller chassis, firmware version, and ControlNet configuration. Field Installation Guidelines Install the module in the designated Honeywell controller rack position according to the system hardware manual. Verify 24 VDC power wiring polarity before energizing the module. Use approved ControlNet cabling and maintain proper shielding and grounding practices. Separate communication cables from high-voltage power conductors to reduce electromagnetic interference. Confirm network addressing and redundant communication settings before system commissioning. Inspect connector seating and module locking mechanisms during installation and maintenance activities.
$200.00 $100.00
-
Honeywell Honeywell TC-KCCX03 System Cable Assembly
Honeywell TC-KCCX03 System Cable Assembly Configured for control signal interconnection in Honeywell Experion PKS and PlantScape system architectures, the Honeywell TC-KCCX03 (TC-KCCX03 System Cable Assembly) provides direct physical data transmission between controllers, I/O modules, and system chassis interfaces. Hardware Specifications Parameter Specification Model TC-KCCX03 Brand Honeywell Origin USA Operating Temp -20 deg C to +70 deg C typical Power Consumption Passive cable assembly, no external power consumption Product Type System Cable Assembly / Control Network Cable Application Experion PKS and PlantScape control system interconnection Cable Construction Industrial-grade shielded cable assembly Shielding Foil and braided shielding for EMI/RFI protection Jacket Material Industrial PVC or PUR jacket Connector Type System-specific heavy-duty industrial connectors Signal Function Controller, I/O module, and chassis data communication interconnection Honeywell DCS Signal Interconnection Characteristics The TC-KCCX03 cable assembly is designed for physical signal routing within Honeywell control platforms. The shielded construction reduces external electromagnetic interference impact on transmitted control data. Moreover, the factory-terminated connector configuration maintains consistent pin assignment and reduces wiring errors during system integration. For Honeywell DCS architectures, cable assemblies support stable communication paths between control hardware modules. In addition, installation practices should maintain proper grounding methods to preserve signal integrity in industrial environments. Honeywell process control systems commonly integrate field communication protocols such as 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity through compatible I/O hardware. The TC-KCCX03 itself functions as a passive interconnect component and does not perform signal conversion, isolation, or protocol processing. Frequently Asked Questions Q: Does the TC-KCCX03 perform signal conversion or protocol processing?A: No. The TC-KCCX03 is a passive cable assembly designed for physical interconnection and signal transmission between compatible Honeywell system components. Q: What installation factors affect cable signal performance?A: Cable routing, shield termination, grounding method, and separation from high-voltage power conductors affect electromagnetic interference performance. Q: Can the TC-KCCX03 be installed as a hot-swappable electronic module?A: No. The TC-KCCX03 is a cable component and does not contain electronic circuits or hot-swap functions. Field Installation Guidelines Verify connector keying and pin configuration before installation to prevent incorrect hardware connection. Install the cable with appropriate bending radius to avoid mechanical stress on connectors and cable conductors. Maintain separation between communication cables and high-current power wiring to reduce electromagnetic interference. Connect cable shielding according to the Honeywell system grounding specification. Inspect connector contacts for contamination or mechanical damage before chassis connection.
$200.00 $100.00
-

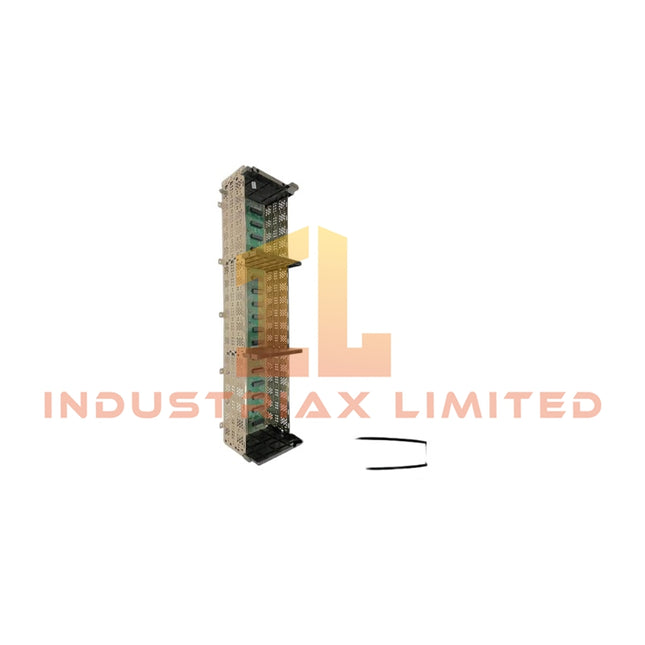

Honeywell Honeywell TC-FXX172 97126772-B01 Slot Rack Chassis
Honeywell TC-FXX172 97126772-B01 Slot Rack Chassis Configured for module mounting and 24 VDC backplane power distribution in Honeywell control system architectures, the Honeywell TC-FXX172 97126772-B01 (TC-FXX172 Slot Rack Chassis) provides direct physical support and electrical interconnection for installed I/O modules. Hardware Specifications Parameter Specification Model TC-FXX172 97126772-B01 Brand Honeywell Product Type Slot Rack Chassis Origin USA Weight 1.14 kg Dimensions 14.4 x 10.5 x 14 cm Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Humidity 5-95% RH non-condensing Slot Capacity 17 Module Slots Input Voltage 100-240 V AC, 50/60 Hz Input Current 10 A maximum at 24 V DC Logic Voltage 5.1 V DC +/- 1% Conversion Efficiency >90% (24 V to 5.1 V conversion) Maximum Current 13 A Rated Output Supply 24 VDC, 2.8 A Rack Construction Uncoated 17 Slot Rack Tariff Code 8537101190 Process Control Interface and Channel Isolation Characteristics The TC-FXX172 rack chassis provides the mechanical slot structure and electrical backplane interface required for Honeywell control modules. The chassis distributes regulated power and supports module-level communication connections through the internal rack architecture. Honeywell control platforms typically integrate field signal modules using isolated channel designs, including 4-20 mA HART loop protocol interfaces, FOUNDATION Fieldbus / Profibus PA connectivity, and channel-to-channel isolation functions depending on the installed module type. The rack assembly provides the physical infrastructure for these modules without performing direct signal conversion. The 5.1 V DC logic supply conversion supports installed electronic modules by maintaining controlled internal voltage levels. The 13 A maximum current capability defines the available power loading boundary for connected rack components. Frequently Asked Questions Q: What is the primary function of the TC-FXX172 chassis?A: The TC-FXX172 is a 17 slot rack chassis designed to provide module mounting positions, power distribution, and backplane interconnection for compatible Honeywell control modules. Q: Does the TC-FXX172 perform analog or digital signal processing?A: No. The chassis provides physical mounting and electrical infrastructure. Signal processing functions are executed by installed Honeywell I/O or controller modules. Q: What power characteristics must be considered during installation?A: The rack load must remain within the specified 24 VDC supply rating, maximum current capacity, and installed module power requirements. Field Installation Guidelines Install the TC-FXX172 chassis on a mechanically stable panel structure with sufficient clearance for module insertion and cable routing. Connect power wiring according to the specified voltage requirements and verify polarity before energizing the rack. Separate power wiring from low-level signal cables to reduce electrical interference. Use appropriate grounding practices for the control cabinet structure and ensure cable shields are terminated according to the system installation standard. Confirm that installed modules are compatible with the rack backplane interface before operation.
$200.00 $100.00
-
Honeywell Honeywell TC-FXX102 Experion Series-A 10 Slot Chassis

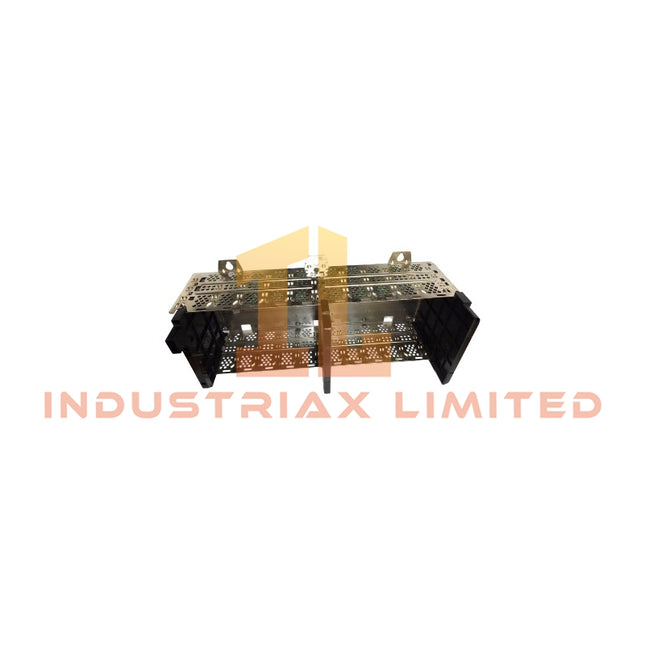

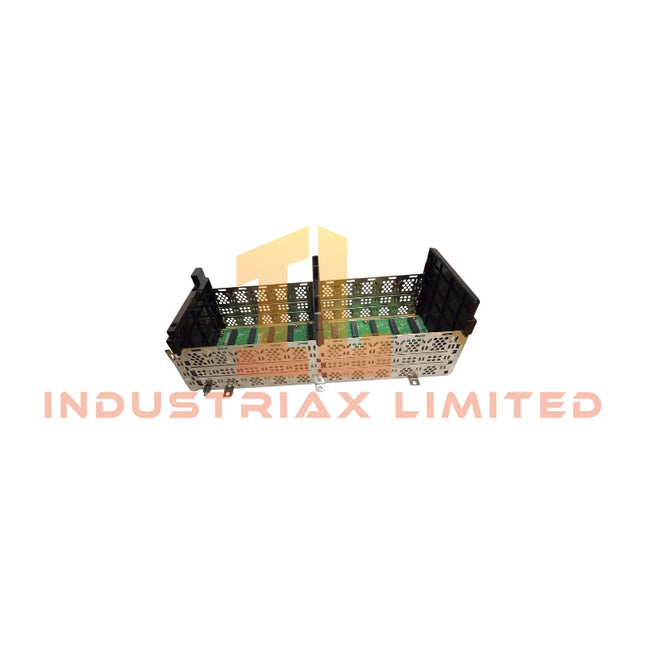

Honeywell TC-FXX102 Experion Series-A 10 Slot Chassis Configured for module mounting and multi-voltage backplane power distribution in Honeywell Experion Series-A CIOM-A platforms, the Honeywell TC-FXX102 (TC-FXX102 10 Slot Chassis) provides direct physical power and communication infrastructure for installed I/O modules. Hardware Specifications Parameter Specification Model TC-FXX102 Brand Honeywell Product Type 10 Slot Chassis System Platform Experion PKS Series-A Chassis I/O Module (CIOM-A) Origin USA Weight 0.75 kg Dimensions 26.3 x 116.9 x 14.5 cm Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5-95% RH, Non-condensing Slot Capacity 10 Module Slots Chassis Current Rating 13 A Logic Backplane Voltage 5.1 VDC Maximum 5.1 V Backplane Current Up to 15 A Auxiliary Backplane Voltage 24 VDC Maximum 24 V Backplane Current Up to 2.8 A I/O Backplane Voltage 3.3 VDC Maximum 3.3 V Backplane Current Up to 4 A Maximum Combined Backplane Output Power 75 W Power Consumption Determined by installed Series-A modules, maximum backplane output limited to 75 W Process Control Backplane and Signal Distribution Characteristics The Honeywell TC-FXX102 chassis provides a multi-rail backplane architecture for Experion Series-A I/O modules. The backplane distributes 5.1 VDC logic power, 24 VDC auxiliary power, and 3.3 VDC I/O power to installed modules. The chassis supports Honeywell Series-A communication and I/O module integration through dedicated backplane connections. Channel-to-channel isolation and signal integrity depend on the installed I/O module design, while the chassis provides the physical electrical interface required for module operation. The chassis configuration supports process control architectures where modules require stable backplane voltage distribution and structured I/O density scaling. In addition, the design allows integration of redundant power supply arrangements using compatible redundant power supply adapters. Frequently Asked Questions Q: How many modules can be installed in the TC-FXX102 chassis?A: The chassis provides 10 single-wide module slots. Double-wide modules occupy two adjacent slot positions. Q: What backplane voltages are distributed by the TC-FXX102?A: The chassis distributes three backplane voltage rails: 5.1 VDC logic power, 24 VDC auxiliary power, and 3.3 VDC I/O power. Q: Does the TC-FXX102 support redundant power configurations?A: Yes. The chassis supports redundant power configurations through compatible TC-RPSCA2 or TK-RPSCA2 redundant power supply chassis adapters. Field Installation Guidelines Install the TC-FXX102 chassis on a mechanically stable panel surface with sufficient clearance for module insertion, wiring access, and thermal ventilation. Verify that the installed power supply configuration matches the Series-A chassis requirements before energizing the backplane. Ensure all module connectors are fully seated and mechanical locking features are engaged. Route power and signal wiring separately where possible to reduce electrical interference. Maintain proper cabinet grounding practices, including connection of protective earth and cable shield termination according to site electrical standards. Before operation, confirm the installed module combination does not exceed the chassis backplane voltage rail current limits and total output power specification.
$200.00 $100.00
-

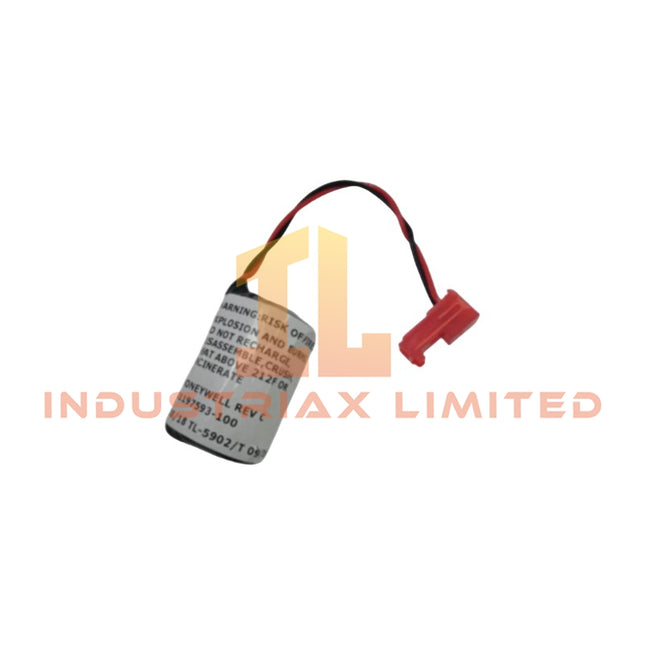

Honeywell Honeywell TC-BATT01 Lithium PLC Backup Battery

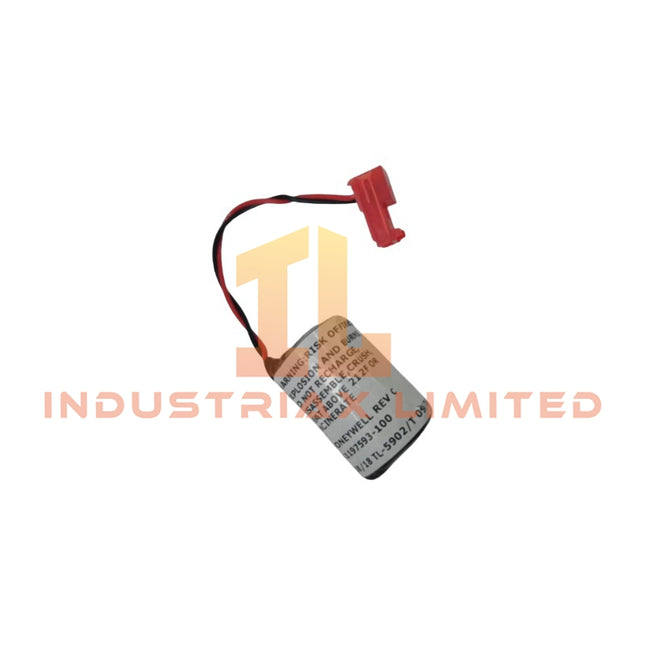

Honeywell TC-BATT01 Lithium PLC Backup Battery The Honeywell TC-BATT01, also cataloged as the TC-BATT01 Lithium PLC Backup Battery, provides memory retention power for Honeywell controller assemblies during primary power interruption conditions. The module supplies a 3.0 VDC lithium backup source for preserving stored controller data. Hardware Specifications Parameter Specification Model TC-BATT01 Brand Honeywell Product Type Lithium PLC Backup Battery Origin USA Battery Chemistry Non-rechargeable Lithium Nominal Voltage 3.0 VDC Rated Capacity 1700 mAh Connector Type Polarized application-specific connector Weight Approximately 0.068 kg Dimensions 34 mm (H) x 17 mm (W) x 17 mm (D) Operating Temp Not specified Power Consumption Standby backup application, battery powered Storage Life Up to 10 years at 20 deg C ambient conditions Installation Method Controller chassis or processor module mounting Honeywell Process Control Memory Backup Characteristics The TC-BATT01 is designed for controller memory retention functions within Honeywell industrial control platforms. The lithium cell provides a stable backup voltage source for maintaining stored application programs, configuration parameters, and processor memory data when the primary controller power supply is unavailable. For Honeywell controller environments, backup battery operation is separated from normal control power circuits. The module does not provide field I/O power or process signal excitation. Instead, it supports internal memory preservation circuits associated with processor hardware. Moreover, Honeywell controller architectures may include analog and digital I/O interfaces using technologies such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, or Profibus PA connectivity. The TC-BATT01 functions independently from these communication interfaces and only maintains controller memory backup requirements. Frequently Asked Questions Q: Is the Honeywell TC-BATT01 a rechargeable battery module?A: No. The TC-BATT01 uses a non-rechargeable lithium cell design and requires replacement after battery service life expiration. Q: What electrical function does the TC-BATT01 provide inside a controller assembly?A: The module provides a 3.0 VDC backup supply for maintaining processor memory contents during loss of the primary power source. Q: Does the TC-BATT01 supply power to external I/O devices?A: No. The battery module is intended for internal memory retention circuits and does not provide operating power for external field devices or I/O modules. Field Installation Guidelines Verify controller compatibility and battery model identification before installation. Disconnect the controller power source according to the applicable maintenance procedure before replacing the battery. Confirm correct polarity alignment between the battery connector and controller interface. Route the battery connection away from high-current power wiring and strong electromagnetic interference sources. Inspect connector contacts for contamination or mechanical damage before installation. Follow local regulations for disposal of lithium battery components after replacement.
$200.00 $100.00
-

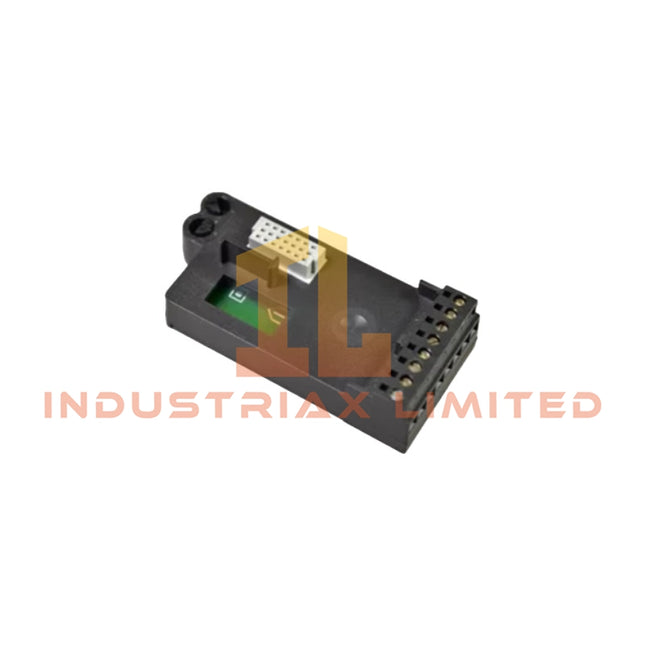

Honeywell Honeywell TC-OAH061 Analog Output Module
Honeywell TC-OAH061 Analog Output Module Configured for isolated analog current signal execution in Honeywell Experion Series I/O architectures, the Honeywell TC-OAH061 (TC-OAH061 Analog Output Module) provides direct physical/electrical execution for 4-20 mA field output circuits. Hardware Specifications Parameter Specification Model TC-OAH061 Brand Honeywell Origin USA Product Type Analog Output Module I/O Type Analog Current Output Number of Channels 6 galvanically isolated analog output channels Output Signal 4-20 mA current loop Output Current Range 0 to 21.0 mA Current Resolution 13 bits across 21 mA span Drive Capability 20.0 mA maximum into loads of 500 ohm or less Calibrated Accuracy Better than 0.1% of range from 4.0 mA to 21.0 mA at 25 deg C Module Update Rate 25 ms for all channels Output Settling Time Less than 2 ms to 95% final value Output Overvoltage Protection 24 VAC/VDC continuous at room temperature Short Circuit Protection Electronic current limiting to 21 mA or less RFI Immunity Less than 2.0% error at 10 V/m, 27 to 1000 MHz Temperature Offset Drift 1 uA/deg C typical Gain Drift 60 ppm/deg C typical Maximum Power Dissipation 6.7 W Channel Isolation Voltage 2546 VDC tested for 1 second User to System Isolation Voltage 2546 VDC tested for 1 second Terminal Block Type TC-TBNH 20-position terminal block Weight Approx. 0.6 kg Power Consumption Maximum 6.7 W 4-20 mA Process Signal Isolation and DCS Interface The Honeywell TC-OAH061 is designed for analog output execution within Honeywell Experion control platforms. Each of the six channels provides galvanically isolated 4-20 mA current output for connection to control valves, actuators, and other analog field devices. The module architecture includes channel-to-channel isolation to reduce electrical interaction between independent field loops. Moreover, the output circuitry provides electronic short circuit limiting and continuous overvoltage protection for connected field circuits. The TC-OAH061 supports direct integration with process instrumentation using standard 4-20 mA loop interfaces. The isolated output design maintains signal separation between the control system backplane and external field wiring. Frequently Asked Questions Q: How many analog output channels are available on the Honeywell TC-OAH061?A: The TC-OAH061 provides six independent galvanically isolated analog output channels. Q: What output signal range is supported by the TC-OAH061?A: The module provides a 0 to 21.0 mA output range with 13-bit current resolution, supporting standard 4-20 mA process loops. Q: What terminal connection hardware is required for the TC-OAH061?A: The module uses the Honeywell TC-TBNH 20-position terminal block for field wiring connections. Field Installation Guidelines Install the TC-OAH061 in the designated Honeywell Experion I/O rack position according to the system hardware configuration. Verify terminal block compatibility before connecting field wiring. Separate analog signal cables from high-voltage power conductors to reduce electromagnetic interference. Connect cable shields according to the plant grounding standard and avoid multiple grounding points on signal shields. Confirm field device loop polarity before applying power to the analog output circuits. Check output loop resistance and actuator input requirements before commissioning. Perform insulation and wiring verification before enabling process control outputs.
$200.00 $100.00
-

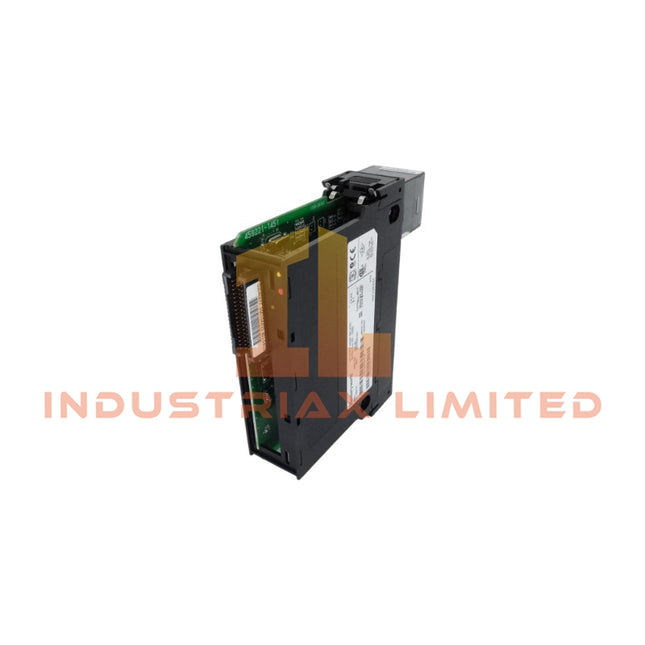

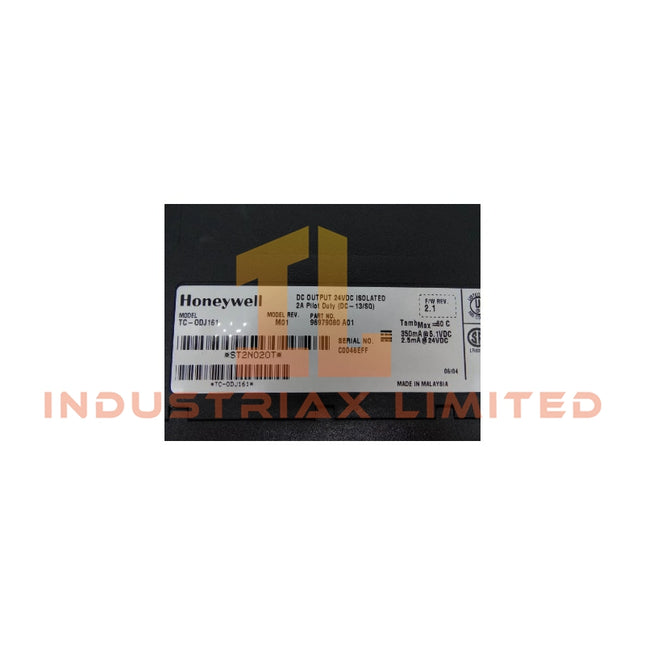

Honeywell Honeywell TC-ODJ161 24 VDC Digital Output Module
Honeywell TC-ODJ161 24 VDC Digital Output Module The Honeywell TC-ODJ161, also cataloged as the TC-ODJ161 24 VDC Digital Output Module, operates as a dedicated hardware component for discrete signal execution within Honeywell Experion I/O architectures. The module provides 16 isolated output channels for controlling external DC field loads through industrial control commands. Hardware Specifications Parameter Specification Model TC-ODJ161 Brand Honeywell Product Type 24 VDC Digital Output Module Module Function Isolated Discrete Output Interface Origin USA Weight Approx. 0.33 kg Dimensions Not specified Operating Temp 30 deg C full load reference; 60 deg C reduced load condition Power Consumption 4.7 W max Number of Output Points 16 individually isolated channels Output Voltage Range 10 to 30 VDC Nominal Output Voltage 24 VDC Output Current per Point 2.0 A max at 30 deg C; 1.0 A max at 60 deg C Maximum Module Output Current 8.0 A max at 30 deg C; 4.0 A max at 60 deg C Surge Current Capability 4 A for 10 ms, repeatable every 2 seconds Minimum On-State Current 1.0 mA per output Maximum On-State Voltage Drop 1.2 VDC at 2.0 A Maximum Off-State Leakage Current 0.5 mA per point Output Signal Delay Off to On: 1.0 ms max; On to Off: 2.0 ms max Isolation Voltage 1500 VAC RMS output to backplane Terminal Block Type TC-TBCH 36-position terminal block Installation Type Honeywell control rack and I/O subsystem mounting Channel Isolation and Process Control Interface The TC-ODJ161 uses channel-to-channel isolation to separate field output circuits from the control backplane. This electrical design limits interference transfer between connected loads and supports direct switching of 24 VDC devices. Moreover, Honeywell I/O modules within Experion architectures commonly integrate with process control signal paths including 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA interfaces through dedicated I/O modules. The TC-ODJ161 performs discrete output execution rather than analog measurement or fieldbus signal processing. Frequently Asked Questions Q: How many discrete output channels are available on the TC-ODJ161?A: The module provides 16 individually isolated 24 VDC discrete output channels. Q: What is the maximum output current capability of each channel?A: Each output channel supports up to 2.0 A at 30 deg C and 1.0 A at 60 deg C operating conditions. Q: What isolation rating is provided between the output circuits and backplane?A: The module provides 1500 VAC RMS isolation between the output side and the control backplane. Field Installation Guidelines Install the TC-ODJ161 in the designated Honeywell I/O rack position according to system configuration requirements. Use the specified TC-TBCH terminal block for field wiring connections. Verify external load current requirements before connecting field devices. Maintain correct DC polarity during field cable termination. Separate high-current switching wiring from low-level signal cables to reduce electrical interference. Confirm module status indicators and controller configuration after installation.
$200.00 $100.00
-

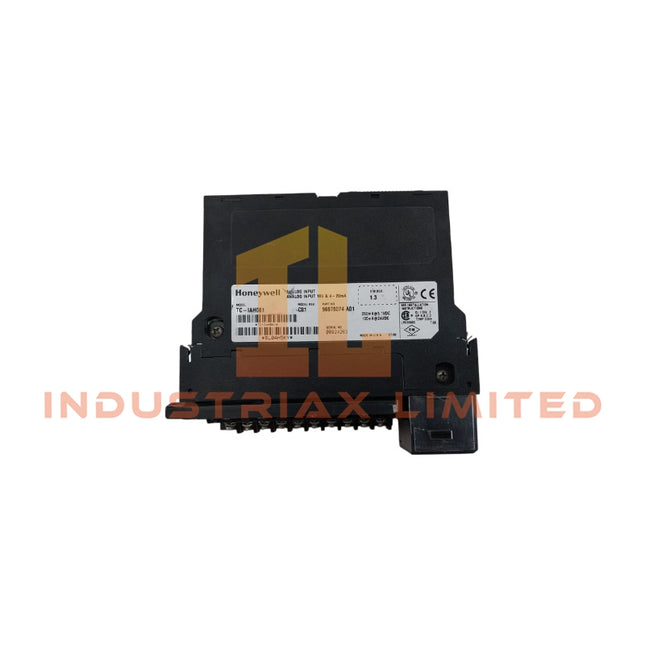

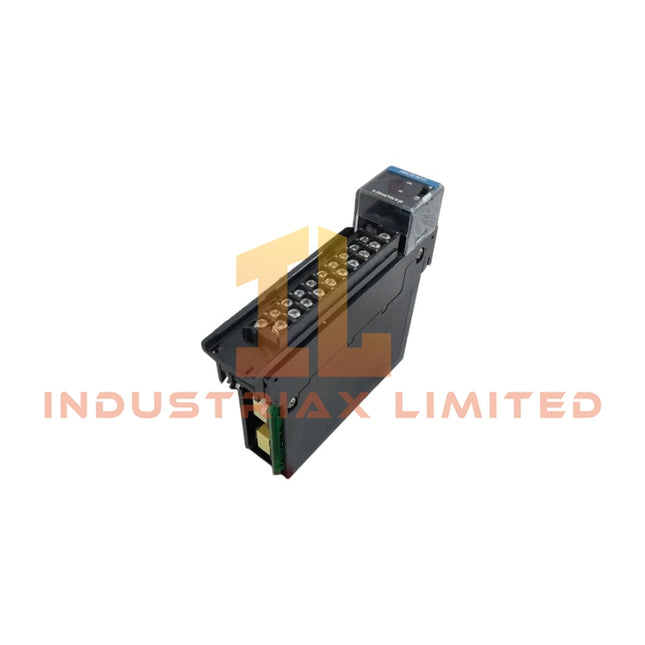

Honeywell Honeywell TC-IAH061 Experion Analog Input Module
Honeywell TC-IAH061 Experion Analog Input Module Configured for isolated analog signal acquisition in Honeywell Experion control systems, the Honeywell TC-IAH061 (TC-IAH061 Experion Analog Input Module) provides direct physical and electrical execution for 6-channel field input monitoring with galvanically isolated measurement circuits. Hardware Specifications Parameter Specification Model TC-IAH061 Brand Honeywell Product Type Experion Analog Input Module Origin USA Weight 0.52kg Power Consumption 4.3 W max Number of Points 6 galvanically isolated channels Input Signal Type Analog input signals Open Circuit Detection Upscale reading for voltage input; zero scale reading for current input Typical OC Detection Time 5 seconds for voltage; 1 second for current Channel Bandwidth 0 to 15 Hz (-3 dB) RFI Immunity Error less than 2.0% of range at 10 V/m, 27 to 1000 MHz Module Update Rate 25 ms for all channels Connection Terminal Block TC_TBNH 20-position terminal block Process Signal Isolation and DCS Interface Characteristics The TC-IAH061 is designed for analog measurement integration within Honeywell Experion architectures. The module provides galvanically isolated input channels to separate field wiring circuits from internal system electronics. Moreover, the isolated channel design supports process instrumentation connections where electrical separation is required between individual field signals and the control system interface. The module architecture supports standard DCS analog acquisition requirements, including signal integrity control and channel-to-channel isolation. The module supports analog loop monitoring functions with defined open-circuit detection behavior. Voltage input failures generate upscale readings, while current input failures generate zero scale readings for diagnostic processing. Frequently Asked Questions Q: How many analog input channels does the TC-IAH061 provide?A: The TC-IAH061 provides 6 galvanically isolated analog input channels. Q: How does the module detect open circuit conditions?A: The module applies upscale detection for voltage inputs and zero scale detection for current inputs. Q: What terminal block is compatible with the TC-IAH061 module?A: The module connects through the Honeywell TC_TBNH 20-position terminal block. Field Installation Guidelines Install the TC-IAH061 according to the Honeywell Experion I/O system hardware configuration requirements. Verify terminal block wiring before applying field power to prevent incorrect signal connections. Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference. Connect cable shields according to the plant grounding standard and avoid multiple uncontrolled grounding points. Confirm field loop polarity and signal type before commissioning the input channels. Check module seating and backplane connection integrity during rack installation. Validate analog input values and open-circuit detection behavior during system testing.
$200.00 $100.00
-

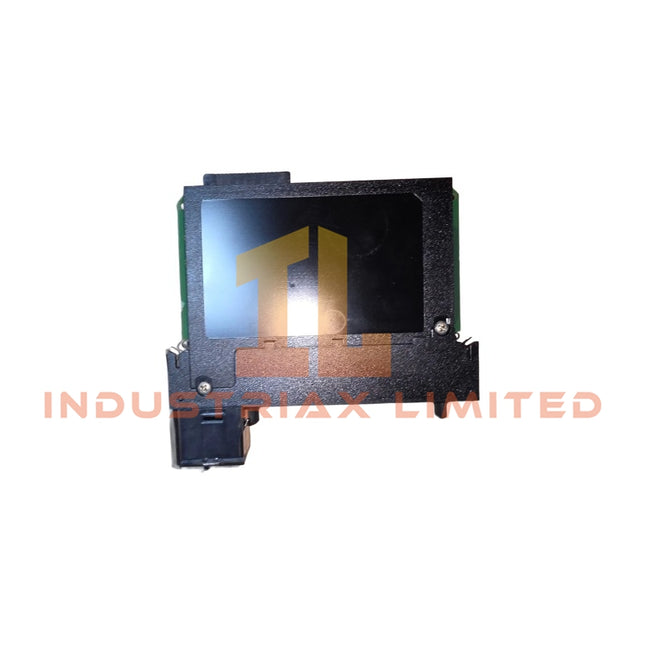

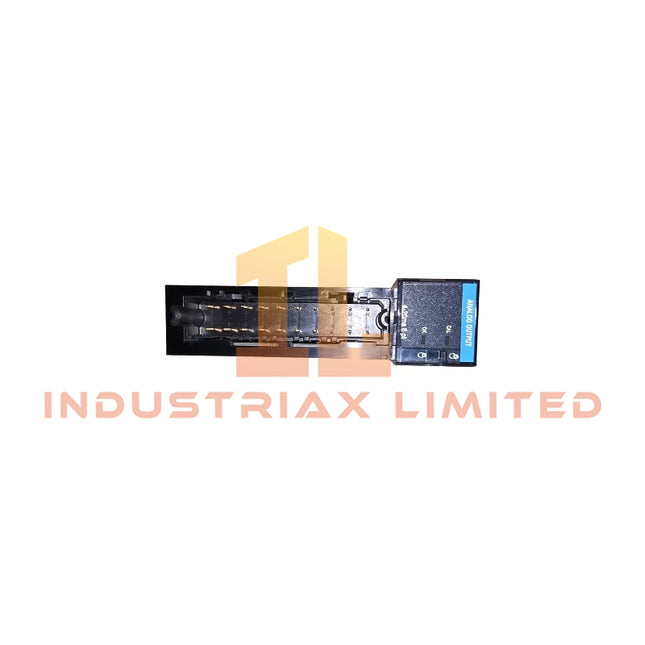

Honeywell Honeywell TC-OAH061 96978274-A01 Analog Output Module
Honeywell TC-OAH061 96978274-A01 Analog Output Module The Honeywell TC-OAH061 96978274-A01, also cataloged as the TC-OAH061 Analog Output Module, operates as a dedicated hardware component for isolated analog current signal generation within Honeywell Experion Series-A I/O platforms. Hardware Specifications Parameter Specification Model TC-OAH061 Part Number 96978274-A01 Brand Honeywell Product Type Analog Output Module System Compatibility Honeywell Experion Series-A I/O system Origin USA Weight Approx. 0.5 kg Dimensions 96 x 96 x 48 mm Operating Temp Industrial control environment Power Consumption Maximum 6.7 W Output Channels 6 galvanically isolated analog output channels Output Signal Type Analog current output Output Range 0 to 21.0 mA Standard Signal Range 4-20 mA Current Resolution 13 bits across 21 mA Module Update Rate 25 ms for all channels Channel-to-Channel Isolation 2546 VDC, tested for 1 second User-to-System Isolation 2546 VDC, tested for 1 second Output Protection 24 VAC/VDC continuous overvoltage protection at room temperature RFI Immunity Error less than 2.0% of range at 10 V/m, 27 to 1000 MHz Terminal Connection TC-TBNH 20-position terminal block Process Signal Isolation and DCS Interface The TC-OAH061 applies Honeywell process control I/O design principles for analog loop execution. The module provides six isolated 4-20 mA output channels for actuator commands, valve positioning loops, and analog control devices. Moreover, the galvanic isolation architecture separates field output circuits from system electronics. This configuration limits signal interference between channels and supports stable analog transmission in DCS environments. The module is designed for process instrumentation interfaces where channel-to-channel isolation and controlled current output behavior are required. It supports analog output functions commonly associated with Honeywell Experion Series-A I/O configurations. Frequently Asked Questions Q: What output signal does the TC-OAH061 provide?A: The TC-OAH061 provides six analog current outputs with a 0 to 21.0 mA operating range, including the standard 4-20 mA process signal range. Q: Does the module provide electrical isolation between output channels?A: Yes. The TC-OAH061 uses galvanically isolated output channels and provides channel-to-channel and user-to-system isolation. Q: Which terminal block is required for field wiring connection?A: The module connects through the Honeywell TC-TBNH 20-position terminal block for field signal termination. Field Installation Guidelines Install the TC-OAH061 module in the designated Honeywell Experion Series-A I/O rack position according to system configuration requirements. Verify terminal assignments before connecting field analog loops. Use shielded cable for low-level analog signal wiring in areas with electromagnetic interference sources. Connect cable shields according to the plant grounding practice to reduce noise coupling. Confirm controller configuration matches the assigned output channel settings before commissioning. Check loop current values and field device response during startup verification.
$200.00 $100.00
-

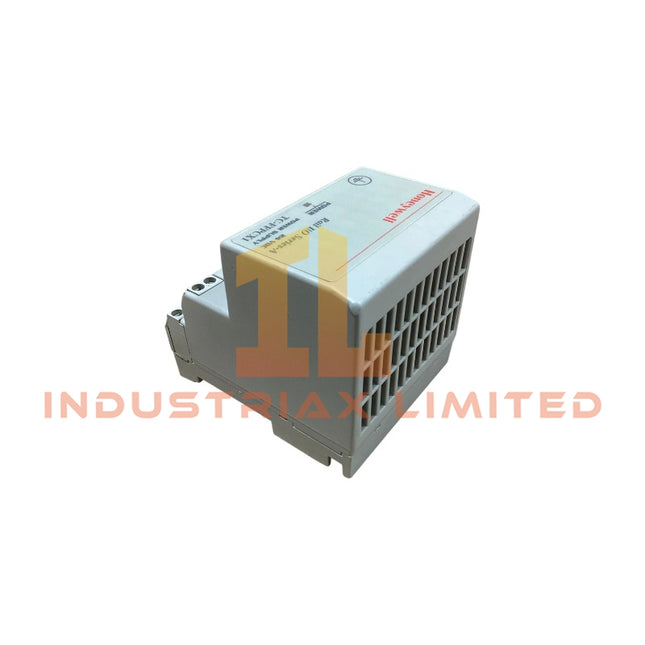

Honeywell Honeywell TC-FFPCX1 Power Supply Module

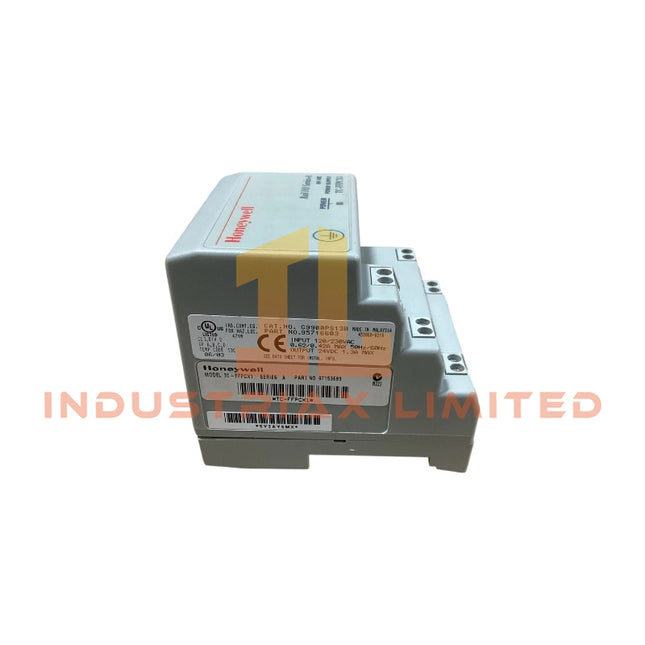

Honeywell TC-FFPCX1 Power Supply Module The Honeywell TC-FFPCX1, also cataloged as the TC-FFPCX1 Power Supply Module, operates as a dedicated hardware component for 24 VDC power conversion within Honeywell Experion LS Series A Rail I/O system platforms. Hardware Specifications Parameter Specification Model TC-FFPCX1 Brand Honeywell Product Type Power Supply Module System Compatibility Honeywell Experion LS / Series A Rail I/O System Input Voltage 120 VAC nominal Input Voltage Range 85 to 265 VAC Output Voltage 24 VDC Output Current 1.3 A maximum Power Consumption 92 W nominal Mounting Type DIN Rail Mount Connection Type Screw Terminal Cooling Method Natural Convection Operating Temp -20 to 60 deg C Origin USA Weight Approx. 0.22 kg to 0.56 kg Dimensions Approx. 130 x 35 x 115 mm 4-20 mA HART and Process Control Interface Compatibility The TC-FFPCX1 provides regulated 24 VDC power distribution for Honeywell Series A Rail I/O assemblies. The module supports the electrical supply requirements of process control components connected within the I/O architecture. Moreover, the stable DC output allows connected field interface devices and control modules to maintain specified operating voltage conditions. In Honeywell process automation environments, power modules operate together with analog and digital I/O components that support industrial signal standards, including 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity where applicable within the system configuration. The TC-FFPCX1 functions as the local power source and does not perform signal conditioning or communication processing. Frequently Asked Questions Q: Does the TC-FFPCX1 provide communication functions with Honeywell controllers?A: No. The TC-FFPCX1 is a power supply module that converts AC input power into regulated 24 VDC output. It does not provide controller communication or fieldbus processing. Q: What type of installation method is required for the TC-FFPCX1?A: The module is installed on a DIN rail inside an industrial control cabinet and uses screw terminals for electrical connections. Q: Can the TC-FFPCX1 directly replace other 24 VDC power supplies?A: Replacement requires verification of input voltage range, output current rating, mechanical mounting compatibility, and Honeywell system requirements. Field Installation Guidelines Install the module on a compatible DIN rail inside a protected control cabinet environment. Verify AC input wiring before applying power to prevent incorrect electrical connection. Separate AC input wiring from low-level signal cables to reduce electrical interference. Connect the 24 VDC output with correct polarity according to terminal identification. Use appropriate grounding and cabinet bonding practices for industrial power distribution. Maintain sufficient cabinet airflow to support natural convection cooling.
$200.00 $100.00
-

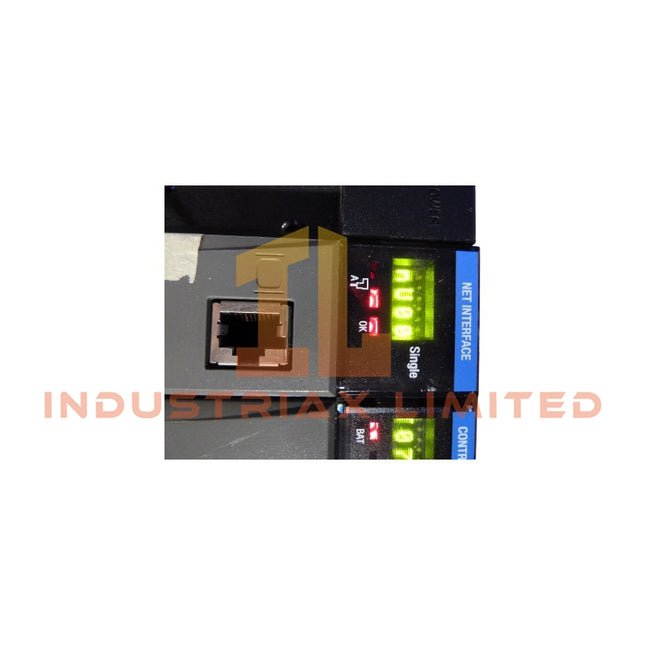

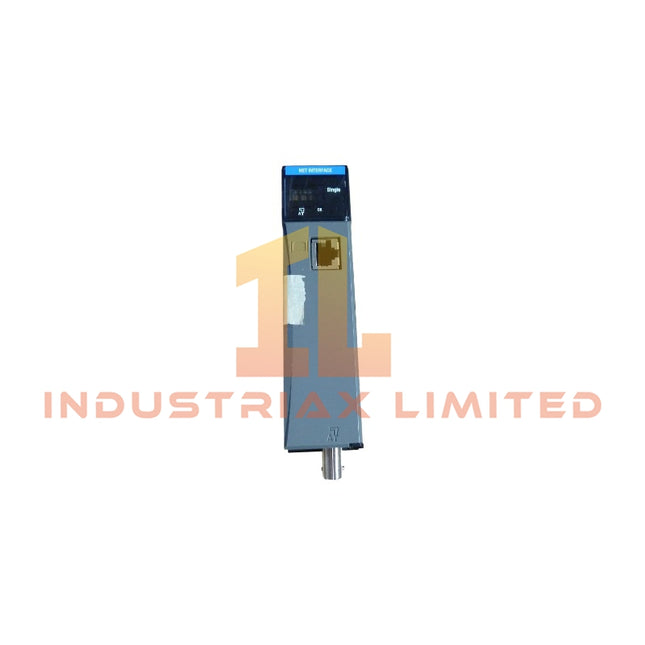

Honeywell Honeywell TC-CCN012 ControlNet Interface Module
Honeywell TC-CCN012 ControlNet Interface Module The Honeywell TC-CCN012, also cataloged as the TC-CCN012 ControlNet Interface Module, operates as a dedicated hardware component for single-media ControlNet communication within Honeywell C200 controller platforms. Hardware Specifications Parameter Specification Model TC-CCN012 Brand Honeywell Product Type ControlNet Interface Module Function Single Media ControlNet Interface Communication Network ControlNet Media Type Single Media Controller Compatibility Honeywell C200 Controller Platform Origin USA Weight Approximately 0.25 kg Dimensions 2.2 cm x 12.4 cm x 12.6 cm Operating Temp -40 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 0% to 95% RH, non-condensing Power Supply 24 VDC Power Consumption Less than 5 W Mounting Type Control System Rack Installation Network Interface ControlNet Single Media Connection Product Status Discontinued / Replaced by newer models Process Control Network Communication Interface The Honeywell TC-CCN012 provides ControlNet network access between the Honeywell C200 controller platform and connected industrial communication nodes. The module processes network data exchange through the ControlNet architecture and supports controller-to-device communication within configured control racks. For Honeywell process control installations, the communication design typically separates field measurement channels from controller network functions. However, the TC-CCN012 itself functions as a network interface device and does not provide analog input, analog output, HART loop processing, FOUNDATION Fieldbus, Profibus PA connectivity, or cold junction compensation (CJC) functions. The module supports rack-based installation and integrates with Honeywell control system hardware through the defined controller communication structure. Network cable routing, termination, and grounding practices must follow the ControlNet installation requirements. Frequently Asked Questions Q: What communication function does the Honeywell TC-CCN012 provide?A: The TC-CCN012 provides a single-media ControlNet communication interface for data exchange between Honeywell C200 controller systems and connected network devices. Q: Does the TC-CCN012 provide field signal processing functions?A: No. The TC-CCN012 is a communication interface module and does not perform analog measurement, 4-20 mA HART processing, or digital field I/O signal conversion. Q: Can the TC-CCN012 be installed in any Honeywell control rack?A: Installation requires compatibility with the supported Honeywell C200 controller rack configuration and the corresponding ControlNet network architecture. Field Installation Guidelines Verify that the control rack configuration supports the TC-CCN012 module before installation. Confirm the availability of the required 24 VDC power supply connection. Install ControlNet cables according to network topology and termination requirements. Maintain separation between communication cables and high-voltage power wiring to reduce electrical interference. Connect cable shields and grounding points according to Honeywell control system installation practices. Check controller configuration parameters after installation to confirm network communication status.
$200.00 $100.00
-

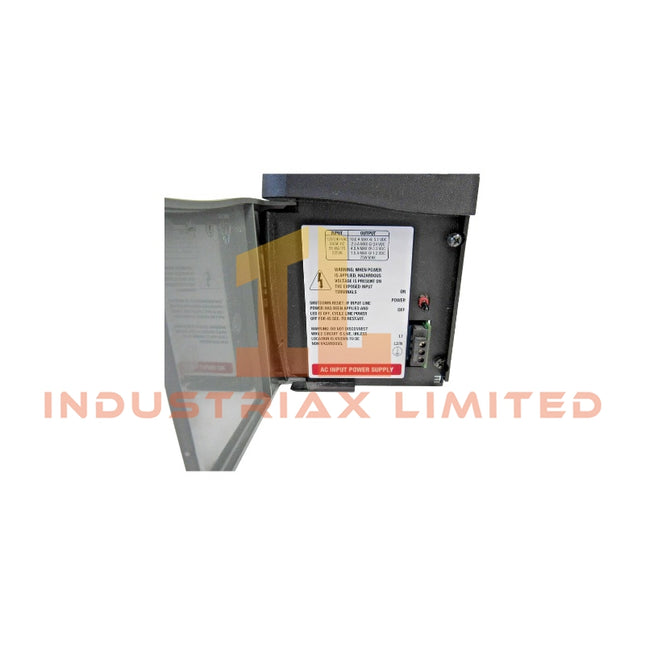

Honeywell Honeywell TC-FPCXX2 Power Supply

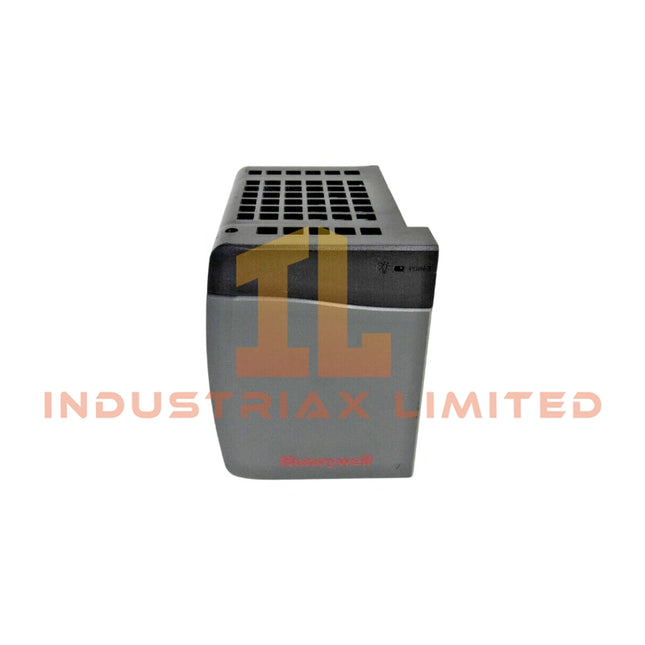

Honeywell TC-FPCXX2 Power Supply The Honeywell TC-FPCXX2, also cataloged as the TC-FPCXX2 Power Supply, operates as a dedicated hardware component for AC power conversion and electrical supply distribution within Honeywell control system platforms. Hardware Specifications Parameter Specification Model TC-FPCXX2 Brand Honeywell Product Type Power Supply Origin USA Weight 0.98 kg Dimensions 11 x 14.2 x 13.8 cm estimated shipping size Operating Temp Maximum output rating at 60 deg C Power Consumption Input power 150 VA, 92 W Input Voltage Range 85-132 VAC or 170-265 VAC Frequency Range 47-63 Hz Maximum Inrush Current 15 A Total Power Output 70 W maximum at 60 deg C Fuse Protection Four non-replaceable soldered fuses Wiring Specification #14 AWG (1.4 mm) Tariff Code 8537101190 Place of Shipment Xiamen, China Process Control Power Conversion Characteristics The Honeywell TC-FPCXX2 provides regulated AC input power conversion for Honeywell process control hardware assemblies. Moreover, the module accepts dual-range AC input voltage conditions, allowing integration into different industrial power distribution environments. The power supply supports electrical isolation and controlled output delivery through internal protection components. In addition, the four soldered non-replaceable fuses protect internal circuits against abnormal current conditions during operation. For Honeywell control architectures, power supply modules maintain stable electrical availability for connected hardware. Therefore, installation requires correct voltage selection, appropriate wiring practices, and compliance with system grounding requirements. Frequently Asked Questions Q: What AC input voltage ranges does the Honeywell TC-FPCXX2 support?A: The TC-FPCXX2 supports an input voltage range of 85-132 VAC or 170-265 VAC with a frequency range of 47-63 Hz. Q: Does the TC-FPCXX2 use replaceable fuses?A: No. The module contains four non-replaceable fuses that are soldered directly in place. Q: What wiring specification is required for the TC-FPCXX2 power connection?A: The module specifies #14 AWG (1.4 mm) wiring for electrical connections. Field Installation Guidelines Install the TC-FPCXX2 in a clean industrial enclosure with sufficient airflow around the power supply assembly. Verify the selected AC input voltage range before energizing the module. Use wiring that matches the specified connection requirements and maintain proper separation between AC power lines and low-level signal cables. Furthermore, connect protective grounding according to the control cabinet electrical design. Inspect terminal connections for mechanical tightness before startup. Avoid modifying internal fuse components because the protection devices are factory-installed and soldered.
$200.00 $100.00
-
Bently Nevada Honeywell TC-FPCXX2 Power Supply

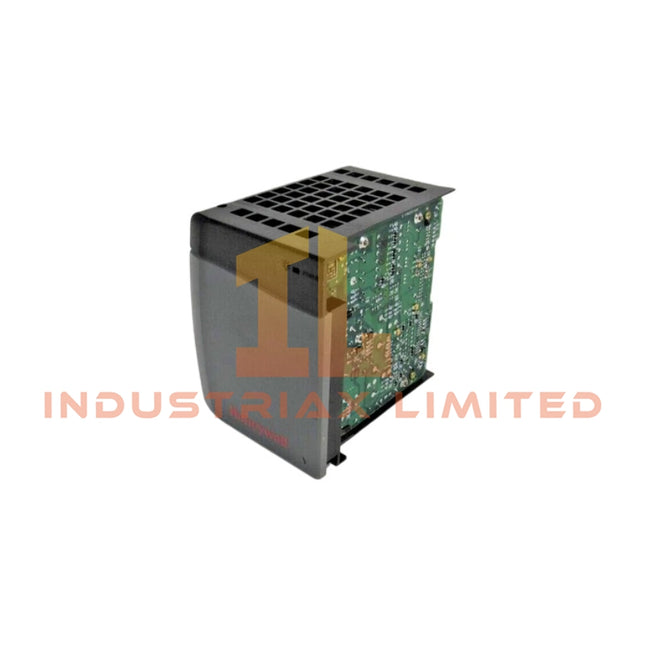

Honeywell TC-FPCXX2 Power Supply Configured for AC power conversion and regulated supply distribution in Honeywell control hardware platforms, the Honeywell TC-FPCXX2 (TC-FPCXX2 Power Supply) provides direct physical/electrical execution for system power input and output regulation. Hardware Specifications Parameter Specification Model TC-FPCXX2 Brand Honeywell Product Type Power Supply Origin USA Weight 0.98 kg Dimensions 11 x 14.2 x 13.8 cm Operating Temp 0 deg C to 60 deg C Power Consumption 95 W input, 92 W rated input power Input Voltage Range 85-132 VAC or 170-265 VAC Input Frequency Range 47-63 Hz Input Power Rating 150 VA Maximum Inrush Current 15 A Total Power Output Maximum 70 W at 60 deg C Fuse Protection 4 non-replaceable soldered fuses Wiring Requirement #14 AWG (1.4 mm) Input Configuration AC input, 120/240 VAC selectable range System Frequency 50/60 Hz Process Control Power Distribution Characteristics The TC-FPCXX2 provides AC input conversion and regulated power delivery for Honeywell control system hardware. The power supply accepts dual-range AC input levels and maintains a controlled output capacity for connected modules. Moreover, Honeywell power supply hardware is designed for integration with process control platforms where stable electrical distribution supports controller, I/O, and interface module operation. The unit uses fixed fuse protection and defined wiring specifications to maintain circuit protection during operation. The module operates as a dedicated electrical component rather than a signal processing device. Therefore, installation focuses on AC input compatibility, load calculation, grounding practices, and cabinet power segregation. Frequently Asked Questions Q: What AC input voltage ranges does the TC-FPCXX2 support?A: The TC-FPCXX2 supports 85-132 VAC and 170-265 VAC input ranges with 47-63 Hz operating frequency. Q: Does the TC-FPCXX2 use replaceable fuses?A: No. The module contains 4 non-replaceable fuses soldered directly on the power supply assembly. Q: What is the maximum output capability of the TC-FPCXX2?A: The power supply provides a maximum total output of 70 W at 60 deg C operating conditions. Field Installation Guidelines Install the TC-FPCXX2 inside a compatible control cabinet with appropriate AC power isolation before wiring operations. Verify that the incoming AC voltage matches the specified input range before energizing the module. Use the recommended wire size and maintain separation between AC power wiring and low-level signal cables. Connect protective grounding according to the cabinet grounding design. Avoid routing power conductors near communication or analog measurement circuits to reduce electrical interference. Confirm the connected load remains within the power supply output rating before system startup. Inspect fuse status and terminal connections during routine maintenance activities.
$200.00 $100.00
