Description

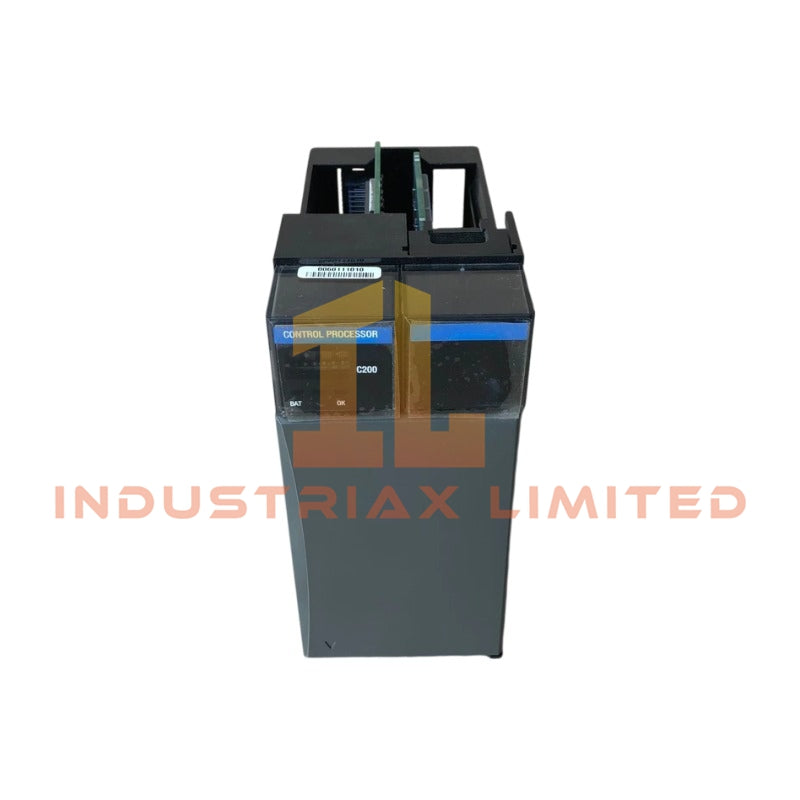

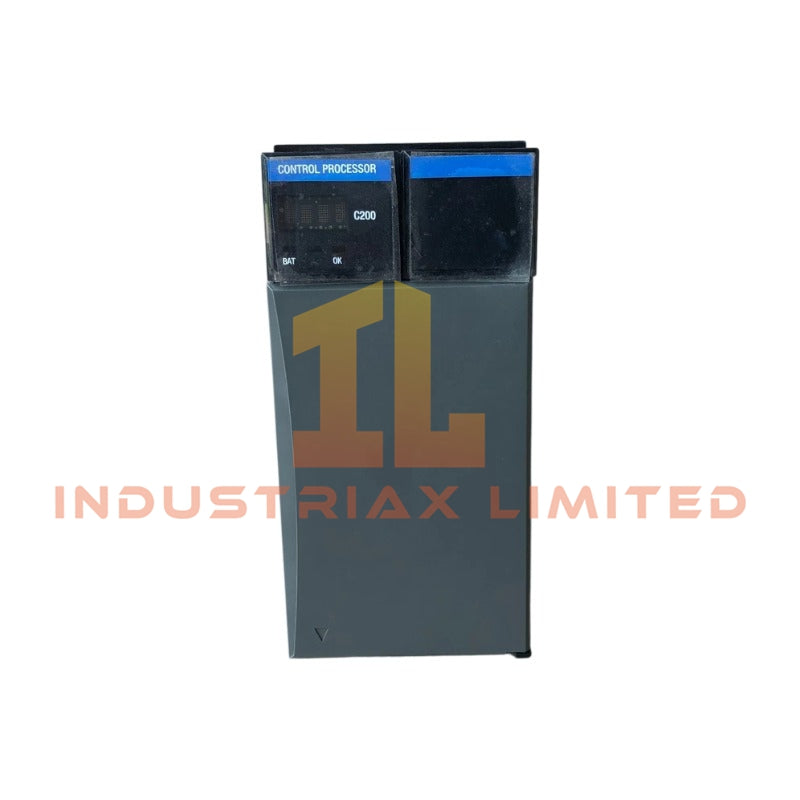

Honeywell TK-PRS021 51404305-275 Control Processor Module

Configured for control processing execution in the Honeywell Experion PKS C200 system, the Honeywell TK-PRS021 51404305-275 (TK-PRS021 Control Processor Module) provides direct physical and electrical execution for controller operations. The module operates with 24 VDC power input and includes conformal coating for environmental protection.

Hardware Specifications

Parameter	Specification
Model	TK-PRS021 51404305-275
Brand	Honeywell
Product Type	Control Processor Module
System Platform	Experion PKS C200
Spare Model	51404305-275
Origin	USA
Weight	0.4 kg
Dimensions	7 x 14 x 14.5 cm
Operating Temp	Not specified
Power Consumption	24 VDC supply input
Coating Type	Conformal coating
Tariff Code	8537101190

Process Control Communication and Signal Execution

The Honeywell TK-PRS021 51404305-275 functions as a processor module within the Experion PKS C200 control architecture. Therefore, it manages controller-level execution tasks, including application processing, control logic handling, and communication between system components.

Moreover, the module uses a 24 VDC electrical supply configuration and integrates conformal coating to protect internal electronic assemblies against industrial environmental factors. The physical design supports installation inside compatible Honeywell control hardware assemblies.

In addition, Honeywell process control modules within this platform commonly interface with distributed control system networks where field signals, controller calculations, and operator-level information exchange occur through defined system communication paths.

Frequently Asked Questions

Q: What is the primary function of the Honeywell TK-PRS021 51404305-275 module?
A: The TK-PRS021 is a control processor module designed to execute controller processing tasks within the Experion PKS C200 system.

Q: What power supply does the TK-PRS021 51404305-275 require?
A: The module requires a 24 VDC power supply input according to the provided technical specification.

Q: Does the TK-PRS021 include environmental protection features?
A: Yes. The module includes conformal coating on electronic components to provide additional protection for the circuit assembly.

Field Installation Guidelines

Install the Honeywell TK-PRS021 51404305-275 module only in compatible Experion PKS C200 hardware assemblies. Verify rack compatibility, module seating position, and connector alignment before installation.

Maintain proper grounding practices for the control cabinet and ensure that signal wiring follows industrial separation requirements. Keep communication cables separated from high-voltage power conductors to reduce electrical interference.

Before energizing the system, confirm the 24 VDC supply polarity and inspect all backplane connections. Follow Honeywell installation documentation for module replacement procedures, configuration loading, and controller synchronization checks.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
