Distributed Control Systems (DCS) manage complex industrial processes. We stock controllers, I/O modules, and spare parts for ABB, Honeywell, Emerson, and more. Our global supply ensures fast support for both active and legacy systems.
DCS Control Systems
-
Honeywell Honeywell ControlEdge HC900 Controller Component

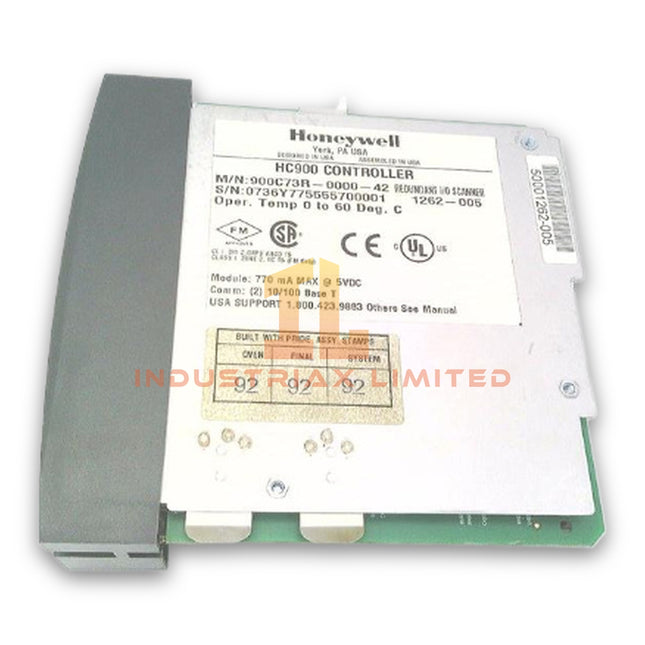

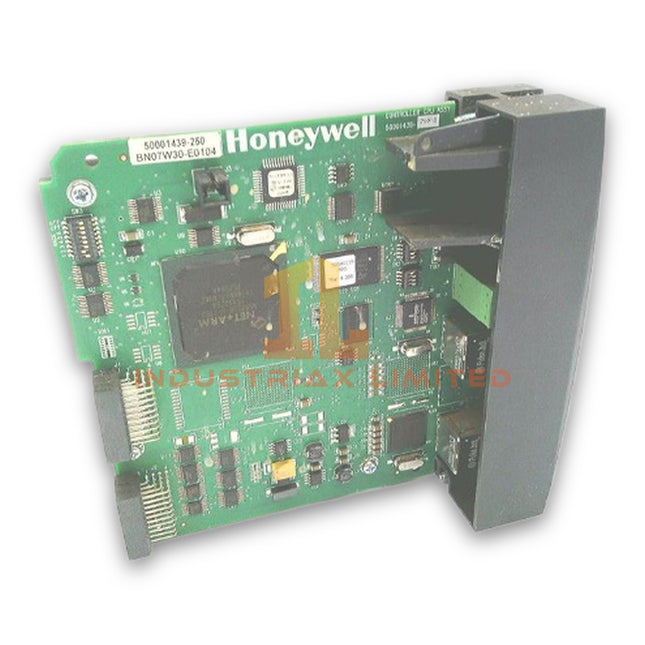

Honeywell ControlEdge HC900 Controller Component Configured for process execution and controller logic management in the Honeywell ControlEdge HC900 system, the Honeywell ControlEdge HC900 Controller Component (HC900 Controller Module) provides direct physical and electrical execution for control processing, I/O coordination, and data handling. Hardware Specifications Parameter Specification Model Honeywell ControlEdge HC900 Controller Component Brand Honeywell Processor Architecture 32-bit RISC-based PowerPC e300 architecture Memory Configuration Flash memory for configuration storage; battery-backed RAM / DDR2 memory for runtime data retention Control Function PID loop control, Boolean logic execution, mathematical functions, analog processing, sequencing, ramp/soak programming Scan Operation Dual scan method for digital and analog processing tasks Communication Interface Ethernet interface with Modbus/TCP support and peer-to-peer controller communication Mounting Structure Modular rack-based controller architecture with 4, 8, and 12 slot configurations I/O Handling Supports hot-swappable I/O modules with automatic configuration recognition Environmental Protection Conformal coating options available for industrial environments requiring corrosion and gas protection Process Control and DCS Interface Features The Honeywell ControlEdge HC900 controller architecture manages analog and digital process signals through modular I/O expansion and controller-based execution. Therefore, the processor handles PID algorithms, logic operations, and scheduled control sequences directly within the controller environment. The controller supports industrial communication functions through Ethernet and Modbus/TCP protocols. In addition, the architecture allows multiple host, HMI, and SCADA connections for supervisory data exchange. For process instrumentation integration, HC900 systems support I/O modules designed for standard industrial signal handling, including 4-20 mA HART loop protocol applications, FOUNDATION Fieldbus and Profibus PA connectivity options where compatible interface modules are installed. Channel-to-channel isolation depends on the selected I/O module configuration. The controller executes deterministic control tasks through its backplane communication structure. Furthermore, the modular design allows users to expand I/O density while maintaining controller configuration consistency. Frequently Asked Questions Q: Does the Honeywell ControlEdge HC900 Controller Component support hot-swapping of I/O modules?A: Yes. The HC900 modular architecture supports hot-swappable I/O modules with automatic configuration recognition. Installation procedures must follow the system hardware manual and power isolation requirements. Q: What communication protocols are supported by the HC900 controller platform?A: The controller supports Ethernet communication using Modbus/TCP protocol and provides peer-to-peer communication between compatible HC900 controllers. Q: How does the HC900 controller retain configuration data during power interruption?A: The controller uses Flash memory for permanent configuration storage and battery-backed RAM / DDR2 memory for runtime data retention and recovery functions. Field Installation Guidelines Install the controller module on the designated HC900 rack assembly and verify mechanical engagement with the backplane connector. Confirm that rack grounding follows industrial control panel grounding practices before applying power. Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference. Use shielded instrumentation cables for low-level analog signals and terminate shields according to site grounding standards. Verify Ethernet cable routing and connector installation before establishing Modbus/TCP communication. Check firmware compatibility between the controller module and installed I/O modules before system commissioning. Maintain adequate cabinet ventilation according to the installed enclosure design and environmental requirements.
$200.00 $100.00
-

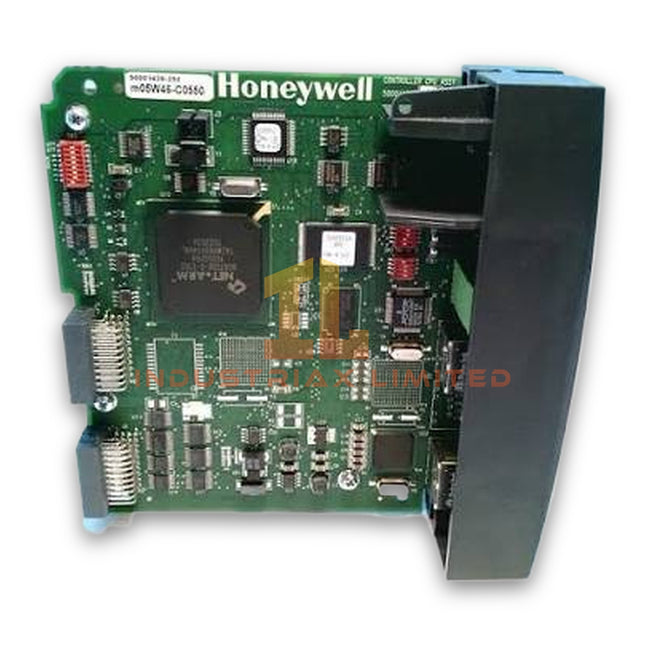

Honeywell Honeywell 900C73R-0000-41 Redundant Controller Module

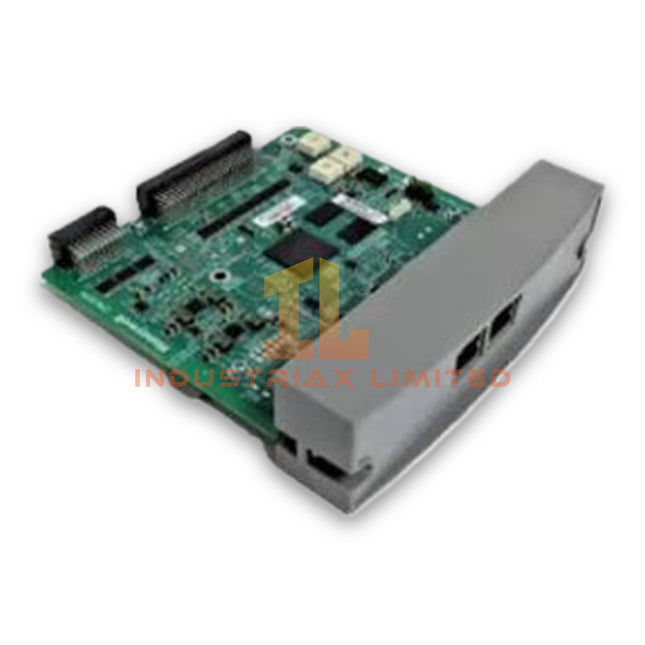

Honeywell 900C73R-0000-41 Redundant Controller Module The Honeywell 900C73R-0000-41, also cataloged as the 900C73R Redundant Controller Module, operates as a dedicated hardware component for controller synchronization, logic execution, and process data handling within the Honeywell ControlEdge HC900 system. Hardware Specifications Parameter Specification Model 900C73R-0000-41 Brand Honeywell Origin Not specified in provided data Product Type Redundant Controller Module Series ControlEdge HC900 Device Function Redundant controller processing, logic execution, and system coordination Mounting Type HC900 rack or chassis installation Diagnostics Status indication and controller self-diagnostic functions System Interface ControlEdge HC900 controller backplane communication Process Control Communication and Loop Management The Honeywell 900C73R-0000-41 manages controller operations through the ControlEdge HC900 architecture and exchanges control data through the controller backplane. The module supports process control strategies, sequence execution, and system status management. For process instrumentation integration, Honeywell controller platforms support communication methods including 4-20 mA HART loop protocol and FOUNDATION Fieldbus / Profibus PA connectivity when compatible interface modules are installed. Channel-to-channel isolation depends on the installed I/O module design and field wiring configuration. The redundant controller arrangement allows synchronized controller operation and supports controlled transfer between active and standby processing units. System diagnostics monitor operating conditions and provide status information for maintenance activities. Frequently Asked Questions Q: Does the 900C73R-0000-41 support redundant controller configurations? A: Yes. The 900C73R designation identifies a redundant controller configuration component within the ControlEdge HC900 platform. The module operates with compatible redundant controller hardware arrangements. Q: Can the module connect directly to field transmitters? A: No. The 900C73R-0000-41 performs controller processing functions. Field signal connections require compatible HC900 I/O modules. Q: What installation factors affect controller communication performance? A: Proper rack installation, backplane connection integrity, grounding practices, and correct module placement affect controller communication performance. Field Installation Guidelines Install the Honeywell 900C73R-0000-41 in an approved ControlEdge HC900 rack position according to the system hardware configuration. Verify that the rack backplane connectors remain clean and properly aligned before module insertion. Confirm that power isolation procedures are completed before installation or removal. Separate controller communication wiring from high-voltage power cables to reduce electrical interference. Apply standard industrial grounding practices and connect shielded cables according to the site wiring specification. Check controller status indicators after installation. Confirm that redundancy synchronization, module diagnostics, and communication status operate within the expected controller configuration.
$200.00 $100.00
-
General Electric GE Multilin F35-N03-HCH-TF8-FH6-EM8-HP6-EU8-HW6-E Multiple Feeder Protection System
GE Multilin F35-N03-HCH-TF8-FH6-EM8-HP6-EU8-HW6-E Multiple Feeder Protection System The GE Multilin F35-N03-HCH-TF8-FH6-EM8-HP6-EU8-HW6-E, also cataloged as the F35 Multiple Feeder Protection System, operates as a dedicated hardware component for feeder protection, control, measurement, and communication within GE Multilin Universal Relay (UR) platforms. Hardware Specifications Parameter Specification Model F35-N03-HCH-TF8-FH6-EM8-HP6-EU8-HW6-E Brand GE Multilin Origin General Electric Universal Relay (UR) family Operating Temp -40 deg C to +60 deg C Power Consumption Approximately 15-30 W nominal, up to 45 W depending on installed I/O modules Power Supply 125-250 V DC / 100-240 V AC nominal, operational range 88-300 V DC / 88-265 V AC Feeder Capacity Up to five feeders with busbar voltage measurement or up to six feeders without busbar voltage measurement Current Inputs 4 CT inputs, 1 A / 5 A selectable Voltage Inputs 4 VT inputs, 50-240 V AC nominal phase-to-neutral Communication Ports RS485, Ethernet interfaces (RJ45 or fiber depending on CPU option) Communication Protocols Modbus RTU, Modbus TCP/IP, DNP 3.0, IEC 61850 GOOSE/MMS optional Protection Functions 50P/51P, 50N/51N, 50G/51G, 49, 27/59, 81U/81O Environmental Coating Conformal coating for harsh environment operation Profinet / EtherNet-IP Deterministic Network and Firmware Compatibility The GE Multilin F35 uses a modular Universal Relay hardware structure with CPU-based processing, configurable I/O expansion, and communication interfaces. The relay architecture supports high-speed Ethernet communication functions through installed communication modules, enabling deterministic data exchange for protection monitoring, event reporting, and substation automation systems. The F35 firmware platform provides compatibility management for configured hardware modules, including CT/VT acquisition boards, digital I/O assemblies, and communication interfaces. Module configuration, FlexLogic programming, and firmware revision control define the operational behavior of the protection system. Frequently Asked Questions Q: Can the F35 support hot-swap replacement of installed modules?A: The F35 uses a modular architecture; however, module replacement procedures must follow GE Multilin maintenance requirements. Power isolation and configuration verification are required before removing or installing hardware assemblies. Q: What is the function of the CT/VT input modules in the F35 configuration?A: CT/VT modules provide analog current and voltage acquisition for feeder protection elements, metering calculations, fault recording, and protection algorithm execution. Q: Which communication protocols are available on the F35 relay?A: The F35 supports Modbus RTU, Modbus TCP/IP, DNP 3.0 serial/TCP communication, and optional IEC 61850 GOOSE and MMS functions depending on installed communication options. Field Installation Guidelines Install the relay in a suitable protection panel with adequate mechanical support and environmental protection. Route CT and VT wiring separately from high-energy power conductors to reduce electromagnetic interference. Connect CT secondary circuits using correct polarity and approved shorting practices during maintenance activities. Apply shielded communication cables where required and terminate shields according to site grounding standards. Verify auxiliary supply voltage before energizing the relay. Confirm the installed power supply module matches the system voltage. Check terminal tightness, module seating, and rear communication connections before commissioning. Perform configuration verification after installation, including CT/VT ratios, digital input assignments, output relay logic, and communication addressing.
$200.00 $100.00
-
General Electric GE Multilin F35N03HAHG8GH6TM8HP6TU5FW6D Feeder Management Relay
GE Multilin F35N03HAHG8GH6TM8HP6TU5FW6D Feeder Management Relay The GE Multilin F35N03HAHG8GH6TM8HP6TU5FW6D, also cataloged as the F35 Feeder Management Relay, operates as a dedicated hardware component for feeder protection, control, and monitoring within GE Multilin Universal Relay (UR) platforms. Hardware Specifications Parameter Specification Model F35N03HAHG8GH6TM8HP6TU5FW6D Brand GE Multilin Dimensions Standard 19-inch rack-mount chassis, horizontal orientation Operating Temp -40 deg C to +60 deg C Power Consumption Not specified in supplied documentation Product Type Feeder Management Relay Platform GE Multilin Universal Relay (UR) Series Power Supply 88-300 VDC / 88-264 VAC Current Inputs 4 CT inputs, 1 A / 5 A rated Voltage Inputs 4 VT inputs Digital I/O High-density contact inputs and Form-A/Form-C relay outputs Communication Redundant Ethernet with IEC 61850 support Protection Functions 50/51, 50N/51N, 50G/51G, 50BF, 67, 67N, 67G, 27, 59, 59N, 81U/81O, 81R Recording Functions Oscillography, Sequence of Events recorder with 1 ms timestamping, fault locator Metering RMS current, voltage, kW, kVAR, kVA, power factor, frequency, energy measurement Power Quality Harmonic analysis up to 25th harmonic, THD measurement GE Multilin Universal Relay Modular Architecture The F35N03HAHG8GH6TM8HP6TU5FW6D uses the GE Multilin UR modular hardware architecture with configurable protection, communication, and I/O assemblies. The configuration includes high-density digital I/O, redundant Ethernet communication, CT/VT acquisition modules, and auxiliary transducer interfaces. The UR platform supports deterministic protection processing through dedicated firmware functions and configurable logic elements. Firmware revision FW6D defines the supported protocol configuration, including IEC 61850, DNP3, and Modbus TCP/RTU communication capabilities. Frequently Asked Questions Q: Does the F35 support hot-swappable module replacement?A: The supplied documentation does not specify hot-swap capability. Module replacement should follow GE Multilin UR maintenance procedures with the relay isolated from external power and field wiring. Q: What communication protocols are supported by this configuration?A: The specified FW6D configuration supports communication options including IEC 61850, DNP3, and Modbus TCP/RTU according to the configured firmware and communication hardware. Q: What input signals are processed by the relay?A: The relay processes transformer-derived current and voltage signals through the integrated 4 CT / 4 VT module and supports protection, metering, and monitoring functions based on sampled electrical measurements. Field Installation Guidelines Install the relay in a suitable 19-inch rack or panel enclosure according to the GE Multilin UR mechanical installation requirements. Terminate CT and VT circuits using dedicated protective wiring practices. Maintain separation between instrument transformer wiring, communication cables, and high-voltage conductors to reduce electrical interference. Connect communication ports using appropriate shielded cabling and apply grounding practices according to substation protection standards. Verify Ethernet network configuration, fiber or copper interface compatibility, and IEC 61850 network settings before commissioning. Before energizing the relay, verify power supply polarity, auxiliary voltage range, terminal connections, digital input polarity, and output contact wiring. Confirm firmware compatibility with the configured protection logic and communication functions.
$200.00 $100.00
-
General Electric GE Multilin F35-E00-VF-HF-8F-H6T-M6T-PXX Universal Relay
GE Multilin F35-E00-VF-HF-8F-H6T-M6T-PXX Universal Relay The GE Multilin F35-E00-VF-HF-8F-H6T-M6T-PXX, also cataloged as the F35 Universal Relay, operates as a dedicated hardware component for feeder protection, control, and metering within GE Multilin Universal Relay (UR) platforms. The relay executes electrical measurement, protection logic, digital I/O processing, and communication functions for multiple feeder applications. Hardware Specifications Parameter Specification Model F35-E00-VF-HF-8F-H6T-M6T-PXX Brand GE Multilin Operating Temp -40 deg C to +60 deg C Power Consumption 15-30 W typical, 45 W maximum Power Supply 110-250 VDC / 110-230 VAC Protection Type Multiple Feeder Protection Relay Current Inputs 1 A / 5 A dual-rated CT inputs Voltage Inputs 60-300 V AC phase-to-neutral VT inputs Digital Outputs Form-A trip-rated contact outputs Digital Input Range 24-250 VDC configurable Ethernet Communication 10/100Base-T, 100Base-FX fiber options Serial Communication RS485 Modbus RTU / DNP 3.0 Ethernet Protocols IEC 61850 Ed. 1/Ed. 2, Modbus TCP/IP, DNP 3.0 over TCP/IP, SNTP Enclosure Rating IP40 front panel, IP20 terminal block Profinet / EtherNet Deterministic Network and Firmware Compatibility The GE Multilin F35 uses the Universal Relay platform communication architecture for deterministic substation data exchange. The CPU and communication module support Ethernet-based protocols including IEC 61850 and Modbus TCP/IP for protection event reporting, control commands, and monitoring data transfer. Firmware flash compatibility is managed through the UR platform software environment, allowing supported application packages and communication configurations to be maintained according to the relay hardware revision. The relay integrates configurable FlexLogic(TM) processing for custom interlocks, protection schemes, and control sequences. The modular design supports I/O density scaling through CT/VT and digital expansion modules including the H6T and M6T configurations. Frequently Asked Questions Q: Does the F35 support hot-swappable module replacement during operation?A: The F35 modular architecture supports field service access to configurable hardware assemblies; however, module replacement procedures must follow GE Multilin maintenance instructions and required system isolation practices. Q: What communication protocols are available through the CPU and communication module?A: The relay supports IEC 61850 Ed. 1/Ed. 2, Modbus TCP/IP, DNP 3.0 over TCP/IP, SNTP, and RS485-based Modbus RTU/DNP 3.0 communication. Q: What is the input capability of the 8F CT/VT module?A: The 8F module provides dual-rated 1 A / 5 A current transformer inputs and voltage transformer inputs rated for 60-300 V AC phase-to-neutral measurements. Field Installation Guidelines Install the relay in a protected control panel environment with adequate clearance for terminal wiring and front-panel access. Use shielded communication cables for serial and Ethernet connections where required by the installation environment. Connect cable shields according to site grounding practices to reduce electromagnetic interference on measurement and communication circuits. Separate CT, VT, digital input, and communication wiring routes to reduce electrical coupling between signal groups. Verify CT polarity, VT phase assignment, and terminal identification before energizing protection circuits. Confirm auxiliary supply voltage compatibility before connecting the HF power supply module. Ensure protective grounding connections are completed according to substation electrical standards. Configure protection settings, FlexLogic sequences, and communication parameters after hardware installation verification.
$200.00 $100.00
-
General Electric GE Multilin F35-E00-HCH-F8F-H6G-M8F-P6H-UXX-WXX Multiple Feeder Protection System
GE Multilin F35-E00-HCH-F8F-H6G-M8F-P6H-UXX-WXX Multiple Feeder Protection System Configured for feeder protection execution in GE Multilin Universal Relay (UR) platforms, the GE Multilin F35-E00-HCH-F8F-H6G-M8F-P6H-UXX-WXX (F35 Multiple Feeder Protection System) provides direct physical and electrical execution for protection, control, monitoring, and feeder automation functions. Hardware Specifications Parameter Specification Model F35-E00-HCH-F8F-H6G-M8F-P6H-UXX-WXX Brand GE Multilin Dimensions 19-inch rack mounting, 3/4 size horizontal chassis Operating Temp -40 deg C to +60 deg C Power Consumption 25 W nominal, 45 W maximum per supply Series Universal Relay (UR) Platform Power Supply Dual redundant F8F supply, 125-250 V DC / 120-240 V AC nominal Input Module H6G CT/VT module with 4 current transformer inputs and 4 voltage transformer inputs I/O Modules M8F and P6H digital I/O modules with Form-A relay outputs and contact inputs Communication Interfaces RS485 Modbus RTU and Ethernet interfaces Protection Functions 50P/51P, 50N/51N, 50G/51G, 27P/59P, 59N, 81U/81O, 79, 52 Recording Capability Oscillography up to 64 samples/cycle and event recorder up to 1024 time-tagged records GE Multilin Universal Relay UR Platform Industrial Control Characteristics The F35 operates within the GE Multilin Universal Relay platform architecture using modular hardware configuration and rear communication interfaces. The relay supports deterministic protection processing through dedicated CT/VT acquisition modules, digital input scanning, Form-A output control, and embedded protection firmware. The modular slot structure allows configuration of I/O density scaling according to feeder protection requirements. Firmware flash compatibility supports controlled software updates within the UR platform hardware environment. The relay processes RMS current, voltage, active power, reactive power, apparent power, power factor, frequency, and energy measurement data for protection and monitoring functions. The communication subsystem provides RS485 Modbus RTU and Ethernet connectivity for integration with substation control systems. Data exchange is performed through defined relay communication protocols with configured network parameters. Frequently Asked Questions Q: Does the F35 support redundant power supply operation?A: Yes. The F35-E00-HCH-F8F-H6G-M8F-P6H-UXX-WXX configuration includes dual redundant F8F power supplies. Each supply operates within its specified voltage range and supports relay power continuity requirements. Q: What hardware modules are installed in this ordering configuration?A: The configuration includes the H6G CT/VT module, M8F digital I/O module, P6H high-density digital I/O module, and UXX reserved expansion slot position. Q: What communication interfaces are available on this model?A: The WXX communication configuration provides standard rear communication ports including RS485 Modbus RTU and Ethernet interfaces. Field Installation Guidelines Install the relay in a suitable 19-inch rack mounting enclosure with adequate clearance for front panel access and rear wiring connections. Use shielded signal wiring for CT, VT, communication, and low-level control circuits where required by the installation environment. Terminate cable shields according to the site grounding design to reduce electrical interference. Separate high-voltage wiring from communication and measurement circuits during cable routing. Verify CT polarity, VT connections, contact input wiring, and Form-A output circuits before energizing the relay. Confirm power supply voltage selection matches the installed F8F supply configuration. Check communication addressing, protection settings, and I/O mapping before placing the relay into service.
$200.00 $100.00
-
General Electric GE Multilin F3500HCHF8FH6GM8FP6HCXXWXX Feeder Protection Relay
GE Multilin F3500HCHF8FH6GM8FP6HCXXWXX Feeder Protection Relay The GE Multilin F3500HCHF8FH6GM8FP6HCXXWXX, also cataloged as the F35 Feeder Protection Relay, operates as a dedicated hardware component for feeder protection, control, metering, and monitoring within Substation Automation Systems (SAS) and SCADA communication networks. Hardware Specifications Parameter Specification Model F3500HCHF8FH6GM8FP6HCXXWXX Brand GE Multilin Origin GE Multilin Protection Relay Product Family Dimensions Standard 19-inch rack-mount chassis or drawout panel mount Operating Temp -40 deg C to +60 deg C Power Consumption Nominal < 20 W, maximum < 35 W during relay actuation Protection Functions ANSI 50P/51P, 50G/51G, 67P/67G, 27/59, 59N, 81O/81U, 50BF, 79 CT Inputs Phase and ground CT inputs, 1 A / 5 A software selectable VT Inputs 50 V to 240 V AC nominal phase-to-neutral, auto-ranging Frequency Tracking 40 Hz to 70 Hz Communication Protocols IEC 61850 Edition 1 & 2, DNP 3.0, Modbus TCP/IP, Modbus RTU Event Recording Up to 1024 time-stamped events with 1 ms resolution Waveform Capture Up to 64 samples/cycle multi-channel oscillography Front Panel Interface Graphical LCD, programmable LED indicators, local control keys, RS232/USB maintenance port Protection Coating Conformal coating for industrial environments Deterministic Industrial Communication and Firmware Compatibility The GE Multilin F3500HCHF8FH6GM8FP6HCXXWXX incorporates Ethernet and serial communication interfaces for integration into protection and automation networks. The dual Ethernet interfaces support IEC 61850 Edition 1 and Edition 2, Modbus TCP/IP, and DNP 3.0 TCP communication. The RS485 serial interface supports Modbus RTU and DNP 3.0 protocols. The relay architecture supports firmware flash compatibility for embedded protection logic updates and configuration management. Communication processing is coordinated with protection algorithms, event recording, waveform capture, and control functions without changing the physical CT/VT measurement circuits. Frequently Asked Questions Q: What CT input configurations are supported by the F3500HCHF8FH6GM8FP6HCXXWXX?A: The relay supports phase and ground CT inputs with 1 A / 5 A secondary selection through software configuration. Sensitive ground fault CT input options are also available. Q: Does the relay support IEC 61850 communication?A: Yes. The relay supports IEC 61850 Edition 1 and Edition 2 through Ethernet communication interfaces, together with Modbus TCP/IP and DNP 3.0 TCP protocols. Q: What type of mounting configuration is available for this relay?A: The unit is configured for standard 19-inch rack mounting or drawout panel mounting according to the ordered hardware configuration. Field Installation Guidelines Install the relay in a protected control panel environment with adequate clearance for front-panel access and rear terminal wiring. Terminate CT circuits using appropriate shorting provisions during maintenance activities. CT wiring should be routed separately from high-voltage conductors and high-current switching cables to reduce electromagnetic interference. Connect VT input wiring with correct polarity and phase identification before energizing the relay. Communication cables should use proper shield termination practices, with shield grounding applied according to the substation grounding design. Verify auxiliary power supply polarity and voltage range before commissioning. Confirm Ethernet, RS485, and protection I/O wiring against the approved engineering drawings before applying operational settings. For panel installations, ensure mechanical fastening, terminal tightening, and enclosure grounding meet the site electrical installation requirements.
$200.00 $100.00
-
General Electric GE Multilin C30 Controller Management Relay
GE Multilin C30 Controller Management Relay Configured for substation bay control and power system management in Universal Relay (UR) platforms, the GE Multilin C30 (C30 Controller Management Relay) provides direct physical and electrical execution of breaker control, monitoring, protection logic, and IEC 61850 communication functions. Hardware Specifications Parameter Specification Model C30 Brand GE Multilin Origin General Electric Universal Relay (UR) Series Operating Temp -40 deg C to +60 deg C Power Supply 24-48 V DC or 88-300 V DC / 88-264 V AC Current Inputs CT inputs: 1 A or 5 A secondary, dual CT rated, 1x to 40x nominal range Voltage Inputs VT inputs configurable from 50 V to 240 V AC secondary Digital Inputs Modular inputs with configurable threshold voltage from 24 V DC to 250 V DC Output Relays Form A, Form C, high-speed Form A trip outputs Analog I/O Optional 4-20 mA DC inputs and outputs Communication Ports Up to 3 redundant Ethernet ports, RS232, USB Ethernet Interface 100Base-TX RJ45 or 100Base-FX fiber optic ST/LC connectors Protection Functions 50P/51P, 50N/51N, 27/59, 81U/81O, 50BF, 25, 79 Protection Accuracy Voltage and current metering Class 0.2; power and energy metering better than 0.5% Profinet / EtherNet-IP Deterministic Networks and Firmware Compatibility The GE Multilin C30 integrates programmable control through the FlexLogic engine and supports deterministic communication architectures through IEC 61850, DNP 3.0, Modbus, and IEC 60870 protocols. The controller executes configurable interlock sequences, breaker failure logic, autoreclose routines, and bay switching operations without requiring an external PLC. The Ethernet communication subsystem supports redundant network configurations with IEC 61850 Edition 1 and Edition 2 station bus and process bus operation. GOOSE messaging provides high-speed peer-to-peer signal exchange for breaker control and substation automation applications. The relay firmware environment supports configurable protection logic, event recording, oscillography, and communication parameter management. Firmware compatibility shall be verified against the installed hardware revision and application configuration before upgrade procedures. Frequently Asked Questions Q: Does the GE Multilin C30 support hot-swap replacement of hardware modules?A: The C30 modular architecture allows field replacement of supported hardware modules according to GE Multilin maintenance procedures. Hot-swap capability depends on the installed module type and system configuration. Q: What communication protocols are supported by the C30 relay?A: The relay supports IEC 61850 GOOSE and MMS, DNP 3.0 serial and TCP/IP, Modbus RTU, Modbus TCP, IEC 60870-5-103, IEC 60870-5-104, IEEE 1588 PTP, and SNTP time synchronization. Q: What are the available power supply ranges for the C30?A: Available power supply options include 24-48 V DC and high-range supplies rated for 88-300 V DC or 88-264 V AC. Field Installation Guidelines Install the relay in a standard 19-inch rack enclosure with sufficient clearance for rear wiring and communication connections. Connect CT and VT circuits according to the approved protection system wiring diagram and verify polarity before commissioning. Separate low-level communication wiring from high-current power conductors to reduce electrical interference. Apply shield grounding practices according to the site EMC requirements, with cable shields terminated using approved grounding methods. Verify Ethernet fiber or copper connections for correct connector type, network topology, and communication parameters. Confirm digital input voltage thresholds before connecting external control circuits. Check auxiliary power polarity and grounding before energizing the relay. Validate protection settings, FlexLogic equations, and communication mapping before placing the relay into service.
$200.00 $100.00
-
General Electric GE Multilin D25 Substation Controller
GE Multilin D25 Substation Controller The GE Multilin D25, also cataloged as the D25 Substation Automation Controller, operates as a dedicated hardware component for data concentration, automation logic execution, and electrical monitoring within substation control network platforms. Hardware Specifications Parameter Specification Model D25 Brand GE Multilin Dimensions 19-inch rack-mount modular industrial chassis Device Classification Substation Automation Controller / Multi-Function IED Processor & OS 32-bit RISC architecture with QNX real-time operating system Internal Memory 64 MB DRAM, 32 MB Flash Memory Digital Inputs Up to 128 configurable status inputs with wetting voltage selection and chatter filtering Digital Outputs Up to 64 control outputs including trip/close control pairs DC Analog Inputs Up to 32 inputs Analog Outputs Up to 16 outputs AC Measurement Inputs Direct 1 A or 5 A CT inputs and VT inputs Communication Ports Dual redundant Ethernet 10/100 Mbps, RS-232/RS-485 serial, fiber optic interfaces, modem options Supported Protocols IEC 61850 GOOSE and Server, DNP3, Modbus RTU/TCP, IEC 60870-5-101/103/104, SPABus, Courier Fault Recording Up to 16 MB local storage, waveform records in COMTRADE format Time Synchronization IRIG-B, SNTP/NTP over Ethernet, protocol-based synchronization Display Options Optional Data Display Panel (DDP) or Graphical Display Panel (GDP) Ethernet Communication and Firmware Flash Compatibility The GE Multilin D25 uses modular industrial communication resources for substation data exchange, including dual redundant Ethernet interfaces and serial communication channels. The controller supports firmware storage through internal flash memory and maintains compatibility with configured application functions, communication drivers, and LogicLinx soft logic execution environments. Network configuration includes protocol handling for IEC 61850 messaging, DNP3, and Modbus communication between field devices, protection relays, and SCADA systems. The D25 supports deterministic data transfer behavior through configured communication paths, allowing status acquisition, control commands, and event records to be processed within defined substation automation architectures. Firmware management requires compatibility verification between installed hardware configuration, application software, and communication modules. Frequently Asked Questions (FAQ) Q: Does the D25 support hot-swap replacement of internal modules?A: The D25 is a modular rack-mounted controller. Hot-swap capability depends on the installed hardware configuration and module type. Replacement procedures must follow the applicable GE Multilin service documentation. Q: What type of fault records can the D25 store?A: The D25 stores digital fault records with waveform oscillography in COMTRADE format and sequence-of-events information for substation analysis. Q: How does the D25 synchronize time for event recording?A: The controller supports IRIG-B input, SNTP/NTP over Ethernet, and protocol-based time synchronization methods for event timestamp alignment. Field Installation Guidelines Install the D25 in a suitable 19-inch rack enclosure with appropriate mechanical support and ventilation clearance according to the equipment installation requirements. Use shielded communication cables for serial and Ethernet-connected field devices where required by the site grounding practice. Terminate cable shields according to the substation grounding design to reduce electromagnetic interference. Separate low-level analog signal wiring from high-current power conductors and switching circuits. Verify CT and VT wiring polarity, terminal assignment, and insulation conditions before energizing measurement circuits. Confirm communication addressing, protocol parameters, and time synchronization settings before connecting the controller to the station network. Validate digital input states and output control circuits during commissioning using approved test procedures.
$200.00 $100.00
-
General Electric GE Multilin F35 Feeder Management Relay
GE Multilin F35 Feeder Management Relay The GE Multilin F35, also cataloged as the F35 Feeder Management Relay, operates as a dedicated hardware component for distribution feeder protection, breaker control, and electrical fault detection within substation protection systems. Hardware Specifications Parameter Specification Model F35 Brand GE Multilin Operating Temp -40 deg C to +60 deg C Feeder Capacity Up to 6 feeders without bus voltage measurement; up to 5 feeders with busbar voltage measurement Protection Functions ANSI 50, 51, 27, 59, 81, 50BF, 79, TGDF/Wattmetric Firmware Flash Compatibility and Network Execution The GE Multilin F35 supports configurable protection logic execution through internal firmware functions. Firmware flash compatibility allows controlled feature updates and protection setting management within the relay platform. The device processes feeder protection algorithms including overcurrent, voltage, frequency, breaker failure, and autoreclosing functions for connected electrical circuits. Frequently Asked Questions (FAQ) Q: What protection elements are integrated into the F35 relay?A: The F35 integrates instantaneous and time overcurrent protection, voltage protection, frequency protection, breaker failure detection, autoreclosing, and directional ground fault protection functions. Q: How many feeders can the F35 manage in a protection configuration?A: The F35 can be configured for up to 6 feeder protection applications without bus voltage measurement or up to 5 feeders when busbar voltage measurement is included. Q: Does the F35 support automatic breaker control functions?A: The F35 includes a 4-shot autoreclosing function supporting up to 6 breakers and individual breaker failure detection for connected feeders. Field Installation Guidelines Install the F35 relay in a suitable protection panel or relay cabinet with appropriate mechanical support and environmental control. Verify CT and VT wiring polarity before commissioning protection functions. Maintain separation between low-level communication wiring and high-energy power conductors to reduce electrical interference. Use shielded signal wiring where required by the installation design. Connect cable shields according to site grounding practices and avoid multiple unintended grounding points. Confirm auxiliary power wiring, terminal assignments, and protective grounding connections before applying operating voltage. Verify firmware compatibility and protection settings before placing the relay into service.
$200.00 $100.00
-

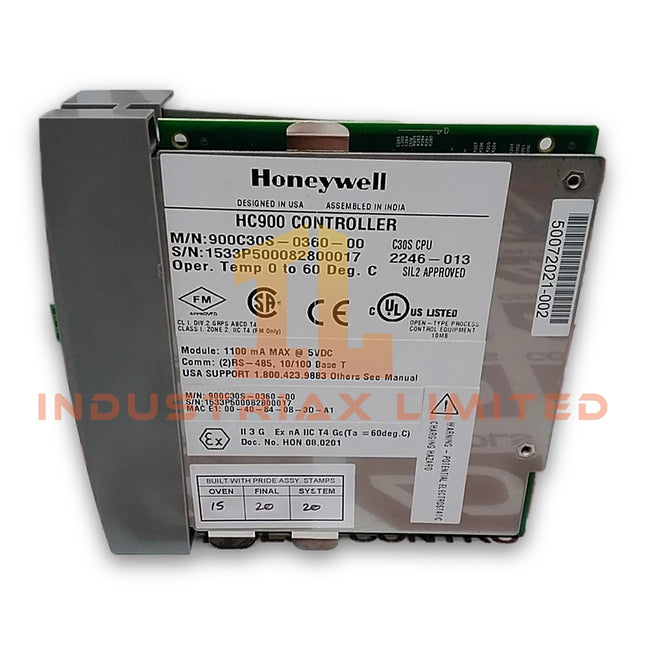

Honeywell Honeywell 900C30S-0360-00 Controller Module

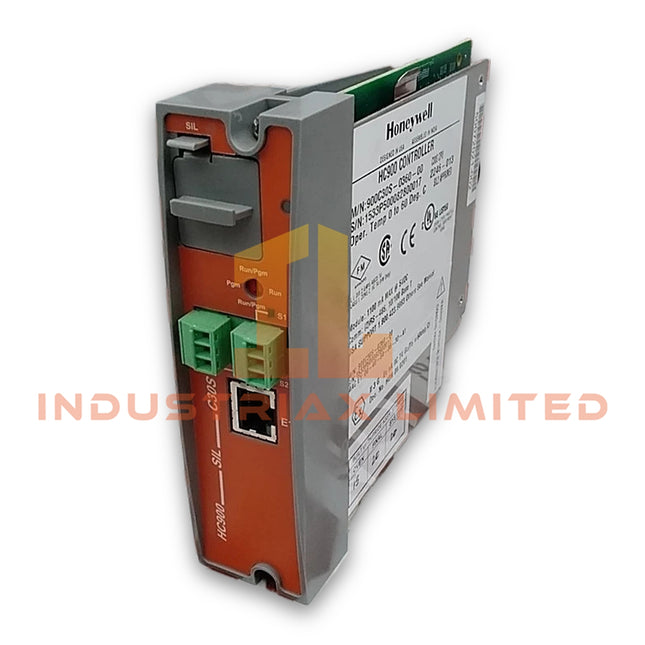

Honeywell 900C30S-0360-00 Controller Module Configured for real-time process execution in Honeywell ControlEdge HC900 controller systems, the Honeywell 900C30S-0360-00 (900C30S Process Controller Module) provides direct physical and electrical control processing for logic execution, PID regulation, and industrial I/O coordination. Hardware Specifications Parameter Specification Model 900C30S-0360-00 Brand Honeywell Origin USA Operating Temp 0 deg C to 60 deg C Power Consumption Supplied through controller rack power system; value not specified Product Type Process Controller / CPU Module Controller Platform Honeywell ControlEdge HC900 / Hybrid Controller Architecture Processor Function Embedded processor for control logic, PID loops, and sequential operations Mounting Method Rack-mounted module installed in dedicated controller chassis slot Communication Interfaces Ethernet-based communication, Modbus RTU, Modbus TCP/IP System Integration Honeywell Experion PKS and third-party HMI/SCADA interfaces Storage Temperature -40 deg C to 85 deg C Relative Humidity 10% to 90%, non-condensing Certifications CE, UL/CSA approvals where applicable Process Control Communication and Signal Handling The Honeywell 900C30S-0360-00 operates as a controller processing unit within the Honeywell ControlEdge HC900 architecture. It executes configured control strategies, manages internal data exchange, and communicates with connected I/O modules through the controller backplane. In addition, the module supports industrial communication functions through Ethernet and Modbus protocols. These interfaces allow controller data exchange with supervisory systems, operator stations, and external automation equipment. For process instrumentation integration, Honeywell controller platforms support field device communication methods including 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity when used with compatible interface modules. Channel-to-channel isolation and signal conditioning depend on the installed I/O module configuration. Frequently Asked Questions Q: Can the 900C30S-0360-00 operate as a standalone I/O interface module?A: No. The module functions as a process controller CPU unit and requires installation within a compatible Honeywell controller rack with connected I/O modules. Q: Does the module support hot-swap replacement during operation?A: Hot-swap capability depends on the specific HC900 rack configuration and system firmware. Field replacement procedures must follow Honeywell controller installation requirements. Q: Which communication protocols can the controller process?A: The module supports Ethernet-based communication and Modbus RTU/TCP communication functions when configured within the supported controller architecture. Field Installation Guidelines Install the module only in the designated Honeywell controller rack slot and verify correct backplane alignment before insertion. Confirm rack power isolation before removing or installing the controller module. Use shielded communication cables for Ethernet and serial connections where required by the installation environment. Separate communication wiring from high-voltage power conductors to reduce electromagnetic interference. Connect cable shields according to the site grounding standard and controller cabinet grounding design. Verify firmware compatibility between the controller module, rack components, and engineering configuration software before commissioning.
$200.00 $100.00
-
Honeywell Honeywell 900C72R-0100-43 ControlEdge HC900 Redundant CPU Controller Module

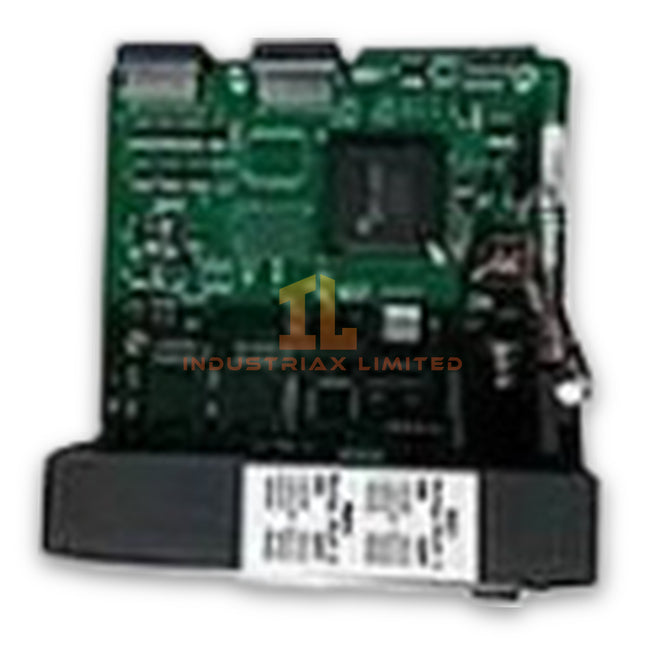

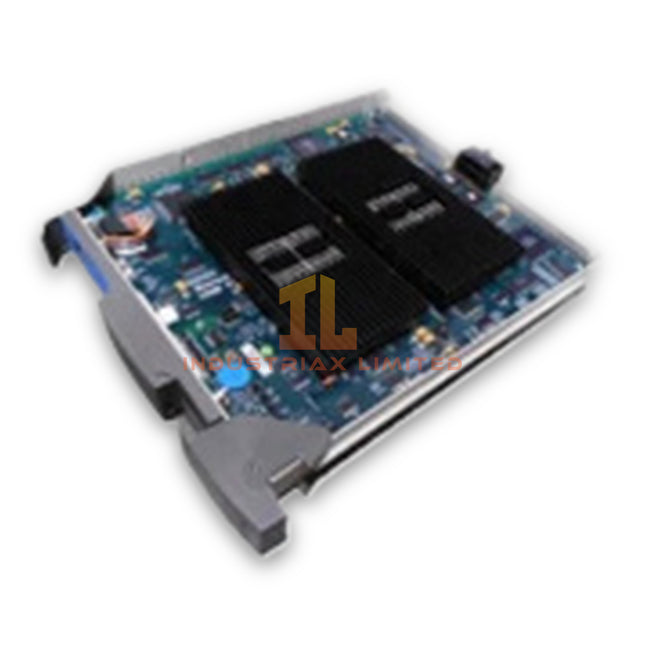

Honeywell 900C72R-0100-43 ControlEdge HC900 Redundant CPU Controller Module Configured for redundant process execution in Honeywell ControlEdge HC900 systems, the Honeywell 900C72R-0100-43 (900C72R-0100 Redundant CPU Controller Module) provides direct control processing, communication handling, and failover management between redundant controller units. Hardware Specifications Parameter Specification Model 900C72R-0100-43 Brand Honeywell Origin USA Product Series ControlEdge HC900 Series Module Type Redundant CPU Controller Module Processor Architecture 32-bit RISC PowerPC processor Memory Battery-backed DDR2 RAM with ECC Redundant Configuration Dual CPU arrangement with RSM based failover management Communication Ports Dual 10/100 Base-T Ethernet ports Serial Communication RS-232 / RS-485 Modbus RTU Diagnostics Watchdog timer, firmware diagnostics, hardware self-test functions Status Indicators Front panel LED indicators for power, status, mode, and redundancy state Operating Temp 0 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% RH, non-condensing Weight 0.2 kg (estimated) Application Process logic control, sequence control, loop management, and redundant controller operation Process Control Communication and Signal Management The Honeywell 900C72R-0100-43 operates within the ControlEdge HC900 architecture and manages controller execution, I/O data processing, and network communication tasks. It supports industrial communication interfaces including Ethernet host connections and Modbus RTU serial communication. Furthermore, the controller design supports process instrumentation integration where analog and digital field devices communicate through HC900 I/O modules. The system architecture supports functions such as 4-20 mA HART loop protocol communication, FOUNDATION Fieldbus / Profibus PA connectivity through compatible interface modules, and channel-to-channel isolation within supported I/O configurations. The redundant CPU arrangement maintains synchronized execution states between controller modules. Therefore, the system can transfer control authority when a primary CPU module detects an operational fault or maintenance condition. Frequently Asked Questions Q: Does the 900C72R-0100-43 support redundant controller operation?A: Yes. The module supports dual CPU redundant configurations with failover management through the HC900 redundant system architecture. Q: What communication interfaces are available on this controller module?A: The module provides dual 10/100 Base-T Ethernet ports and RS-232 / RS-485 Modbus RTU serial communication interfaces. Q: Can the CPU module be replaced while the system remains operational?A: Hot-swap capability depends on the complete HC900 rack configuration and installed redundancy hardware. Field replacement procedures must follow Honeywell system maintenance documentation. Field Installation Guidelines Install the module in a compatible Honeywell ControlEdge HC900 rack with approved power and backplane connections. Verify the rack power supply capacity before installing redundant CPU modules. Connect Ethernet communication cables using industrial shielding practices and maintain separation from high voltage power wiring. Ground cable shields according to site electrical standards to reduce electromagnetic interference. Confirm CPU firmware compatibility with the controller configuration software before commissioning. Verify redundancy synchronization status through the controller diagnostics interface after installation. Follow Honeywell approved procedures for module replacement, configuration loading, and system validation.
$200.00 $100.00
-

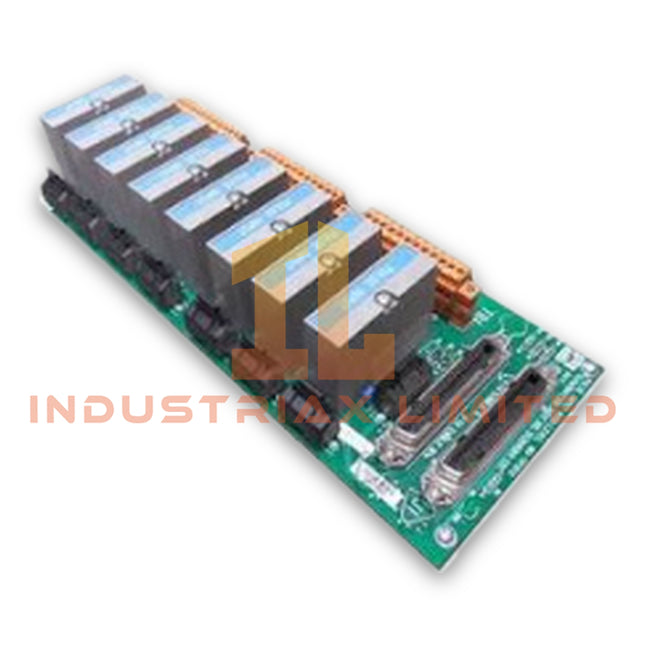

Honeywell Honeywell MC-GHAO21 Galvanically Isolated Analog Output FTA

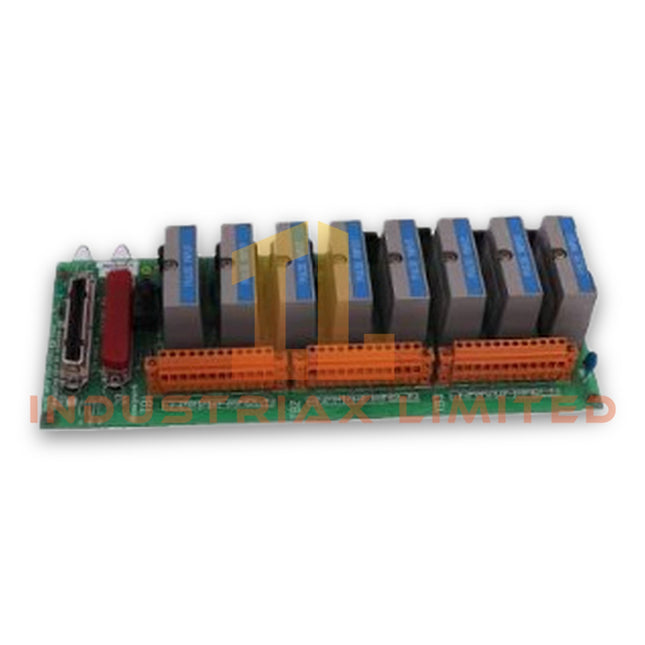

Honeywell MC-GHAO21 Galvanically Isolated Analog Output FTA Configured for isolated analog current signal execution in Honeywell TDC 3000 and Experion PKS platforms, the Honeywell MC-GHAO21 (51305869-175) (MC-GHAO21 Galvanically Isolated Analog Output FTA) provides direct electrical conversion from control data to 4-20 mA field outputs. Hardware Specifications Parameter Specification Model MC-GHAO21 Brand Honeywell Origin USA Part Number 51305869-175 Module Type Galvanically Isolated Analog Output Field Termination Assembly System Compatibility Honeywell TDC 3000 / Experion PKS HPM and IOP systems Output Signal 4-20 mA DC analog output Output Channels Not specified in available data Isolation Type Galvanic isolation, channel-to-channel and channel-to-system Resolution 12 Bit Maximum Load Resistance <= 870 ohm Protocol Support 4-20 mA HART loop protocol Mounting Type DIN rail / cabinet rack mounting Operating Temp -20 deg C to +70 deg C Storage Temp -40 deg C to +85 deg C Relative Humidity 5% to 95% non-condensing Weight Not specified in available data Dimensions Not specified in available data Power Consumption Not specified in available data 4-20 mA HART Loop and Channel Isolation Characteristics The MC-GHAO21 applies Honeywell process control interface technology for analog output signal handling. It receives digital output commands from the control system and generates isolated 4-20 mA current signals for field actuators. Furthermore, the module supports HART communication signals superimposed on the analog output loop. The galvanic isolation structure separates field circuits from system electronics, which reduces ground loop influence and improves signal integrity in distributed control installations. The isolated output architecture supports connection to control valves, I/P converters, valve positioners, and variable speed drive interfaces. Additionally, the isolation design assists with channel protection during field-side electrical disturbances. Frequently Asked Questions Q: Does the MC-GHAO21 support HART communication on the analog output channel?A: Yes. The module supports HART digital communication superimposed on standard 4-20 mA analog output loops. Q: What installation consideration applies to the isolated analog output wiring?A: Field wiring should maintain proper shield termination practices and separate analog signal cables from high-voltage power conductors to reduce electrical interference. Q: Can the MC-GHAO21 operate as a standalone analog output device?A: No. The module is designed as a Honeywell DCS field termination assembly and requires compatible Honeywell control system hardware. Field Installation Guidelines Install the MC-GHAO21 inside an approved control cabinet or DIN rail mounting arrangement according to the system hardware design. Verify terminal assignments before connecting field devices to prevent incorrect current loop wiring. Use shielded instrumentation cable for analog output circuits where required by the installation environment. Connect cable shields according to the site grounding standard to reduce electromagnetic interference. Separate analog signal wiring from AC power and high-current switching circuits. Confirm system compatibility with the Honeywell controller and I/O hardware before commissioning. Check output loop continuity and field device response after completing electrical installation.
$200.00 $100.00
-
Honeywell Honeywell 51403988-150 Process Manager Comm Controller

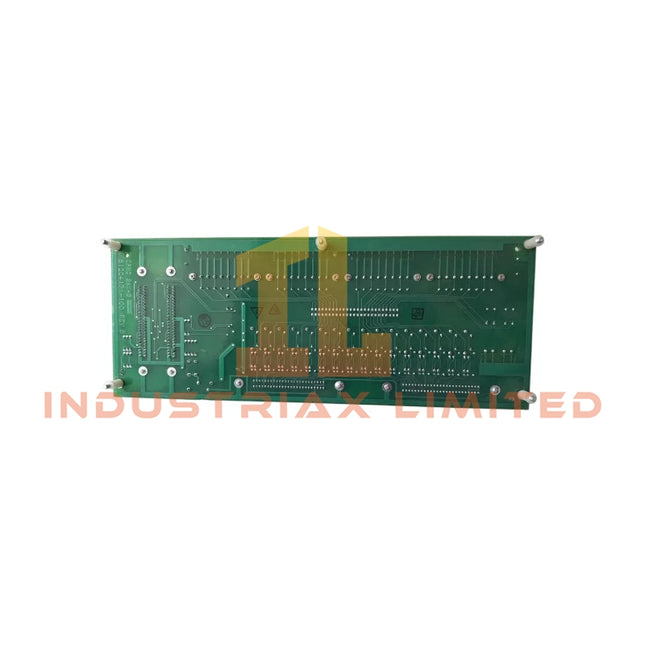

Honeywell 51403988-150 Process Manager Comm Controller The Honeywell 51403988-150, also cataloged as the 51403988-150 Process Manager Comm Controller, operates as a dedicated hardware component for communication control and electrical contact management within Honeywell Process Manager system platforms. Hardware Specifications Parameter Specification Model 51403988-150 Brand Honeywell Product Type Process Manager Communication Controller Origin USA Weight 1.06 kg Dimensions Estimated shipping size: 3 x 33 x 28 cm Operating Temp Not specified by manufacturer Power Consumption Not specified by manufacturer Voltage Rating 50 VDC maximum Current Rating 1 A per contact Contact Resistance <20 mOhm Insulation Resistance >1000 MOhm at 500 VDC Dielectric Strength 500 VAC between adjacent contacts Tariff Code 8537101190 Process Manager Communication and Electrical Interface Characteristics The Honeywell 51403988-150 Process Manager Comm Controller manages communication functions and contact-level electrical interfaces within Process Manager control architectures. Therefore, the module supports controlled signal exchange between system components while maintaining defined electrical separation characteristics. The module provides contact interfaces rated for up to 50 VDC voltage operation and 1 A current per contact. In addition, the design specifies low contact resistance below 20 mOhm to minimize signal losses across connected circuits. For Honeywell process control installations, communication modules typically operate with DCS hardware structures that support field instrumentation integration, including 4-20 mA HART loop protocol, FOUNDATION Fieldbus / Profibus PA connectivity, and channel-to-channel isolation requirements where applicable. Frequently Asked Questions Q: What is the maximum electrical contact rating of the Honeywell 51403988-150?A: The module supports a maximum voltage rating of 50 VDC and a current rating of 1 A per contact. Q: What insulation performance does the 51403988-150 provide?A: The module provides insulation resistance above 1000 MOhm at 500 VDC and dielectric strength of 500 VAC between adjacent contacts. Q: Does the 51403988-150 support hot-swapping?A: The provided technical data does not specify hot-swap capability. Installation should follow the applicable Honeywell Process Manager chassis and maintenance procedures. Field Installation Guidelines Verify the module part number before installation into the Process Manager chassis. Confirm that the power supply is removed or controlled according to site maintenance procedures before handling the module. Install the communication controller into the designated rack position with correct mechanical alignment. Use shielded wiring practices for communication-related connections when required by the system design. Separate low-level communication wiring from high-current power conductors to reduce electrical interference. Check contact surfaces and terminal connections for contamination or mechanical damage before commissioning. Follow Honeywell system documentation for grounding, rack configuration, and diagnostic verification.
$200.00 $100.00
-

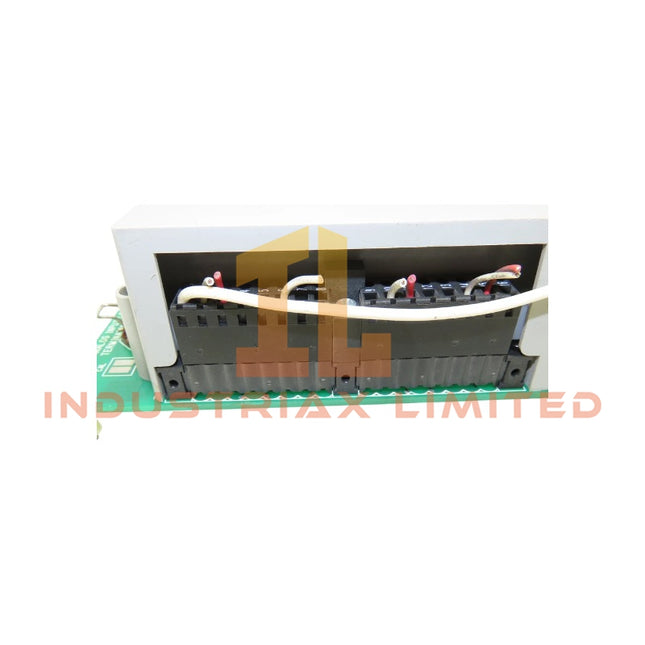

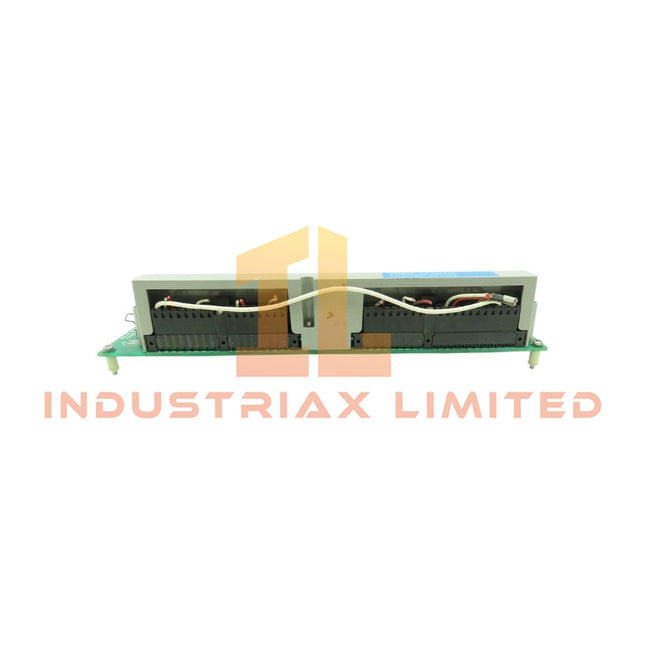

Honeywell Honeywell 51304437-100 MU-TAIL02 FTA Cable Assembly
Honeywell 51304437-100 MU-TAIL02 FTA Cable Assembly The Honeywell 51304437-100, also cataloged as the MU-TAIL02 FTA Cable Assembly, operates as a dedicated hardware component for signal connection between I/O processor modules and Field Termination Assemblies within Honeywell TDC 3000 and HPM systems. Hardware Specifications Parameter Specification Model MU-TAIL02 Brand Honeywell Origin USA Product Type FTA Cable Assembly / Tail Cable System Compatibility Honeywell TDC 3000 and High Performance Process Manager (HPM) architectures Signal Interface I/O processor module to Field Termination Assembly connection Cable Construction Shielded multicore cable assembly Conductor Material Copper conductors with EMI shielding layer Shielding Method Foil/braid shield for signal noise reduction Connector Type Factory-installed industrial connectors Operating Temp 0 deg C to 60 deg C Storage Temp -40 deg C to 85 deg C Relative Humidity 10% to 90% RH non-condensing Power Consumption Passive cable assembly; no independent power consumption DCS Signal Interface and Channel Protection Honeywell MU-TAIL02 cable assemblies support the physical signal path between control system I/O modules and termination points. The cable maintains signal continuity through shielded conductors and controlled routing inside the TDC 3000 and HPM hardware environment. Furthermore, Honeywell process control architectures typically apply field signal conditioning methods such as 4-20 mA HART loop protocol interfaces, FOUNDATION Fieldbus / Profibus PA connectivity, and channel-to-channel isolation at the I/O module level. The MU-TAIL02 provides the passive interconnection path required for these signal processing assemblies. The shield structure reduces electromagnetic interference coupling from adjacent industrial wiring. Therefore, correct grounding and cable separation practices directly affect analog and digital signal integrity. Frequently Asked Questions Q: Is the Honeywell 51304437-100 an active electronic module?A: No. The MU-TAIL02 is a passive FTA cable assembly. It does not contain signal processing circuits, firmware, or independent power input. Q: Can the MU-TAIL02 cable be installed without considering shielding requirements?A: No. The shield termination and cable routing must follow the control system installation guidelines to reduce electrical noise and unwanted signal coupling. Q: Does the MU-TAIL02 support direct connection between field devices and controllers?A: No. The cable provides an interconnection path between compatible Honeywell I/O hardware and Field Termination Assemblies. Field device compatibility depends on the installed I/O module configuration. Field Installation Guidelines Verify that the cable part number matches the installed Honeywell TDC 3000 or HPM hardware configuration before installation. Install the cable according to the designated I/O module and FTA terminal assignment. Maintain separation between signal cables and high-voltage power cables to reduce electromagnetic interference. Connect cable shielding according to Honeywell grounding practices for the specific cabinet design. Avoid excessive bending, mechanical stress, or connector strain during cabinet installation. Confirm connector seating and locking mechanisms before system commissioning. Inspect cable insulation and shielding condition during maintenance activities.
$200.00 $100.00
-

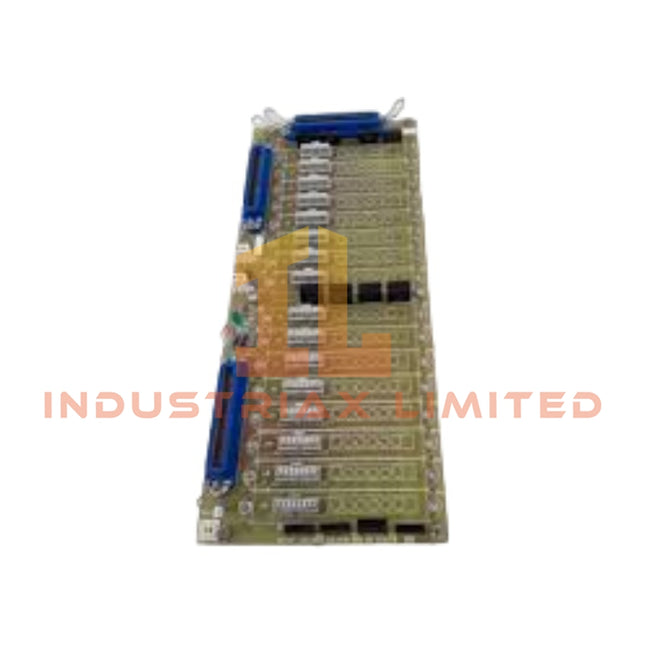

Honeywell Honeywell MU-GAIH13 Galvanically Isolated High-Level Analog Input FTA

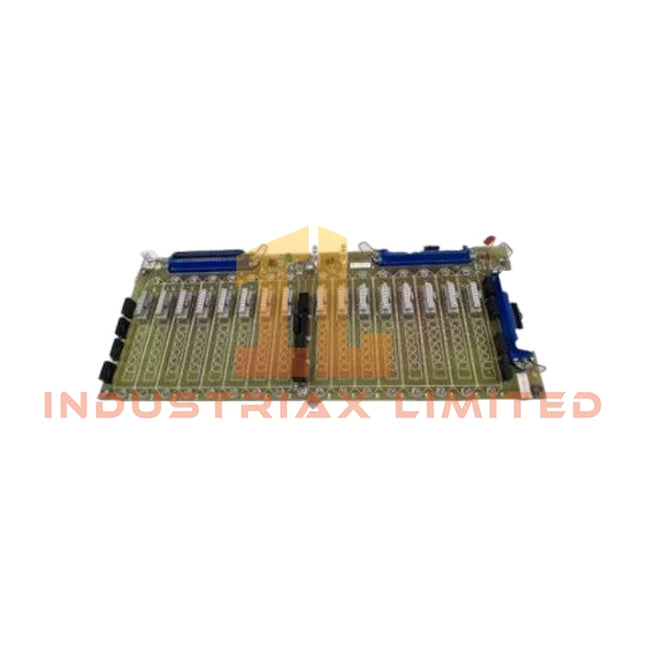

Honeywell MU-GAIH13 Galvanically Isolated High-Level Analog Input FTA The Honeywell MU-GAIH13-100, also cataloged as the MU-GAIH13 Galvanically Isolated High-Level Analog Input FTA, operates as a dedicated hardware component for analog signal isolation and transmitter interface processing within Honeywell TDC 3000, HPM, and Experion PKS platforms. Hardware Specifications Parameter Specification Model MU-GAIH13 Brand Honeywell Origin USA Part Number 51304718-100 Module Type Galvanically Isolated High-Level Analog Input Field Termination Assembly System Compatibility Honeywell TDC 3000, HPM, Experion PKS Channel Count 16 Channels Input Signal Types 4-20 mA DC, 1-5 VDC, 0-10 VDC Field Interface Compression Terminals FTA Size Size B, approximately 307 mm Isolation Type Galvanic isolation between field circuits and system electronics Transmitter Support 2-wire and 3-wire analog transmitters Coating Conformal coating for industrial environmental protection Certification CE compliant 4-20 mA HART Loop and Channel Isolation Characteristics The MU-GAIH13 provides isolated analog signal termination for process transmitters connected to Honeywell control systems. Therefore, the module maintains electrical separation between field wiring and internal I/O processing circuits. The FTA supports standard process analog inputs including 4-20 mA DC current loops and voltage input ranges. In addition, the galvanic isolation design reduces signal disturbance caused by ground potential differences, field noise, and transient electrical conditions. The module architecture aligns with Honeywell process control requirements for channel-to-channel isolation and protected analog measurement paths. Furthermore, the transmitter interface supplies floating DC power for compatible 2-wire and 3-wire field devices. Frequently Asked Questions Q: Does the MU-GAIH13 support direct connection of 4-20 mA transmitters?A: Yes. The module interfaces with 2-wire and 3-wire transmitters using 4-20 mA DC input signals and provides transmitter excitation capability. Q: What is the purpose of galvanic isolation in the MU-GAIH13?A: Galvanic isolation separates field signal circuits from control electronics to reduce ground loop effects and prevent electrical interference from affecting I/O processing. Q: Can the MU-GAIH13 operate in redundant system configurations?A: The supplied data indicates redundancy support capability; however, specific redundancy switching behavior depends on the installed Honeywell controller and I/O architecture. Field Installation Guidelines Install the MU-GAIH13 according to the Honeywell cabinet layout and FTA mounting requirements. Use the specified compression terminals for field wiring termination and verify conductor tightness before commissioning. Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference. Apply proper shield grounding practices according to the control system installation standard. Confirm transmitter polarity, loop wiring configuration, and signal range before connecting field devices. Verify galvanic isolation performance during commissioning by checking field-to-system electrical separation. Inspect conformal coating condition when installing or servicing the module in corrosive environments.
$200.00 $100.00
-
Honeywell Honeywell FC-TSRO-08UNI Safe Relay Output FTA

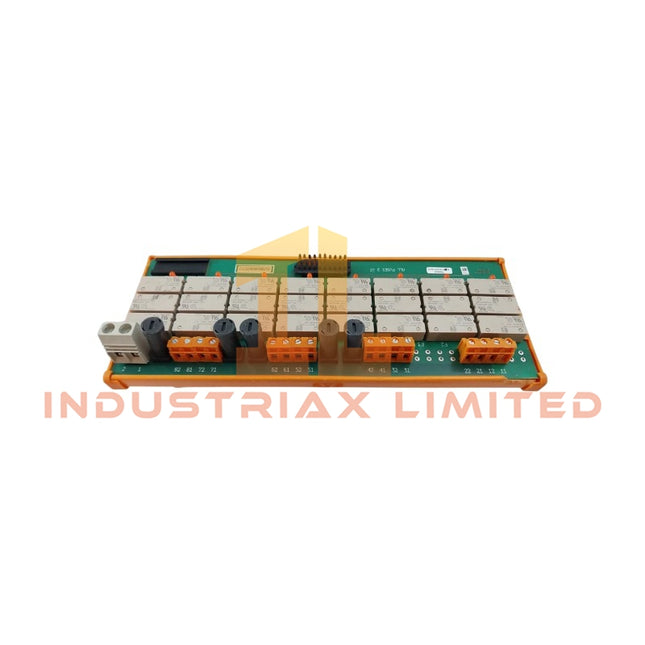

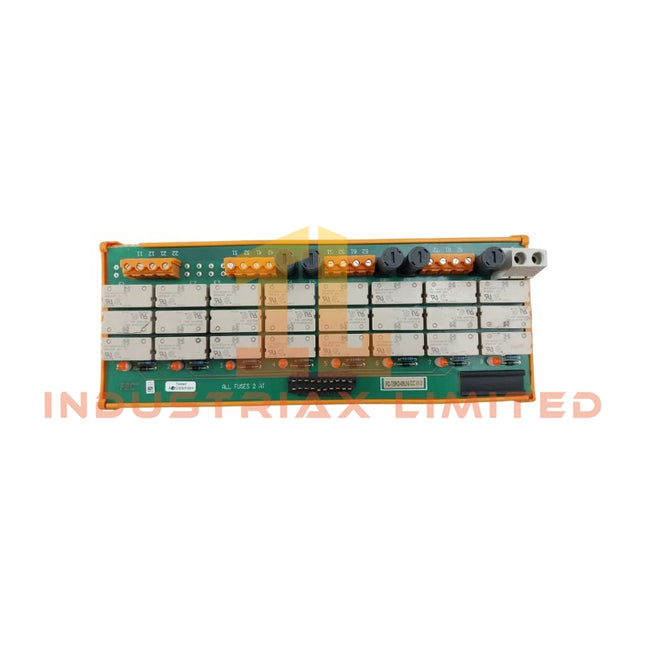

Honeywell FC-TSRO-08UNI Safe Relay Output FTA Configured for safe relay output execution in Honeywell Safety Manager systems, the Honeywell FC-TSRO-08UNI (FC-TSRO-08UNI Safe Relay Output FTA) provides direct electrical switching for SIL3 field circuits. Hardware Specifications Parameter Specification Model FC-TSRO-08UNI Brand Honeywell Product Type Safe Relay Output FTA Origin USA Weight 0.14 kg Dimensions 9 x 7 x 5.5 cm estimated shipping size Operating Temp Not specified Power Consumption Typically 40 mA at 24 V DC input System Compatibility Honeywell Safety Manager safety systems Safety Class Up to SIL3 Nominal Input Voltage 24 V DC Maximum Input Voltage 36 V DC Relay Pick-up Voltage 19.2 V DC Input Current Typically 40 mA at 24 V DC Number of Output Channels 8 channels Output Configuration Three relay outputs Maximum Output Current 2 A fused Minimum Output Current 1 mA at 5 V Maximum Output Voltage 250 V AC / 250 V DC AC Voltage Rating 250 V Field Contact Type Fused normally open contact, 2 AT slow-acting Status Indication LED status indication Approvals CE, UL, CSA, TUV Process Safety Relay Switching and Isolation Characteristics The FC-TSRO-08UNI provides eight relay output channels for safe external power switching in SIL3 applications. Each output channel uses a fused normally open field contact to control external loads while maintaining defined electrical protection. The module accepts a 24 V DC nominal input and supports operation up to 36 V DC. Therefore, it can interface with safety control circuits that require relay-based field execution. The three-relay arrangement supports output distribution for AC and DC field loads with a maximum voltage rating of 250 V. Honeywell safety systems typically apply channel-to-channel isolation methods to separate field circuits and reduce signal interaction. In addition, relay output hardware supports fail-safe state execution by removing field energy when the safety logic commands a shutdown condition. Frequently Asked Questions Q: How many relay output channels does the FC-TSRO-08UNI provide?A: The FC-TSRO-08UNI provides 8 relay output channels with fused normally open field contacts. Q: What voltage range does the relay output support?A: The relay output supports up to 250 V AC or 250 V DC with a maximum output current of 2 A using fused protection. Q: Is the FC-TSRO-08UNI designed for SIL3 applications?A: Yes. The module is specified for safety applications up to SIL3 and provides relay-based field switching functions. Field Installation Guidelines Install the FC-TSRO-08UNI according to the Honeywell Safety Manager hardware installation requirements. Verify the 24 V DC supply polarity before connecting field wiring. Separate relay output wiring from low-level signal cables to reduce electrical interference. Connect protective grounding according to the cabinet grounding design. Use appropriate cable shielding and terminate shields according to plant electrical standards. Check relay contact ratings before connecting external AC or DC loads. Inspect fuse ratings and field contact wiring before system commissioning. Confirm LED status indication after power application and safety logic validation.
$200.00 $100.00
-

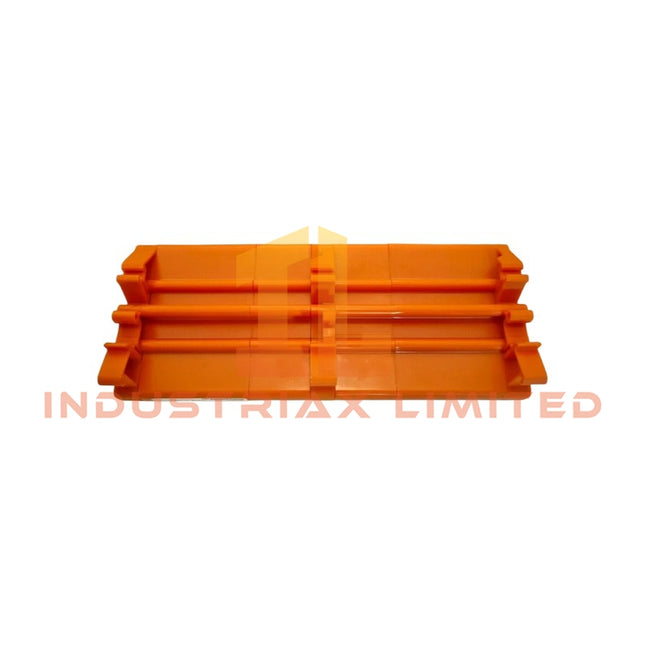

Honeywell Honeywell FC-TSDI-16115 Safe Active Passive Digital Input FTA

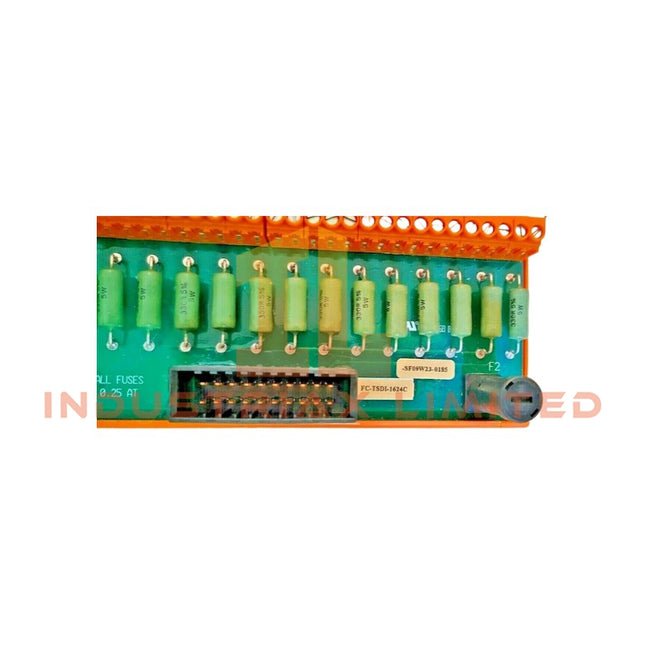

Honeywell FC-TSDI-16115 Safe Active Passive Digital Input FTA Configured for safe digital signal conversion in Honeywell safety control platforms, the Honeywell FC-TSDI-16115 (TSDI-16115 Safe Active Passive Digital Input FTA) provides direct electrical execution for 115 V AC/DC field input processing with 16 isolated channels. Hardware Specifications Parameter Specification Model FC-TSDI-16115 Brand Honeywell Product Type Safe Active Passive Digital Input FTA Origin USA Weight 0.2 kg Dimensions Estimated shipping size 17 x 7 x 5.8 cm Operating Temp Not specified in supplied data Power Consumption Not specified in supplied data Input Channels 16 Input Voltage 115 V, -15% to +30% Input Frequency DC or 40-300 Hz Input Current 7.5 mA +/- 1 mA at 115 V Input Impedance Non-inductive, > 9 kOhm Input LOW Level U <= 15 V or I <= 1.2 mA Input Type Safe active/passive digital input Input Isolation All inputs galvanically isolated Certifications UL, CE, TUV, CSA Tariff Code 8537101190 Channel-to-Channel Isolation and Field Signal Processing The FC-TSDI-16115 processes 115 V AC or 115 V DC field signals through a 16-channel safe input conversion structure. In addition, each input channel uses galvanic isolation to separate field circuits and reduce electrical interaction between channels. The module accepts both active and passive digital input configurations. Therefore, it supports flexible field device connection methods while maintaining defined input threshold characteristics. The input circuit uses non-inductive impedance design for industrial switching signal measurement. For Honeywell safety and process control architectures, this FTA design supports discrete signal termination between field wiring and the control system interface. Furthermore, the isolated input arrangement helps maintain signal separation during multi-channel digital monitoring. Frequently Asked Questions Q: What voltage signals can the FC-TSDI-16115 accept?A: The module accepts 115 V AC and 115 V DC input signals with an input range of -15% to +30% from the nominal voltage. Q: How many digital input channels does this module provide?A: The FC-TSDI-16115 provides 16 digital input channels with galvanic isolation between field inputs. Q: Does the module support both active and passive field devices?A: Yes. The FC-TSDI-16115 supports safe active and passive digital input configurations for field signal conversion. Field Installation Guidelines Install the FC-TSDI-16115 inside the designated Honeywell field termination assembly location according to system hardware documentation. Verify field wiring polarity and voltage level before connecting 115 V AC/DC input circuits. Route digital input cables separately from high-current power cables to reduce electrical interference. Connect cable shields according to the control cabinet grounding practice defined for the installation site. Confirm each field input channel before commissioning to verify correct switching status and input threshold response. Use approved terminal connections and maintain proper wire identification for future maintenance activities.
$200.00 $100.00
-
Honeywell Honeywell FC-TDOL-0724 Digital Output FTA

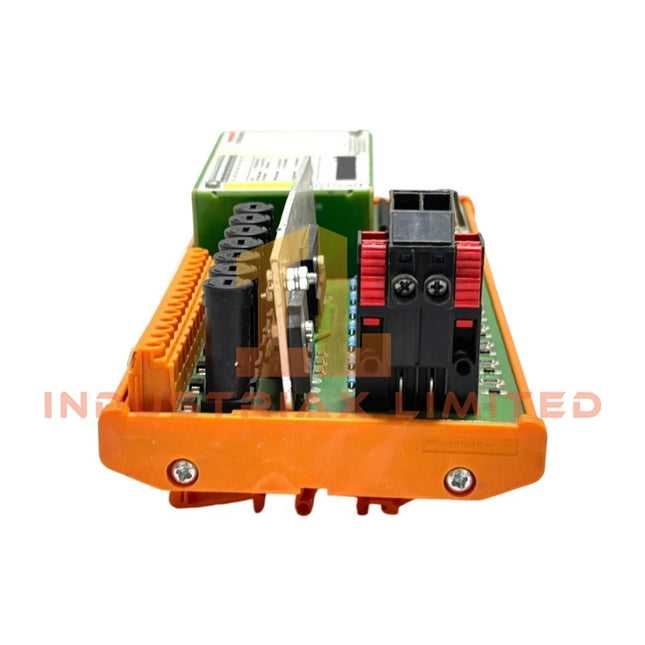

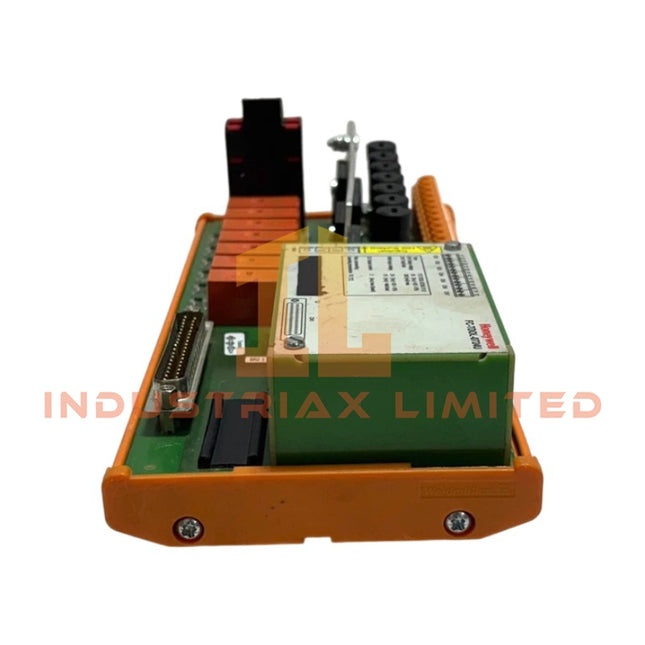

Honeywell FC-TDOL-0724 Digital Output FTA Configured for line-monitored relay contact digital output execution in Honeywell Safety Manager and process control I/O systems, the Honeywell FC-TDOL-0724 (FC-TDOL-0724 Digital Output FTA) provides direct physical/electrical execution for seven-channel field switching circuits. Hardware Specifications Parameter Specification Model FC-TDOL-0724 Brand Honeywell Product Type Digital Output FTA Function Line-monitored relay contact digital output interface Number of Channels 7 Output Supply Voltage 120 VAC or 120 VDC +/- 20% Output Voltage Rating AC 250 V Output Voltage Rating DC 300 V Minimum Required Field Load 1 Watt Leakage Current to Load Max. 1 mA at 120 V Short-Circuit Detection Load Threshold 200 ohm < RTh < 400 ohm Maximum Load Capacitance 1 uF Relay Configuration One relay with indicator LED Output Protection Fused 2 AT contact output Current Injection Resistor 22 k ohm Origin USA Weight 0.62 kg Dimensions 24 x 10.8 x 8.5 cm Approvals CE, UL, CSA, TUV Tariff Code 8537101190 Shipment Location Xiamen, China Process Control Digital Output Characteristics The Honeywell FC-TDOL-0724 provides seven relay contact output channels with line monitoring capability. Therefore, the module supervises field circuit conditions through current injection and load threshold detection. The output design includes a 22 k ohm current injection resistor and a fused 2 AT contact output path. Additionally, the module uses an indicator LED for relay status visualization during operation. For Honeywell process control architectures, field I/O modules require controlled signal handling and channel-to-channel isolation practices. The FC-TDOL-0724 follows these installation principles by separating field switching circuits from internal control electronics. The module supports digital switching applications where the field load operates at 120 VAC or 120 VDC within the specified voltage range. Frequently Asked Questions Q: How many output channels does the FC-TDOL-0724 provide?A: The FC-TDOL-0724 provides 7 relay contact digital output channels. Q: What field monitoring function does the module support?A: The module supports line monitoring through current injection and short-circuit detection load threshold measurement. Q: What type of field output protection does the module include?A: The module includes a fused 2 AT contact output and a relay output circuit with indicator LED status display. Field Installation Guidelines Install the FC-TDOL-0724 in the designated Honeywell I/O termination and field interface assembly according to system configuration requirements. Verify field wiring polarity and voltage levels before connecting the relay output terminals. Separate digital output wiring from high-current power cables to reduce electrical interference. Connect cable shields according to the plant grounding standard and maintain proper shield termination practices. Check field load characteristics before commissioning to confirm compatibility with the module output rating. Inspect fuse condition, relay indicator operation, and terminal connections during maintenance procedures.
$200.00 $100.00
-

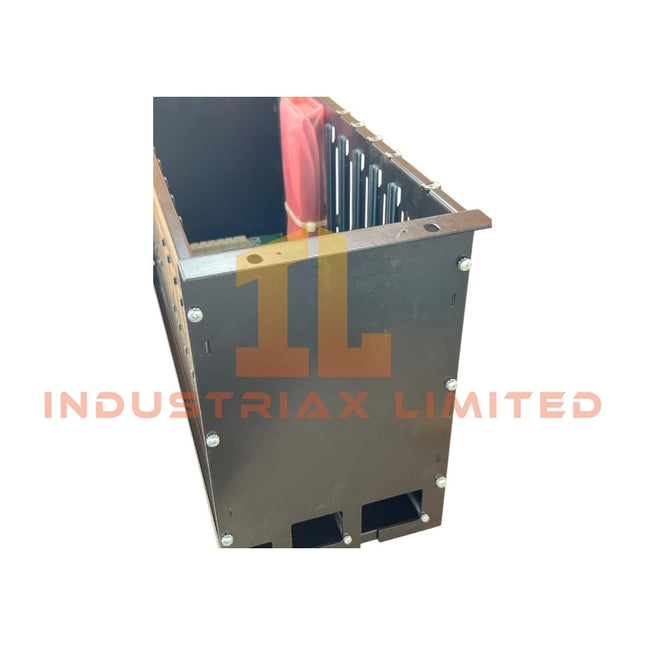

Honeywell Honeywell FC-CPCHAS-0001 Controller Chassis

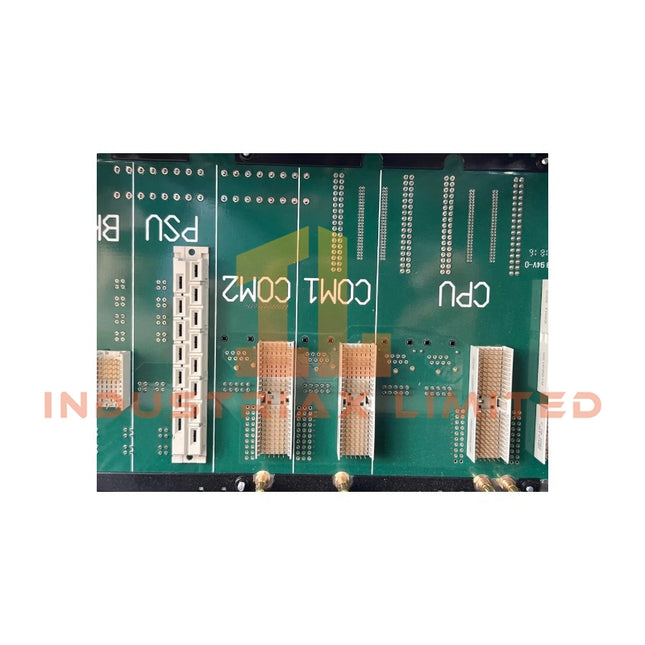

Honeywell FC-CPCHAS-0001 Controller Chassis The Honeywell FC-CPCHAS-0001, also cataloged as the FC-CPCHAS-0001 Controller Chassis, operates as a dedicated hardware component for controller module mounting, power distribution, and backplane interconnection within Honeywell Safety Manager SIS platforms. Hardware Specifications Parameter Specification Model FC-CPCHAS-0001 Brand Honeywell Product Type Controller Chassis System Platform Honeywell Safety Manager SIS Origin USA Weight 4.9 kg Dimensions 48.3 x 28 x 17.7 cm Operating Temp -5 deg C to +70 deg C Storage Temperature -25 deg C to +80 deg C Power Consumption Internal Power Rails: +5V-1: 0.05 A; +5V-2: 0.05 A Supply Voltage 24 VDC Housing Standard 19-inch rack-mountable Approvals CE, UL, CSA, TUV, FM Tariff Code 8537101190 Shipment Location Xiamen, China Installation Function Controller module housing, electrical backplane connection, system power distribution Safety Manager Controller Backplane and SIS Integration The FC-CPCHAS-0001 provides the mechanical frame and electrical backplane interface for Honeywell Safety Manager controller assemblies. It accepts Control Processor modules and distributes internal power through dedicated chassis rails. Furthermore, the chassis supports both redundant and non-redundant controller arrangements. The backplane maintains module-to-module electrical connections for processor communication, power routing, and controller system integration. Honeywell Safety Manager architectures use this chassis structure to organize controller modules separately from I/O chassis assemblies. Typically, the FC-CPCHAS-0001 mounts at the upper section of the cabinet, while field I/O chassis install below the controller layer. The chassis design supports Safety Instrumented System configurations requiring deterministic module placement, controlled power distribution, and defined cabinet wiring paths. Frequently Asked Questions Q: What modules can be installed in the FC-CPCHAS-0001 chassis?A: The FC-CPCHAS-0001 is designed for Honeywell Safety Manager Control Processor modules and associated controller hardware compatible with its chassis backplane. Q: Does the FC-CPCHAS-0001 support redundant controller configurations?A: Yes. The chassis supports redundant and non-redundant controller arrangements according to the Safety Manager system configuration requirements. Q: What power connections are available inside the chassis?A: The chassis provides internal +5V-1 and +5V-2 power rails with current specifications of 0.05 A each for supported controller hardware. Field Installation Guidelines Install the FC-CPCHAS-0001 inside a compatible 19-inch rack cabinet using the specified mounting hardware. Verify cabinet grounding before connecting controller modules and external wiring. Maintain proper separation between power cables and signal communication wiring to reduce electrical interference. Confirm that the chassis backplane connectors are clean and properly aligned before module insertion. Check supply voltage compatibility and verify the 24 VDC input source before system energization. Follow Honeywell Safety Manager installation documentation for module positioning, cabinet layout, and protective grounding requirements.
$200.00 $100.00
-
General Electric GE DS215UCVBG1AJ UC2000V Genius Controller Module
GE DS215UCVBG1AJ UC2000V Genius Controller Module The GE DS215UCVBG1AJ, also cataloged as the DS215UCVB UC2000V Genius Controller Module, operates as a dedicated hardware component for communication management, network diagnostics, and data exchange within GE Mark V Speedtronic turbine control systems. Hardware Specifications Parameter Specification Model DS215UCVBG1AJ Brand GE Origin United States Weight 1 kg Operating Temp 0 to +60 deg C Power Consumption Not specified; requires +5 VDC / +12 VDC depending on installation Product Type UC2000V Genius Controller Module System Platform GE Mark V Speedtronic Communication Interface 1 x 10/100 Mbps Ethernet port Network Addressing DLAN node address configurable from 0-255 Configuration 2 DIP switch blocks for setup parameters Indicators Multiple LEDs for communication, status, and diagnostics Data Logging Interface HDD connector for storage attachment Operator Interface Keyboard and monitor support for troubleshooting Form Factor Standard VME rack integration Assembly Type DS215 Special Assembly Functional Acronym UCVB GE Mark V Network Communication and Controller Integration The DS215UCVBG1AJ functions as a communication and diagnostic controller within the GE Mark V Speedtronic architecture. It provides Ethernet connectivity, DLAN node management, and operator interface support while operating separately from direct turbine I/O processing modules. The GE industrial control architecture uses VME-based communication structures and deterministic network interfaces for controller coordination. The module supports firmware flash compatibility within the Mark V platform and maintains network configuration through hardware DIP switch settings. The Ethernet and DLAN functions provide communication paths for SCADA integration, diagnostic data collection, and system monitoring. The configurable node addressing supports distributed network organization and prevents addressing conflicts between connected control devices. Frequently Asked Questions Q: Is the DS215UCVBG1AJ a direct I/O processing module?A: No. The module functions as a communication and diagnostic controller rather than a direct field I/O processor. Q: How is DLAN addressing configured on the DS215UCVBG1AJ?A: DLAN node addressing is configured through onboard DIP switches with an address range from 0-255. Q: What communication interface is provided by this module?A: The module provides one Ethernet port with 10/100 Mbps communication capability. Field Installation Guidelines Install the DS215UCVBG1AJ in the designated GE Mark V VME rack position with system power removed before module insertion or removal. Verify VME connector alignment, power supply connections, DIP switch configuration, and network cable connections before energizing the controller rack. Route Ethernet communication cables separately from high-voltage and high-current wiring to reduce electromagnetic interference. Connect cable shields according to the cabinet grounding design. Confirm DLAN node addressing, Ethernet communication status LEDs, and operator interface connections during commissioning. Ensure HDD connections and data logging functions are configured according to system requirements.
$200.00 $100.00
-
Honeywell 8C-PCNT01 C300 Honeywell Controller Module
Honeywell 8C-PCNT01 C300 Controller Module Configured for deterministic process control execution in the Honeywell Experion PKS Series 8 control network, the Honeywell 8C-PCNT01 (8C-PCNT01 C300 Controller Module) provides direct physical and electrical control processing functions for C300-based automation systems. Hardware Specifications Parameter Specification Model 8C-PCNT01 Brand Honeywell Product Type C300 Controller Module System Platform Experion PKS Series 8 Part Number 51454363-175 Origin USA Weight Approx. 480 g Operating Temp -40 deg C to +60 deg C Storage Temp -40 deg C to +85 deg C Power Supply 24 VDC nominal Power Consumption Approx. 320 mA at 24 VDC Control Environment Control Execution Environment (CEE) Execution Cycle Configurable execution blocks, down to 50 ms loop rates Communication Interface Dual I/O Link and Fault Tolerant Ethernet (FTE) via carrier Redundancy Support 1:1 controller redundancy configuration Environmental Protection ANSI/ISA S71.04 G3 conformal coating Process Control Communication and Signal Execution The 8C-PCNT01 executes control strategies through the Honeywell Control Execution Environment (CEE). It processes configured control algorithms, manages Series 8 I/O communication, and transfers control data between field-connected I/O modules and higher-level Experion PKS functions. For Honeywell process control applications, the controller architecture supports field instrument integration through standard DCS communication structures. The system design allows analog and digital process variables to be handled through connected I/O modules, including signals based on 4-20 mA HART loops and FOUNDATION Fieldbus or Profibus PA networks when supported by the installed I/O configuration. The controller hardware supports channel-to-channel isolation requirements through the associated I/O architecture. Therefore, field signal separation and diagnostic handling depend on the installed termination assemblies and I/O module selection. Frequently Asked Questions Q: Does the 8C-PCNT01 support redundant controller operation?A: Yes. The module supports 1:1 controller redundancy configurations. The redundant pair operates with synchronized control execution to maintain process operation during controller failover conditions. Q: What power supply does the 8C-PCNT01 require?A: The controller operates from a 24 VDC nominal supply and consumes approximately 320 mA at 24 VDC according to the provided technical data. Q: Can the 8C-PCNT01 communicate directly with Series 8 I/O modules?A: Yes. The controller communicates with Series 8 I/O modules through dual I/O Link interfaces installed within the Series 8 architecture. Field Installation Guidelines Install the 8C-PCNT01 on the designated Honeywell Series 8 carrier assembly according to the system hardware installation manual. Verify that the 24 VDC power wiring uses correct polarity and proper industrial grounding practices before energizing the controller. Maintain separation between control wiring, field signal wiring, and high-current power conductors to reduce electrical interference. Connect communication interfaces using approved cable routing methods and ensure shield termination follows the plant grounding standard. Before commissioning, verify controller redundancy status, firmware compatibility, I/O communication health, and diagnostic indicators through the Experion PKS engineering tools.
$200.00 $100.00
-
General Electric GE IS215UCVDH5AN VME Universal Controller Module
GE IS215UCVDH5AN VME Universal Controller Module Configured for turbine control algorithm execution in GE Mark VI Speedtronic systems, the GE IS215UCVDH5AN (IS215UCVDH5A Universal Controller Module) provides direct physical and electrical execution for processor-based control, I/O management, and VMEbus communication functions. Hardware Specifications Parameter Specification Model IS215UCVDH5AN Brand GE Origin United States of America Weight 0.9 kg Dimensions 16.51 cm high x 17.8 cm Operating Temp 0 to +60 deg C Power Consumption +5 VDC, 6 A Product Type Processor Controller Boards Series GE Mark VI Board Type Double-Slot Processor Controller Board Processor AMD-K6 300 MHz Memory 16 MB DRAM Operating System QNX Programming Boolean 16-bit signed Communication Interfaces VMEbus, Ethernet 10BaseT twisted pair RJ-45, RS-232 Operating Voltage +5 VDC, +/-12 VDC from backplane Analog Voltage Inputs 6 I/O Capability Analog and digital I/O management through connected modules Isolation Rating 2500 Vrms Response Time < 10 ms control loop execution Diagnostics Front-panel Run, Fail, Comm LEDs and watchdog timer Mounting Type VME rack mount, double-slot Redundancy Support Triple Modular Redundancy (TMR) compatible Deterministic Mark VI Controller Processing The IS215UCVDH5AN provides processor-based control execution within GE Mark VI turbine control architectures. The AMD-K6 300 MHz processor runs QNX operating system software to execute turbine control logic, manage I/O data processing, and coordinate communication with other Mark VI boards. The module uses VMEbus communication for deterministic backplane data exchange and supports Ethernet 10BaseT connectivity through an RJ-45 interface. Firmware flash compatibility and controller software matching are required for correct Mark VI system initialization. The processor controller architecture supports I/O density scaling through connected analog and digital interface modules. Six analog voltage inputs provide dedicated signal acquisition capability for turbine control applications. Frequently Asked Questions Q: What processor is installed on the IS215UCVDH5AN controller board?A: The module uses an AMD-K6 300 MHz microprocessor with 16 MB DRAM memory. Q: Which operating system is used by this controller?A: The IS215UCVDH5AN operates with the QNX operating system environment. Q: What communication interfaces are available on the board?A: The controller provides VMEbus communication, Ethernet 10BaseT through RJ-45, and RS-232 interfaces. Field Installation Guidelines Install the IS215UCVDH5AN in the assigned GE Mark VI VME rack position and verify mechanical alignment before applying power. Confirm the +5 VDC power supply connection and backplane voltage rails according to cabinet wiring documentation. Keep Ethernet, RS-232, and signal wiring separated from high-current conductors to reduce electromagnetic interference. Maintain proper grounding and shielding practices for analog input wiring. Verify VME backplane connectors are clean and fully engaged before system startup. Confirm QNX operating software and controller firmware compatibility with the installed Mark VI configuration. Ensure sufficient airflow around the VME rack assembly to maintain operating temperature limits.
$200.00 $100.00
-
General Electric GE IS215UCVEH2AF VME Universal Controller Module
GE IS215UCVEH2AF VME Universal Controller Module The GE IS215UCVEH2AF, also cataloged as the IS215UCVEH2A VME Universal Controller Module, operates as a dedicated hardware component for turbine control algorithm execution, I/O management, and VMEbus communication within GE Mark VI Speedtronic control platforms. Hardware Specifications Parameter Specification Model IS215UCVEH2AF Brand GE Origin United States of America Weight 0.9 kg Dimensions 233 mm x 160 mm x 25 mm Operating Temp -30 to +65 deg C Power Consumption Not specified Product Type VME Boards System Compatibility GE Mark VI Speedtronic turbine control system Processor Motorola MPC860 PowerPC 32-bit RISC Clock Speed 100 MHz Memory 16 MB DRAM, 4 MB Flash Non-Volatile Storage 512 KB EEPROM Communication Interfaces VMEbus, Ethernet 10/100 Mbps, RS-232 Operating Voltage +5 VDC, +/-12 VDC from backplane Isolation Rating 2500 Vrms I/O Capability Analog and digital I/O management through connected modules Response Time < 10 ms control loop execution Diagnostics Front-panel Run, Fail, Comm LEDs and watchdog timer Redundancy Support Triple Modular Redundancy (TMR) compatible Mounting Type VME rack mount, single-slot Channel Count 6 channels Deterministic VMEbus Control Processing The IS215UCVEH2AF provides controller-level processing within the GE Mark VI architecture through VMEbus communication and embedded Ethernet connectivity. The Motorola MPC860 PowerPC processor executes turbine control logic, handles I/O data exchange, and manages communication between controller and interface modules. The module supports deterministic networks and industrial control synchronization through VMEbus backplane communication. Firmware flash compatibility allows controller software updates according to the installed Mark VI system configuration. The hardware architecture supports I/O density scaling through connection with multiple analog and digital interface boards. Frequently Asked Questions Q: What processor architecture is used in the IS215UCVEH2AF?A: The module uses a Motorola MPC860 PowerPC 32-bit RISC processor operating at 100 MHz. Q: Which communication interfaces are available on this VME board?A: The board provides VMEbus, Ethernet 10/100 Mbps, and RS-232 communication interfaces. Q: Does the IS215UCVEH2AF support redundant controller configurations?A: The module supports Triple Modular Redundancy (TMR) configurations within GE Mark VI control systems. Field Installation Guidelines Install the IS215UCVEH2AF in the assigned single-slot VME rack position within the GE Mark VI cabinet. Confirm the backplane connector alignment before applying system power. Verify that the backplane voltage rails are within the specified controller cabinet supply limits. Keep communication wiring separated from high-current switching conductors to reduce electromagnetic interference. Maintain proper grounding and shielding for Ethernet and serial communication cables. Inspect VME connectors for contamination or mechanical damage before insertion. Confirm firmware compatibility with the installed Mark VI control configuration before controller initialization. Use approved handling procedures to prevent electrostatic discharge damage to board components.
$200.00 $100.00
