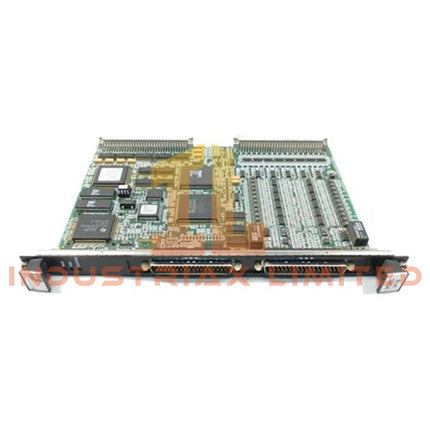

GE IS215UCVDH5AN VME Universal Controller Module

Configured for turbine control algorithm execution in GE Mark VI Speedtronic systems, the GE IS215UCVDH5AN (IS215UCVDH5A Universal Controller Module) provides direct physical and electrical execution for processor-based control, I/O management, and VMEbus communication functions.

Hardware Specifications

Parameter	Specification
Model	IS215UCVDH5AN
Brand	GE
Origin	United States of America
Weight	0.9 kg
Dimensions	16.51 cm high x 17.8 cm
Operating Temp	0 to +60 deg C
Power Consumption	+5 VDC, 6 A
Product Type	Processor Controller Boards
Series	GE Mark VI
Board Type	Double-Slot Processor Controller Board
Processor	AMD-K6 300 MHz
Memory	16 MB DRAM
Operating System	QNX
Programming	Boolean 16-bit signed
Communication Interfaces	VMEbus, Ethernet 10BaseT twisted pair RJ-45, RS-232
Operating Voltage	+5 VDC, +/-12 VDC from backplane
Analog Voltage Inputs	6
I/O Capability	Analog and digital I/O management through connected modules
Isolation Rating	2500 Vrms
Response Time	< 10 ms control loop execution
Diagnostics	Front-panel Run, Fail, Comm LEDs and watchdog timer
Mounting Type	VME rack mount, double-slot
Redundancy Support	Triple Modular Redundancy (TMR) compatible

Deterministic Mark VI Controller Processing

The IS215UCVDH5AN provides processor-based control execution within GE Mark VI turbine control architectures. The AMD-K6 300 MHz processor runs QNX operating system software to execute turbine control logic, manage I/O data processing, and coordinate communication with other Mark VI boards.

The module uses VMEbus communication for deterministic backplane data exchange and supports Ethernet 10BaseT connectivity through an RJ-45 interface. Firmware flash compatibility and controller software matching are required for correct Mark VI system initialization.

The processor controller architecture supports I/O density scaling through connected analog and digital interface modules. Six analog voltage inputs provide dedicated signal acquisition capability for turbine control applications.

Frequently Asked Questions

Q: What processor is installed on the IS215UCVDH5AN controller board?
A: The module uses an AMD-K6 300 MHz microprocessor with 16 MB DRAM memory.

Q: Which operating system is used by this controller?
A: The IS215UCVDH5AN operates with the QNX operating system environment.

Q: What communication interfaces are available on the board?
A: The controller provides VMEbus communication, Ethernet 10BaseT through RJ-45, and RS-232 interfaces.

Field Installation Guidelines

Install the IS215UCVDH5AN in the assigned GE Mark VI VME rack position and verify mechanical alignment before applying power.

Confirm the +5 VDC power supply connection and backplane voltage rails according to cabinet wiring documentation. Keep Ethernet, RS-232, and signal wiring separated from high-current conductors to reduce electromagnetic interference.

Maintain proper grounding and shielding practices for analog input wiring. Verify VME backplane connectors are clean and fully engaged before system startup.

Confirm QNX operating software and controller firmware compatibility with the installed Mark VI configuration. Ensure sufficient airflow around the VME rack assembly to maintain operating temperature limits.
