Description

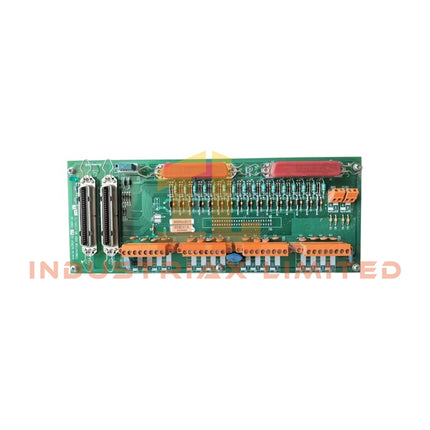

Honeywell 51403988-150 Process Manager Comm Controller

The Honeywell 51403988-150, also cataloged as the 51403988-150 Process Manager Comm Controller, operates as a dedicated hardware component for communication control and electrical contact management within Honeywell Process Manager system platforms.

Hardware Specifications

Parameter	Specification
Model	51403988-150
Brand	Honeywell
Product Type	Process Manager Communication Controller
Origin	USA
Weight	1.06 kg
Dimensions	Estimated shipping size: 3 x 33 x 28 cm
Operating Temp	Not specified by manufacturer
Power Consumption	Not specified by manufacturer
Voltage Rating	50 VDC maximum
Current Rating	1 A per contact
Contact Resistance	<20 mOhm
Insulation Resistance	>1000 MOhm at 500 VDC
Dielectric Strength	500 VAC between adjacent contacts
Tariff Code	8537101190

Process Manager Communication and Electrical Interface Characteristics

The Honeywell 51403988-150 Process Manager Comm Controller manages communication functions and contact-level electrical interfaces within Process Manager control architectures. Therefore, the module supports controlled signal exchange between system components while maintaining defined electrical separation characteristics.

The module provides contact interfaces rated for up to 50 VDC voltage operation and 1 A current per contact. In addition, the design specifies low contact resistance below 20 mOhm to minimize signal losses across connected circuits.

For Honeywell process control installations, communication modules typically operate with DCS hardware structures that support field instrumentation integration, including 4-20 mA HART loop protocol, FOUNDATION Fieldbus / Profibus PA connectivity, and channel-to-channel isolation requirements where applicable.

Frequently Asked Questions

Q: What is the maximum electrical contact rating of the Honeywell 51403988-150?
A: The module supports a maximum voltage rating of 50 VDC and a current rating of 1 A per contact.

Q: What insulation performance does the 51403988-150 provide?
A: The module provides insulation resistance above 1000 MOhm at 500 VDC and dielectric strength of 500 VAC between adjacent contacts.

Q: Does the 51403988-150 support hot-swapping?
A: The provided technical data does not specify hot-swap capability. Installation should follow the applicable Honeywell Process Manager chassis and maintenance procedures.

Field Installation Guidelines

• Verify the module part number before installation into the Process Manager chassis.
• Confirm that the power supply is removed or controlled according to site maintenance procedures before handling the module.
• Install the communication controller into the designated rack position with correct mechanical alignment.
• Use shielded wiring practices for communication-related connections when required by the system design.
• Separate low-level communication wiring from high-current power conductors to reduce electrical interference.
• Check contact surfaces and terminal connections for contamination or mechanical damage before commissioning.
• Follow Honeywell system documentation for grounding, rack configuration, and diagnostic verification.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
