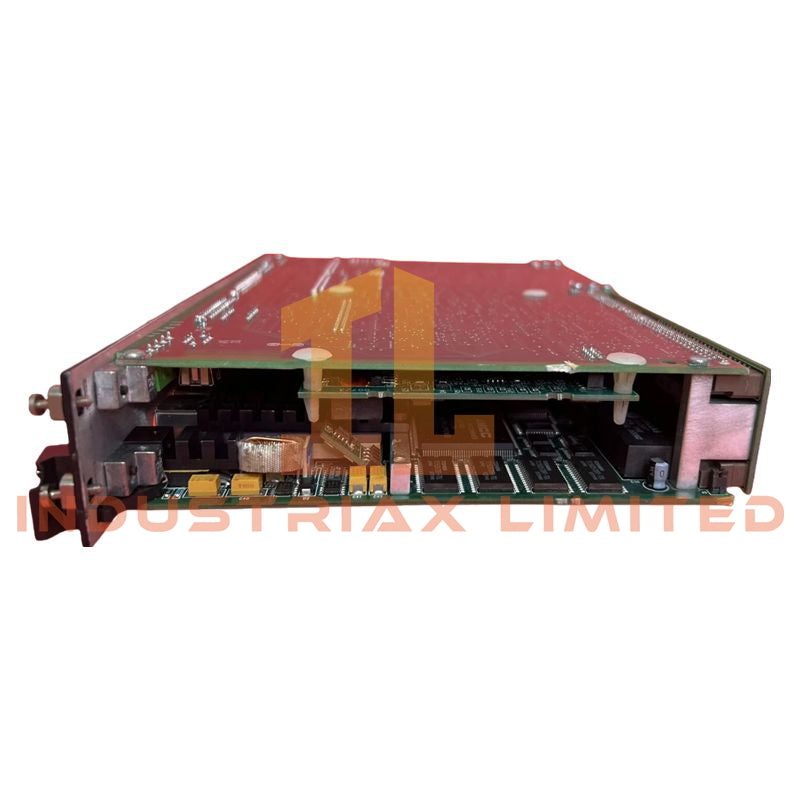

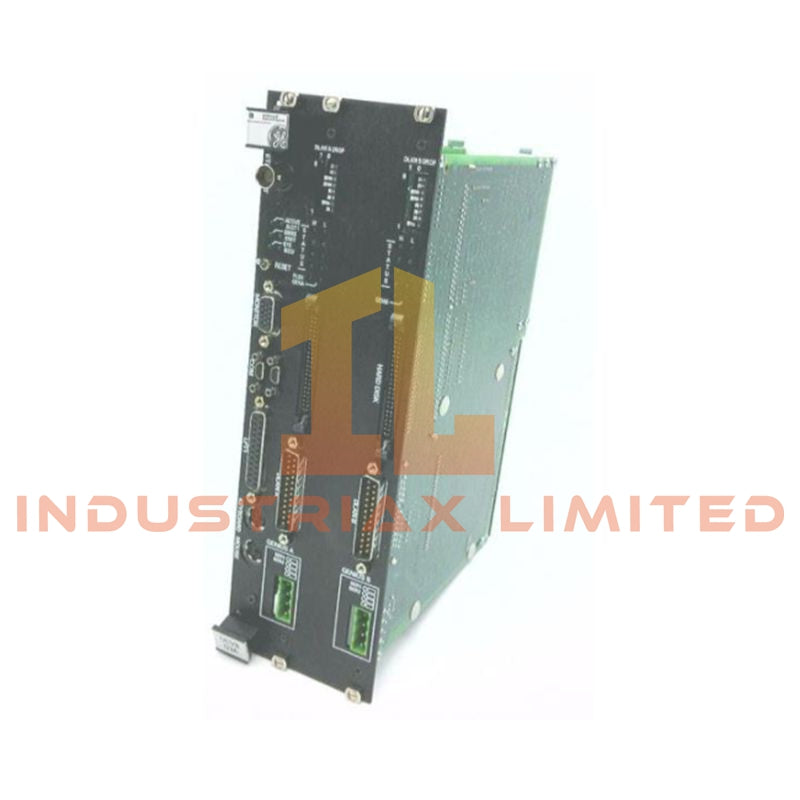

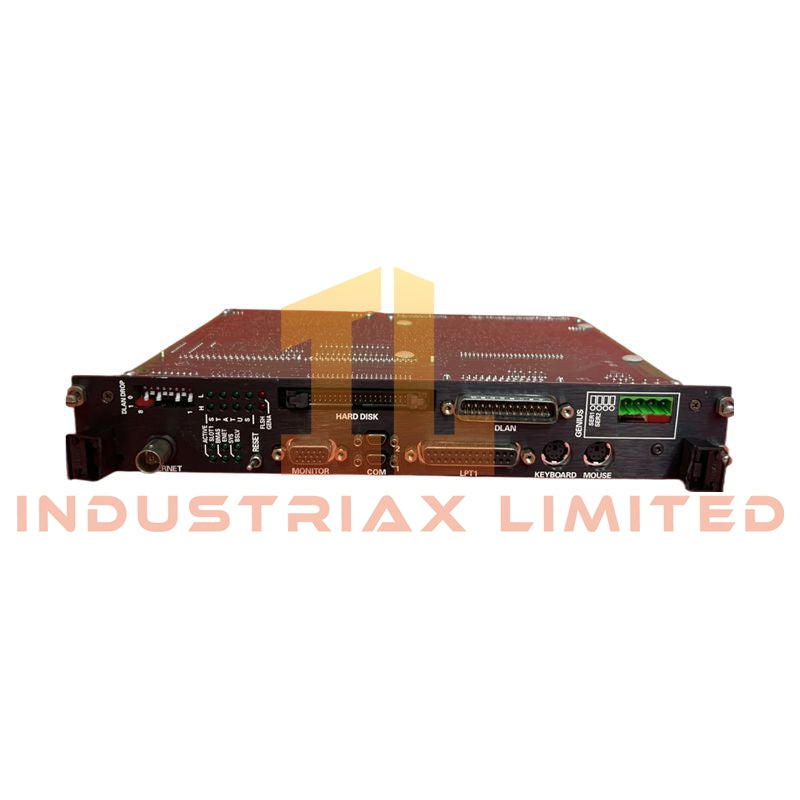

GE DS215UCVBG1AJ UC2000V Genius Controller Module

The GE DS215UCVBG1AJ, also cataloged as the DS215UCVB UC2000V Genius Controller Module, operates as a dedicated hardware component for communication management, network diagnostics, and data exchange within GE Mark V Speedtronic turbine control systems.

Hardware Specifications

Parameter	Specification
Model	DS215UCVBG1AJ
Brand	GE
Origin	United States
Weight	1 kg
Operating Temp	0 to +60 deg C
Power Consumption	Not specified; requires +5 VDC / +12 VDC depending on installation
Product Type	UC2000V Genius Controller Module
System Platform	GE Mark V Speedtronic
Communication Interface	1 x 10/100 Mbps Ethernet port
Network Addressing	DLAN node address configurable from 0-255
Configuration	2 DIP switch blocks for setup parameters
Indicators	Multiple LEDs for communication, status, and diagnostics
Data Logging Interface	HDD connector for storage attachment
Operator Interface	Keyboard and monitor support for troubleshooting
Form Factor	Standard VME rack integration
Assembly Type	DS215 Special Assembly
Functional Acronym	UCVB

GE Mark V Network Communication and Controller Integration

The DS215UCVBG1AJ functions as a communication and diagnostic controller within the GE Mark V Speedtronic architecture. It provides Ethernet connectivity, DLAN node management, and operator interface support while operating separately from direct turbine I/O processing modules.

The GE industrial control architecture uses VME-based communication structures and deterministic network interfaces for controller coordination. The module supports firmware flash compatibility within the Mark V platform and maintains network configuration through hardware DIP switch settings.

The Ethernet and DLAN functions provide communication paths for SCADA integration, diagnostic data collection, and system monitoring. The configurable node addressing supports distributed network organization and prevents addressing conflicts between connected control devices.

Frequently Asked Questions

Q: Is the DS215UCVBG1AJ a direct I/O processing module?
A: No. The module functions as a communication and diagnostic controller rather than a direct field I/O processor.

Q: How is DLAN addressing configured on the DS215UCVBG1AJ?
A: DLAN node addressing is configured through onboard DIP switches with an address range from 0-255.

Q: What communication interface is provided by this module?
A: The module provides one Ethernet port with 10/100 Mbps communication capability.

Field Installation Guidelines

Install the DS215UCVBG1AJ in the designated GE Mark V VME rack position with system power removed before module insertion or removal.

Verify VME connector alignment, power supply connections, DIP switch configuration, and network cable connections before energizing the controller rack. Route Ethernet communication cables separately from high-voltage and high-current wiring to reduce electromagnetic interference.

Connect cable shields according to the cabinet grounding design. Confirm DLAN node addressing, Ethernet communication status LEDs, and operator interface connections during commissioning. Ensure HDD connections and data logging functions are configured according to system requirements.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
