ABB Bailey Infi 90
-
ABB ABB AIM0006 2RCA021397A0001K AI/BI Input Module
Overview The AIM0006 2RCA021397A0001K from ABB is an analog and binary input interface module designed for voltage and current signal acquisition in industrial control and power management systems. This module supports multiple analog signal formats and integrates with ABB automation platforms including AC500 PLC, Freelance DCS, Advant Controller systems, and UNITROL excitation applications. Engineered for stable signal processing and high electrical isolation, the module is suitable for demanding process automation, utility, and power distribution environments. Key Technical Features • Multi-function AI/BI input module for voltage sensing and monitoring• Compatible with current and voltage analog signals• High-resolution 16-bit analog conversion• Reinforced electrical isolation for improved EMC performance• DIN rail installation design for cabinet integration• Designed for continuous industrial operation in harsh environments• Supports reclosing and CT/VT monitoring configurations• Suitable for excitation control and process instrumentation systems Technical Specifications Parameter Specification Brand ABB Model AIM0006 Order Number 2RCA021397A0001K Product Type AI/BI Module (Voltage Sensor) Analog Inputs 8 Differential AI Channels Supported Signals 4–20 mA, 0–20 mA, 0–10 V, ±10 V Resolution 16-bit Current Accuracy ±0.1% Full Scale Voltage Accuracy ±0.15% Full Scale Sampling Speed 10 to 100 samples/sec per channel Operating Voltage 24 VDC ±10% Isolation (Channel to Channel) 2.5 kVrms Isolation (Channel to Bus) 5 kVrms Power Consumption 3.5 W to 8 W Protection Class IP20 Operating Temperature -20°C to +60°C Storage Temperature -40°C to +85°C Mounting Method DIN Rail Weight 0.40 kg Input Configuration The module supports several CT and VT combinations commonly used in protection and monitoring systems: • 3 CT + Ground CT + 5 VT + Reclosing• 3 CT + SEF/HIZ CT + 5 VT + Reclosing• Slot X130 supports 5 VT + 4 Binary Inputs System Compatibility The ABB AIM0006 module is compatible with: • ABB AC500 PLC series• ABB Freelance distributed control systems• ABB Advant Controller platforms• UNITROL 1010 and UNITROL 1020 excitation systems Application Areas Typical industrial applications include: • Power plant automation• Generator excitation systems• Electrical protection panels• Utility substations• Process monitoring systems• Analog signal acquisition cabinets• Industrial energy management systems FAQ What signal types can the AIM0006 process? The module accepts both current and voltage analog signals including 4–20 mA, 0–20 mA, 0–10 V, and ±10 V inputs. Is the AIM0006 suitable for electrical substation applications? Yes. Its high isolation ratings and CT/VT support make it suitable for utility and power distribution environments. Does the module support ABB control systems only? The module is optimized for ABB platforms such as AC500, Freelance, and Advant Controller systems, ensuring full compatibility within ABB architectures.
$200.00 $100.00
-
ABB ABB IMQRS22 Quick Response I/O Module for INFI 90
Overview The ABB IMQRS22 Quick Response I/O Module is a high-speed interface module developed for ABB Symphony Plus, Harmony Rack, and INFI 90 distributed control platforms. The module is optimized for fast process monitoring and rapid signal processing in applications where immediate system response is critical. Designed for protection logic, emergency shutdown systems, turbine control, and sequence-of-events recording, the IMQRS22 combines analog and digital I/O capabilities within a compact high-performance architecture. Its low-latency processing and timestamped event handling make it suitable for mission-critical industrial automation environments. Key Features High-speed digital and analog signal acquisition Fast response time below 1 millisecond Integrated sequence-of-events recording capability Supports timestamped event buffering Compatible with ABB Harmony Rack and INFI 90 systems Optically isolated digital channels for noise protection Designed for critical interlock and protection functions Redundancy-ready architecture for high-availability systems Reliable communication through the INFI-90 system bus Technical Specifications Parameter Specification Brand ABB Model IMQRS22 Product Type Quick Response I/O Module Compatible Systems Symphony Plus, Harmony Rack, INFI 90 Analog Inputs 4 AI Digital Inputs 3 DI Digital Outputs 4 DO Optional Variant 16 Configurable Digital Channels Digital I/O Response Time Less than 1 ms Output Update Time Approx. 500 µs Input Scan Interval 1 ms Event Buffer Capacity 512 Timestamped Events SOE Recording Supported Channel Isolation Optoisolated Digital Channels Communication Bus INFI-90 / Harmony Rack I/O Bus Connector Type Dual 40-Pin Connectors Redundancy Support Yes Operating Temperature 0°C to +60°C Extended Industrial Variant -20°C to +70°C Storage Temperature -40°C to +85°C Humidity Rating Up to 95% RH Dimensions 358.14 × 269.24 × 73.66 mm Weight 0.45 lbs Performance Characteristics The ABB IMQRS22 is engineered for applications requiring immediate reaction to process events. The module continuously scans field inputs at high speed while supporting rapid digital output execution and accurate event timestamping. Its integrated sequence-of-events functionality enables operators to capture and analyze fast-changing system conditions during alarms, trips, or process disturbances. Application Areas The IMQRS22 module is commonly used in: Turbine protection systems Emergency shutdown systems (ESD) Power generation controls High-speed process interlocks Sequence-of-events monitoring Critical plant automation systems Industrial safety applications FAQ What is the primary function of the IMQRS22? The IMQRS22 is designed for high-speed analog and digital I/O processing in time-sensitive industrial control applications. Does the module support SOE recording? Yes. The module includes a 512-event timestamped buffer for sequence-of-events recording and analysis. Which ABB systems are compatible with the IMQRS22? The module integrates with Symphony Plus, Harmony Rack, and INFI 90 system architectures. Are the digital channels electrically isolated? Yes. The digital channels use optical isolation to improve noise immunity and signal reliability.
$200.00 $100.00
-
ABB ABB NTDI02 Digital I/O Termination Unit
Overview The ABB NTDI02 Digital I/O Termination Unit is a field interface module developed for Harmony Rack I/O architectures used within ABB Symphony and Bailey INFI 90 distributed control systems. The unit is designed to provide reliable digital signal termination and structured connectivity between field devices and process control I/O modules. The NTDI02 serves as a centralized termination platform for digital input, digital output, pulse input, and frequency counting applications. Its compact construction and standardized field wiring layout simplify system integration, cabinet organization, and long-term maintenance in industrial automation environments. Key Features Supports digital signal termination for Harmony Rack I/O systems Interfaces with multiple ABB digital and analog I/O modules Handles up to 16 field input signals Compatible with Symphony Enterprise Management and Control platforms Designed for Bailey Net 90 and INFI 90 systems Provides organized field wiring termination Supports pulse monitoring and frequency counting applications Compact rack-compatible form factor Suitable for system modernization and replacement projects Technical Specifications Parameter Specification Brand ABB Model NTDI02 Product Type Digital I/O Termination Unit Product Series Harmony Rack I/O Compatible Systems Bailey Net 90, INFI 90, Symphony Enterprise Function Digital signal termination and field interface Maximum Input Capacity 16 Digital Signals Supported I/O Types Digital Input, Digital Output, Pulse Input Installation Type Rack I/O System Integration Field Wiring Method Terminal-Based Connection Controller Communication Rack Interface Architecture Compatible Input Modules IMDSI13, IMDSI14, IMDSI22 Compatible Output Modules IMDSO14, IMDSO15, IMASO11 Additional Compatible Modules IMDSM04, IMFCS01 System Role Field Device to Controller Interface Product Status Active Condition Brand New Country of Origin Sweden HS Code 8537101190 Dimensions 18 × 17.6 × 2.2 cm Weight 0.36 kg Functional Characteristics The ABB NTDI02 operates as an interface termination assembly linking field instrumentation with Harmony control modules. It routes digital process signals through the rack I/O infrastructure while maintaining signal stability and organized cabinet wiring. Compared with older termination assemblies, the NTDI02 offers broader module compatibility for upgraded ABB system configurations while preserving integration with legacy control architectures. Application Areas The NTDI02 termination unit is commonly installed in: Distributed control systems Process automation plants Power generation facilities Petrochemical processing systems Industrial manufacturing lines Water treatment operations Legacy ABB Harmony migration projects FAQ What is the primary function of the NTDI02? The NTDI02 is used to terminate and route digital field signals between process devices and ABB Harmony or INFI 90 control modules. How many signals can the NTDI02 support? The unit supports up to 16 digital field input channels. Is the NTDI02 compatible with older ABB systems? Yes. The module is compatible with Bailey Net 90 and INFI 90 system architectures while also supporting Harmony-based configurations. Can the NTDI02 replace the NTDI01? The NTDI02 is commonly used as a functional alternative in systems requiring compatibility with updated ABB module arrangements.
$200.00 $100.00
-
ABB ABB NTAM01 Analog Master Termination Unit INFI 90 DCS
Overview The ABB NTAM01 Analog Master Termination Unit is a passive field interface assembly developed for the Bailey INFI 90 Distributed Control System. The unit is engineered to organize, terminate, and distribute analog process signals between field instrumentation and INFI 90 control modules. Designed for stable analog signal management, the NTAM01 supports calibration routing, cold-junction compensation transfer, and standardized field wiring arrangements. Its rack-mounted construction simplifies cabinet integration while maintaining reliable signal integrity in continuous process environments. Key Features Passive analog signal termination architecture Compatible with ABB Bailey INFI 90 DCS platforms Supports voltage and current analog signal transmission Integrated cold-junction compensation reference handling Calibration signal routing support through IMAMM03 modules Interfaces with multiple analog input termination assemblies Rack-mounted format for NFTP01 field termination panels Screw terminal wiring for secure industrial connections Designed for long-term operation in process automation systems Technical Specifications Parameter Specification Brand ABB Model NTAM01 Product Type Analog Master Termination Unit System Compatibility ABB Bailey INFI 90 DCS Unit Function Analog signal termination and routing Supported Signal Types 0–10 V, 4–20 mA Maximum Analog Channels 16 Channels Supported Analog Input Units Up to 4 × NTAI02 Supported Indicator Stations Up to 4 × NDIS01 / NDISe1 Calibration Routing Via IMAMM03 Cold-Junction Compensation Supported Mounting Style Rack Mounted Panel Compatibility NFTP01 Field Termination Panel Terminal Type Screw Terminal Blocks Operating Voltage +24 VDC Current Consumption Approx. 17 mA Operating Temperature -20°C to +60°C Dimensions 7.0 × 1.0 × 8.0 in Weight 0.2 kg Application Areas The ABB NTAM01 is widely installed in process industries requiring stable analog signal termination and centralized wiring management, including: Power generation systems Petrochemical facilities Water treatment plants Continuous manufacturing lines Process automation cabinets Distributed control environments System Integration The NTAM01 termination unit is commonly paired with ABB INFI 90 analog input modules and master control assemblies. Its design enables simplified maintenance access and organized field signal distribution inside control cabinets. FAQ What is the main purpose of the NTAM01? The NTAM01 provides analog field signal termination, routing, and calibration support for ABB Bailey INFI 90 systems. Does the NTAM01 actively process signals? No. The unit is a passive termination assembly designed for signal distribution and interface connectivity. Which analog signals are supported? The module supports standard industrial analog signals including 0–10 V and 4–20 mA. Can the NTAM01 support multiple input units? Yes. The unit can interface with up to four NTAI02 analog input units and several digital indicator
$200.00 $100.00
-
ABB ABB NTLS01 Logic Station Termination Unit INFI 90 DCS
Overview The ABB NTLS01 Logic Station Termination Unit is a digital signal termination assembly engineered for Bailey INFI 90 distributed control systems. The module is designed to provide organized field wiring termination, signal distribution, and isolated digital channel interfacing between plant devices and control system hardware. Its passive rack-mounted design supports stable digital signal transmission while simplifying cabinet installation and maintenance. The NTLS01 is commonly deployed in process automation environments requiring dependable logic signal termination and high electrical isolation. Key Features Supports multi-channel digital signal termination Compatible with ABB Bailey INFI 90 control architectures Designed for logic station interface applications Provides isolated digital signal channels Supports multiple industrial DC loop configurations Compact rack-mounted mechanical structure Screw terminal field wiring connections Suitable for high-noise industrial environments Simplifies structured field signal management inside control cabinets Technical Specifications Parameter Specification Brand ABB Model NTLS01 Product Type Logic Station Termination Unit System Compatibility ABB Bailey INFI 90 DCS Signal Type Digital Signal Termination Digital Channel Capacity 16 Channels Supported Input Voltage 12–24 VDC Loop Voltage Support 24 VDC / 125 VDC Configurations Power Supply 24 VDC ±10% Typical Power Consumption Approx. 2 W Isolation Type Galvanic Isolation Isolation Rating Up to Approx. 4 kV Field Wiring Connection Screw Terminal Blocks Controller Interface D-Sub or Ribbon Connector Mounting Style Rack Mounted Operating Temperature -40°C to +85°C Relative Humidity 0–95% RH, Non-Condensing Dimensions 8.0 × 1.0 × 7.0 in Weight 0.2 kg Application Areas The ABB NTLS01 termination unit is typically installed in: Distributed control systems Process automation cabinets Power generation facilities Chemical processing plants Industrial manufacturing lines Digital logic interface systems Field signal marshalling panels Installation & Integration The NTLS01 is designed for integration with ABB logic station assemblies and digital interface modules within INFI 90 systems. Its termination structure allows organized signal routing while reducing wiring complexity during commissioning and maintenance procedures. FAQ What is the primary function of the NTLS01? The NTLS01 provides digital signal termination and field wiring interfacing for ABB Bailey INFI 90 logic station applications. How many digital channels are supported? The unit supports termination for up to 16 digital channels. Does the NTLS01 provide electrical isolation? Yes. The module supports galvanic isolation for improved signal protection and noise immunity in industrial environments. What wiring method does the unit use? The termination unit uses screw terminal field connections for secure and service-friendly installation.
$200.00 $100.00
-
ABB ABB NTAI02 INFI 90 Analog Termination Unit 24VDC
Overview The ABB NTAI02 Analog Termination Unit is designed for use within the INFI 90 distributed control system platform. This termination unit provides reliable signal termination and interface functionality for analog field wiring in industrial automation environments. Engineered for stable low-current operation, the module supports dependable signal transmission between field devices and control modules. Built for long-term industrial use, the NTAI02 termination assembly is suitable for process control systems requiring consistent analog signal management, simplified maintenance access, and compact installation. Key Features Compatible with ABB INFI 90 process control systems Designed for analog signal termination applications Supports 24VDC operating environments Compact DIN-compatible industrial form factor Stable low-current operation at 0.25 Amp Simplifies field wiring organization and maintenance Industrial-grade construction for continuous-duty applications Suitable for retrofit and system expansion projects Technical Specifications Specification Details Brand ABB Model NTAI02 Product Type Analog Termination Unit Platform INFI 90 System Family BAINET Operating Voltage 24 VDC Current Rating 0.25 A Part Condition New Country of Origin Canada Customs Tariff Code 8537109150 Mounting Style Panel / Cabinet Installation Dimensions 7.0 × 1.0 × 7.0 in Net Weight 0.4 kg Selling Unit Each Applications The ABB NTAI02 termination unit is commonly deployed in: Distributed Control Systems (DCS) Power generation facilities Petrochemical plants Water treatment systems Industrial process automation Factory control cabinets Legacy INFI 90 upgrades and maintenance Compatibility Information The NTAI02 module is intended for integration with ABB INFI 90 and related BAINET system architectures. Proper compatibility verification with associated controller and I/O modules is recommended before installation. FAQ What is the function of the ABB NTAI02 module? The NTAI02 serves as an analog termination unit that interfaces field analog wiring with the control system infrastructure inside ABB INFI 90 environments. Is the NTAI02 suitable for industrial control cabinets? Yes. Its compact construction and industrial-grade design make it suitable for standard automation enclosures and control panels. Does this module require a 24VDC supply? Yes. The unit operates in 24VDC control system environments with a rated current of approximately 0.25A.
$200.00 $100.00
-

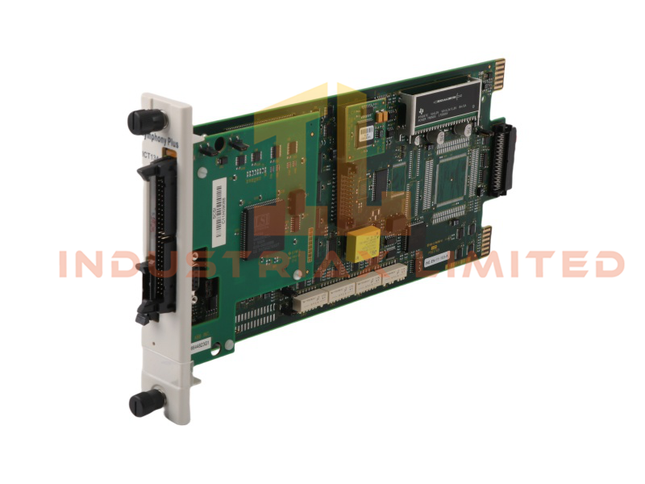

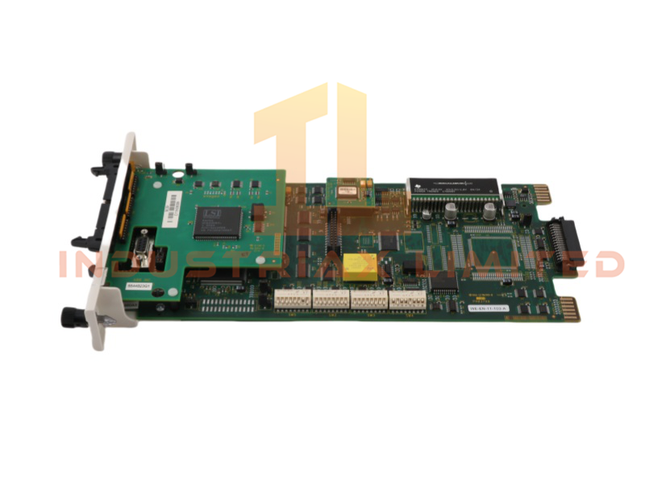

ABB ABB INICT12 Infi-Net Computer Transfer Module DCS
Overview The INICT12 is an ABB Infi-Net Computer Transfer Module engineered for use within ABB Symphony Harmony and Infi 90 distributed control systems. The module functions as a communication interface between the INFI-NET network and external computer-based supervisory systems, enabling reliable data transfer, storage, and process monitoring. Designed for high-integrity industrial communication environments, the module supports dual full-duplex RS-232-C serial channels with selectable communication speeds for flexible integration into legacy and modern DCS infrastructures. The INICT12 is commonly installed in Harmony rack hardware configurations and is suitable for process plants requiring centralized data acquisition and superloop storage functionality. Technical Specifications Specification Details Manufacturer ABB Model Number INICT12 Product Type Infi-Net Computer Transfer Module System Compatibility ABB Infi 90, ABB Symphony Harmony Communication Interface INFI-NET to Computer Transfer Communication Ports 2 Full-Duplex RS-232-C Serial Ports Supported Baud Rates 2400, 4800, 9600, 19200 baud Memory Capacity 512 KB ROM RAM Capacity 512 KB RAM Non-Volatile Memory 128 KB NVRAM Point Definition Capacity Up to 10,000 Tags Power Supply Requirement +5 VDC Current Consumption 2.0 A Power Consumption 10 W Installation Type Harmony Rack Mount Dimensions 6.0 × 2.0 × 1.0 in (15.2 × 5.1 × 2.5 cm) Weight 0.5 kg Country of Origin United States Customs Tariff Code 85176200 Functional Features Provides communication between INFI-NET systems and external computers Supports dual RS-232 full-duplex serial communication User-selectable baud rates for flexible system integration Handles up to 10,000 point definitions for large-scale process applications Integrated NVRAM for retaining configuration data during power interruptions Designed for ABB Harmony rack hardware environments Supports superloop storage and centralized process data transfer Application Areas The INICT12 module is widely used in industrial automation systems requiring reliable DCS communication and historical process data exchange, including: Power generation facilities Refinery and petrochemical plants Water treatment systems Distributed process control networks Manufacturing process automation Centralized plant monitoring systems Compatibility Information The INICT12 is compatible with ABB Infi 90 and Symphony Harmony control platforms. It can be integrated with other Harmony rack communication and controller modules to support plant-wide supervisory communication architectures. FAQ What is the main purpose of the INICT12 module? The module transfers process and supervisory data between ABB INFI-NET systems and connected computer interfaces using RS-232 communication. How many communication channels are available? The INICT12 includes two independent full-duplex RS-232-C serial communication ports. What is the maximum supported tag capacity? The module supports up to 10,000 point definitions for large process control applications. Does the module retain data after power loss? Yes. The integrated 128 KB NVRAM preserves critical configuration and operational data during power interruptions.
$200.00 $100.00
-
ABB ABB INTKM01 Time Keeper Master Module for Infi 90
Overview The INTKM01 Time Keeper Master Module is a synchronization control component developed for ABB Bailey Infi 90 and Net 90 distributed control systems. The module provides centralized plant-wide time coordination for sequence-of-events recording and synchronized process monitoring applications. Designed for integration with the NTST01 synchronization interface, the module receives IRIG-B reference signals and distributes high-accuracy timing data through RS-485 communication links to connected system cabinets and event management nodes. The INTKM01 is commonly applied in power generation, process automation, and critical industrial environments where precise event timestamping and coordinated control operations are required. Technical Specifications Specification Details Manufacturer ABB Bailey Model Number INTKM01 Product Type Time Keeper Master Module Compatible Systems ABB Infi 90, ABB Net 90 Processor Type 16-bit Microprocessor Processor Speed 10 MHz Operating Voltage 5 VDC ±5% Typical Current Consumption 300 mA Synchronization Input IRIG-B DC Level Shift Format Synchronization Interface NTST01 Communication Output RS-485 Communication Speed 62.5 kbaud Synchronization Accuracy ±10 µsec Absolute Time Accuracy ±1 msec to INSEM01 Isolation Voltage 1000 VAC at 50 Hz Surge Protection 2000 VP 1.2/50 µsec Pulse Cable Type Twinaxial Maximum Distance Between HCU Cabinets 4000 m (13,123 ft) Maximum Distance to Farthest HCU Cabinet 40,000 m (131,233 ft) Weight 0.3 kg Key Features Provides centralized time synchronization for Infi 90 systems Supports IRIG-B timing signal input through NTST01 interface High-precision synchronization with ±10 microsecond accuracy RS-485 timing distribution network at 62.5 kbaud Designed for long-distance industrial communication networks Integrated electrical isolation for improved signal protection Supports sequence-of-events recording applications Suitable for critical process control environments System Integration The INTKM01 module operates alongside the NTST01 synchronization interface and communicates with sequence-of-events equipment such as the INSEM01 master module. Together, these modules establish synchronized timestamp management across distributed control cabinets and remote HCU nodes. Its long-distance communication capability allows deployment across large industrial facilities without compromising synchronization stability. Application Areas Typical installations for the INTKM01 include: Power generation and turbine control systems Petrochemical process plants Distributed control system infrastructures Utility automation facilities Industrial event monitoring networks Large-scale process synchronization systems FAQ What is the purpose of the INTKM01 module? The module provides accurate system-wide time synchronization for ABB Infi 90 and Net 90 distributed control systems. Which timing format does the INTKM01 support? The module accepts IRIG-B timing input in DC level shift format through the NTST01 interface module. How accurate is the synchronization output? The module delivers synchronization accuracy up to ±10 microseconds and absolute timing accuracy of ±1 millisecond for sequence-of-events applications. What communication method is used for synchronization distribution? The module distributes timing information using RS-485 communication operating at 62.5 kbaud.
$200.00 $100.00
-
ABB ABB INSEM01 Sequence of Events Master Module for Infi 90
Overview The INSEM01 from ABB Bailey is a Sequence of Events Master module developed for use within ABB Infi 90 and Net 90 distributed control systems. This module is designed to collect, manage, and process sequence-of-events data for industrial process monitoring applications where accurate event timing and system diagnostics are essential. Originally supplied under the ABB Bailey automation platform, the module supports high-reliability event recording functions in process industries including power generation, oil & gas, chemical processing, and manufacturing automation. The INSEM01 has been officially replaced by the newer INSEM11 model, offering continued support for legacy system migration and maintenance strategies. Technical Specifications Specification Details Manufacturer ABB Bailey Model Number INSEM01 Product Type Sequence of Events Master Module System Compatibility ABB Infi 90, ABB Net 90 Replacement Model INSEM11 Product Category ABII90 Country of Origin United States Customs Tariff Code 8537109170 Weight 0.5 kg Mounting/Application DCS Rack Installation Function Sequence Event Collection & Monitoring Ordering Unit Each Availability Standard Stock Item Key Features Designed for ABB Bailey Infi 90 distributed control systems Supports centralized sequence-of-events management Improves plant event diagnostics and operational visibility Suitable for continuous industrial process monitoring Compatible with legacy ABB Net 90 architectures Engineered for stable operation in industrial automation environments Direct replacement path available through INSEM11 Application Areas The INSEM01 module is commonly deployed in industrial facilities requiring accurate time-sequenced event recording and fault analysis, including: Power plant control systems Petrochemical processing units Water and wastewater facilities Refinery automation systems Industrial manufacturing lines Distributed control system modernization projects Replacement Information ABB has designated the INSEM01 as obsolete and recommends migration to the INSEM11 Sequence of Events module for long-term maintenance and system support. Existing Infi 90 installations may continue using INSEM01 for spare inventory and legacy equipment servicing. FAQ What is the primary function of the INSEM01 module? The module manages sequence-of-events recording within ABB Infi 90 and Net 90 systems, helping operators analyze alarms, faults, and process events in chronological order. Is the INSEM01 still in production? No. ABB has replaced the INSEM01 with the INSEM11 model. However, surplus and refurbished units may still be available for legacy system support. Which ABB systems support the INSEM01? The module is compatible with ABB Bailey Infi 90 and Net 90 distributed control systems. Can INSEM01 be used for system upgrades? The module is generally used for maintenance or replacement within existing systems. For modernization projects, ABB recommends the INSEM11 successor module.
$200.00 $100.00
-
ABB ABB INBTM01 Bus Termination Module INFI-90 System
Overview The ABB INBTM01 is a dedicated termination component used in ABB Bailey INFI-90 and compatible distributed control systems. It is installed at the end of communication bus segments to maintain electrical stability and ensure proper signal integrity across the network. By providing controlled impedance and reducing signal reflections, this module helps maintain clean digital communication in multi-rack and long-distance control architectures. It is a passive yet critical element in ensuring reliable system-wide data exchange. Functional Characteristics Provides end-of-line termination for INFI-90 communication buses Matches electrical impedance to prevent signal reflections Stabilizes waveform quality across communication lines Improves immunity to electrical noise and interference Supports reliable operation in extended or multi-rack installations Protects communication integrity of upstream modules Technical Specifications Electrical Characteristics Module Type: Passive termination unit Power Consumption: None (passive device) Termination Network: Fixed impedance design Supported Bus: INFI-90 system communication bus Signal Integrity Functions Impedance Matching: Ensures correct line termination Reflection Control: Minimizes signal bounce and distortion Noise Suppression: Enhances communication stability Signal Conditioning: Passive electrical stabilization System Compatibility Supported Platforms: INFI-90 NET90 Symphony Harmony systems Function: End-of-line bus termination Environmental Conditions Operating Temperature: 0°C to +60°C Storage Temperature: –40°C to +85°C Humidity: 5% to 95% non-condensing Mechanical Specifications Dimensions: 7.0 × 2.0 × 7.0 in (17.8 × 5.1 × 17.8 cm) Weight: 0.4 kg Form Factor: Eurocard module Mounting: INFI-90 Module Mounting Unit (MMU) Front Panel Features Identification label Optional status indicator (revision dependent) Application Areas The ABB INBTM01 is used wherever stable bus termination is required in distributed control architectures: Power generation plants (thermal, hydro, nuclear) Petrochemical and refinery systems Pulp and paper production facilities Steel and heavy industrial automation networks Large-scale distributed control systems with long cable runs FAQ What is the main purpose of the INBTM01?It provides proper electrical termination for the INFI-90 communication bus to ensure stable signal transmission. Is it an active or passive module?It is a passive component with no power consumption. Where should it be installed?It must be placed at the end of each communication bus segment. Why is bus termination important?It prevents signal reflections and maintains communication integrity across the control network.
$200.00 $100.00
-
ABB ABB IMASO01 Analog Output Module INFI-90 System
Overview The ABB IMASO01 is an analog output interface module developed for ABB Bailey INFI-90 distributed control systems. It is responsible for converting digital control signals from the processor into stable analog outputs used to drive field devices. This module is designed for applications requiring high signal accuracy and reliability. With integrated isolation and filtering, it ensures consistent performance when controlling actuators, valves, and other process equipment in demanding industrial environments. Functional Capabilities Converts digital control data into analog output signals Supports current and voltage output configurations Provides electrical isolation between system and field circuits Maintains signal stability through built-in filtering Enables closed-loop control of process equipment Reports operational status and diagnostics to the control system Technical Specifications Electrical Characteristics Supply Voltages: +5 VDC, ±15 VDC, +24 VDC Total Power Consumption: Approximately 15.8 VA Backplane Interface: INFI-90 system bus Output Configuration Output Channels: Typically 8 channels (hardware-dependent) Alternate Configuration: Up to 14 output points in certain variants Output Types: 4–20 mA current output (standard industrial control) Voltage output (application-dependent) Load Capability: Compatible with standard analog loop loads Isolation: Channel-to-channel and channel-to-system isolation Analog Performance D/A Conversion Resolution: Typically 12–16 bit class Output Accuracy: Industrial-grade precision suitable for control loops Signal Conditioning: Hardware filtering for noise suppression Communication Interface System Bus: INFI-90 I/O communication bus Data Handling: Buffered and synchronized output updates Diagnostics: Output channel monitoring Module status reporting Communication health indication Environmental Conditions Operating Temperature: 0°C to +60°C Storage Temperature: –40°C to +85°C Humidity: 5% to 95% non-condensing Mechanical Specifications Dimensions: 7.0 × 2.0 × 13.0 in (17.8 × 5.1 × 33.0 cm) Weight: 0.75 lbs Form Factor: Eurocard module Mounting: Compatible with INFI-90 Module Mounting Unit (MMU) Front Panel Features Module status LED Output activity indicators Identification labeling Application Areas The ABB IMASO01 is used in process industries requiring precise analog signal output: Power generation facilities including thermal and hydro plants Oil and gas refining and processing Petrochemical production systems Pulp and paper manufacturing Distributed control systems with analog actuation requirements FAQ What type of signals does the IMASO01 provide?It typically outputs 4–20 mA signals, with optional voltage outputs depending on configuration. How many output channels are available?Most configurations provide 8 channels, though some variants support higher point counts. Is the module suitable for closed-loop control?Yes, it is designed for precise control of valves, actuators, and other field devices. How does it ensure signal reliability?Through isolation, filtering, and diagnostic monitoring, the module maintains stable and accurate output signals.
$200.00 $100.00
-
ABB ABB IMMFP01 Multi-Function Processor Module INFI-90
Overview The ABB IMMFP01 is a central processing module designed for use within ABB Symphony and INFI-90 distributed control systems. It performs real-time control execution, supervises communication with I/O subsystems, and coordinates data flow across the control network. As part of the Multi-Function Processor (MFP) series, this module provides the computational capability required for complex process control applications, combining control logic execution with system diagnostics and communication management. Functional Capabilities Executes process control strategies including PID, sequencing, and logic operations Manages communication between I/O modules and network processors Coordinates distributed control tasks across system nodes Performs continuous diagnostics on processor, memory, and communication links Stores and runs user-defined control configurations Technical Specifications Electrical Characteristics Supply Voltage: +5 VDC via backplane Power Consumption: Up to 10 W Backplane Interface: INFI-90 system bus Processing and Capacity Processor Type: Proprietary ABB control processor Program Capacity: Up to approximately 5000 function blocks Up to approximately 2000 control logic lines I/O Communication Capacity: Supports up to 64 I/O modules Memory: Non-volatile RAM for configuration and program storage Communication Features Supported Systems: INFI-90 and Symphony control networks Data Exchange: Deterministic and buffered communication Diagnostics: Processor status monitoring Memory integrity checks Communication health reporting Environmental Conditions Operating Temperature: 0°C to +60°C Storage Temperature: –40°C to +85°C Humidity: 5% to 95% non-condensing Mechanical Specifications Dimensions: 7.0 × 2.0 × 1.0 in (17.8 × 5.1 × 2.5 cm) Weight: 1.1 lbs Form Factor: Eurocard module Mounting: Fits INFI-90 Module Mounting Unit (MMU) Front Panel Features Processor status indicator Communication activity LEDs Module health indicator Application Areas The ABB IMMFP01 is widely applied in systems requiring centralized and reliable process control: Power generation plants including fossil, hydro, and nuclear Oil and gas refining and processing facilities Petrochemical production systems Pulp and paper manufacturing Large-scale distributed automation environments FAQ What is the role of the IMMFP01 module?It acts as the main control processor, executing control logic and coordinating system communication. How many I/O modules can it support?It can communicate with up to 64 I/O modules within the INFI-90 architecture. What type of control functions does it handle?The module supports PID loops, sequence control, and logic-based automation tasks. Does it store programs internally?Yes, it uses non-volatile memory to retain control programs and configuration data.
$200.00 $100.00
-
ABB ABB IMPMON01 Power Monitor Module INFI-90 System
Overview The ABB IMPMON01 is a dedicated power supervision module designed for ABB Bailey INFI-90 distributed control systems. It continuously tracks the condition of system power rails and provides diagnostic feedback to maintain stable operation of control hardware. This module plays a critical role in identifying abnormal voltage conditions and ensuring that power-related faults are detected early. It supports system reliability by reporting real-time status information to the control processor and operator interfaces. Functional Capabilities Monitors multiple system voltage levels including logic and analog supplies Detects undervoltage, overvoltage, and power interruption events Reports power status and alarms to the control system Provides hardware-level diagnostics for maintenance and troubleshooting Supports stable operation of control modules through continuous supervision Technical Specifications Electrical Characteristics Backplane Supply: 5 VDC Power Consumption: Approximately 4–6 W Monitored Voltages: +5 VDC logic supply +15 VDC and –15 VDC analog rails Input Power (external reference): 0.3 A at 120 VAC 0.2 A at 240 VAC or 125 VDC Monitoring and I/O Signals Logic Status Inputs: 2 inputs (logic low indicates fault) Logic 0: 0.8 VDC at 10 mA sink Logic 1: 3.1 VDC at 80 µA source Fan Status Inputs: 2 inputs for fan condition monitoring Power Fail Interrupt (PFI): 1 open-collector output (non-isolated) Logic 0: 0.8 VDC at 10 mA Logic 1: 4.75–5.25 VDC at 80 µA Status Output: Open-collector output for module fault indication Bus Alarm Output: Opto-isolated open-collector (24 V class) Logic 1 indicates fault condition Communication Interface System Integration: INFI-90 I/O bus Data Transfer: Continuous status reporting and alarm signaling Diagnostics: Power health monitoring, fault detection, event indication Environmental Conditions Operating Temperature: 0°C to +60°C Storage Temperature: –40°C to +85°C Humidity: 5% to 95% non-condensing Mechanical Specifications Dimensions (D × W × H): 40.13 × 3.56 × 21.84 cm Weight: 0.71 kg Form Factor: Eurocard module Mounting: Compatible with INFI-90 Module Mounting Unit (MMU) Front Panel Features Power status indicator Fault and alarm LEDs Module health indication Application Areas The ABB IMPMON01 is used in systems where continuous power supervision is essential: Power generation plants with critical control infrastructure Oil and gas processing facilities Petrochemical and refining operations Industrial automation systems requiring high availability FAQ What does the IMPMON01 monitor?It supervises system voltage levels, including logic and analog supplies, and reports abnormal conditions. How are faults communicated?Faults are indicated through system communication as well as hardware outputs such as alarm and status signals. Can it monitor cooling system status?Yes, it includes inputs for monitoring fan operation and related conditions. Why is this module important?It helps prevent system failures by detecting power issues early and enabling timely corrective actions.
$200.00 $100.00
-
ABB ABB Bailey INFI-90 NTMF01 Multi-Function Termination Unit
Overview The ABB NTMF01 is a multifunction termination unit designed for use with Bailey INFI-90 and NET 90 distributed control systems. It serves as a physical interface point for connecting communication lines and control station links, enabling stable and organized signal termination within control cabinets. Engineered for dependable operation, this unit supports serial communication interfaces and ensures efficient data exchange between system components. Its compact footprint allows straightforward installation in space-constrained industrial panels. Functional Characteristics Provides termination and interface for system communication signals Supports serial data exchange between control stations and field devices Facilitates structured wiring and signal distribution Enhances communication reliability by stabilizing connections Designed for integration within INFI-90 and NET 90 architectures Technical Specifications General Information Model: NTMF01 Manufacturer: ABB Product Type: Termination Unit System Compatibility: Bailey INFI-90 and NET 90 Product Status: Active Electrical and Interface Features Communication Interfaces: Dual RS-232 serial ports Dedicated control station serial link Function: Signal termination and communication interface Connectivity: Supports integration with multiple industrial communication devices Mechanical Specifications Dimensions: 18.2 × 17.7 × 1.8 cm Weight: 0.26 kg Mounting: Panel or cabinet integration (termination board format) Design: Compact, suitable for dense control cabinet layouts Environmental Conditions Operating Environment: Industrial control cabinets Humidity: Suitable for non-condensing environments Temperature Range: Typically aligned with INFI-90 system standards (0°C to +60°C) Application Areas The ABB NTMF01 is used in systems requiring structured communication termination and reliable signal interfacing: Power generation plants Oil and gas processing facilities Petrochemical and refining systems Distributed control environments with centralized cabinets FAQ What is the role of the NTMF01 unit?It acts as a termination and interface point for communication signals, ensuring stable connections within INFI-90 and NET 90 systems. What communication interfaces are supported?The unit provides dual RS-232 ports and a dedicated control station serial interface. Is it suitable for compact installations?Yes, its slim and lightweight design allows easy integration into crowded control panels. Does it require special configuration?It is typically used as a passive or semi-active interface, requiring standard system-level configuration depending on the application.
$200.00 $100.00
-
ABB ABB IMDSI12 Digital Input Module 16 Channel INFI-90
Overview The ABB IMDSI12 is a discrete input interface module designed for ABB Bailey INFI-90 and Symphony control systems. It enables the acquisition of field-based ON/OFF signals and transfers these states to the control processor with high reliability. This module is intended for use in distributed I/O configurations, where accurate detection of equipment status is essential. It incorporates signal conditioning and isolation to ensure stable operation in electrically demanding industrial environments. Functional Features Captures digital input signals from field devices such as switches and relays Supports dry contact and DC voltage input configurations Provides electrical isolation to protect control system integrity Implements debounce filtering to eliminate false transitions Supplies real-time status updates to the controller Includes built-in diagnostics for module and channel monitoring Technical Specifications Electrical Characteristics Backplane Supply Voltage: 5 VDC Current Consumption: Approximately 80–115 mA Power Consumption: Typically within 4–6 VA range Input Channels: 16 discrete inputs Input Parameters Input Types: Dry contact or 24 VDC logic input Typical Input Voltage Range: 18–30 VDC (logic high) Input Current: Low-level sensing current Isolation: Channel-to-system isolation for noise immunity Filtering: Hardware and software debounce filtering Communication Interface System Bus: INFI-90 I/O communication bus Data Transmission: Buffered and synchronized updates Diagnostics: Channel status monitoring Fault detection Communication status feedback Environmental Conditions Operating Temperature: 0°C to +60°C Storage Temperature: –40°C to +85°C Humidity: 5% to 95% non-condensing Mechanical Specifications Dimensions: 17.8 × 5.1 × 33.0 cm Weight: 0.42 lbs Form Factor: Eurocard module Mounting: Fits INFI-90 Module Mounting Unit (MMU) Front Panel Features Module health indicator LED Individual channel status LEDs Identification labeling Application Areas The ABB IMDSI12 is suited for applications requiring reliable discrete signal monitoring: Power generation facilities including fossil and hydro plants Petrochemical and refining operations Pulp and paper production systems Industrial automation systems with distributed I/O FAQ How many inputs does the IMDSI12 support?It provides 16 independent digital input channels. What types of signals can be connected?The module supports dry contacts and standard 24 VDC discrete signals. How does it prevent false signals?Integrated debounce filtering eliminates noise and contact bounce effects. Is it suitable for harsh industrial environments?Yes, electrical isolation and filtering ensure reliable performance under noisy conditions.
$200.00 $100.00
-
ABB ABB INNPM01 Network Processor Module INFI-90 Symphony
Overview The ABB INNPM01 is a dedicated network processing unit developed for the INFI-90 and Symphony distributed control platforms. It operates as a central communication handler, coordinating data exchange across controllers, operator interfaces, and distributed subsystems. By managing message routing and communication timing, this module supports stable and predictable system behavior across complex plant-wide networks. It is commonly deployed in installations where multiple control nodes must exchange data in real time. Core Functions Executes communication processing for system-wide data exchange Routes messages between controllers, HMIs, and I/O modules Manages proprietary ABB communication protocols Provides network diagnostics and error monitoring Maintains synchronization across distributed control nodes Technical Specifications Electrical Characteristics Supply Voltage: +5 VDC via backplane Current Consumption: up to 2 A Power Rating: 10 W nominal maximum Backplane Interface: INFI-90 system bus Processing and Memory Processor Type: Dedicated ABB communication processor ROM: 256 KB RAM: 512 KB Communication Performance Supported Network: INFI-90 / Symphony control network Communication Role: Network processor and data router Data Handling: Buffered and deterministic transmission Communication Rates: 1 Mbaud (Controlway network) 83.3 kbaud (module bus) Diagnostics: Network status, fault detection, and event logging Environmental Conditions Operating Temperature: 0°C to +60°C Storage Temperature: –40°C to +85°C Humidity: 5% to 95% non-condensing Mechanical Specifications Dimensions: 13.0 × 2.0 × 7.0 in (33.0 × 5.1 × 17.8 cm) Weight: 0.5 kg Form Factor: Eurocard module Mounting: Single-slot installation in INFI-90 MMU racks Front Panel Features Network activity indicators Module health/status LED Communication status indicators Application Areas The ABB INNPM01 is designed for distributed control environments requiring robust communication infrastructure: Power generation facilities including thermal and hydro plants Oil and gas processing and refining systems Pulp and paper production lines Large-scale industrial plants with distributed control architectures FAQ What role does the INNPM01 play in the system?It acts as a communication processor that manages data flow and routing across the INFI-90 network. Is it required for every INFI-90 installation?It is typically used in systems where coordinated communication between multiple nodes is necessary. What communication speeds are supported?The module supports up to 1 Mbaud on the Controlway network and 83.3 kbaud on the module bus. How does it improve system reliability?By providing buffered communication, diagnostics, and controlled data routing, it ensures stable and predictable network performance.
$200.00 $100.00
-
ABB ABB Symphony INFI-90 IMASI13 Analog Input Slave Module
Overview The ABB IMASI13 is a multi-channel analog input module developed for the Symphony INFI-90 distributed control platform. It is responsible for collecting analog field signals, performing signal conditioning, and converting them into digital values for processing by the control system. Designed for precision and reliability, this module supports a wide range of industrial measurement inputs and ensures stable acquisition even in electrically noisy environments. It is commonly deployed in critical process industries requiring consistent and accurate signal monitoring. Core Capabilities Accepts multiple analog signal types from field instrumentation Performs signal conditioning including filtering and scaling Converts analog signals into digital data using high-resolution A/D conversion Provides isolation to reduce interference and protect system integrity Reports module and channel diagnostics to the control processor Integrates seamlessly into INFI-90 I/O architectures Technical Specifications Electrical Characteristics Backplane Supply: 5 VDC Power Consumption: Approximately 6–8 VA Input Signal Types: Configurable analog current and voltage Input Configuration Number of Channels: 16 independently configurable channels Current Input Range: 4–20 mA Millivolt Input Range: –100 mV to +100 mV / 0 to 100 mV Input Isolation: Channel-to-channel and channel-to-system isolation Analog Performance A/D Converter Resolution: Typically 12–16 bit class Signal Filtering: Combined hardware and digital filtering Measurement Accuracy: Industrial-grade precision for process control Communication Interface System Bus: INFI-90 I/O communication bus Data Handling: Buffered and synchronized data transfer Diagnostics: Continuous monitoring of channel status and module health Environmental Conditions Operating Temperature: 0°C to +60°C Storage Temperature: –40°C to +85°C Humidity: 5% to 95% non-condensing Mechanical Specifications Dimensions: 7.0 × 2.0 × 13.0 in (17.8 × 5.1 × 33.0 cm) Weight: 0.4 kg Form Factor: Eurocard module for INFI-90 systems Mounting: Compatible with Module Mounting Unit (MMU) Front Panel Features Module status indicator Channel activity/status LEDs Identification labeling Application Areas The ABB IMASI13 is used in process environments where accurate analog data acquisition is essential: Power generation plants including thermal and nuclear facilities Oil refining and petrochemical processing units Pulp and paper manufacturing systems Heavy industrial automation with distributed control requirements FAQ What types of signals can the IMASI13 accept?It supports standard industrial analog signals such as 4–20 mA and low-level millivolt inputs, depending on configuration. How many input channels are available?The module provides 16 independently configurable input channels. Is the module suitable for noisy environments?Yes, built-in filtering and isolation features ensure stable performance in high-interference conditions. How does it communicate with the control system?It uses the INFI-90 I/O bus with buffered and synchronized data transfer to maintain real-time performance.
$200.00 $100.00
-
ABB ABB IMCIS12 Control I/O Slave Module for INFI-90 DCS
Overview The ABB IMCIS12 is a communication interface module designed for use within ABB Bailey INFI-90 and NET90 distributed control systems. It operates as a slave node on the control network, enabling structured data exchange between the main controller and remote I/O assemblies. This module is typically deployed in systems that utilize distributed I/O layouts, where field signals are collected and processed across multiple remote racks. It ensures consistent communication timing, reliable data transfer, and system-level coordination. Functional Characteristics Handles bidirectional data transfer between controller and remote I/O stations Executes INFI-90 communication protocol management at the module level Buffers process data to maintain deterministic update cycles Provides diagnostic feedback for communication and module status Supports expansion of distributed I/O networks across plant areas Technical Specifications Electrical Parameters Supply Voltage: 5 VDC via backplane Typical Power Demand: 4–6 VA Bus Interface: INFI-90 I/O communication bus Communication Features Role: Slave interface for control-to-I/O communication Network Compatibility: INFI-90 distributed I/O architecture Data Processing: Buffered and synchronized transmission Diagnostics: Integrated status monitoring and fault indication Environmental Conditions Operating Temperature: 0°C to +60°C Storage Temperature: –40°C to +85°C Humidity Range: 5% to 95% (non-condensing) Mechanical Details Dimensions: 17.8 × 5.1 × 2.5 cm Weight: 0.2 kg Module Format: Eurocard compatible with INFI-90 systems Mounting: Fits standard Module Mounting Unit (MMU) Front Panel Elements LED indicators for module status Communication activity indicators Identification labeling Application Areas The ABB IMCIS12 is commonly used in distributed automation systems requiring coordinated I/O communication: Power generation facilities including thermal and hydro plants Petrochemical and refining operations Large-scale process industries with distributed control architectures Manufacturing environments with remote I/O infrastructure FAQ What is the primary role of the IMCIS12 module?It serves as a slave communication interface, linking the controller with distributed I/O modules in INFI-90 systems. Where is this module typically installed?It is installed in control racks that manage communication with remote I/O subsystems. Does the module support real-time control?Yes, buffered data handling and synchronized communication ensure stable real-time performance. How does it improve system reliability?By managing communication protocols and providing diagnostics, it helps maintain consistent data exchange and simplifies fault detection.
$200.00 $100.00
-
ABB ABB INFI-90 IMSER02 Digital Communication Repeater Module
Overview The ABB IMSER02 is a dedicated communication interface module used in INFI-90 distributed control systems to maintain stable and accurate data transmission. It operates by restoring weakened signals and isolating communication segments, ensuring consistent performance across complex or extended network architectures. This module is typically installed in communication racks where signal loss, electrical noise, or excessive network loading may affect system reliability. It supports deterministic communication by preserving waveform quality and timing integrity. Key Functional Capabilities Regenerates digital signals to restore full amplitude and clarity Filters noise and corrects distorted communication waveforms Provides electrical isolation between network segments Extends communication distance across distributed nodes Stabilizes heavily loaded communication buses Technical Specifications Electrical Characteristics Backplane Voltage: 5 VDC Power Consumption: 4–6 VA (typical range) Signal Type: INFI-90 proprietary digital communication Isolation: Optical or transformer-based segment isolation Communication Performance Network Type: INFI-90 Digital Exchange Bus Function: Signal repeater and isolator Propagation Delay: Low latency for real-time synchronization Cable Compatibility: Shielded twisted-pair communication cable Environmental Conditions Operating Temperature: 0°C to +60°C Storage Temperature: –40°C to +85°C Humidity: 5% to 95% non-condensing Mechanical Specifications Dimensions: 17.8 × 5.1 × 30.5 cm Weight: 0.3 kg Form Factor: Eurocard module Mounting Method: Compatible with INFI-90 MMU racks Front Panel Indicators Communication status LEDs Diagnostic and fault indicators Power status display Application Scenarios The ABB IMSER02 is suited for industrial environments requiring reliable communication across distributed systems: Power generation plants including thermal, hydro, and nuclear Oil and gas refining and petrochemical processing Pulp and paper manufacturing systems Large-scale automation systems with long-distance communication networks FAQ What is the main purpose of IMSER02?It ensures stable communication by regenerating and isolating digital signals in INFI-90 networks. When should this module be used?It is recommended in systems with long cable runs, high interference, or multiple communication nodes. Does it affect system timing?No, it is designed with minimal delay and supports synchronized control system operation. Does it improve system protection?Yes, electrical isolation helps prevent faults from spreading across communication segments.
$200.00 $100.00
-
ABB ABB IMPCT01 Process Control Task Module | INFI-90 Symphony
Product Description The IMPCT01 Process Control Task Module is a controller-level processing component within the ABB Bailey INFI-90 / Symphony DCS architecture. It is responsible for executing real-time control logic, including regulatory loops, sequence operations, PID algorithms, and process calculations. This module acts as a central execution engine for distributed control strategies, coordinating with I/O modules, operator interfaces, and system communication networks. It is engineered for continuous operation in mission-critical environments such as power generation facilities, petrochemical plants, and large-scale process industries. Technical Specifications General Information Manufacturer: ABB / Bailey Model: IMPCT01 System Compatibility: INFI-90 / Symphony DCS Module Type: Process Control Task / Controller Module Core Functions: Execution of control strategies PID loop processing Logic and sequence control Process computation and task scheduling System-level coordination and diagnostics Processing Capabilities Real-time deterministic control execution Concurrent handling of multiple control loops Supports: PID regulation loops Boolean logic and interlocks Arithmetic and process calculations Step sequence execution (batch/process logic) Optimized for predictable scan and execution cycles Memory & System Resources On-board memory allocated for: Control strategy storage Runtime process variables Diagnostic and system logs Designed for stable long-duration runtime operation Efficient memory management for distributed control environments Communication Architecture Interfaces with: I/O subsystems Operator workstations Engineering stations Other controller modules Supports INFI-90 system communication backbone Ensures synchronized data exchange across control layers Isolation & Electrical Design Galvanic isolation between: Internal processing circuits INFI-90 backplane Communication interfaces Reduces susceptibility to electrical noise and grounding issues Stable operation in high-interference industrial environments Functional Features Deterministic task scheduling for control execution Integrated system diagnostics and fault reporting Status indication via onboard LEDs: Module health Task execution activity Communication status Supports system-level redundancy (configuration dependent) Designed for continuous 24/7 industrial operation Physical & Environmental Data Mounting: Standard INFI-90 rack slot Operating Temperature: 0–55 °C Humidity: Up to 95% non-condensing Construction: Industrial-grade PCB with protective front panel Design focus: vibration resistance and long-term operational stability Typical Applications Boiler and turbine control in power generation systems Continuous process regulation in petrochemical plants Chemical production control loops High-reliability industrial automation systems Complex sequence and interlock logic execution FAQ Q1: What is the main role of the IMPCT01 module?It executes real-time process control tasks such as PID regulation, sequencing, and logic processing within the INFI-90 control system. Q2: Does it directly handle field signals?No. It processes control strategies and communicates with separate I/O modules that manage field signal acquisition and output. Q3: Can it operate in redundant configurations?Yes. Depending on system design, the module can support redundancy for higher availability in critical applications.
$200.00 $100.00
-
ABB ABB IMFBS01 Field Bus Interface Module
Product Description The IMFBS01 Field Bus Interface Module is part of the ABB Bailey INFI-90 / Symphony DCS platform. It is designed to coordinate and manage data exchange between field I/O subsystems and central control processors. Acting as a communication gateway, it handles protocol processing, message sequencing, and buffered data transfer to ensure stable system-level communication. This module is typically deployed in high-integrity automation environments where continuous communication reliability is critical, such as power stations, petrochemical facilities, and large-scale process plants. Technical Specifications General Information Manufacturer: ABB / Bailey Model: IMFBS01 System Compatibility: INFI-90 / Symphony DCS Product Type: Field Bus Slave / Interface Module Functional Role: Field bus communication handling Data buffering and routing Protocol interpretation and conversion Communication diagnostics and supervision Electrical & Power Characteristics Supply from INFI-90 backplane Operating power requirements: +5 VDC ±5% at ~85 mA +15 VDC ±5% at ~25 mA -15 VDC ±5% at ~20 mA Typical power dissipation: ~1.1 W Designed for low thermal load in dense rack configurations Communication Architecture Supports INFI-NET / Bailey field communication protocols Manages bidirectional data flow between: I/O modules Controller processors System-level communication nodes Functions include: Data synchronization Message scheduling Deterministic transfer control Built for fault-tolerant operation in real-time control systems Isolation & Protection Galvanic isolation between: Field bus network Internal module electronics INFI-90 backplane Enhances immunity against: Electrical noise Ground loop interference Transient disturbances Functional Features Embedded communication processor for field bus traffic handling Real-time error detection and correction logic Built-in self-diagnostics for system integrity monitoring LED indicators for: Module status Bus activity Communication health Designed for continuous 24/7 operation Physical & Environmental Data Mounting: Standard INFI-90 rack slot Dimensions: 17.8 cm × 5.1 cm × 2.5 cm Weight: 0.7 lbs Operating temperature: 0 to 70 °C Humidity tolerance: up to 95% non-condensing Construction: industrial-grade PCB with protective front interface Typical Applications INFI-90 / Symphony DCS field communication networks Power generation control systems Petrochemical and refinery automation Large-scale process monitoring infrastructure High-noise industrial environments requiring stable data routing FAQ Q1: What is the main role of the IMFBS01 module?It serves as a field bus communication interface, managing data transfer between I/O subsystems and controller modules within INFI-90 systems. Q2: Does the IMFBS01 perform signal processing?It does not directly process analog or digital signals; instead, it focuses on communication handling, buffering, and protocol management. Q3: Is it suitable for harsh environments?Yes. The module is designed with galvanic isolation and industrial-grade construction to operate reliably in electrically noisy environments.
$200.00 $100.00
-
ABB ABB IMDSI02 Digital Input Module | Bailey INFI‑90
Product Description The IMDSI02 Digital Input Module, part of the Bailey INFI‑90 / Symphony DCS, is engineered to reliably capture ON/OFF digital signals from field devices such as limit switches, pushbuttons, relays, and contact outputs. This high-performance module ensures precise data acquisition for industrial automation systems, providing essential input for critical control functions. The IMDSI02 excels in harsh industrial environments, offering signal conditioning, noise suppression, and galvanic isolation. It is an ideal solution for applications in power generation, petrochemical processing, chemical manufacturing, and other industries requiring high-reliability digital signal processing. Technical Specifications General Information Manufacturer: ABB / Bailey Model: IMDSI02 System Compatibility: INFI‑90 / Symphony DCS Product Type: Digital Input Module Primary Functions: Digital signal acquisition from field devices Signal conditioning for accurate input reading Debounce filtering to ensure clean data Communication with INFI‑90 controller for status reporting Electrical Characteristics Digital Input Types: Dry contact inputs Voltage-type digital inputs (depending on wiring configuration) Typical Input Voltage: 24 VDC (system-dependent) Input Channels: Multi-channel capability for handling numerous signals Input Filtering: Hardware and/or software debounce filtering Enhanced noise suppression to handle industrial electrical interference Isolation: Galvanic isolation between field wiring, module electronics, and INFI‑90 backplane Helps prevent ground loops and enhances signal integrity Power and Performance Power Supply: Powered through the INFI‑90 backplane Power Consumption: Low power usage suitable for dense I/O racks Functional Features Reliable ON/OFF signal detection for precise control applications Status LEDs indicating: Module health Communication status Individual channel status (depending on version) Self-diagnostics for fault detection and troubleshooting Communicates seamlessly with the INFI‑90 system via module bus Physical & Environmental Mounting: Standard INFI‑90 rack slot Dimensions: 17.8 cm × 5.1 cm × 33.0 cm Weight: 0.45 kg Operating Temperature: 0–55 °C Humidity: Up to 95% non‑condensing Construction: Industrial-grade PCB with a protective front panel Typical Applications Digital status monitoring in INFI‑90 DCS systems Power plant interlocks and alarm systems Petrochemical and chemical process control Equipment status feedback for devices like valves, motors, and breakers Industrial control environments requiring high-reliability digital I/O FAQ Q: What types of digital inputs does the IMDSI02 support?A: The IMDSI02 supports dry contact inputs and voltage-type digital inputs, providing flexibility for a variety of field devices. Q: How does the module handle noise suppression?A: The module is equipped with both hardware and software debounce filtering to minimize the effects of electrical noise, ensuring clean and accurate signal acquisition. Q: Is the IMDSI02 suitable for high-density I/O installations?A: Yes, the IMDSI02 is optimized for low power consumption, making it suitable for dense I/O configurations where reliability and space efficiency are critical.
$200.00 $100.00
-
ABB ABB IMCKN01 Communication Interface Module
Product Description The IMCKN01 is a Communication Network Interface Module designed for the Bailey INFI-90 and Symphony Distributed Control Systems. It plays a critical role in managing and ensuring reliable communication across system components, enabling seamless data exchange between INFI-90 controllers, operator workstations, engineering stations, and other connected nodes within the network. This module serves as a communication processor, protocol handler, and network interface, ensuring deterministic, fault-tolerant data transfer. It is commonly used in industries such as power generation, petrochemical processing, and other sectors where robust and stable communication is essential for operational efficiency. Technical Specifications General Information Manufacturer: ABB / Bailey Model: IMCKN01 System Compatibility: INFI-90, Symphony DCS Product Type: Communication Interface Module Primary Functions: Network communication Protocol handling Data routing between system nodes Communication diagnostics Communication Features Supports INFI‑NET or related ABB communication protocols Facilitates data exchange between: INFI-90 controllers Operator stations Engineering workstations Other INFI‑90 modules Provides synchronization and message routing Ensures deterministic, fault-tolerant communication between system components Built-in error detection and correction mechanisms for reliable transmission Isolation and Power Galvanic isolation between: Network interface Internal module electronics INFI‑90 backplane Power supplied via the INFI‑90 backplane Low power consumption optimized for dense communication racks Functional Features Communication processor for handling INFI‑90 network traffic Error detection and correction functionality for data integrity Status LEDs for: Module health Network activity Communication status Self-diagnostic features for detecting faults in the communication process High-reliability design ensuring continuous operation and data integrity Physical & Environmental Dimensions: 7.6 cm × 17.8 cm × 2.5 cm Weight: 0.7 kg Mounting: Standard INFI‑90 rack slot Operating Temperature: 0–55 °C Humidity: Up to 95% non‑condensing Construction: Industrial-grade PCB with a protective front panel Typical Applications INFI‑90 controller communication interfaces Power plant DCS communication networks Petrochemical and chemical plant automation High-reliability industrial communication systems Integration of multiple INFI‑90 nodes FAQ Q: What communication protocols does the IMCKN01 support?A: It supports INFI-NET and other related ABB protocols, ensuring seamless communication across system components. Q: How does this module handle data routing?A: The module facilitates message synchronization and routes data between various system nodes, including controllers, operator stations, and engineering workstations. Q: What type of isolation does the IMCKN01 offer?A: The module provides galvanic isolation between the network interface, internal electronics, and the INFI‑90 backplane, minimizing interference and noise. Q: How is the module powered?A: It is powered through the INFI‑90 backplane, ensuring efficient power management for high-density installations.
$200.00 $100.00
-
ABB ABB IMCIS22 Control IO Module INFI90 Digital Interface
Product Description The IMCIS22 is a control I/O module from ABB Bailey, developed for integration within INFI-90 and Symphony distributed control systems. It provides a reliable interface between field-level digital signals and the system controller, supporting both signal acquisition and control output functions depending on configuration. This module is designed to process discrete signals with high stability, incorporating filtering, isolation, and diagnostic capabilities to ensure dependable operation in industrial environments. The IMCIS22 is typically deployed in applications where deterministic digital control, interlocking, and status monitoring are required. Its compact design and backplane-powered architecture make it suitable for high-density installations in control cabinets. Technical Specifications General Information Manufacturer: ABB / Bailey Model: IMCIS22 Product Type: Control I/O Module System Compatibility: INFI-90, Symphony DCS Functional Role: Digital signal interface between field devices and controller Input and Output Characteristics Supported Input Types: Dry contact signals Voltage-based digital inputs Output Capability: Low-voltage digital outputs (configuration dependent) Signal Handling: Logic-level processing for control applications Input Filtering: Debounce filtering for contact stability Noise suppression for reliable signal detection Electrical Parameters Nominal Supply Voltage: 24 VDC (via system backplane) Power Consumption: Approximately 3.5 VA Isolation: Galvanic separation between field wiring, internal circuitry, and backplane Protection Features: Output protection against short-circuit conditions (design dependent) Over-voltage tolerance within industrial limits Functional Capabilities Digital input acquisition and state monitoring Output signal driving for control actions Real-time communication with controller modules via system bus Integrated diagnostics for operational integrity Diagnostics & Indicators LED Indicators: Module status (health) Communication activity Channel status (where applicable) Self-Monitoring: Internal diagnostics for fault detection and reporting Mechanical Specifications Dimensions: 17.8 cm × 5.1 cm × 33.0 cm Weight: 0.2 kg Mounting: Standard INFI-90 rack slot Environmental Conditions Operating Temperature: 0 to 55 °C Storage Temperature: –40 to 85 °C (typical industrial range) Relative Humidity: Up to 95% non-condensing Construction: Industrial-grade PCB with protective front panel Applications Digital control and monitoring in ABB DCS systems Equipment interlocking and safety logic Alarm and status signal processing Power plant and process industry automation Petrochemical and manufacturing control systems FAQ Q: What type of signals does the IMCIS22 handle?A: It processes digital signals such as dry contacts and voltage-based inputs, and may also provide digital outputs depending on configuration. Q: Is this module used for analog signals?A: No, it is designed for discrete (digital) control signals. Q: How is the module powered?A: It receives power through the INFI-90 system backplane. Q: Does it include protection features?A: Yes, it includes isolation and protection mechanisms to ensure reliable operation in industrial environments.
$200.00 $100.00
