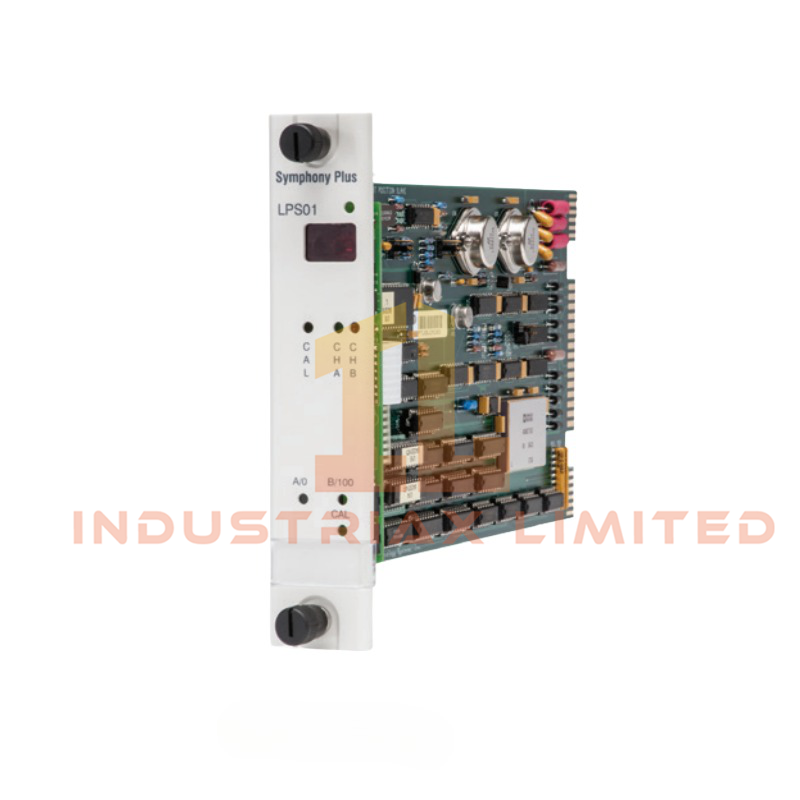

The ABB SPLPS01 Symphony Plus LVDT Position Module provides precise position measurement for two LVDTs or RVDTs. Engineers rely on its three calibration modes and robust design to ensure accurate turbine valve control and seamless integration with Symphony Plus controllers.
Technical Specifications
| Parameter |
Value |
| Model Number |
SPLPS01 |
| Module Type |
LVDT Position Module |
| Manufacturer |
ABB |
| Condition |
Brand New |
| Product Catalog |
Symphony Plus |
| Voltage |
24 VDC |
| Current |
75 mA |
| Dimensions |
35.56 × 177.80 × 298.45 mm |
| Weight |
0.28 kg |
| System |
DCS |
| Product Origin |
Sweden |
| MOQ |
1 |
| Lead Time |
In Stock |
| Status |
Active |
Functional Description
The ABB SPLPS01 operates in three ambient modes: normal, manual calibration, and automatic calibration. In normal mode, it reads LVDT position and transmits data to the multi-function processor or bridge controller. Manual calibration allows technicians to fine-tune values using pushbuttons and an oscilloscope. Automatic calibration adjusts parameters when the valve moves to opposite extremes, ensuring optimal accuracy.
Design and Build
The ABB SPLPS01 measures 35.56x177.80x298.45mm and weighs 0.28kg, offering a compact yet durable build. Its low power consumption of 75mA at 24V DC enhances efficiency, while its modular design simplifies installation and maintenance.
Applications and Compatibility
The ABB SPLPS01 Symphony Plus LVDT Position Module integrates seamlessly with turbine control systems requiring precise valve positioning. Engineers deploy it in power generation, process industries, and automation environments where accurate LVDT or RVDT feedback is essential. Its compatibility with Symphony Plus controllers ensures reliable operation across diverse applications.
Key Benefits
-
Compact 0.28kg design supports space-constrained installations.
-
Operates efficiently at 24V DC with 75mA current draw.
-
Provides three calibration modes for flexible configuration.
-
Ensures accurate LVDT and RVDT position feedback for turbine control.
