Description
Overview

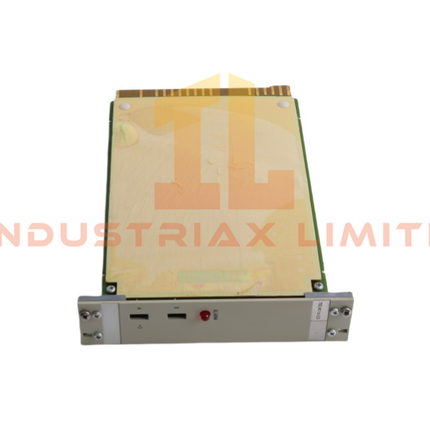

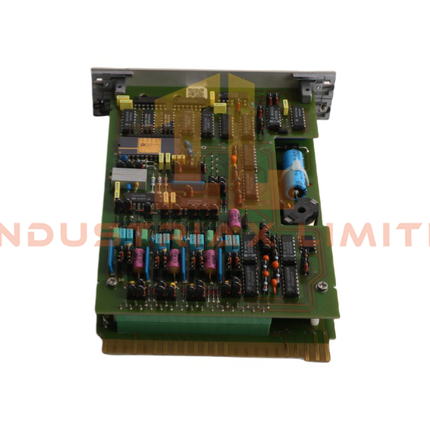

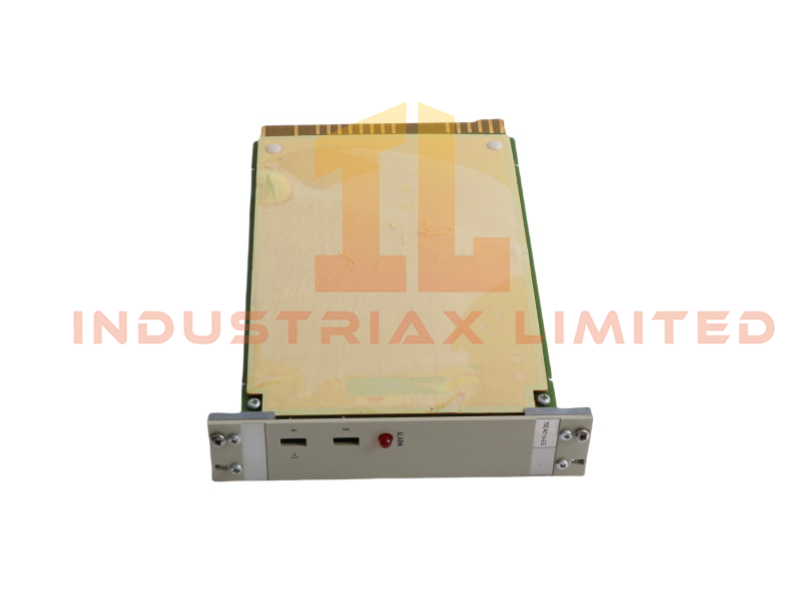

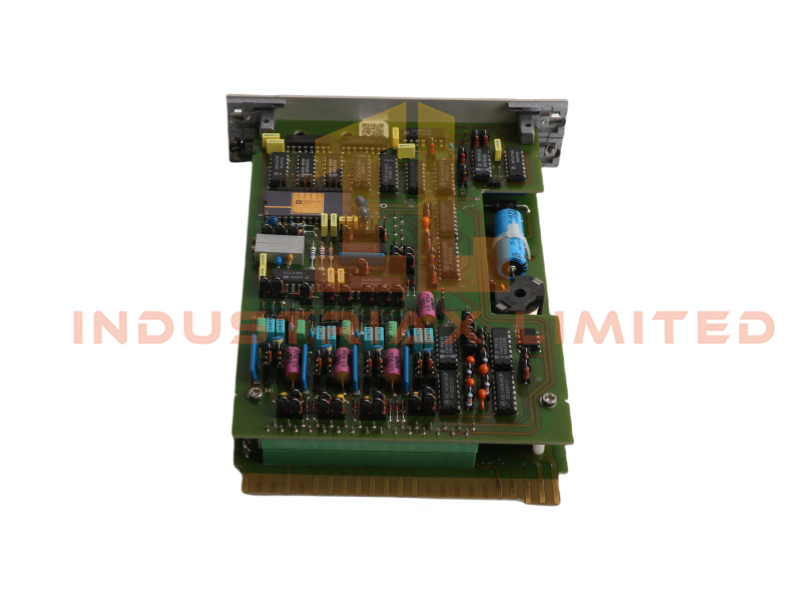

The ABB HESG447307R1 70EA01B-ES Analog Input Board ensures accurate data acquisition and reliable performance in industrial automation. Engineers integrate this compact module into Procontrol P13 systems to achieve precise monitoring, seamless connectivity, and long-term durability across demanding environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
HESG447307R1 70EA01B-ES |
| Manufacturer |
ABB |
| Module Type |
Analog Input Board |
| Dimensions |
3.3 × 20 × 14.6 cm |
| Weight |
0.42 kg |
| HS Code |
8537101190 |
| System Compatibility |
DCS, Procontrol P13 |
| Operating Voltage |
24 V DC |
| Current Capacity |
Up to 20 mA |
| Resolution |
12-bit high precision |
| Interfaces |
Ethernet router |
| Operating Temperature |
-25°C to +55°C |
| Origin |
Sweden |
| Condition |
Brand New |
| Status |
Active |
Functional Highlights
The ABB HESG447307R1 70EA01B-ES operates at 24V DC and supports currents up to 20mA, ensuring smooth sensor connectivity. Its 12-bit resolution captures even the smallest signal variations, providing precise monitoring of parameters such as temperature, pressure, and flow. The rugged design withstands harsh conditions, while the modular structure simplifies installation and maintenance.
Applications and Compatibility
The HESG447307R1 70EA01B-ES Analog Input Board integrates seamlessly into ABB Procontrol P13 and Distributed Control Systems. Engineers deploy it in manufacturing plants, energy facilities, and process industries where accurate analog signal acquisition is essential. Its compact footprint and versatile signal support make it suitable for diverse automation setups.
Benefits
-
Compact dimensions (3.3×20×14.6cm) maximize space efficiency in control cabinets.
-
Lightweight design (0.42kg) ensures easy handling and installation.
-
High-resolution sampling improves monitoring accuracy and system stability.
-
Wide operating temperature range supports use in harsh environments.
-
Modular design reduces downtime and simplifies maintenance.
