Description
Overview
The ABB MCM800 Machinery Condition Monitoring module combines monitoring, protection, and communication in one unit. Engineers rely on its universal design to reduce hardware requirements and simplify spare part management.
Technical Specifications
| Parameter |
Value |
| Model Number |
MCM800 |
| Module Type |
Machinery Condition Monitoring |
| Manufacturer |
ABB |
| Part Number |
MCM800 |
| Product Catalog |
Symphony Plus |
| Voltage |
24 VDC |
| Current |
4–20 mA |
| Dimensions |
187 × 210 × 122 mm |
| Weight |
1 kg |
| System |
DCS |
| Communication Interfaces |
Profibus DP, Ethernet TCP/IP |
| Product Origin |
Sweden |
| Lead Time |
In Stock |
| Status |
Active |
Functional Description
The ABB MCM800 monitors vibration, eccentricity, thrust position, differential expansion, and case expansion. Engineers benefit from synchronous speed and harmonic data, which detect machine defects early. The module also provides waveform data for advanced analysis, including FFTs, waterfall plots, orbits, and bode plots.
Design and Build

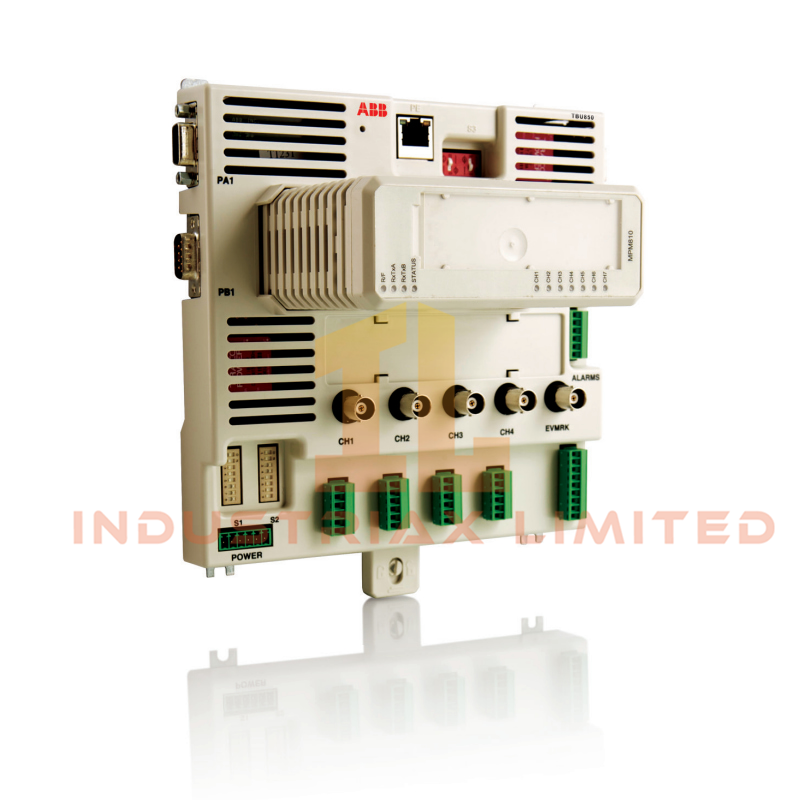

The ABB MCM800 measures 187x210x122mm and weighs 1kg, making it compact yet durable. Eleven LEDs on the front panel indicate module and I/O status, simplifying diagnostics. DIN rail mounting ensures straightforward installation in centralized or remote locations.
Applications and Compatibility
The ABB MCM800 integrates seamlessly into Symphony Plus DCS systems or operates standalone. Engineers deploy it in rotating machinery applications across power generation, oil and gas, and manufacturing industries. Its compatibility with multiple sensor types—including accelerometers, piezoelectric probes, and DC LVDTs—ensures versatile monitoring.
Key Benefits
-
Universal module combines monitoring, protection, and communication.
-
Profibus DP and Ethernet TCP/IP interfaces support flexible integration.
-
Eleven LED indicators simplify diagnostics and monitoring.
-
Compact 1kg design supports centralized or remote installations.
