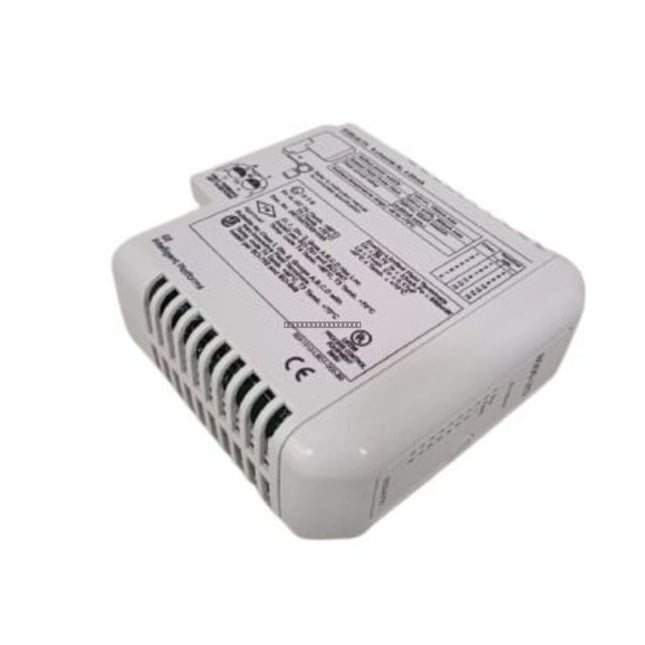

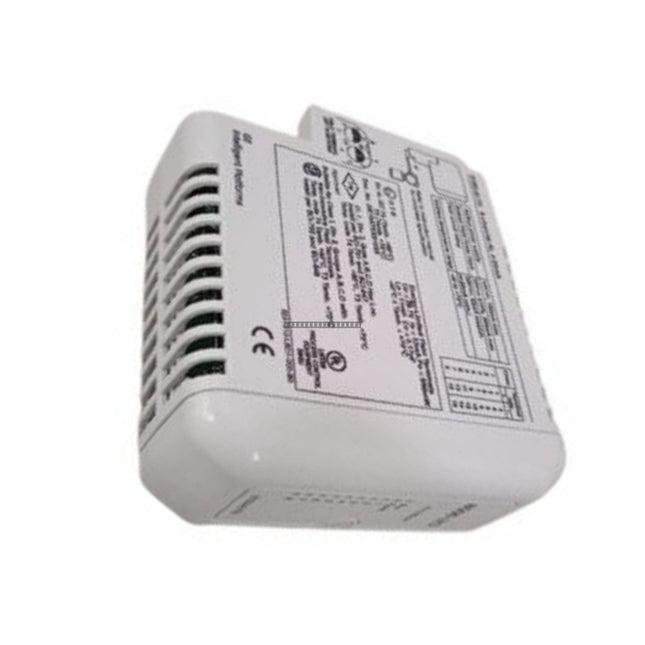

DescriptionThe 8103-AI-TX is a high-density analog input module designed for integration into GE Fanuc PLC and machine control systems. This 8-channel module is engineered to interface directly with 2-wire transmitters, converting 4-20 mA current loop signals into digital data for precise process monitoring. It is a critical component for industrial applications such as chemical processing, oil and gas, and automated manufacturing, where accurate tracking of pressure, flow, and temperature variables is essential for operational efficiency.Features
8-Channel Configuration: Provides high-density signal acquisition for multiple field instruments.
2-Wire Transmitter Support: Optimized for standard 4-20 mA current loop instrumentation.
Signal Conditioning: Integrated filtering to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI).
Galvanic Isolation: Protects backplane electronics from field-side electrical surges and ground loop interference.
Real-Time Processing: High-speed backplane communication enables rapid polling of all channels for critical control loop feedback.
ApplicationsThis module is suitable for use in large-scale industrial control systems requiring reliable data acquisition. Typical applications include:
Process control and monitoring in chemical and petrochemical plants.
Flow and pressure monitoring in oil and gas infrastructure.
Automated manufacturing lines requiring precise analog sensor integration.
Proactive maintenance systems where high-fidelity signal data is required to reduce downtime.
Technical Specifications
Model
8103-AI-TX
Brand
GE Fanuc
Channels
8
Input Type
4-20 mA Current Loop
Compatibility
2-wire transmitters
Operating Temperature
0 to 60 degC
Mounting
Standard PLC I/O rack
Installation Guidelines
Handling: Ensure proper ESD (electrostatic discharge) precautions are taken when handling the module to prevent damage to internal circuitry.
Power: Always disconnect power from the PLC rack before inserting or removing the module to avoid electrical arcing or damage to the backplane.
Wiring: Use shielded twisted-pair cabling for all analog inputs to minimize noise pickup. Ensure the shield is grounded at the appropriate terminal point as specified by the system design.
Environment: Install in a clean, dry environment within the specified operating temperature range. Ensure adequate ventilation within the cabinet to prevent heat buildup.
Mounting: Ensure the module is fully seated in the rack slot and that all retaining screws are tightened to provide a secure connection to the backplane.
FAQWhat is the primary function of the 8103-AI-TX?The 8103-AI-TX is an analog input module that converts 4-20 mA signals from 2-wire field transmitters into digital data for use by a GE Fanuc PLC system.Does this module require external power for the loops?The module is designed to support 2-wire transmitters; power consumption and loop power requirements depend on the specific backplane loading and the configuration of your control rack.Can this module be used in high-noise environments?Yes, the module features advanced filtering and galvanic isolation to protect against EMI, RFI, and ground loop interference, making it suitable for dense electrical cabinet environments.
DescriptionThe Schneider Electric TSXAEZ414 is a high-precision analog input module designed for the Modicon TSX Micro automation platform. This module features 4 differential channels and utilizes a 16-bit analog-to-digital conversion architecture to provide reliable signal processing in demanding industrial applications. It is engineered to maintain high measurement accuracy while minimizing noise and signal variance, making it suitable for critical process control environments including water treatment, power generation, and chemical manufacturing.Features
4 differential high-level analog input channels.
16-bit resolution for precise data acquisition.
Robust 500 VAC electrical isolation between field instrumentation and backplane logic.
Low input impedance of 10 Ohm to support signal integrity over extended cable runs.
Optimized thermal stability with low drift coefficients for both voltage and current loops.
ApplicationsThe TSXAEZ414 is intended for use in industrial automation systems requiring precise monitoring of analog signals. Common applications include loop monitoring, process variable tracking in chemical processing, discrete control in mining operations, and general instrumentation integration within the Modicon TSX Micro ecosystem.Technical Specifications
Model
TSXAEZ414
Brand
Schneider Electric
Product Range
Modicon TSX Micro
Module Type
Analog Input Module
Channels
4 High Level
Resolution
16 bits
Acquisition Period
520 ms
Input Impedance
10 Ohm
Isolation Voltage
500 VAC
Current Consumption
85 mA at 5 VDC
Operating Temperature
0 to 60 deg C
Storage Temperature
-25 to 70 deg C
Installation Guidelines
Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures between 0 and 60 deg C.
Use shielded twisted-pair cabling for analog inputs to minimize EMI/RFI interference.
Ensure proper grounding of the module chassis to the system common ground to maintain the integrity of the isolation barrier.
Verify that field wiring is securely terminated to prevent intermittent signal loss or loop impedance fluctuations.
FAQWhat is the primary function of the TSXAEZ414 module?The TSXAEZ414 is an analog input module for the Schneider Modicon TSX Micro series, used to convert high-level analog signals into 16-bit digital data for processing by the PLC.What is the acquisition cycle time for this module?The module features a fixed acquisition cycle of 520 ms, which balances signal filtering with the data refresh rate required for process control.Does this module provide electrical isolation?Yes, the module includes a 500 VAC isolation barrier that protects the internal backplane logic from field-side voltage spikes or ground loops.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Schneider Electric 140AMM0900 is a high-performance mixed analog I/O module designed for the Modicon Quantum programmable logic controller (PLC) platform. This module integrates 4 analog input channels and 2 analog output channels into a single-slot footprint, providing a space-efficient solution for complex control loops. It is engineered to bridge field-level instrumentation with the central processor, supporting a wide range of standard industrial signal types for both monitoring and control applications in demanding environments such as power generation, chemical processing, and water management.Features
High-Density Design: Combines 4 inputs and 2 outputs in one module to optimize rack space and reduce overall system footprint.
Configurable Signal Ranges: Supports versatile input ranges including 4-20 mA, 0-20 mA, 1-5 VDC, and +/- 10 VDC.
Robust Signal Conditioning: Integrated hardware filtering on input channels to mitigate EMI and high-frequency noise common in industrial settings.
Galvanic Isolation: Provides 1500 VAC field-to-bus isolation to protect the backplane from ground loops and voltage surges.
Diagnostic Indicators: Front-panel LED array provides immediate status updates on channel health, bus communication, and field power supply.
ApplicationsThis module is suitable for diverse industrial automation tasks, including:
Process control loops requiring simultaneous monitoring and actuation.
Interface with pressure, flow, and temperature transmitters.
Control of variable frequency drives (VFDs) and proportional valves.
General-purpose analog data acquisition in Modicon Quantum rack systems.
Technical Specifications
Model
140AMM0900
Brand
Schneider Electric
Series
Modicon Quantum
Input Channels
4 (Non-isolated between channels)
Output Channels
2 (Non-isolated between channels)
Input Ranges
4-20 mA, 0-20 mA, 1-5 VDC, +/- 5 VDC, +/- 10 VDC
Output Ranges
4-20 mA, 0-20 mA, +/- 10 VDC
ADC Resolution
12-bit unipolar / 13-bit bipolar
DAC Resolution
12-bit
Isolation
1500 VAC field-to-bus (60s)
Current Consumption
300 mA @ 5 VDC
External Power
24 VDC nominal
Operating Temp
0 to 60 deg C
Installation Guidelines
Safety First: Always disconnect backplane power before inserting or removing the module to prevent electrical damage or bus errors.
Mounting: Ensure the module is fully seated in the Quantum rack slot and the locking tabs are engaged to maintain proper backplane contact.
Wiring: Use shielded twisted-pair cabling for all analog signals to minimize interference. Ensure shields are grounded at the source or per facility grounding standards.
Environment: Maintain adequate ventilation within the cabinet to ensure the module operates within the specified 0 to 60 deg C range.
EMI Protection: Route signal cables away from high-voltage power lines and heavy inductive loads to prevent signal degradation.
FAQDoes this module require an external power supply?Yes, the 140AMM0900 requires a 24 VDC external power supply to drive the analog field devices.Is the input isolation channel-to-channel?No, the 4 input channels are not isolated from each other; however, the module features a 1500 VAC galvanic isolation barrier between the field-side terminals and the internal logic backplane.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

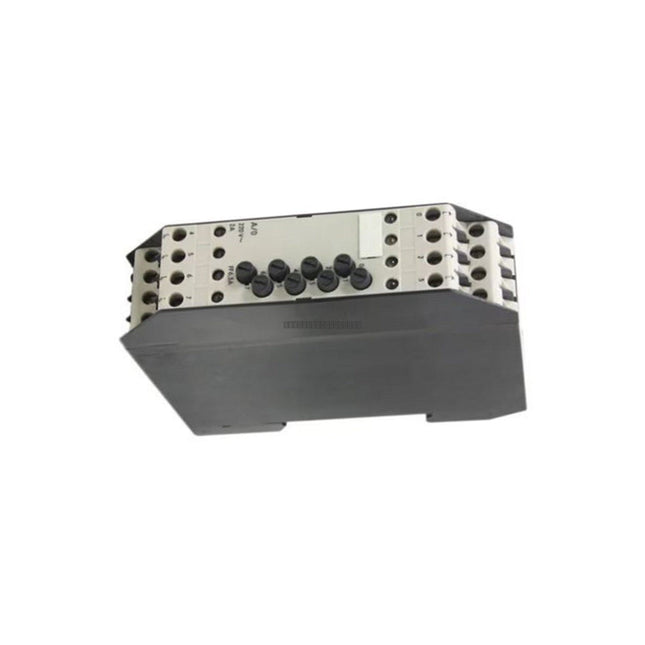

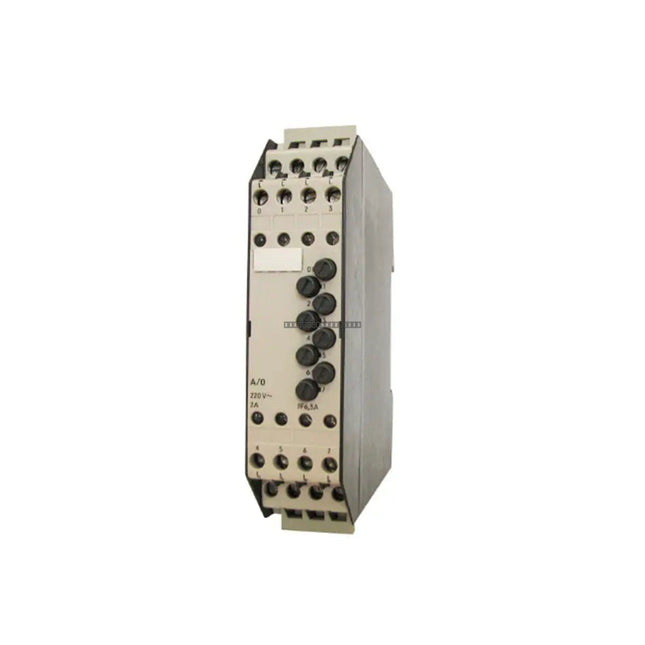

DescriptionThe Siemens 6ES5415-7AB21 is a specialized digital output module designed for integration within the legacy Simatic S5-110 PLC series. This module provides 8 independent output channels capable of switching 220 VAC loads, making it suitable for controlling industrial actuators, contactors, and signaling devices. Engineered for reliability in demanding environments, the module incorporates galvanic isolation to protect the central processing unit from high-voltage transients and electrical noise originating from the field side.Features
8-channel digital output configuration for high-density control.
Galvanic isolation via optocouplers to ensure safe separation between logic and load circuits.
Integrated RC snubber networks per channel to suppress voltage spikes during inductive load switching.
Front-mounted LED status indicators for immediate visual confirmation of output signal states.
Robust design optimized for legacy S5-110 rack-based architectures.
ApplicationsThis module is widely deployed in industrial automation systems requiring high-voltage AC switching, including power generation facilities, chemical processing plants, and heavy manufacturing infrastructure. It is ideal for driving solenoids, motor starters, and alarm systems where electrical isolation is critical for system stability.Technical Specifications
Model
6ES5415-7AB21
Series
Simatic S5-110
Output Channels
8
Voltage Rating
220 VAC
Current Rating
2 A per channel
Internal Power Consumption
2.5 W
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Installation Guidelines
Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is securely seated in the designated S5-110 rack slot to ensure proper backplane connectivity.
Use shielded cabling for field wiring to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Adhere to proper grounding practices for the rack assembly to maintain the integrity of the galvanic isolation barrier.
Regularly inspect the front-panel LEDs during maintenance cycles to verify correct I/O operation and identify potential loop faults.
FAQWhat is the primary function of the 6ES5415-7AB21?This module acts as an interface between the S5-110 PLC CPU and external 220 VAC field devices, allowing the controller to switch high-voltage loads safely.Does this module require external power for the outputs?Yes, the module is designed to switch external 220 VAC power sources; the internal backplane provides only the control logic power.Can this module be used for DC loads?No, this specific model is designed for AC output switching and includes RC snubber networks specifically for AC inductive load protection.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

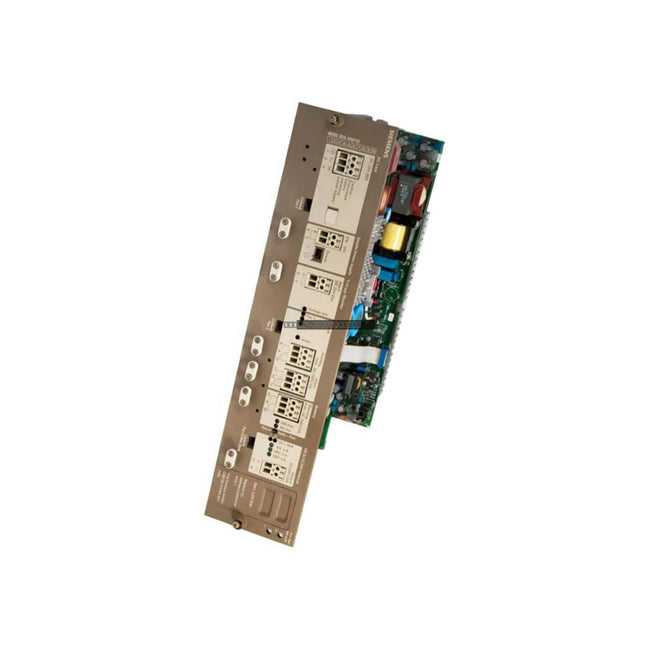

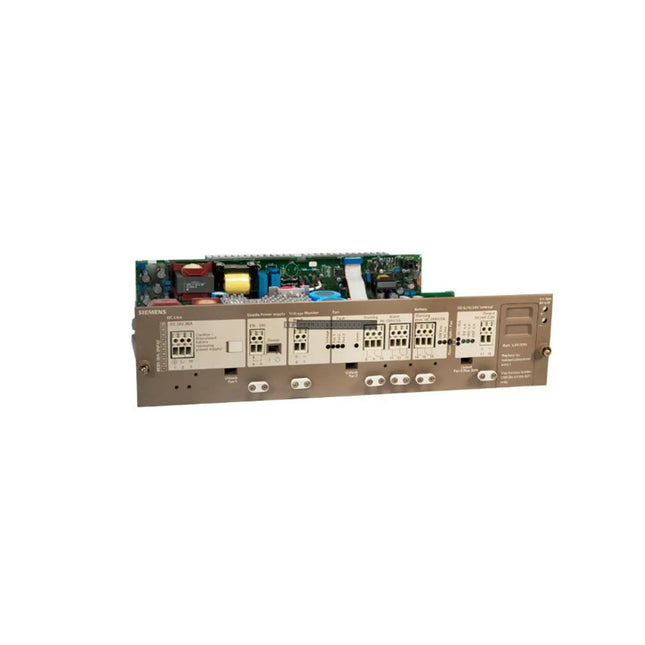

DescriptionThe Siemens Simatic S5 6ES5 955-3NF42 is a high-capacity power supply module engineered for the S5-135U and S5-155U automation systems. This unit provides regulated DC power to central controllers and expansion subracks, ensuring stable operation for high-density PLC installations. By converting 24 VDC input into a robust 5 VDC output at 40 A, this module supports the demanding power requirements of large-scale industrial control architectures, including those found in power generation and chemical processing facilities.Features
Designed for S5-135U, S5-155U, and EU 185U subrack compatibility.
Integrated pulse-width modulation (PWM) for stable voltage regulation under varying loads.
Built-in protection features including overvoltage crowbar, thermal overload shutdown, and transient sag filtering.
Dedicated interface for external backup battery support to ensure RAM data integrity.
Engineered for high-temperature environments with integrated forced-air cooling channels.
Technical Specifications
Model
6ES5 955-3NF42
Input Voltage
24 VDC
Output Voltage
5 VDC
Output Current
40 A
Operating Temperature
0 to 55 deg C
Storage Temperature
-40 to 70 deg C
Battery Compatibility
CA-6EW1000-7AA (External)
Installation Guidelines
Ensure the PLC rack is powered down before installing or removing the power supply module.
Verify that the input voltage matches the 24 VDC specification before connection to prevent damage.
Ensure the module is fully seated in the subrack to maintain proper backplane contact.
Maintain clear airflow paths around the module to allow the integrated cooling system to function effectively.
Use shielded cabling for power inputs to minimize EMI interference in high-noise industrial environments.
Handle the unit using standard ESD precautions to protect internal solid-state components.
FAQDoes this module support battery backup?Yes, the 6ES5 955-3NF42 includes an interface for an external backup battery (typically the CA-6EW1000-7AA) to maintain RAM data during power loss.What systems is this power supply compatible with?This module is specifically designed for Siemens Simatic S5-135U and S5-155U central controllers, as well as the EU 185U expansion subracks.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC355 Analog I/O Module
Configured for analog signal processing in ABB industrial robot controller systems, the ABB DSQC355 (DSQC355 Analog I/O Module) provides direct physical and electrical execution for analog input and output signal conversion. The module handles voltage-based I/O channels with 12 bit resolution for controller interface operations.
Hardware Specifications
Parameter
Specification
Model
DSQC355
Brand
ABB
Product Type
Analog Input/Output Module
Origin
Sweden
Weight
Approx. 1.2 kg
Analog Inputs
8 channels
Analog Outputs
4 channels
Input Signal Range
-10 V to +10 V
Output Signal Range
0 V to 10 V
Resolution
12 bits
Accuracy
+/- 0.5% of full scale
Update Rate
10 ms
Industrial Control Interface and I/O Signal Processing
The ABB DSQC355 uses analog channel processing technology for ABB automation controller environments. It supports voltage signal acquisition and output regulation through dedicated analog channels. Therefore, the module enables controlled data exchange between robot control hardware and external analog devices.
The DSQC355 design supports I/O density scaling within ABB control architectures by providing multiple analog channels in a single hardware assembly. In addition, the module maintains signal conversion accuracy through defined resolution and update timing parameters.
Frequently Asked Questions
Q: What analog signals does the ABB DSQC355 support?A: The DSQC355 supports analog voltage input signals from -10 V to +10 V and analog voltage output signals from 0 V to 10 V.
Q: How many analog channels are available on the DSQC355 module?A: The module provides 8 analog input channels and 4 analog output channels for controller signal interfaces.
Q: Does the DSQC355 support hot-swapping during system operation?A: The provided technical data does not specify hot-swap capability. Installation and replacement should follow ABB controller power isolation procedures.
Field Installation Guidelines
Install the DSQC355 according to the ABB controller hardware configuration requirements.
Verify controller power isolation before module insertion or removal.
Use appropriate shielded wiring for analog signal connections to reduce electrical interference.
Connect cable shields according to ABB grounding recommendations and site electrical standards.
Separate analog signal wiring from high-voltage power cables to reduce noise coupling.
Confirm channel configuration and signal scaling parameters before commissioning.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC328A Digital Input/Output Module
The ABB 3HAC17970-1, also cataloged as the DSQC328A Digital Input/Output Module, operates as a dedicated hardware component for signal acquisition and output execution within ABB robot controller platforms. The module processes 24 VDC field signals between controller electronics and connected sensors or actuators.
Hardware Specifications
Parameter
Specification
Model
DSQC328A
Brand
ABB
Part Number
3HAC17970-1
Product Type
Digital Input/Output Module
Origin
Sweden
Weight
Approximately 0.38 kg
Operating Voltage
24 VDC
System Compatibility
ABB S4C+ and IRC5 robot controller architectures
Signal Function
Digital field signal input and output processing
Industrial Control Backplane and I/O Signal Management
The ABB DSQC328A uses ABB robot controller I/O architecture to exchange discrete signals between the control system and external equipment. Therefore, the module supports direct connection of field devices such as proximity sensors, switches, and actuator control circuits.
In addition, ABB industrial controller platforms apply structured backplane communication for module data transfer. The DSQC328A supports I/O density expansion by adding digital channels within compatible robot controller configurations. Firmware and hardware revision compatibility must be verified against the target controller configuration before replacement.
The module design follows ABB industrial automation requirements for electrical noise resistance, channel status observation, and cabinet-based installation. Furthermore, LED status indicators provide local diagnostic information during commissioning and maintenance operations.
Frequently Asked Questions
Q: What type of signals does the ABB DSQC328A process?A: The DSQC328A processes digital input and output signals associated with ABB robot controller field interfaces. It is designed for discrete 24 VDC signal exchange.
Q: Can the DSQC328A be installed in any ABB robot controller system?A: No. The module requires compatibility with the specific ABB controller architecture, hardware revision, and configured I/O system.
Q: Does the DSQC328A support hot-swap replacement?A: Hot-swap operation depends on the controller platform configuration. Power isolation and manufacturer installation procedures should be followed before module removal or insertion.
Field Installation Guidelines
Confirm controller power isolation before installing or removing the DSQC328A module.
Verify module position, rack configuration, and hardware revision against ABB controller documentation.
Use appropriate industrial wiring practices for 24 VDC digital signal connections.
Separate I/O signal cables from high-voltage power cables to reduce electrical interference.
Connect cabinet grounding according to ABB installation requirements.
Check LED indicators after startup to confirm module communication and channel status.
Perform I/O configuration verification after hardware replacement.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM861AK01 3BSE018157R1 Processor Unit Kit
Configured for CPU execution and controller task management in the ABB AC 800M control system, the ABB PM861AK01 3BSE018157R1 (PM861A Processor Unit Kit) provides direct processing and communication functions within the controller hardware architecture.
Hardware Specifications
Parameter
Specification
Model
PM861AK01 3BSE018157R1
Brand
ABB
Product Type
Processor Unit Kit
Series
AC 800M Controller
Origin
Sweden
Weight
0.98 kg
Dimensions
19 x 12 x 13.2 cm shipping size
Operating Temp
-5 deg C to +55 deg C
Storage Temp
-25 deg C to +70 deg C
Humidity
5% to 95%, non-condensing
Power Supply
24 VDC
RAM
512 MB
Backplane Bus Communication and Firmware Compatibility
The ABB PM861AK01 operates as a processor node within the AC 800M controller platform. Therefore, it manages application execution, controller communication, and internal data processing through the system backplane architecture.
The processor unit supports industrial control configurations requiring deterministic communication timing between CPU resources and connected I/O modules. In addition, the controller firmware environment defines compatibility with installed application software and system configuration tools.
The AC 800M architecture supports modular I/O density scaling through connected S800 I/O interfaces. Furthermore, the processor unit maintains communication coordination between control logic execution and distributed field devices.
Frequently Asked Questions
Q: What is the primary function of the ABB PM861AK01 processor unit?A: The PM861AK01 executes controller application logic and manages communication tasks within an ABB AC 800M control system.
Q: What power supply does the PM861AK01 require?A: The module requires a 24 VDC power supply according to the provided technical specifications.
Q: What memory capacity is available in the PM861AK01?A: The processor unit includes 512 MB RAM for controller application processing and system operations.
Field Installation Guidelines
Install the PM861AK01 according to ABB AC 800M hardware configuration procedures. Verify that the mounting position provides sufficient ventilation and that the module seats correctly on the controller backplane.
Before energizing the system, confirm the 24 VDC supply polarity and verify grounding connections. Use appropriate industrial wiring practices to separate power cables from sensitive communication lines.
During commissioning, check firmware compatibility between the processor unit, engineering tools, and connected I/O modules. Maintain proper cabinet environmental conditions within the specified operating temperature and humidity ranges.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM861K01 Processor Unit
The ABB PM861K01 3BSE018105R1, also cataloged as the PM861K01 Processor Unit, operates as a dedicated hardware component for control execution, communication management, and application processing within the ABB AC 800M controller platform.
Hardware Specifications
Parameter
Specification
Model
PM861K01 3BSE018105R1
Brand
ABB
Product Type
Processor Unit
Controller Platform
ABB AC 800M
Processor Type
MPC8240
RAM
16 MB volatile memory
Flash Memory
8 MB non-volatile memory
Execution Performance
Basic instruction execution time approximately 0.2 ms
Communication Ports
2 x Ethernet ports, 2 x RS-232C serial ports
I/O Interface
ABB ModuleBus interface for S800 I/O systems
Redundancy Support
Supports CPU redundancy with compatible redundancy configuration
Power Supply
24 VDC system power via controller baseplate
Protection Class
IP20
Weight
Approx. 0.7 kg
Dimensions
Standard AC 800M module format
Origin
Sweden
Industrial Control Bus and Firmware Compatibility
The PM861K01 uses the ABB AC 800M controller architecture to execute application logic and exchange process data through the controller communication infrastructure. Furthermore, the processor unit manages ModuleBus communication with S800 I/O modules and supports firmware compatibility control during system configuration.
The unit provides Ethernet-based communication channels for controller networking and MMS communication. In addition, the RS-232C interfaces support engineering tools, serial devices, and legacy communication connections.
Frequently Asked Questions
Q: Does the PM861K01 support ABB S800 I/O modules directly?A: Yes. The PM861K01 communicates with ABB S800 I/O systems through the AC 800M ModuleBus interface.
Q: Can the PM861K01 operate in a redundant controller configuration?A: Yes. The processor unit supports CPU redundancy when installed with compatible redundancy hardware and configured system software.
Q: What memory resources are available in the PM861K01?A: The module contains 16 MB RAM for application execution and 8 MB flash memory for firmware and non-volatile storage.
Field Installation Guidelines
Install the PM861K01 in an ABB AC 800M controller assembly using the specified mounting base and mechanical locking system.
Verify that the 24 VDC system power connection matches the controller power requirements before energizing the module.
Ensure Ethernet communication cables follow industrial wiring practices and maintain separation from high-voltage power conductors.
Connect protective grounding according to the cabinet grounding design and maintain proper shielding for communication cables.
Confirm firmware compatibility between the processor unit, engineering tools, and connected I/O modules before commissioning.
Inspect ModuleBus connections for correct seating before applying system power.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM866K01 3BSE050198R1 Processor Unit Kit
Configured for controller execution and processor management in the ABB AC 800M control system, the ABB PM866K01 3BSE050198R1 (PM866K01 Processor Unit Kit) provides direct physical and electrical execution for CPU processing, firmware storage, and Ethernet communication functions.
Hardware Specifications
Parameter
Specification
Model
PM866K01 3BSE050198R1
Brand
ABB
Product Type
Processor Unit Kit
System Platform
ABB AC 800M Control System
Origin
Sweden
Weight
0.8 kg
Dimensions
19 x 12 x 13.8 cm (shipping size)
Operating Temp
0 to +55 deg C
Storage Temp
-40 to +70 deg C
Power Supply
24 VDC (19.2-30 VDC)
Power Consumption
5.1 W typical, 8.6 W maximum
Flash PROM for Firmware Storage
4 MB
Ethernet Channels
2
Recommended Control Network Backbone
100 Mbit/s switched Ethernet
Relative Humidity
5 to 95 %, non-condensing
Dielectric Test Voltage
50 V
Firmware Flash Compatibility and Ethernet Control Network
The ABB PM866K01 integrates firmware storage and controller communication functions through the AC 800M processor architecture. The unit provides 4 MB Flash PROM memory for firmware retention and supports two Ethernet channels for control network communication.
Furthermore, the processor supports 100 Mbit/s switched Ethernet backbone configurations, which enable deterministic data exchange between controller nodes and connected system components. The hardware architecture maintains compatibility with ABB AC 800M firmware management procedures and controller configuration tools.
Frequently Asked Questions
Q: What is the primary function of the ABB PM866K01 3BSE050198R1?
A: The PM866K01 operates as a processor unit kit for the ABB AC 800M platform. It executes controller application logic, manages firmware storage, and handles Ethernet-based communication tasks.
Q: What power supply range does the PM866K01 support?
A: The processor unit accepts a 24 VDC power input with an operating range of 19.2 to 30 VDC.
Q: How many Ethernet communication channels are available on this processor unit?
A: The PM866K01 provides two Ethernet channels for AC 800M control network communication.
Field Installation Guidelines
Install the PM866K01 according to ABB AC 800M hardware configuration requirements. Verify that the module is correctly seated in the controller mounting position before applying power.
Maintain proper cabinet grounding and ensure that signal cables remain separated from high-voltage power wiring. Use suitable shielding and grounding methods for Ethernet and control signal connections to reduce electrical interference.
Before firmware loading or controller replacement procedures, confirm hardware compatibility with the installed AC 800M system configuration. Follow ABB engineering documentation for commissioning, diagnostics, and maintenance operations.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM825 3BSE010796R1 AC80 Processor Module
Configured for processor execution and control data handling in the ABB AC80 automation platform, the ABB PM825 3BSE010796R1 (PM825 AC80 Processor Module) provides direct processing functions for controller logic, I/O management, and system communication tasks.
Hardware Specifications
Parameter
Specification
Model
PM825 3BSE010796R1
Brand
ABB
Origin
Sweden
Weight
0.9 kg
Dimensions
12 x 17 x 14.5 cm (shipping size)
Operating Temp
-25 deg C to +70 deg C
Power Consumption
24 VDC supply input, consumption depends on system load
Product Type
AC80 Processor Module
Processor
400 MHz CPU
Memory
256 MB
Power Supply
24 VDC +/-10%
I/O Capacity
Up to 1024 I/O points supported
Analog Input Range
0-600 V
Industrial Control Backplane and I/O Processing
The ABB PM825 operates as a central processing unit within the AC80 controller architecture. It executes application programs, manages controller operations, and exchanges process data with connected I/O modules.
Furthermore, the module supports I/O density scaling through the ABB controller backplane communication structure. The processor manages distributed signal processing while maintaining synchronized communication between control tasks and connected field interfaces.
The PM825 belongs to the ABB industrial control product family, where firmware compatibility and hardware configuration determine supported application functions. System engineering requires matching the processor module with the corresponding AC80 configuration environment.
Frequently Asked Questions
Q: What is the primary function of the ABB PM825 3BSE010796R1 module?A: The PM825 functions as an AC80 processor module that executes control logic, manages I/O operations, and processes controller communication tasks.
Q: What power supply does the PM825 require?A: The module requires a 24 VDC power supply with an operating tolerance of +/-10%.
Q: Can the PM825 support distributed I/O configurations?A: Yes. The PM825 supports AC80 I/O expansion configurations with up to 1024 I/O points according to system design requirements.
Field Installation Guidelines
Install the PM825 in the designated ABB AC80 controller rack according to system configuration requirements.
Verify that the 24 VDC supply wiring matches the controller power specifications before energizing the module.
Keep signal wiring separated from high-voltage power cables to reduce electromagnetic interference.
Connect grounding and shielding layers according to ABB installation documentation and industrial control cabinet practices.
Confirm firmware compatibility and hardware configuration before replacing or commissioning the processor module.
Inspect backplane connectors for contamination, mechanical damage, or improper seating during installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM860AK01 3BSE066495R1 Processor Unit
The ABB PM860AK01 3BSE066495R1, also cataloged as the PM860AK01 Processor Unit, operates as a dedicated hardware component for control execution, memory management, and communication tasks within ABB AC 800M controller platforms.
Hardware Specifications
Parameter
Specification
Model
PM860AK01 3BSE066495R1
Brand
ABB
Product Type
Processor Unit
Origin
Sweden
Weight
0.5 kg
Dimensions
11.5 x 12.5 x 11.5 cm
Operating Temp
-40 deg C to +70 deg C
Power Consumption
5-10 W
Operating Voltage
Typically 24 VDC
CPU Clock Frequency
48 MHz
Processor Architecture
Typically 32-bit
RAM Capacity
16-32 MB
Flash Memory
64-128 MB
Humidity Range
5-95% non-condensing
Backplane Bus Communication and Firmware Flash Compatibility
The ABB PM860AK01 integrates into the AC 800M controller architecture through internal backplane communication. Therefore, the processor unit manages application execution, I/O data exchange, and controller diagnostics between connected modules.
Additionally, the module supports firmware flash memory storage for controller operating software and configuration data. The 32-bit processor architecture provides deterministic execution behavior for PLC and DCS control tasks. Furthermore, the hardware design supports ABB controller communication structures with defined module addressing and system synchronization functions.
Frequently Asked Questions
Q: What is the primary function of the ABB PM860AK01 3BSE066495R1?
A: The PM860AK01 functions as a processor unit for ABB AC 800M controller systems. It executes control programs, manages internal memory operations, and handles communication with connected automation modules.
Q: What power supply does the PM860AK01 require?
A: The processor unit operates with a typical 24 VDC supply input. The installed system configuration determines the actual current load and power distribution requirements.
Q: Does the PM860AK01 support firmware storage?
A: Yes. The processor unit includes flash memory storage for controller firmware and application-related data. Firmware compatibility depends on the configured AC 800M system version.
Field Installation Guidelines
Install the PM860AK01 module on the designated ABB AC 800M controller mounting arrangement.
Verify that the power supply wiring follows the specified 24 VDC polarity and grounding requirements.
Keep communication wiring separated from high-voltage power cables to reduce electrical interference.
Ensure the module connector and backplane contacts remain clean before installation.
Confirm firmware compatibility before replacing an existing processor unit.
Use appropriate cabinet ventilation to maintain the specified operating temperature range.
Check grounding connections and shield termination practices according to the controller installation manual.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM810V1 Processor Unit
The ABB PM810V1, also cataloged as the PM810V1 Processor Unit, operates as a dedicated hardware component for execution control and communication management within the ABB Advant Controller 70 and S800 I/O system network.
Hardware Specifications
Parameter
Specification
Model
PM810V1
Brand
ABB
Origin
Sweden
Product Type
Processor Unit / PLC Controller Module
System Compatibility
ABB Advant Controller 70 / S800 I/O System
Communication Interfaces
Advant Fieldbus 100 twisted pair interface, Optical Modulebus connection
Mounting Type
DIN-rail mounting
Power Supply
24 VDC
Power Consumption
Approx. 5 W typical
Weight
Approx. 0.35 kg to 0.67 kg
Diagnostics
Front LED indicators for power, run, and fault status
Address Configuration
Dual rotary switches for Advant Fieldbus 100 station addressing
ABB Backplane Bus Communication and Firmware Compatibility
The PM810V1 manages processor execution and communication exchange between the Advant Controller 70 CPU architecture and connected S800 I/O modules. It supports Advant Fieldbus 100 communication through twisted-pair media and provides an optical Modulebus interface for local I/O expansion.
Furthermore, the processor module controls I/O data transfer cycles, system diagnostics, and controller-level communication tasks. The hardware design follows ABB industrial controller architecture, where firmware compatibility and module configuration determine system integration requirements.
Frequently Asked Questions
Q: Does the ABB PM810V1 support direct connection to S800 I/O modules?A: Yes. The PM810V1 provides an Optical Modulebus connection interface for communication with compatible ABB S800 I/O modules.
Q: How is the Advant Fieldbus 100 station address configured on the PM810V1?A: The module uses dual rotary switches located on the front panel for setting the Advant Fieldbus 100 station address.
Q: Can the PM810V1 be replaced directly by newer ABB processor modules?A: Replacement depends on the controller platform, firmware version, communication configuration, and existing I/O architecture. Engineering verification is required before substitution.
Field Installation Guidelines
Install the PM810V1 on a suitable DIN rail with adequate mechanical support.
Verify that the 24 VDC power supply polarity matches ABB installation requirements before energizing the module.
Connect Advant Fieldbus 100 wiring according to the specified network topology and shielding practice.
Maintain separation between communication cables and high-voltage power conductors to reduce electrical interference.
Confirm rotary switch address settings before connecting the controller to the field network.
Check front LED diagnostic indicators after startup to verify processor operating status.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM851 AC 800M Processor Unit
The ABB PM851, also cataloged as the PM851 Processor Unit, operates as a dedicated CPU hardware component for execution control, memory management, and communication tasks within the ABB AC 800M control system platform.
Hardware Specifications
Parameter
Specification
Model
PM851
Brand
ABB
Origin
Not specified
Product Type
Processor Unit / CPU Module
Series
ABB AC 800M Controller Family
Processor Frequency
24 MHz
Memory Capacity
12 MB
Redundancy Support
Non-redundant configuration
High Integrity Support
Not supported
Performance Benchmark
1,000 Boolean operations in 0.46 ms
Dimensions
Width: 119 mm; Height: 186 mm; Depth: 135 mm
Weight
Approximately 1100 g including base
Backplane Bus Communication and Firmware Compatibility
The ABB PM851 uses the AC 800M controller architecture to execute application logic and exchange process data through the controller backplane communication structure. Therefore, the processor manages task scheduling, I/O data handling, and system communication services within the automation hardware tree.
In addition, the PM851 supports ABB controller firmware environments defined for AC 800M platforms. Firmware compatibility depends on the installed controller version and the associated ABB engineering system configuration.
The processor architecture supports industrial control applications requiring coordinated I/O density scaling, distributed signal processing, and deterministic PLC execution cycles.
Frequently Asked Questions
Q: Does the ABB PM851 support controller redundancy configurations?A: No. The PM851 is specified as a non-redundant processor unit and does not provide redundant CPU operation.
Q: What type of control tasks does the PM851 execute?A: The PM851 executes PLC application programs, manages controller memory operations, and processes communication tasks within the AC 800M system.
Q: Can the PM851 operate with standard AC 800M I/O modules?A: Yes. The PM851 is designed for integration with compatible AC 800M hardware modules through the controller system architecture.
Field Installation Guidelines
Install the PM851 on the designated AC 800M controller base according to ABB hardware assembly procedures.
Verify that the controller backplane connections are correctly seated before system power-up.
Use appropriate grounding methods for the controller cabinet to minimize electrical interference.
Separate communication wiring from high-voltage power cables to reduce electromagnetic coupling.
Confirm firmware compatibility between the PM851 processor unit and the installed AC 800M controller software environment before commissioning.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB PM851A Processor Unit
The ABB PM851A 3BSE066484R1, also cataloged as the PM851A Processor Unit, operates as a dedicated hardware component for control logic execution, communication management, and system diagnostics within the ABB AC 800M controller platform.
Hardware Specifications
Parameter
Specification
Model
PM851A
Brand
ABB
Origin
Sweden
Power Consumption
Low power consumption profile for AC 800M entry-level processor units
Product Type
Processor Unit
Product ID / Part Number
3BSE066484R1
Controller Family
ABB AC 800M
Processor Clock Frequency
24 MHz
Memory (RAM)
8 MB
CPU Redundancy
Not supported; single CPU configuration
Ethernet Ports
2 integrated Ethernet communication ports
Serial Communication
1 x RS-232C COM port
Mounting Method
DIN rail mounting through compatible BasePlate
Protection Class
IP20
Engineering Tool Compatibility
ABB Control Builder
Programming Standard
IEC 61131-3 compliant languages including FBD, ST, IL, LD, and SFC
Industrial Control Communication and Firmware Compatibility
The ABB PM851A integrates into the AC 800M automation architecture through controller backplane communication and Ethernet-based system interfaces. It manages application execution, controller diagnostics, and data exchange between engineering tools, operator interfaces, and connected automation devices.
Furthermore, the processor supports ABB Control Builder programming environments and IEC 61131-3 application development. The 8 MB RAM capacity provides the required execution memory for compact control applications within single CPU configurations.
The AC 800M platform architecture supports firmware-controlled functionality, allowing application compatibility between processor hardware revisions and approved system software packages. Configuration management requires matching controller firmware, engineering tools, and installed communication modules.
Frequently Asked Questions
Q: Does the PM851A support CPU redundancy configurations?A: No. The PM851A operates as a single processor unit and does not support redundant CPU configurations.
Q: What communication interfaces are integrated into the PM851A?A: The processor includes two Ethernet ports for system communication and diagnostics, plus one RS-232C serial communication port.
Q: Can the PM851A be installed directly on a DIN rail?A: The PM851A requires installation through a compatible AC 800M BasePlate assembly for DIN rail mounting within the controller cabinet.
Field Installation Guidelines
Install the PM851A on the specified AC 800M BasePlate before connecting field wiring or communication interfaces.
Verify that the cabinet environment meets the processor unit operating requirements before energizing the controller system.
Route Ethernet and serial communication cables separately from high-voltage power conductors to reduce electrical interference.
Connect cable shields according to site grounding practices and maintain proper cabinet grounding continuity.
Confirm firmware compatibility between the PM851A processor, Control Builder engineering software, and connected AC 800M modules before commissioning.
Check connector seating and mechanical fixation after installation to prevent intermittent communication faults.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe General Electric IC200CHS001A is a box-style I/O carrier designed for the VersaMax PLC series. This carrier provides the necessary mounting and electrical interface for VersaMax I/O modules, facilitating reliable signal distribution and field wiring connections in industrial automation environments. It is engineered to support up to 32 I/O points, offering a compact solution for distributed or centralized control architectures.Features
Supports up to 32 I/O points for high-density signal management.
Equipped with 36 box-style screw terminals for secure field wiring.
Designed for standard DIN-rail mounting, ensuring quick and efficient installation.
Rated for a maximum voltage of 264 VAC, accommodating a wide range of industrial control applications.
Robust construction suitable for demanding automation environments.
Technical Specifications
Model
IC200CHS001A
Series
VersaMax
Terminal Type
Box-style
Terminal Count
36
Max I/O Points
32
Max Current per Point
2 Amps
Max Voltage Rating
264 VAC
Max Voltage Transients
300 VAC
Mounting
DIN Rail
Terminal Torque
0.37 to 0.5 lb-ft
Installation Guidelines
Ensure all power to the I/O system is disconnected before installing or removing modules from the carrier.
Mount the carrier onto a standard 35mm DIN rail, ensuring it is securely locked in place.
When wiring, ensure that terminal screws are tightened to the specified torque range (0.37 to 0.5 lb-ft) to prevent loose connections and potential signal degradation.
Maintain proper cable routing to minimize electromagnetic interference (EMI) from high-voltage lines or high-frequency drives.
Verify that the total current draw of the I/O modules does not exceed the capacity of the power supply connected to the carrier.
FAQWhat is the primary function of the IC200CHS001A?The IC200CHS001A serves as a base carrier for GE VersaMax I/O modules, providing both the mechanical mounting interface and the electrical terminal blocks for field wiring.Can this carrier be used with all VersaMax modules?This carrier is specifically designed for box-style I/O modules within the VersaMax family. Please verify compatibility with your specific module part number before installation.What is the maximum current rating per point?The carrier supports a maximum of 2 Amps per point.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Emerson Westinghouse 5X00622G01 is a high-density digital output module designed for industrial control applications. This unit provides 16 independent output channels, enabling efficient management of field devices such as actuators, solenoids, and indicators within a distributed control system.Features
16-channel digital output configuration for high-density signal control.
Supports 24 VDC output voltage operation.
Integrated isolation (optical or relay) to protect control circuitry from field-side transients.
Flexible output architecture suitable for dry contact relay or solid-state switching requirements.
Robust thermal performance with an operating range of -20 degC to +60 degC.
Technical Specifications
Product Model
5X00622G01
Channel Count
16
Output Voltage
24 VDC
Output Current
1-5 A per channel (nominal)
Operating Temperature
-20 degC to +60 degC
Manufacturer
Emerson
Installation Guidelines
Ensure the control system power is disconnected before installing or removing the module from the rack.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive internal components.
Verify that the module is fully seated in the backplane connector to ensure reliable communication and power distribution.
Route field wiring away from high-voltage AC lines or high-EMI sources to minimize signal interference.
Ensure adequate ventilation in the cabinet to maintain the operating temperature within the specified -20 degC to +60 degC range.
FAQWhat is the primary function of the 5X00622G01?This module serves as a digital output interface for Emerson Westinghouse control systems, allowing the controller to drive up to 16 external field devices using 24 VDC signals.Does this module require external power?Yes, the module is designed to operate with a 24 VDC supply. Please refer to your specific system wiring diagram for correct power distribution and commoning requirements.What type of isolation does this module provide?The 5X00622G01 utilizes either optical or relay isolation to provide electrical separation between the field-side devices and the internal logic circuitry of the controller.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1734-OB4E is a compact, four-channel digital DC output module belonging to the POINT I/O family. Designed for high-density distributed I/O applications, this module provides reliable switching for 24V DC loads. It features electronic protection to safeguard against short circuits and overloads, ensuring operational continuity in industrial control environments.Features
Four independent sourcing output channels.
Nominal operating voltage of 24V DC.
Integrated electronic protection for output circuitry.
Compact, modular design suitable for space-constrained control cabinets.
DIN-rail mountable for quick installation and removal within the POINT I/O system.
ApplicationsThis module is commonly utilized in automated manufacturing, process control, and machine-level monitoring systems. It is ideal for interfacing with actuators, relays, and indicators that require a 24V DC sourcing signal from a PLC or distributed control node.Technical Specifications
Model
1734-OB4E
Module Type
Digital DC Output
Number of Channels
4
Output Type
Current Sourcing
Voltage Rating
24V DC
Protection
Electronic
Mounting
DIN Rail
Enclosure Type
Open Style
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the POINT I/O base.
Mount the module on a standard 35mm DIN rail.
Verify that the module is fully seated and locked into the communication interface or adjacent terminal base.
Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
Use shielded cabling for I/O signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Adhere to local electrical codes for grounding and wiring practices.
FAQIs the 1734-OB4E protected against short circuits?Yes, the module includes electronic protection features to prevent damage from short circuits and overloads on the output channels.What is the mounting method for this module?The 1734-OB4E is designed for DIN-rail mounting, allowing it to integrate seamlessly into standard POINT I/O rack configurations.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
The Schneider Electric TSXDSY08T22 is a high-performance discrete output module designed for the Modicon Premium automation platform. This module provides 8 solid-state transistor output channels, specifically engineered for high-current industrial applications such as driving solenoid valves, contactors, and actuators in demanding environments like power generation and material handling.Features
8 independent source-configuration transistor output channels.
High-current capacity of 2 A per channel, with a total module capacity of 10 A.
Integrated electronic protection including short-circuit current limiting and thermal shutdown.
Galvanic isolation of 1500 V AC between field-side and logic-side circuitry.
Front-panel LED array for rapid status monitoring and diagnostic troubleshooting.
Compatible with Telefast pre-wired cabling systems via a standard 20-way HE10 connector.
ApplicationsThis module is suitable for use in critical industrial infrastructure, including petroleum refining, fossil-fuel power generation, and large-scale mining operations where reliable, high-speed switching of field loads is required.Technical Specifications
Model
TSXDSY08T22
Output Type
Solid-state transistor (Source)
Number of Channels
8
Nominal Voltage
24 V DC
Voltage Range
19 to 30 V DC
Max Current Per Channel
2 A
Max Total Module Current
10 A
Isolation
1500 V AC
Power Dissipation
4.5 W
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the Modicon Premium rack is powered down before inserting or removing the module to prevent electrical damage.
Mount the module in a clean, dry environment within an IP20-rated enclosure or better.
Ensure adequate ventilation around the module to maintain operating temperatures below 60 deg C.
Use shielded cabling for field connections to minimize EMI interference, ensuring proper grounding of the shield at the cabinet entry point.
Verify that the 20-way HE10 connector is securely seated and locked to prevent intermittent signal loss.
Handle with care to avoid electrostatic discharge (ESD) damage to the internal logic components.
Compliance and CertificationsThe TSXDSY08T22 complies with international standards including CE, UL 508, CSA C22.2, and IEC 61131-2 for industrial control equipment.FAQWhat is the primary function of the TSXDSY08T22?It is a discrete output module used to switch 24 V DC field devices like solenoids and contactors from the Modicon Premium controller.Can this module handle inductive loads?Yes, the module includes integrated demagnetization diodes per channel to protect against inductive voltage spikes during switching.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Siemens 6ES5464-8ME11 is an analog input module designed for the SIMATIC S5 automation series. It is compatible with S5-90U, S5-95U, and S5-100U programmable logic controllers, as well as ET 100U and ET 200U distributed I/O systems. This module is specifically engineered to process 4 to 20 mA current loop signals, providing reliable signal conversion for industrial control applications. By incorporating galvanic isolation, the module effectively mitigates the risk of ground loops and electromagnetic interference, ensuring stable data acquisition in demanding environments such as water treatment, chemical processing, and power generation.Features
Galvanic Isolation: Provides robust protection for internal PLC circuitry against field-side voltage spikes and electrical noise.
Signal Precision: Designed for high-accuracy digitization of standard 4 to 20 mA current loops.
System Integration: Designed for seamless mounting within S5 tier baseboards and ET 100U/200U distributed I/O racks.
Industrial Reliability: Built to withstand standard industrial temperature ranges, ensuring consistent performance in harsh operational conditions.
ApplicationsThis module is suitable for various industrial automation tasks requiring analog signal monitoring, including pressure, flow, and temperature sensing within legacy SIMATIC S5 infrastructure.Technical Specifications
Model
6ES5464-8ME11
Brand
Siemens
Series
SIMATIC S5 / ET 100U / ET 200U
Module Type
Analog Input Module
Input Signal
4 to 20 mA
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the PLC power supply is disconnected before inserting or removing the module from the rack or baseboard.
Use shielded twisted-pair cabling for 4-20 mA signals to minimize EMI influence.
Verify that the module is fully seated in the backplane connector to ensure proper bus communication.
Maintain adequate clearance around the module to allow for proper heat dissipation and ventilation.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal components.
FAQIs this module compatible with modern S7 systems?No, the 6ES5464-8ME11 is specifically designed for the legacy SIMATIC S5 and ET 100U/200U product families and is not natively compatible with S7-series hardware.Does this module require external power for the current loop?The module is designed to interface with 4-20 mA loops; please refer to the specific S5 system manual for wiring requirements regarding loop power and signal commonality.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Allen-Bradley 1756-2WS is a specialized dual-channel weigh scale module engineered for the ControlLogix platform. Developed in partnership with Hardy Process Solutions, this module enables the direct integration of industrial load cells and weigh scale platforms into the ControlLogix backplane. By providing two independent scale channels, the 1756-2WS enhances system density, allowing for the simultaneous monitoring of two separate vessels, silos, or platforms while minimizing the required rack space.Features
Dual-Channel Architecture: Independent processing for two separate scale platforms within a single ControlLogix slot.
High-Resolution Conversion: Integrated high-resolution analog-to-digital converters for laboratory-grade weight data.
Load Cell Compatibility: Supports up to eight 350-ohm Full Wheatstone Bridge strain gauge sensors, with a capacity of four load cells per channel.
Advanced Filtering: Utilizes Hardy's proprietary WAVERSAVER technology to electronically suppress mechanical and structural noise from plant machinery, mixers, or piping shock.
Direct Data Access: Provides weight data directly to the controller tag database for seamless integration into automation logic.
ApplicationsThis module is ideal for high-precision industrial weighing applications, including batching, blending, inventory management, and force measurement. It is commonly deployed in chemical processing, food and beverage manufacturing, and material handling systems where stable, noise-free weight data is critical for process control.Technical Specifications
Brand
Allen-Bradley / Hardy Process Solutions
Product Line
ControlLogix
Module Type
Weigh Scale / Load Cell Interface
Channels
2 Independent Channels
Load Cell Excitation
Up to eight 350-ohm Full Wheatstone Bridge sensors
Backplane Current (5V DC)
1.0 A
Backplane Current (24V DC)
0.0125 A (12.5 mA)
Operating Temperature
0 to 60 degC (32 to 140 degF)
Storage Temperature
-40 to 85 degC (-40 to 185 degF)
Relative Humidity
5% to 95% non-condensing
Slot Width
1 Slot
Installation Guidelines
Power Down: Always disconnect backplane power before inserting or removing the module from the chassis.
Grounding: Ensure the ControlLogix chassis is properly grounded according to local electrical codes to minimize EMI/RFI interference.
Wiring: Use shielded, twisted-pair cabling for load cell connections to maintain signal integrity. Route signal cables away from high-voltage AC power lines.
Environment: Install in an environment that does not exceed the specified operating temperature and altitude limits (1000 meters).
Handling: Use standard ESD precautions when handling the module to prevent damage to sensitive internal circuitry.
FAQQ: Can this module be used with any load cell?A: The 1756-2WS is designed for use with 350-ohm Full Wheatstone Bridge strain gauge load cells. Please verify your sensor specifications match these requirements.Q: Does this module require external power for the load cells?A: No, the module provides the necessary excitation voltage to the load cells directly. It draws its power from the ControlLogix backplane.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe General Electric IC693CHS391D is a 10-slot expansion baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This modular baseplate provides the physical mounting and electrical backplane connectivity required for expanding I/O capacity in industrial automation applications. It is engineered to support a single CPU or specialty module in the first slot, with nine additional slots available for various I/O or option modules.Features
Ten total slots for flexible system configuration.
Dedicated slot 1 for CPU or specialty module support.
Nine slots for I/O or option modules.
Integrated 25-pin female connector for expansion cable interface.
Compatible with standard GE Fanuc Series 90-30 rack-mount architectures.
Technical Specifications
Model Number
IC693CHS391D
Series
Series 90-30
Total Slots
10
CPU/Specialty Slots
1 (Slot 1)
I/O Slots
9
Operating Voltage
5V DC
Current Consumption
420 mA
Connector Type
25-Pin Female
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the baseplate or any modules.
Mount the baseplate securely on a flat, grounded metal surface to ensure proper chassis grounding.
Maintain adequate clearance around the baseplate to allow for proper airflow and cooling, preventing thermal degradation of the modules.
When inserting modules, ensure they are fully seated in the backplane connector before securing them with the module retention screws.
Use shielded cables for expansion connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Handle modules using ESD-safe practices to prevent damage to sensitive internal circuitry.
FAQWhat is the primary function of the IC693CHS391D?This unit serves as an expansion baseplate for the GE Series 90-30 PLC system, allowing for the addition of extra I/O modules to an existing control rack configuration.Can this baseplate hold a CPU?Yes, the IC693CHS391D is designed with one dedicated slot (Slot 1) specifically for a CPU or a specialty module, while the remaining nine slots are reserved for I/O and other option modules.What is the power requirement for this baseplate?The baseplate operates on 5V DC and has a current consumption of 420 mA.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe GE Fanuc IC693CHS391K is a 10-slot expansion baseplate designed for the Series 90-30 programmable logic controller (PLC) system. This modular baseplate provides the physical mounting and electrical backplane connectivity required for CPU modules, I/O modules, and specialty option modules. It is engineered to facilitate system expansion, allowing users to increase the I/O capacity of their control architecture by providing nine dedicated slots for I/O and one dedicated slot for the CPU or specialty module.Features
Ten total slots for flexible module configuration.
Dedicated slot 1 for CPU or specialty module support.
Nine slots available for standard I/O modules.
Integrated 25-pin female connector for reliable communication and expansion.
Operates at 5 Volts DC with a current consumption of 420 mA.
Compatible with Series 90-30 backplane architecture.
Technical Specifications
Manufacturer
General Electric (GE Fanuc)
Series
Series 90-30
Part Number
IC693CHS391K
Total Slots
10
CPU/Specialty Slots
1 (Slot 1)
I/O Slots
9 (Slots 2-10)
Voltage
5V DC
Current
420 mA
Connector Type
25-Pin Female
Installation Guidelines
Ensure the power supply is disconnected before installing or removing the baseplate or any modules.
Mount the baseplate on a flat, grounded metal surface to ensure proper EMI shielding and heat dissipation.
When inserting modules, ensure they are fully seated in the backplane connector to prevent intermittent communication errors.
Maintain adequate clearance around the baseplate to allow for proper airflow and cooling, as the system relies on convection.
Use appropriate shielded cabling for expansion connections to minimize signal interference in high-noise industrial environments.
Handle modules using ESD-safe practices to prevent damage to sensitive electronic components.
FAQWhat is the primary function of the IC693CHS391K?This unit acts as an expansion baseplate for the Series 90-30 PLC, providing the necessary backplane slots to add more I/O modules to an existing control system.Can this baseplate be used as a standalone CPU base?Yes, it features a dedicated slot 1 designed to house the CPU module, allowing it to function as the primary or expansion base for your PLC configuration.What is the power requirement for this baseplate?The baseplate operates on 5V DC and draws 420 mA of current during operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe Emerson Fisher Provox CL6824X1-A6 is a specialized analog input board designed for integration within the Provox distributed control system environment. This module facilitates the acquisition and processing of analog field signals, providing reliable data conversion for industrial monitoring and control applications. It is engineered to maintain high signal integrity and compatibility with existing Fisher Provox infrastructure.Features
Designed for seamless integration with Fisher Provox control systems.
Dedicated analog input processing circuitry for precise signal handling.
Robust construction suitable for industrial control cabinet environments.
Direct replacement or spare for legacy Provox system configurations.
Technical Specifications
Product Model
CL6824X1-A6
Spare Model
12P0767X032
Manufacturer
Emerson
Function
Analog Input Board
Weight
0.38 kg
Installation Guidelines
Ensure the control system is powered down before attempting to install or remove the module from the rack.
Handle the board using proper ESD (electrostatic discharge) protection practices to prevent damage to sensitive electronic components.
Verify that the module is fully seated in the designated slot and that all locking mechanisms are engaged to ensure a secure electrical connection.
Route signal wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to maintain signal accuracy.
Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified range for the Provox system.
FAQWhat is the primary function of the CL6824X1-A6?This module acts as an analog input interface, allowing the Provox system to receive and process analog signals from field instrumentation.Is this module compatible with other systems?The CL6824X1-A6 is specifically designed for the Fisher Provox series. It is not intended for use in generic PLC systems outside of its designated architecture.What should I do if the module is not recognized by the system?Verify that the module is firmly seated in the backplane and check for any bent pins or debris in the connector. Ensure the system configuration matches the hardware revision installed.
