Description

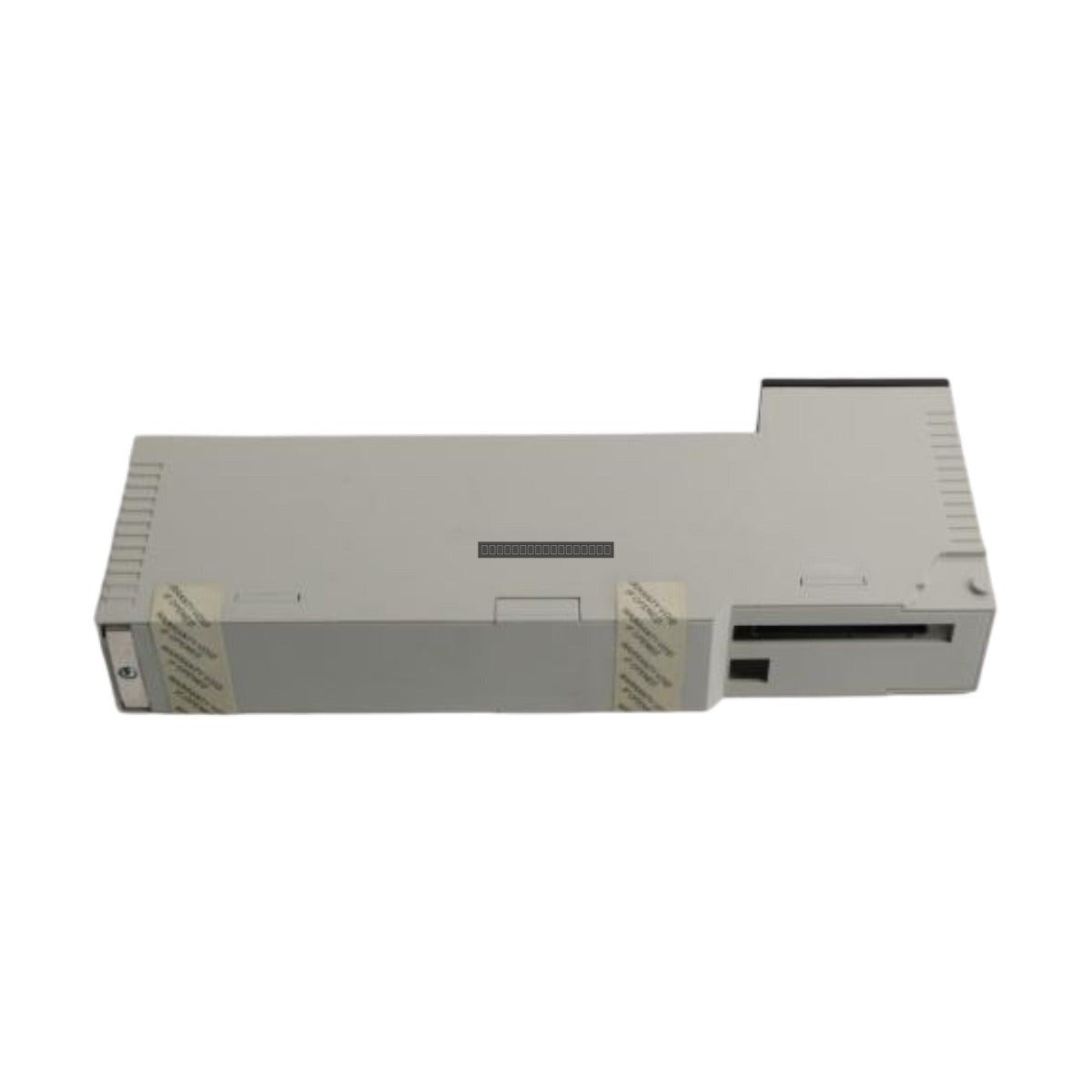

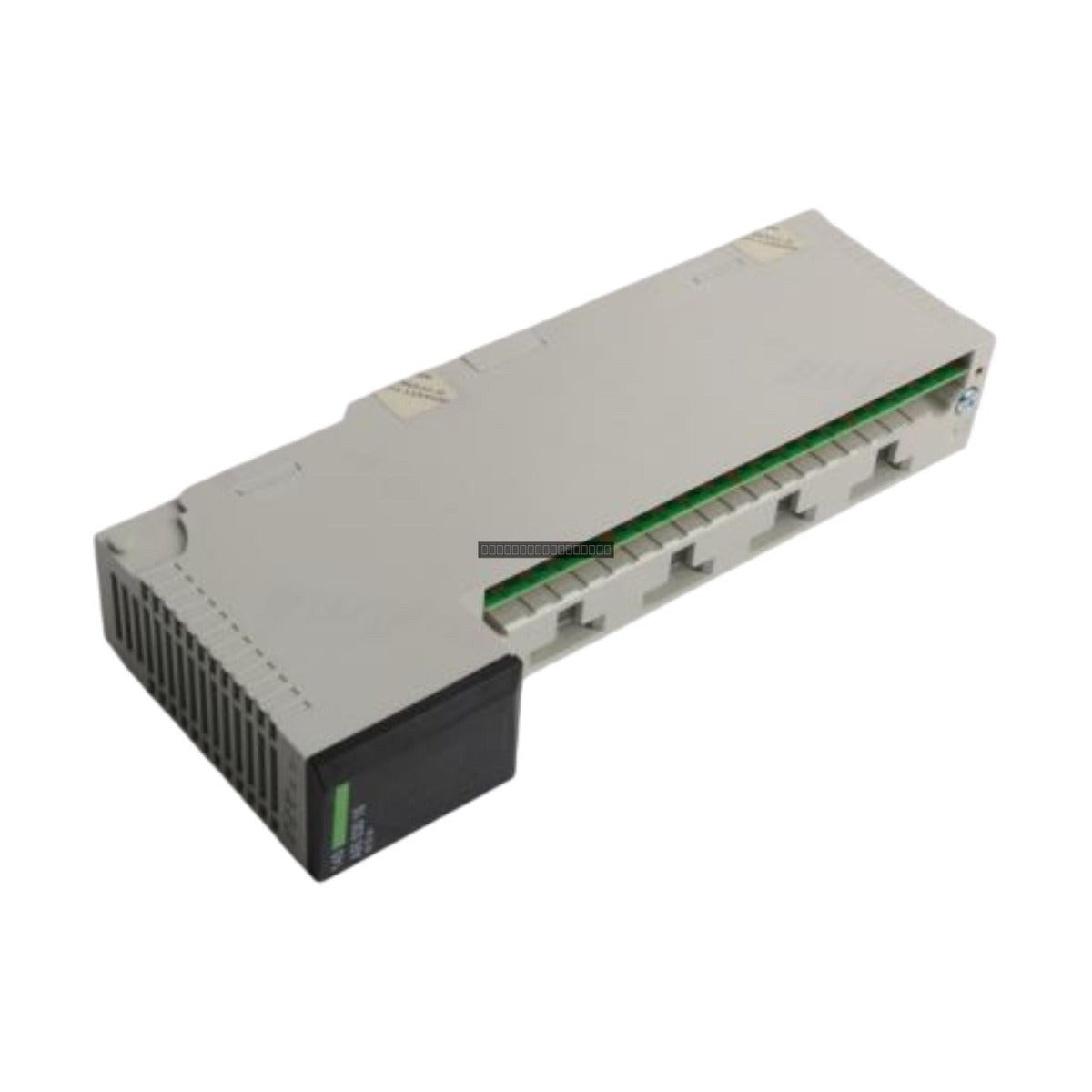

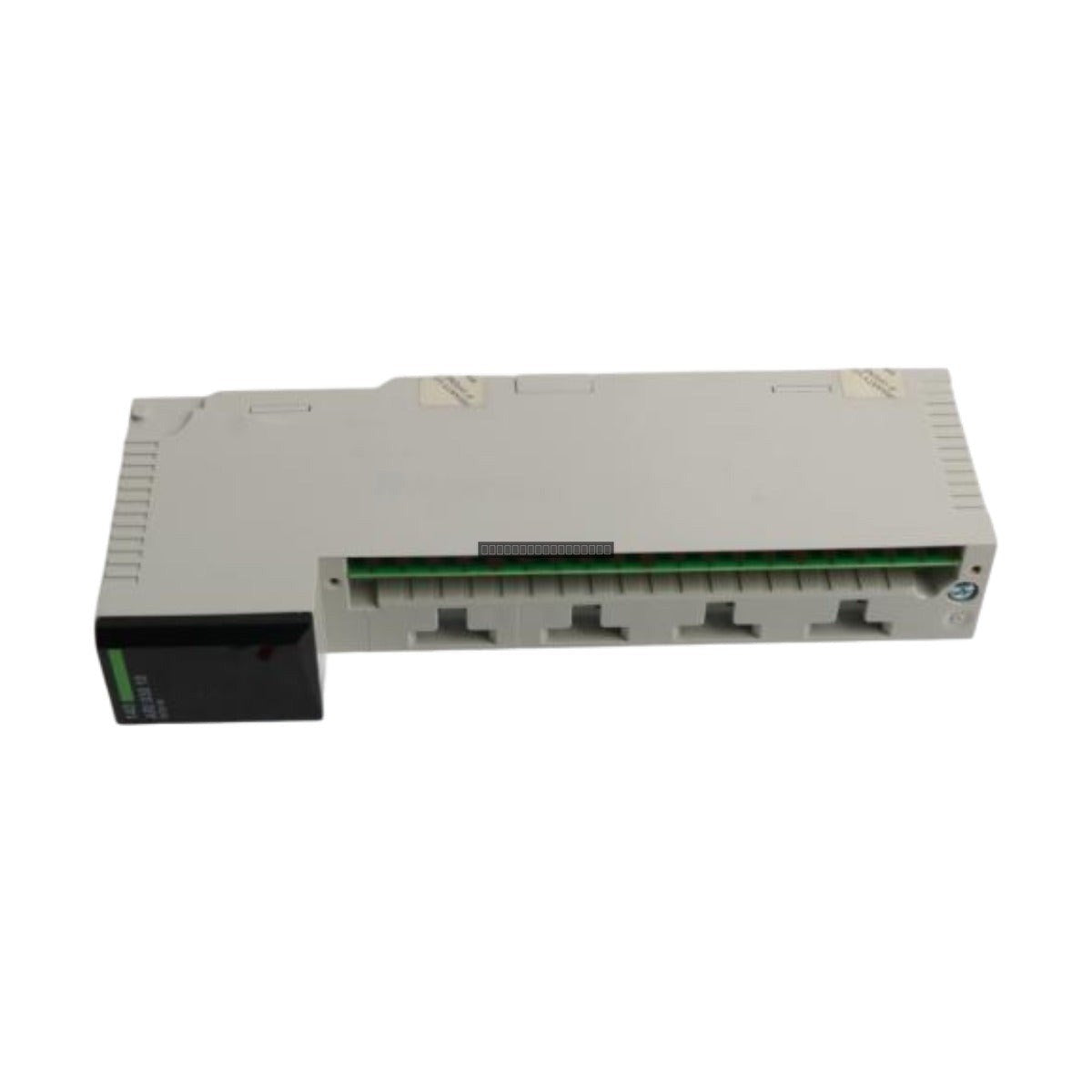

The Schneider Electric 140AMM0900 is a high-performance mixed analog I/O module designed for the Modicon Quantum programmable logic controller (PLC) platform. This module integrates 4 analog input channels and 2 analog output channels into a single-slot footprint, providing a space-efficient solution for complex control loops. It is engineered to bridge field-level instrumentation with the central processor, supporting a wide range of standard industrial signal types for both monitoring and control applications in demanding environments such as power generation, chemical processing, and water management.
Features
-
High-Density Design: Combines 4 inputs and 2 outputs in one module to optimize rack space and reduce overall system footprint.
-
Configurable Signal Ranges: Supports versatile input ranges including 4-20 mA, 0-20 mA, 1-5 VDC, and +/- 10 VDC.
-
Robust Signal Conditioning: Integrated hardware filtering on input channels to mitigate EMI and high-frequency noise common in industrial settings.
-
Galvanic Isolation: Provides 1500 VAC field-to-bus isolation to protect the backplane from ground loops and voltage surges.
-
Diagnostic Indicators: Front-panel LED array provides immediate status updates on channel health, bus communication, and field power supply.
Applications
This module is suitable for diverse industrial automation tasks, including:
- Process control loops requiring simultaneous monitoring and actuation.
- Interface with pressure, flow, and temperature transmitters.
- Control of variable frequency drives (VFDs) and proportional valves.
- General-purpose analog data acquisition in Modicon Quantum rack systems.
Technical Specifications
| Model |
140AMM0900 |
| Brand |
Schneider Electric |
| Series |
Modicon Quantum |
| Input Channels |
4 (Non-isolated between channels) |
| Output Channels |
2 (Non-isolated between channels) |
| Input Ranges |
4-20 mA, 0-20 mA, 1-5 VDC, +/- 5 VDC, +/- 10 VDC |
| Output Ranges |
4-20 mA, 0-20 mA, +/- 10 VDC |
| ADC Resolution |
12-bit unipolar / 13-bit bipolar |
| DAC Resolution |
12-bit |
| Isolation |
1500 VAC field-to-bus (60s) |
| Current Consumption |
300 mA @ 5 VDC |
| External Power |
24 VDC nominal |
| Operating Temp |
0 to 60 deg C |
Installation Guidelines
-
Safety First: Always disconnect backplane power before inserting or removing the module to prevent electrical damage or bus errors.
-
Mounting: Ensure the module is fully seated in the Quantum rack slot and the locking tabs are engaged to maintain proper backplane contact.
-
Wiring: Use shielded twisted-pair cabling for all analog signals to minimize interference. Ensure shields are grounded at the source or per facility grounding standards.
-
Environment: Maintain adequate ventilation within the cabinet to ensure the module operates within the specified 0 to 60 deg C range.
-
EMI Protection: Route signal cables away from high-voltage power lines and heavy inductive loads to prevent signal degradation.
FAQ
Does this module require an external power supply?
Yes, the 140AMM0900 requires a 24 VDC external power supply to drive the analog field devices.
Is the input isolation channel-to-channel?
No, the 4 input channels are not isolated from each other; however, the module features a 1500 VAC galvanic isolation barrier between the field-side terminals and the internal logic backplane.
