Description

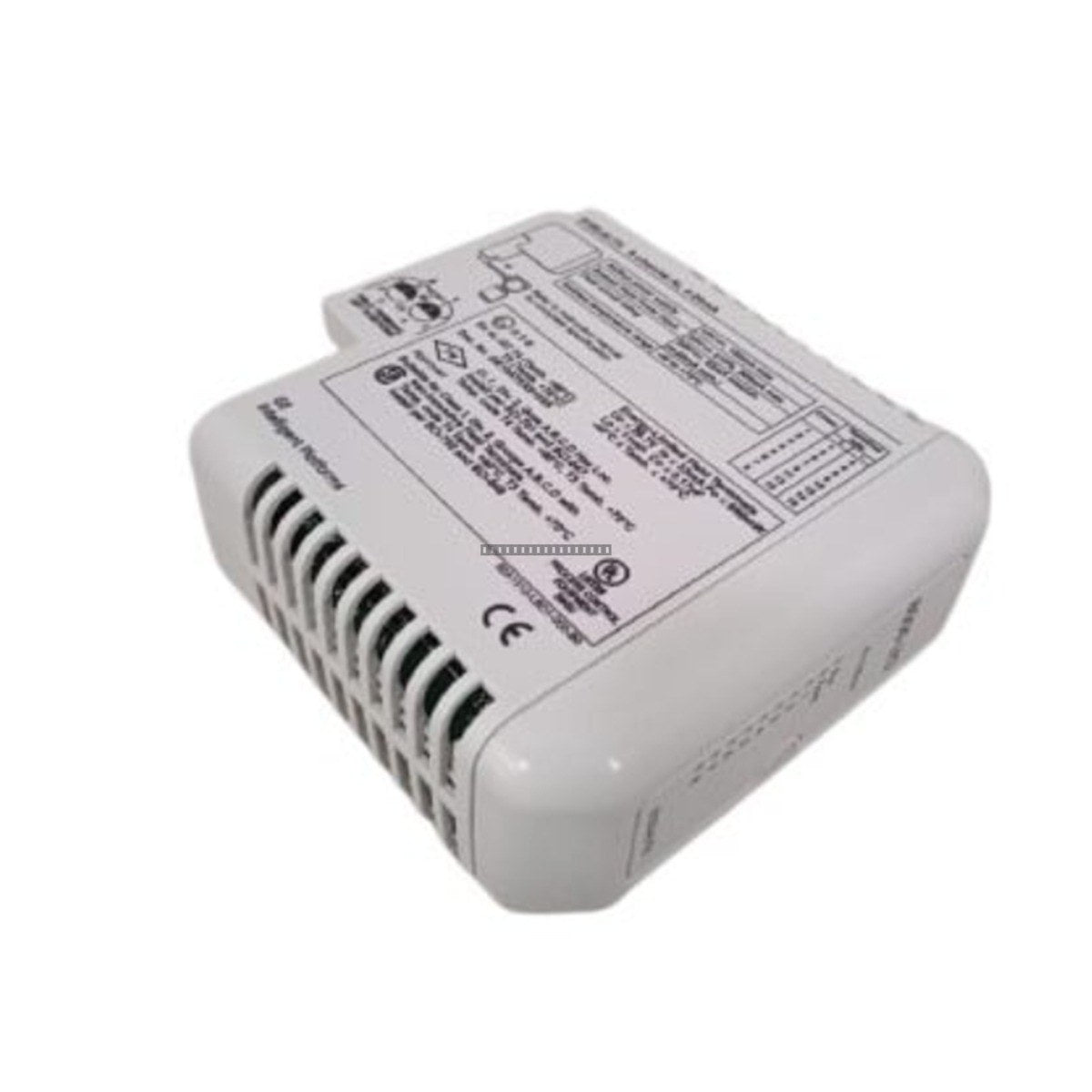

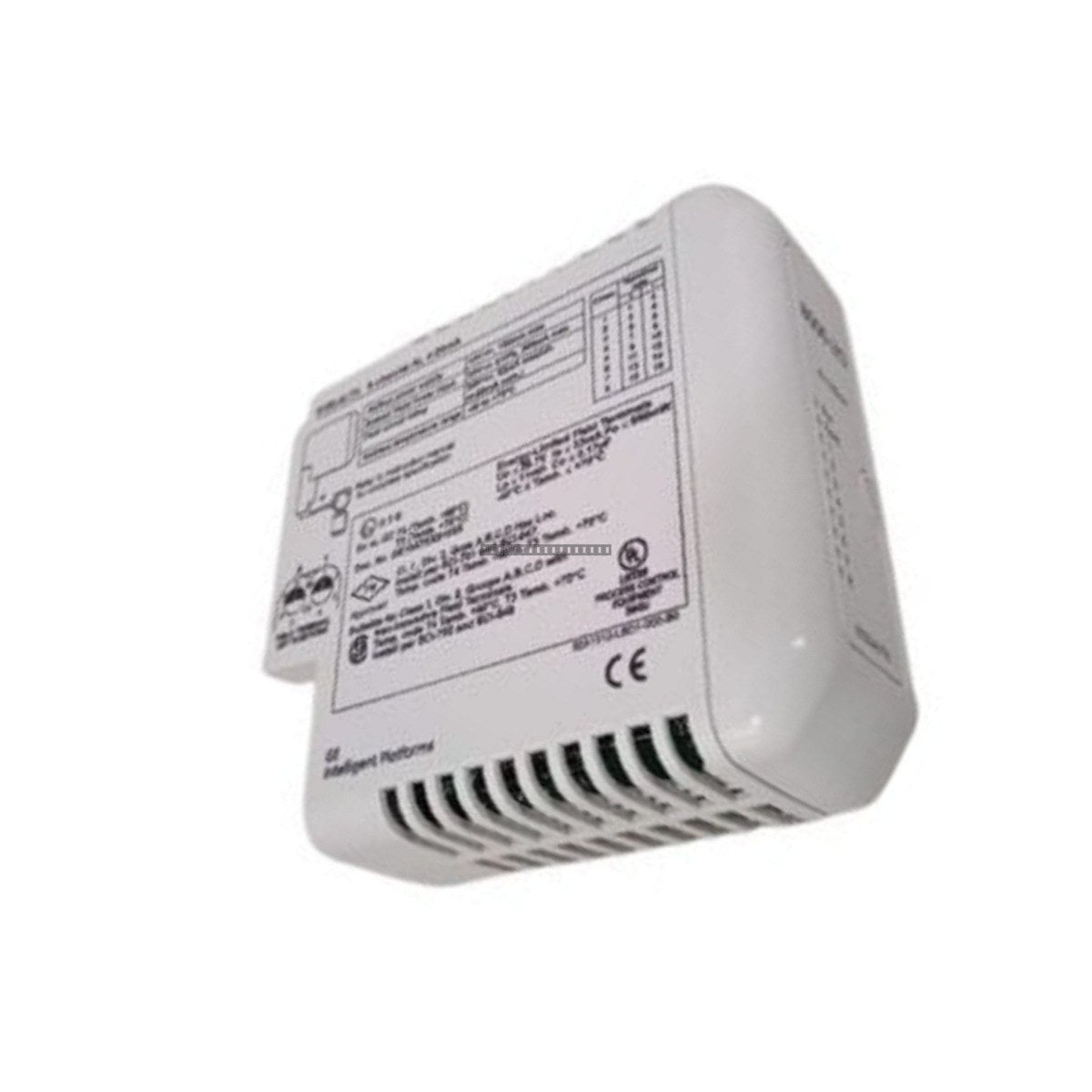

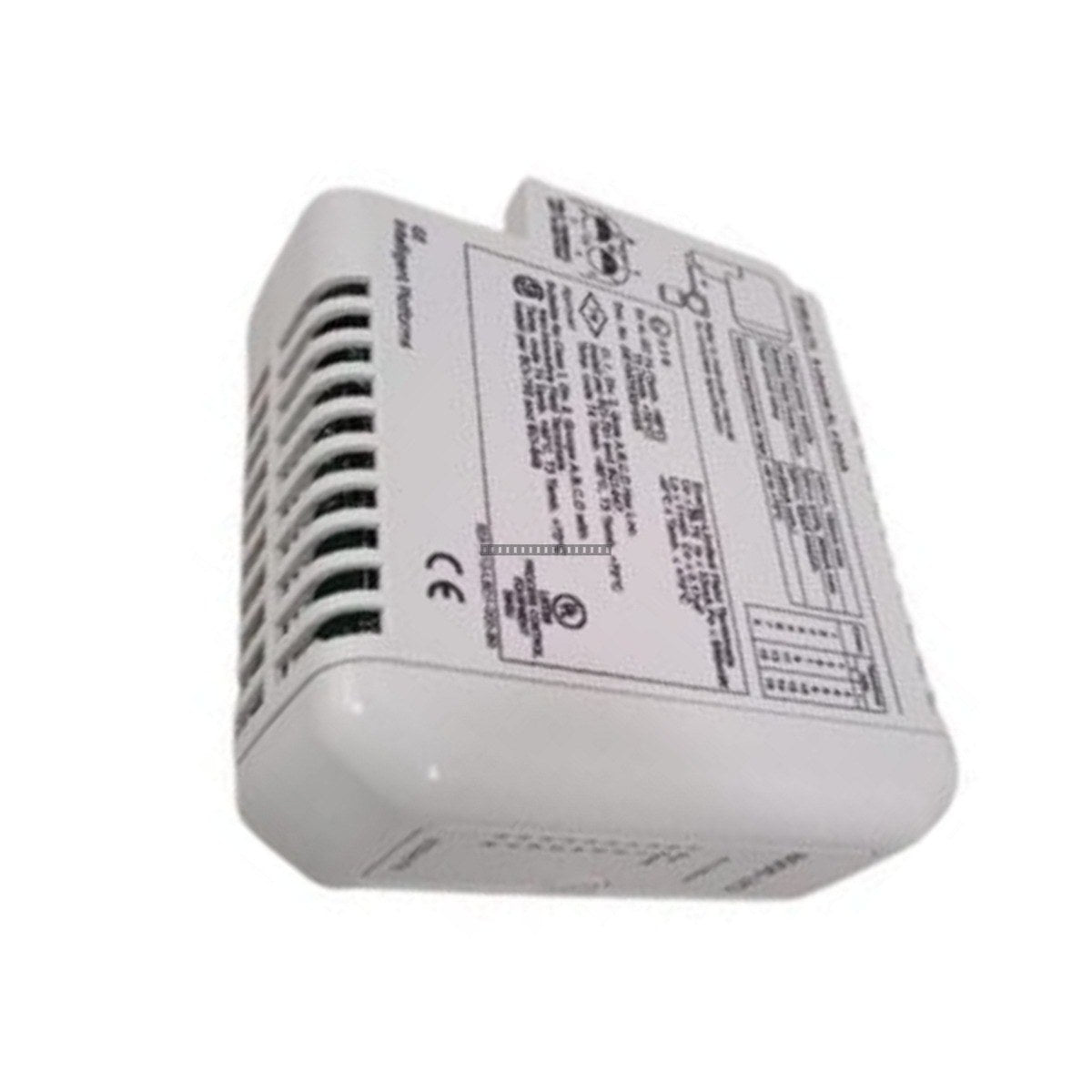

The 8103-AI-TX is a high-density analog input module designed for integration into GE Fanuc PLC and machine control systems. This 8-channel module is engineered to interface directly with 2-wire transmitters, converting 4-20 mA current loop signals into digital data for precise process monitoring. It is a critical component for industrial applications such as chemical processing, oil and gas, and automated manufacturing, where accurate tracking of pressure, flow, and temperature variables is essential for operational efficiency.
Features
-
8-Channel Configuration: Provides high-density signal acquisition for multiple field instruments.
-
2-Wire Transmitter Support: Optimized for standard 4-20 mA current loop instrumentation.
-
Signal Conditioning: Integrated filtering to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI).
-
Galvanic Isolation: Protects backplane electronics from field-side electrical surges and ground loop interference.
-
Real-Time Processing: High-speed backplane communication enables rapid polling of all channels for critical control loop feedback.
Applications
This module is suitable for use in large-scale industrial control systems requiring reliable data acquisition. Typical applications include:
- Process control and monitoring in chemical and petrochemical plants.
- Flow and pressure monitoring in oil and gas infrastructure.
- Automated manufacturing lines requiring precise analog sensor integration.
- Proactive maintenance systems where high-fidelity signal data is required to reduce downtime.
Technical Specifications
| Model |
8103-AI-TX |
| Brand |
GE Fanuc |
| Channels |
8 |
| Input Type |
4-20 mA Current Loop |
| Compatibility |
2-wire transmitters |
| Operating Temperature |
0 to 60 degC |
| Mounting |
Standard PLC I/O rack |
Installation Guidelines
-
Handling: Ensure proper ESD (electrostatic discharge) precautions are taken when handling the module to prevent damage to internal circuitry.
-
Power: Always disconnect power from the PLC rack before inserting or removing the module to avoid electrical arcing or damage to the backplane.
-
Wiring: Use shielded twisted-pair cabling for all analog inputs to minimize noise pickup. Ensure the shield is grounded at the appropriate terminal point as specified by the system design.
-
Environment: Install in a clean, dry environment within the specified operating temperature range. Ensure adequate ventilation within the cabinet to prevent heat buildup.
-
Mounting: Ensure the module is fully seated in the rack slot and that all retaining screws are tightened to provide a secure connection to the backplane.
FAQ
What is the primary function of the 8103-AI-TX?
The 8103-AI-TX is an analog input module that converts 4-20 mA signals from 2-wire field transmitters into digital data for use by a GE Fanuc PLC system.
Does this module require external power for the loops?
The module is designed to support 2-wire transmitters; power consumption and loop power requirements depend on the specific backplane loading and the configuration of your control rack.
Can this module be used in high-noise environments?
Yes, the module features advanced filtering and galvanic isolation to protect against EMI, RFI, and ground loop interference, making it suitable for dense electrical cabinet environments.
